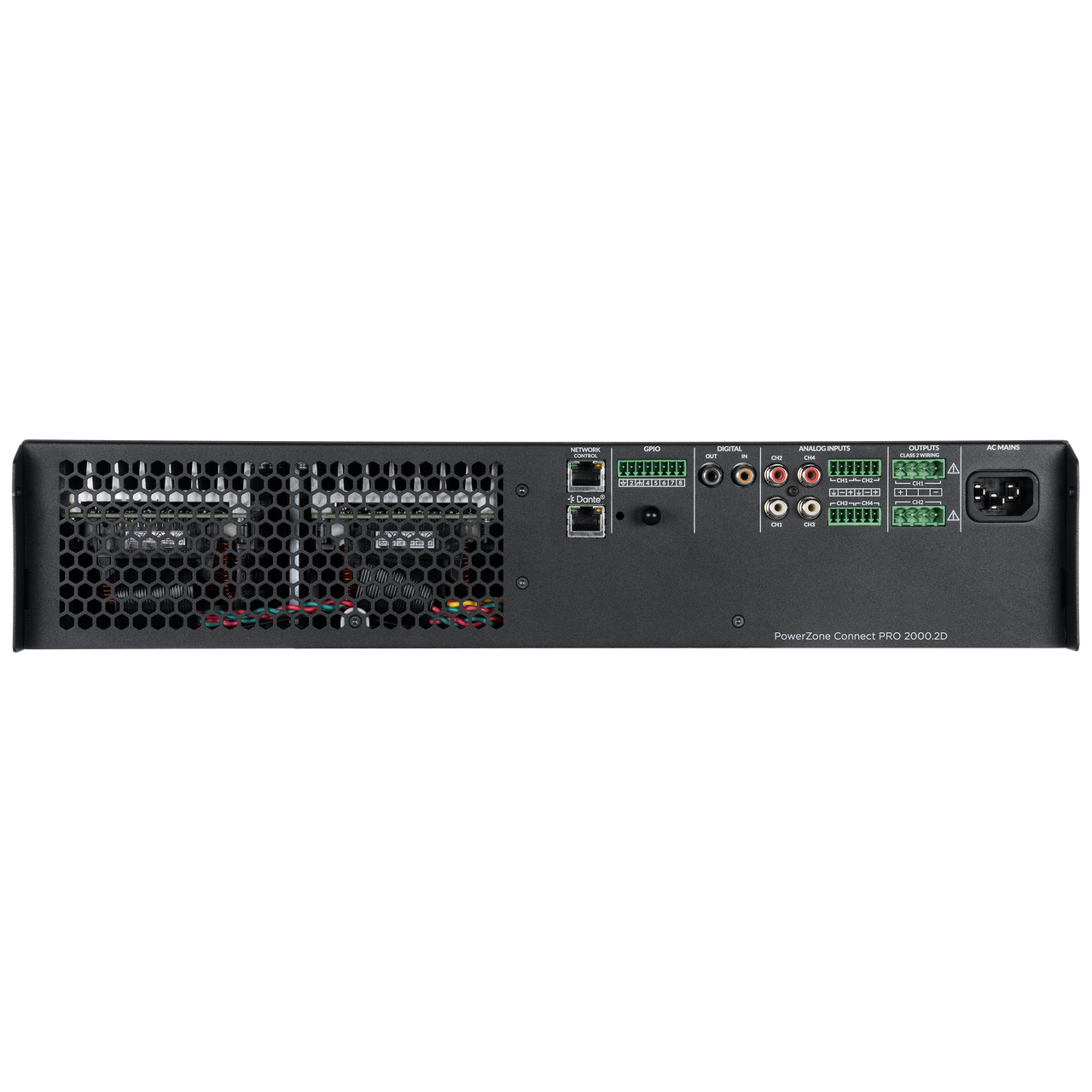

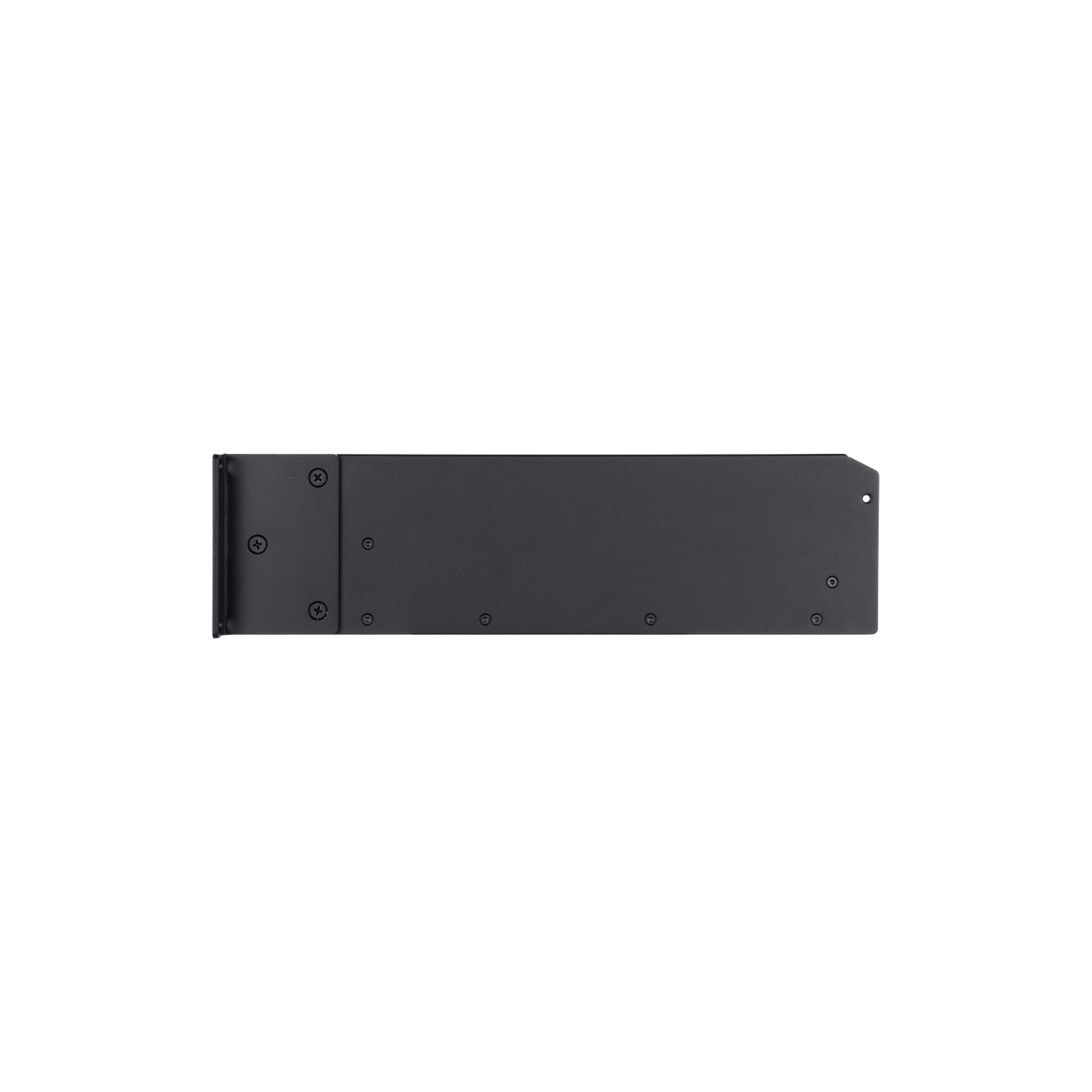

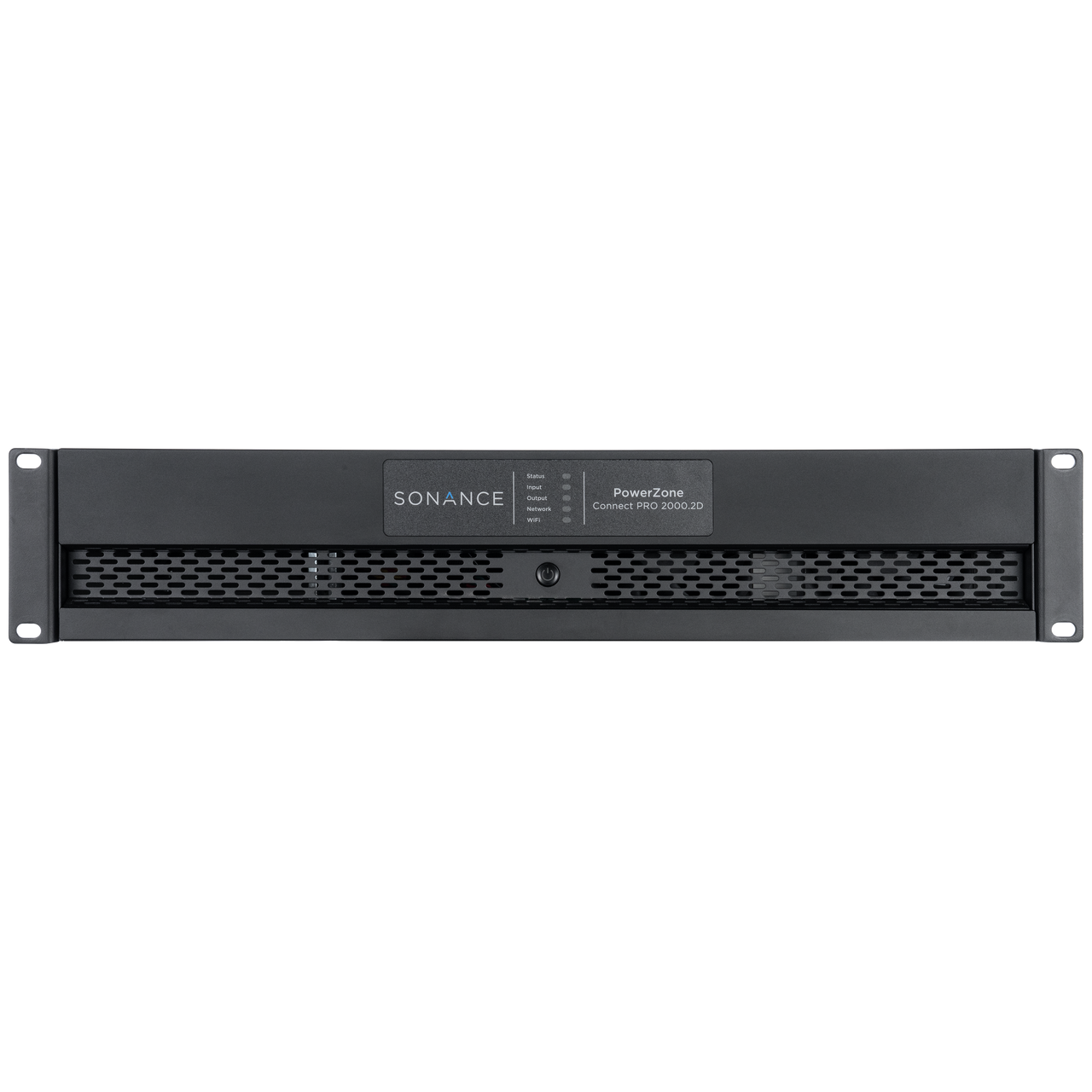

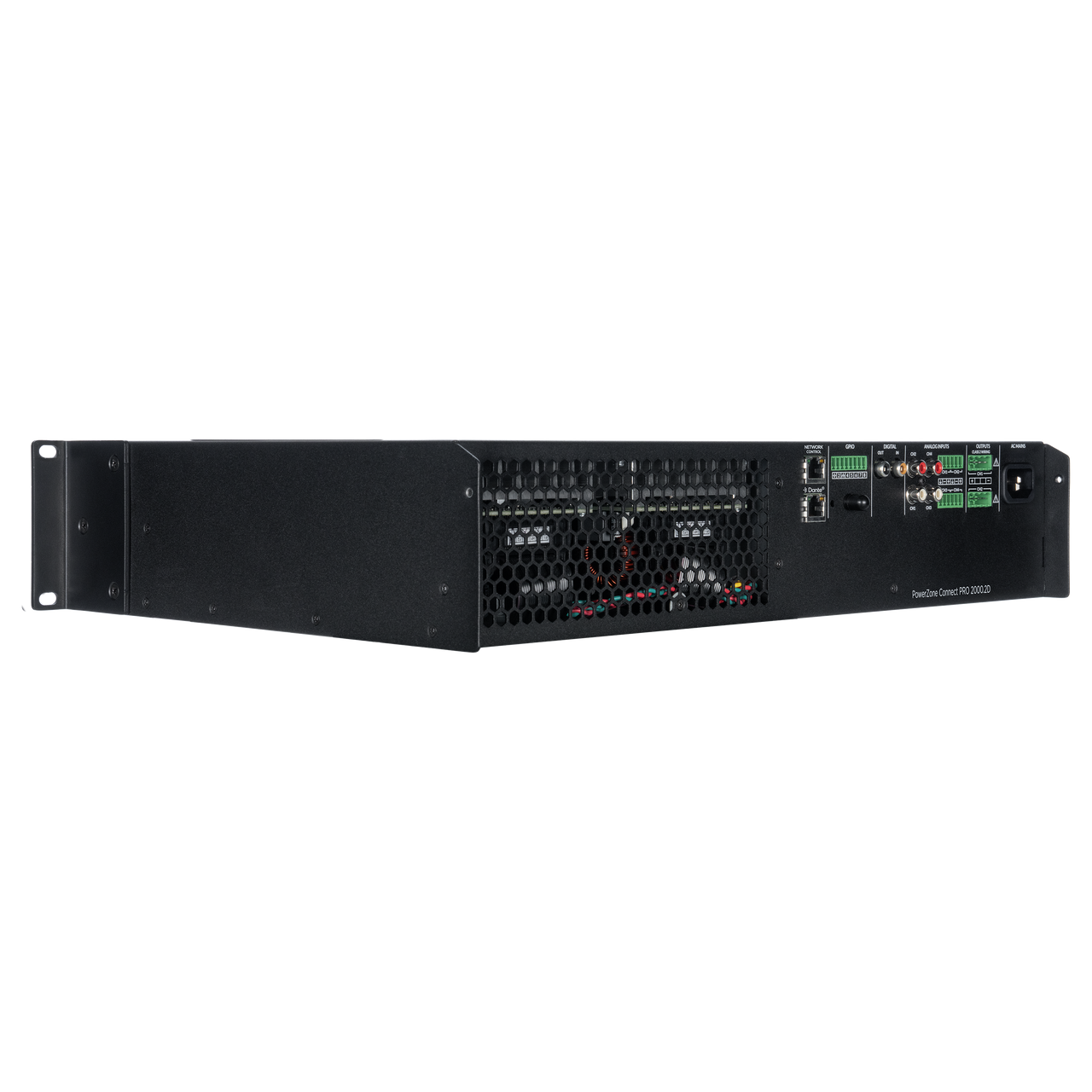

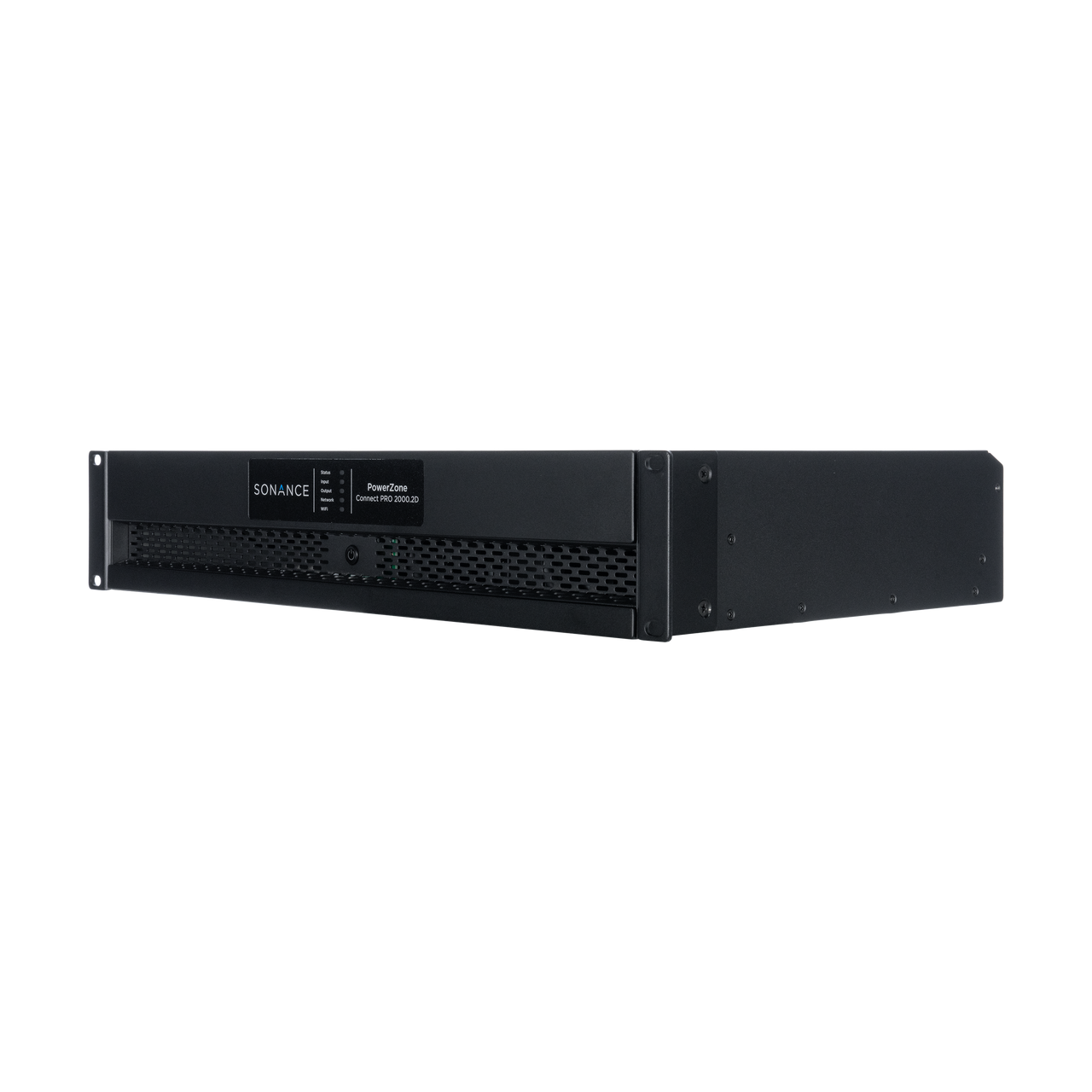

PowerZone Connect PRO 2000.2D (Universal Powercord)
Amplifiers
2000 W DSP-enabled Class D amplifier with 2 channels and Dante audio networking. Universal power cords included.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Key Features
- Full-rack, 2U form factor
- 2 x 1000 W at 70V/100V (2000 W total system power)
- Purpose-built for 70V/100V distributed audio with selectable Hi-Z/Lo-Z operation
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Preloaded Sonance loudspeaker presets for optimized performance
- Audinate Dante 4x4 AoIP networking
- Control the system from the Wall-M controller or Sonance iOS app
- Configurable GPIO
- Control drivers and open API support for third-party control systems
- UL Listed audio equipment
- ErP and ENERGY STAR compliant
- Sonance 5-year warranty
Specifications
SKU
93810 (PowerZone Connect PRO 2000.2D), 93822 (PowerZone Connect PRO 2000.2D UNI)
Dimensions (WxHxD)
17.3" x 3.5" x 12.6" (439.42mm x 88.9mm x 320.04mm)
Weight
16.3 lbs. (7.39kg)
Channel Configuration
Hi-Z: 2 x 1000W @70/100V Lo-Z: 2 x 1000W @4/8Ω
Total System Power
2000 W
Output Power @ 4 ohms
2 x 1000 W
Output Power @ 8 ohms
2 x 1000 W
Output Power @ 70V
2 x 1000 W
Output Power @ 100V
2 x 1000 W
Power Consumption
700 W
Dante Compatibility
Yes
Rack Units
2U
