UA 2-125 ARC









UA 2-125 ARC
Amplifiers

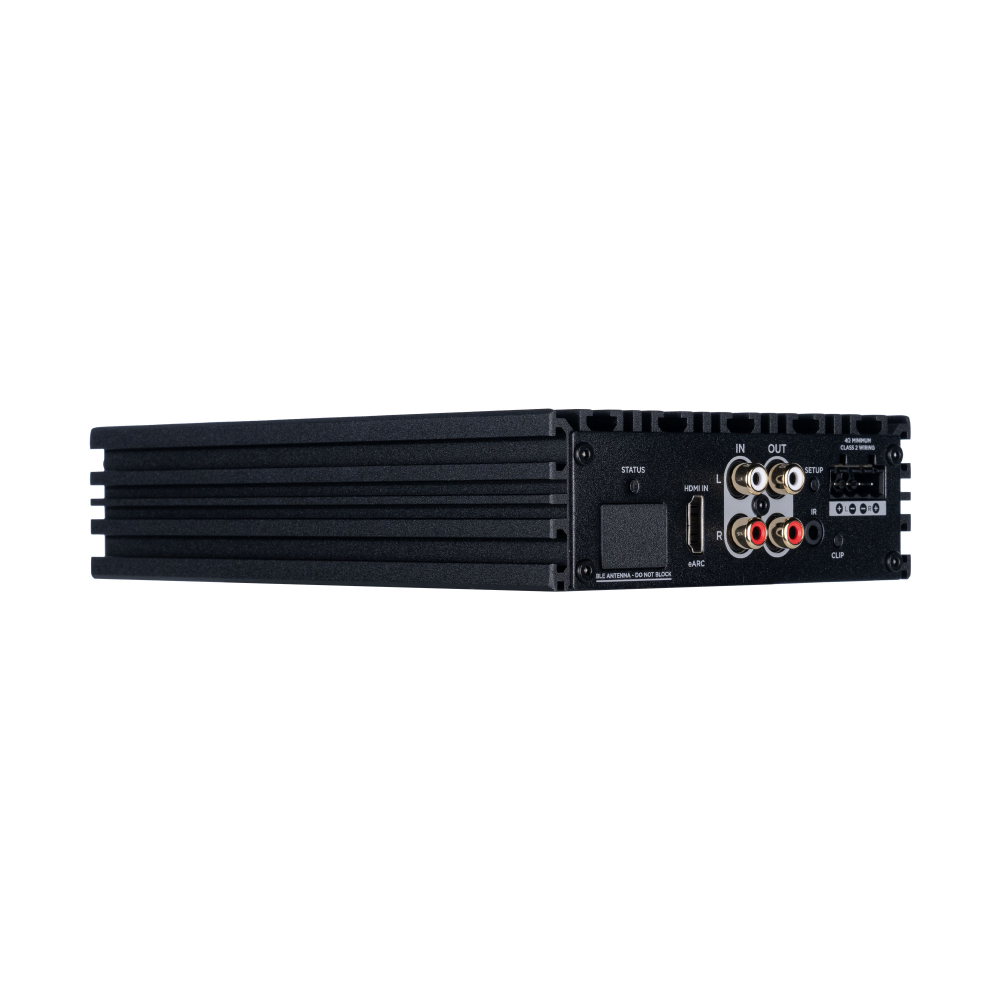

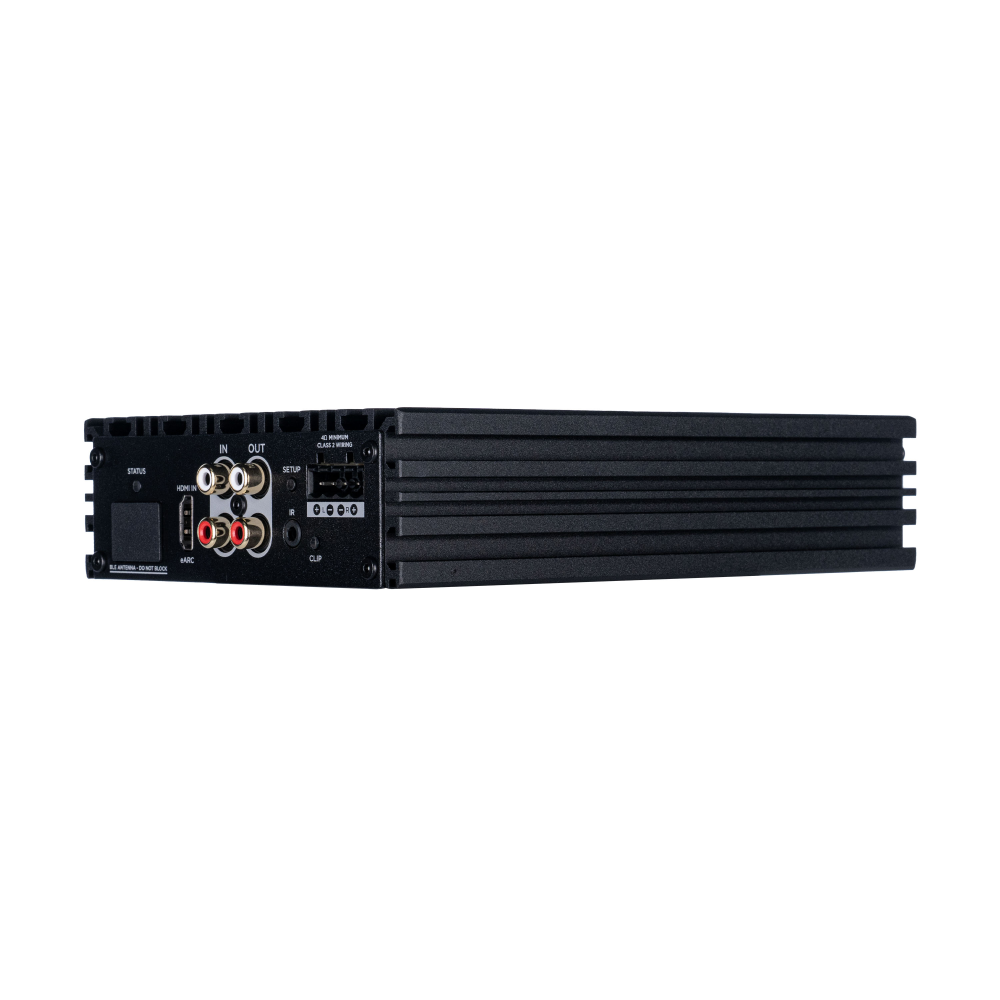

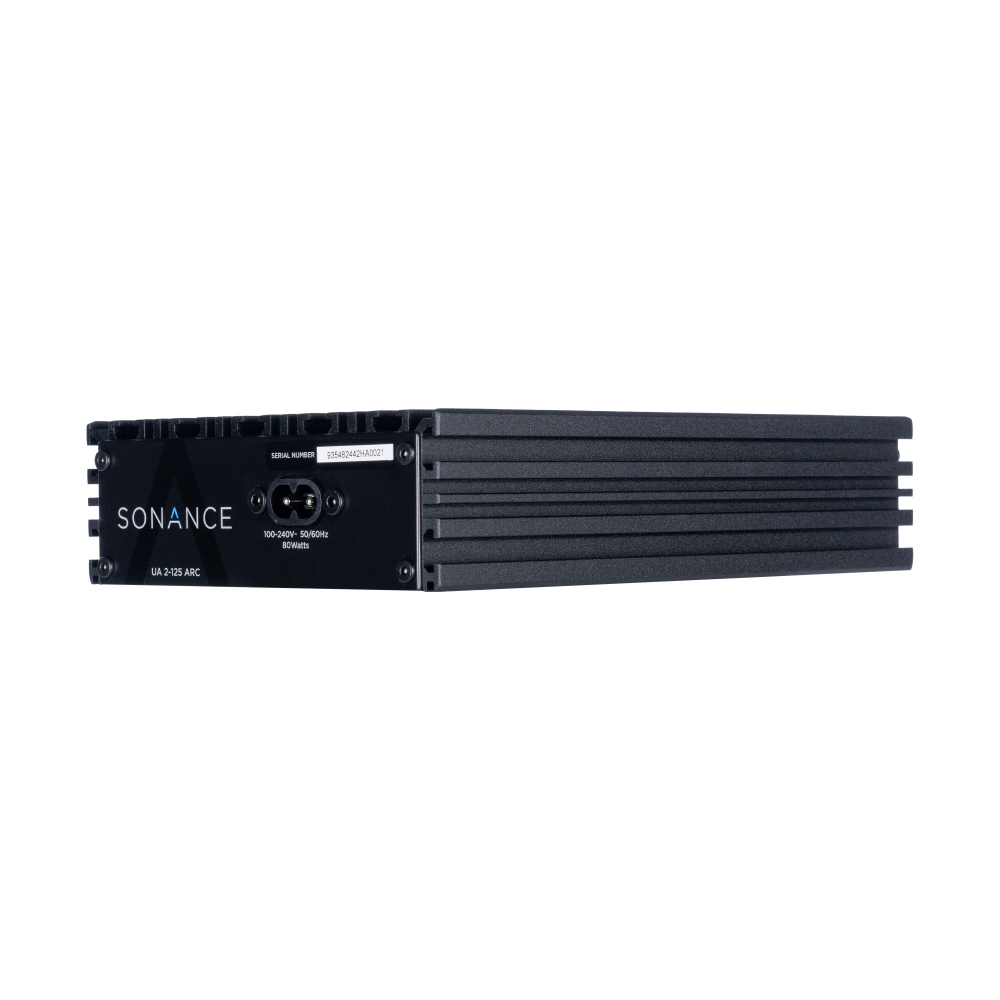

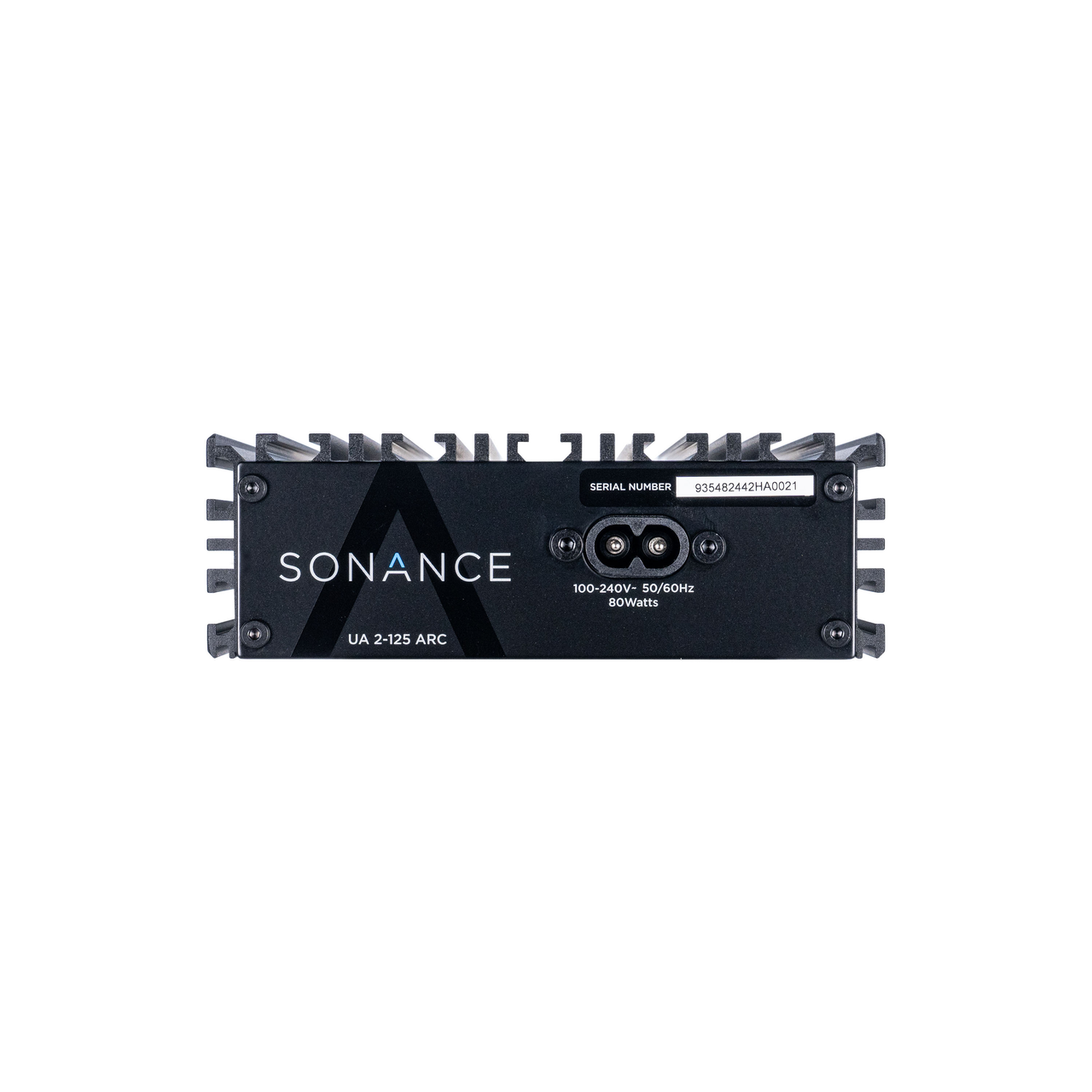

The UA 2-125 ARC is an ultra-compact 2-channel DSP amplifier delivering 125W per channel (250W in bridged Power Sharing Mode). Featuring eARC support for local zone TV audio, flexible mounting with a T-slot chassis, and easy setup via the SonARC for UA Series Amplifiers app, it's designed for performance and versatility in any space.
Key Features
- 2 Channel - 125wpc 8Ω|4Ω - Power Share in 4Ω to 250w

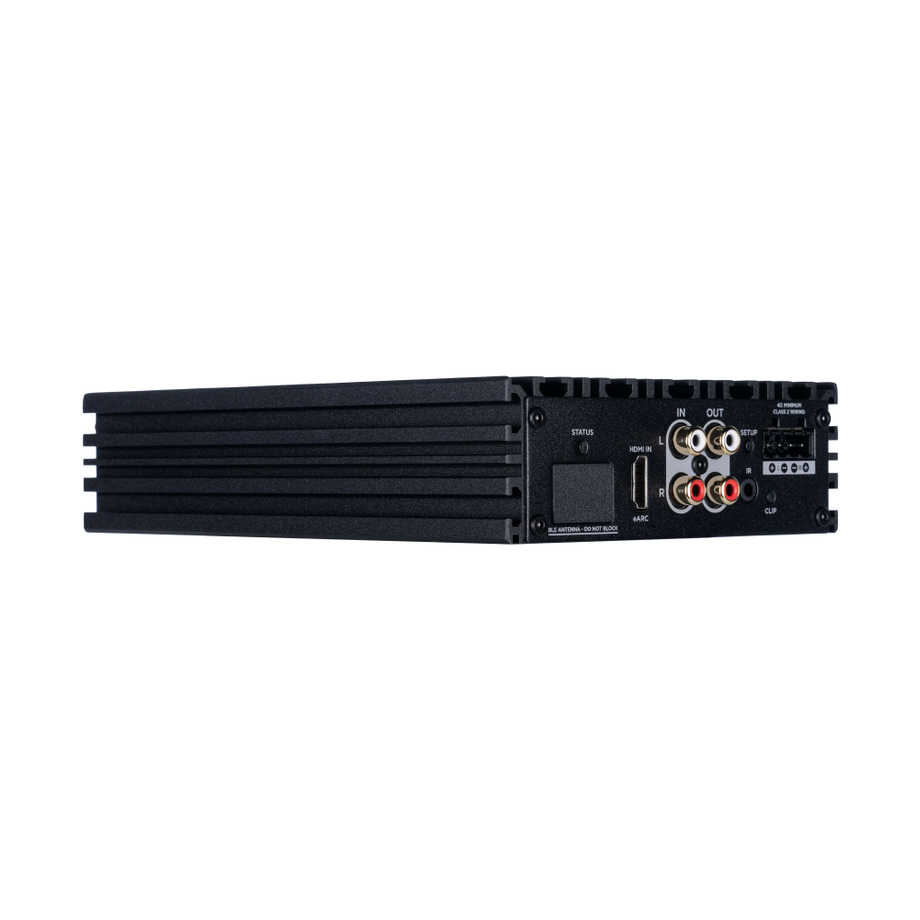

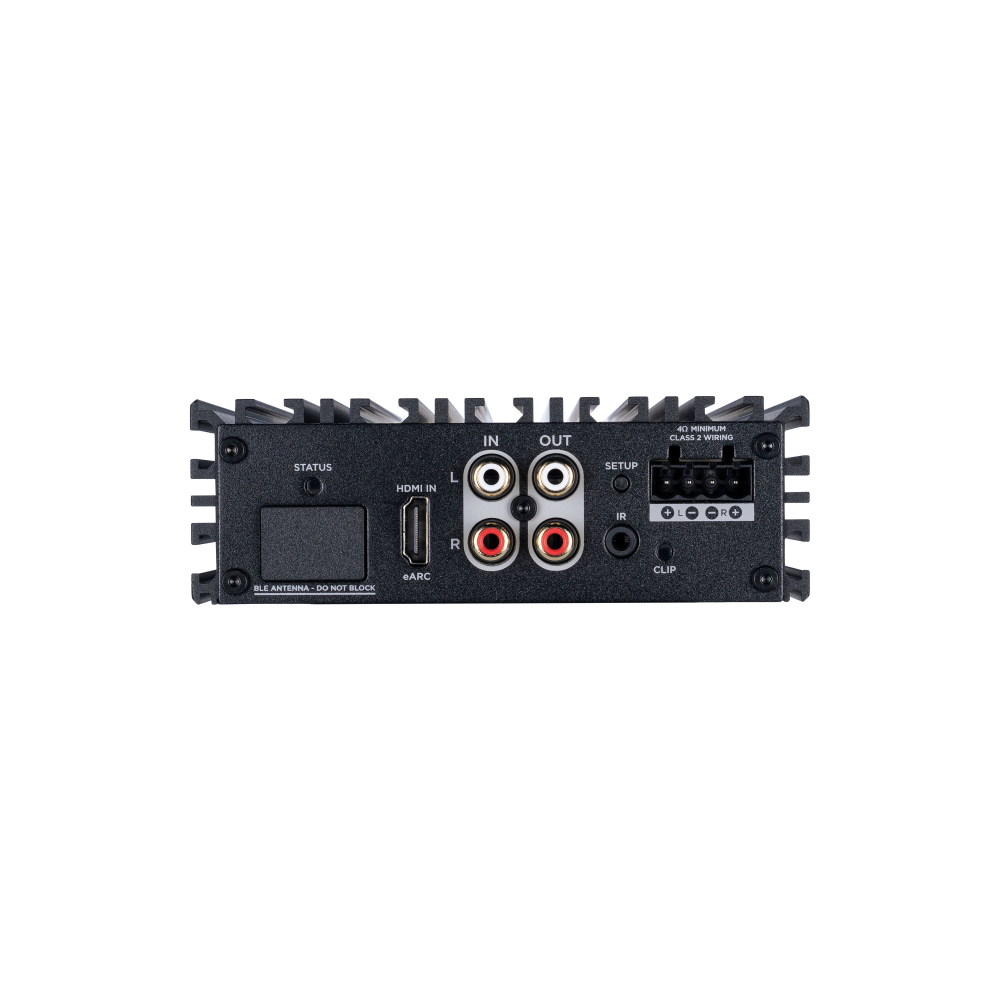

- HDMI eARC/CEC and Analog (RCA) Inputs
- Analog (RCA) outputs with volume tracking and DSP
- Supports 2 channel PCM
- Fully capable DSP
- Bluetooth-enabled app for setup

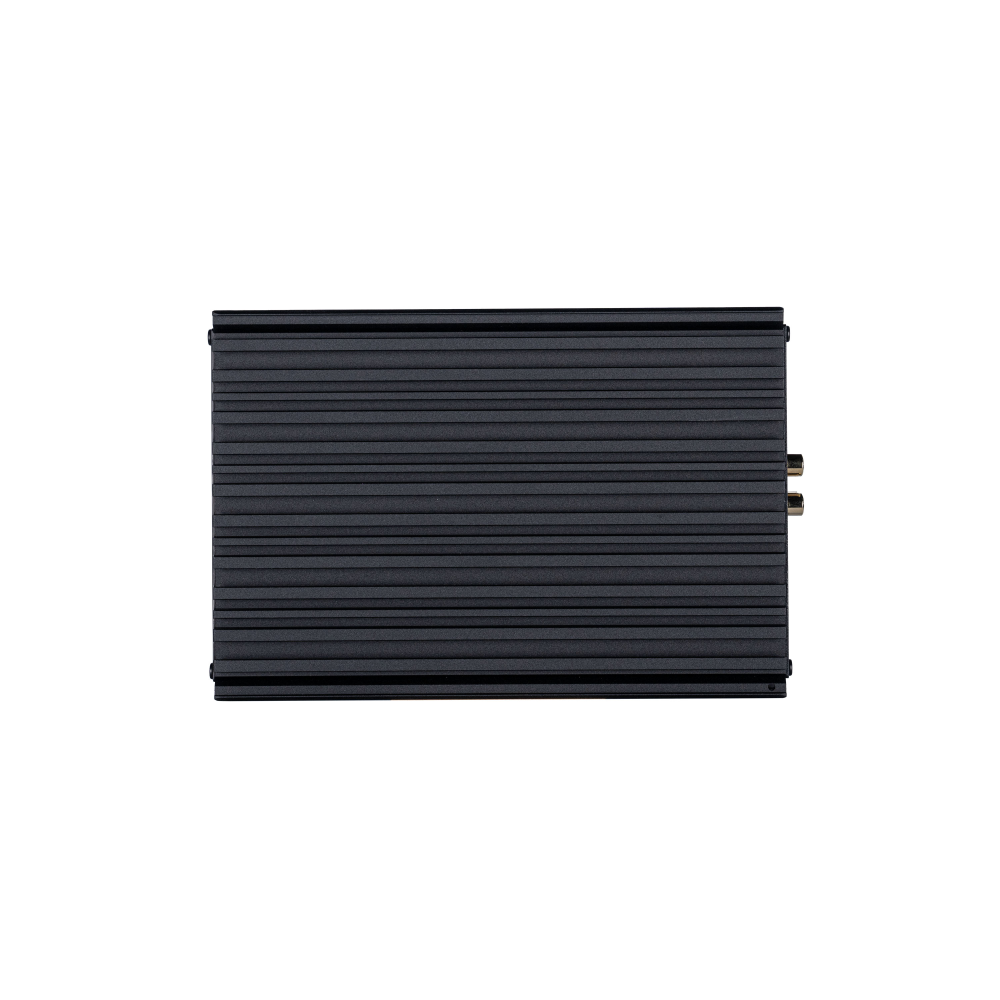

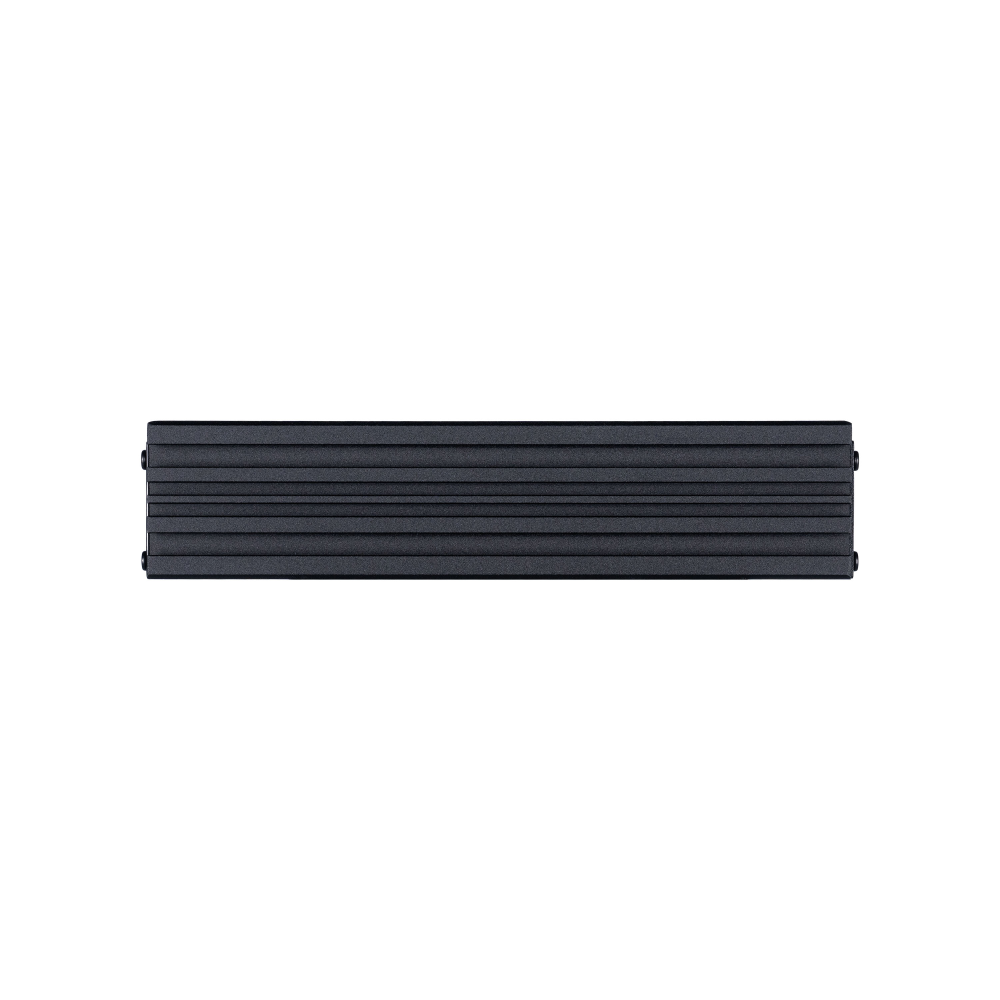

- Integrated Heatsink/Chassis with industry standard T-Slot Mounting
- HDMI CEC, Audio Sense and IR Control (with learning capability)
- Ultra-compact (5.25" x 1.875" x 7.825") designed for install in structured wiring can, TV back box, or outdoor enclosure
- Supports up to 24bit/96kHz digital input signals
Specifications
SKU | Color
93548

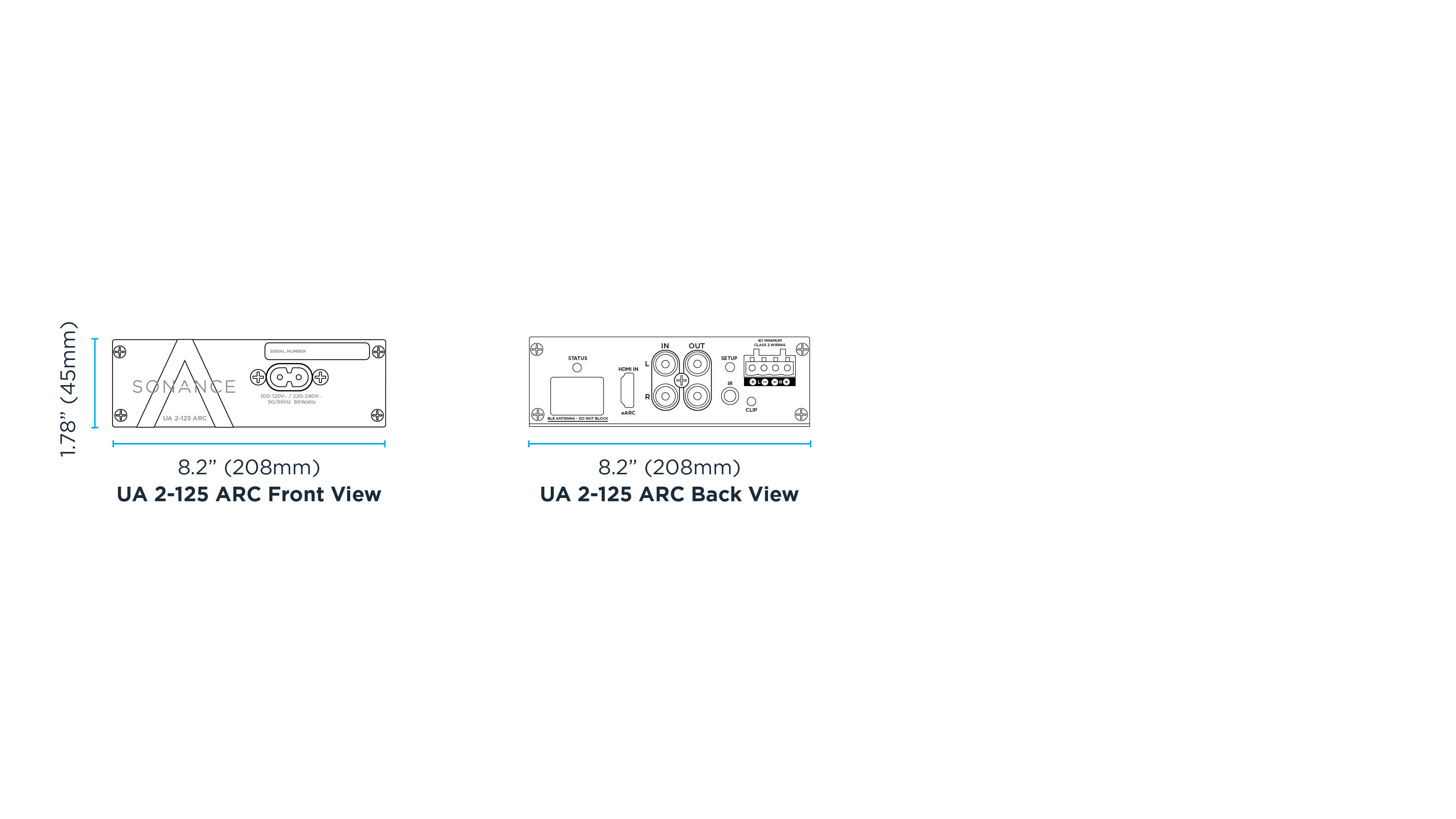

Dimensions No Feet (WxHxD)
5.35" x 1.77" x 8.19" (135.89mm x 44.96mm x 208.03mm)
Mounting Bracket

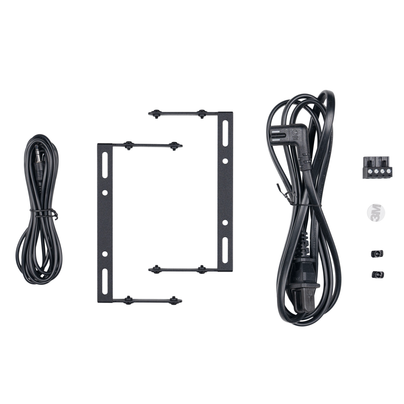

2 x Surface Mounting Brackets (included), 20mm Series Industry Standard T-slots, Built into Chassis Design, Seismic Tether Mounting Hole
Inputs
Analog RCA, HDMI ARC/eARC, 2ch PCM
