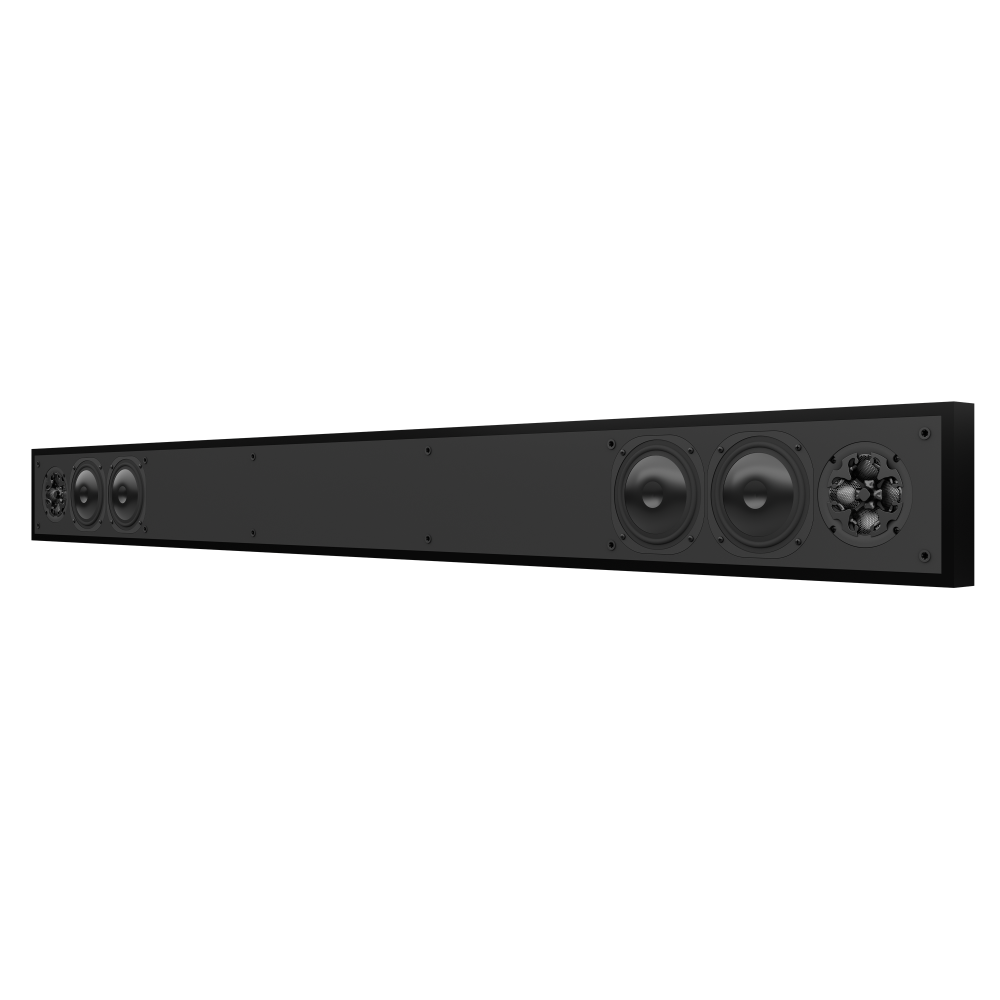

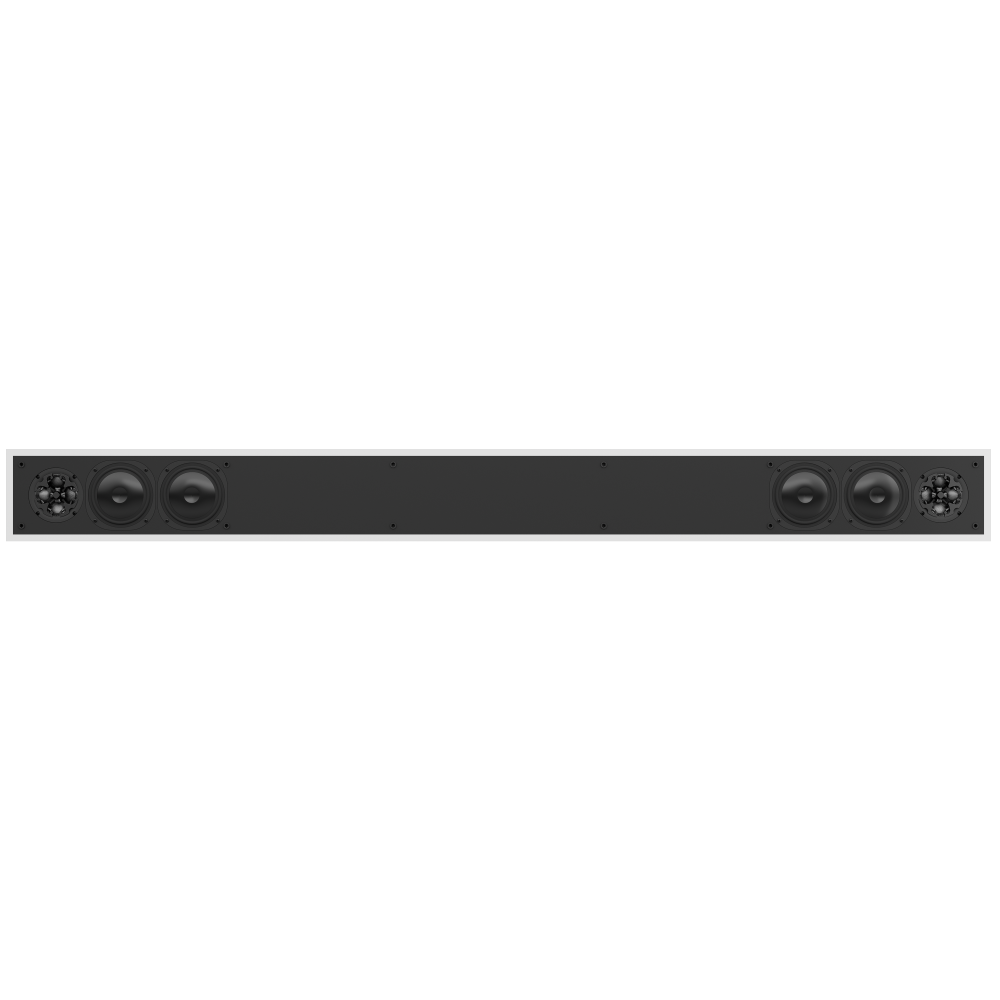

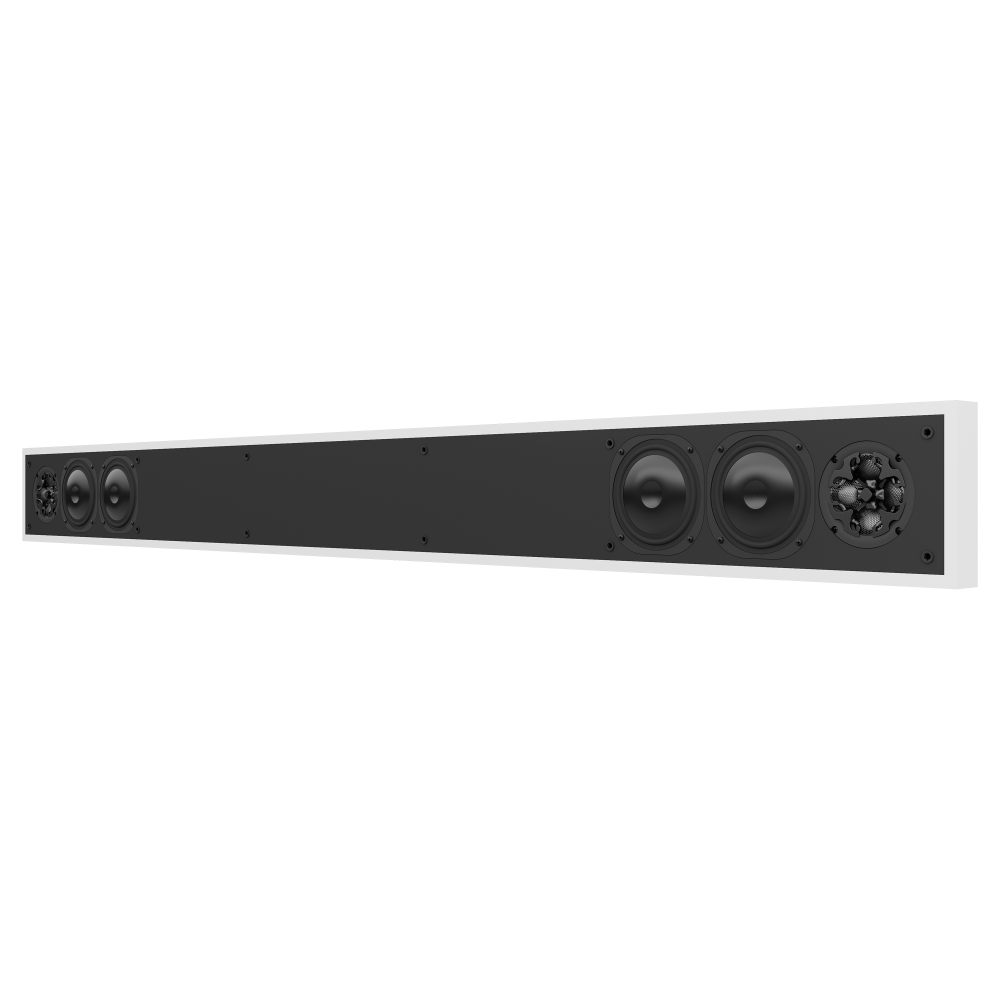

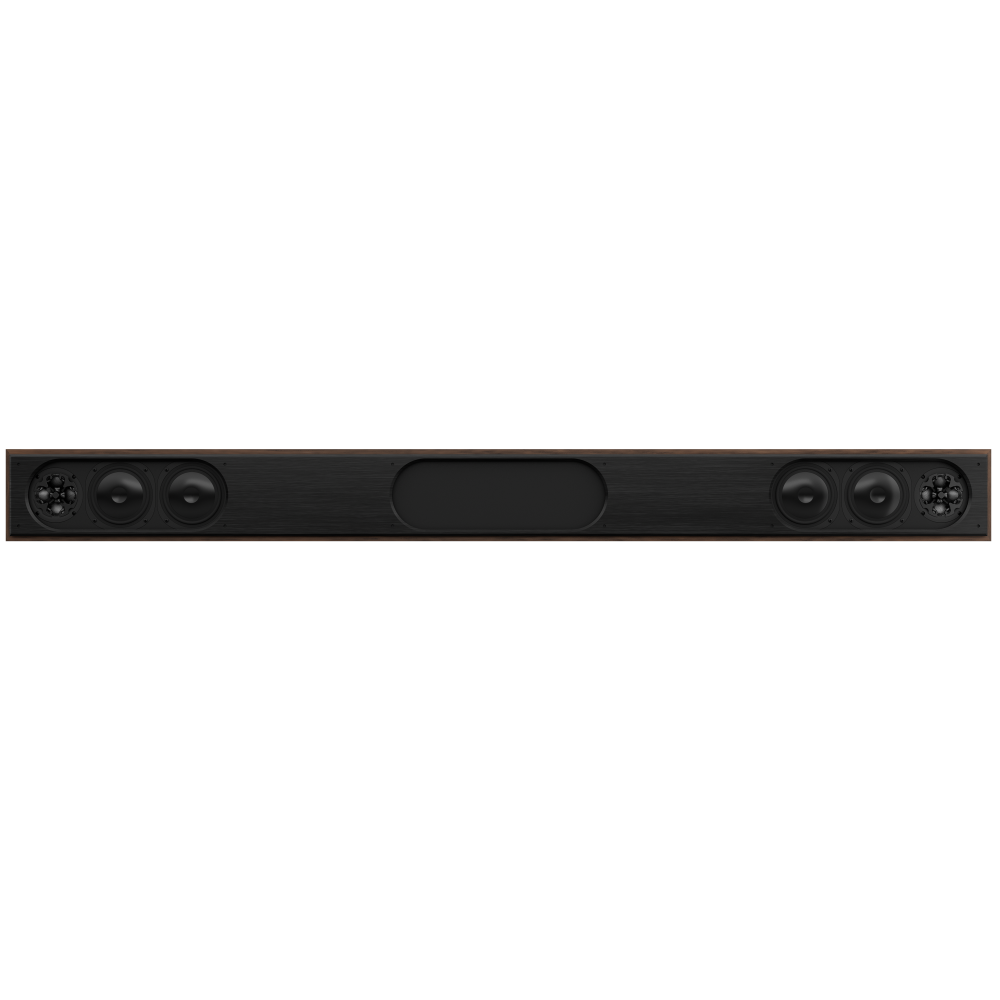

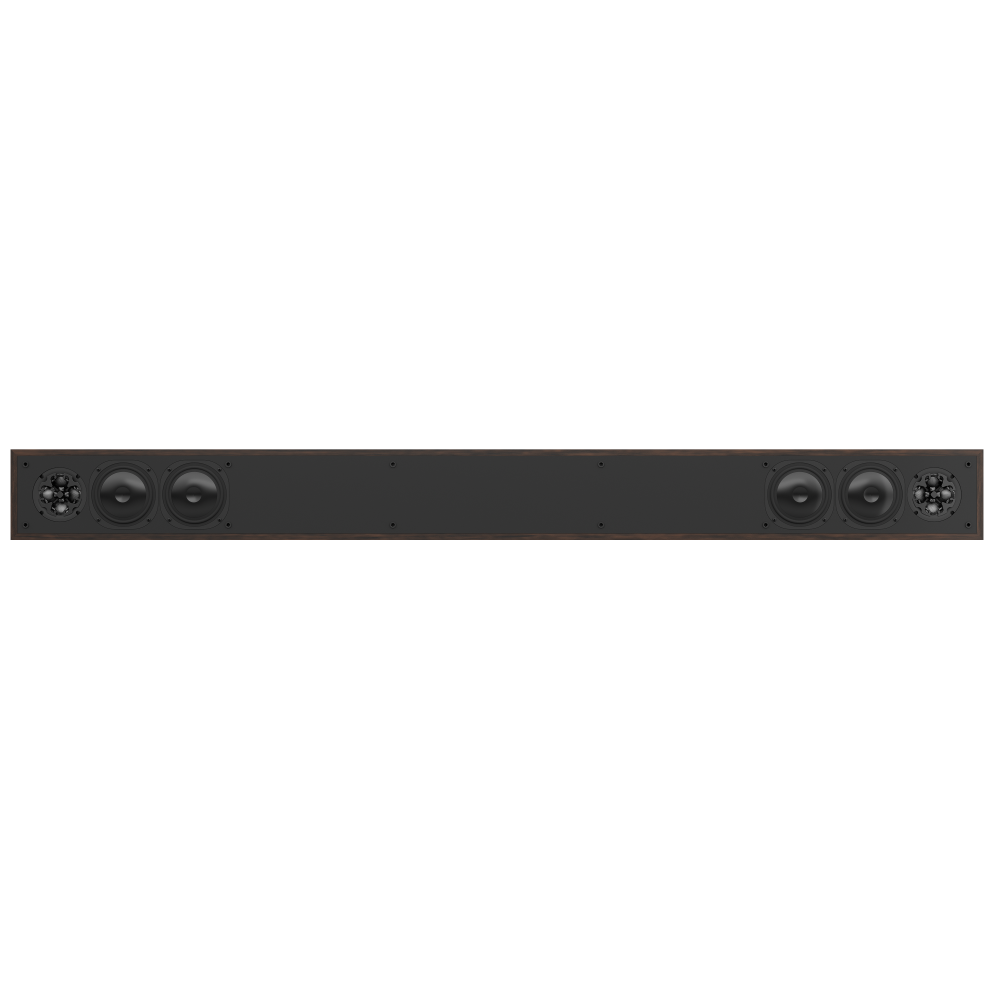

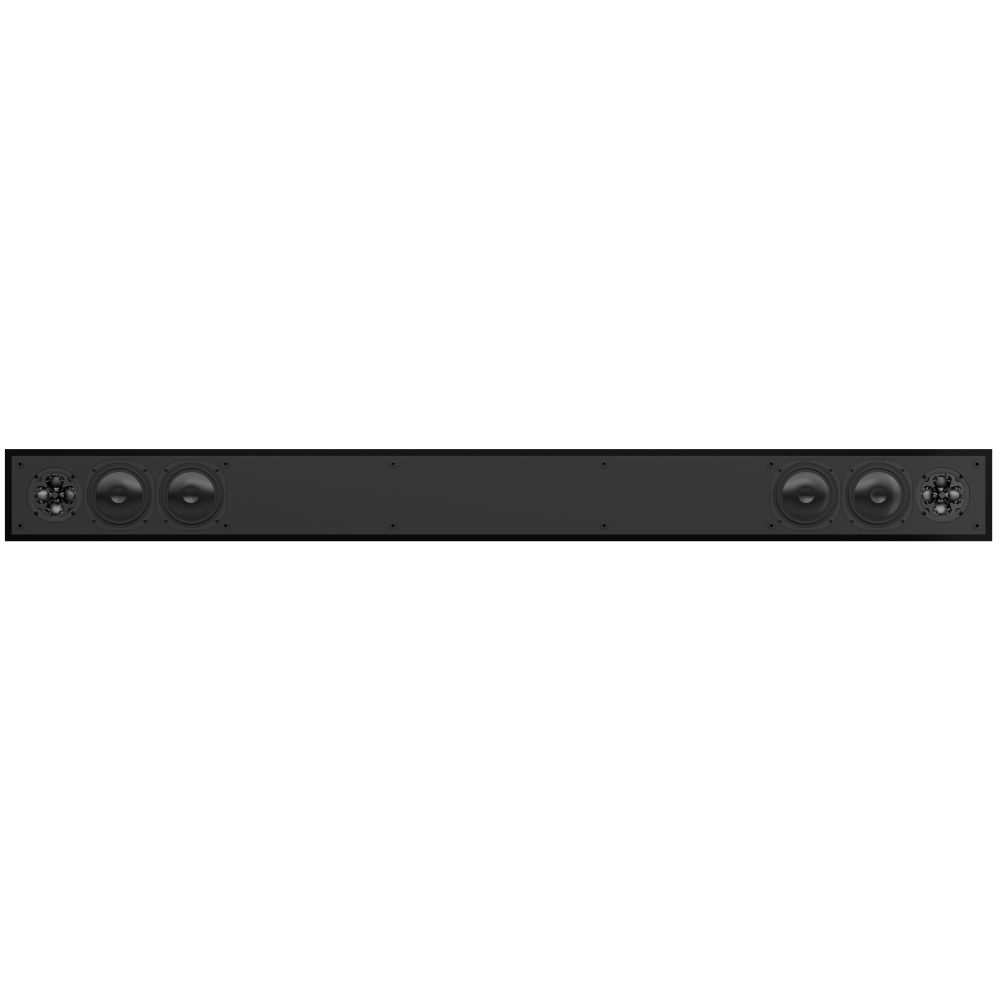

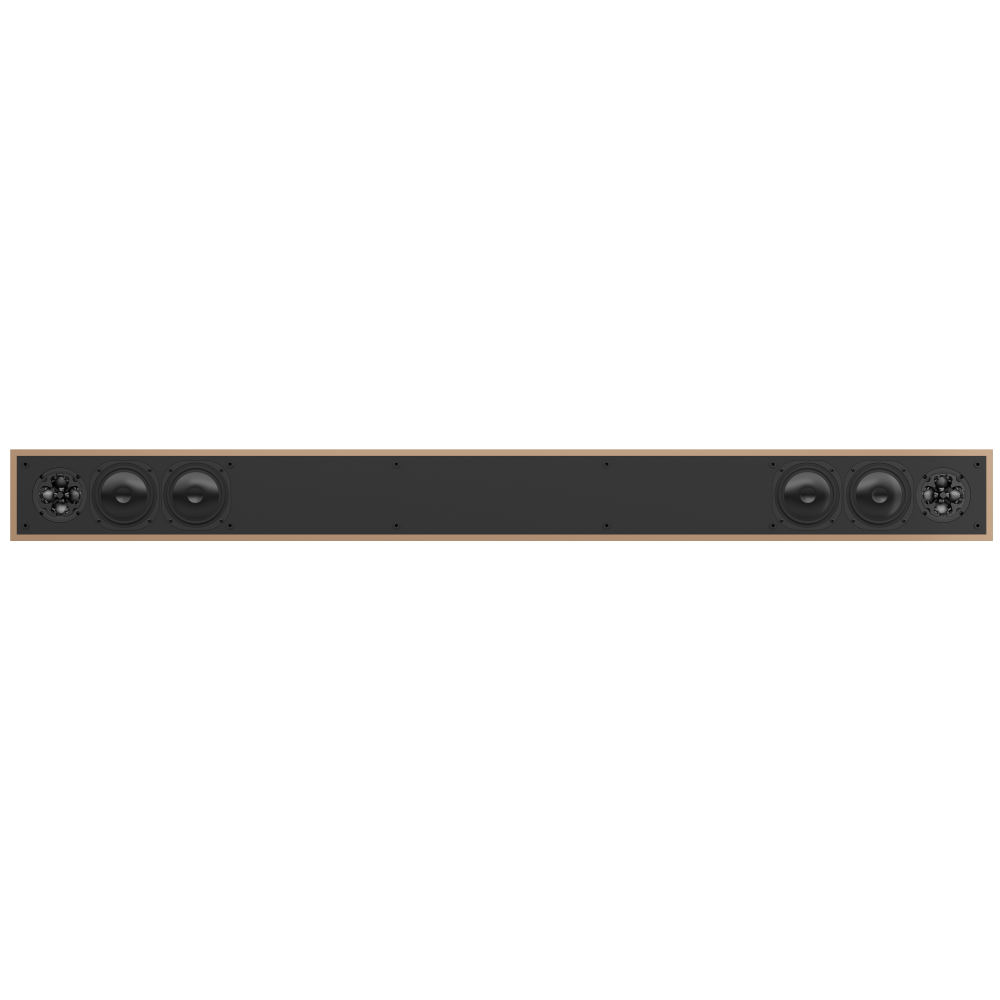

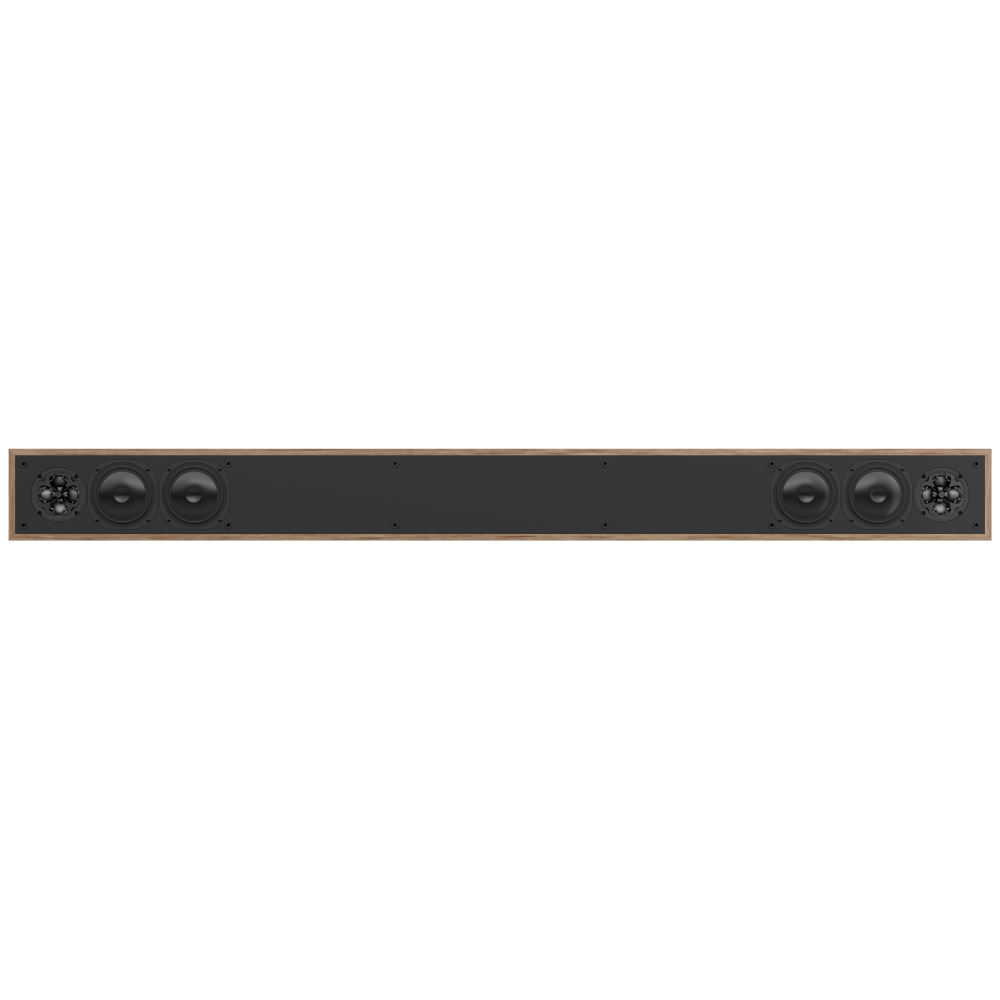

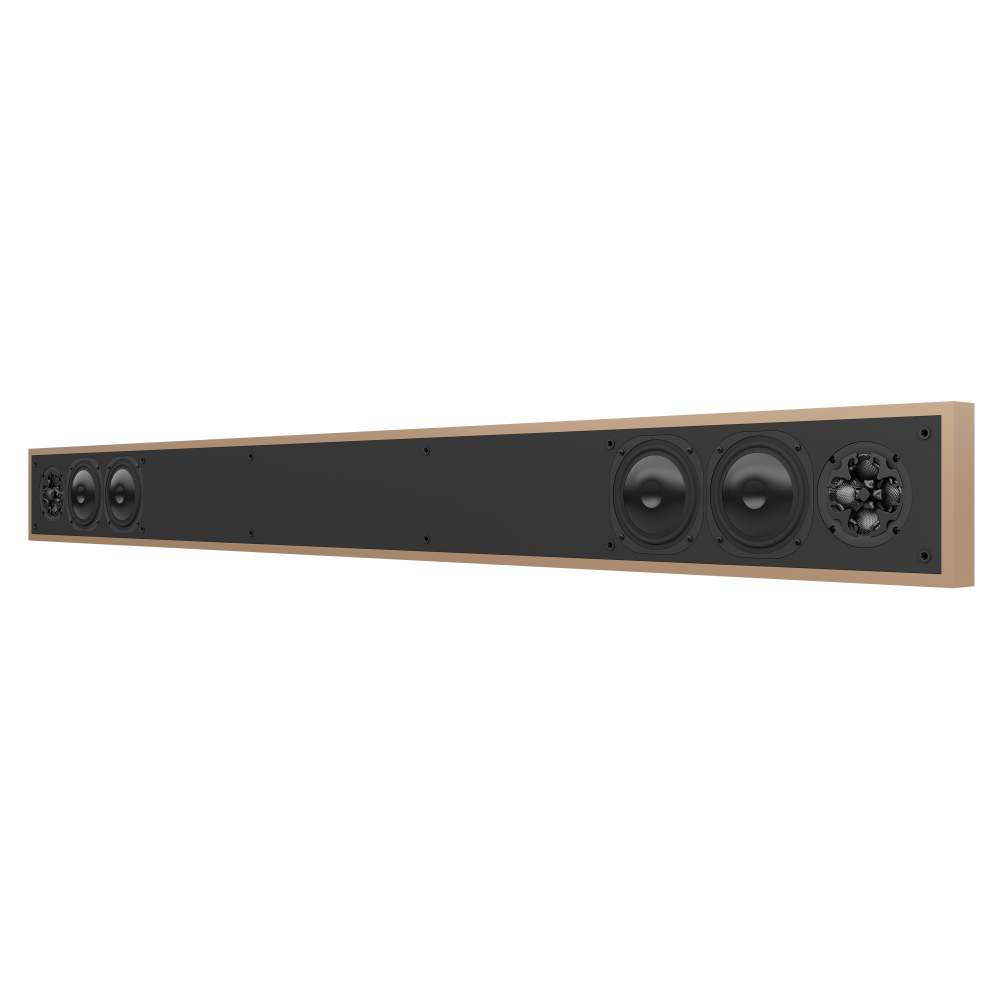

NC5QT-HTL Soundbar
Natural Collection
Key Features

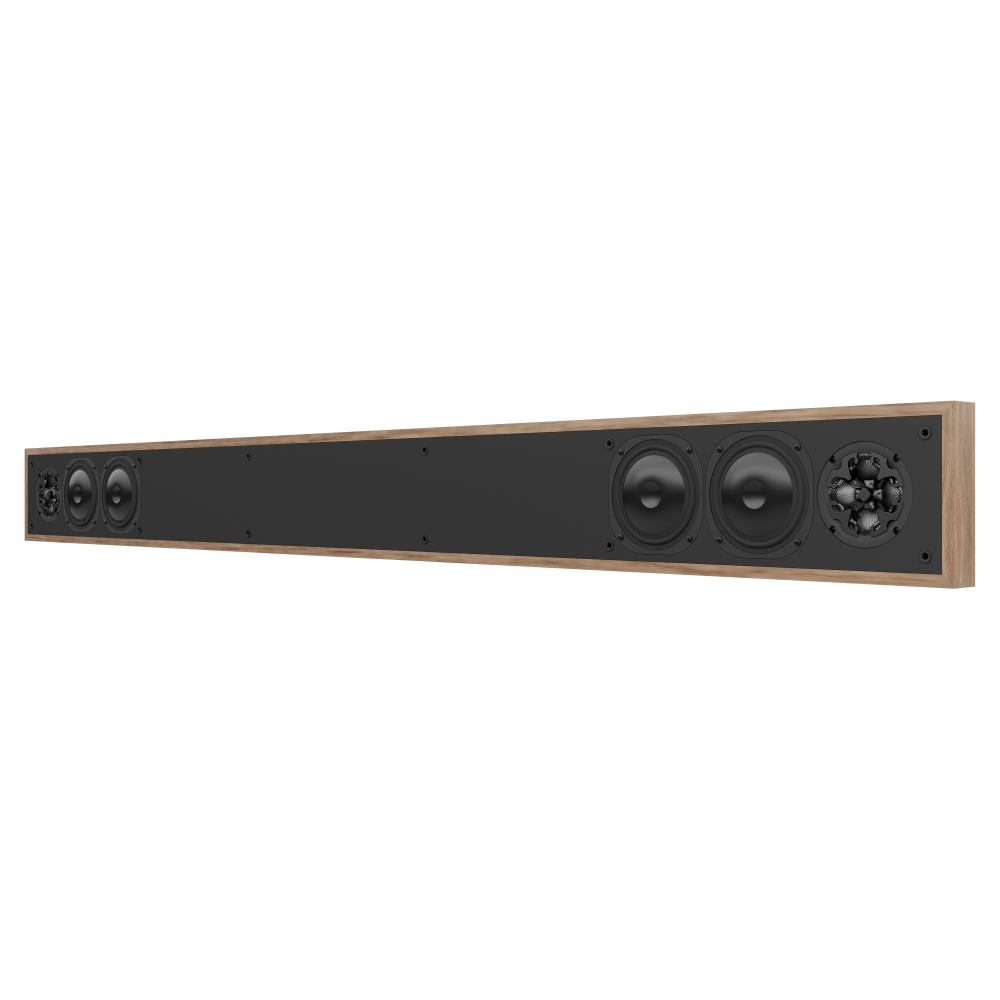

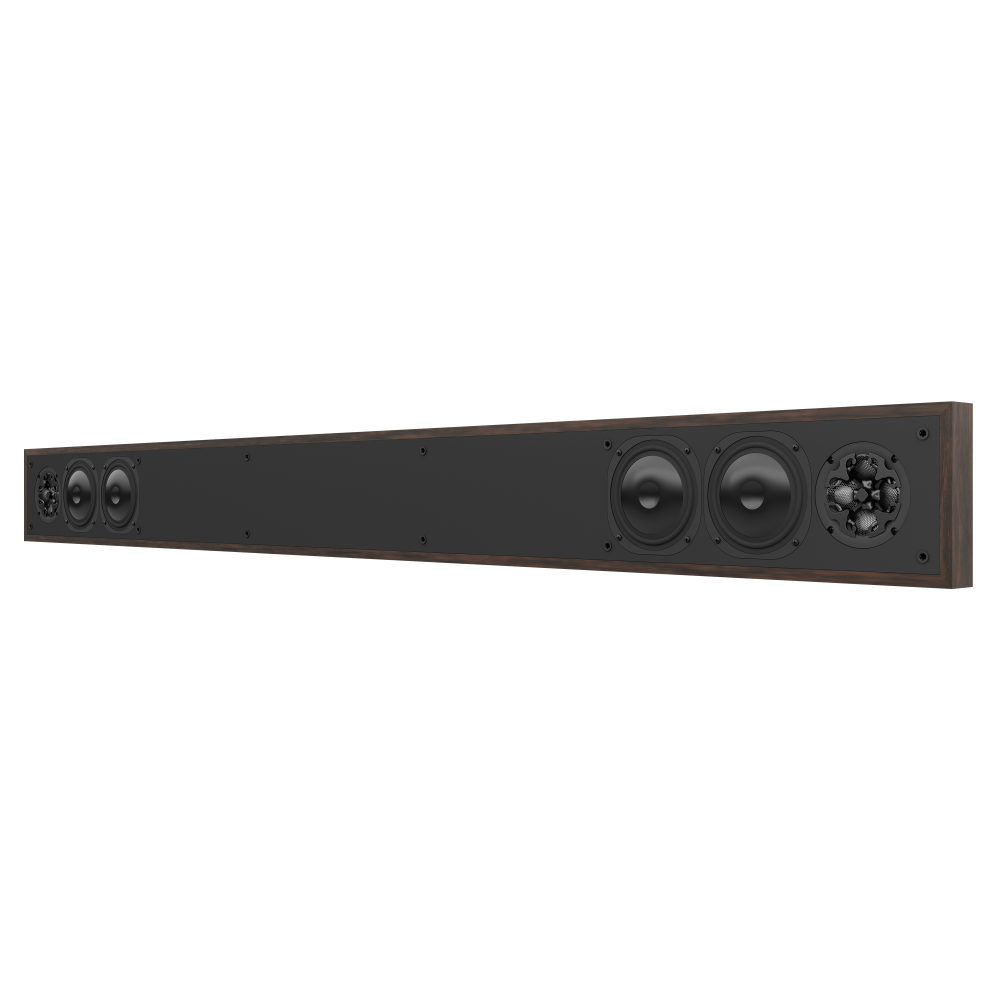

- Premium fabrics and finishes: Choose from five handcrafted wood finishes and nine woven fabrics, or your own custom fabric to complement your space
- 5.25" shallow depth Thin-Line driver with santoprene surrounds for expanded performance in larger spaces
- James Quadratech tweeter for wide, even dispersion and precise imaging

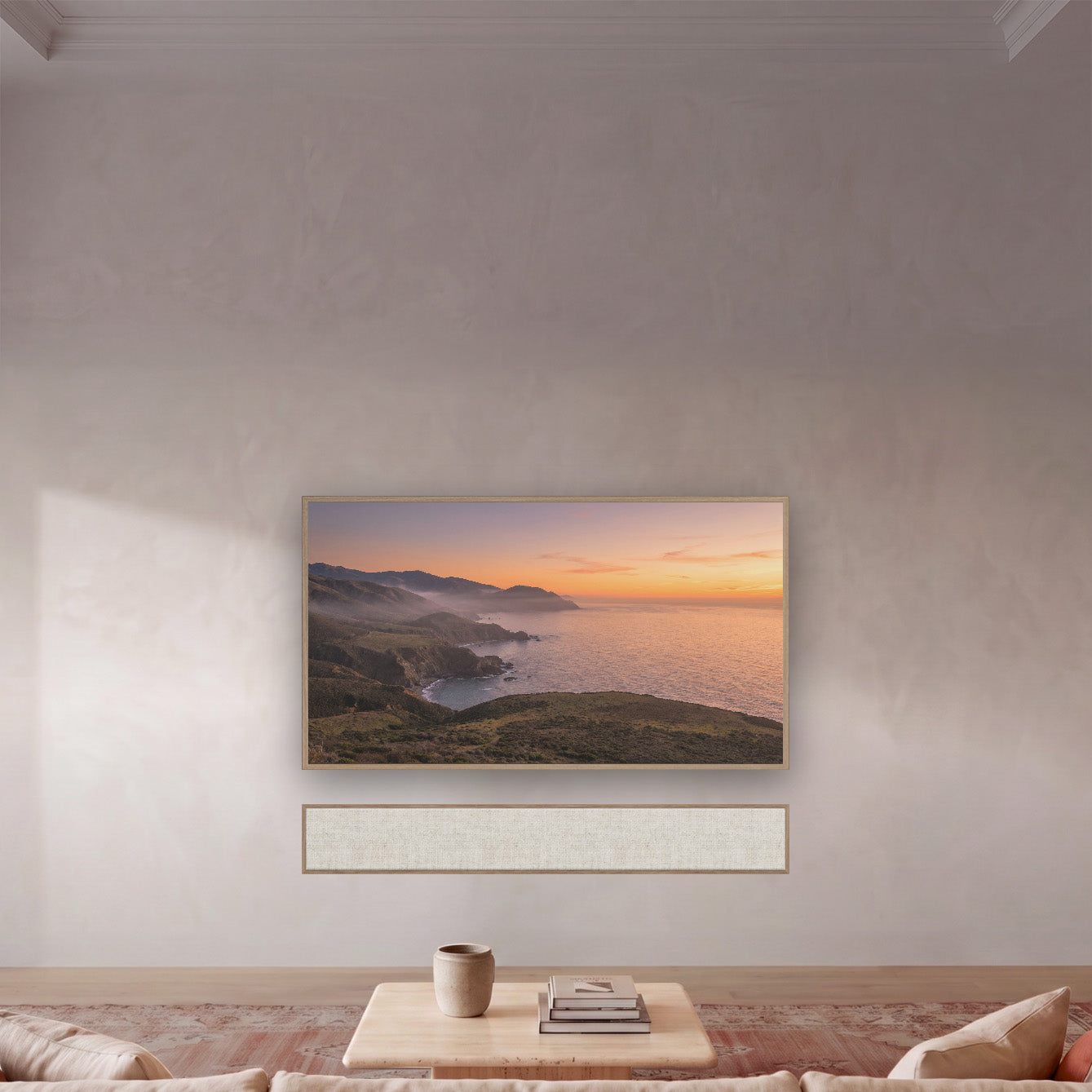

- Dimension-matched to 55", 65", 75", and 85" Samsung Frame TV display widths

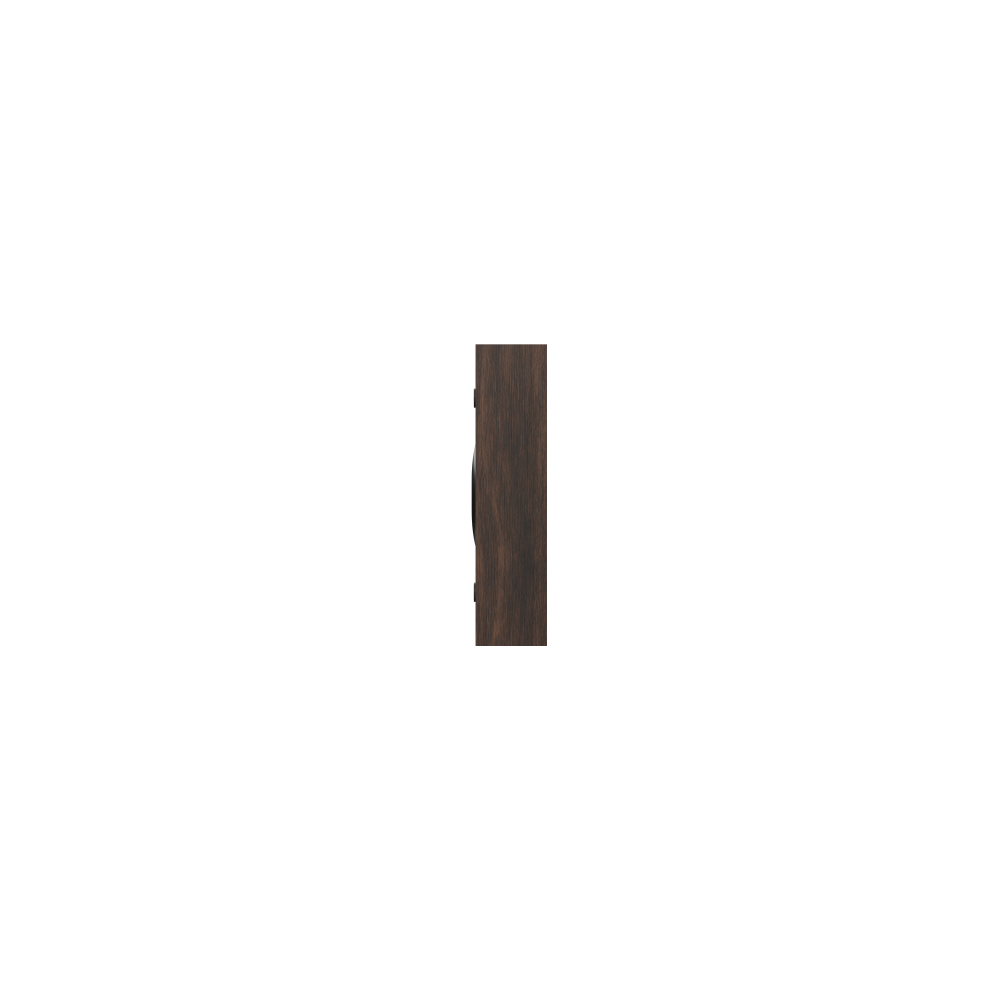

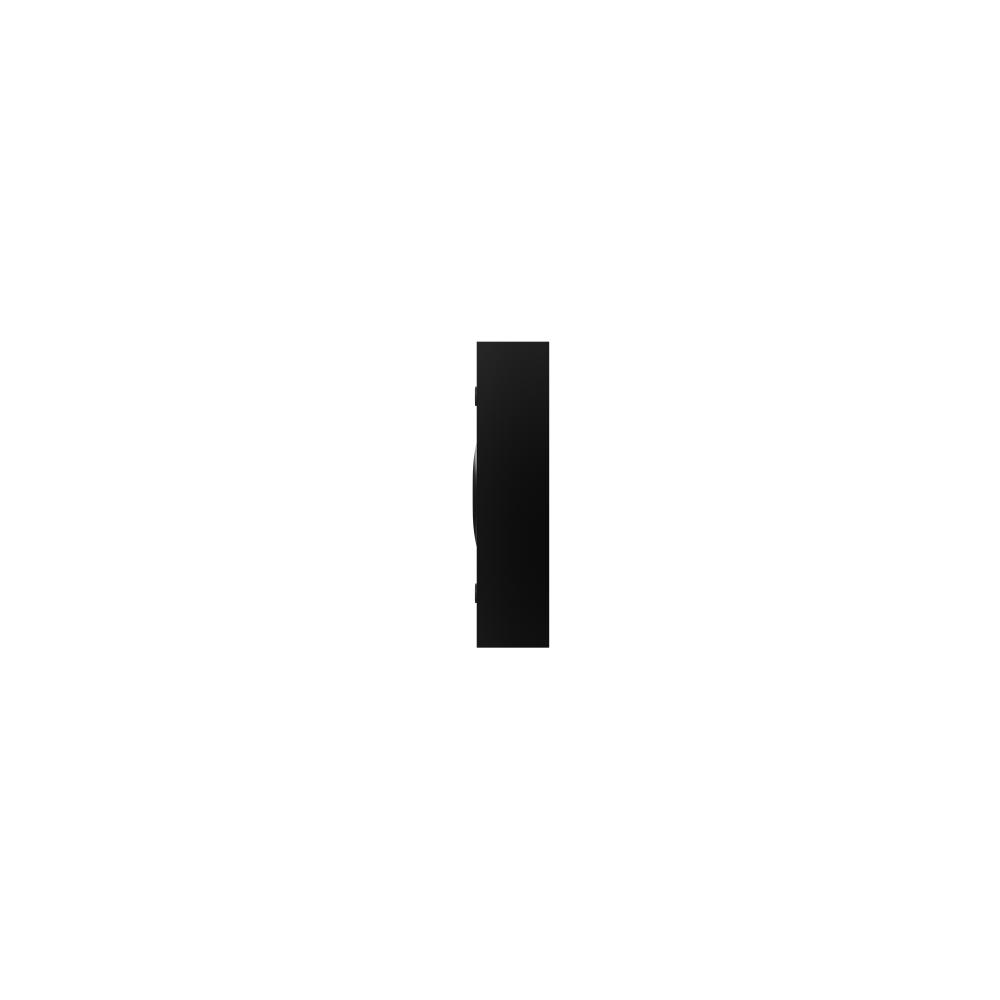

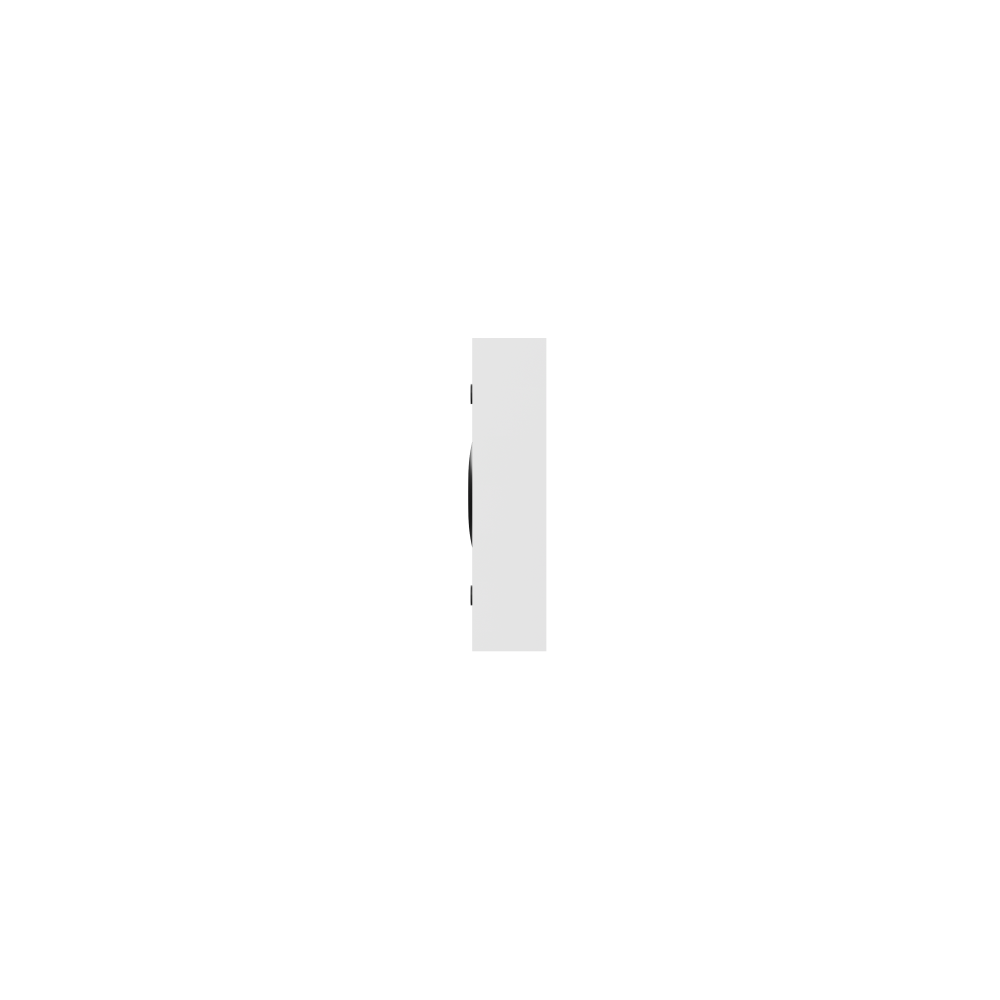

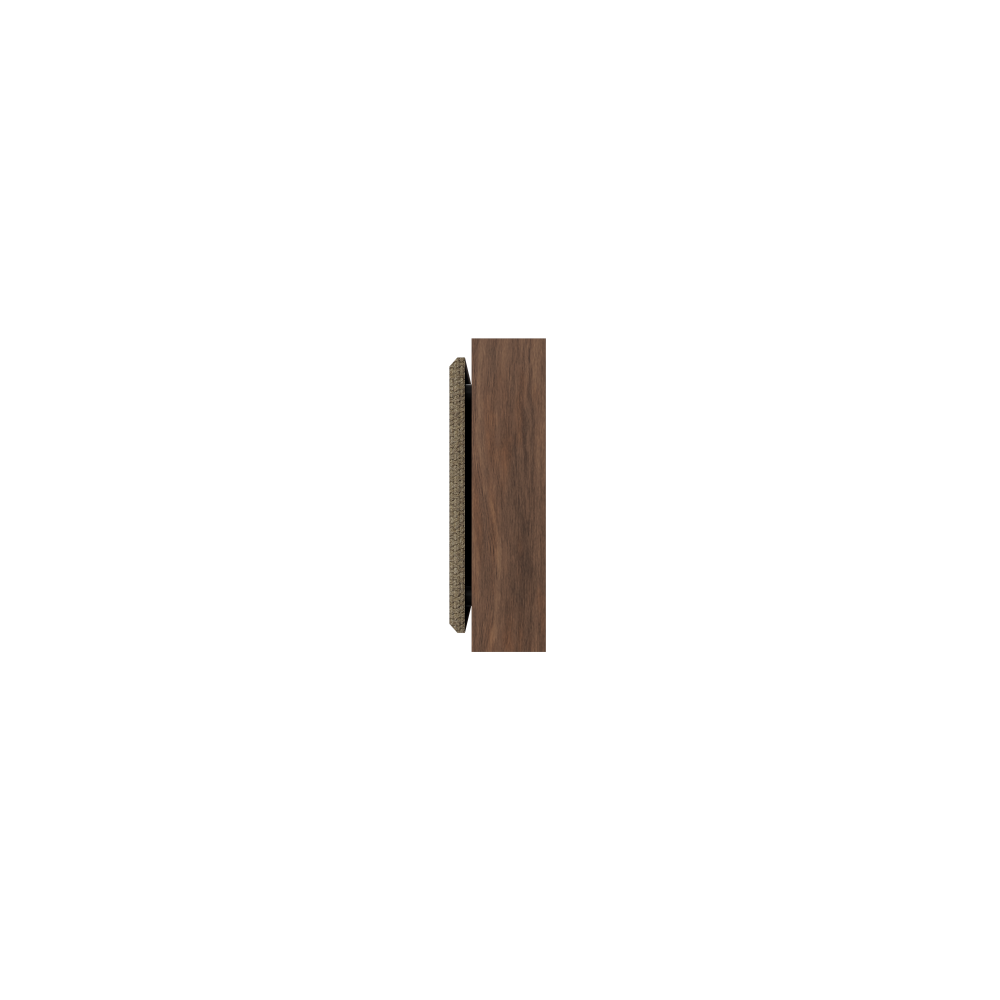

- Thin-Line design, 1.8" deep speaker cabinet
- 1, 2, or 3-channel (3-channel configuration only available in 75" and 85" sizes)

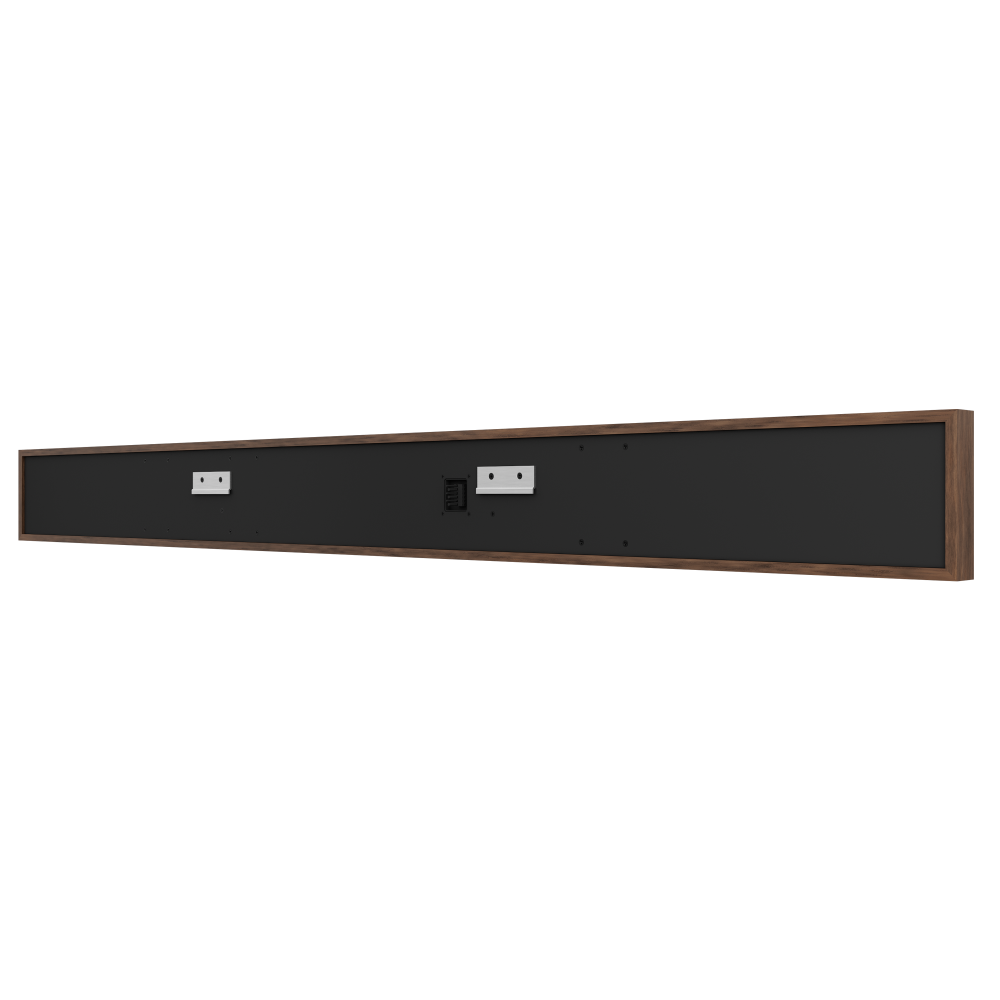

- Brackets included to mount horizontally
Specifications
SKU
NC5QT-HTL
Speaker Tweeter
Four 0.75" (19mm) titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
Two 5.25" (132mm) shallow woofers, aluminum cones, santoprene surrounds
Frequency Response (+/- 3db)
70Hz - 20kHz
Power Handling (RMS)
100W
Sensitivity
89dB per channel
Nominal Impedance (Ohms)
8 ohms
Dispersion
Quadratech Tweeter with Cymatic Diffuser
Grille

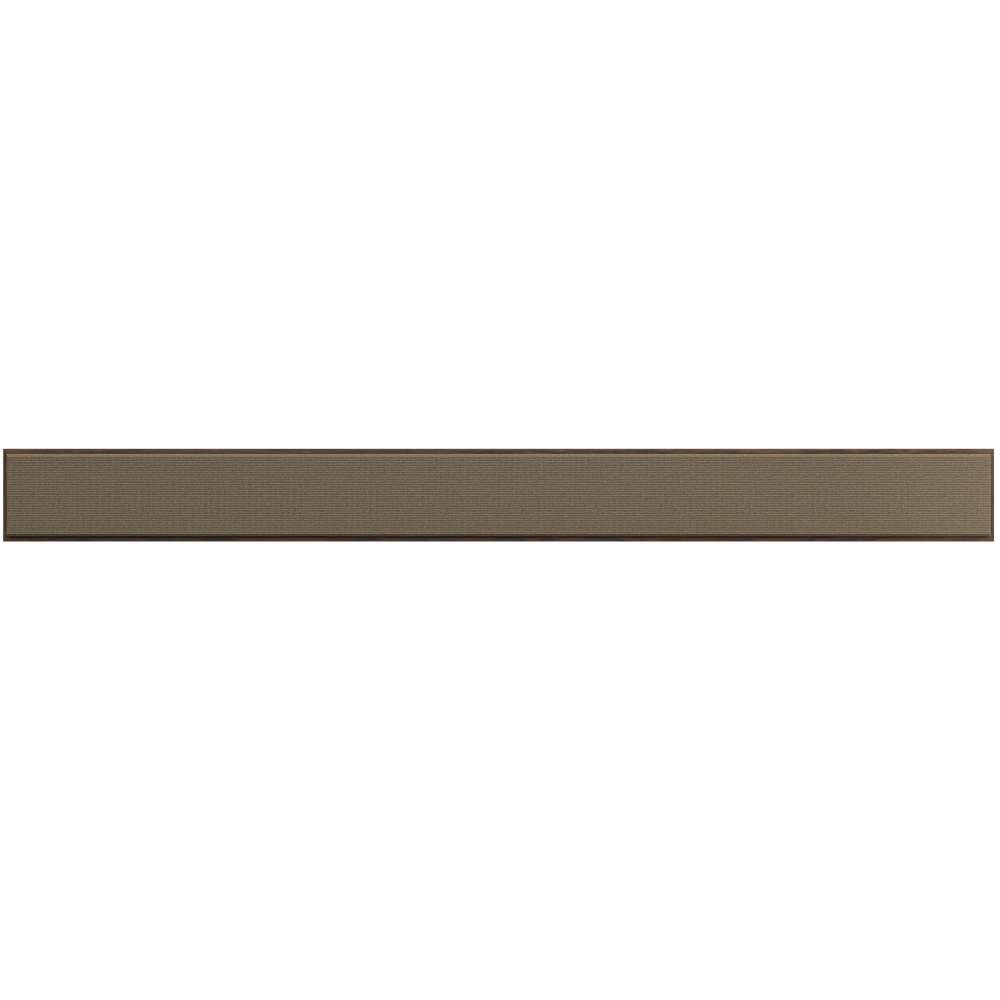

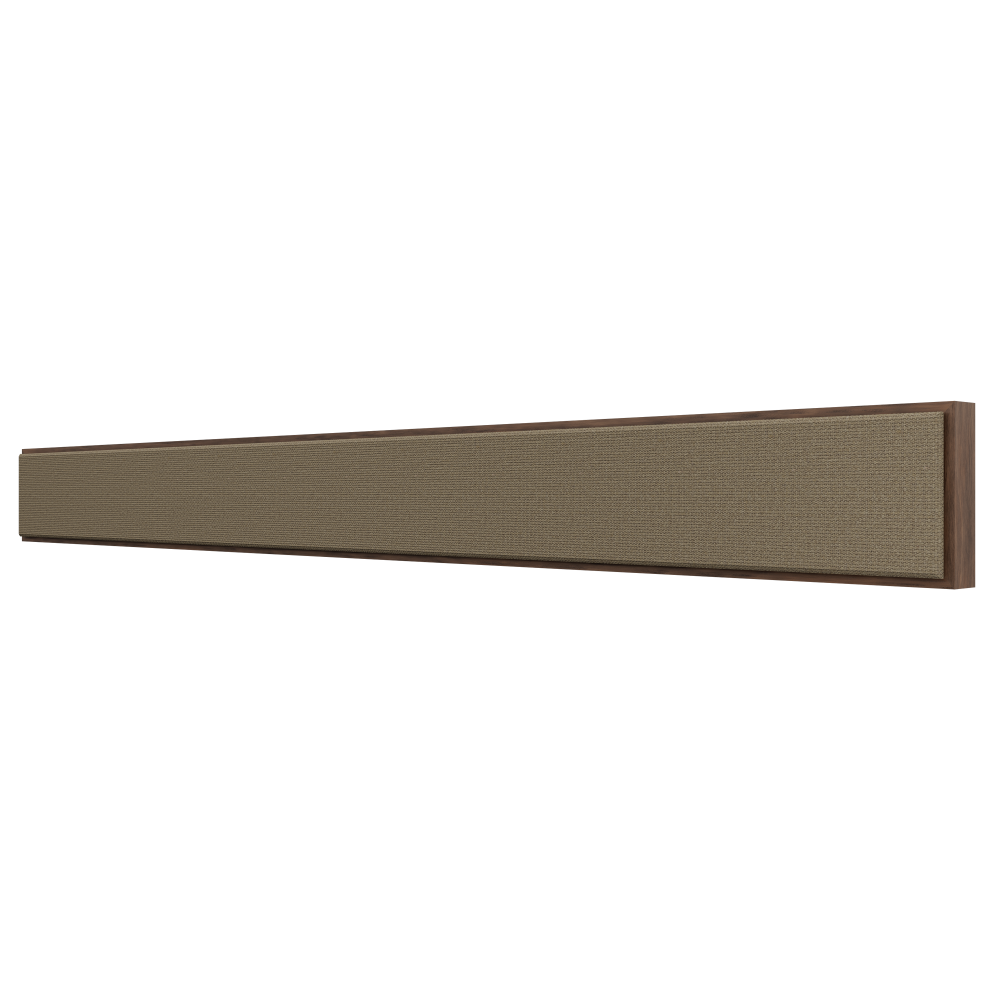

Acoustically transparent grille cloth

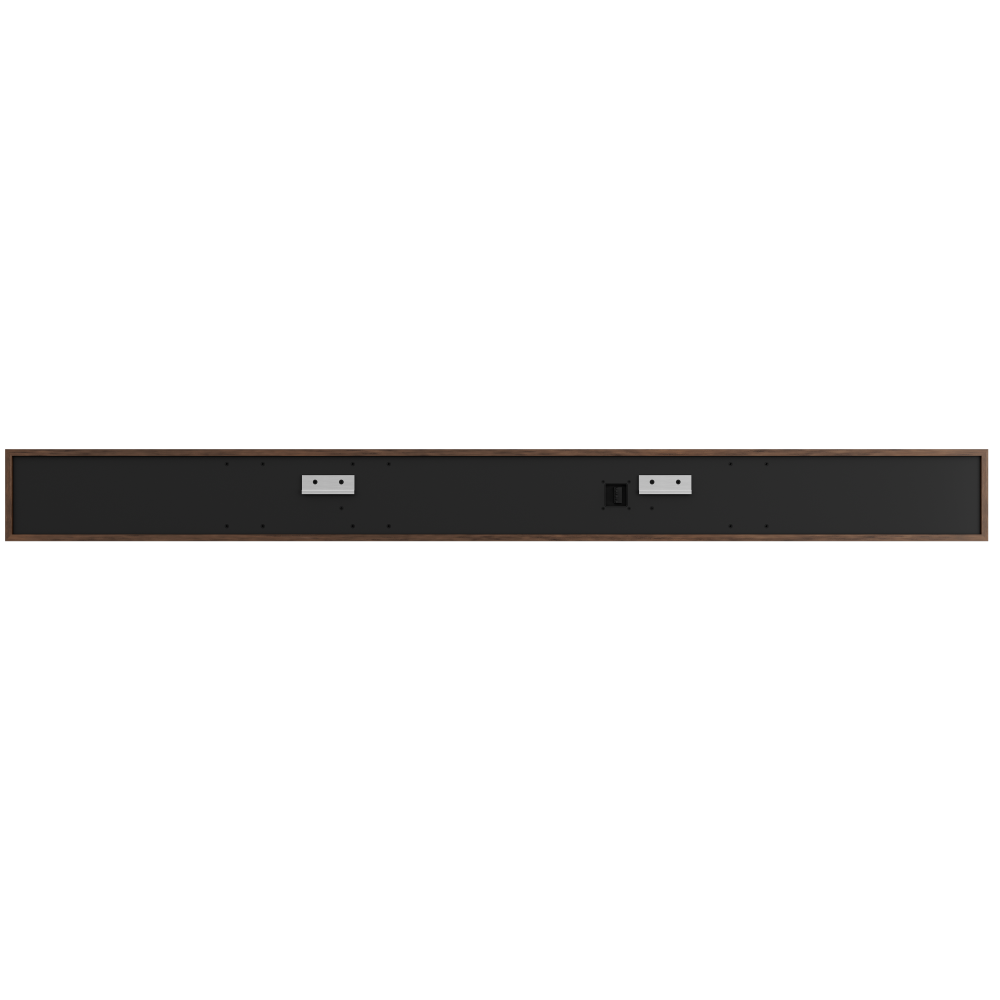

Mounting Bracket
Z Brackets Included
