UA 2-125
UA 2-125
Amplifiers

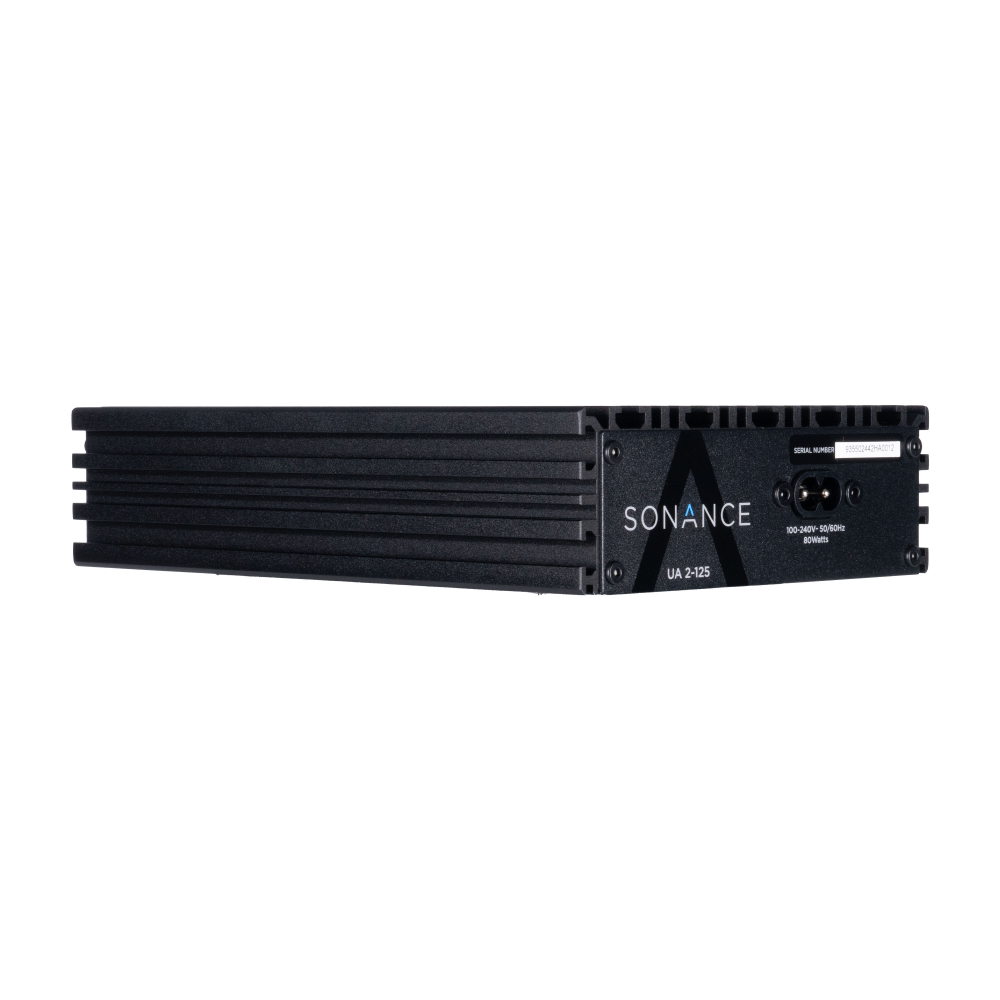

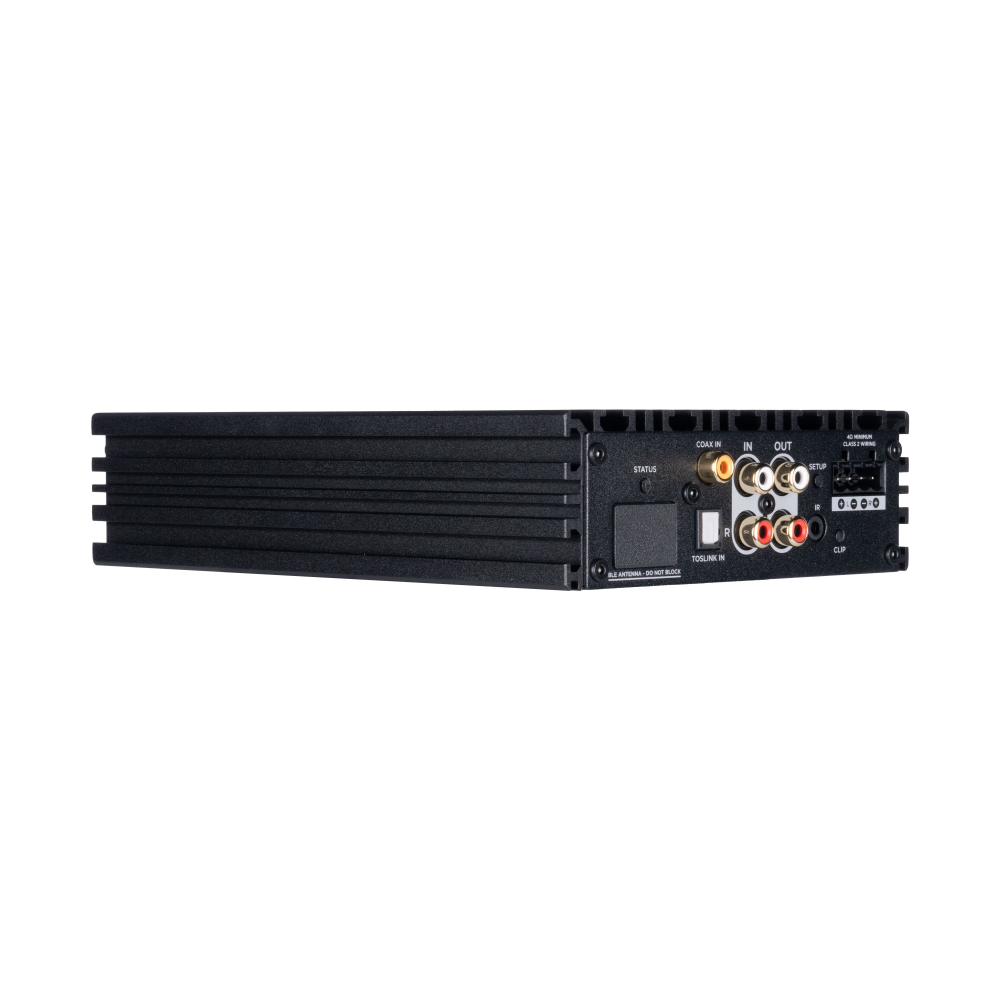

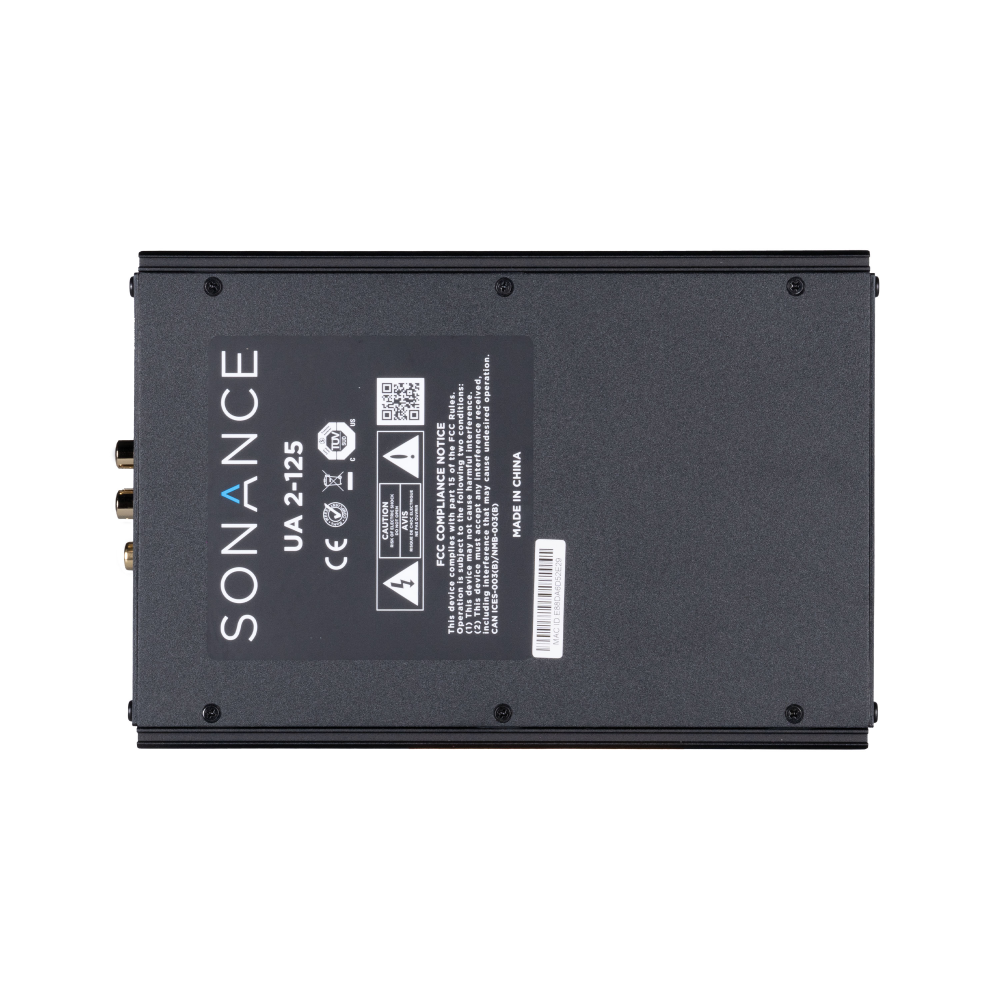

The UA 2-125 is an ultra-compact 2-channel DSP amplifier delivering 125W per channel (250W in bridged Power Sharing Mode). Featuring analog and digital inputs for local zone audio, flexible mounting with a T-slot chassis, and easy setup via the SonARC for UA Series Amplifiers app, it's designed for performance and versatility in any space.
Key Features
- 2 Channel - 125wpc 8Ω|4Ω - Power Share in 4Ω to 250w

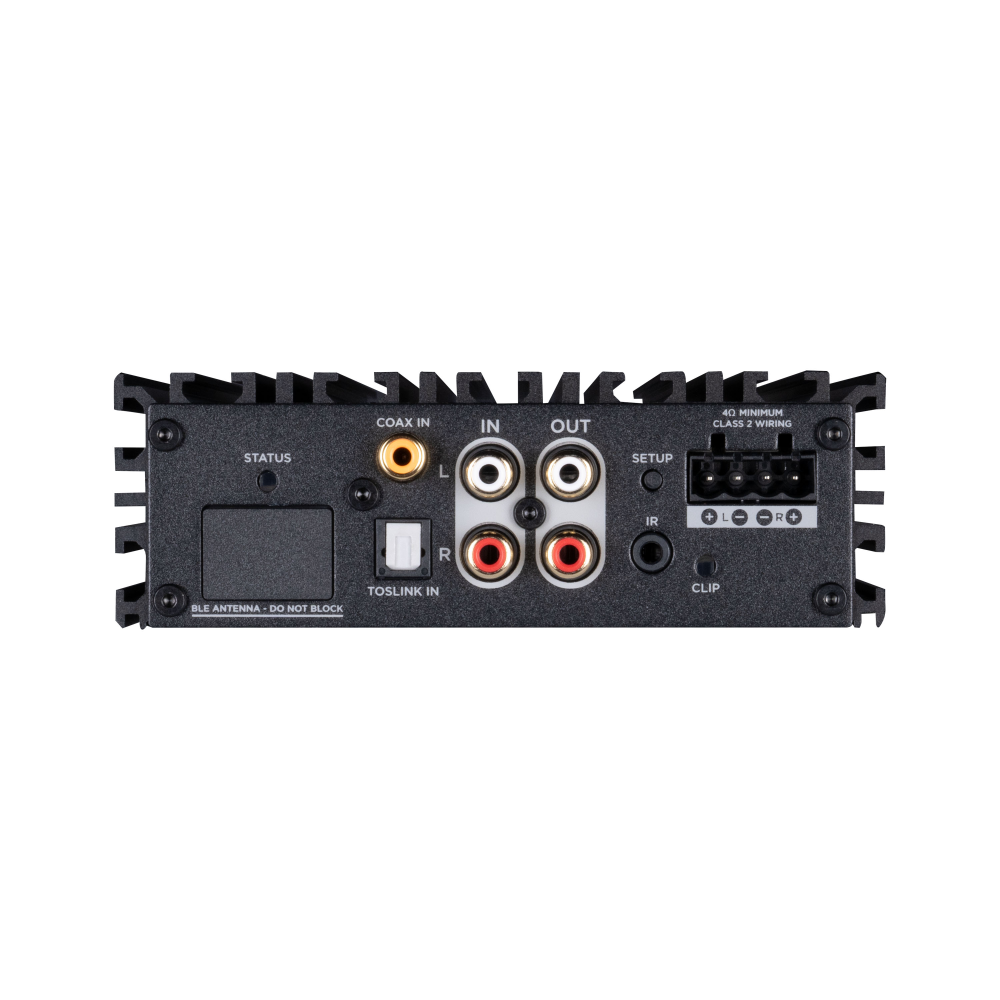

- Analog (RCA) and Digital (optical/coax) Inputs
- Analog (RCA) outputs with volume tracking
- Fully capable DSP
- Bluetooth-enabled app for setup
- Integrated Heatsink/Chassis with industry standard T-Slot Mounting
- Audio Sense and IR Control (with learning capability)
- Ultra-compact (5.25" x 1.875" x 7.825") designed for install in structured wiring can, TV back box, or outdoor enclosure
Specifications
SKU | Color
93550
Dimensions No Feet (WxHxD)
5.35" x 1.77" x 8.19" (135.89mm x 44.96mm x 208.03mm)
Mounting Bracket
2 x Surface Mounting Brackets (included), 20mm Series Industry Standard T-slots, Built into Chassis Design, Seismic Tether Mounting Hole
Inputs
Analog RCA, COAX S/PDIF Format, 2ch PCM, Optical TOSLINK S/PDIF Format, 2ch PCM

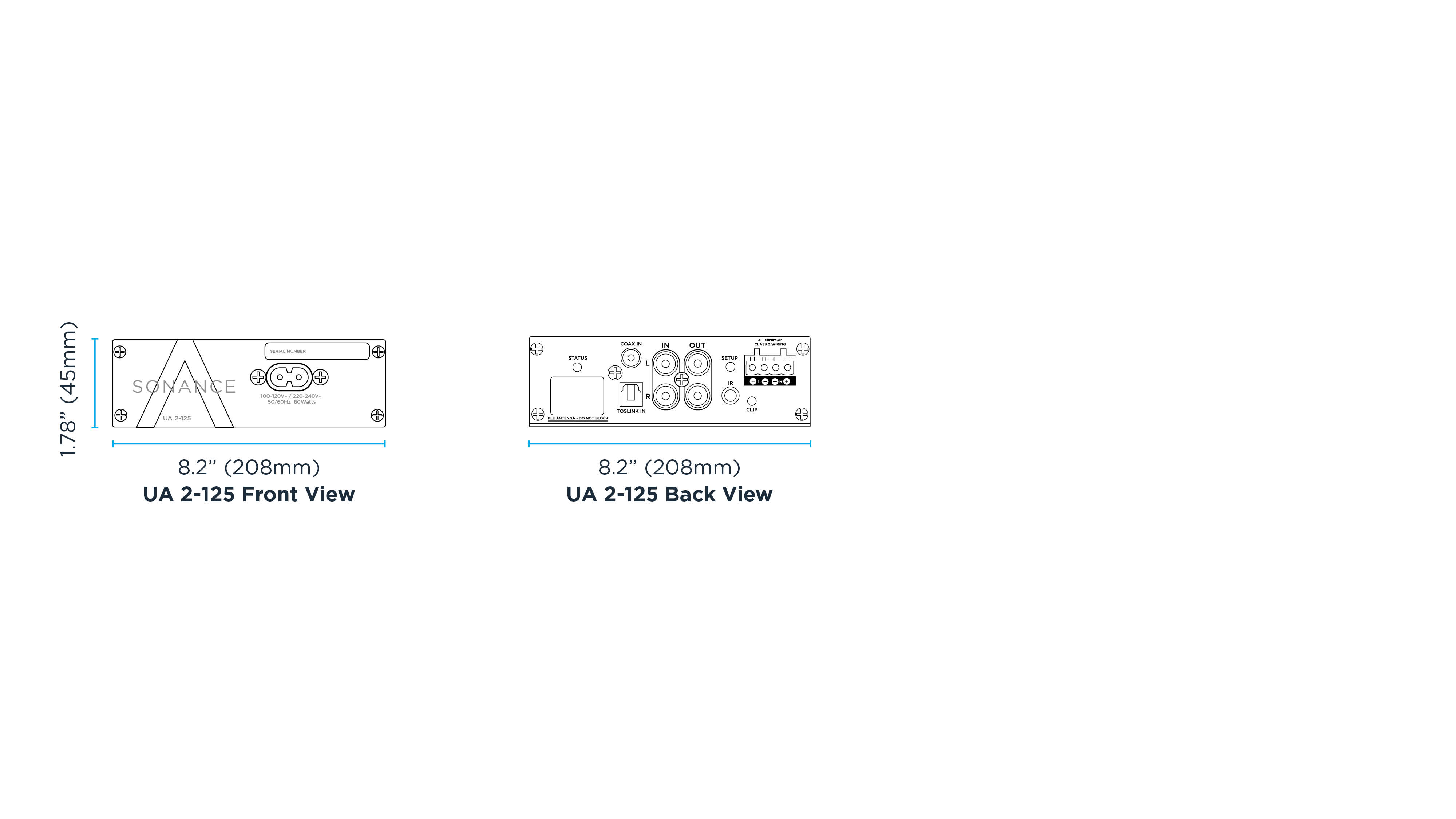

Dimensional Drawings
