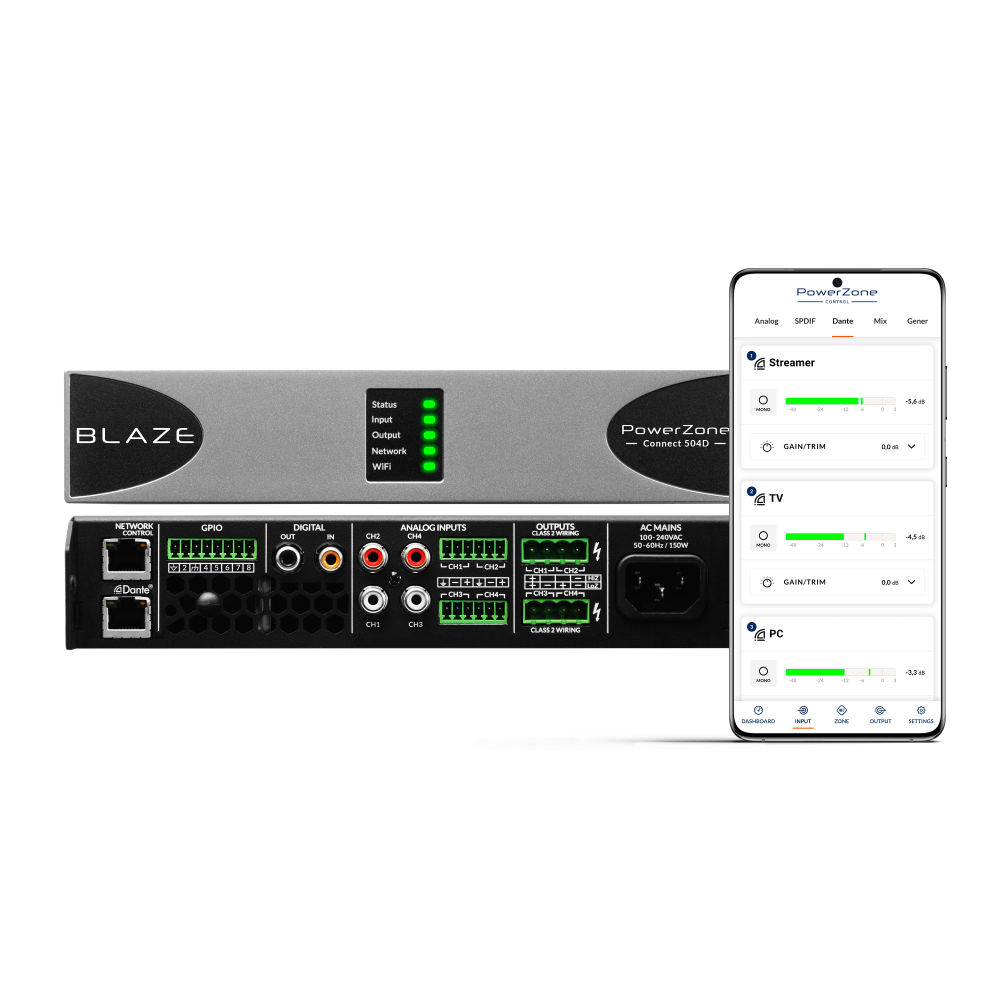

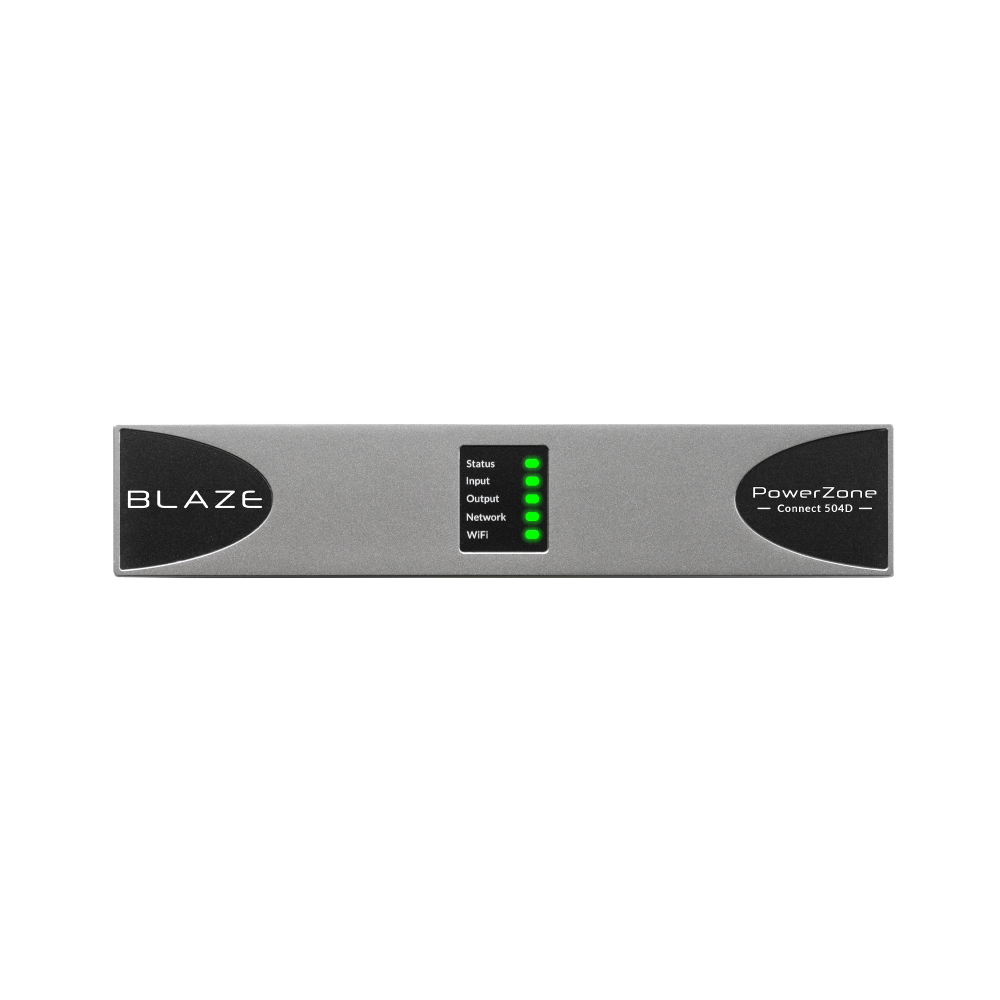

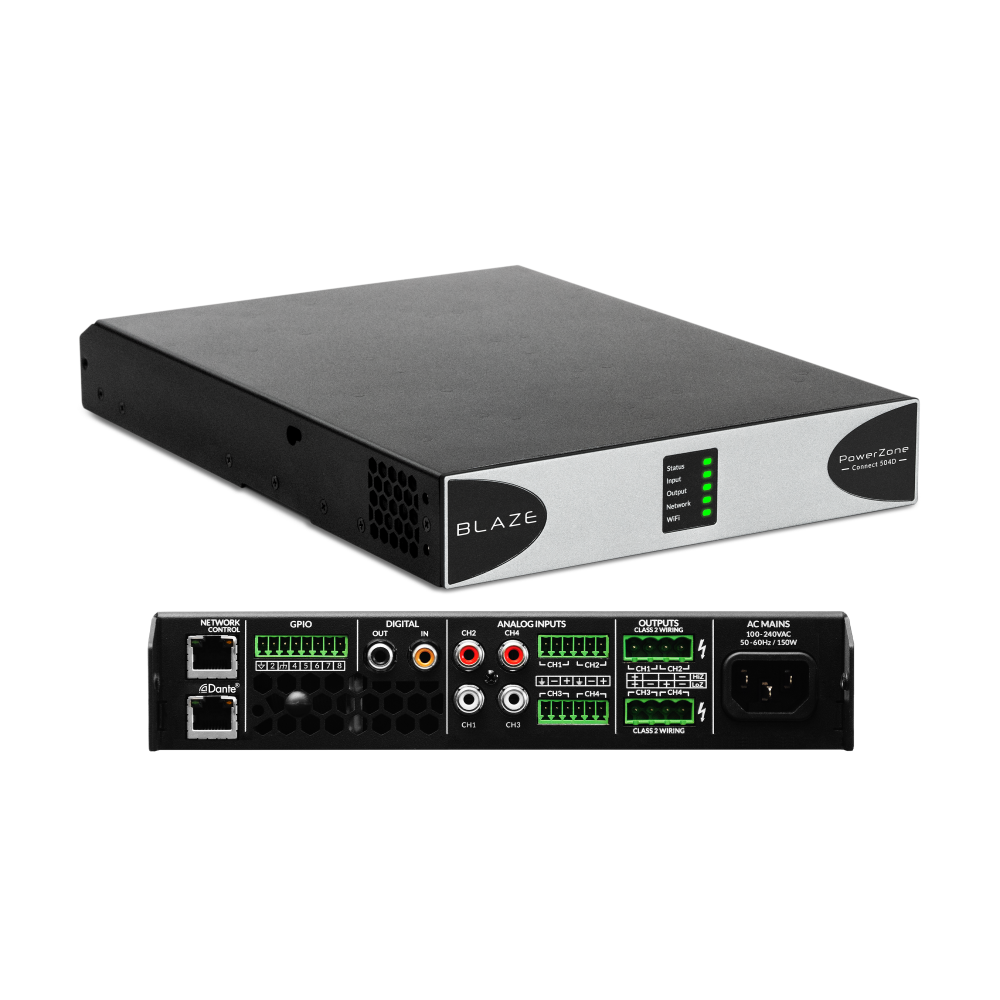

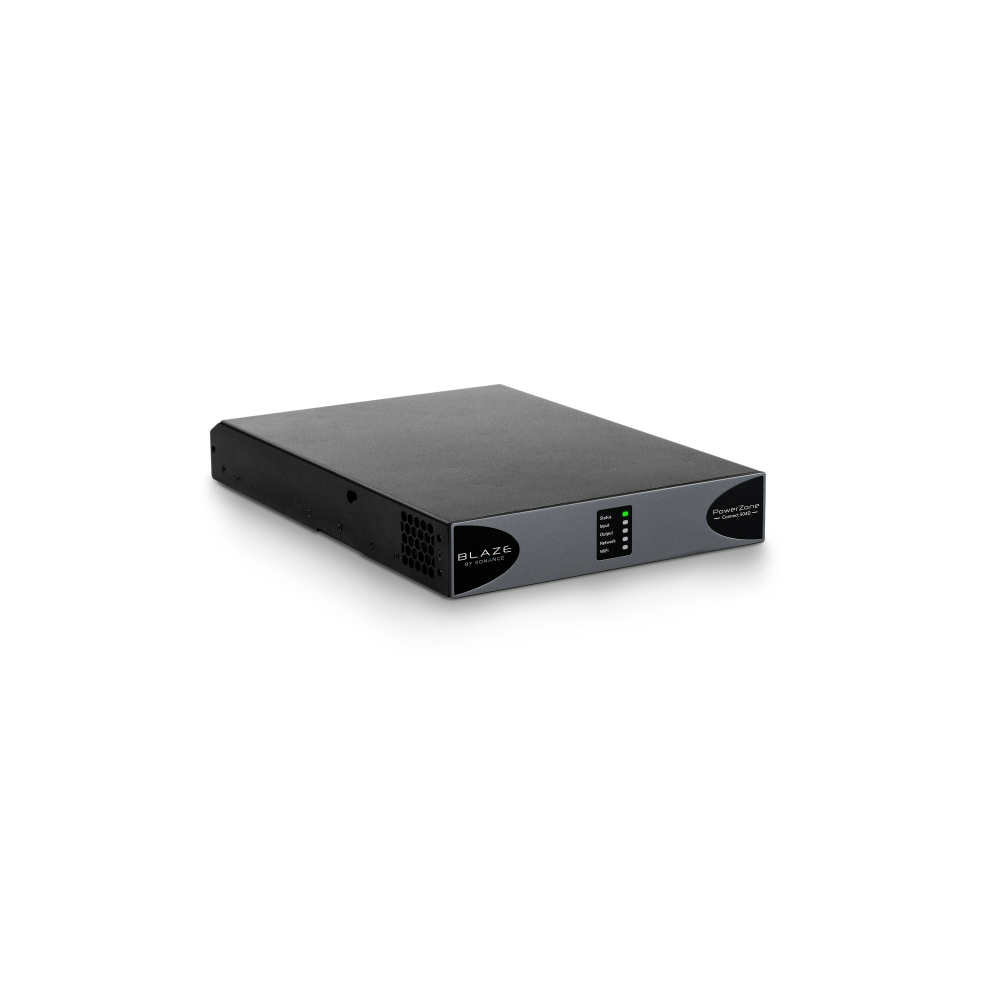

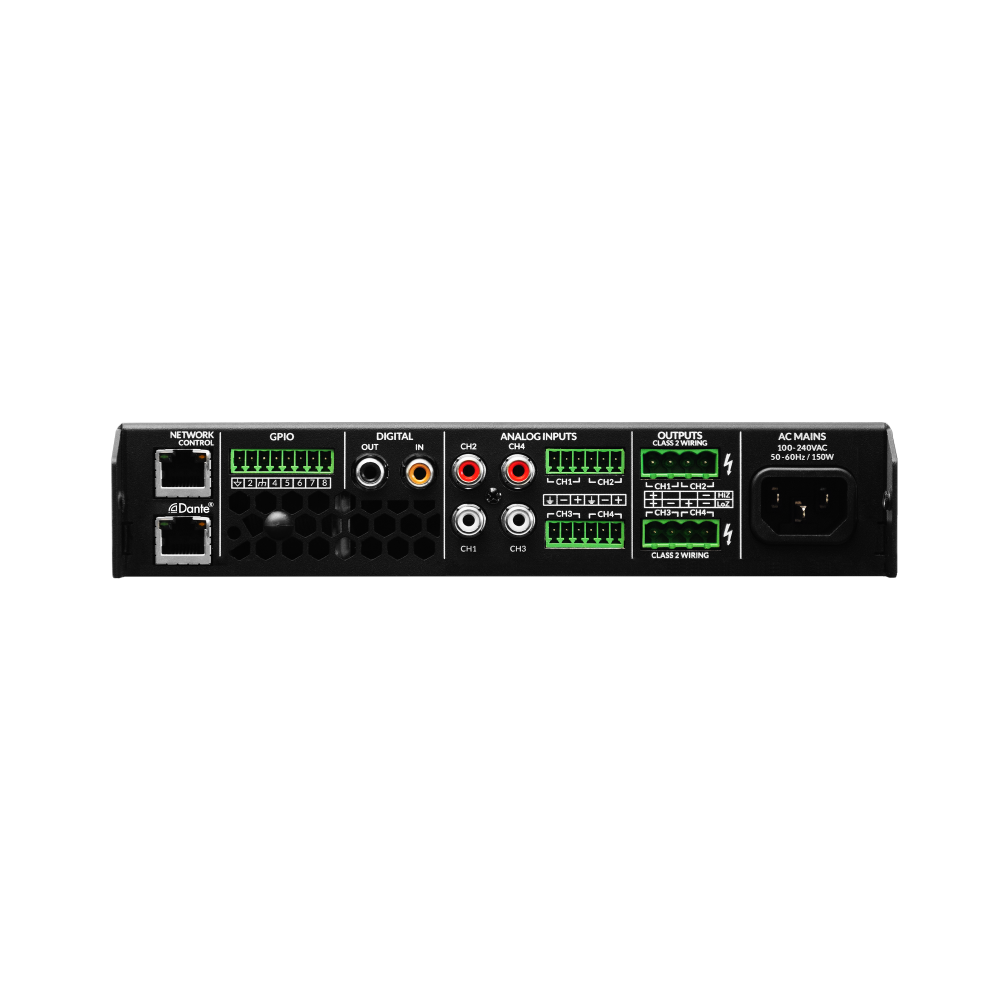

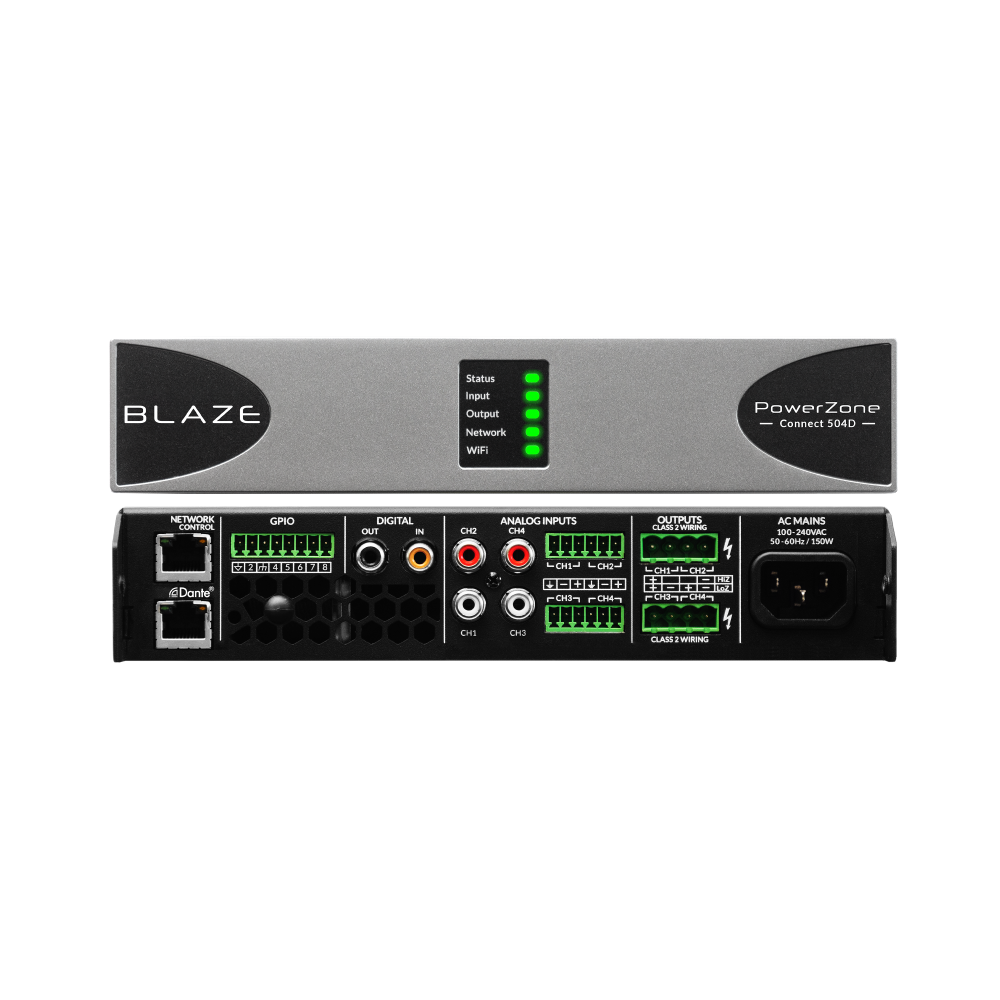

PowerZone Connect 504D
PowerZone Connect 504D
Amplifiers
500 W DSP-enabled Class-D amplifier with 4 channels and Dante
Unlock the full potential of your PowerZone Connect amp with PowerZone Control built-in DSP. Learn more.
Unlock the full potential of your PowerZone Connect amp with PowerZone Control built-in DSP. Learn more.
Key Features
- Ultra-compact half rack form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Dante Ultimo chip 4×4 (4-channels)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Specifications
SKU
UBX-888-029 (PowerZone Connect 504D)
Dimensions (WxHxD)
8.7" x 1.7" x 12.6" (220.98mm x 43.18mm x 320.04mm)
Weight
6.17 lbs. (2.8kg)
Channel Configuration
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
Total System Power
500 W
Output Power @ 4 ohms
4 x 125 W
Output Power @ 8 ohms
4 x 125 W
Output Power @ 70V
2 x 250 W
Output Power @ 100V
2 x 250 W
Powersharing
<= 2 X 250 W
Power Consumption
150 W
Dante Compatibility
Yes
Rack Units
1U Half Rack
