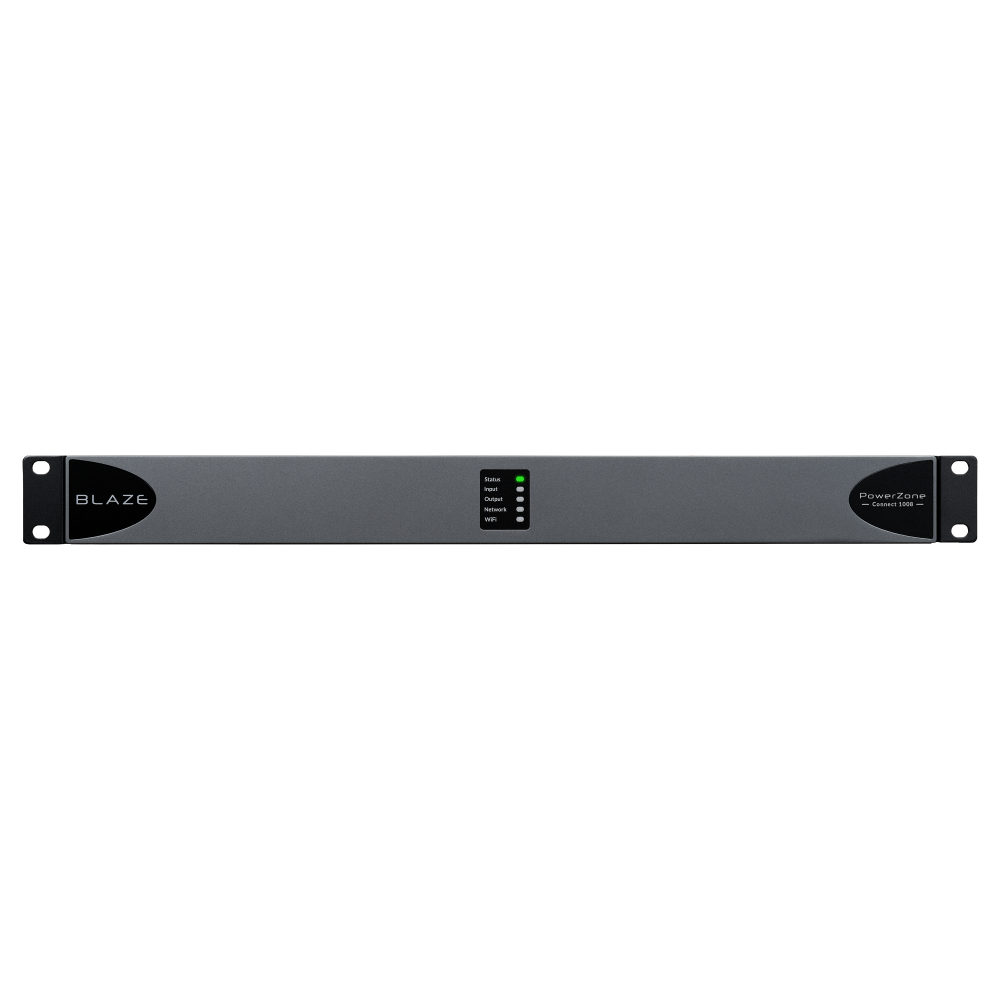

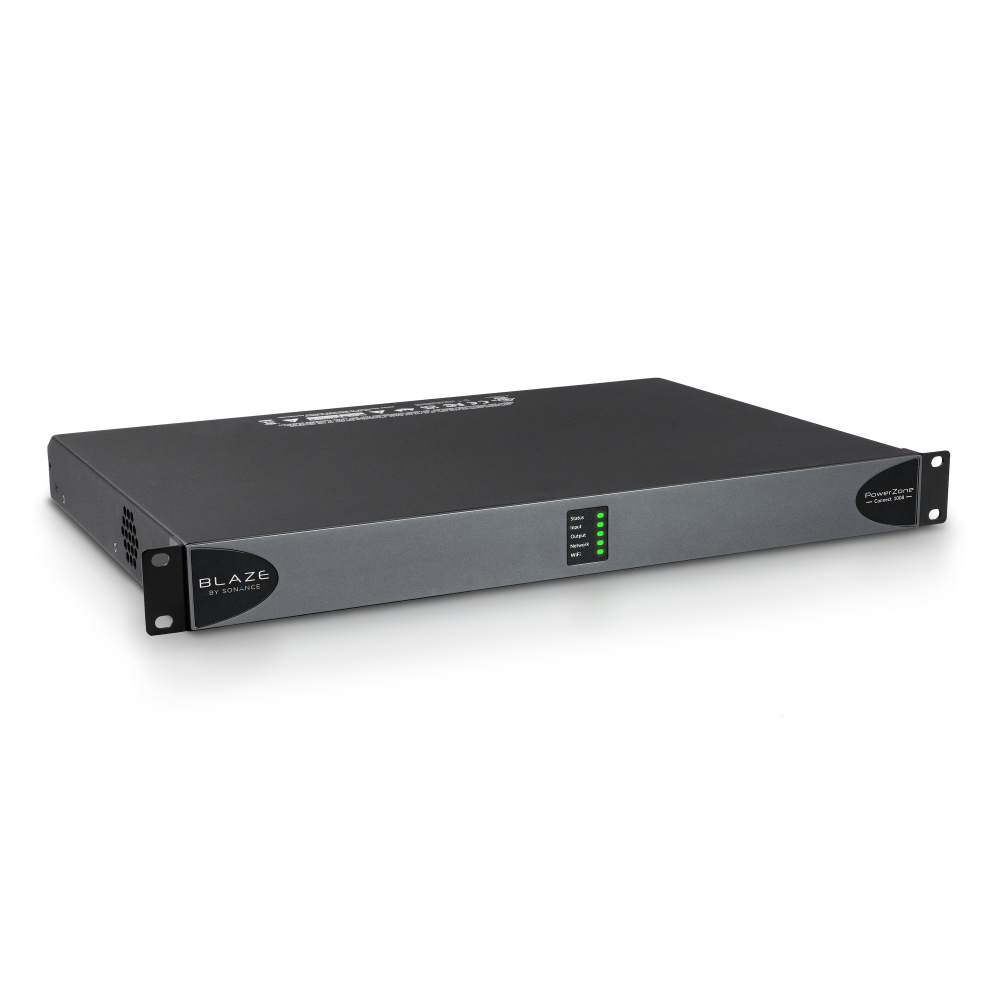

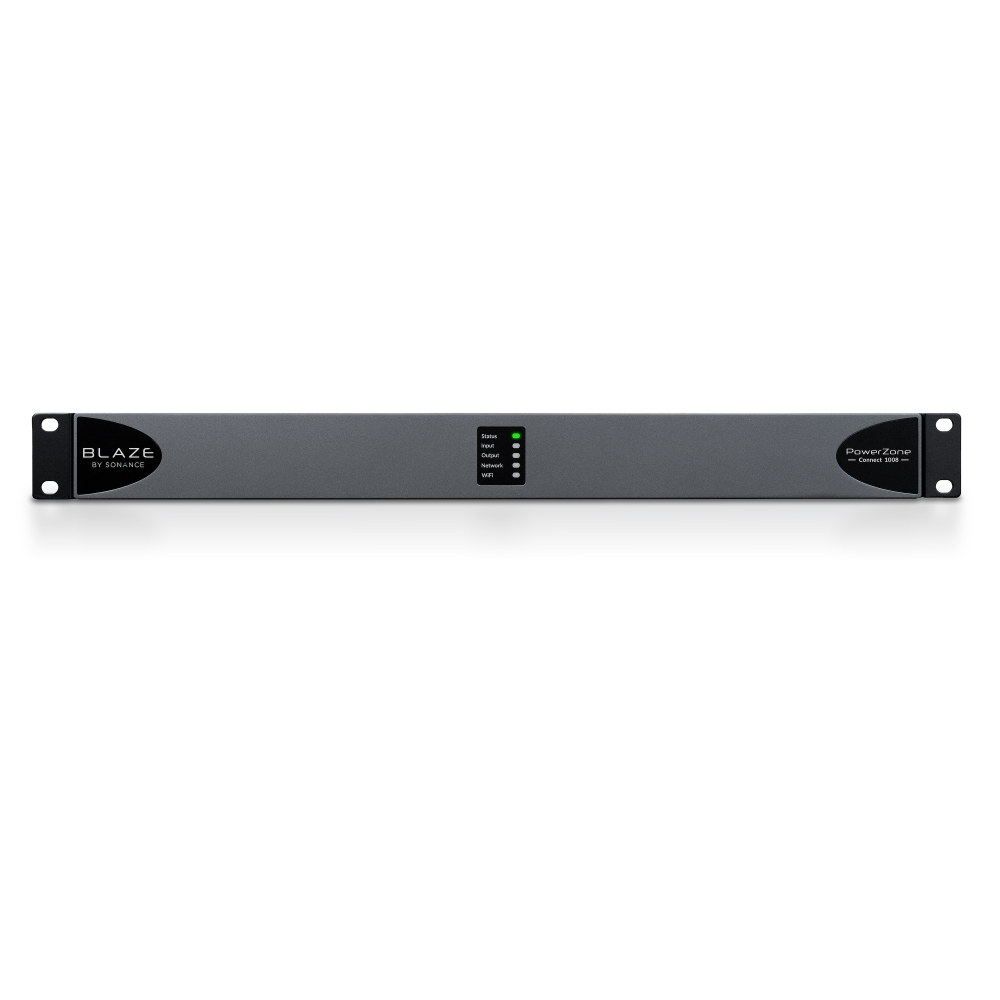

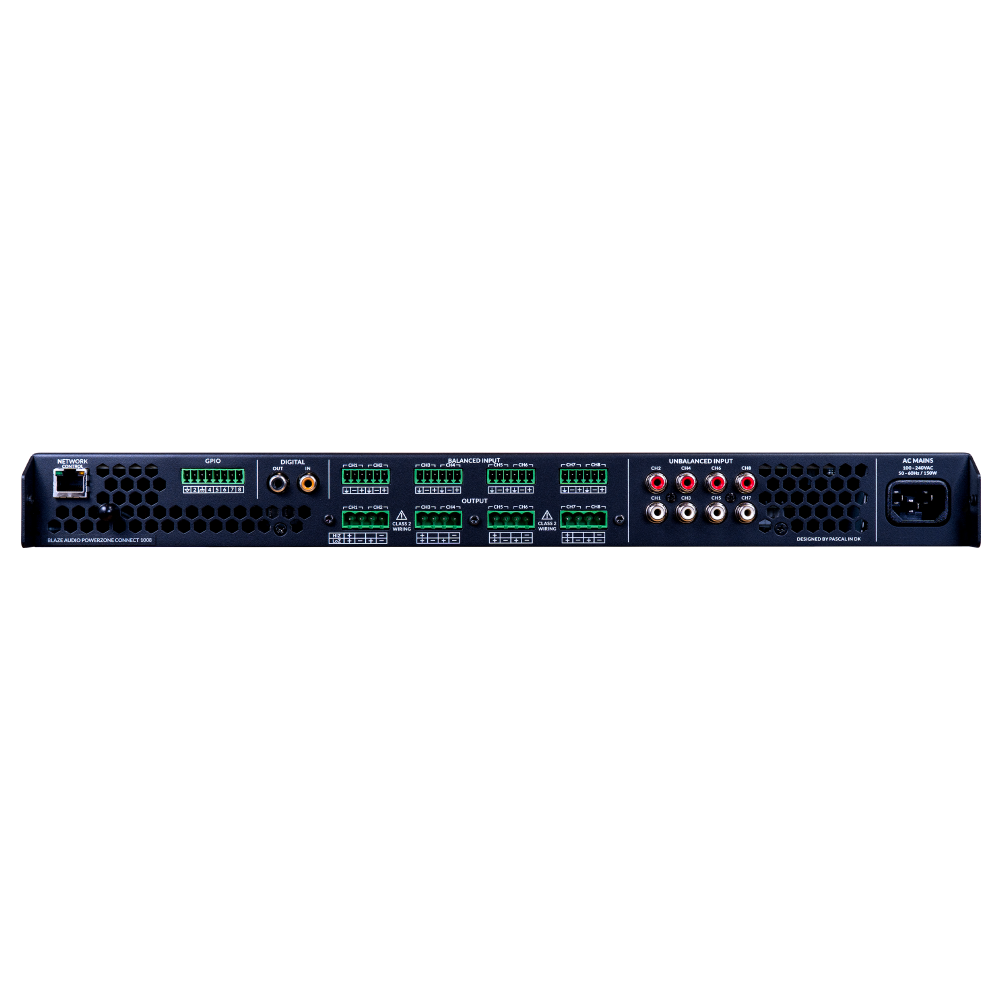

PowerZone Connect 1008




PowerZone Connect 1008
Blaze Amplifiers
1000 W DSP-enabled Class-D amplifier with 8 channels
Key Features
- 1RU form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color
UBX-888-025 (PowerZone Connect 1008), UBX-888-039 (PowerZone Connect 1008 JPN)
Dimensions (WxHxD)
17.3" x 1.7" x 12.6" (439.42mm x 43.18mm x 320.04mm)
Weight
8.4 lbs. (3.81kg)
Channel Configuration
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
Total System Power
1000 W
Output Power @ 2 ohms
0
Output Power @ 4 ohms
8 x 125 W
Output Power @ 8 ohms
8 x 125 W
Output Power @ 70V
4 x 250 W
Output Power @ 100V
4 x 250 W
Powersharing
<= 2 X 250 W
Power Consumption
300 W
Dante Compatibility
No
