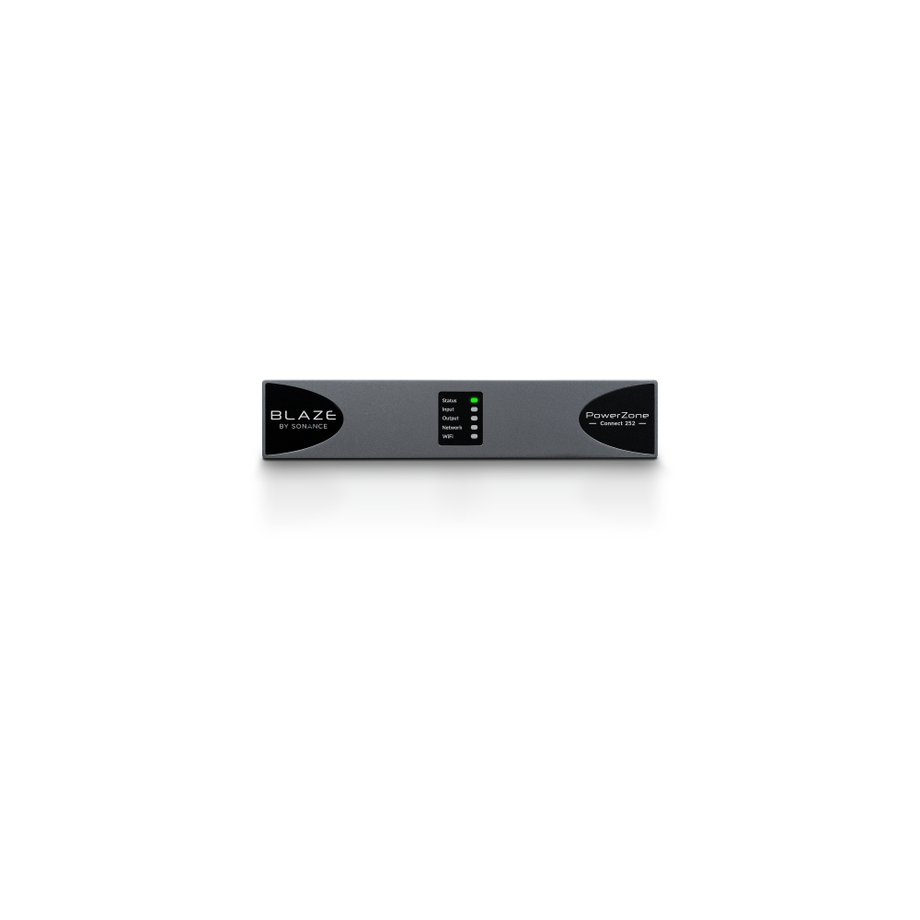

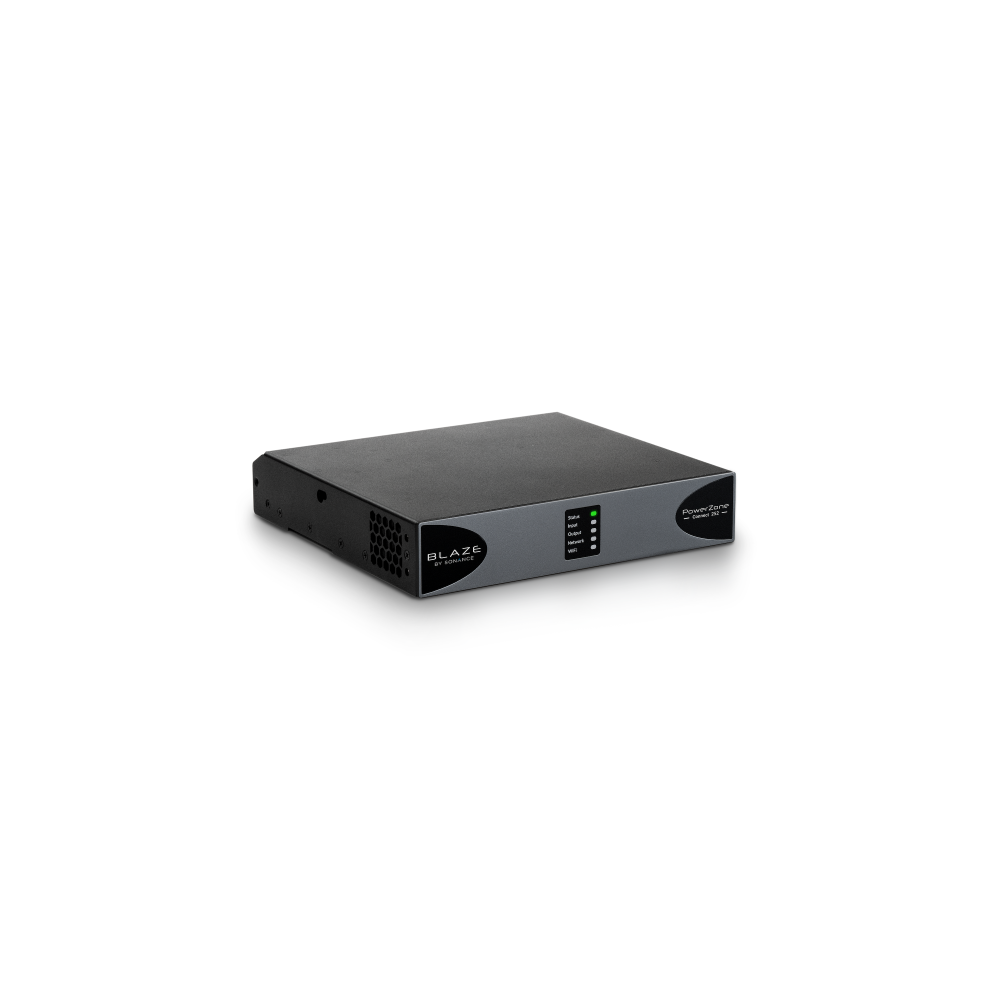

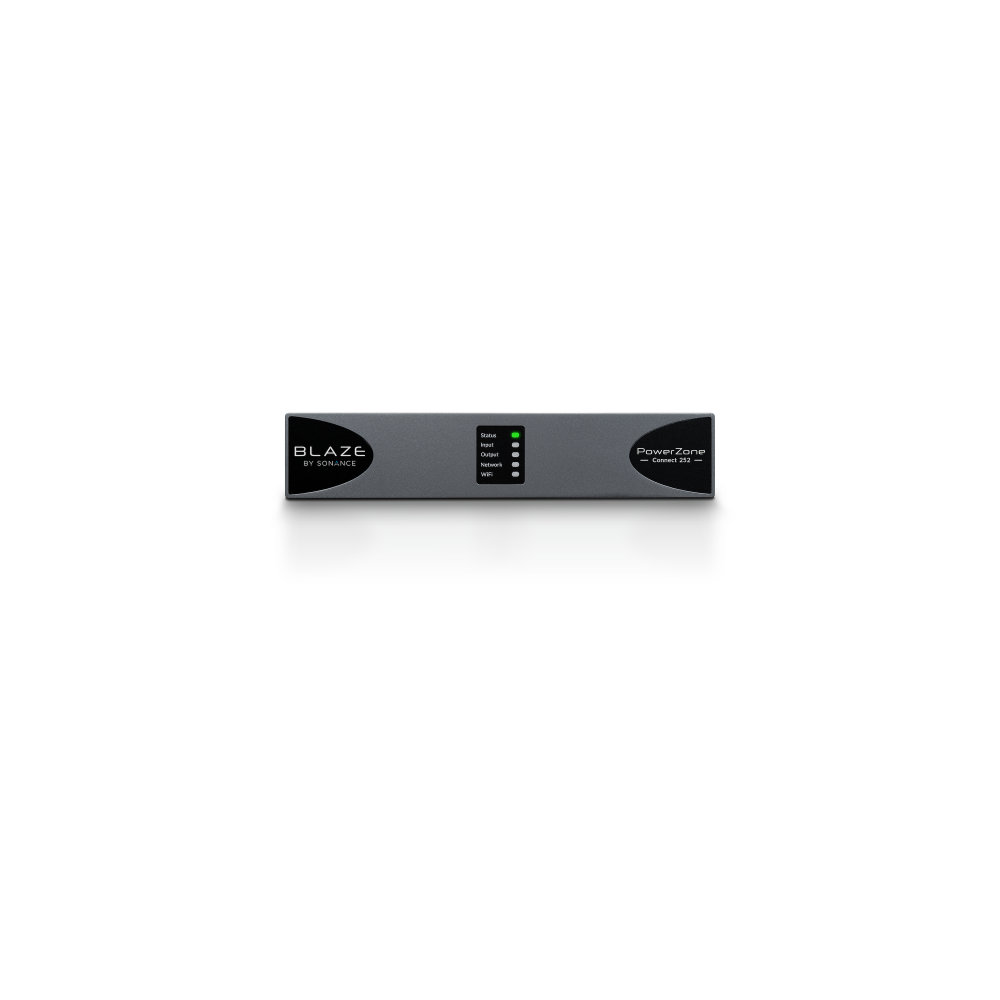

PowerZone Connect 252
Amplifiers
Unlock the full potential of your PowerZone Connect amp with PowerZone Control built-in DSP. Learn more.
Key Features
- Ultra-compact half rack form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- Flexible power sharing across output channels

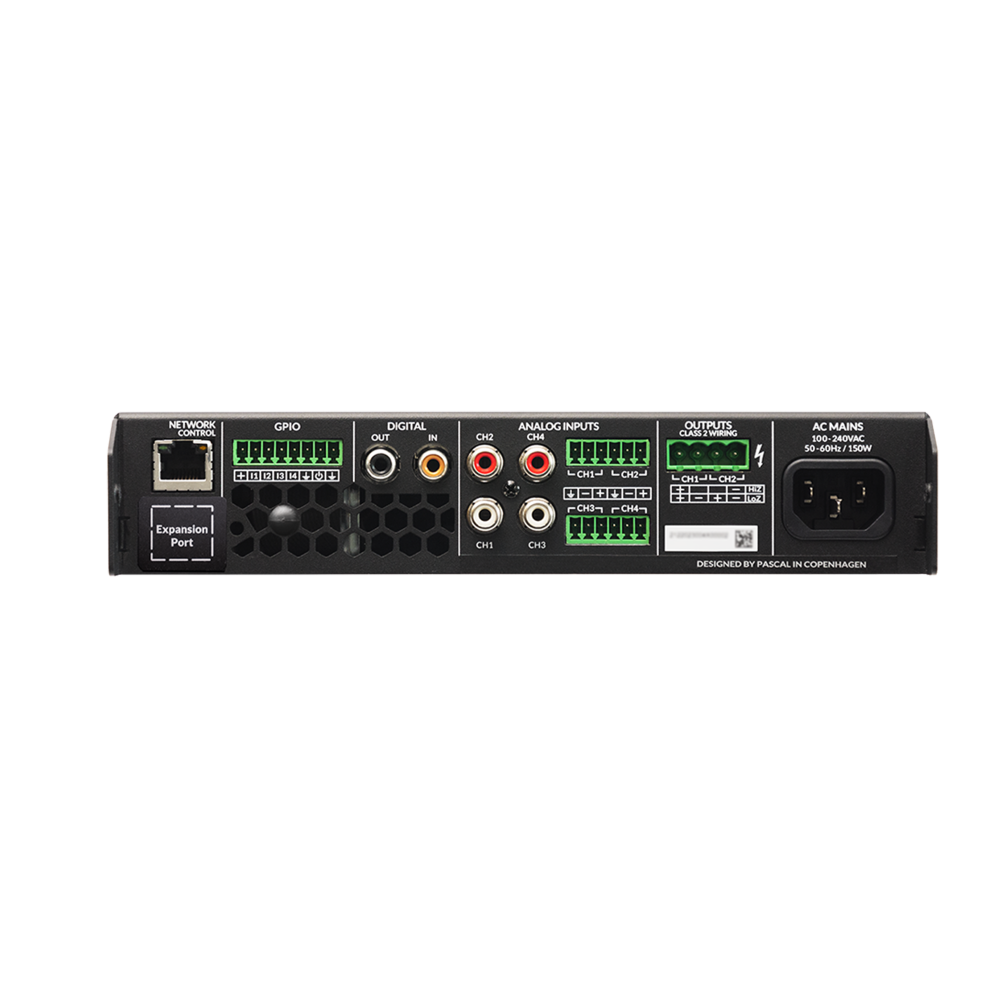

- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Specifications
SKU
UBX-888-010 (PowerZone Connect 252), UBX-888-006 (PowerZone Connect 252 UNI)
Dimensions (WxHxD)
8.7" x 1.7" x 8.4" (220.98mm x 43.18mm x 213.36mm)
Weight
4.41 lbs. (2.0kg)
Channel Configuration
Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W
Total System Power
250 W
Output Power @ 4 ohms
2 x 125 W
Output Power @ 8 ohms
2 x 125 W
Output Power @ 70V
1 x 250 W
Output Power @ 100V
1 x 250 W
Powersharing
<= 1 x 250 W
Power Consumption
75 W
Dante Compatibility
No
Rack Units
1U Half Rack
