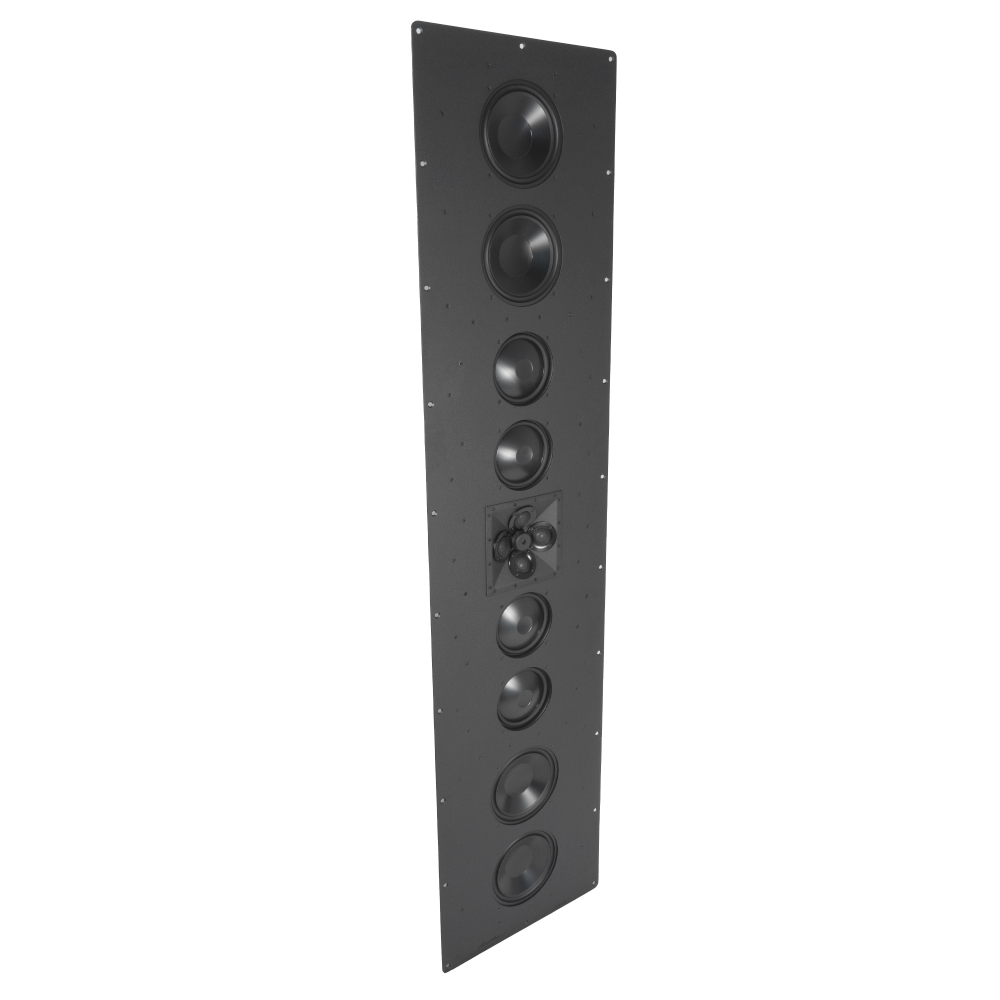

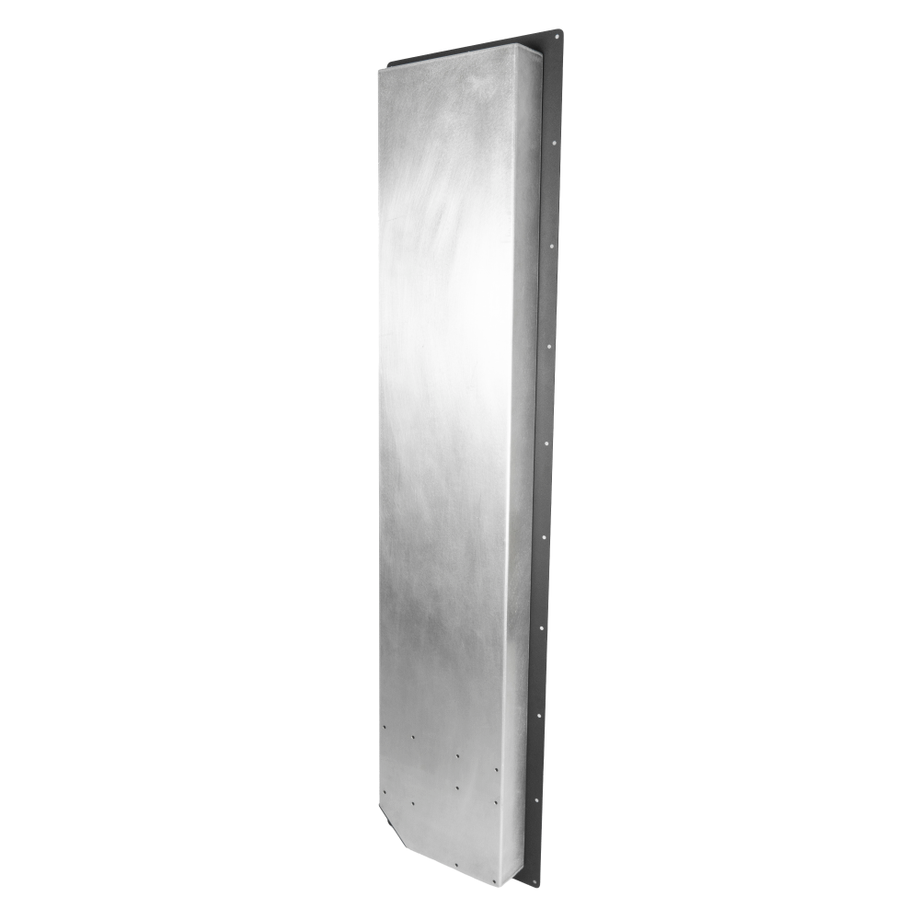

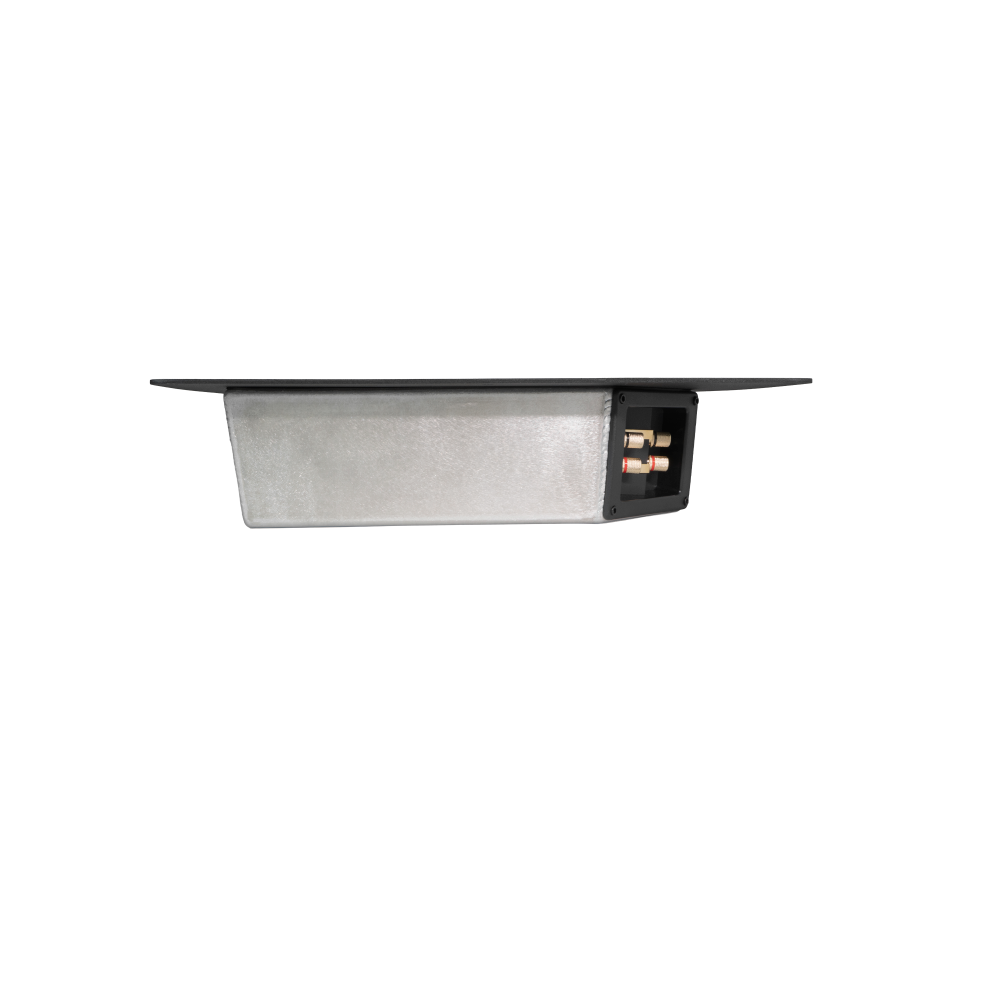

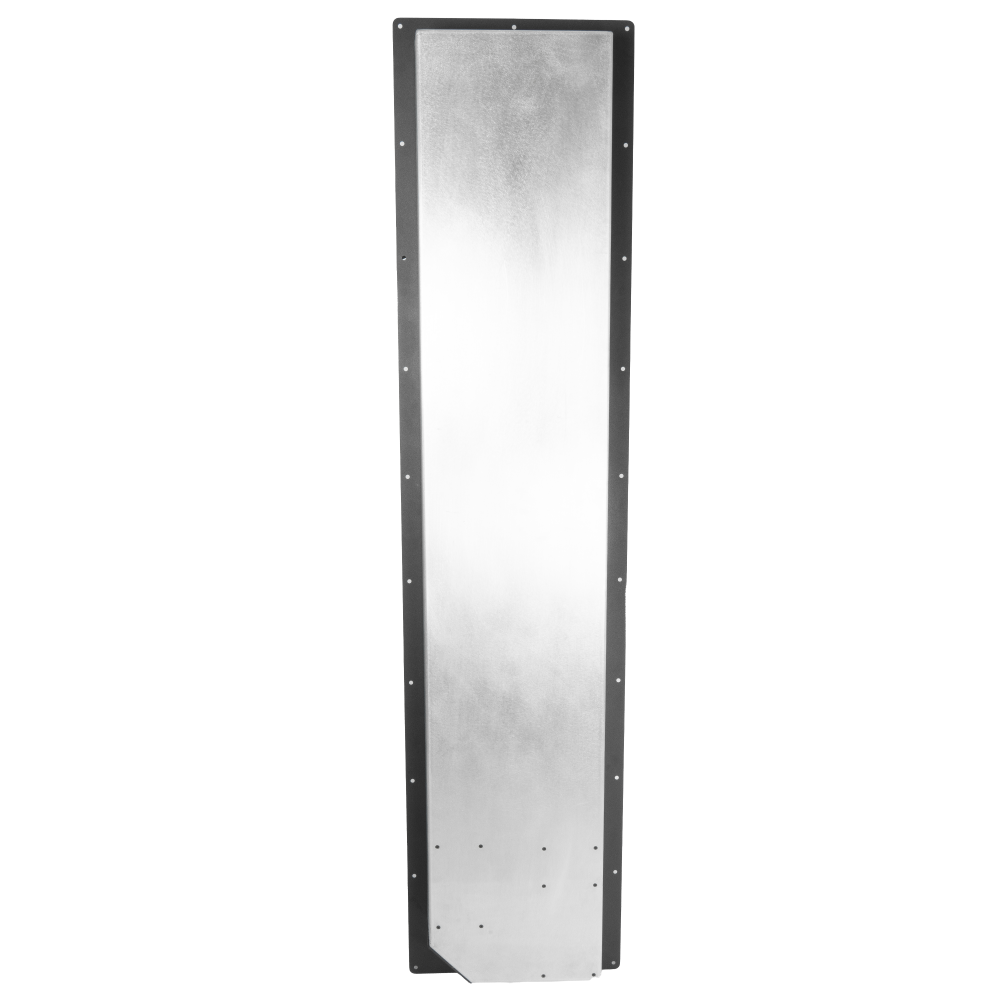

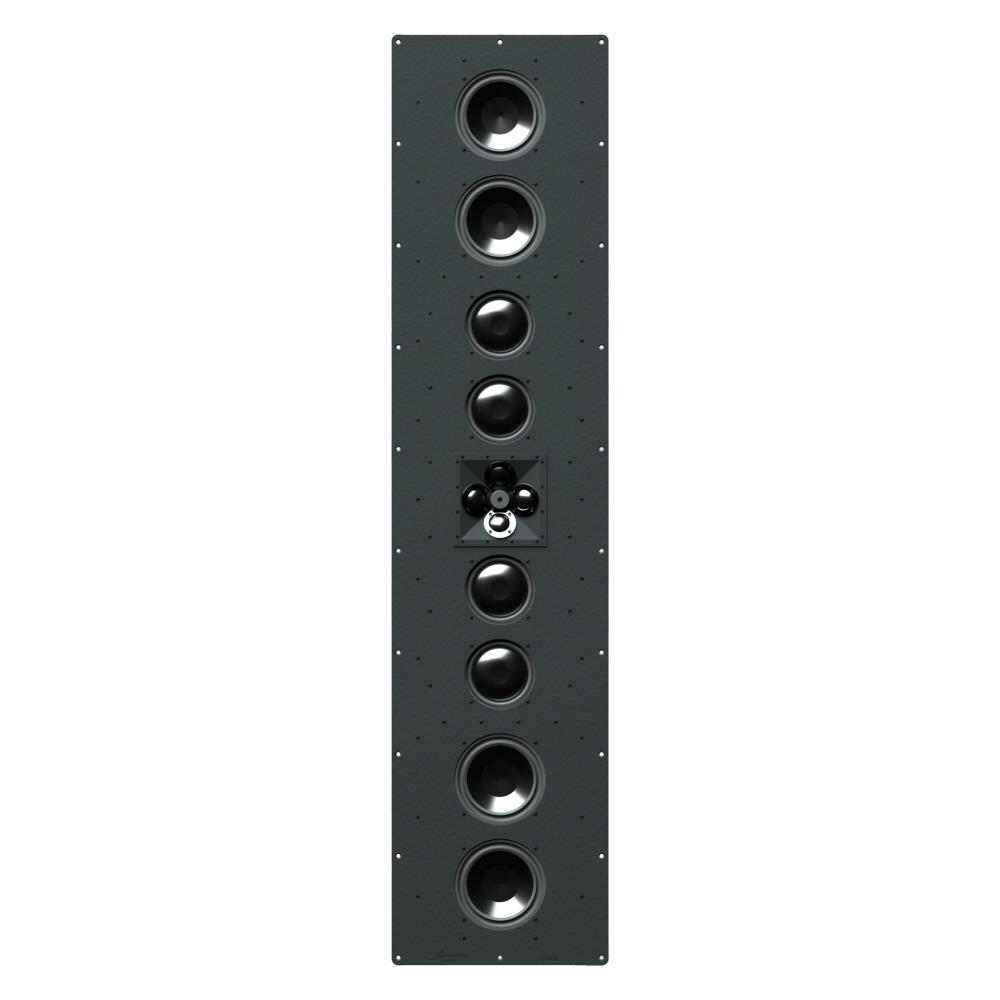

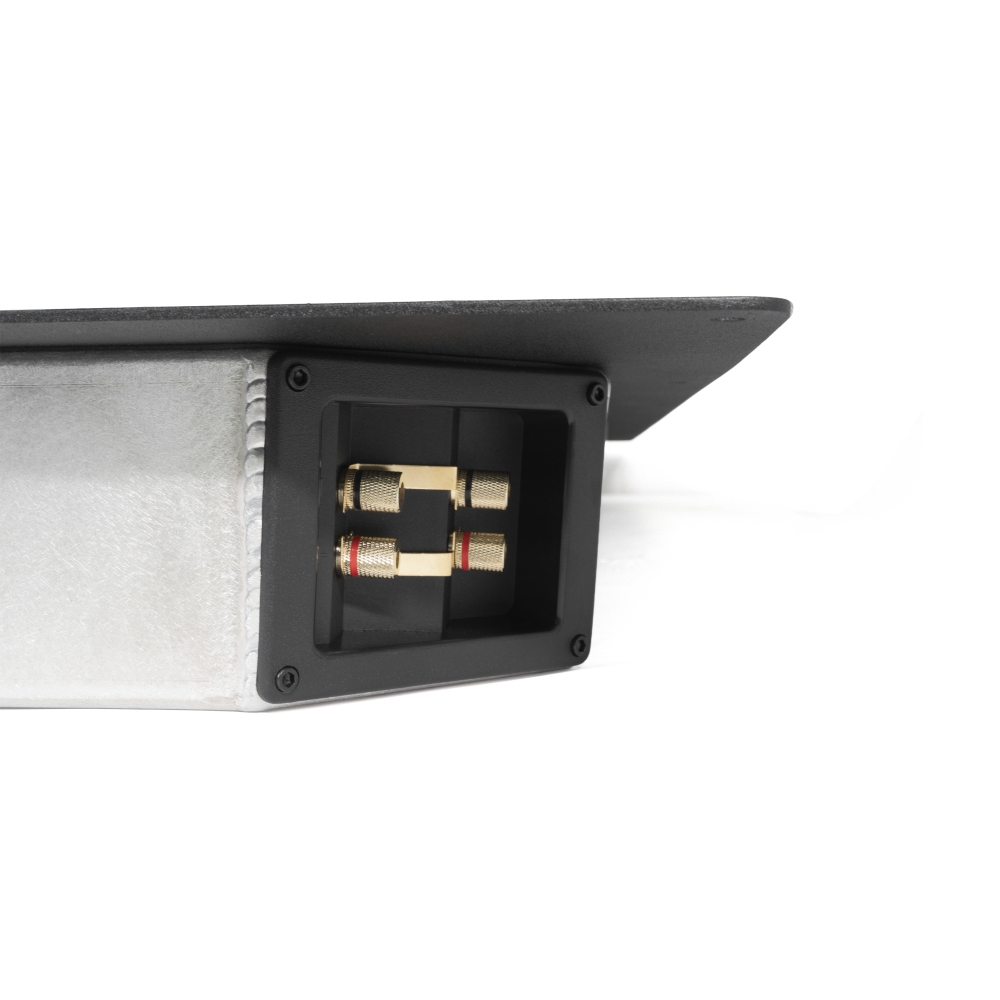

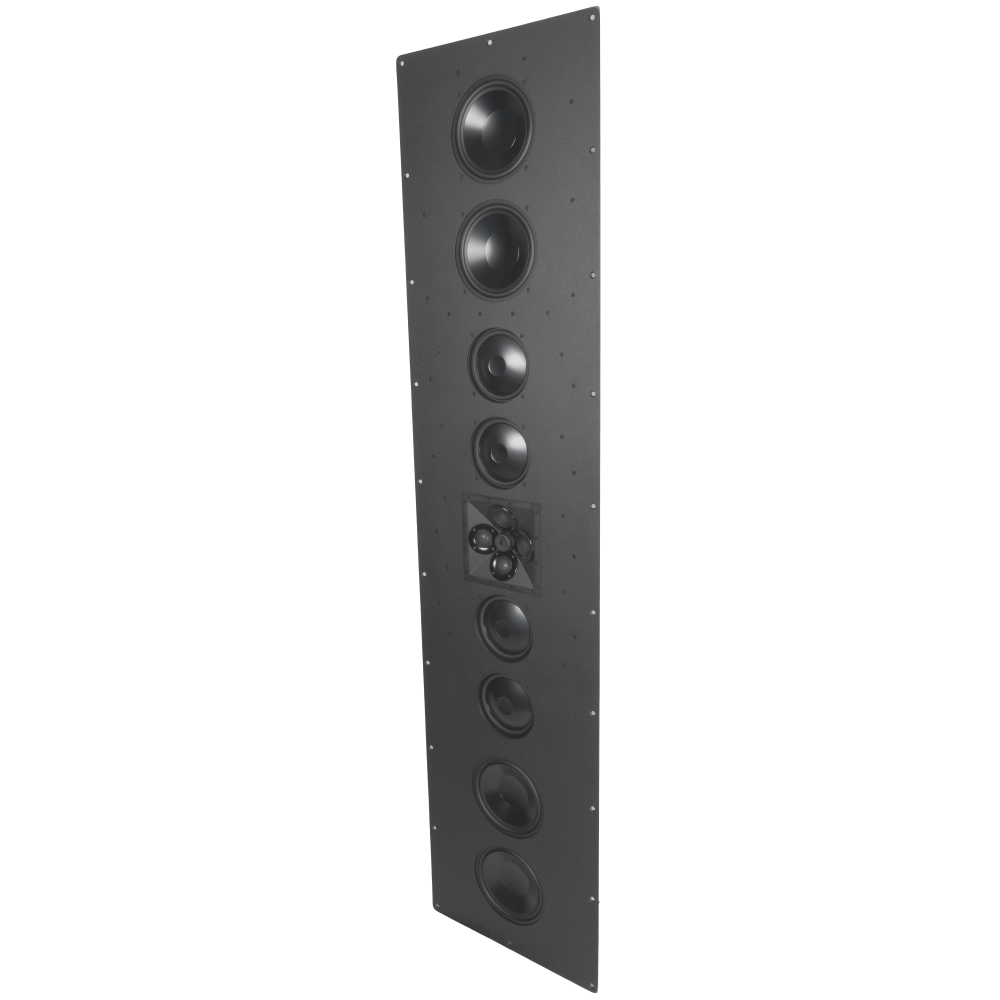

BE812-MKII
BE Series
Key Features
- James Beryllium dome Quad Tweeter Array
- High-output aluminum cone woofers
- Low distortion
- Designed to fit standard 2x4 stud bay construction, 16” on-center
- TAA Compliant
Specifications
SKU
60643
Speaker Tweeter
(4) 1" (25mm) Beryllium (Quad Array)
Speaker Woofer
(4) 8" (203mm) Aluminum
Speaker Mid Range
(2) 6.5" (165mm) Neodymium
Frequency Response (+/- 3db)
40Hz - 40kHz
Nominal Coverage Angle
114 degrees horizontal, 102 degrees vertical
Sensitivity
102dB (2.83V/1m)
Recommended Power Range
50 - 300W
Nominal Impedance (Ohms)
4 ohms
Dimensions (WxHxD)
17.5" x 75.0" x 3.89" (444.5mm x 1905.0mm x 98.7mm)
Cut-Out Dimensions (WxH)
14.38" x 71.88" (365.13mm x 1825.63mm)
