Professional Series Surface Mount

Product Overview

Sonance Professional Series has been engineered with a level of attention to detail not typically seen in the commercial audio industry.

The range features a full-fidelity transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension and chambered 1" tweeter for precise high-end detail and exceptional off-axis performance.

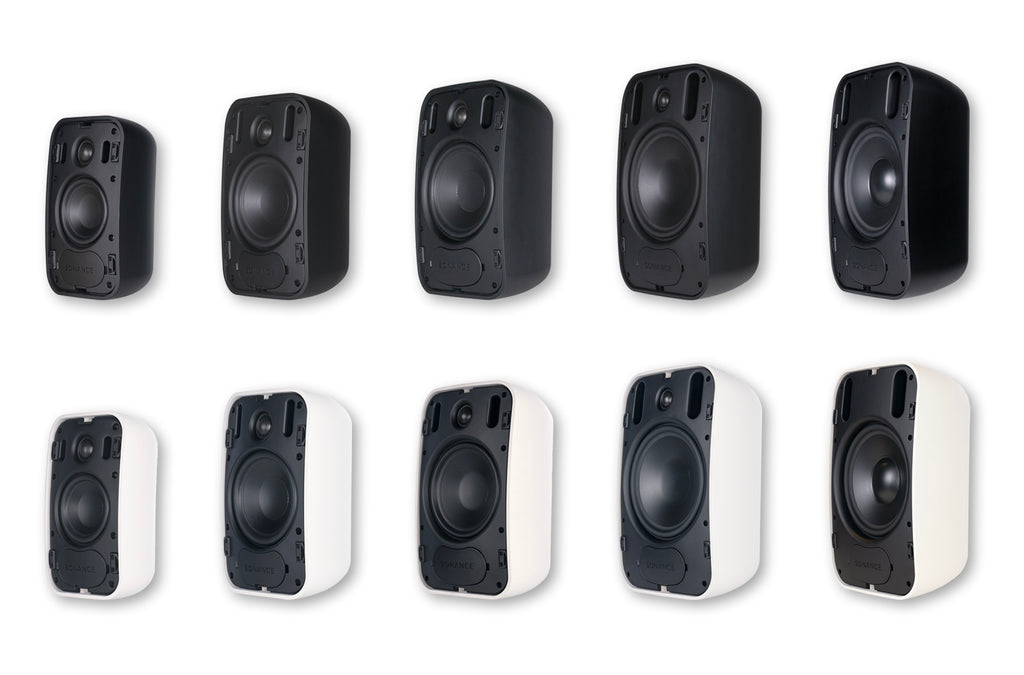

Available in 4", 5.25", 6.5", 8" 2-Way and an 8" Woofer.

Clean minimalistic lines and a flush-fitting grille make Sonance Professional Series Surface Mount Speakers look more like carefully designed pieces of decor, rather than the traditional bulky look of cabinet speakers.

Available in either black or white, which can be painted to match wall or ceiling colors.

Sonance Professional Series Surface-Mount Speakers feature the patented FastMount bracket to speed up the installation process and prevent them from slipping out of adjustment over time.

The front-mounted cable connector and tap selector makes connection and adjustment a breeze, while the clip-in cover shields them from the elements.

The weather and temperature resistant construction and powder coated aluminum grille allow them to be used in either indoor or outdoor applications. UL 1480 certified, IPX4, Mil Spec 810, and UV IEC 529.

EASE Address software for Sonance Professional Series provides simple and accurate system layout of distributed audio systems, ensuring perfect coverage is always achieved.

*EASE is a registered trademark of AFMG Technologies GmbH.

Features

  • Class-leading sensitivity & sonic performance
  • Exceptional off-axis response
  • Heavy-duty voice coil for longevity and reliability
  • Ultra-low saturation transformer for uncompromised performance on 70V/100V lines
  • Consistent voicing across product range
  • Clean and minimalistic design
  • Available in black or white (paintable)
  • FastMount® bracket system for easy installation
  • Front-located cable connector and tap selector
  • Connector and tap selector cover
  • Corrosion-resistant powder coated aluminum grille
  • Shopping Malls, Retail Spaces and Showrooms
  • Restaurants, Bars and Lounges
  • Galleries, Museums and Amusement Parks
  • Casinos, Convention Centers and Hotels
  • Houses of Worship and Educational Facilities
  • Sporting Facilities
  • Marinas, Piers and Wharfs

Product Specifications

Frequency Range (-10dB)

57Hz - 25kHz

Frequency Range (-3dB)

75Hz - 20kHz

Power Capacity

60 Watts Continuous Program Power | 30 Watts Continuous Pink Noise

Nominal Sensitivity

87dB

Nominal Coverage Angle

90 degrees x 90 degrees coverage

Rated Maximum SPL

105dB @ 1 meter (3.3 feet) average, 110dB peak

Rated Impedance

8 Ohms nominal, 6 Ohms minimum

Transformer Taps

70V: 30W, 15W, 7.5W and 3.8W; 100V: 30W, 15W and 7.5W

Crossover Point

3000Hz

Overall Dimensions

9.25” Height x 5.47” Width x 4.8” Depth(235mm x 139mm x 122mm)

Net Weight

6.79 lbs (3.08kg) each

Shipping Weight

19.00 lbs (8.62kg) pair

Unit of Measure

Each

Grille

Powder Coated Aluminum Friction Fit

LF Driver

4” (100mm) Polypropylene Cone, Butyl Rubber Surround

HF Driver

1” (25mm) Cloth Dome, Ferrofluid cooled

Input Connector

Front-mounted four pin, Euroblock with loop output connections

Safety Agency

UL 1480, UL 2239, NFPA 70

Environmental & UV

Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating

Mounting Bracket

U-Bracket with Sonance FastMount

Color

Black or White

Product Details

Frequency Range (-10dB)

43Hz - 25kHz

Frequency Range (-3dB)

70Hz - 20kHz

Power Capacity

90 Watts Continuous Program Power | 45 Watts Continuous Pink Noise

Nominal Sensitivity

88dB

Nominal Coverage Angle

90 degrees x 90 degrees coverage

Rated Maximum SPL

106dB @ 1 meter (3.3 feet) average, 113dB peak

Rated Impedance

8 Ohms nominal, 6 Ohms minimum

Transformer Taps

70V: 30W, 15W, 7.5W and 3.8W; 100V: 30W, 15W and 7.5W

Crossover Point

2750Hz

Overall Dimensions

10.08” Height x 6.36” Width x 5.68” Depth (256mm x 162mm x 144mm)

Net Weight

8.68 lbs (3.94kg) each

Shipping Weight

23.93 lbs (10.85kg) pair

Unit of Measure

Each

Grille

Powder Coated Aluminum Friction Fit

LF Driver

5.25” (130mm) Polypropylene Cone, Butyl Rubber Surround

HF Driver

1” (25mm) Cloth Dome, Ferrofluid cooled

Input Connector

Front-mounted four pin, Euroblock with loop output connections

Safety Agency

UL 1480, UL 2239, NFPA 70

Environmental & UV

Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating

Mounting Bracket

U-Bracket with Sonance FastMount

Color

Black or White

Product Details

Frequency Range (-10dB)

49Hz - 25kHz

Frequency Range (-3dB)

65Hz - 20kHz

Power Capacity

120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise

Nominal Sensitivity

88dB

Nominal Coverage Angle

90 degrees x 90 degrees coverage

Rated Maximum SPL

108dB @ 1 meter (3.3 feet) average, 116dB peak

Rated Impedance

8 Ohms nominal, 6 Ohms minimum

Transformer Taps

70V: 60W, 30W, 15W and 7.5W; 100V: 60W, 30W and 15W

Crossover Point

2750Hz

Overall Dimensions

12.14” Height x 7.51” Width x 6.86” Depth (309mm x 191mm x 174mm)

Net Weight

11.43 lbs (5.18kg) each

Shipping Weight

31.26 lbs (14.18kg) pair

Unit of Measure

Each

Grille

Powder Coated Aluminum Friction Fit

LF Driver

6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround

HF Driver

1” (25mm) Cloth Dome, Ferrofluid cooled

Input Connector

Front-mounted four pin, Euroblock with loop output connections

Safety Agency

UL 1480, UL 2239, NFPA 70

Environmental & UV

Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating

Mounting Bracket

U-Bracket with Sonance FastMount

Color

Black or White

Product Details

Frequency Range (-10dB)

41Hz - 25kHz

Frequency Range (-3dB)

55Hz - 20kHz

Power Capacity

160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise

Nominal Sensitivity

90dB

Nominal Coverage Angle

90 degrees x 90 degrees coverage

Rated Maximum SPL

110dB @ 1 meter (3.3 feet) average, 116dB peak

Rated Impedance

8 Ohms nominal, 6 Ohms minimum

Transformer Taps

70V: 60W, 30W, 15W and 7.5W; 100V: 60W, 30W and 15W

Crossover Point

2750Hz

Overall Dimensions

14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)

Net Weight

14.72 lbs (6.68kg) each

Shipping Weight

42.23 lbs (19.16kg) pair

Unit of Measure

Each

Grille

Powder Coated Aluminum Friction Fit

LF Driver

8" Polypropylene Cone, Butyl Rubber Surround

HF Driver

1” (25mm) Cloth Dome, Ferrofluid cooled

Input Connector

Front-mounted four pin, Euroblock with loop output connections

Safety Agency

UL 1480, UL 2239, NFPA 70

Environmental & UV

Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating

Mounting Bracket

U-Bracket with Sonance FastMount

Color

Black or White

Product Details

Frequency Range (-10dB)

32Hz - 300Hz

Frequency Range (-3dB)

50Hz - 150kHz

Power Capacity

200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise

Nominal Sensitivity

88dB

Nominal Coverage Angle

180 degrees x 180 degrees coverage

Rated Maximum SPL

110dB @ 1 meter (3.3 feet) average, 116dB peak

Rated Impedance

8 Ohms nominal, 6 Ohms minimum

Transformer Taps

120W, 60W, 30W (15W 70V)

Crossover Point

150Hz

Overall Dimensions

14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)

Net Weight

16.80lbs (7.62kg) each

Shipping Weight

21.49lbs (9.75kg) each

Unit of Measure

Each

Grille

Powder Coated Aluminum Friction Fit

LF Driver

8” (203mm) Polypropylene Cone, Butyl Rubber Surround

HF Driver

-

Input Connector

Front-mounted four pin, Euroblock with loop output connections

Safety Agency

UL 1480, UL 2239

Environmental & UV

Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating

Mounting Bracket

U-Bracket with Sonance FastMount

Color

Black or White

Product Details
