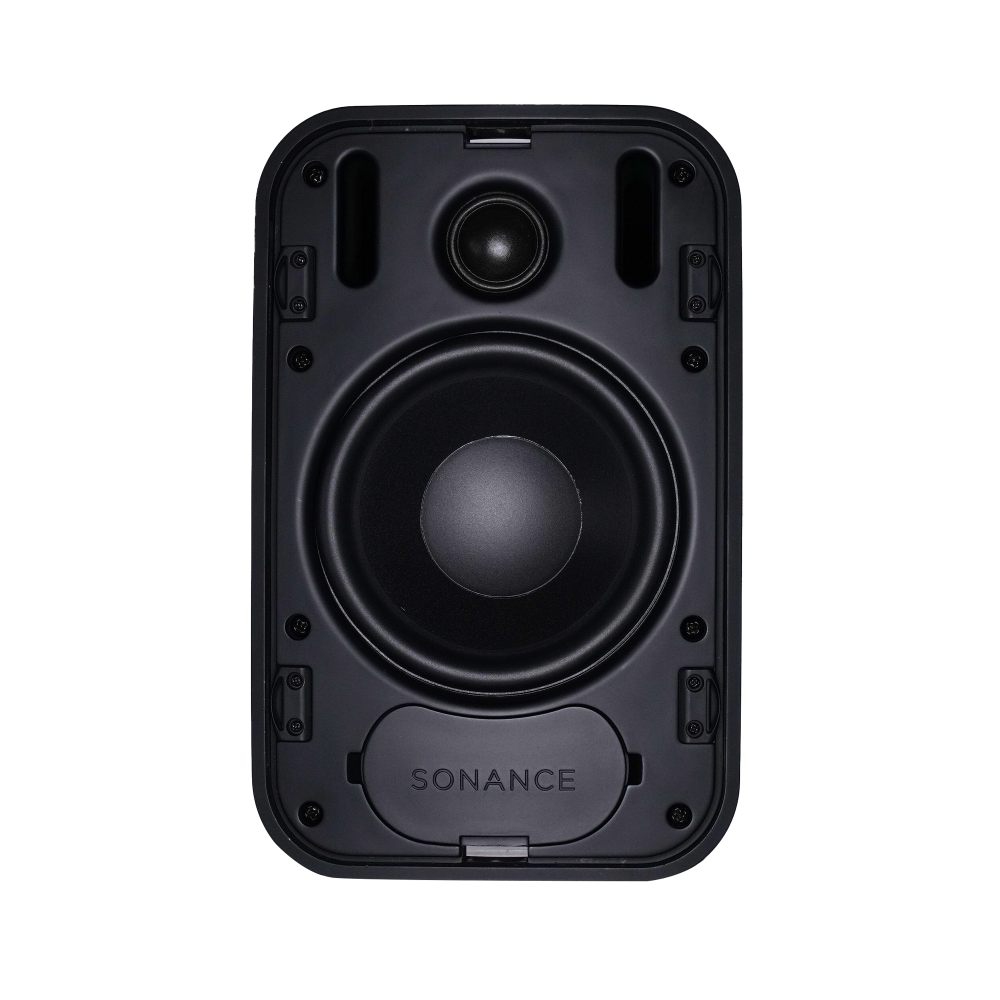

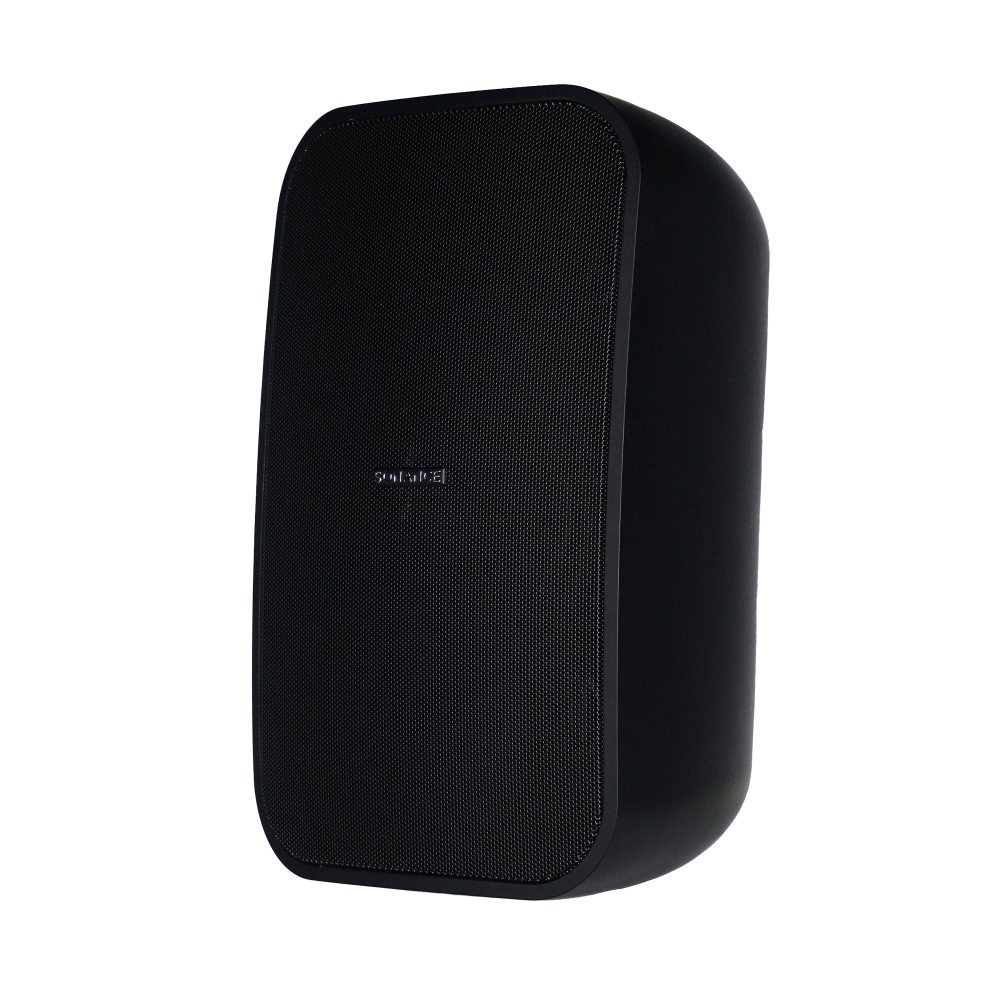

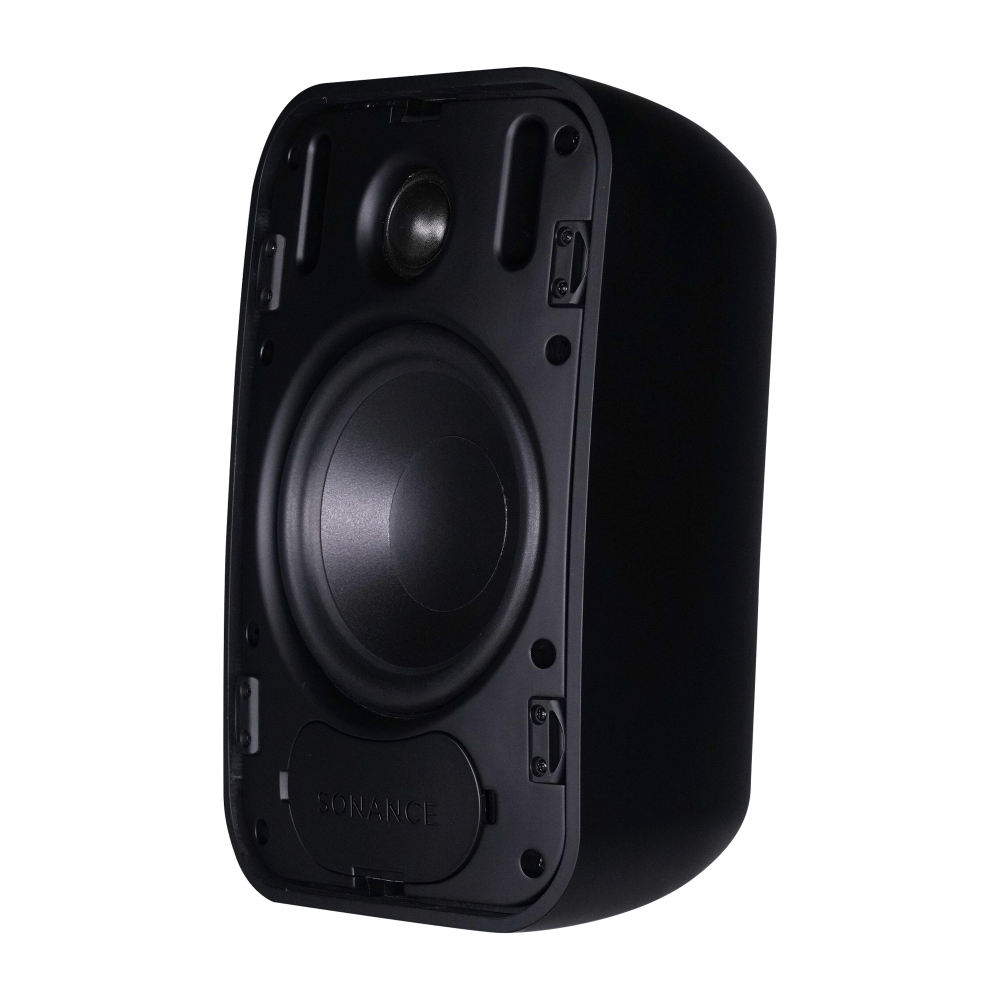

PS-S53T MKII
Professional Series
Key Features
- Class-leading sensitivity & sonic performance
- Exceptional off-axis response
- Heavy-duty voice coil for longevity and reliability
- Ultra-low saturation transformer for uncompromised performance on 70V/100V lines
- Consistent voicing across product range
- Clean and minimalistic design

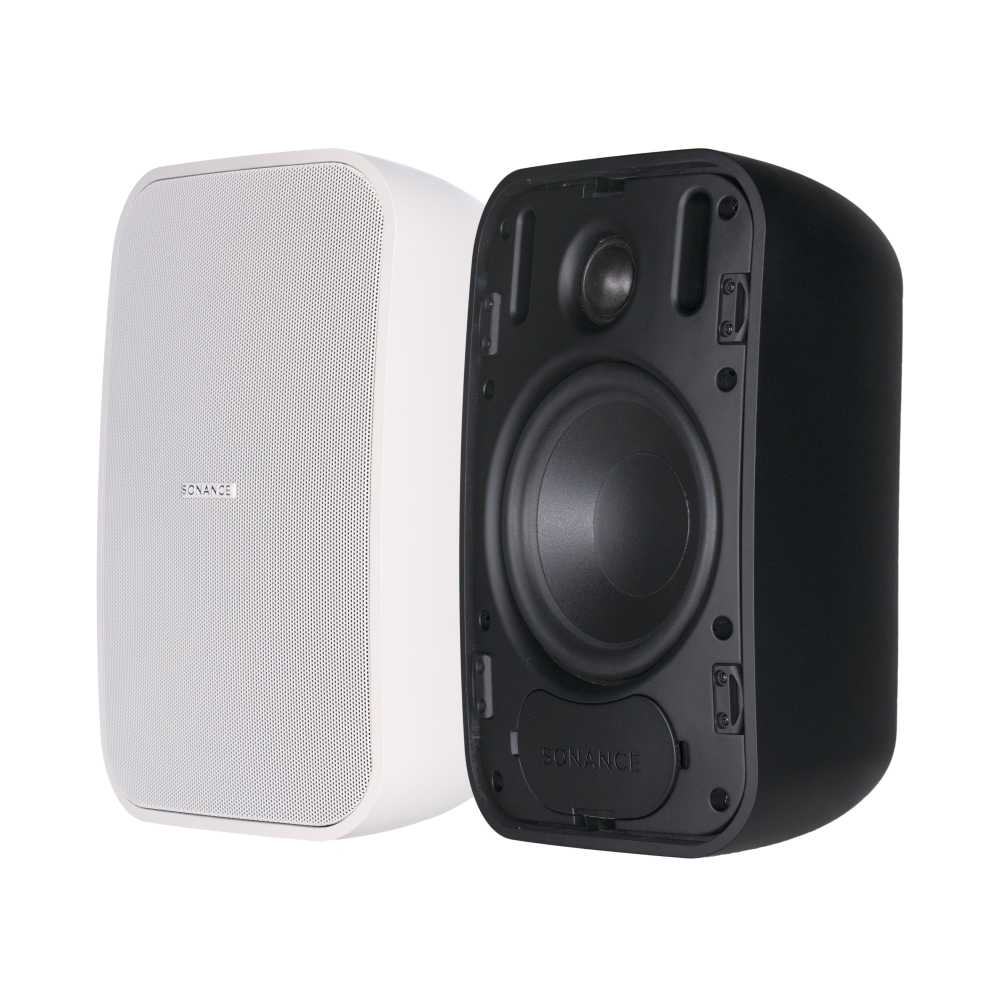

- Available in black or white (paintable)
- FastMount® bracket system for easy installation
- Front-located cable connector and tap selector
- Connector and tap selector cover
- Corrosion-resistant powder coated aluminum grille
Specifications
SKU
40201 (Black), 40202 (White)
HF Driver
1" (25mm) Cloth Dome, Ferrofluid cooled
LF Driver
5.25" (130mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
43Hz-25kHz
Frequency Response (+/- 3db)
70Hz - 20kHz
Power Handling (RMS)
90 watts program, 45 watts pink noise
Sensitivity
88dB (2.83V/1m)
Rated Maximum SPL
106dB @ 1 meter (3.3 feet), 113dB peak
Nominal Impedance (Ohms)
8 ohms
Transformer Taps
70 V / 100 V: 30W, 15W and 7.5W 70 V: 3.8W
Dimensions (WxHxD)
6.36" x 10.08" x 5.68" (161.54mm x 256.03mm x 144.27mm)
Grille
Powder Coated Aluminum Friction Fit
Input Connector
Front-mounted four pin, Euroblock with loop output connections
Certifications
UL 1480A;UL 2239;NFPA 70;Mil Spec 810;IEC 529
Environmental
IP45-rated, Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529

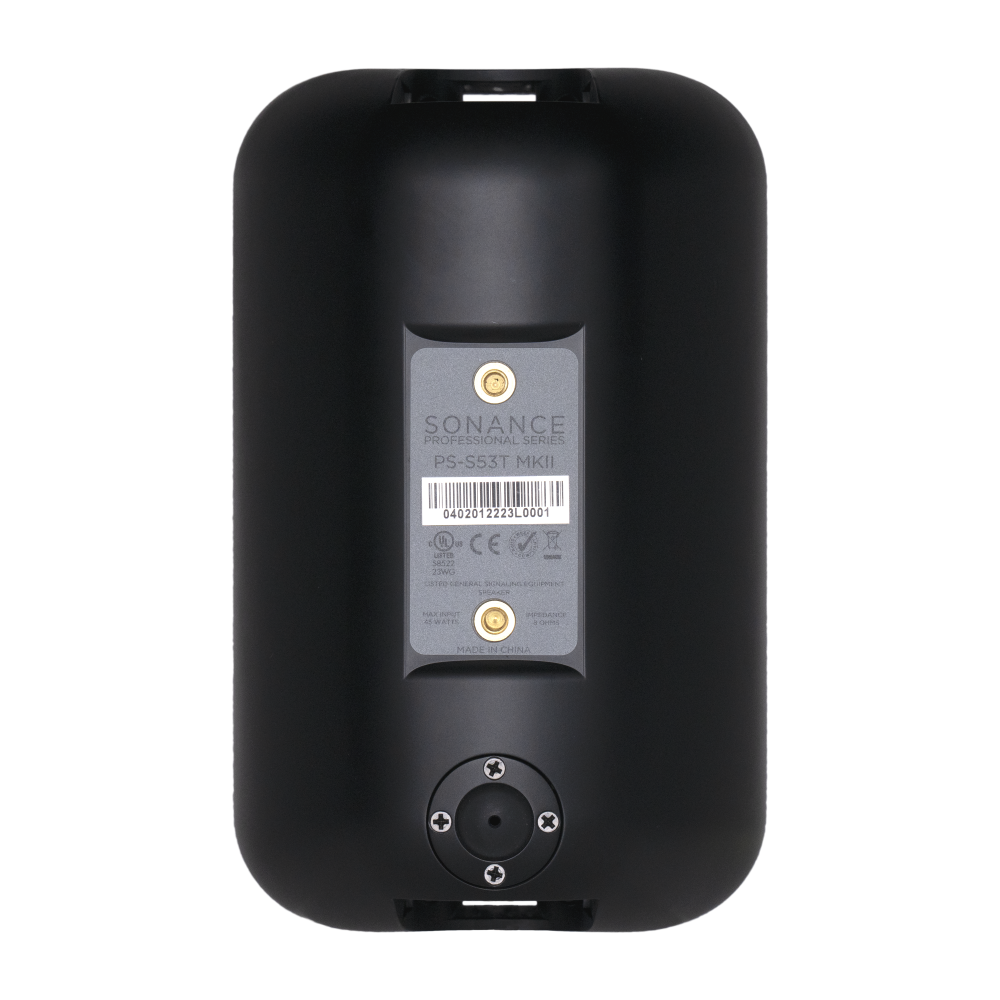

Mounting Bracket
U-Bracket with Sonance FastMount
Maximum SPL (Peak)
113dB peak
Architectural Specifications
The loudspeaker shall be of the two-way type comprising a single surface-mount injection-molded A...
