PS-S83WT MKII
Professional Series
Key Features
- Class-leading sensitivity & sonic performance
- Exceptional off-axis response
- Heavy-duty voice coil for longevity and reliability
- Ultra-low saturation transformer for uncompromised performance on 70V/100V lines
- Consistent voicing across product range
- Clean and minimalistic design
- Available in black or white (paintable)
- FastMount® bracket system for easy installation

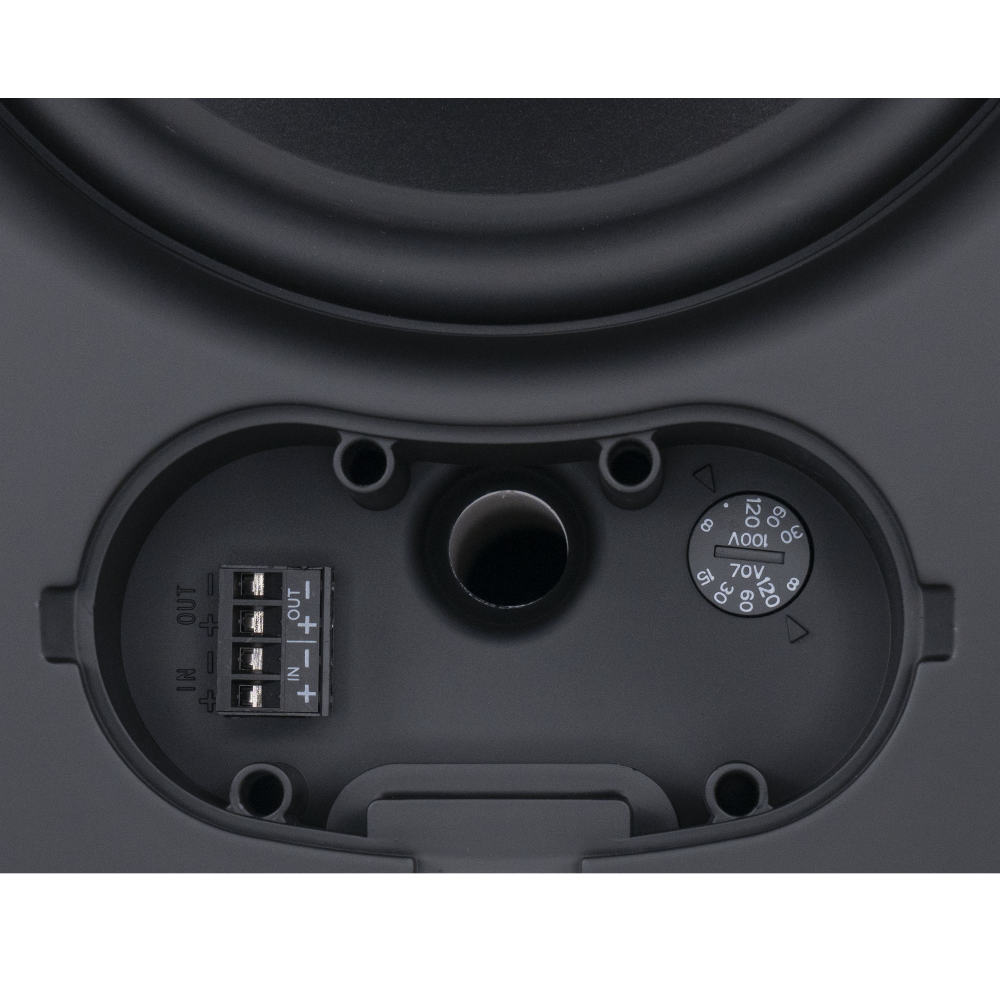

- Front-located cable connector and tap selector
- Connector and tap selector cover
- Corrosion-resistant powder coated aluminum grille
Specifications
SKU
40207 (Black), 40208 (White)
LF Driver
8" (203mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
32Hz – 300Hz
Frequency Response (+/- 3db)
50Hz - 150Hz
Power Handling (RMS)
200 watts program, 125 watts pink noise
Sensitivity
88dB (2.83V/1m)
Rated Maximum SPL
110dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms)
8 ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Dimensions (WxHxD)
9.01" x 14.02" x 8.58" (228.85mm x 356.11mm x 217.93mm)
Grille
Powder Coated Aluminum Friction Fit
Input Connector
Front-mounted four pin, Euroblock with loop output connections
Certifications
UL 1480A;UL 2239;NFPA 70;Mil Spec 810;IEC 529
Environmental
IP45-rated, Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529
Mounting Bracket
U-Bracket with Sonance FastMount
Maximum SPL (Peak)
116dB peak
Architectural Specifications
The loudspeaker shall be compromised of a single surface-mount injection-molded ABS enclosure con...
