PS-S85T
Now Shipping

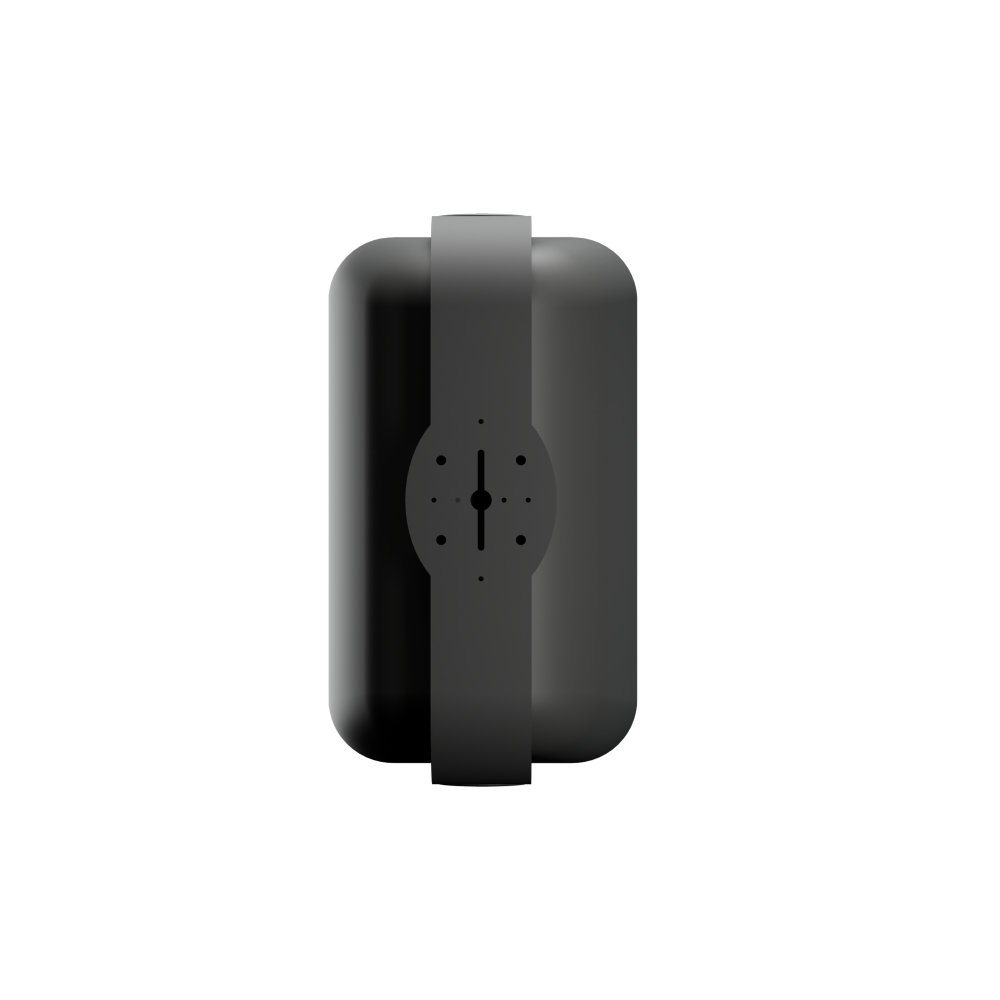

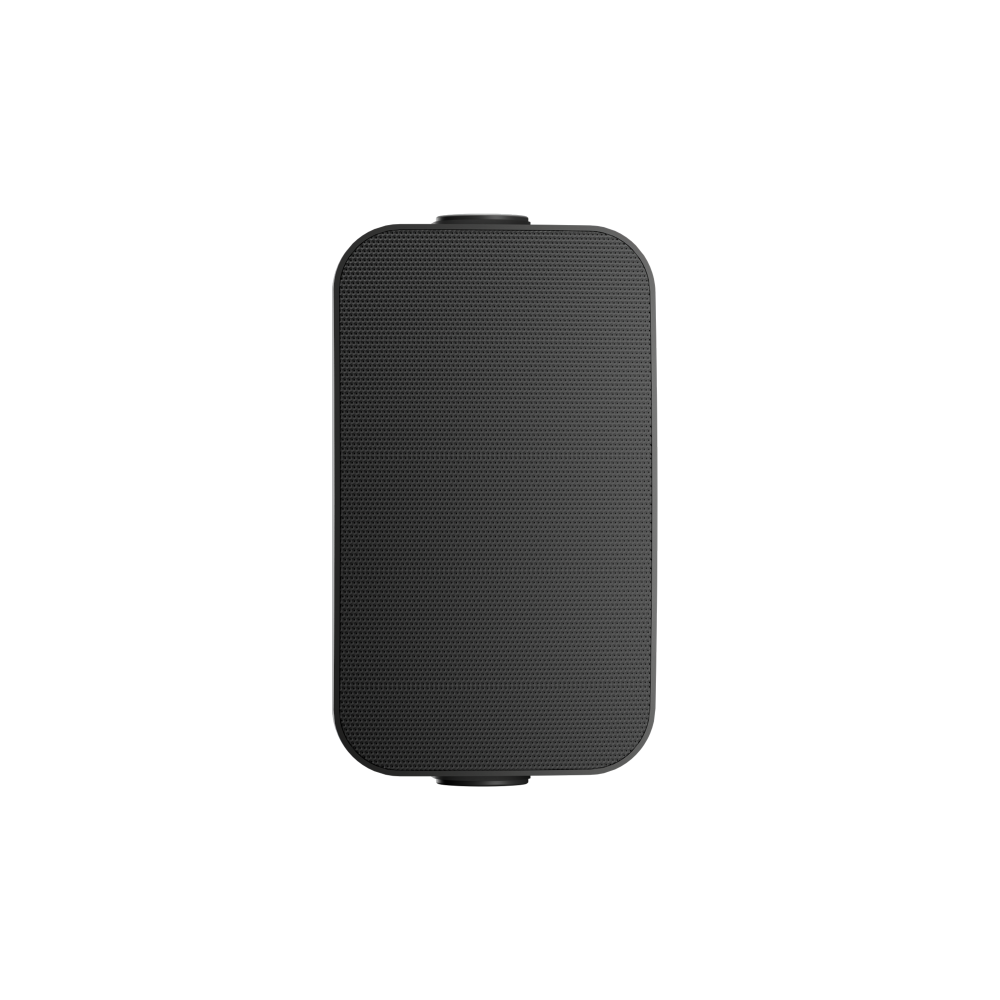

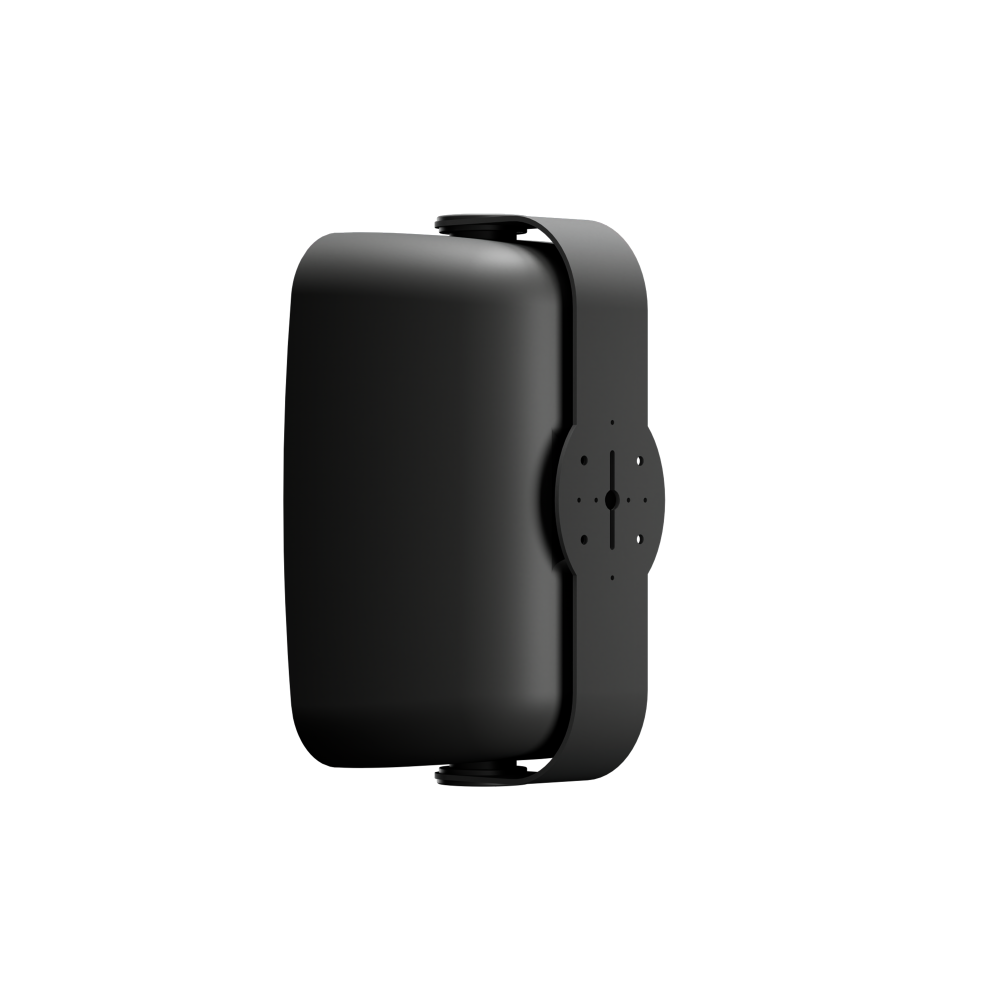

PS-S85T
Professional Series

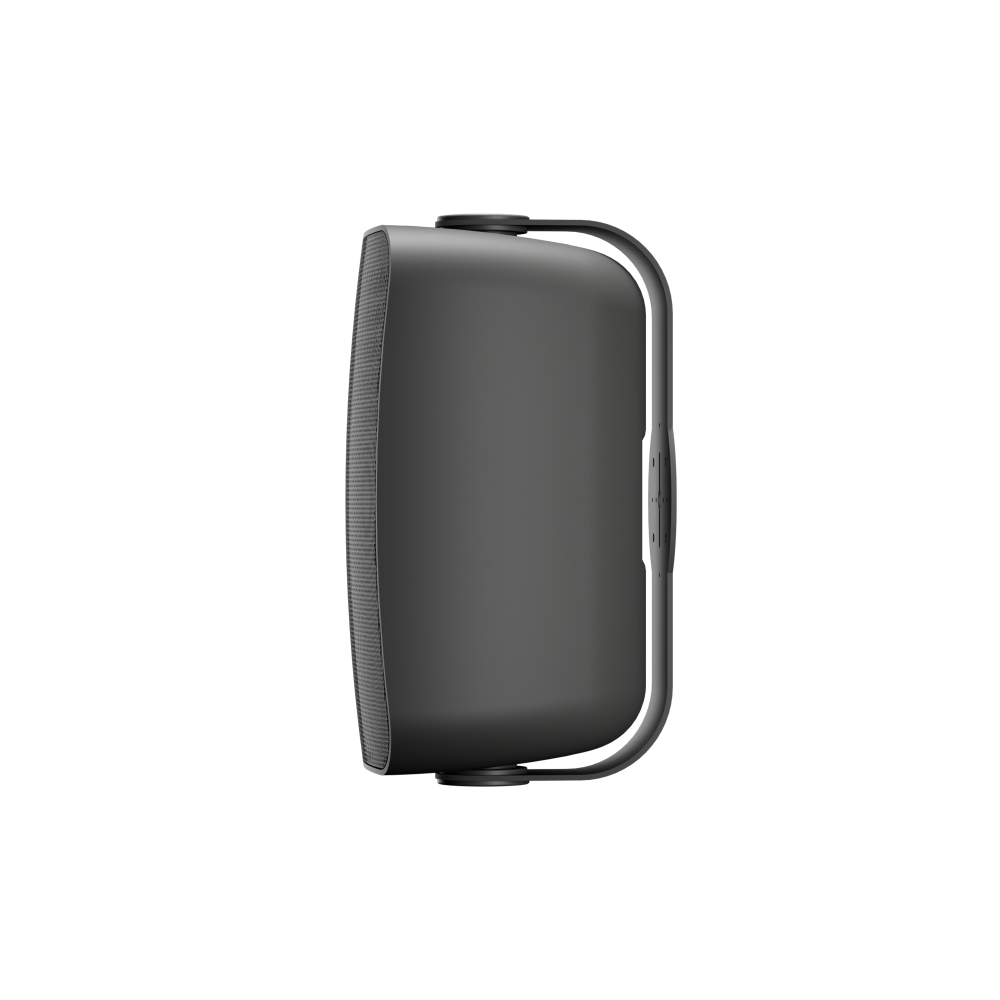

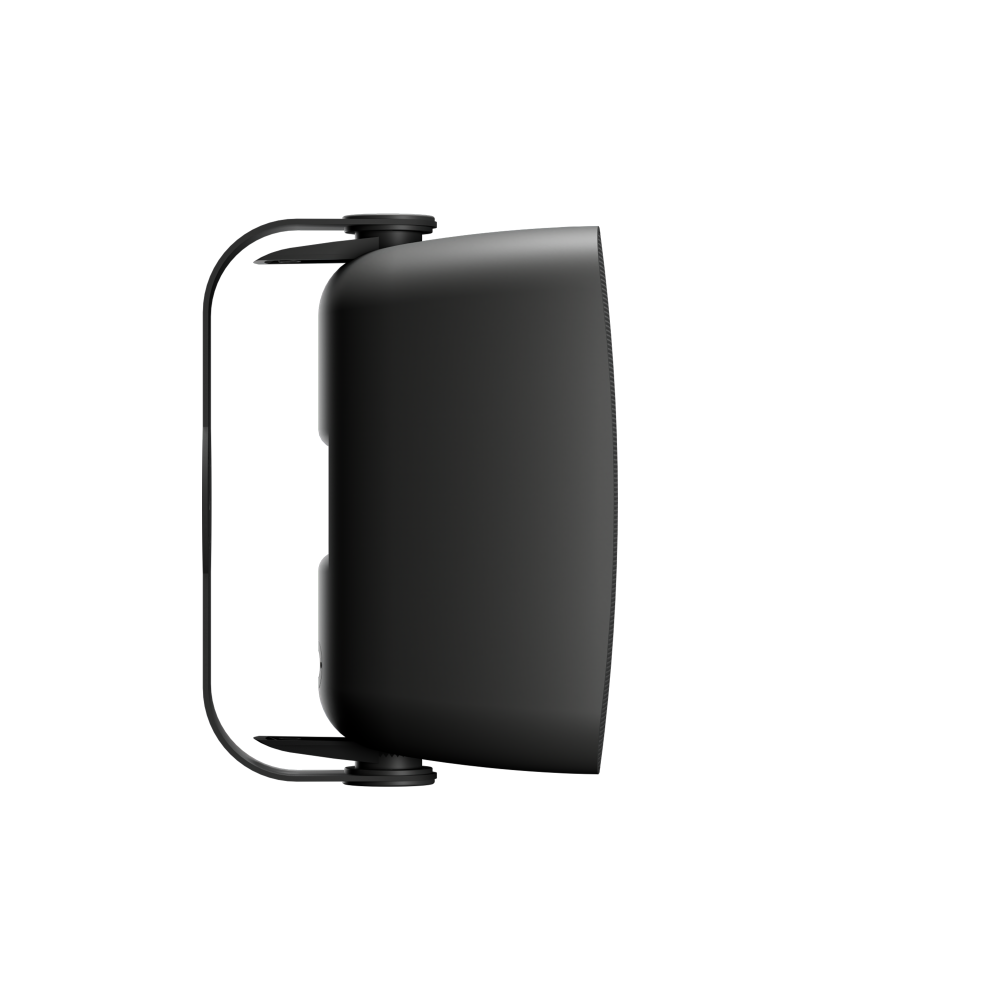

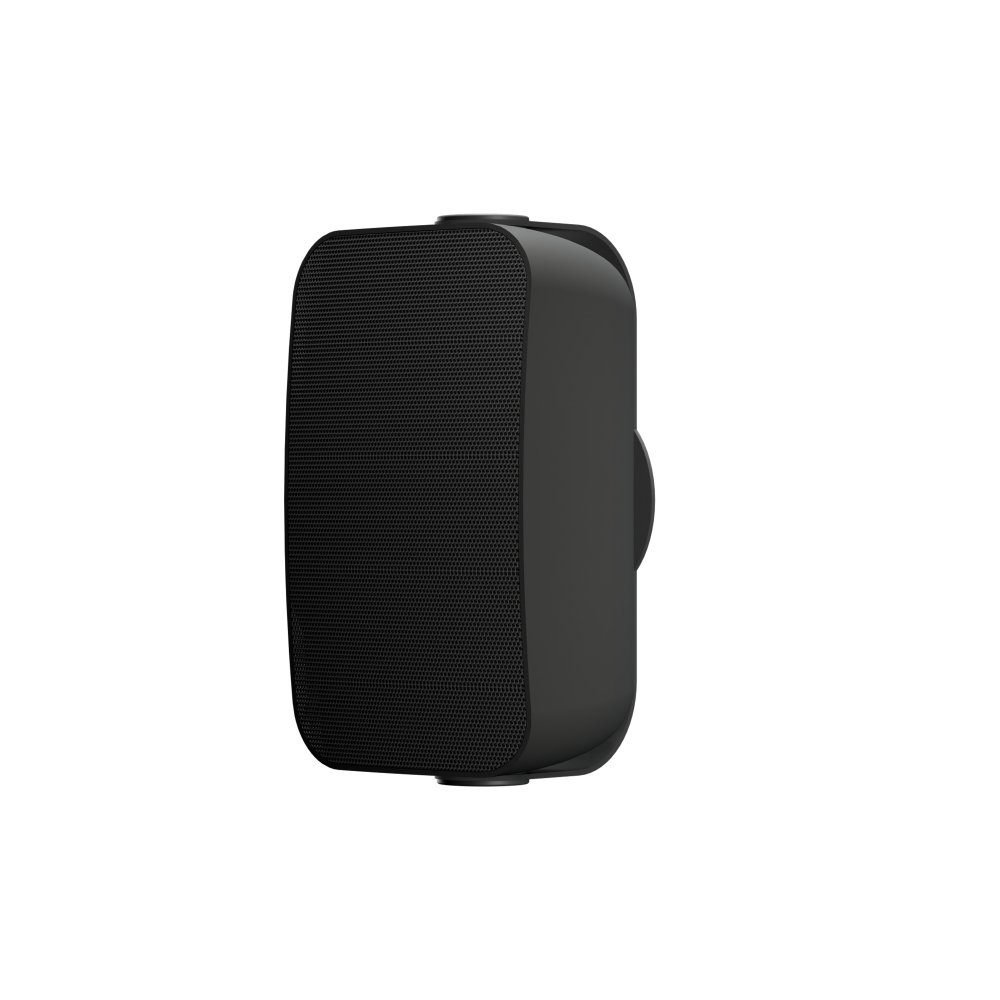

The PS-S85T is a high-output surface-mount loudspeaker built for commercial environments. Its UL94V-0 polypropylene enclosure and IPX4 ingress protection support both indoor and outdoor deployment, while the 8" aluminum woofer and neodymium compression driver deliver 93dB sensitivity and selectable dispersion patterns
Key Features
- Field-selectable 120° or 80° dispersion coverage

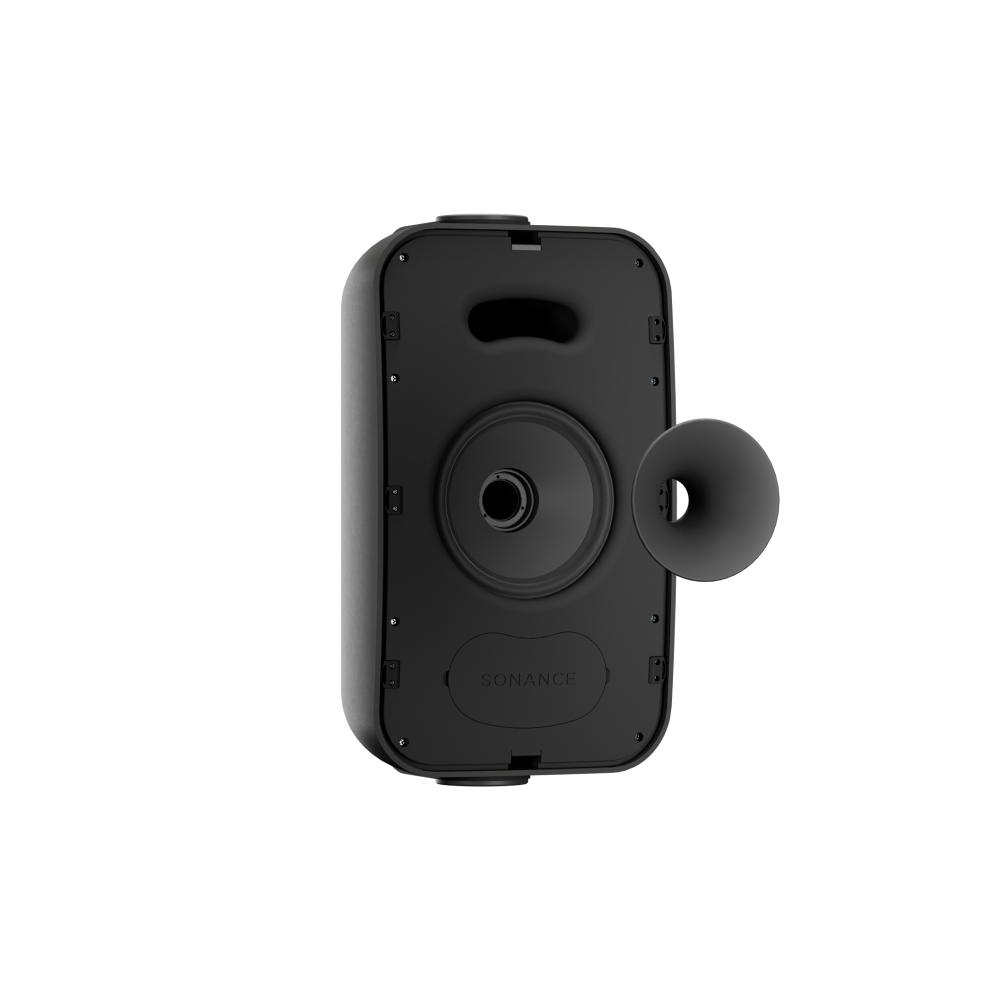

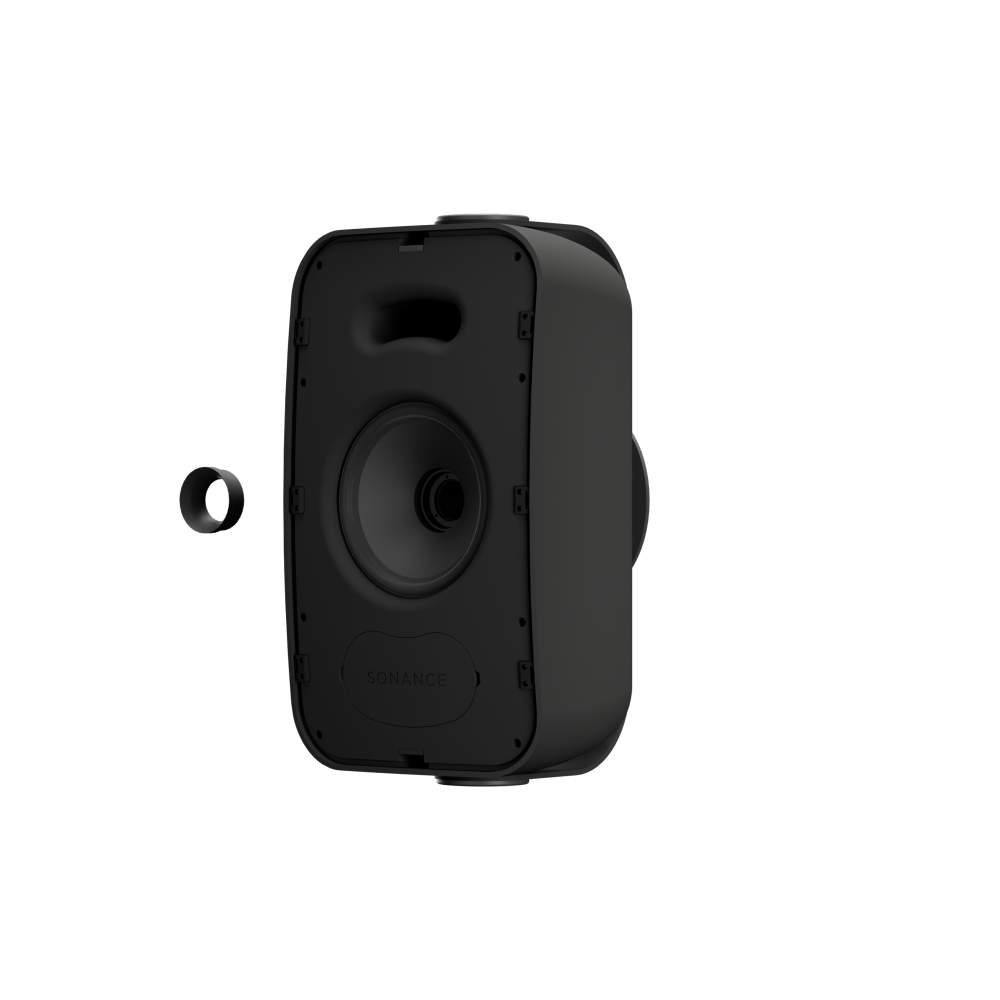

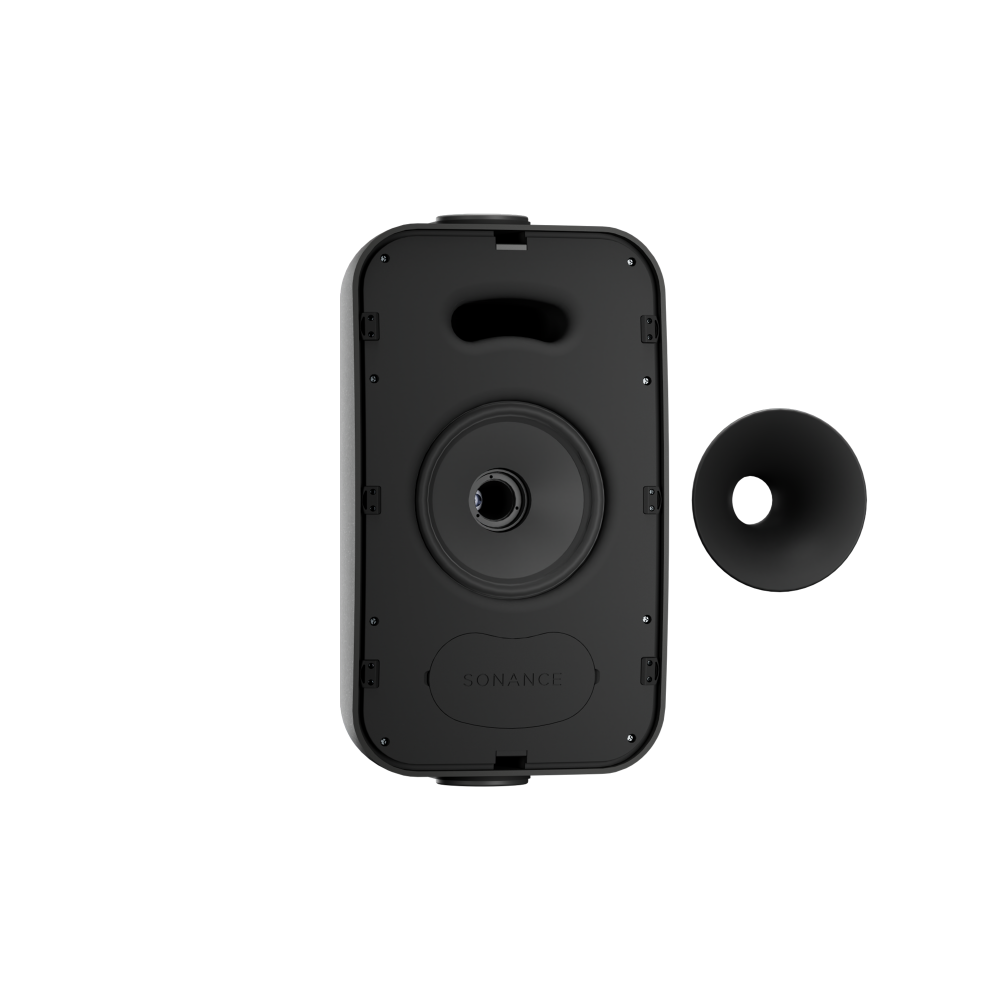

- Horn and collar assembly ships in-box; field-adjustable
- 1.4" compression driver engineered for high-SPL commercial environments
- Extended low-frequency response
- Integrated 70V/100V transformer, 120W max tap
- Part of a complete High Output form factor family
Specifications

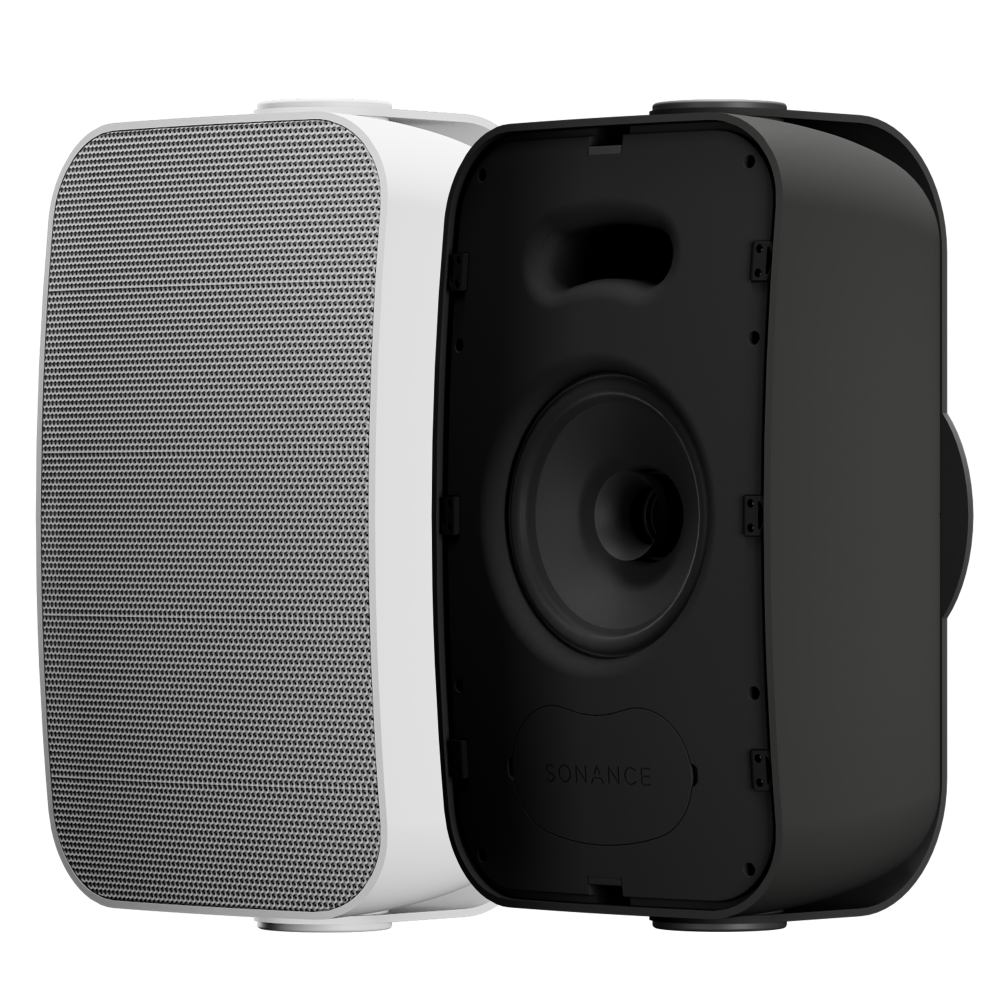

SKU | Color
40236 (Black - RAL 7021), 40235 (White - RAL 9003)
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymium Magnet, 1500Hz Crossover Frequency
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts (600 watts peak), 100 hours
Sensitivity
93dB SPL
Enclosure
Polypropylene plastic (UL94V-0)
Rated Maximum SPL
114dB, 120dB peak
Nominal Impedance (Ohms)
8 Ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (WxHxD)
11.57" x 19.47" x 10.25" (293.88mm x 494.54mm x 260.35mm)
Weight
29.3 lbs. (13.29kg)

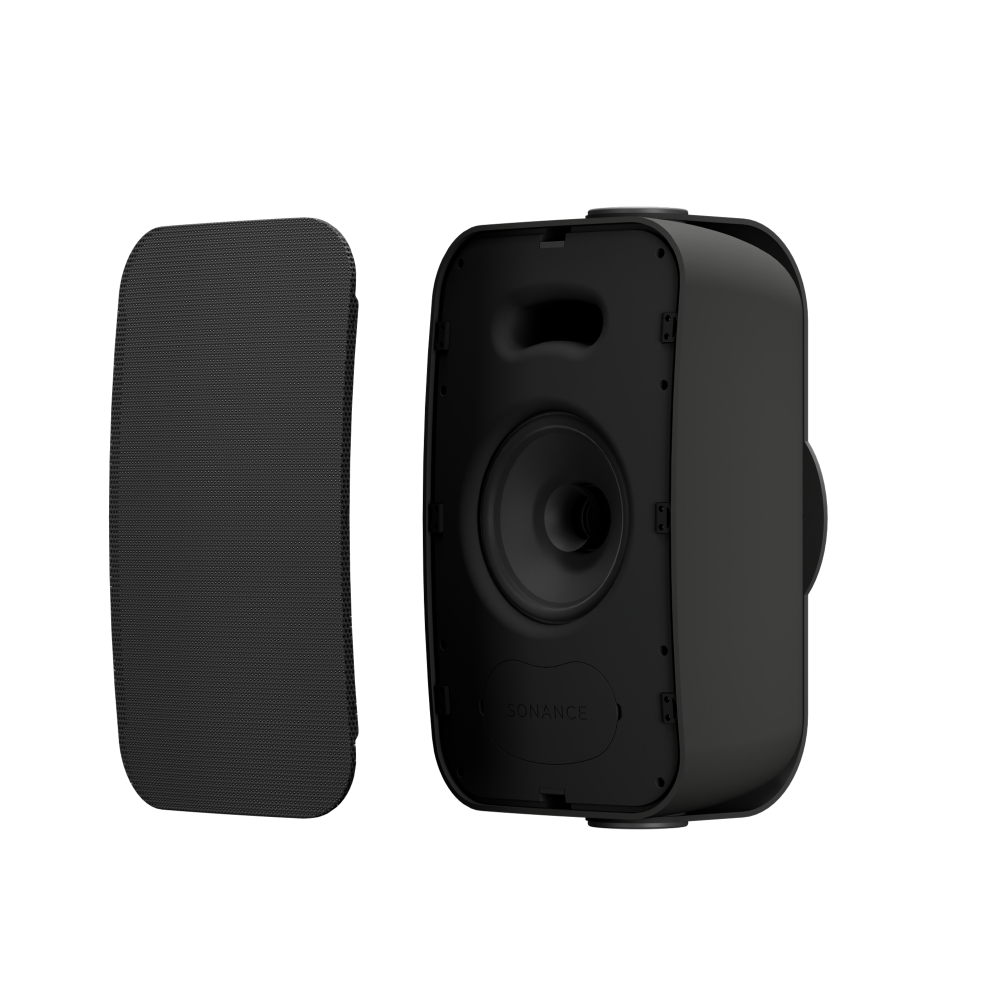

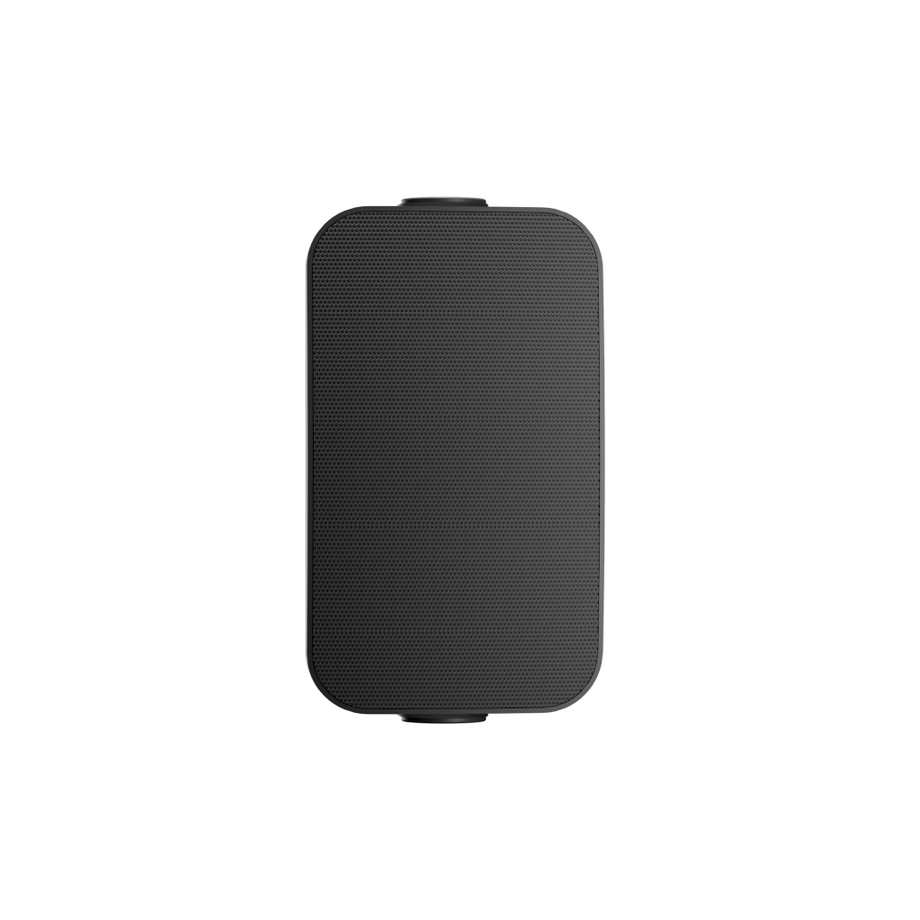

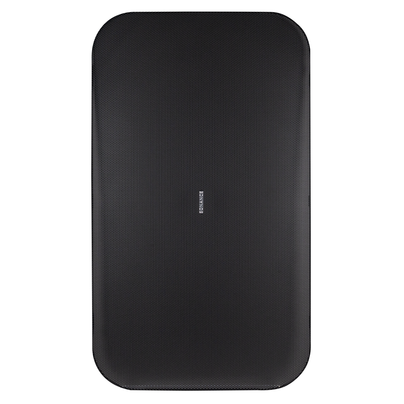

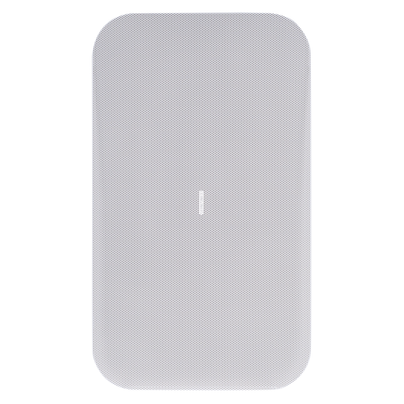

Grille
Steel
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

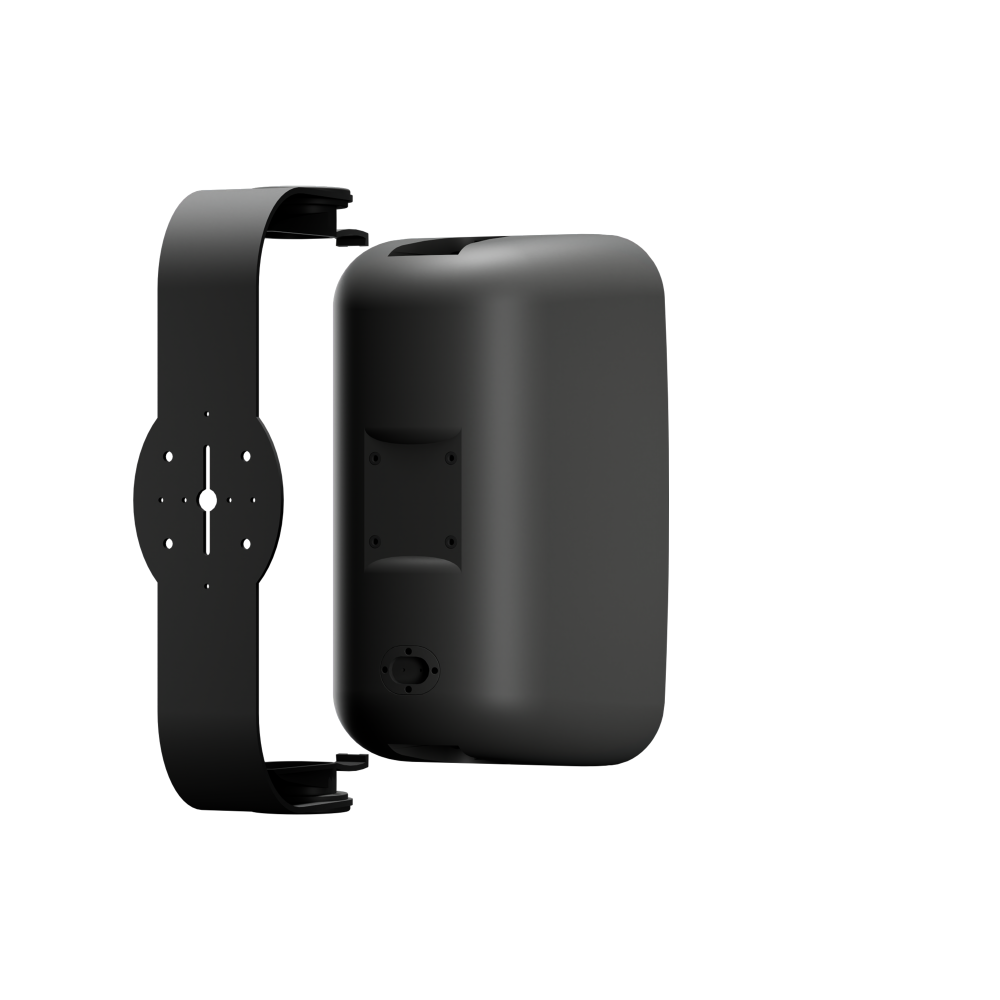

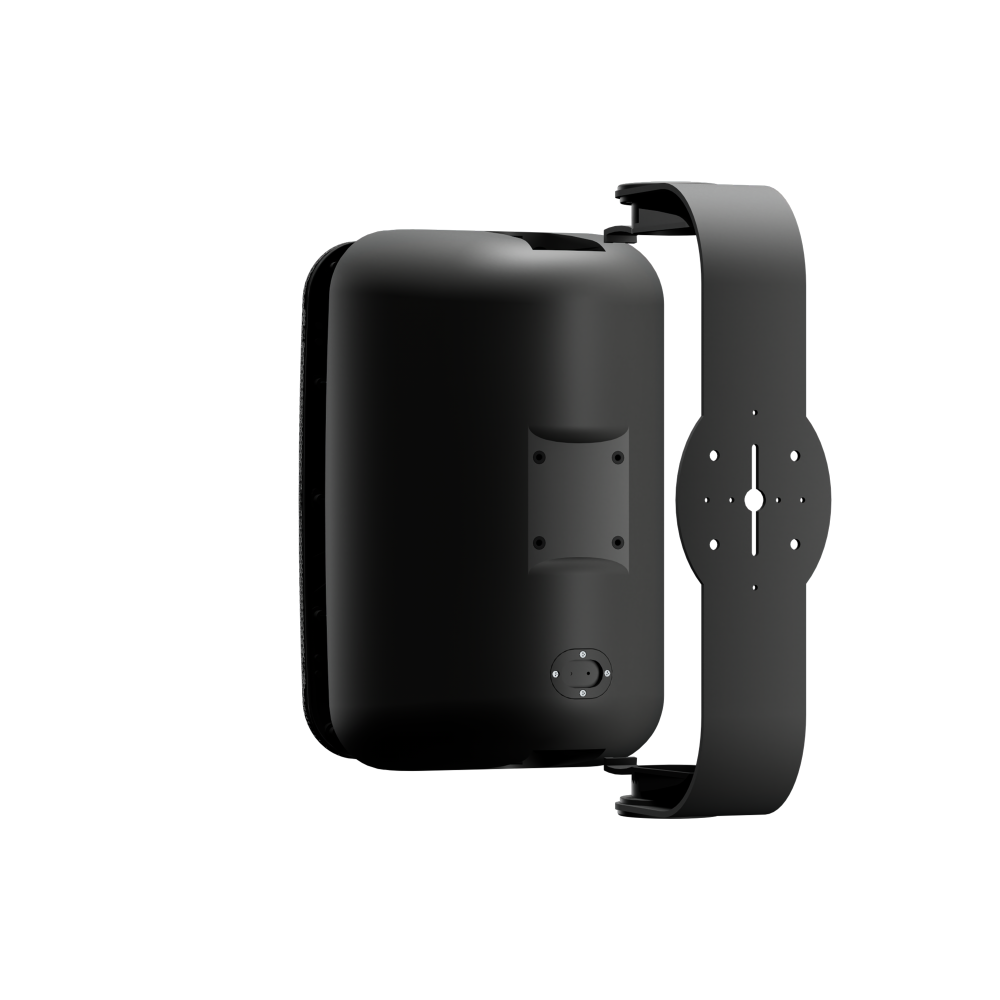

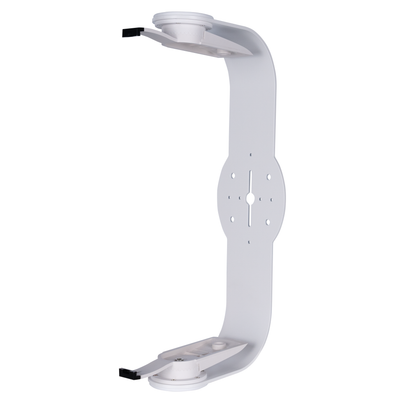

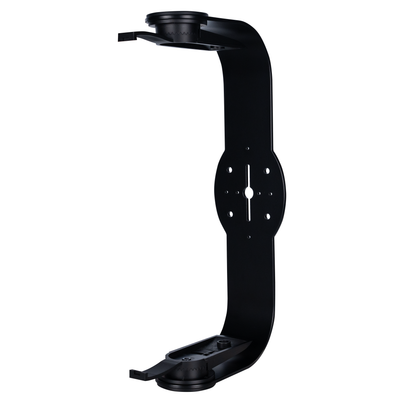

Suspension Points
Top, Bottom and Back
Maximum SPL (Peak)
120dB peak
