SA42-4

Small Aperture

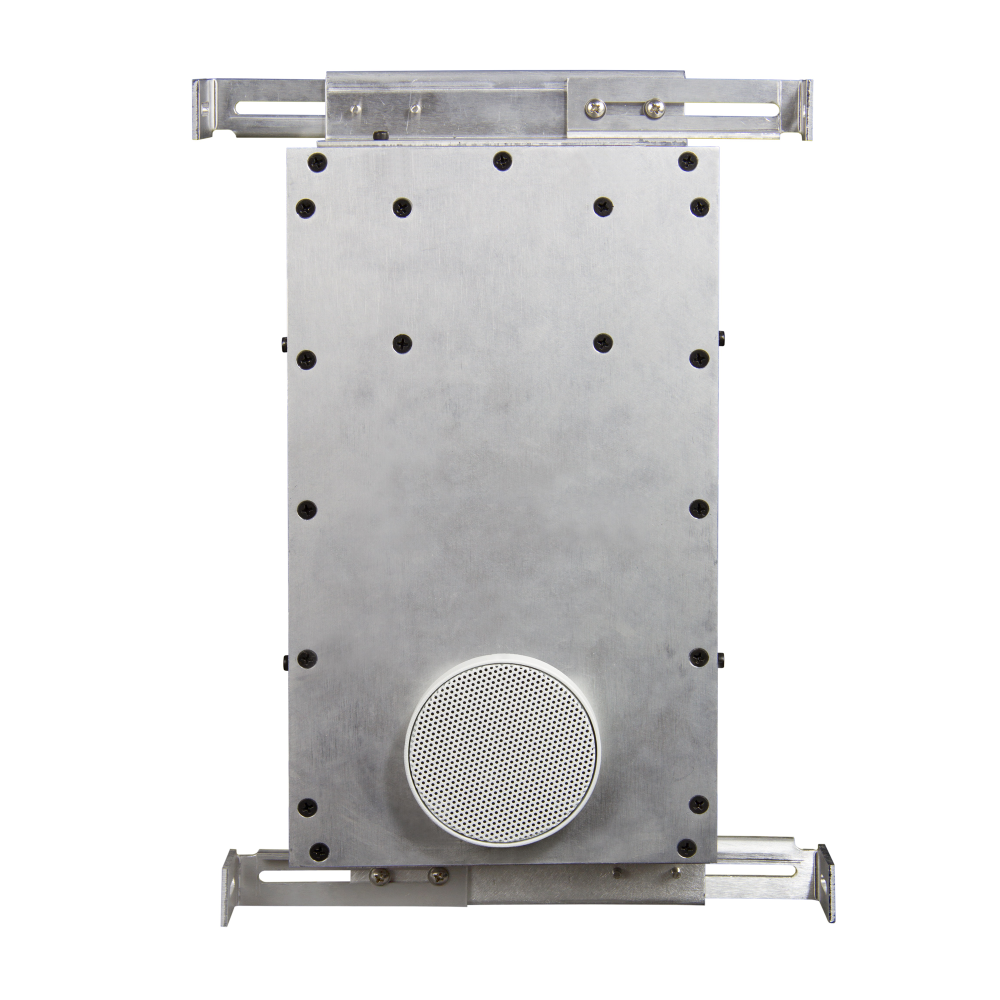

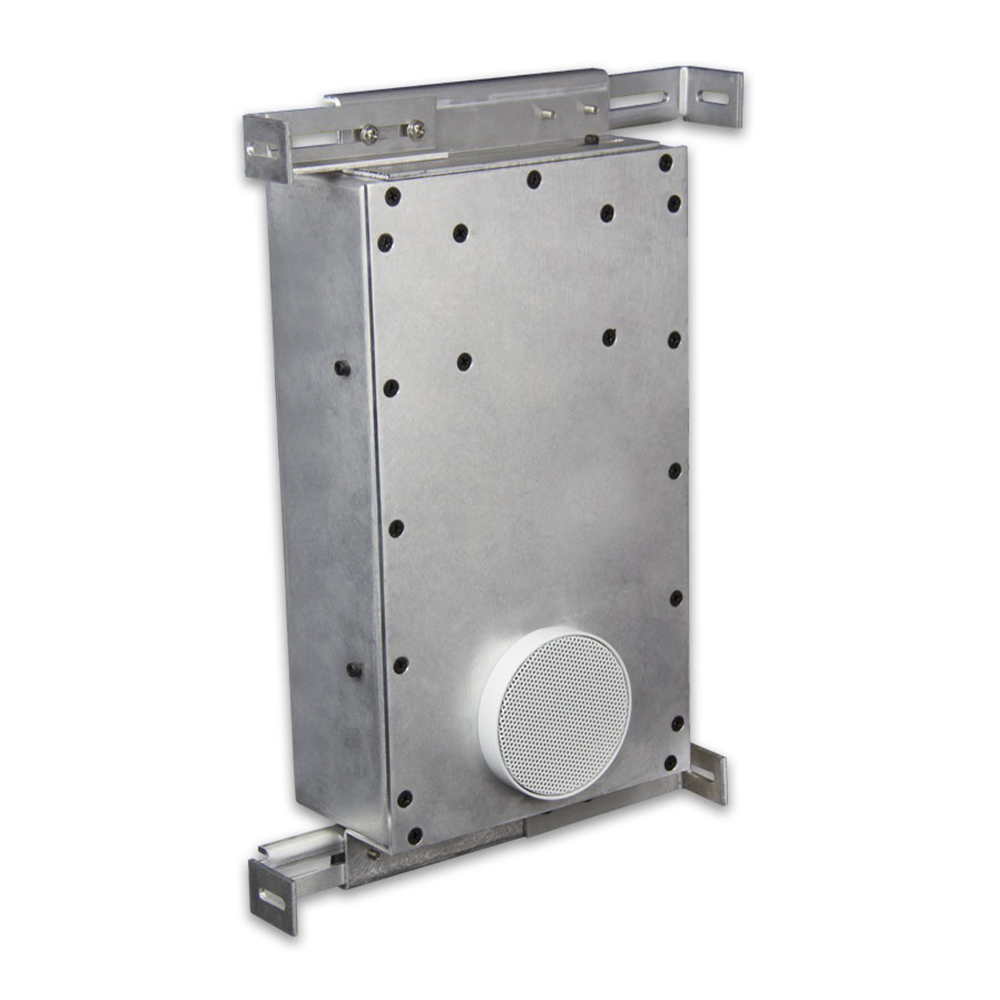

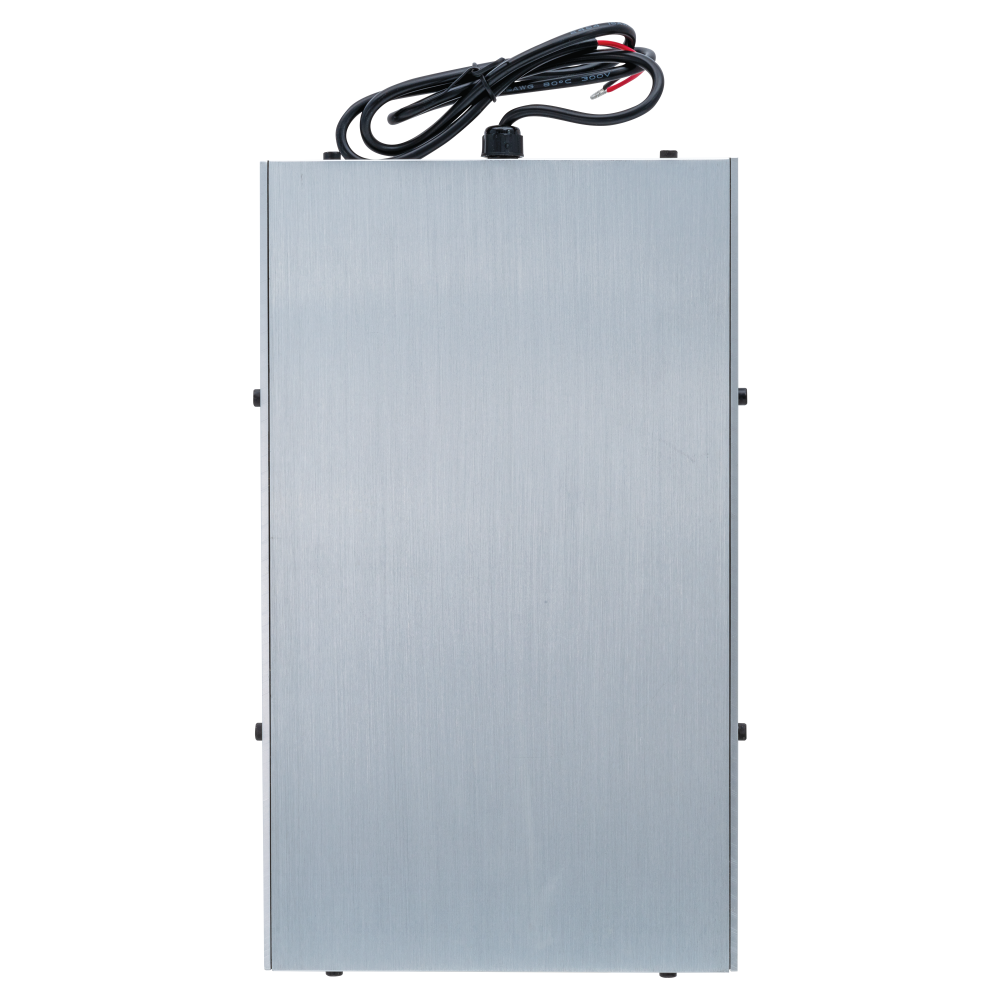

The SA42-4 is James Loudspeaker's most compact, affordable in-wall/in-ceiling Small Aperture® speaker, delivering premium sound through a tiny 3-inch grille. This 2-way system features a 4-inch woofer and 2-inch midrange/tweeter in an aircraft-grade aluminum enclosure, offering high output, defined bass, and wide dispersion while meeting stringent aesthetic demands in tight installation spaces.

SA42-4

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes
TAA Compliant

Specifications

SKU

SA42-4

Speaker Woofer

(1) 4" (102 mm) Aluminum

Speaker Mid Range

(1) 2" (50 mm) Aluminum

Frequency Response (+/- 3db)

70Hz - 24kHz

Sensitivity

85dB (2.83V/1m)

Recommended Power Range

25 - 100W

Enclosure

Aircraft Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions (WxHxD)

7.3" x 12.0" x 3.4" (185.32mm x 304.8mm x 86.36mm)

Copy All Specs
