Small Aperture Series

Models

Small Aperture Series
Small Aperture Series

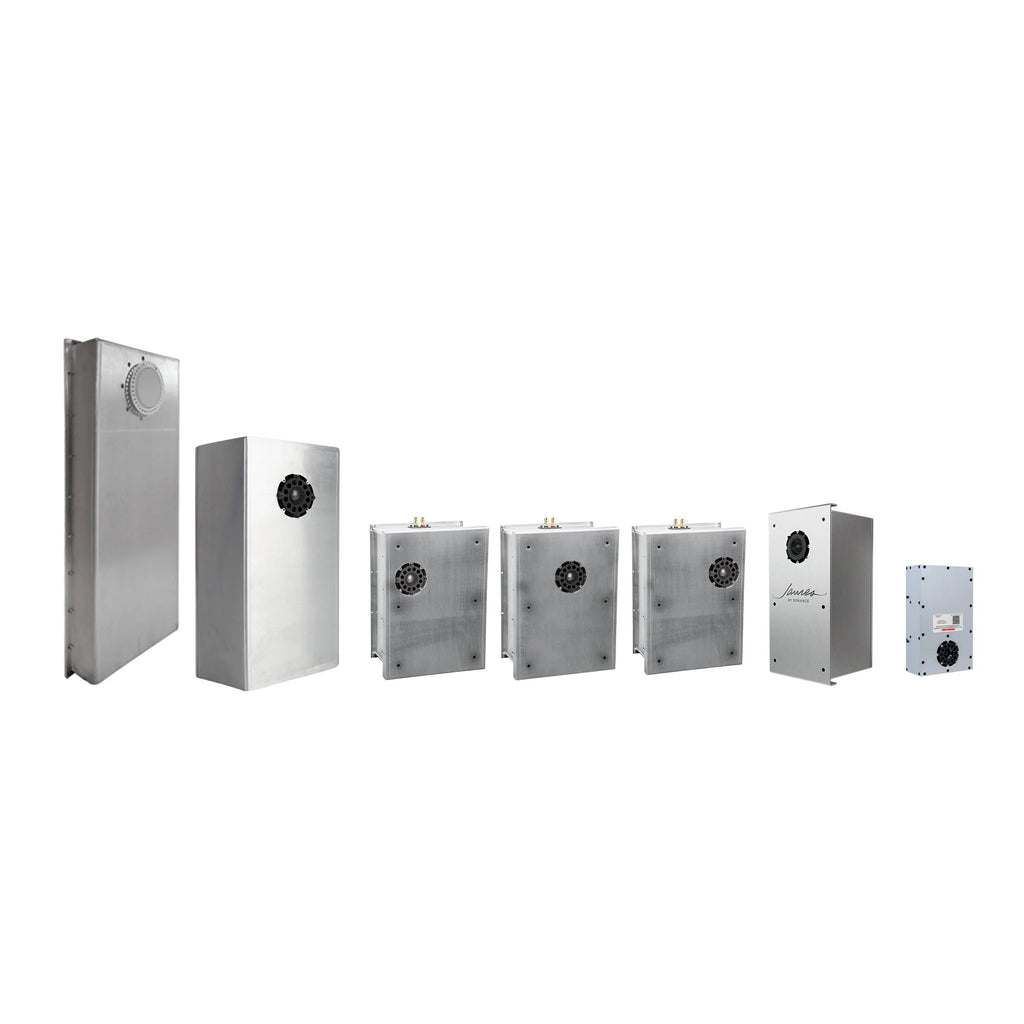

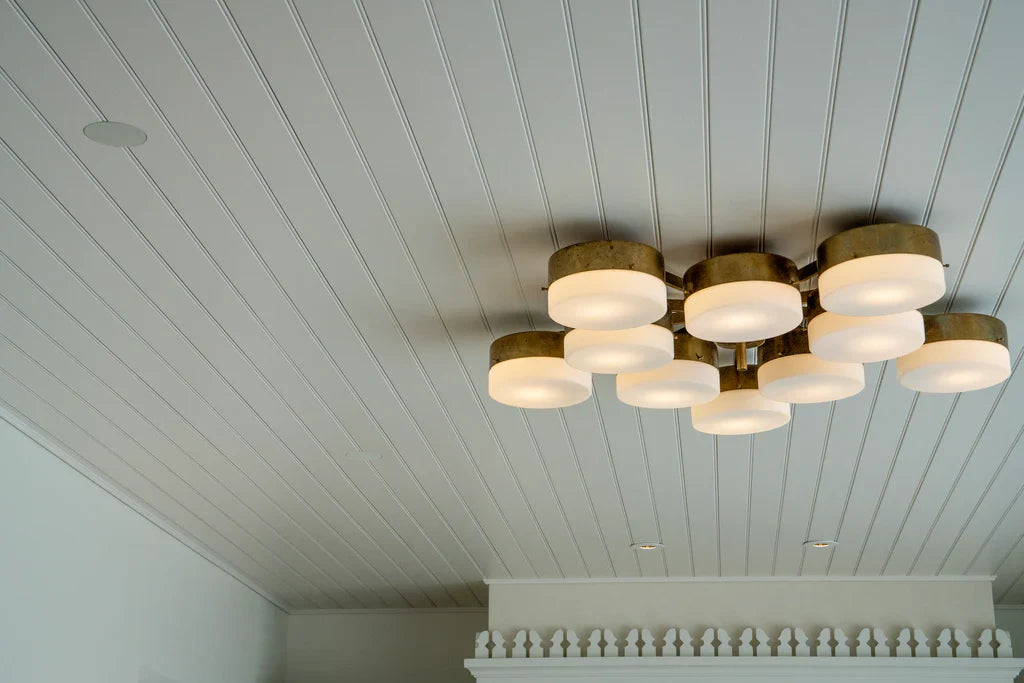

James Loudspeaker Small Aperture Series takes enormous sound and delivers it through a modest opening in the ceiling for an astonishing experience.

key features:

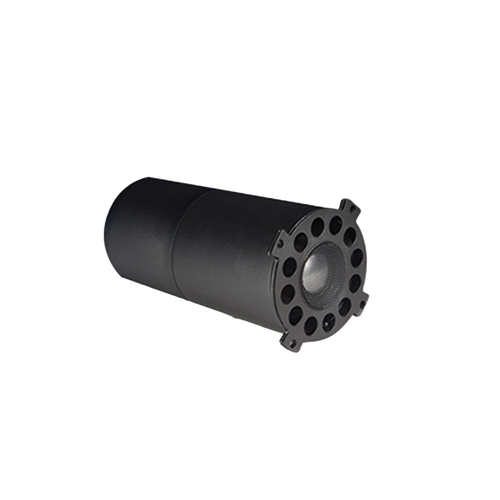

  • Features a modular tweeter and midrange driver design, allowing for customizable audio configurations tailored to specific needs.
  • Includes a built-in woofer to enhance overall sound quality and provide a fuller audio experience.
  • Designed to blend effortlessly into any environment while delivering superior audio performance.
  • Includes trim accessories that support a range of styles and finishes for seamless integration into diverse spaces.
  • Suitable for shallow, narrow, or offset construction, accommodating various installation environments.
  • TAA compliant

Small Aperture Series

Speaker Models

SA68 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER James Small Aperture® Series Flagship in-wall/in-ceiling speaker; 3" or 4" grille
SA42-4-MOD | SMALL APERTURE MODULE James Small Aperture® Series compact in-wall/in-ceiling speaker; 3" or 4" grille
SA63-7 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA63-4 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-WALL OR IN-CEILING SMALL APERTURE SPEAKER Shallow depth SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA63-8 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER Narrow enclosure SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA853QT-6 KIT | SHALLOW DEPTH 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER James Small Aperture® Series ultra-high output, shallow depth loudspeaker
SA853QT-9 KIT | 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER James Small Aperture® Series ultra-high output loudspeaker
SA81-9-SUB KIT | 8" IN-CEILING SMALL APERTURE SUBWOOFER - 3" GRILLE Small Aperture® Series in-ceiling subwoofer
SA54-4-SUB KIT | QUAD 5.25" ULTRA-SLIM IN-WALL SMALL APERTURE SUBWOOFER Small Aperture® Series in-wall ultra-slim subwoofer
SA101-SUB KIT | 10" SMALL APERTURE IN-WALL OR IN-CEILING SUBWOOFER Small Aperture® Series subwoofer with 3" grille opening

Compare Models

SKU
Frequency Response
(+/- 3db)
Nominal Impedance (Ohms)
Sensitivity
Dimensions (WxHxD)
SA68 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER SA68 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER
SA68
James Small Aperture® Series Flagship in-wall/in-ceiling speaker; 3" or 4" grille
SA68
45Hz - 25kHz
8 ohms
82dB (2.83V/1m)
7.75" x 15.63" x 6.38" (196.85mm x 396.88mm x 161.93mm)

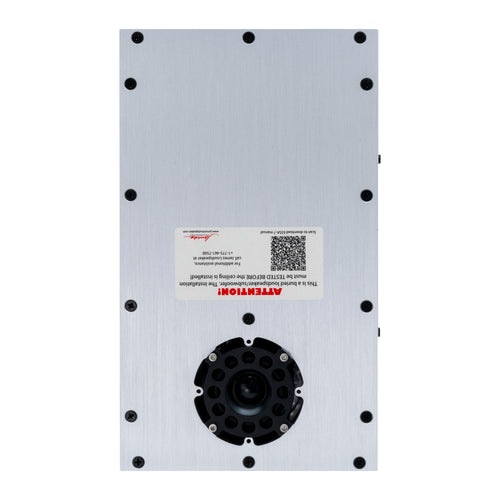

SA42-4-MOD | SMALL APERTURE MODULE SA42-4-MOD | SMALL APERTURE MODULE
SA42-4
James Small Aperture® Series compact in-wall/in-ceiling speaker; 3" or 4" grille
SA42-4
70Hz - 24kHz
4 ohms
85dB (2.83V/1m)
7.3" x 12.0" x 3.4" (185.32mm x 304.8mm x 86.36mm)

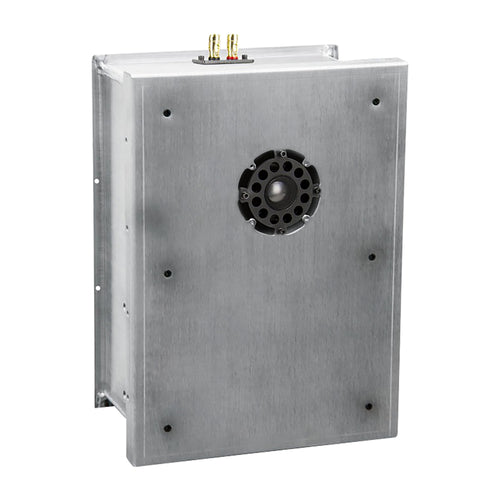

SA63-7 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER SA63-7 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER
SA63-7
SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA63-7
38Hz - 22kHz
4 ohms
88dB (2.83V/1m)
9.88" x 13.63" x 6.38" (250.83mm x 346.08mm x 161.93mm)

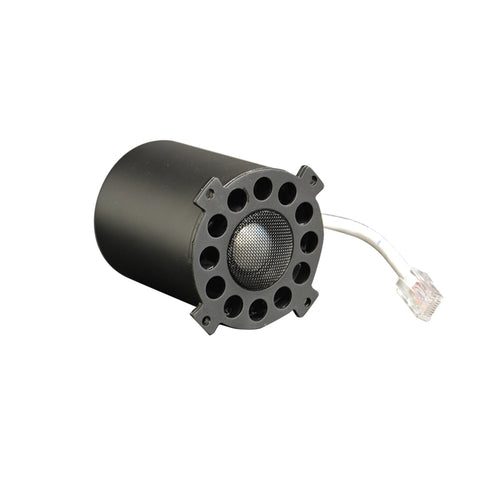

SA63-4 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-WALL OR IN-CEILING SMALL APERTURE SPEAKER SA63-4-MOD | SMALL APERTURE MODULE
SA63-4
Shallow depth SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA63-4
40Hz - 22kHz
4 ohms
87dB (2.83V/1m)
11.0" x 26.0" x 3.4" (279.4mm x 660.4mm x 86.36mm)
SA63-8 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER SA63-7 KIT | HIGH OUTPUT 3-WAY FULL RANGE, IN-CEILING SMALL APERTURE SPEAKER
SA63-8
Narrow enclosure SA63 Small Aperture® in-wall and in-ceiling speaker with 3" or 4" grille trim
SA63-8
38Hz - 22kHz
4 ohms
88dB (2.83V/1m)
7.75" x 17.0" x 7.5" (196.85mm x 431.8mm x 190.5mm)

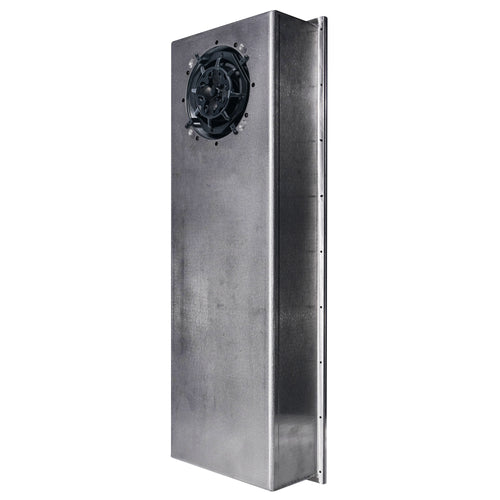

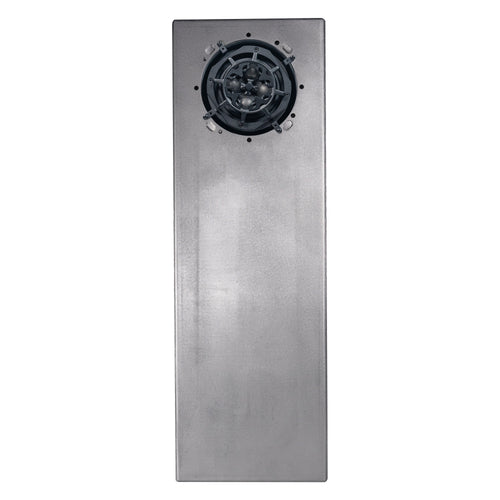

SA853QT-6 KIT | SHALLOW DEPTH 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER SA853QT-6 KIT | SHALLOW DEPTH 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER
SA853QT-6
James Small Aperture® Series ultra-high output, shallow depth loudspeaker
SA853QT-6
33Hz - 20kHz
8 ohms
90dB (2.83V/1m)
12.0" x 34.0" x 5.4" (304.8mm x 863.6mm x 137.16mm)

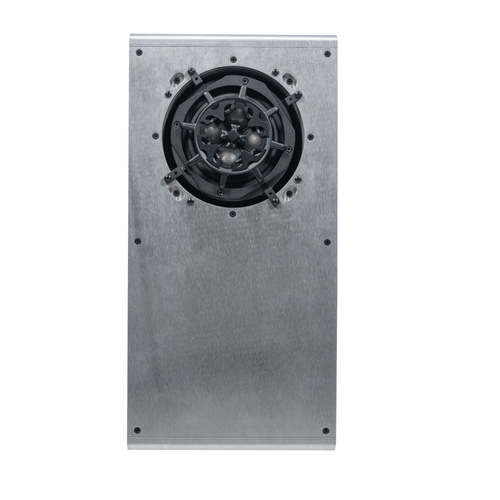

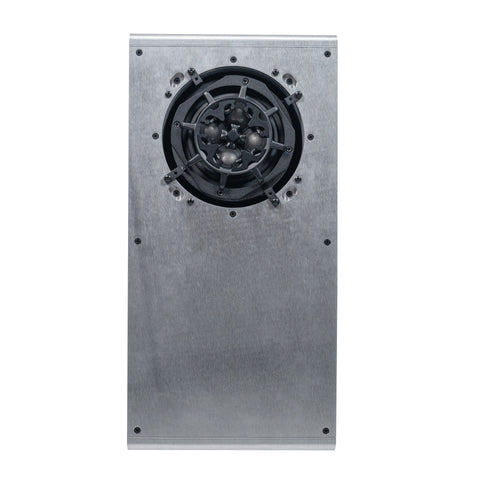

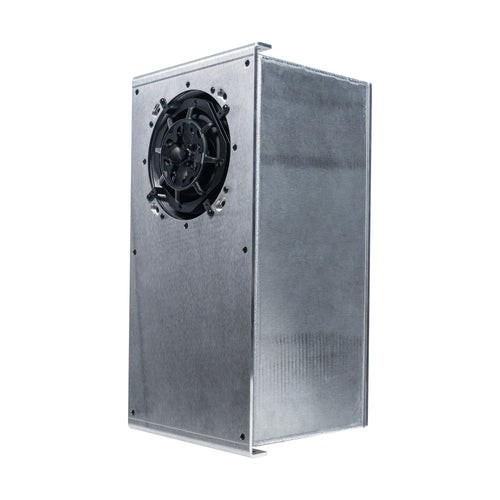

SA853QT-9 KIT | 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER SA853QT-9 KIT | 3-WAY FULL RANGE IN-CEILING HIGH OUTPUT SMALL APERTURE SPEAKER
SA853QT-9
James Small Aperture® Series ultra-high output loudspeaker
SA853QT-9
37Hz - 20kHz
8 ohms
90dB (2.83V/1m)
10.0" x 20.0" x 9.0" (254.0mm x 508.0mm x 228.6mm)

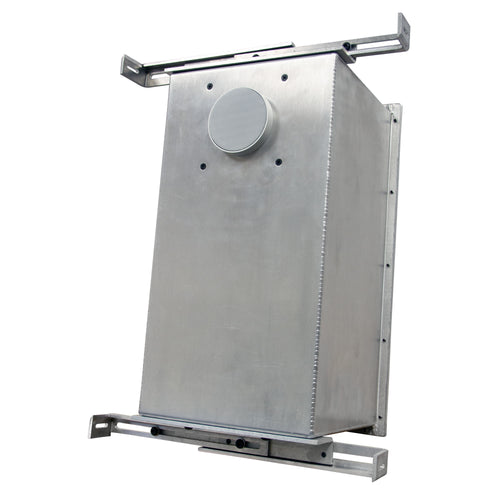

SA81-9-SUB KIT | 8" IN-CEILING SMALL APERTURE SUBWOOFER - 3" GRILLE SA81-9-SUB KIT | 8" IN-CEILING SMALL APERTURE SUBWOOFER - 3" GRILLE
SA81-9-SUB
Small Aperture® Series in-ceiling subwoofer
SA81-9-SUB
37Hz - 120Hz
8 ohms
89dB (2.83V/1m)
10.0" x 18.0" x 9.0" (254.0mm x 457.2mm x 228.6mm)
SA54-4-SUB KIT | QUAD 5.25" ULTRA-SLIM IN-WALL SMALL APERTURE SUBWOOFER
SA54-4-SUB
Small Aperture® Series in-wall ultra-slim subwoofer
SA54-4-SUB
38Hz - 150Hz
8 ohms
89dB (2.83V/1m)
14.0" x 32.0" x 3.4" (355.6mm x 812.8mm x 86.36mm)
SA101-SUB KIT | 10" SMALL APERTURE IN-WALL OR IN-CEILING SUBWOOFER SA101-SUB KIT | 10" SMALL APERTURE IN-WALL OR IN-CEILING SUBWOOFER
SA101-SUB
Small Aperture® Series subwoofer with 3" grille opening
SA101-SUB
33Hz - 150Hz
8 ohms
87dB (2.83V/1m)
12.0" x 34.0" x 5.38" (304.8mm x 863.6mm x 136.53mm)
