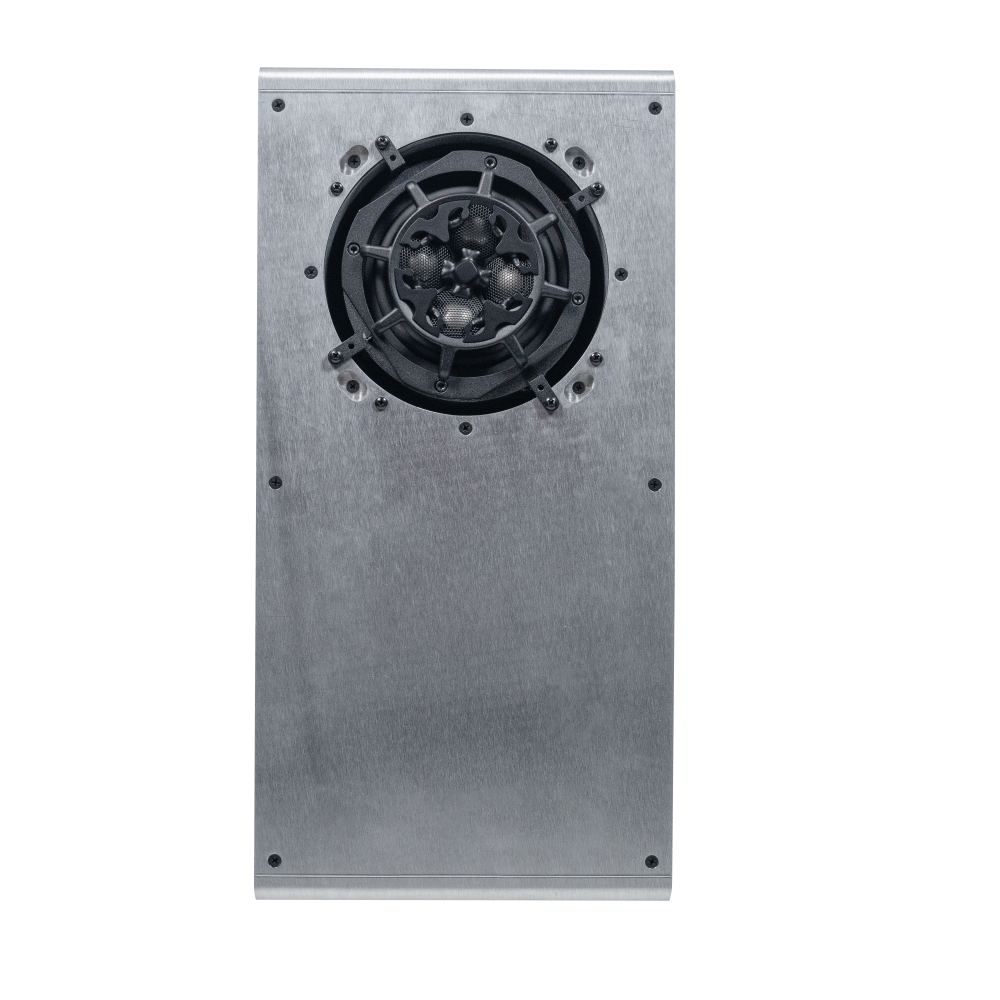

60542_60567_SA853QT-9_hero_product_image_JAMES_enclosure_module_Front.tiff

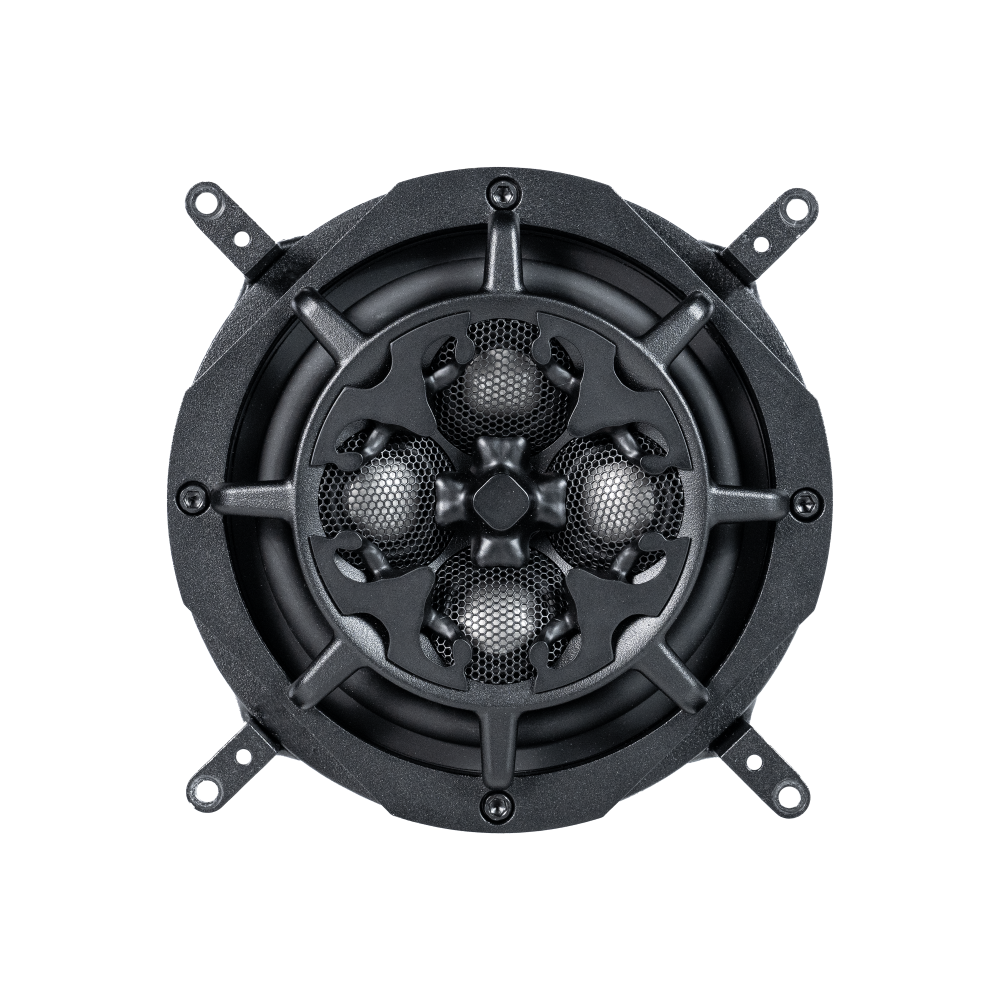

60543_SA853QT-9_product_image_JAMES_module_front.tiff

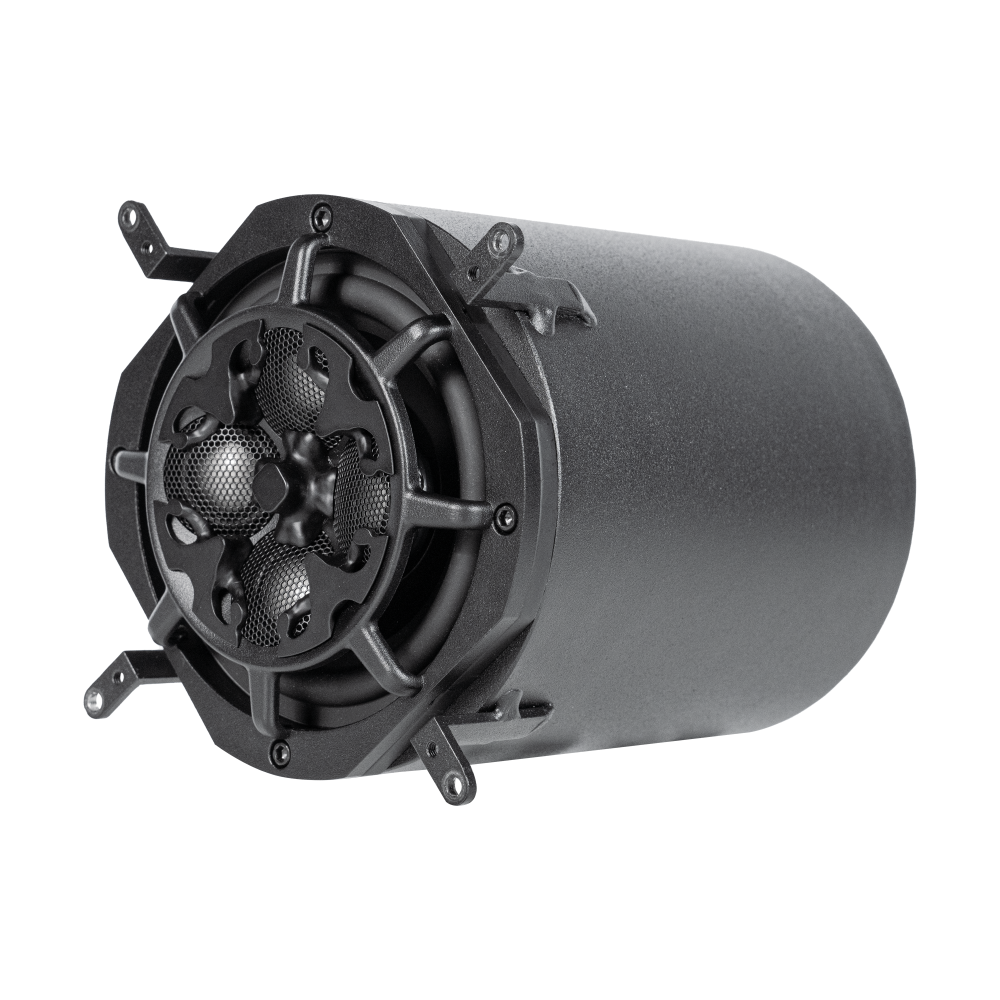

60543_SA853QT-9_product_image_JAMES_Module_front_45.tiff

60543_SA853QT-9_product_image_JAMES_Module_Left_Side.tiff

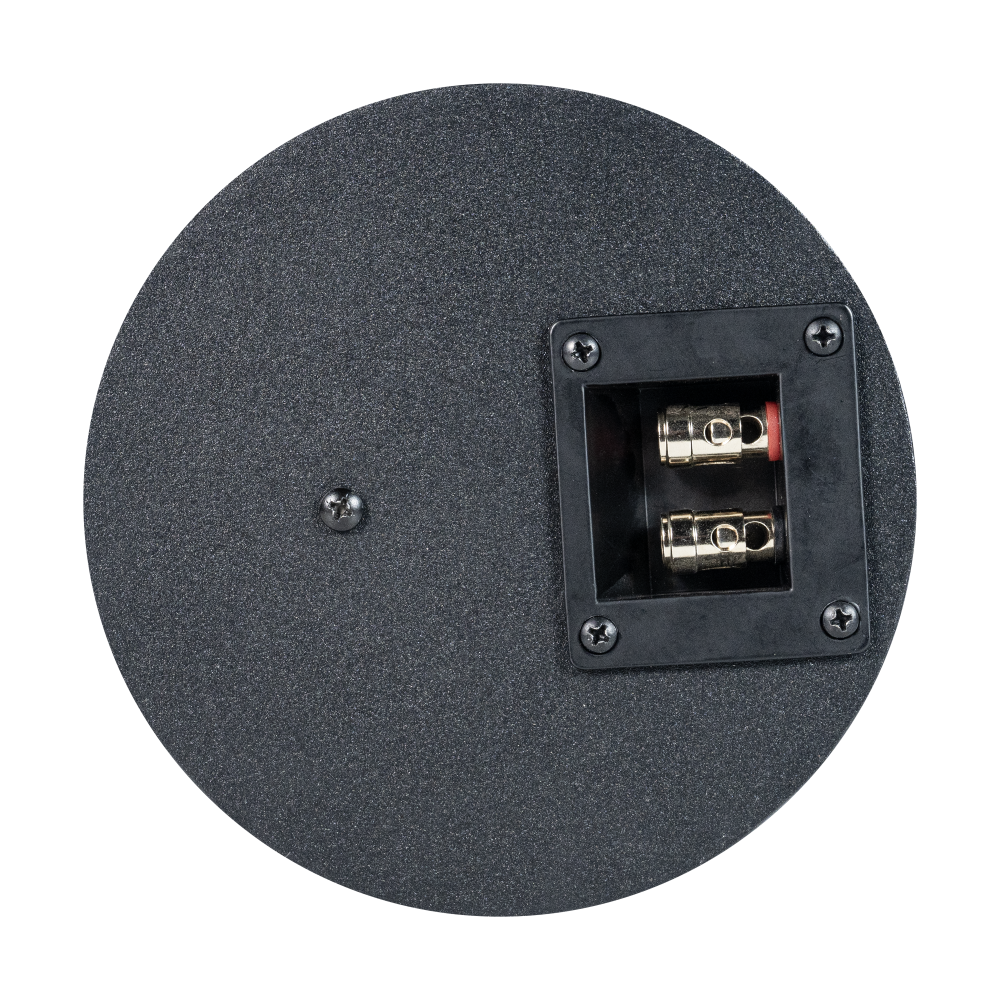

60543_SA853QT-9_product_image_JAMES_module_Back.tiff

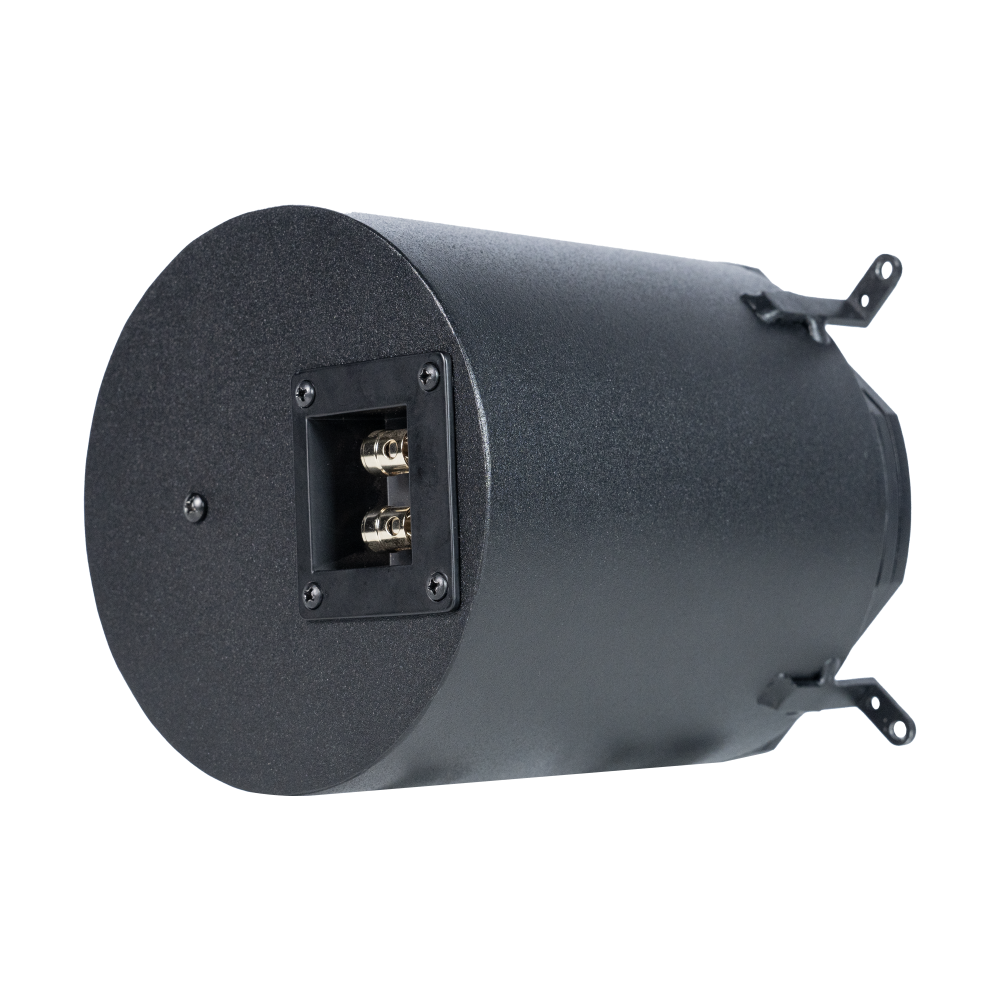

60543_SA853QT-9_product_image_JAMES_Module_Back_Right_45.tiff

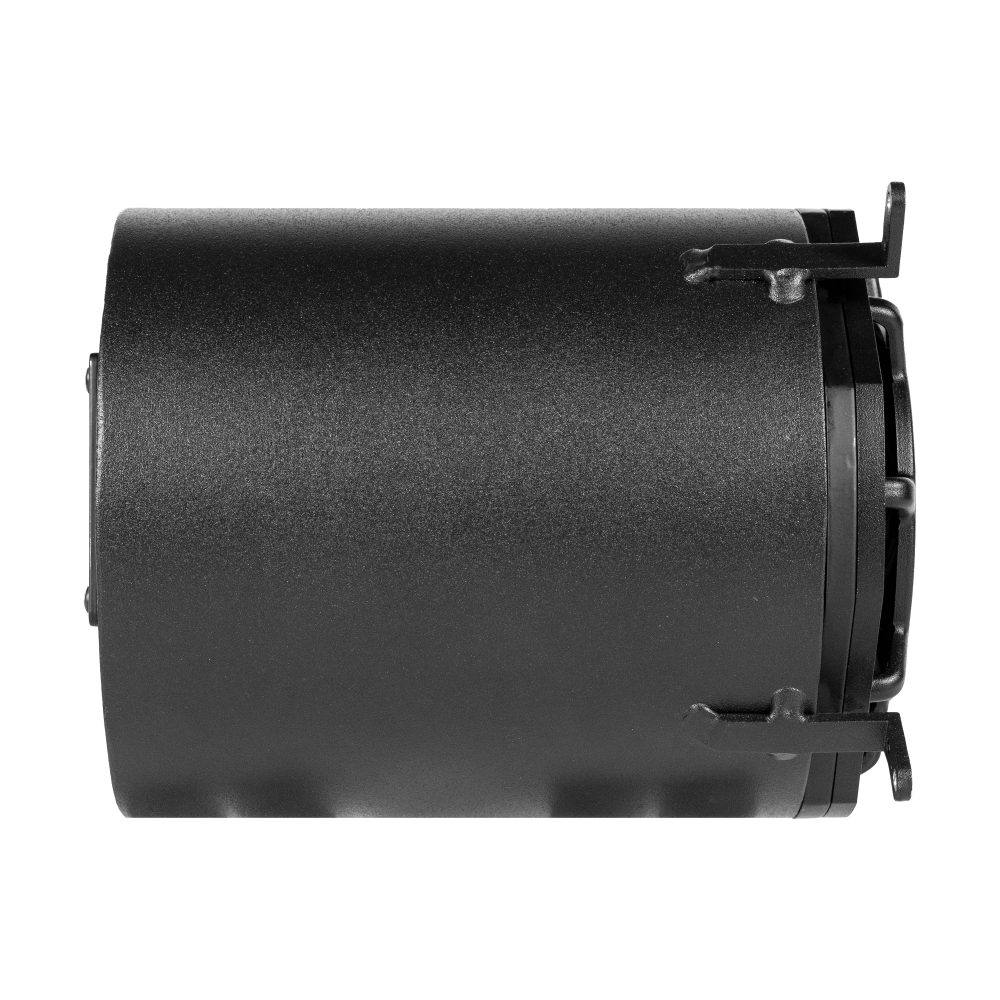

60543_SA853QT-9_product_image_JAMES_module_Right_Side.tiff

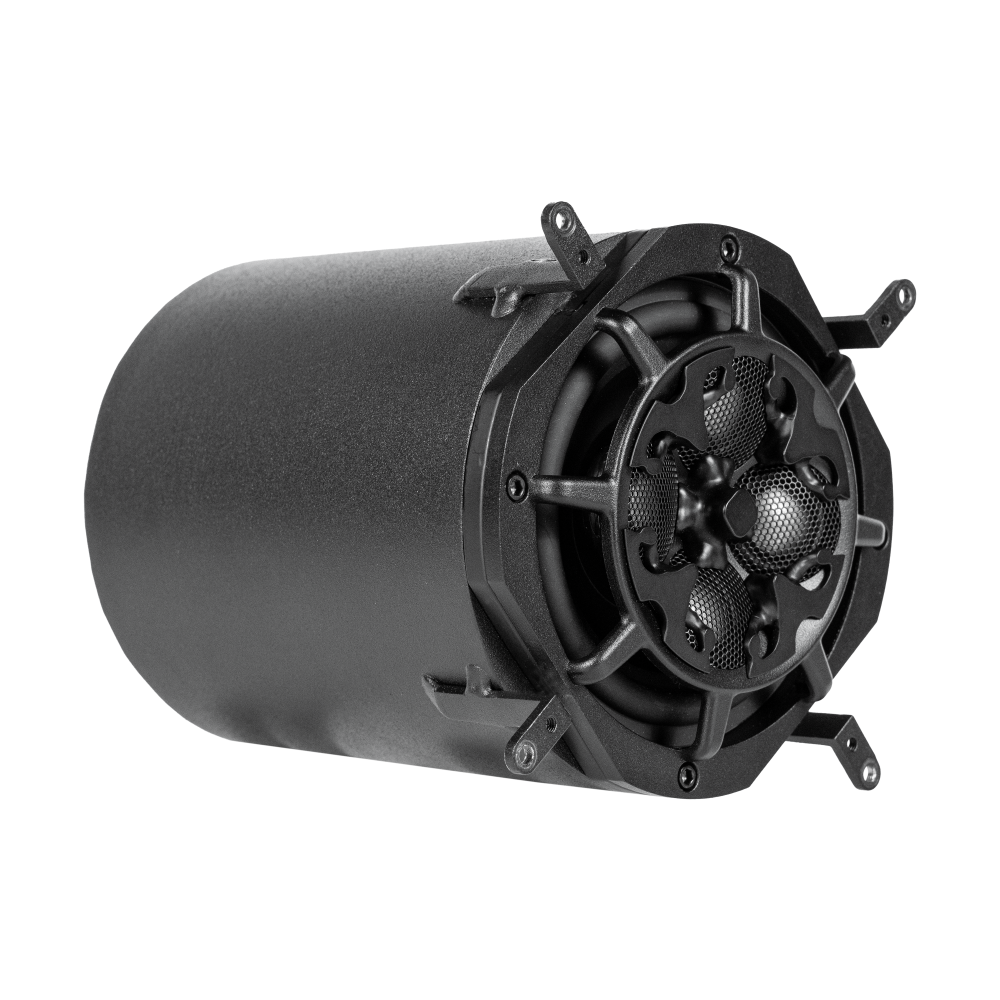

60543_SA853QT-9_hero_product_image_JAMES_Module_Left_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Left_Side.tiff

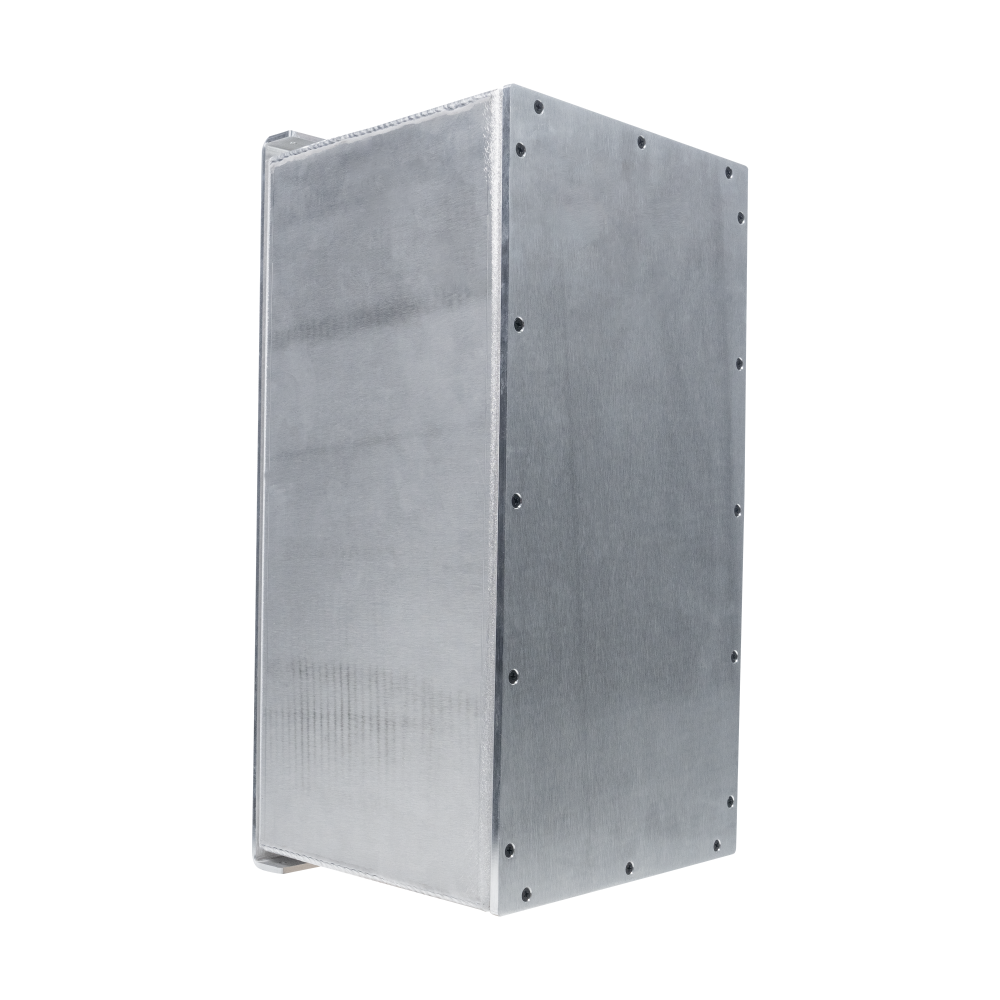

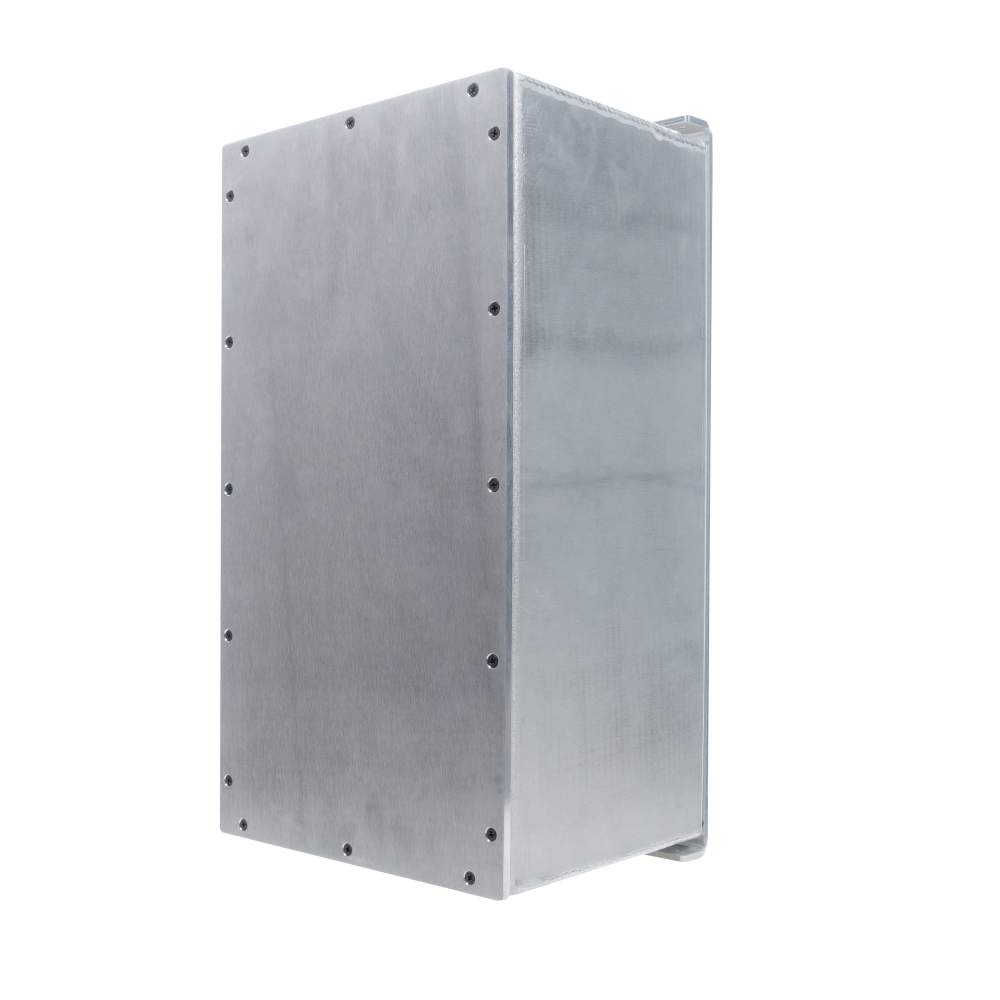

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Left_45.tiff

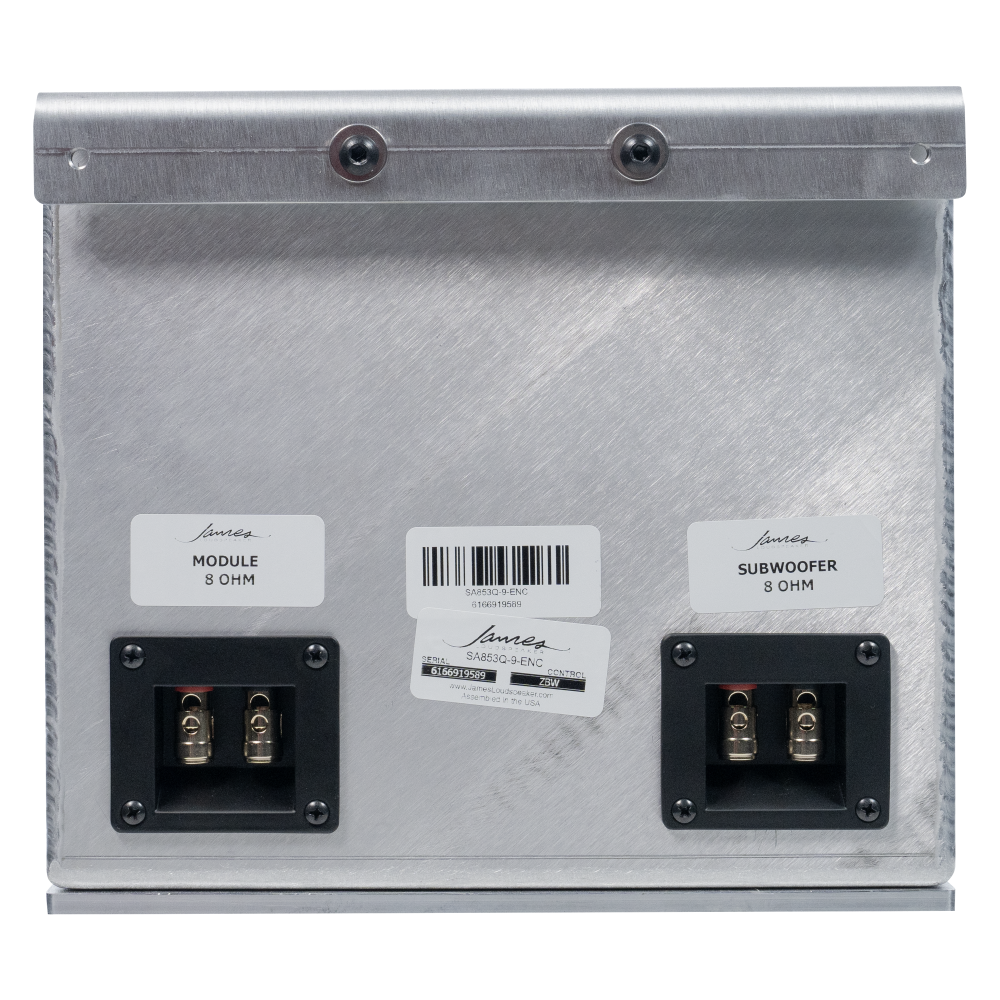

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Right_45.tiff

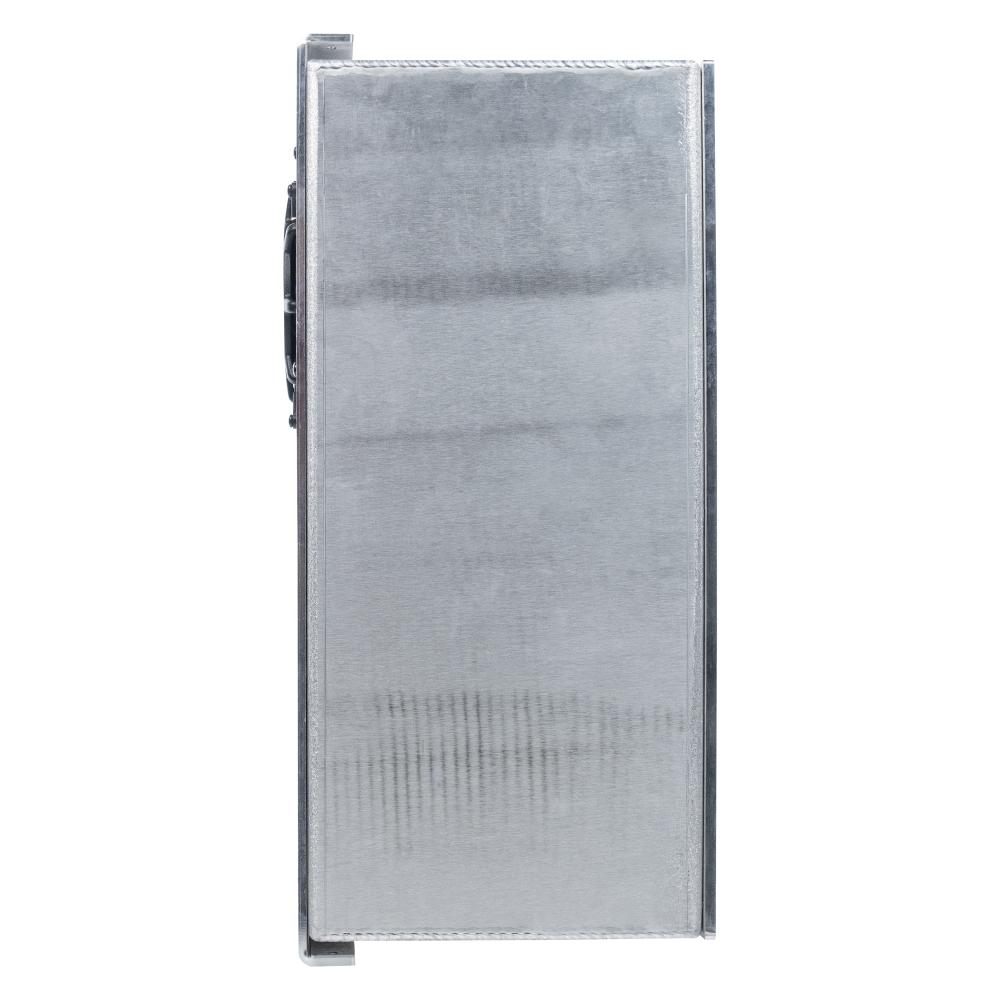

60542_60567_SA853QT-9_product_image_JAMES_enclosure_right_side.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_top.tiff

SA853QT-9_hero_product_image_JAMES_enclosure_module_Front_Left_45.tiff

60542_60567_SA853QT-9_hero_product_image_JAMES_enclosure_module_Front.tiff

60543_SA853QT-9_product_image_JAMES_module_front.tiff

60543_SA853QT-9_product_image_JAMES_Module_front_45.tiff

60543_SA853QT-9_product_image_JAMES_Module_Left_Side.tiff

60543_SA853QT-9_product_image_JAMES_module_Back.tiff

60543_SA853QT-9_product_image_JAMES_Module_Back_Right_45.tiff

60543_SA853QT-9_product_image_JAMES_module_Right_Side.tiff

60543_SA853QT-9_hero_product_image_JAMES_Module_Left_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Left_Side.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Left_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Right_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_right_side.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_top.tiff

SA853QT-9_hero_product_image_JAMES_enclosure_module_Front_Left_45.tiff

60542_60567_SA853QT-9_hero_product_image_JAMES_enclosure_module_Front.tiff

60543_SA853QT-9_product_image_JAMES_module_front.tiff

60543_SA853QT-9_product_image_JAMES_Module_front_45.tiff

60543_SA853QT-9_product_image_JAMES_Module_Left_Side.tiff

60543_SA853QT-9_product_image_JAMES_module_Back.tiff

60543_SA853QT-9_product_image_JAMES_Module_Back_Right_45.tiff

60543_SA853QT-9_product_image_JAMES_module_Right_Side.tiff

60543_SA853QT-9_hero_product_image_JAMES_Module_Left_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Left_Side.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Left_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_Back_Right_45.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_right_side.tiff

60542_60567_SA853QT-9_product_image_JAMES_enclosure_top.tiff

SA853QT-9

Small Aperture

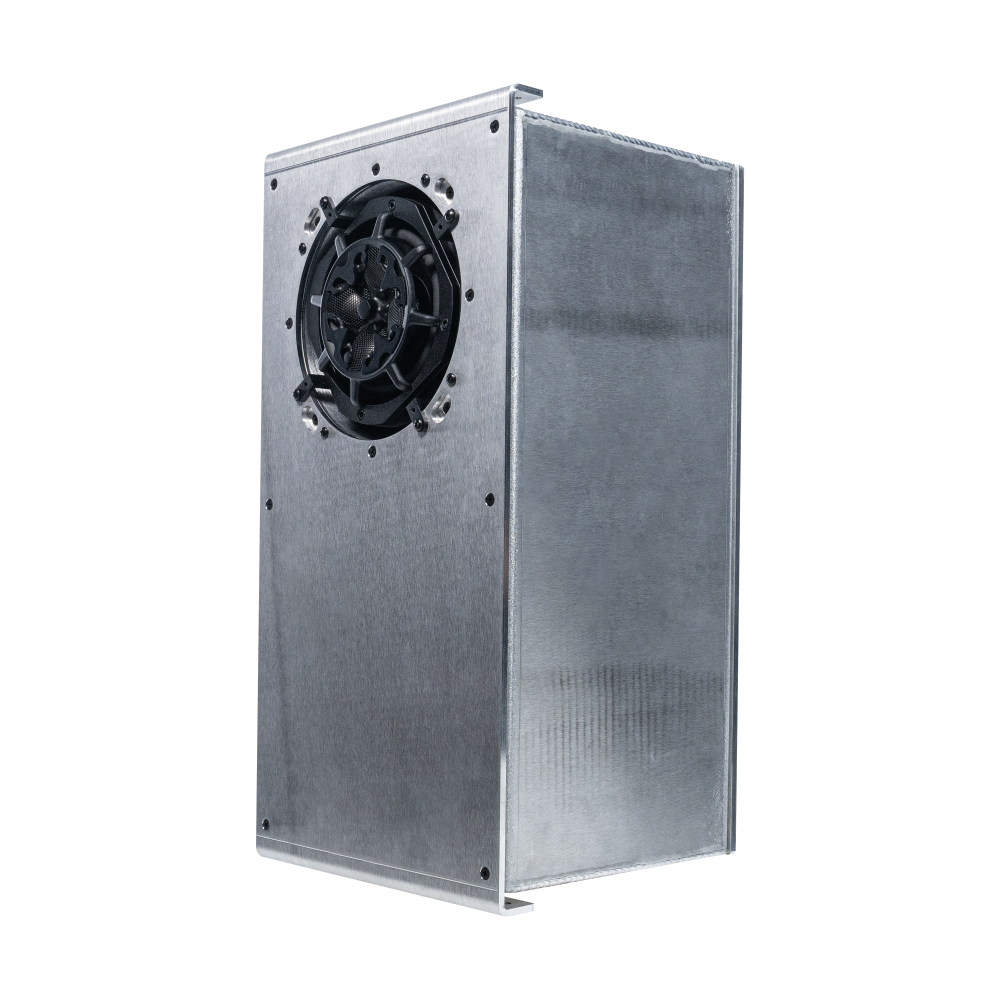

The James SA853QT-9 is a compact yet powerful in-ceiling speaker featuring the new Quadratech tweeter design, 5.25" midrange, and 8" PowerPipe subwoofer. This 3-way system delivers deep bass and wide frequency response from a discreet 8.5" aperture with sleek edges. Aircraft-grade aluminum construction ensures durability and reliability.

SA853QT-9

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes
TAA Compliant

Specifications

SKU

SA853QT-9

Speaker Woofer

(1) 8" (204mm) Aluminum Cone

Frequency Response (+/- 3db)

37Hz - 20kHz

Sensitivity

90dB (2.83V/1m)

Recommended Power Range

Sat: 50-150W Sub: 100-350W

Enclosure

Aircraft Grade Aluminum

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

10.0" x 20.0" x 9.0" (254.0mm x 508.0mm x 228.6mm)

Copy All Specs

Related Products

JAMES_PLACEHOLDER_HERO.tiff

BRK.SAQ-24

SKU: 60368

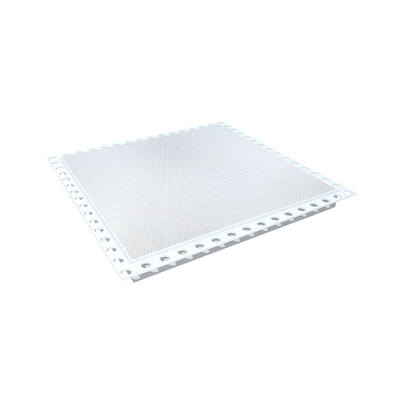

60394_hero_product_image_SA7-GRILLE-S-RF_JAMES.tiff

SA7-Grille-S-RF

SKU: 60394

60395_hero_product_image_SA7-GRILLE-S-SR_JAMES.tiff

SA7-Grille-S-SR

SKU: 60395

60396_hero_product_image_SA7-GRILLE-S-SS_JAMES.tiff

SA7-Grille-S-SS

SKU: 60396

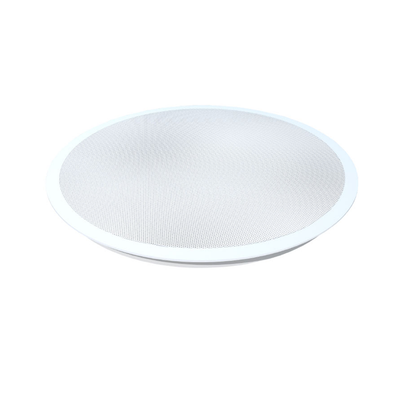

60397_hero_product_image_SA8.5-GRILLE-R-RF_JAMES.tiff

SA8.5-Grille-R-RF

SKU: 60397

60398_hero_product_image_SA8.5-GRILLE-R-SR_JAMES.tiff

SA8.5-Grille-R-SR

SKU: 60398

60399_hero_product_image_SA8.5-GRILLE-R-SS_JAMES.tiff

SA8.5-Grille-R-SS

SKU: 60399

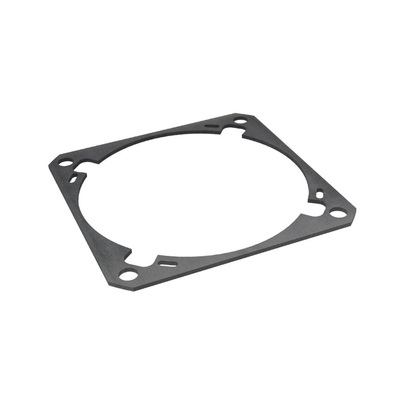

60404_hero_product_image_SA7-SP-.125_JAMES.tiff

SA7-SP-.125

SKU: 60404

60405_hero_product_image_SA7-SP-.625_JAMES.tiff

SA7-SP-.625

SKU: 60405

JAMES_PLACEHOLDER_HERO.tiff

SA7-SP-Custom

SKU: 60406

JAMES_PLACEHOLDER_HERO.tiff

SA7-SP-.375

SKU: 60450

JAMES_PLACEHOLDER_HERO.tiff

SA7-SP-.0625

SKU: 60451

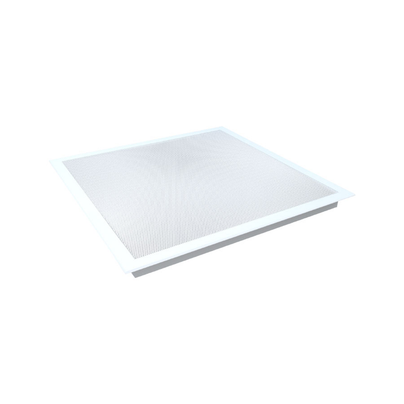

60538_hero_product_image_JAMES_7in_Square_Wood_Perforates_Grille.tiff

SA7-Grille-S-W-PERF

SKU: 60538

60539_hero_product_image_JAMES_7in_Square_Wood_Slotted_Grille.tiff

SA7-Grille-S-W-Slot

SKU: 60539

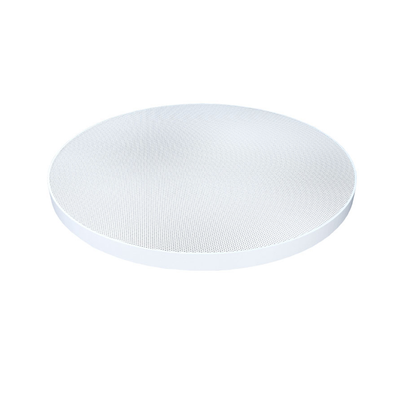

60540_hero_product_image_JAMES_8.5in_Round_Wood_Perforated_Grille.tiff
