SA63-4
SA63-4
Small Aperture

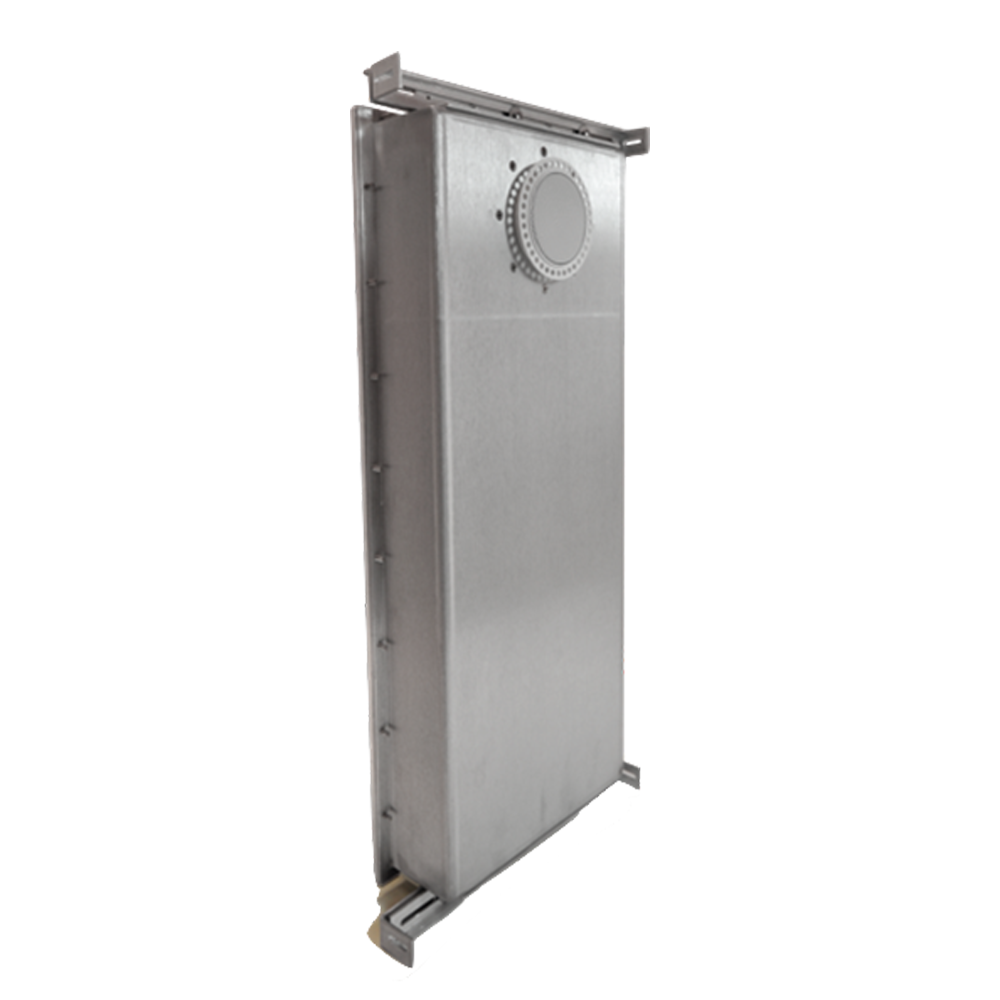

The SA63-4, part of the Small Aperture® collection, delivers high volume and deep bass through a discreet 3” flush opening. It features a 0.75” aluminum tweeter, 2” midrange, and 6.5” mini PowerPipe subwoofer, seamlessly integrating into high-end homes for outstanding audio performance and aesthetic appeal.
Key Features

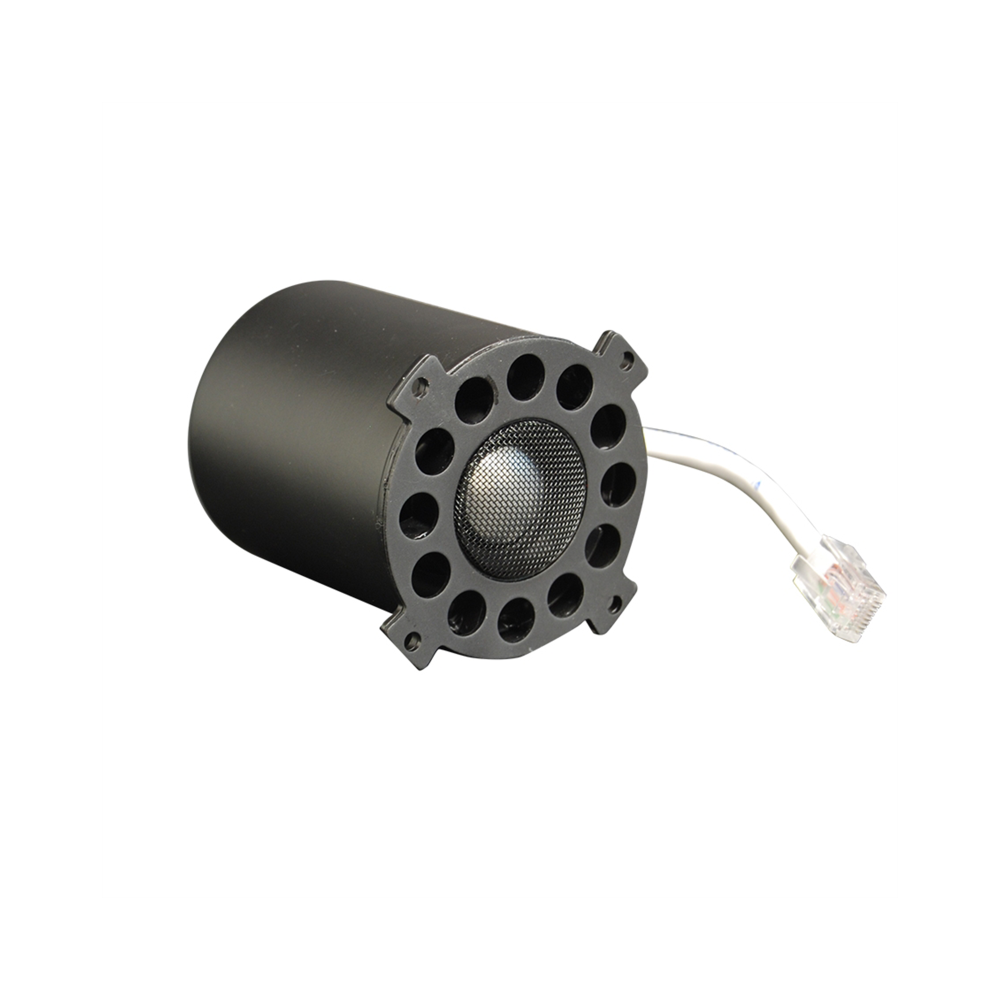

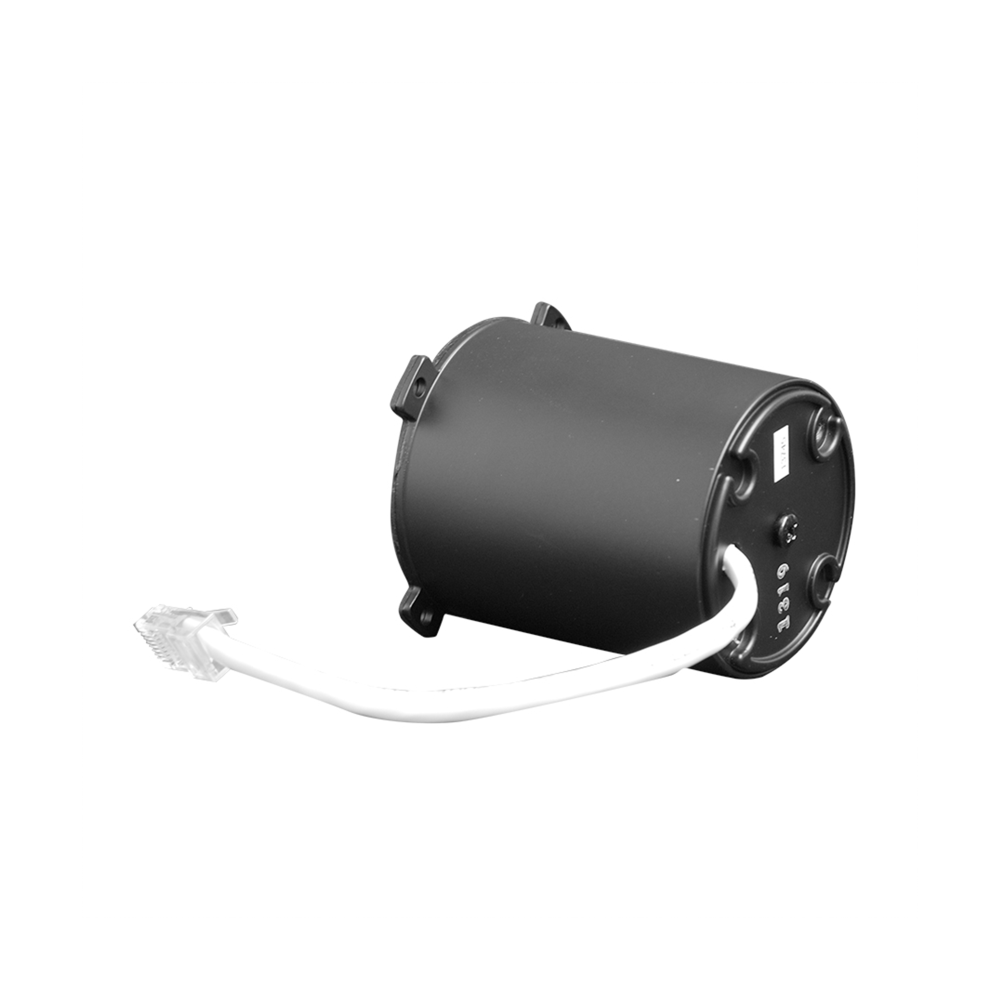

- Modular tweeter and midrange driver design
- Incorporated woofer
- Modified cabinet designs available for shallow, narrow, or offset construction
- Trim accessories to support various construction and finishes
- TAA Compliant
Specifications
SKU | Color
SA63-4
Speaker Tweeter
(1) 0.75" (19mm) Aluminum
Speaker Woofer
(1) 6.5" (165mm) Aluminum
Speaker Mid Range
(1) 2" (50 mm) Aluminum
Frequency Response (+/- 3db)
40Hz - 22kHz
Sensitivity
87dB (2.83V/1m)
Recommended Power Range
25 - 125W (protection limited)
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
11.0" x 26.0" x 3.4" (279.4mm x 660.4mm x 86.36mm)
