Small Aperture Series

SA81-9-SUB

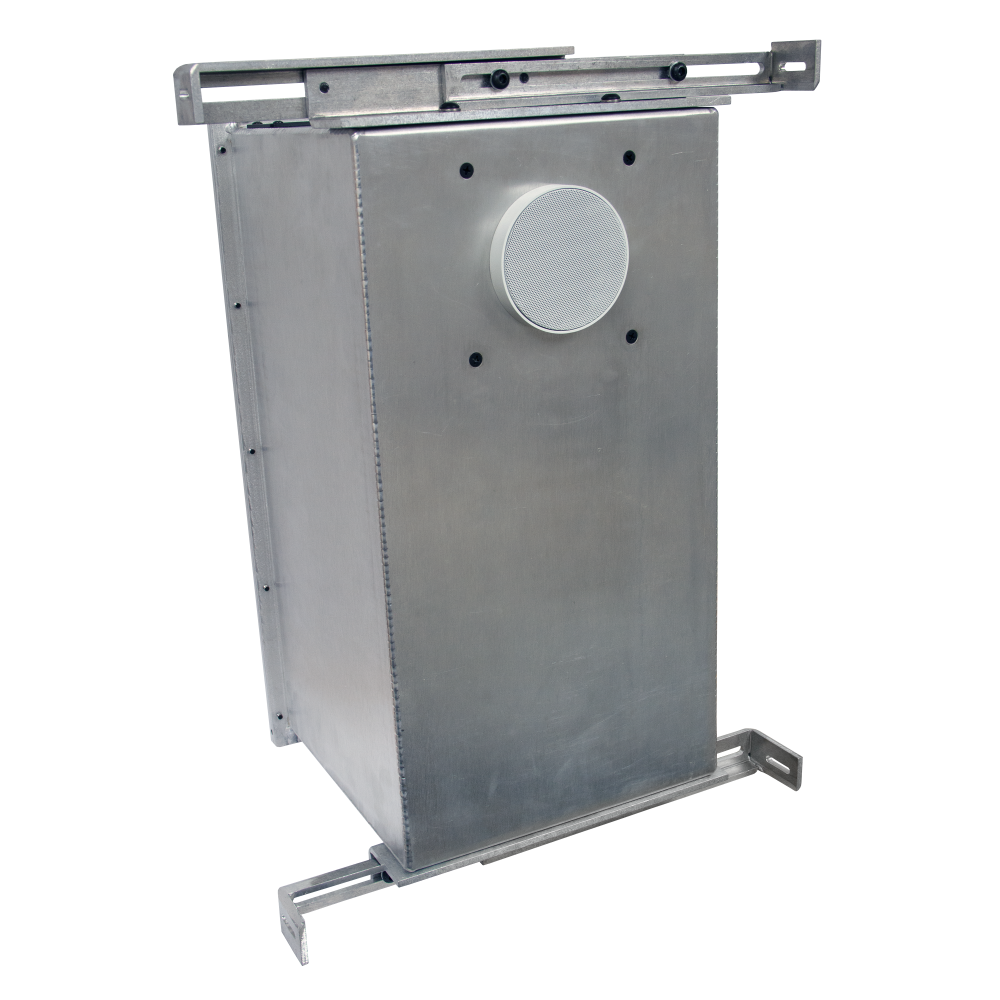

60076_hero_product_image_JAMES_SA81-9SUB_isometric.tiff

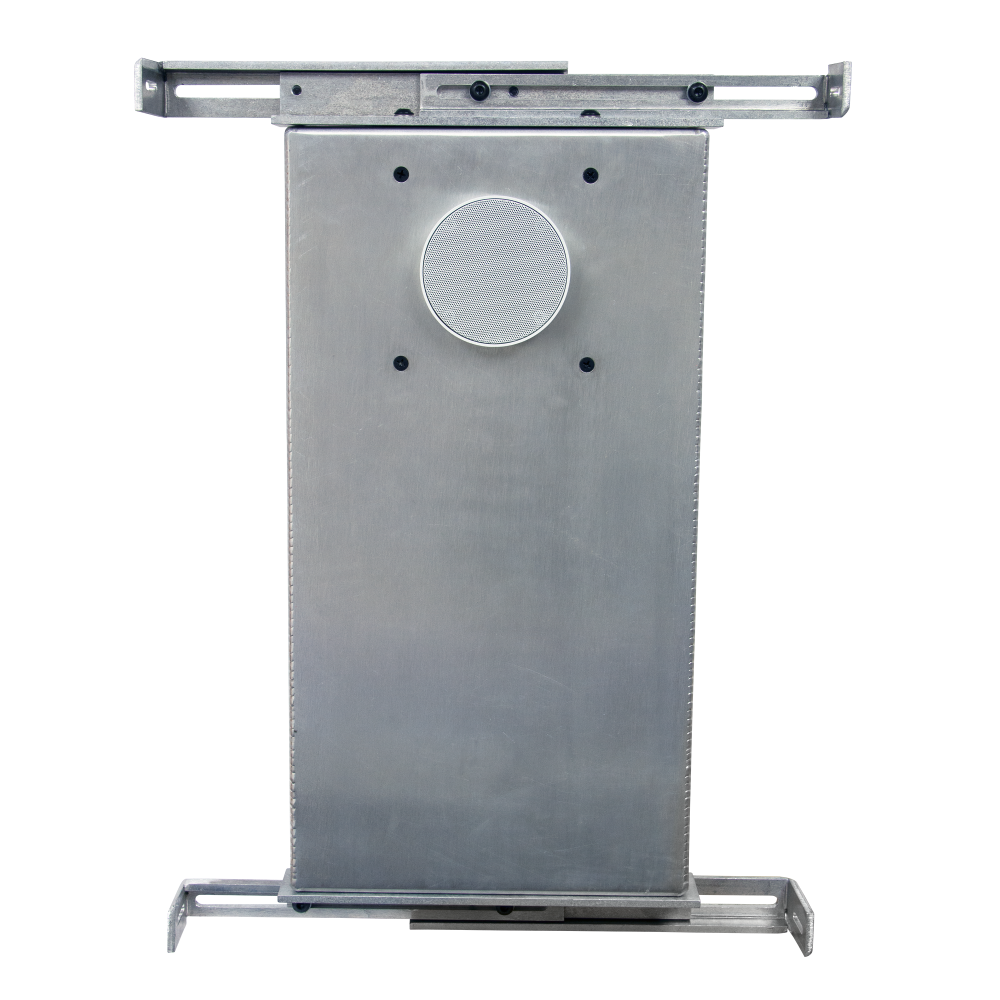

60076_product_image_JAMES_SA81-9SUB_front.tiff

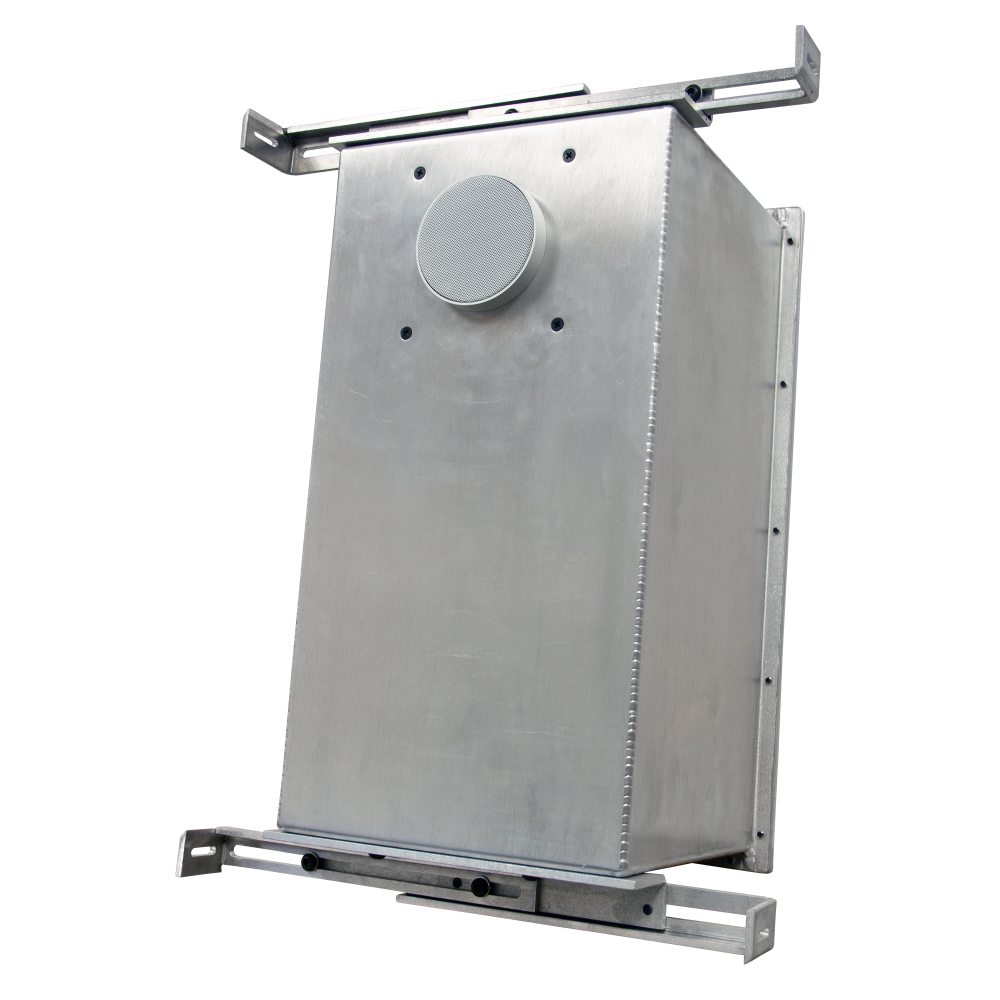

60076_product_image_JAMES_SA81-9SUB_front45.tiff

60076_hero_product_image_JAMES_SA81-9SUB_isometric.tiff

60076_product_image_JAMES_SA81-9SUB_front.tiff

60076_product_image_JAMES_SA81-9SUB_front45.tiff

60076_hero_product_image_JAMES_SA81-9SUB_isometric.tiff

60076_product_image_JAMES_SA81-9SUB_front.tiff

60076_product_image_JAMES_SA81-9SUB_front45.tiff

SA81-9-SUB

Small Aperture

The SA81-9-SUB Small Aperture® Ceiling Subwoofer features a 9” in-wall depth and a sealed aircraft-grade aluminum enclosure. Its proprietary 8" woofer delivers 89dB sensitivity and bass below 33Hz. When paired with the M1000 DSP amplifier, it provides over 350W of audio performance while offering a discreet design.

SA81-9-SUB

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes
TAA Compliant

Specifications

SKU

SA81-9-SUB

Speaker Woofer

(1) 8" (203mm) Aluminum Cone

Frequency Response (+/- 3db)

37Hz - 120Hz

Sensitivity

89dB (2.83V/1m)

Recommended Power Range

100 - 300W

Enclosure

Aircraft Grade Aluminum

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

10.0" x 18.0" x 9.0" (254.0mm x 457.2mm x 228.6mm)

Copy All Specs
