Small Aperture Series

SA101-SUB

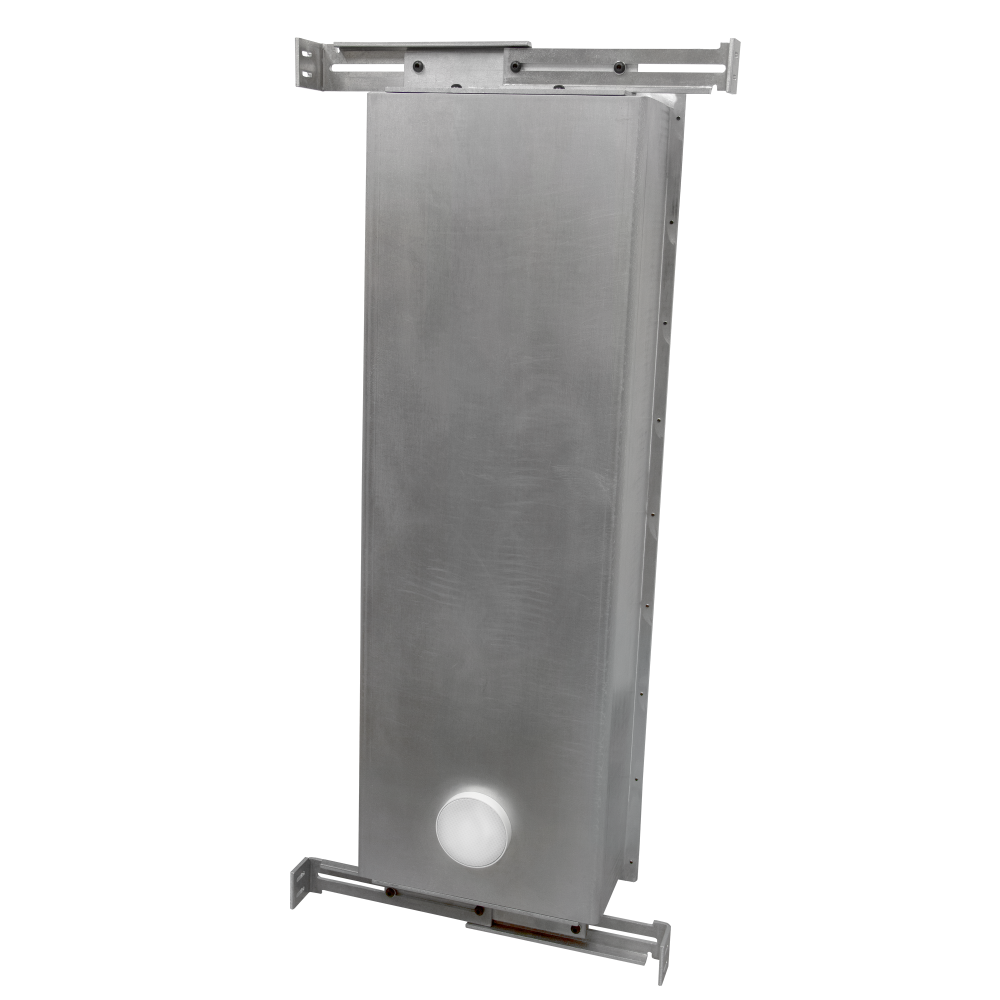

60063_hero_product_image_JAMES_SA101SUB_isometric.tiff

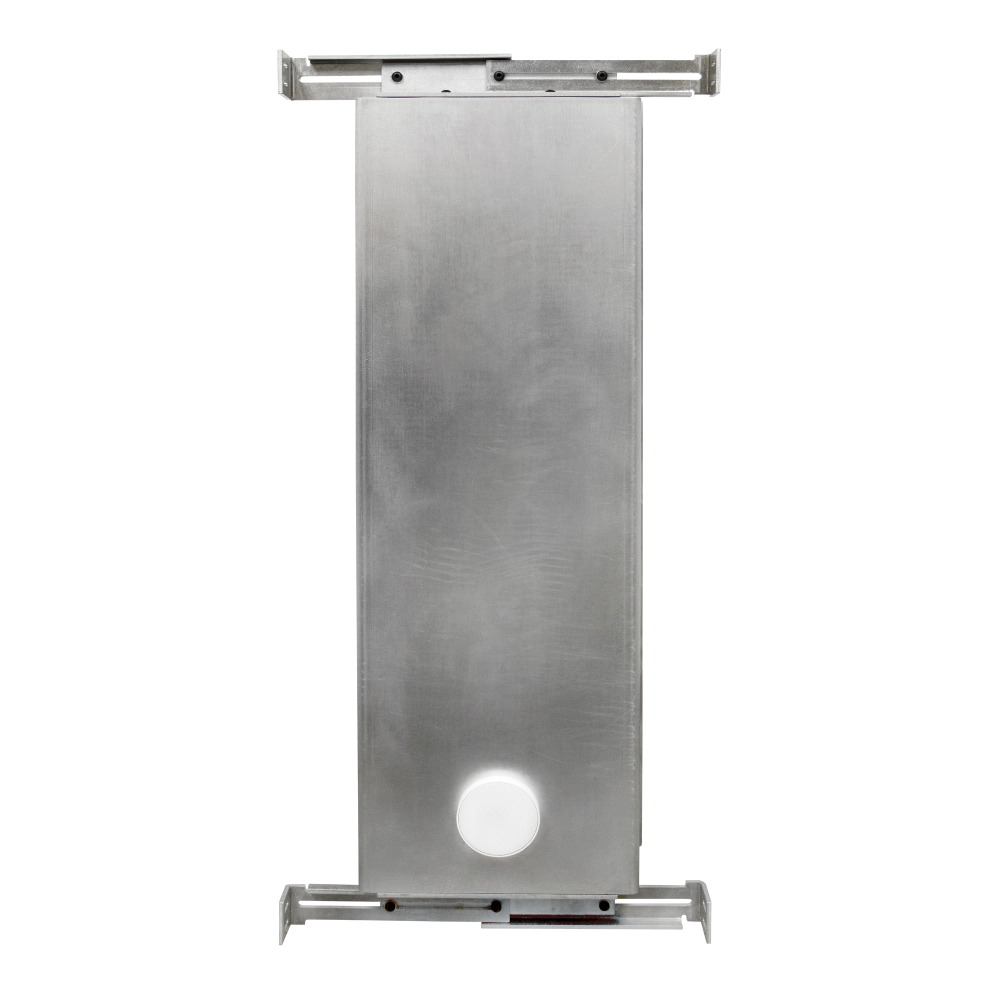

60063_product_image_JAMES_SA101SUB_front.tiff

60063_hero_product_image_JAMES_SA101SUB_isometric.tiff

60063_product_image_JAMES_SA101SUB_front.tiff

60063_hero_product_image_JAMES_SA101SUB_isometric.tiff

60063_product_image_JAMES_SA101SUB_front.tiff

SA101-SUB

Small Aperture

SA101-SUB is a shallow in-wall subwoofer featuring a 5.4" sealed aluminum enclosure and a 3" bass port. Its 10" honeycomb aluminum woofer delivers 87dB sensitivity and bass below 33Hz. Constructed from aircraft-grade aluminum, it meets UL2043 and UL1480 standards for fire safety and plenum use.

SA101-SUB

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes
TAA Compliant

Specifications

SKU

SA101-SUB

Speaker Woofer

(1) 10" (254mm) Aluminum

Frequency Response (+/- 3db)

33Hz - 150Hz

Sensitivity

87dB (2.83V/1m)

Recommended Power Range

100 - 350W

Enclosure

Aircraft Grade Aluminum

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

12.0" x 34.0" x 5.38" (304.8mm x 863.6mm x 136.53mm)

Certifications

UL2043 and UL1480

Copy All Specs
