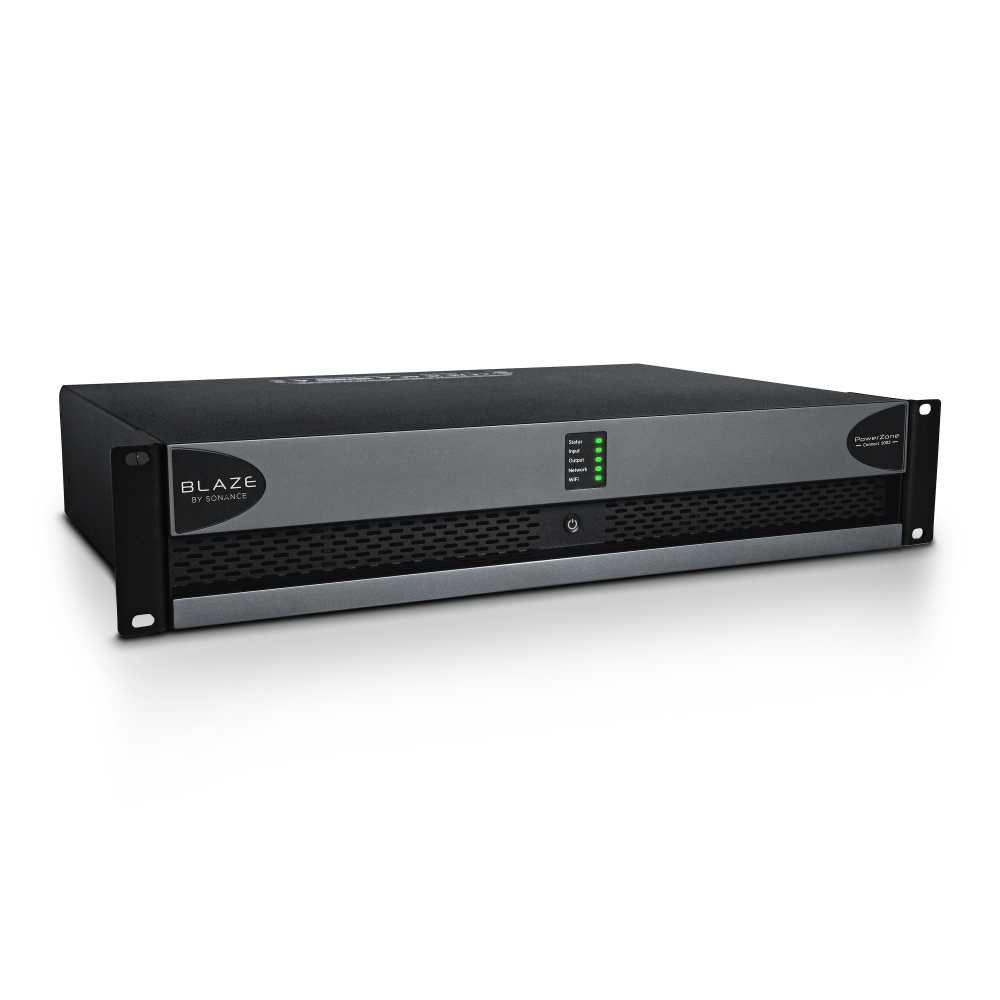

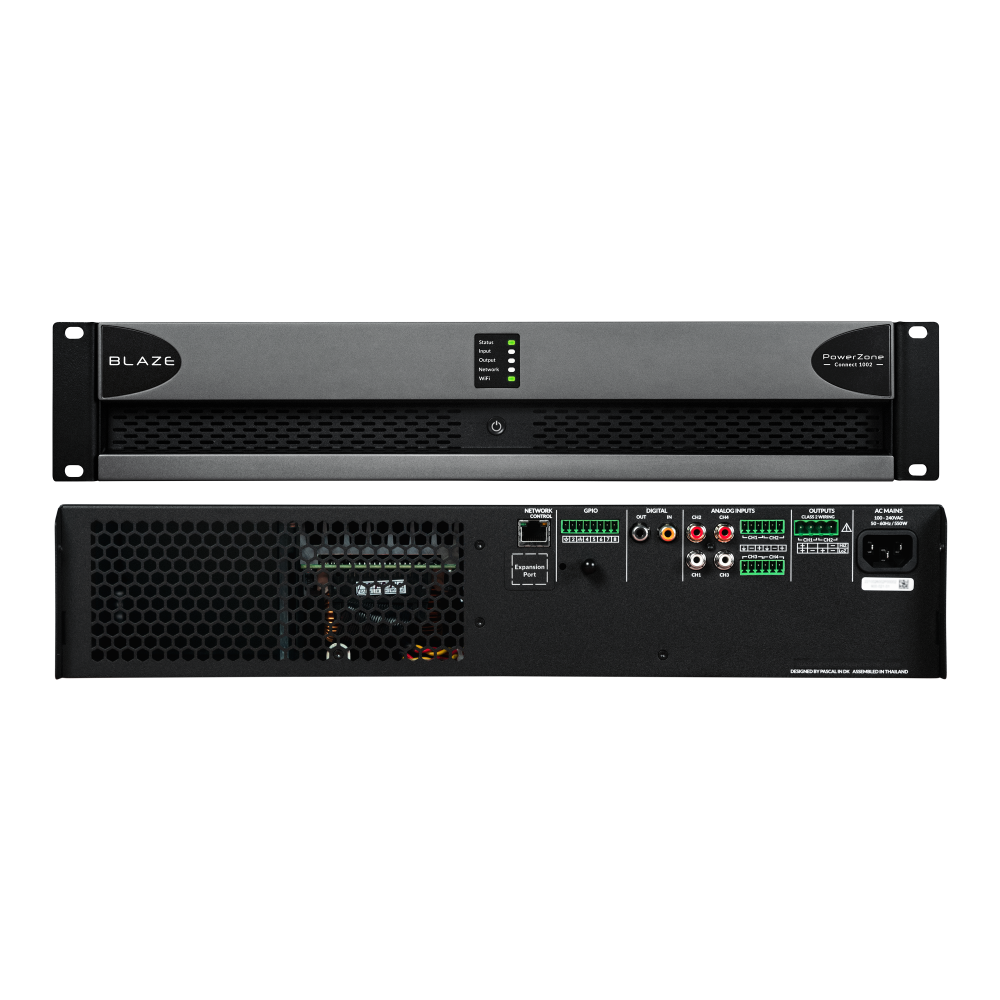

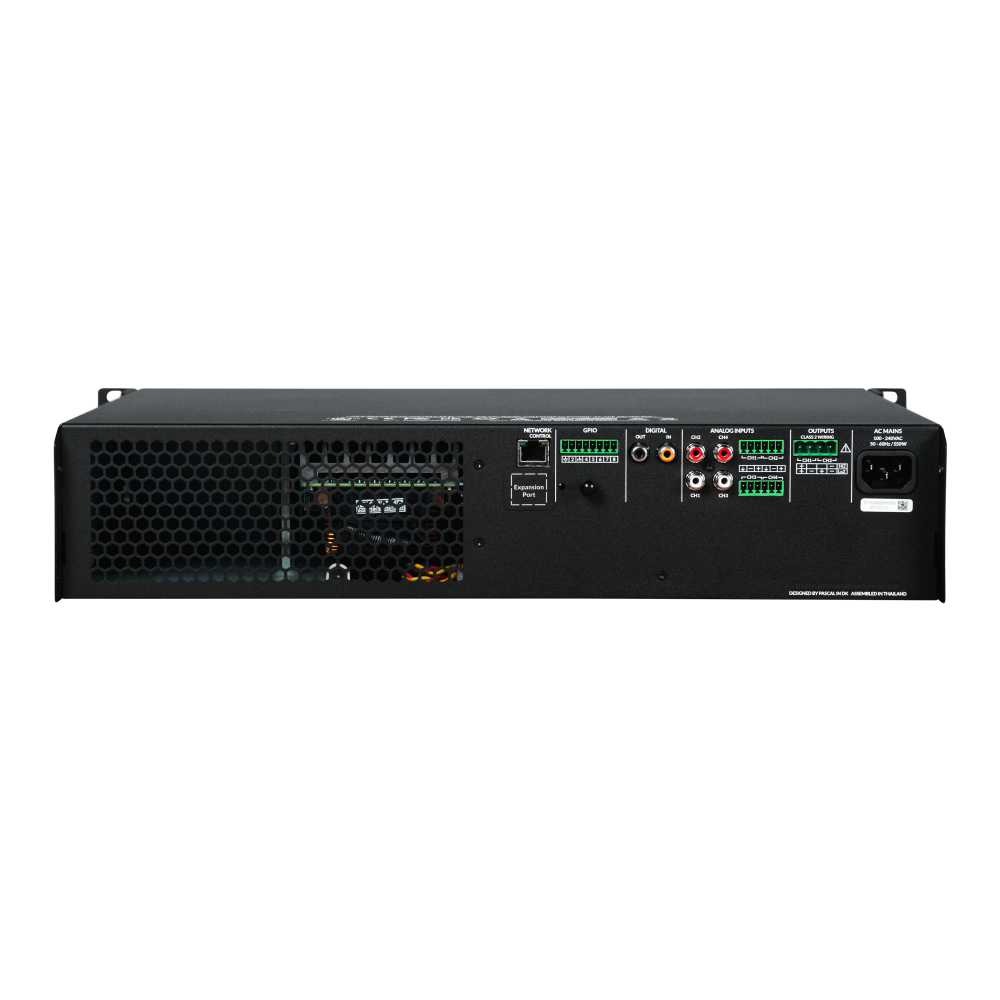

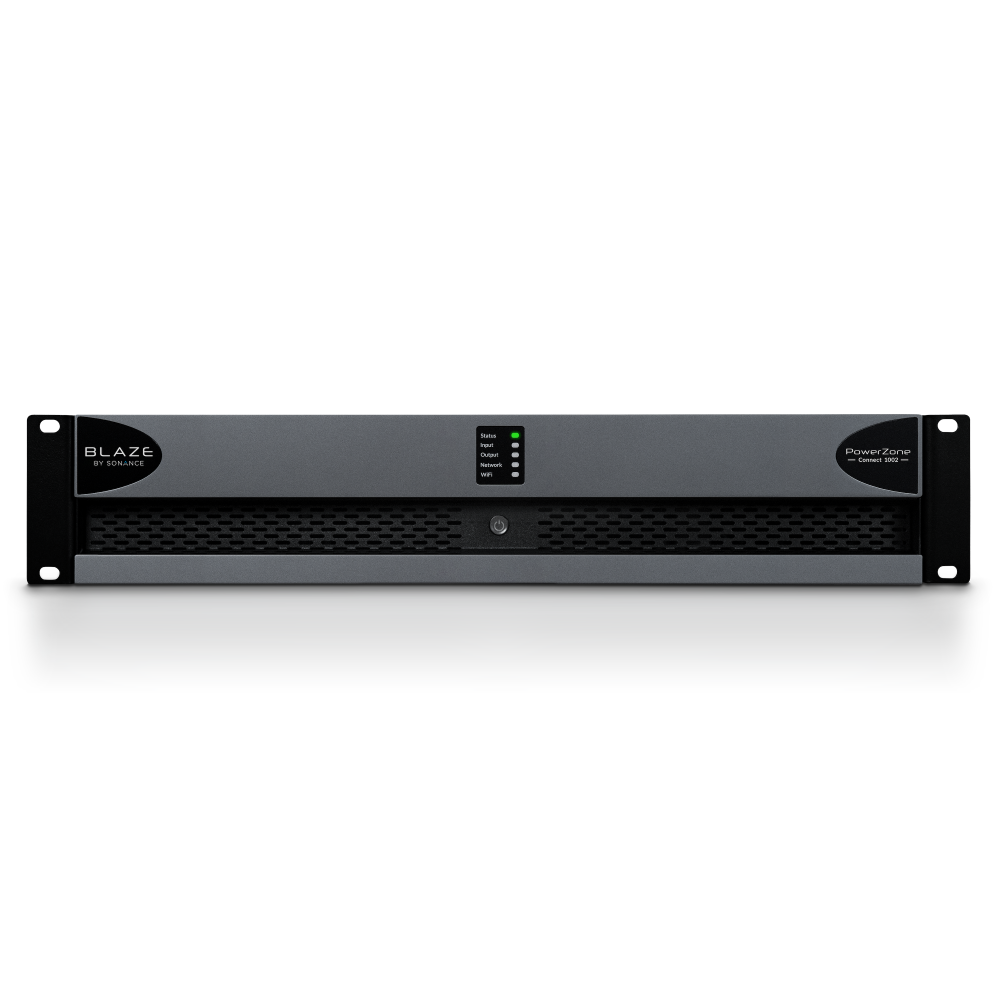

PowerZone Connect 1002
PowerZone Connect 1002
Blaze Amplifiers
1000 W DSP-enabled Class-D amplifier with 2 channels
Key Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color
LBX-888-001 (PowerZone Connect 1002), LBX-888-013 (PowerZone Connect 1002 JPN)
Dimensions (WxHxD)
17.3" x 3.5" x 12.6" (439.42mm x 88.9mm x 320.04mm)
Weight
13.01 lbs. (5.9kg)
Channel Configuration
Lo-Z: 2x500W @2/4Ω Hi-Z: 1x 1000W @70/100V
Total System Power
1000 W
Output Power @ 2Ω
2 X 500 W (SE)
Output Power @ 4Ω
2 X 500 W (SE) 1 X 1000 W (BTL)
Output Power @ 8Ω
2 x 250 W (SE) 1 x 1000 W (BTL)
Output Power @ 70V
1 x 1000 W (BTL)
Output Power @ 100V
1 x 1000 W (BTL)
Powersharing
BTL
