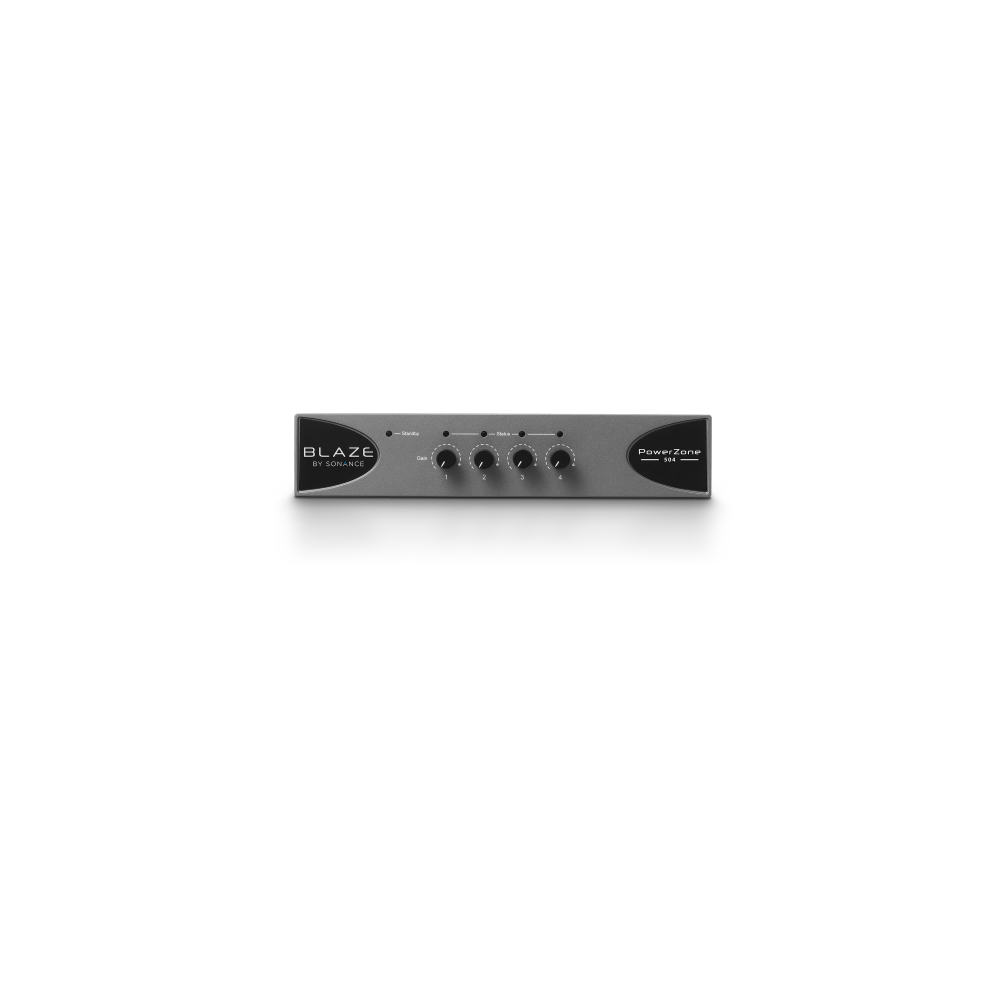

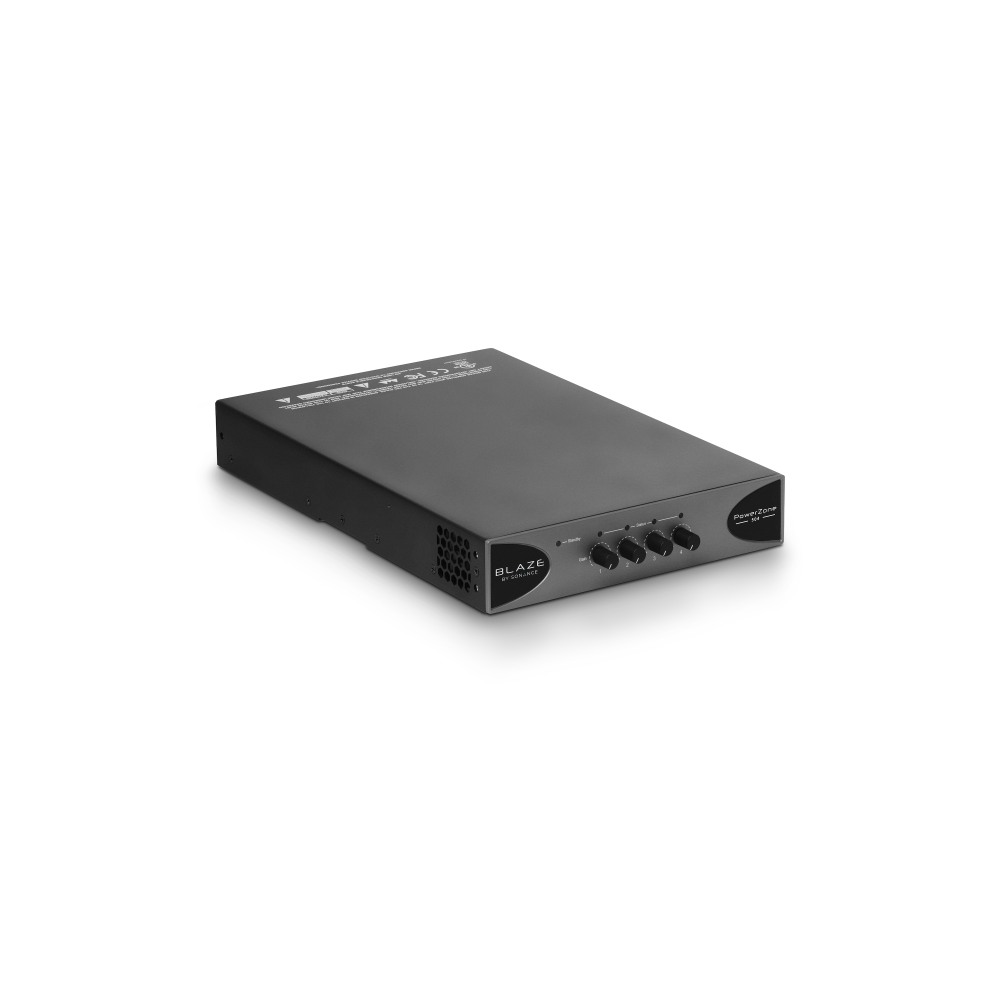

PowerZone 504
PowerZone 504
Amplifiers
500 W non-networked Class-D amplifier with 4 channels
Key Features
- Compact 1U half-rack form factor.
- Hybrid power distribution in both Lo-Z and Hi-Z.
- Flexible power sharing across output channels.
- Powered by Pascal UMAC Class-D technology.
- Eight-position DIP switch for operational configuration, including locking front panel gain cont
- GPIO interface for remote volume and standby.
- ErP and Energy Star compliant
- UL listed audio equipment
Specifications
SKU
UBX-888-016 (PowerZone 504), UBX-888-002 (PowerZone 504 UNI)
Dimensions (WxHxD)
8.66" x 1.73" x 13.31" (219.96mm x 43.94mm x 338.07mm)
Weight
5.29 lbs. (2.4kg)
Channel Configuration
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
Total System Power
500 W
Output Power @ 4 ohms
4 x 125 W
Output Power @ 8 ohms
4 x 125 W
Output Power @ 70V
4 x 125 W
Output Power @ 100V
4 x 125 W
Powersharing
<= 2 X 250 W
Power Consumption
150 W
Rack Units
1U Half Rack
