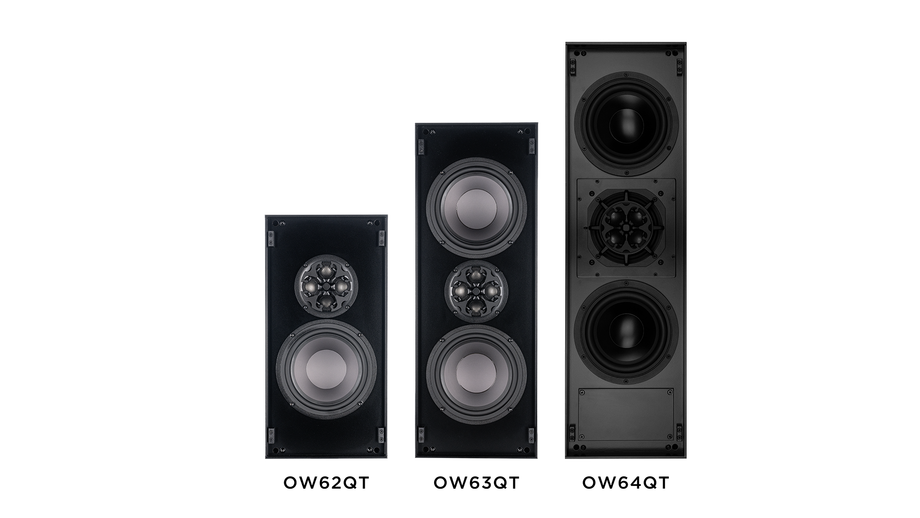

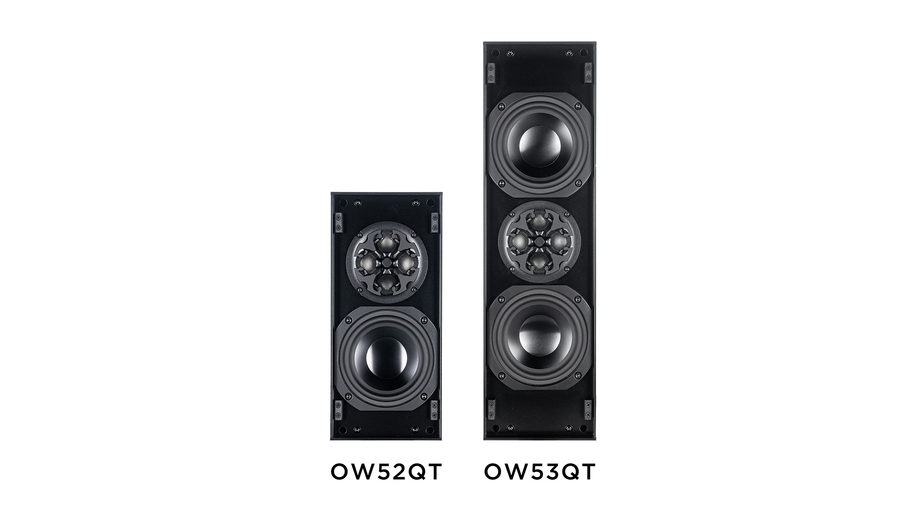

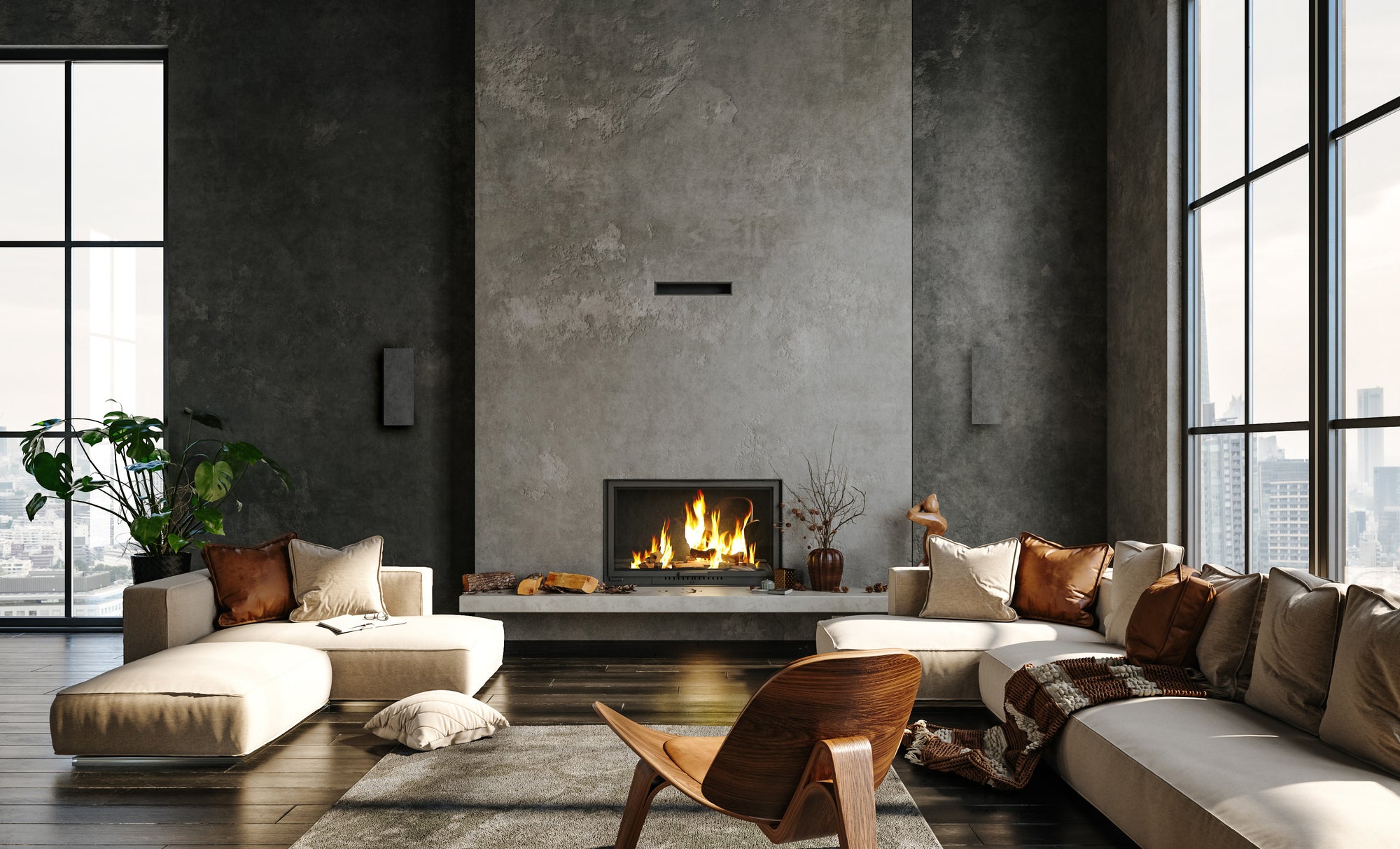

James On Wall Quadratech models are built for ultimate performance in surface mounted applications. Engineered leveraging iterative machine learning, the James Quadratech tweeter design provides superior dispersion and fidelity to optimize these On Wall models for music and entertainment applications. James On Wall Series is built-to-order for precision height/length to match the needs of the project, and ordered in any one of the 15+ standard colors at no additional cost.

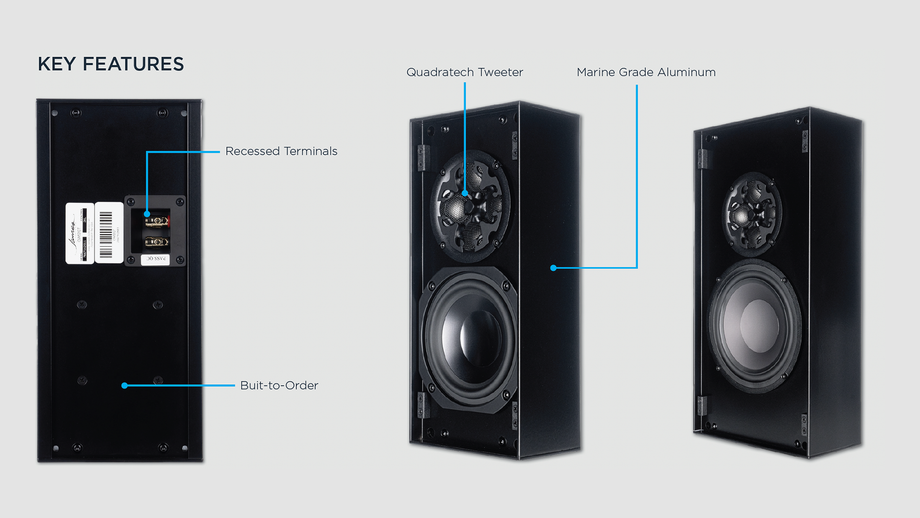

Key Features

  • QUADRATECH TWEETER QT MODELS Wide dispersion and crisp fidelity
  • BUILT-TO-ORDER Specify height/length, select low impedance or 70V/100V, standard or Marine Grade, and over 15 standard colors (custom colors available)

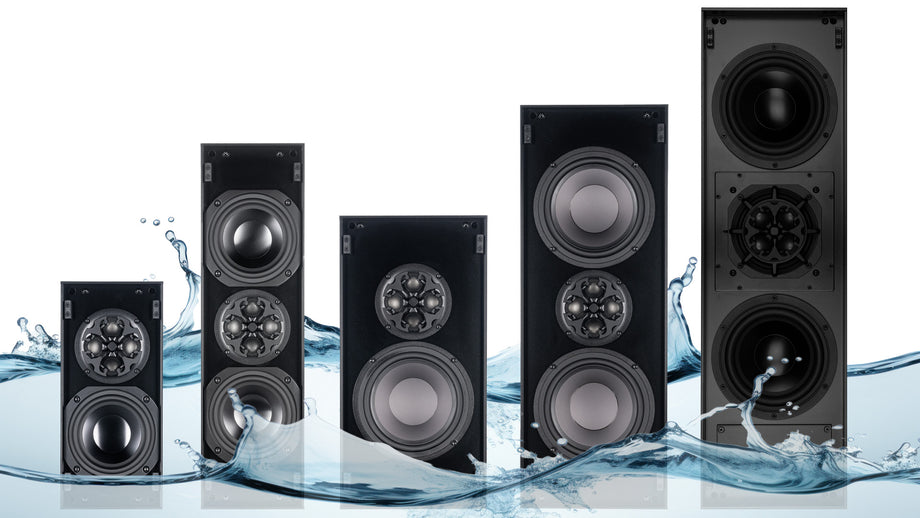

  • MARINE GRADE ALUMINUM Durable cabinet construction (for full marine-grade, specify when ordering)
  • RECESSED TERMINALS Protected wire connection and flush contact with surface
See Videos

Visual Experience Series

In-Wall Models

Compare Models

SKU | Color
Speaker Tweeter
Speaker Woofer
Frequency Response
(+/- 3db)
Sensitivity
Cut-Out Dimensions (WxH)

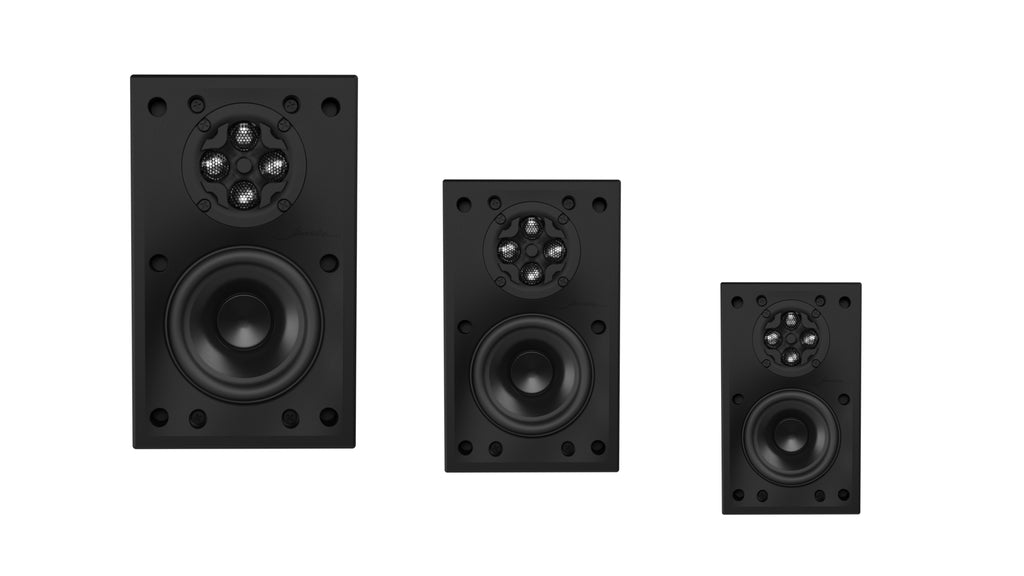

VXQ48 4" RECTANGLE IN-WALL SPEAKER (1 EACH) VXQ48 4" RECTANGLE IN-WALL SPEAKER (1 EACH)
VXQ48
4" James In-Wall Speaker
VXQ48
.50" (12mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
4.5" (114mm) Aluminum cone, Santoprene surround
50Hz - 20kHz
90dB (2.83V/1m)
4.63" x 8.0" (117.48mm x 203.2mm)
VXQ68 6" RECTANGLE IN-WALL SPEAKER (1 EACH) VXQ68 6" RECTANGLE IN-WALL SPEAKER (1 EACH)
VXQ68
6" James In-Wall Speaker
VXQ68
.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
6.5" (165mm) Aluminum cone, Santoprene surround
40Hz - 20kHz
90dB (2.83V/1m)
6.94" x 10.75" (176.21mm x 273.05mm)
VXQ88 8" RECTANGLE IN-WALL SPEAKER (1 EACH) VXQ88 8" RECTANGLE IN-WALL SPEAKER (1 EACH)
VXQ88
8" James In-Wall Speaker
VXQ88
1.0" (25mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
8" (203mm) Aluminum cone, Santoprene surround
30Hz - 20kHz
91dB (2.83V/1m)
8.5" x 14.5" (215.9mm x 368.3mm)
