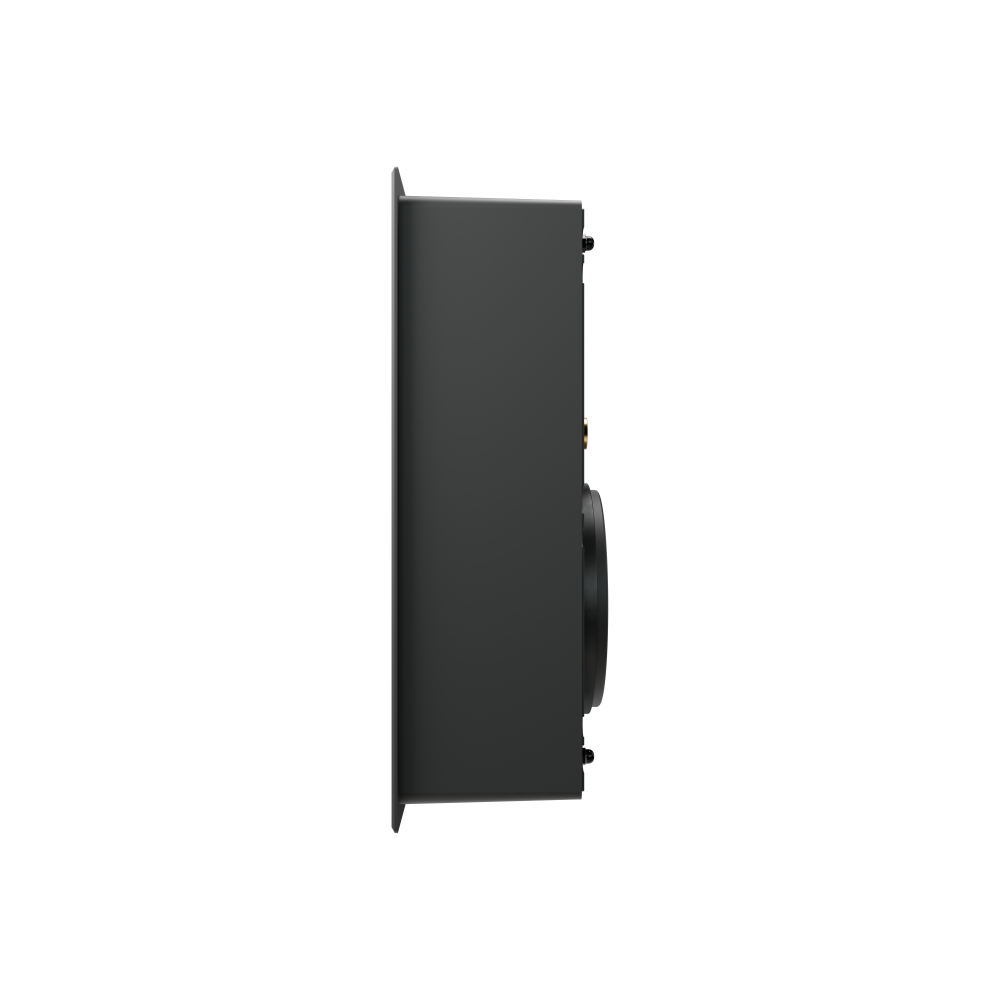

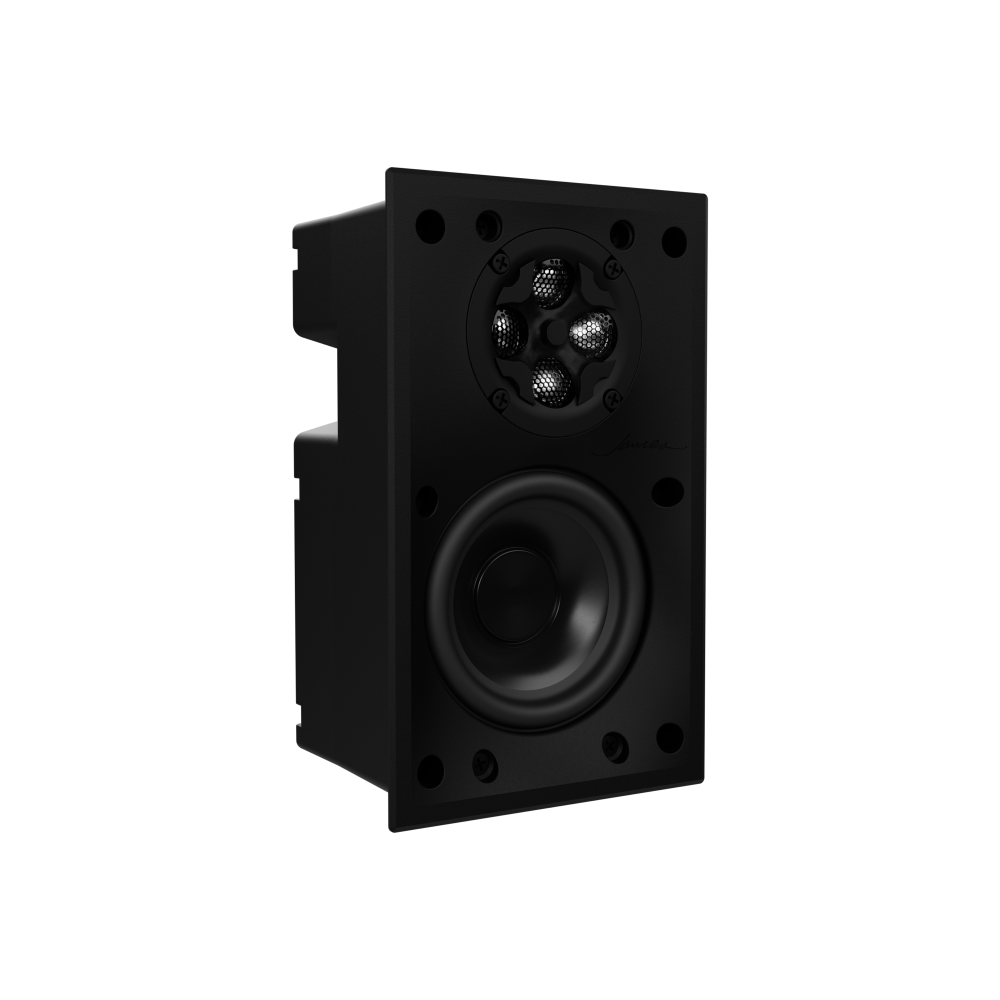

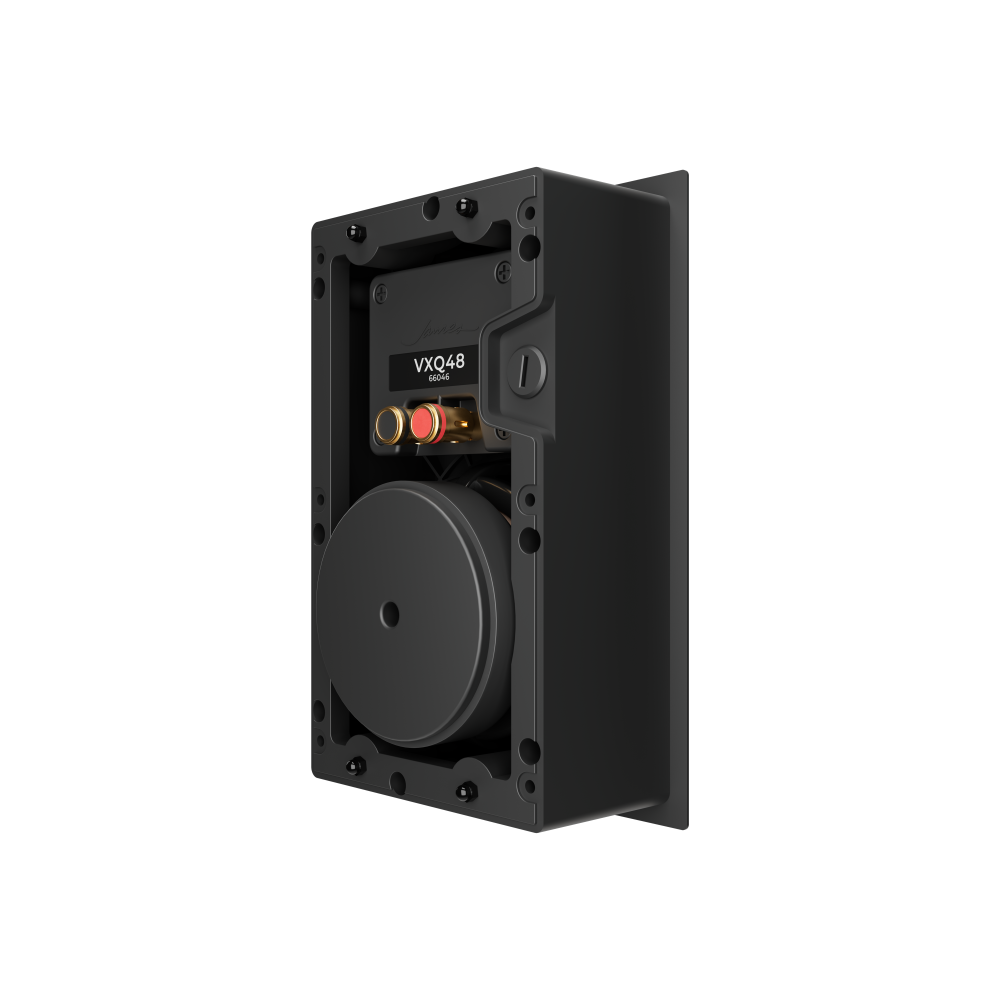

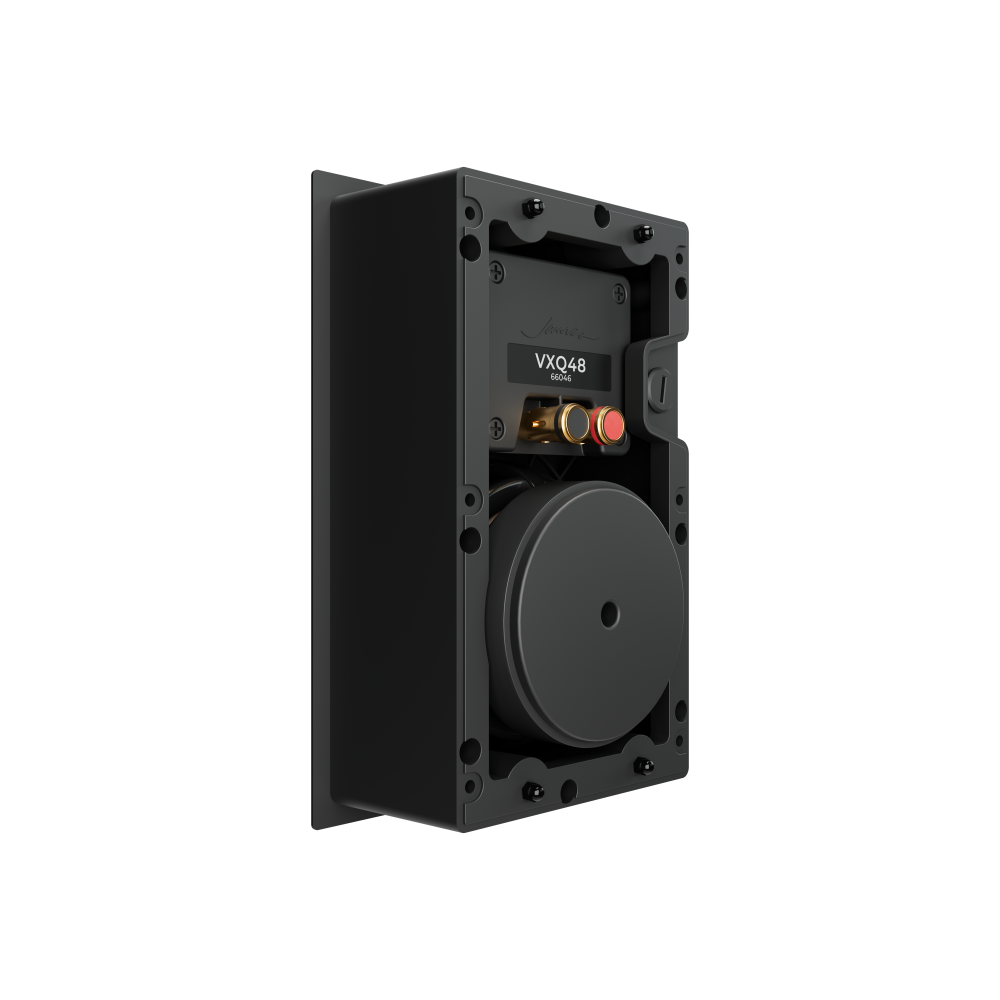

VXQ48

Visual Experience

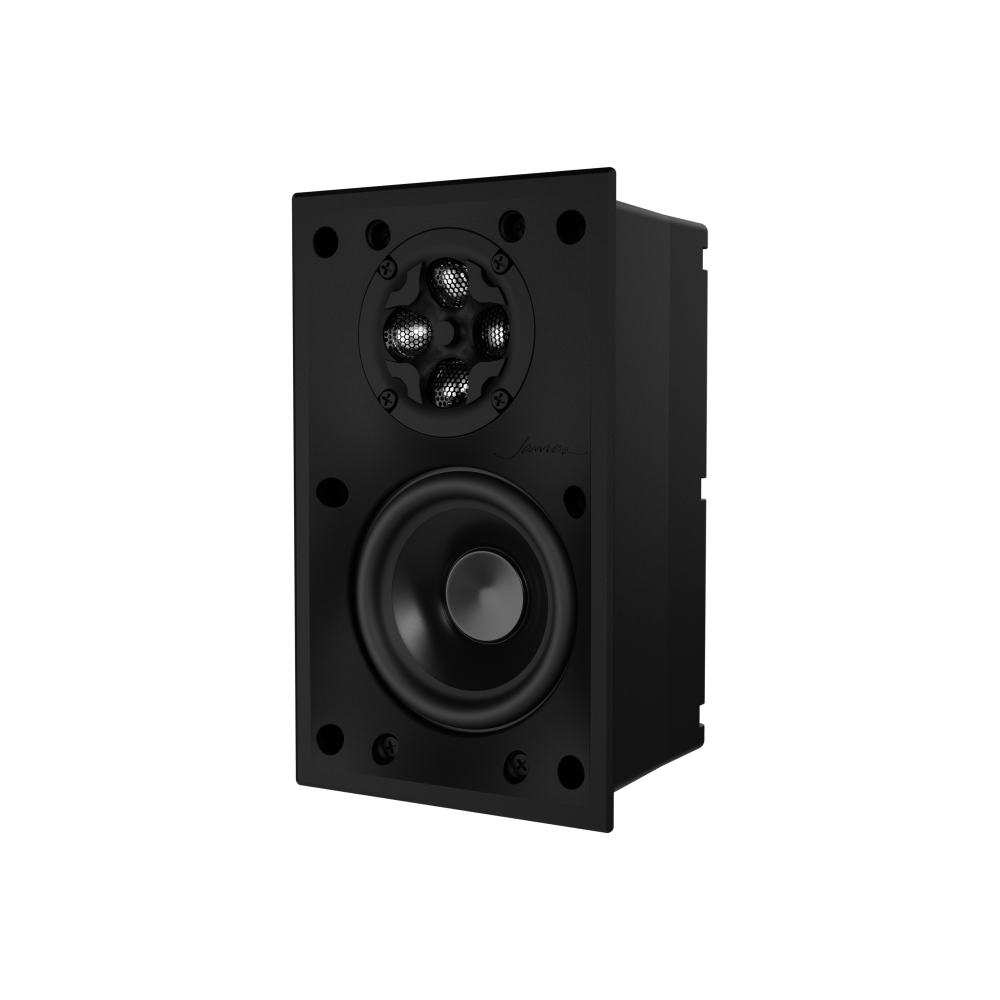

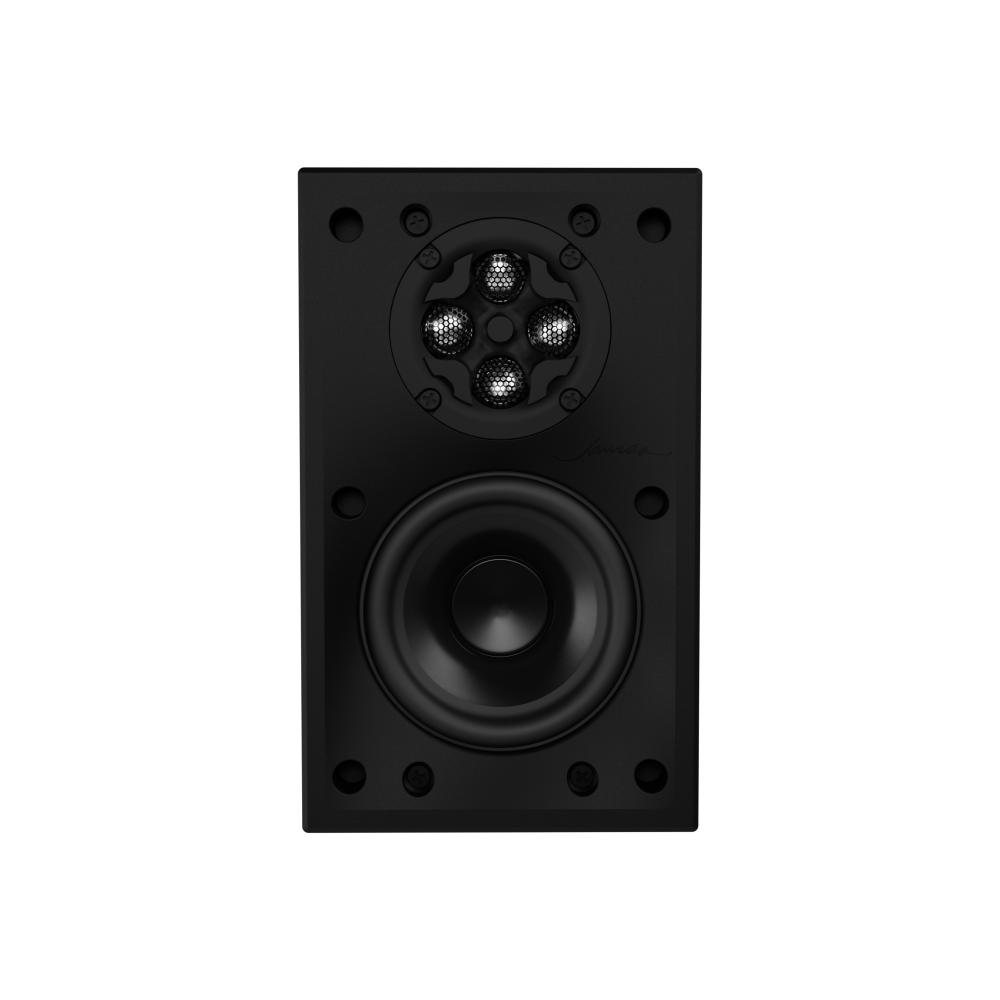

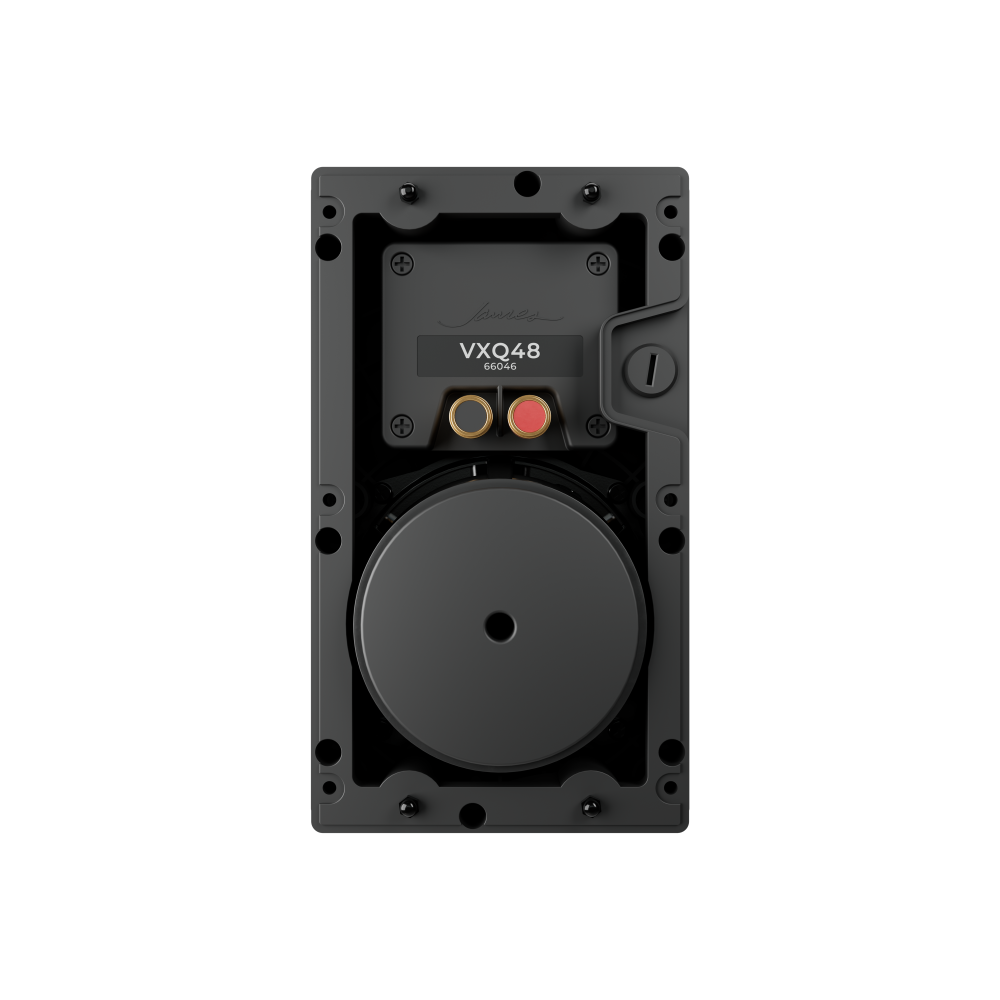

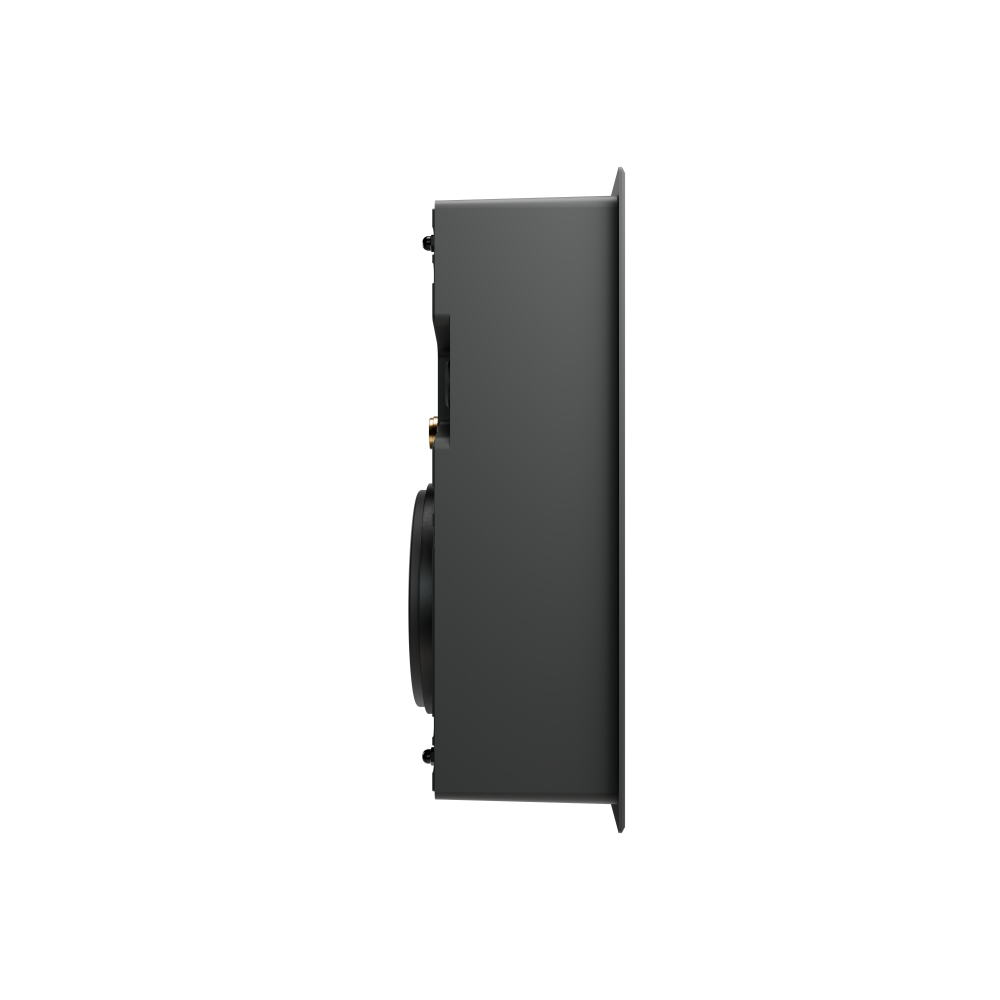

IP67 rated Visual Experience Series in-wall speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications requiring a small footprint. The VXQ48 can be ordered with a standard Micro Trim grille or Trimless grille. These speakers can also be configured to include a shallow enclosure.

VXQ48

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Specifications

SKU

VXQ48

Speaker Tweeter

.50" (12mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer

4.5" (114mm) Aluminum cone, Santoprene surround

Frequency Response (+/- 3db)

50Hz - 20kHz

Power Handling (RMS)

5 watts minimum; 100 watts maximum

Sensitivity

90dB (2.83V/1m)

Dispersion

Quadratech Tweeter with Cymatic Diffuser

Cut-Out Dimensions (WxH)

4.63" x 8.0" (117.48mm x 203.2mm)

Mounting Depth

2.77" (70.36mm)

Copy All Specs

Related Products

60472_hero_product_image_VXQ4_Rectangle Shallow_Enclosure_Back45_Right.tiff

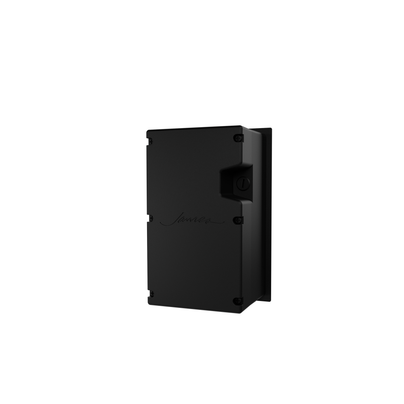

VXQ 4" RECTANGLE SHALLOW ENCLOSURE

SKU: 60472

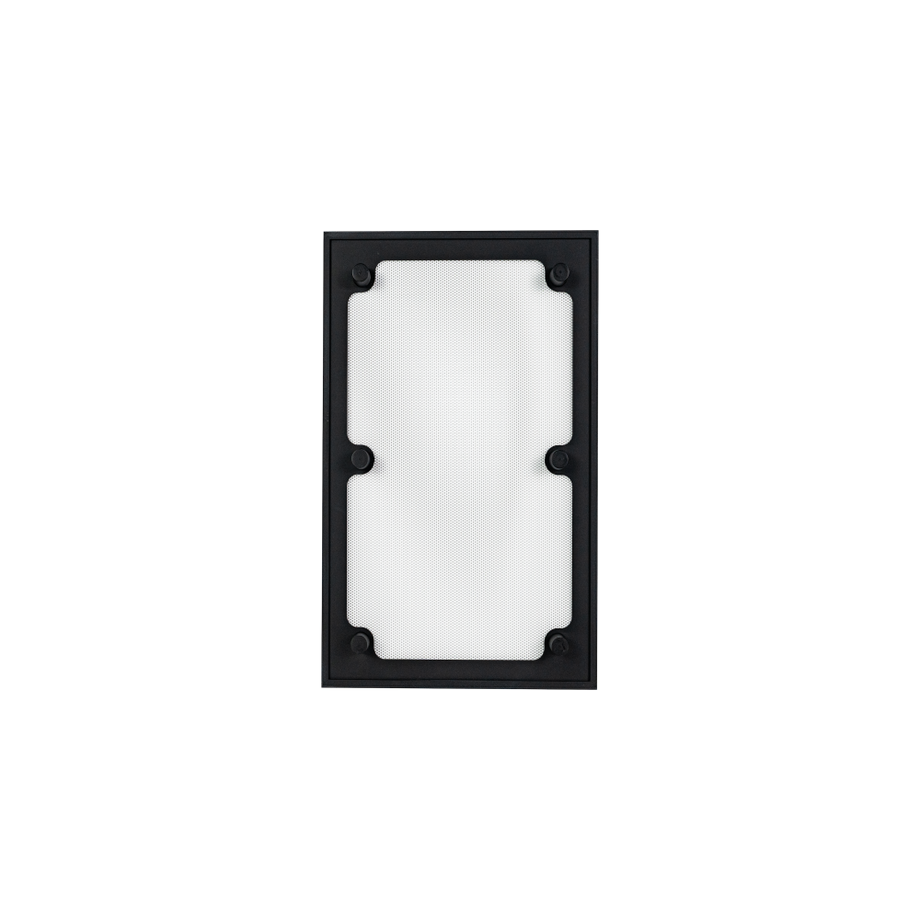

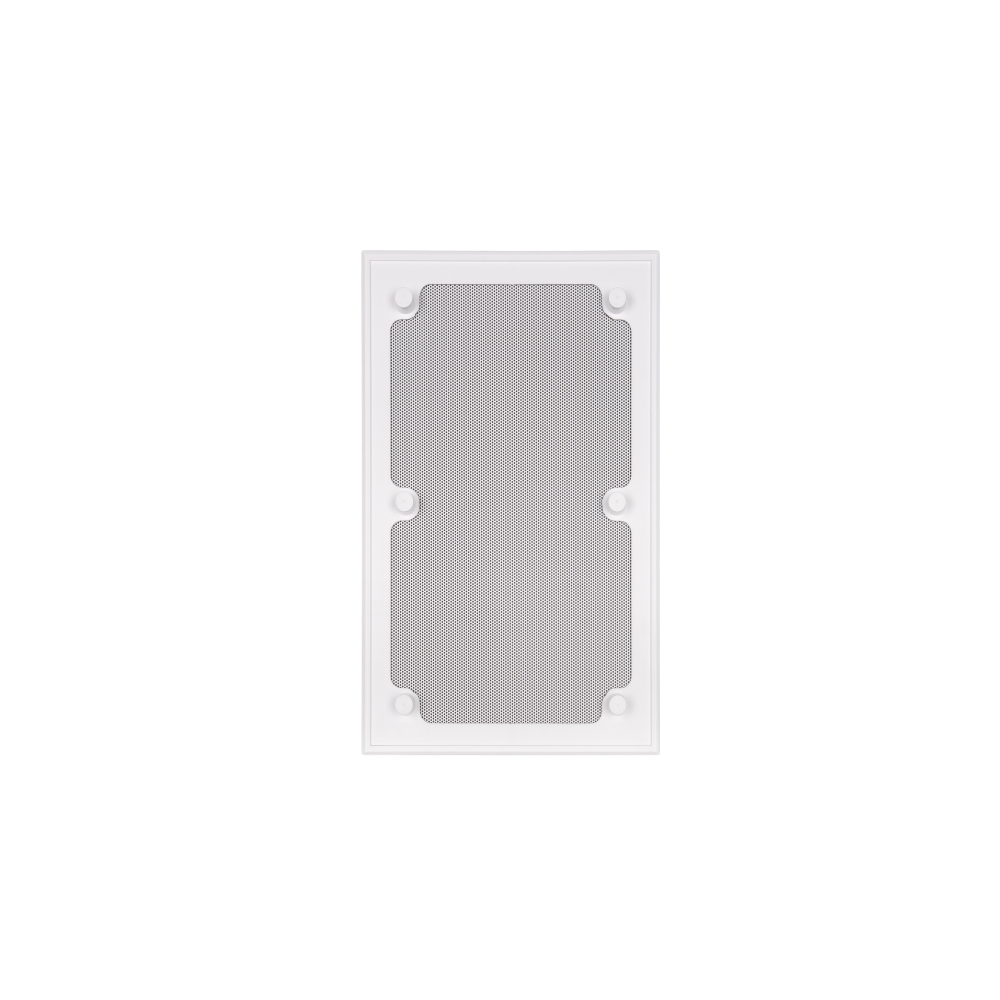

60481_product_image_XPC-4-T_F.tiff

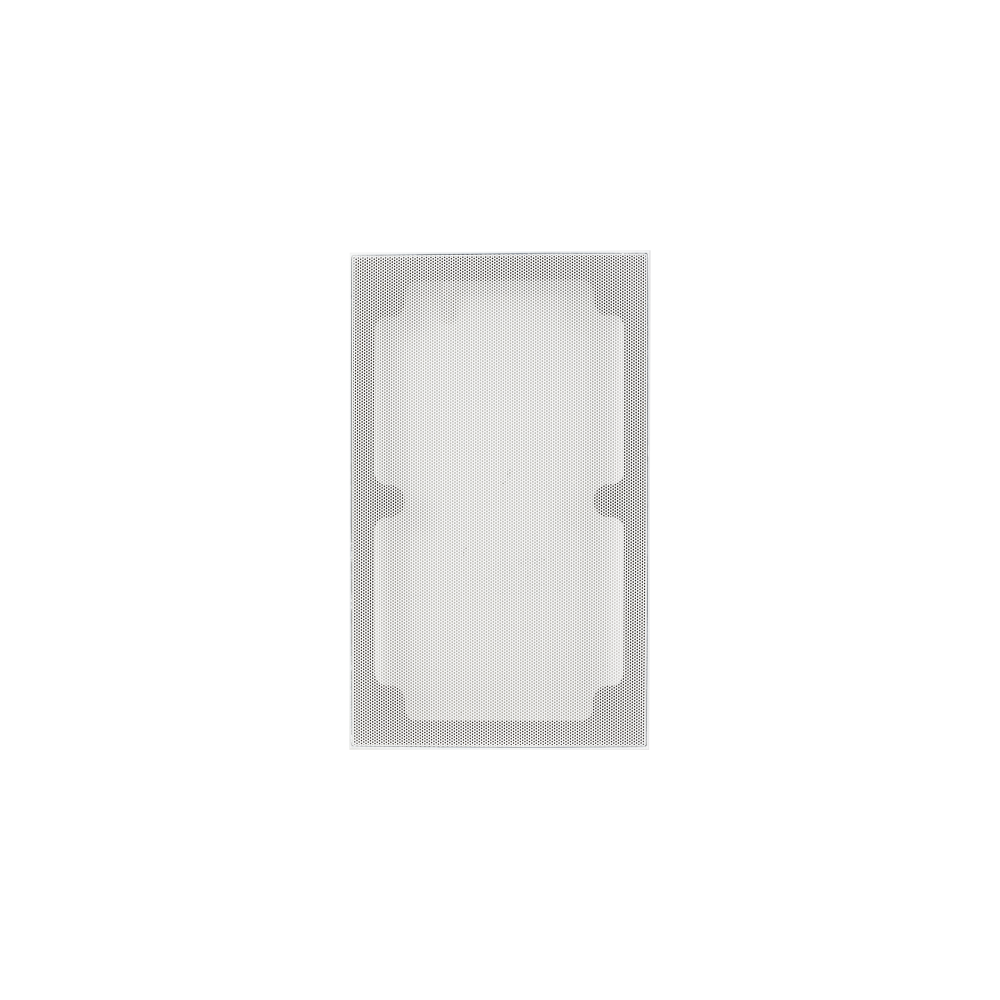

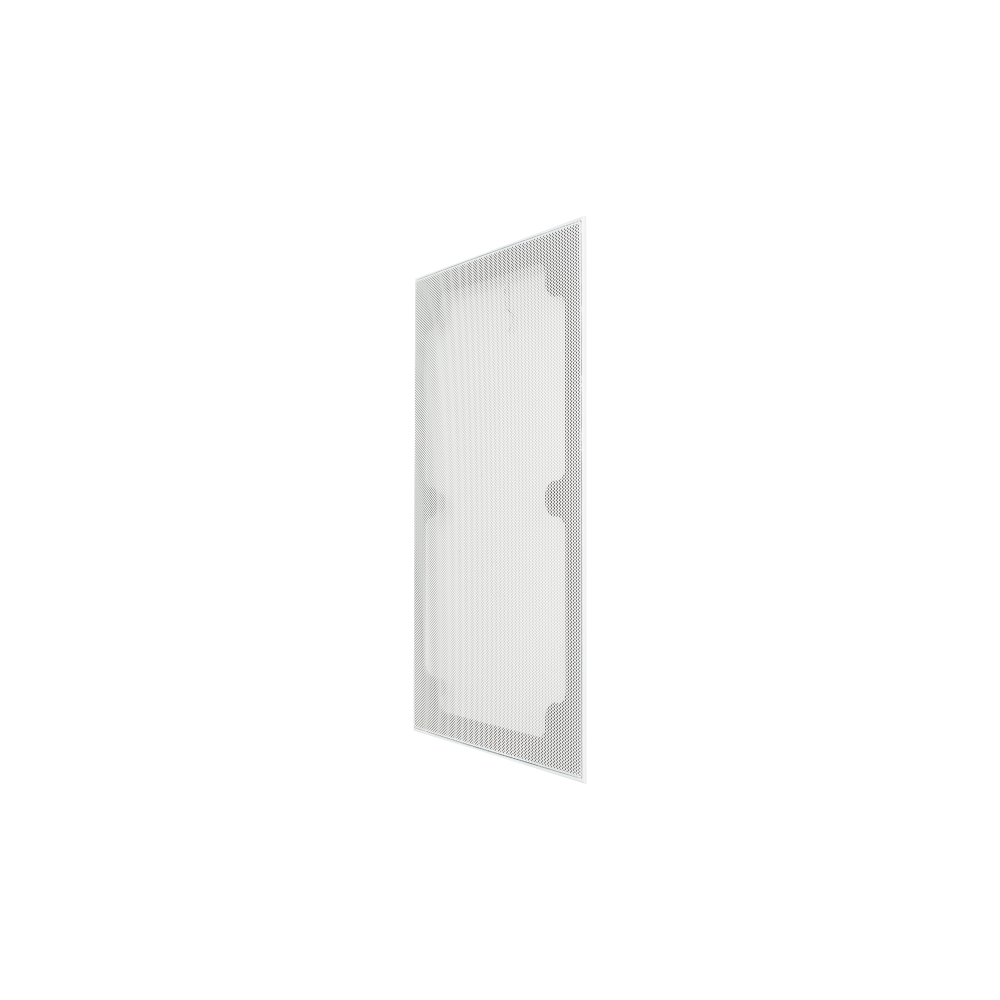

4" RECTANGLE XPC MICRO TRIM GRILLE

SKU: 60481

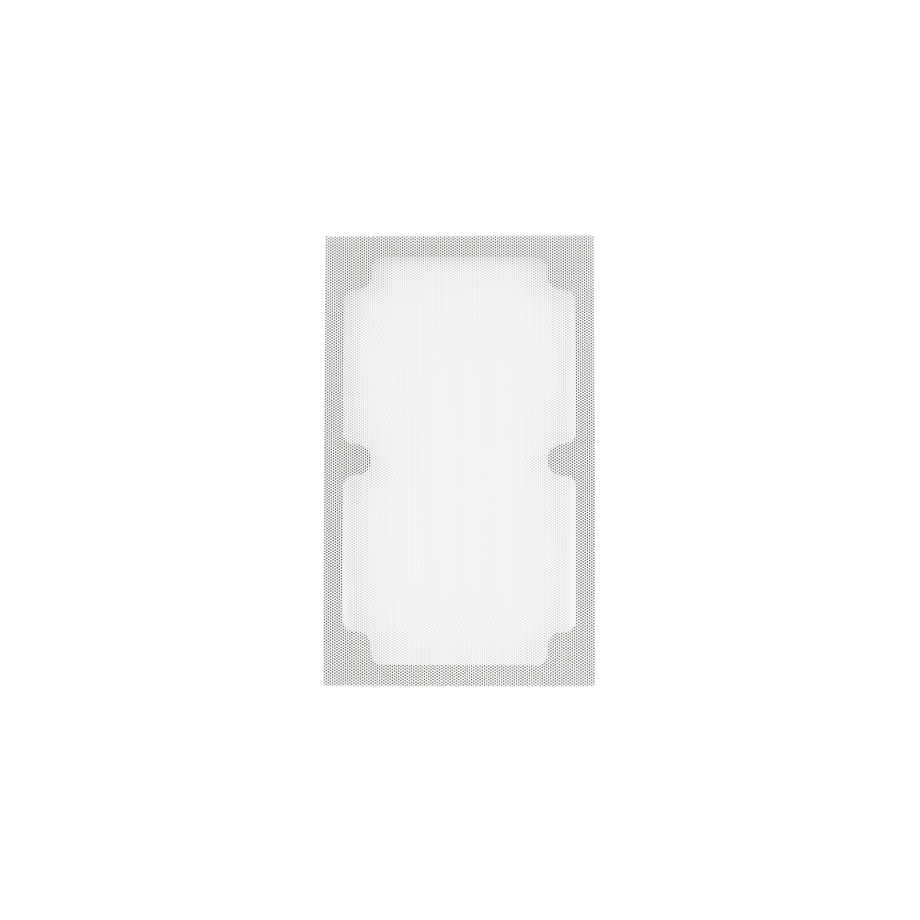

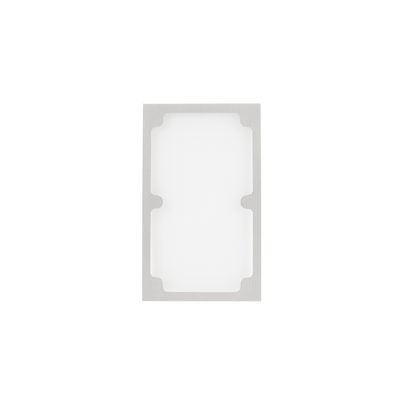

60482_hero_product_image_XPC-4-NT_F.tiff

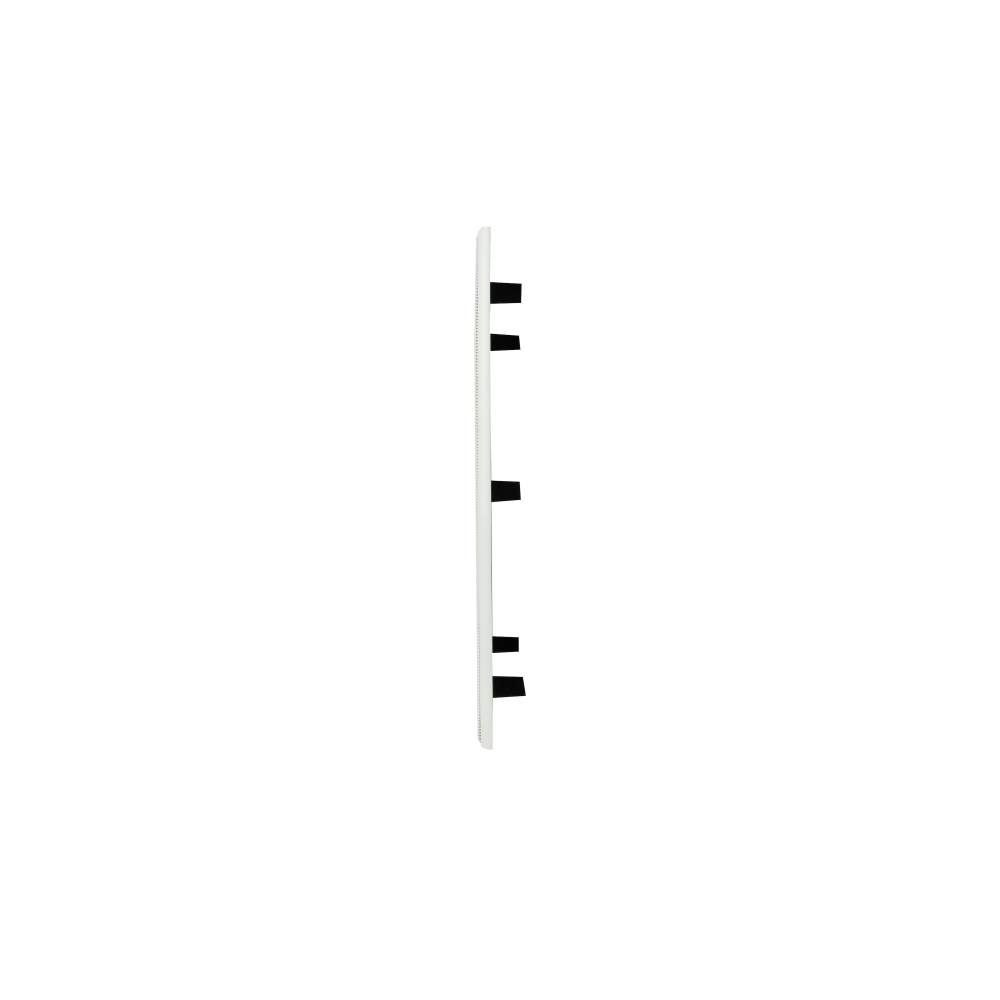

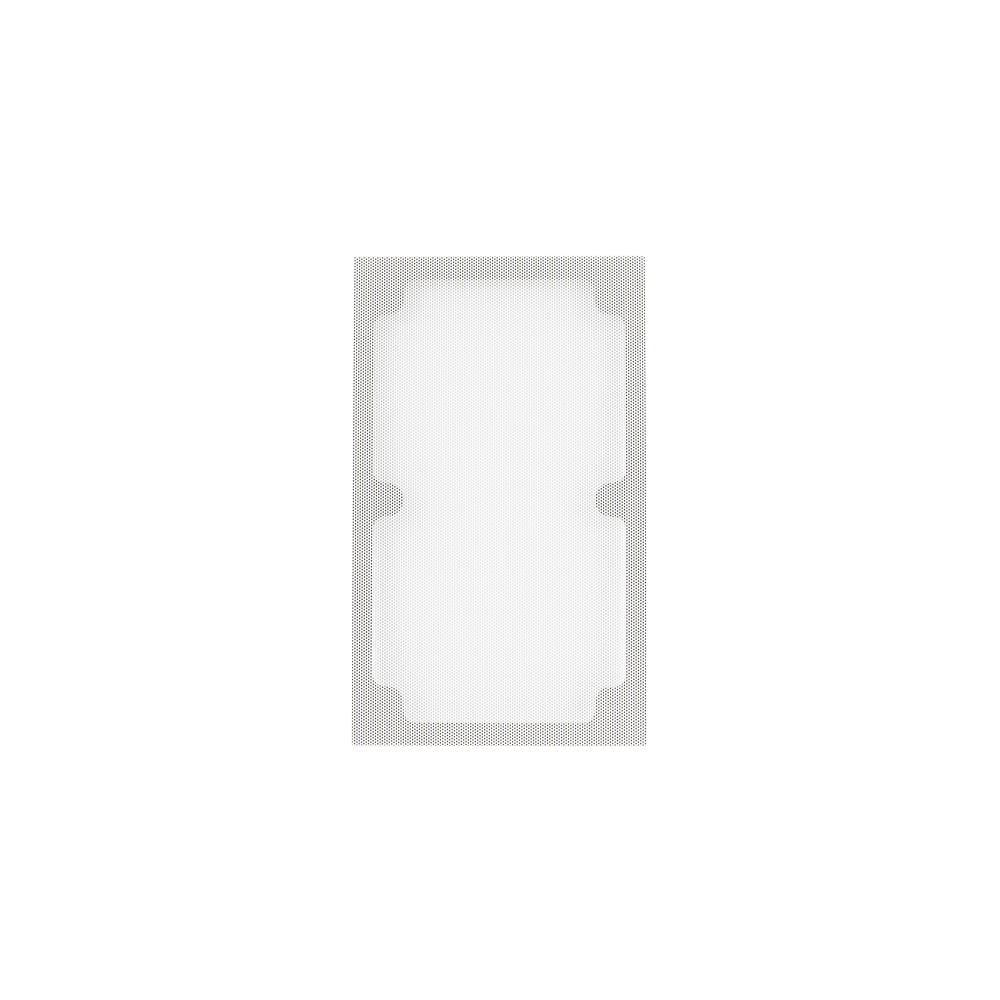

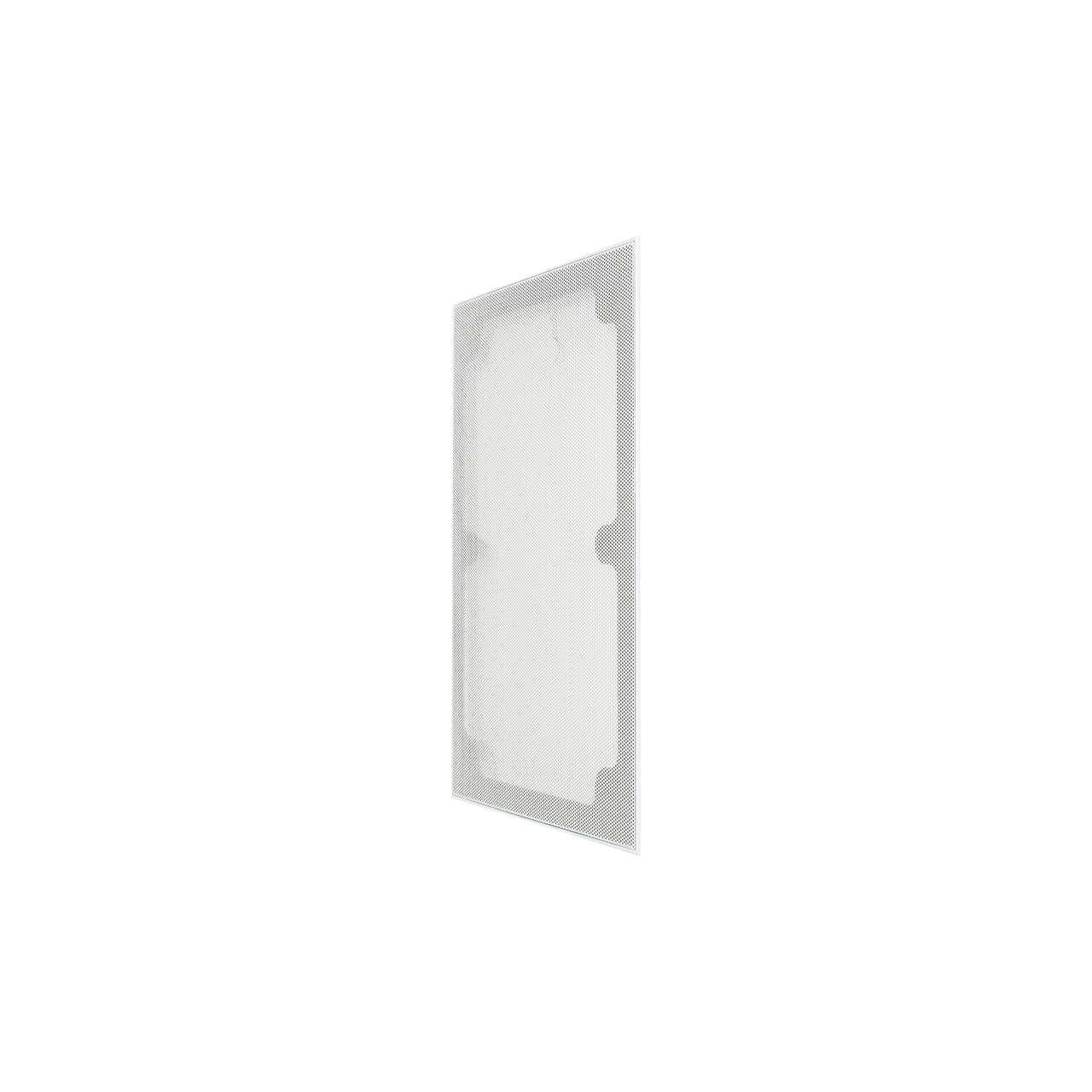

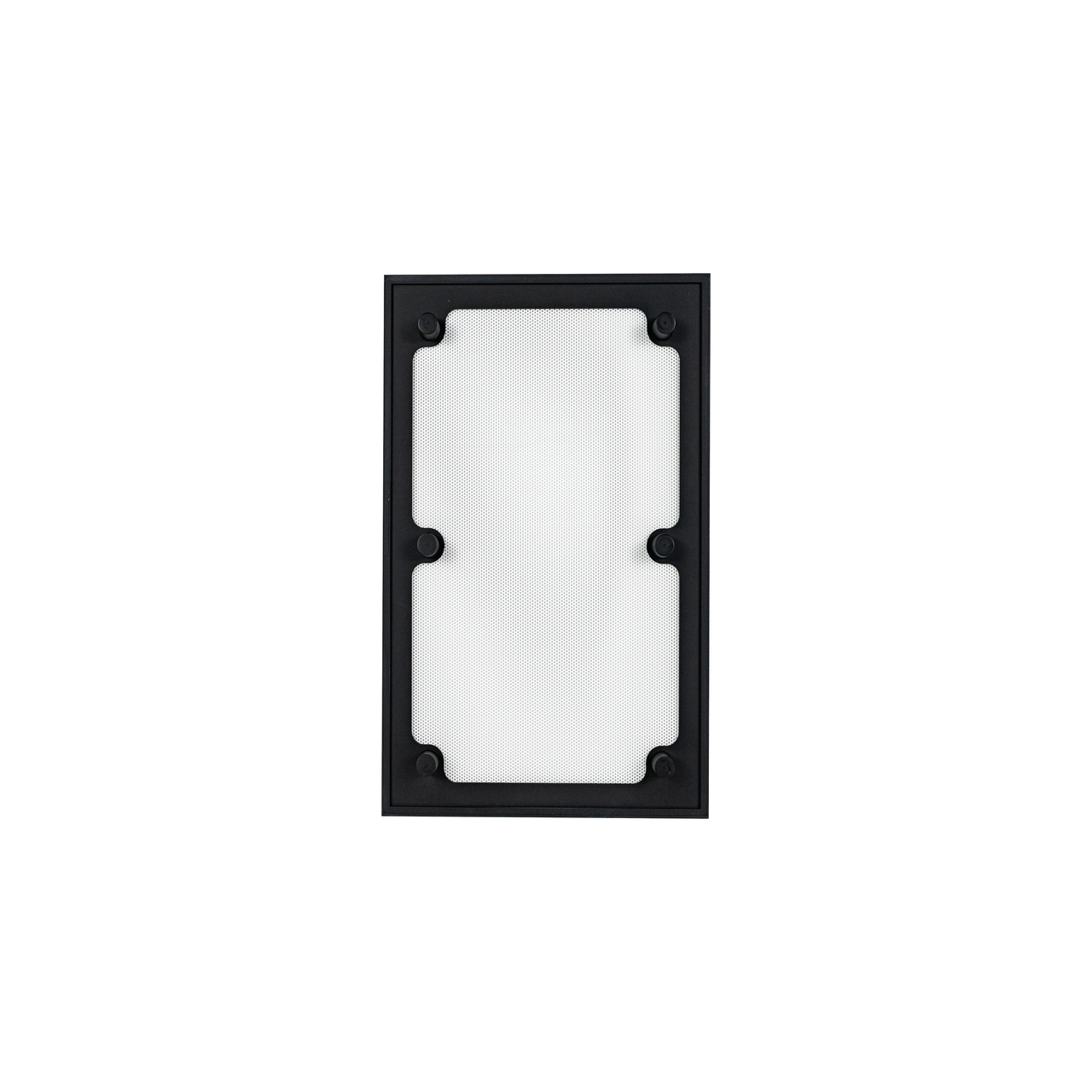

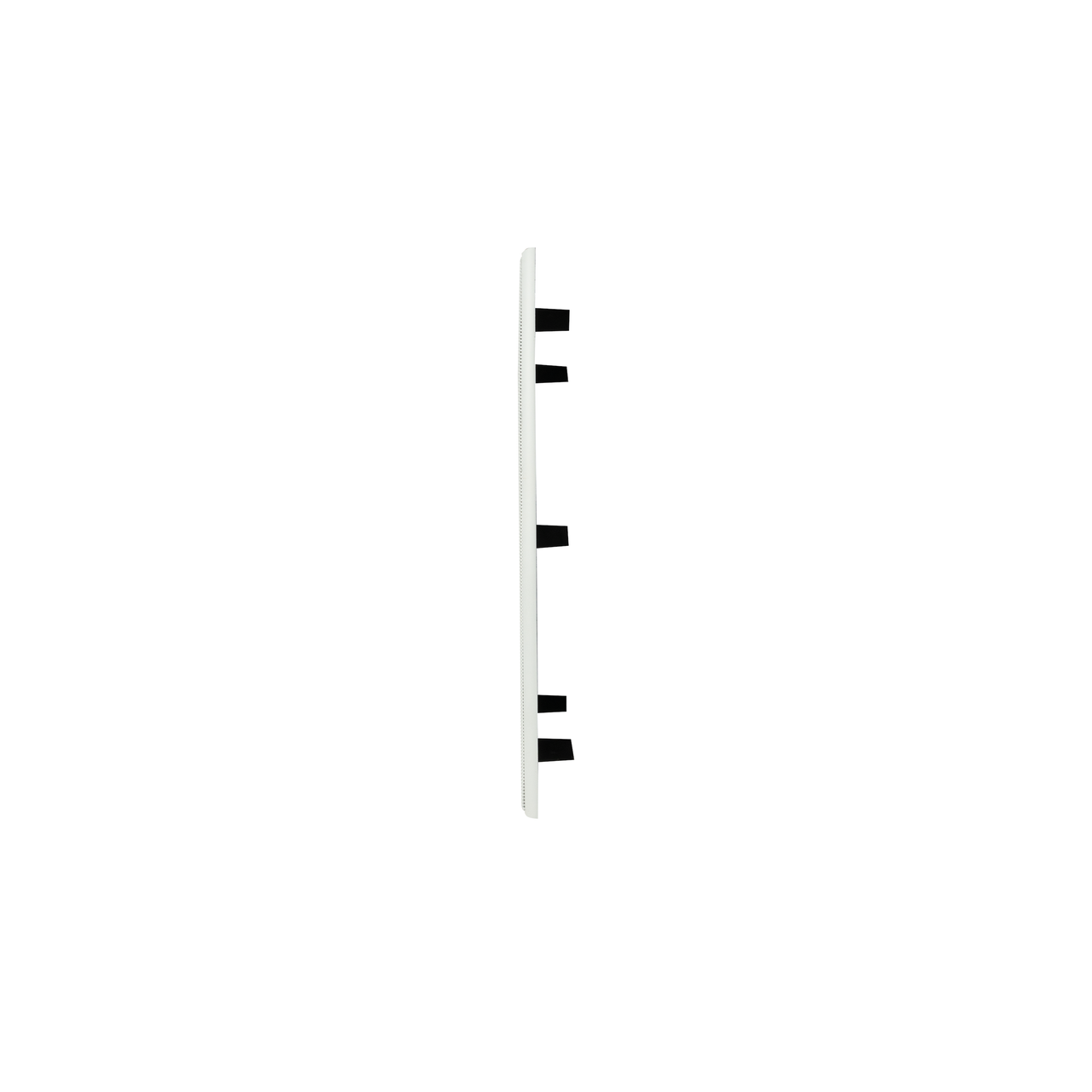

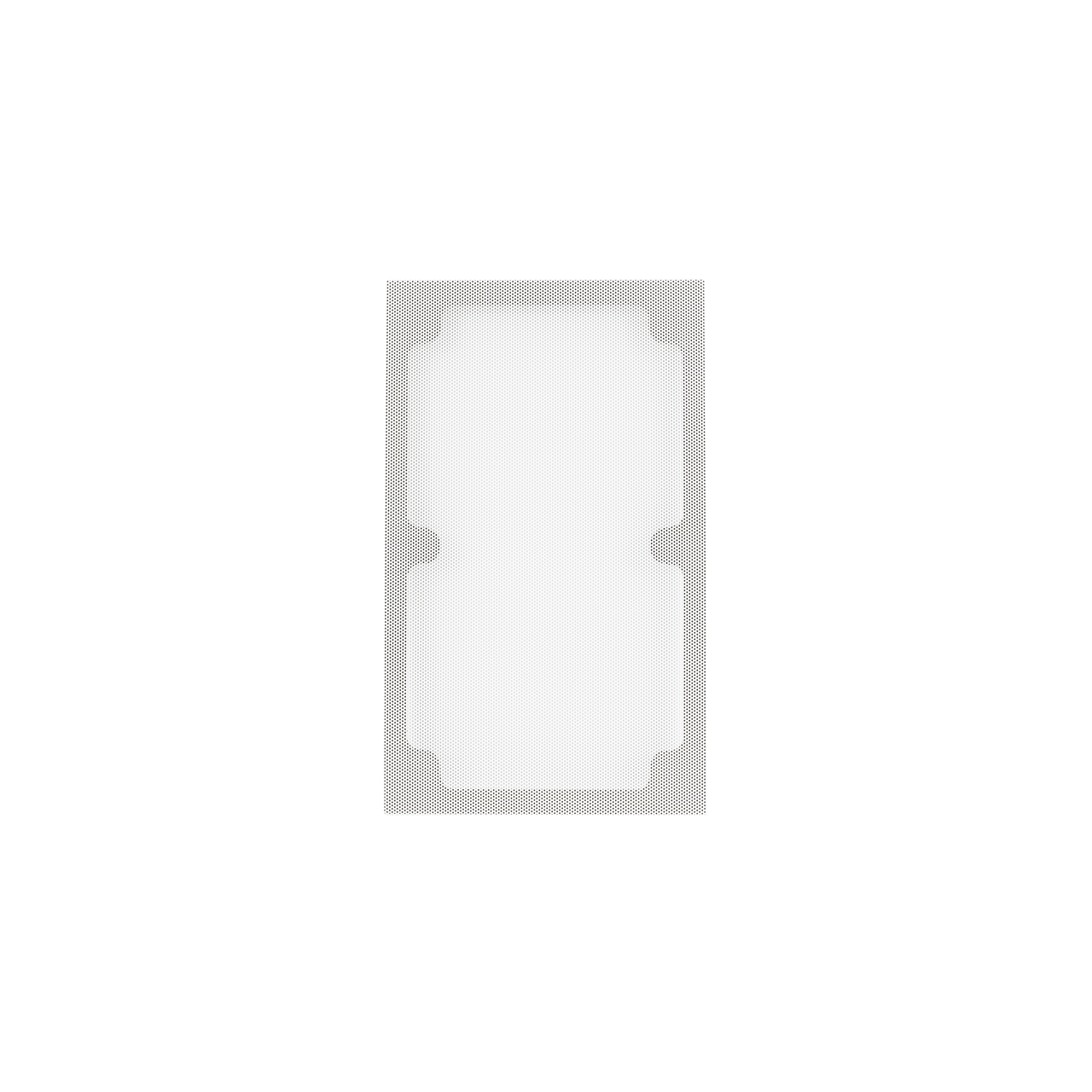

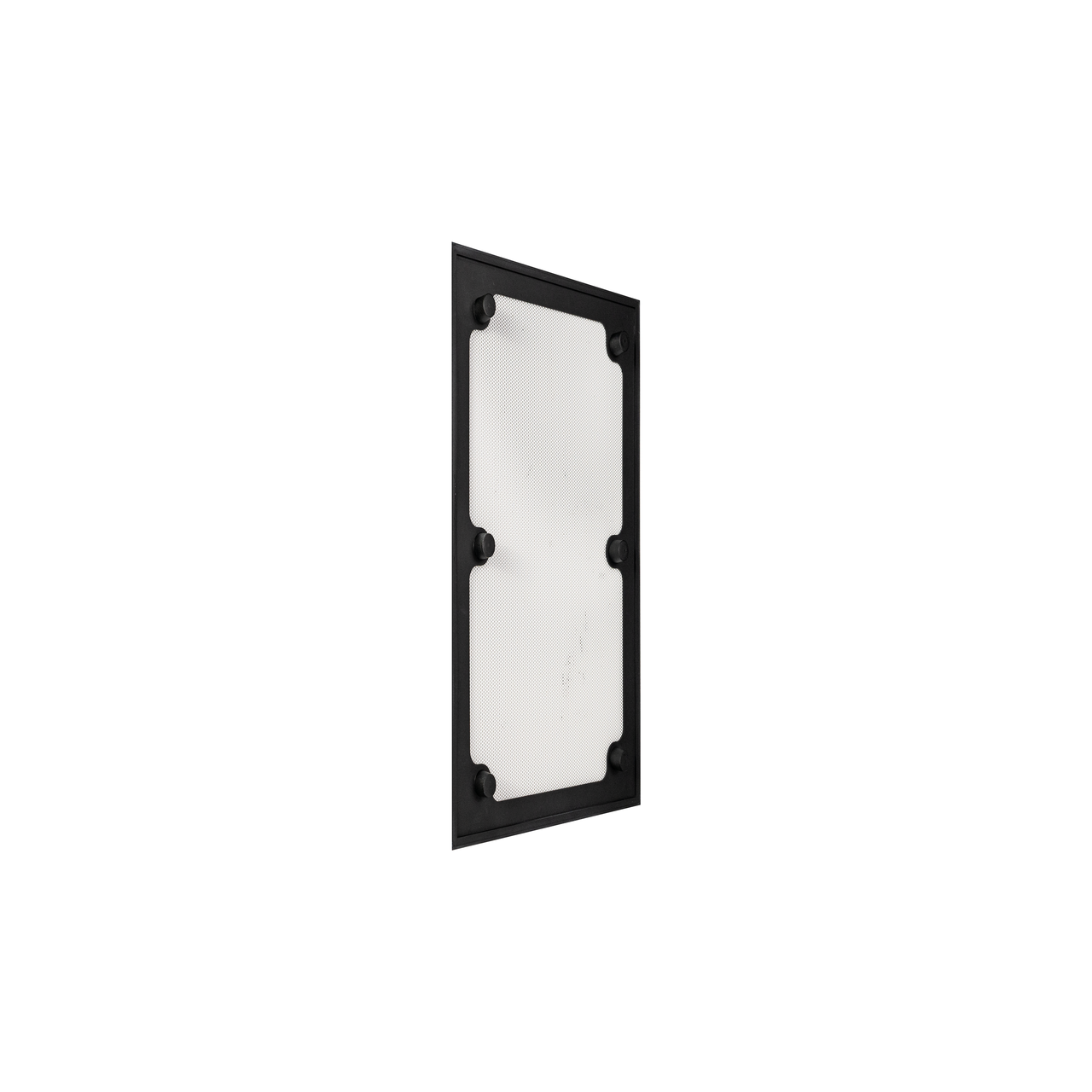

4" RECTANGLE XPC TRIMLESS GRILLE

SKU: 60482

92067_hero_product_image_Small_Rectangle_Masonry_Bracket_F-01.tiff

Small Rectangle Masonry Bracket

SKU: 92067

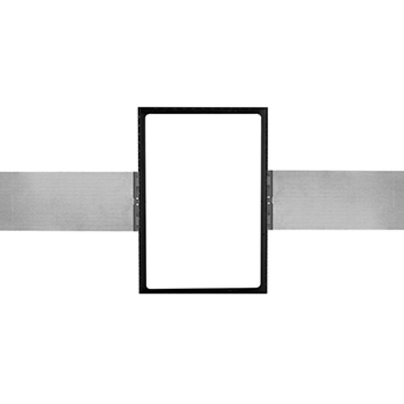

92470_hero_product_image_small_rectangle_flex_bracket_F-01.tiff

Small Rectangle Flex Bracket

SKU: 92470

92807_hero_product_image_Fire-Rated_Shallow_Backcan_F-01.tiff

Fire-Rated Listed Shallow Backcan

SKU: 92807

JAMES_PLACEHOLDER_HERO.tiff

XPC-GRILLE

SKU: VXQ-GRILLE
