James Powerpipe X Series

PPX8-M

Now Shipping

PPX8-M

PowerPipe

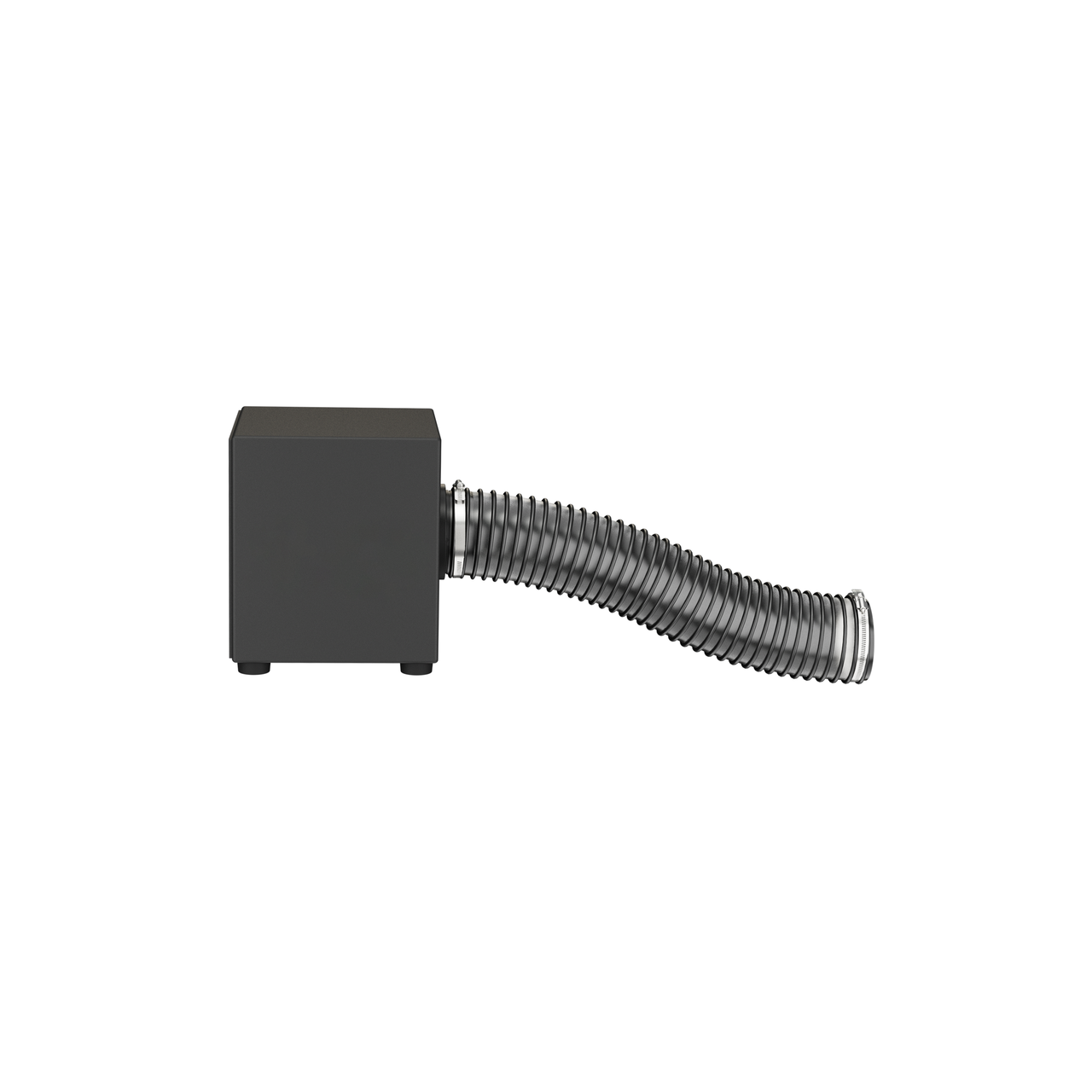

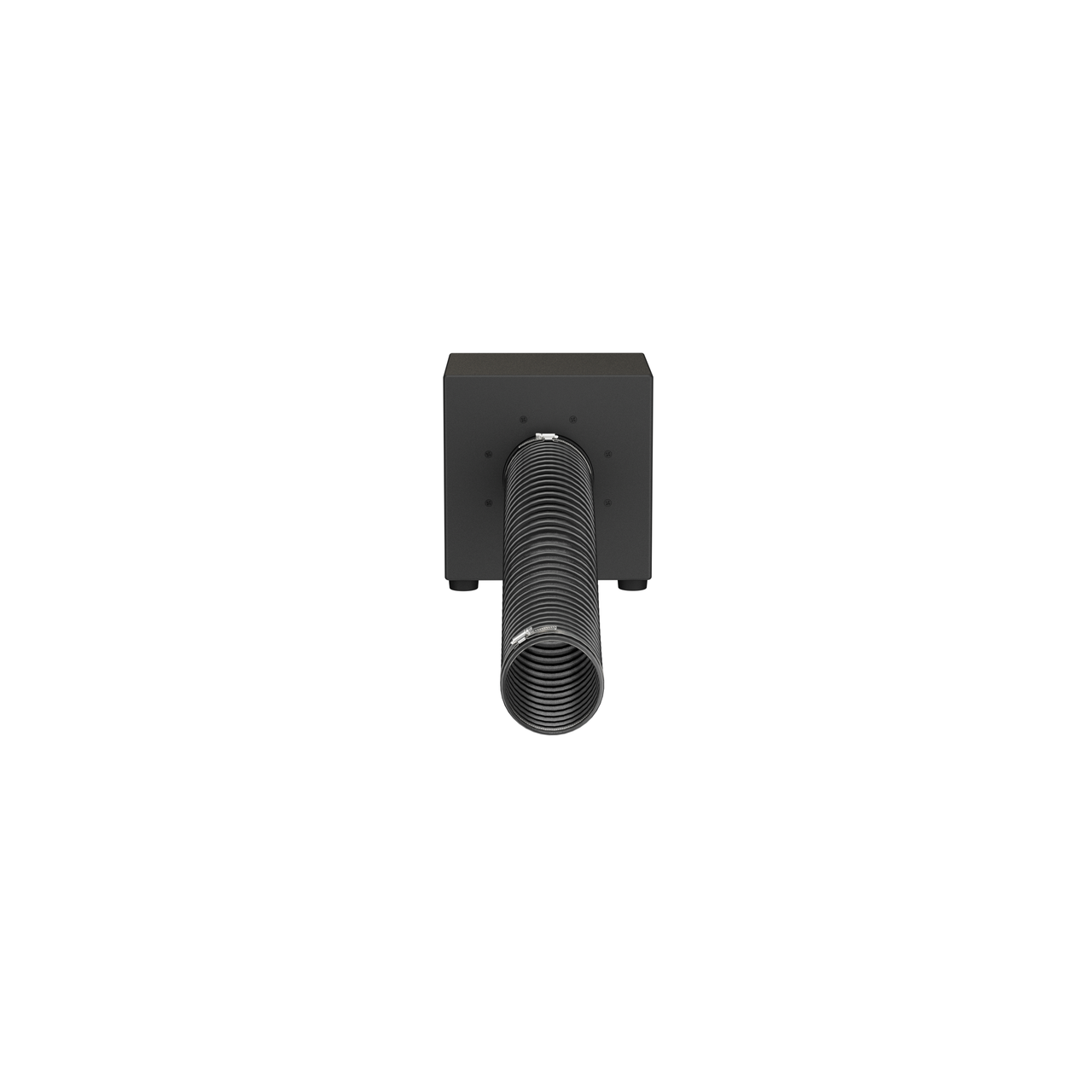

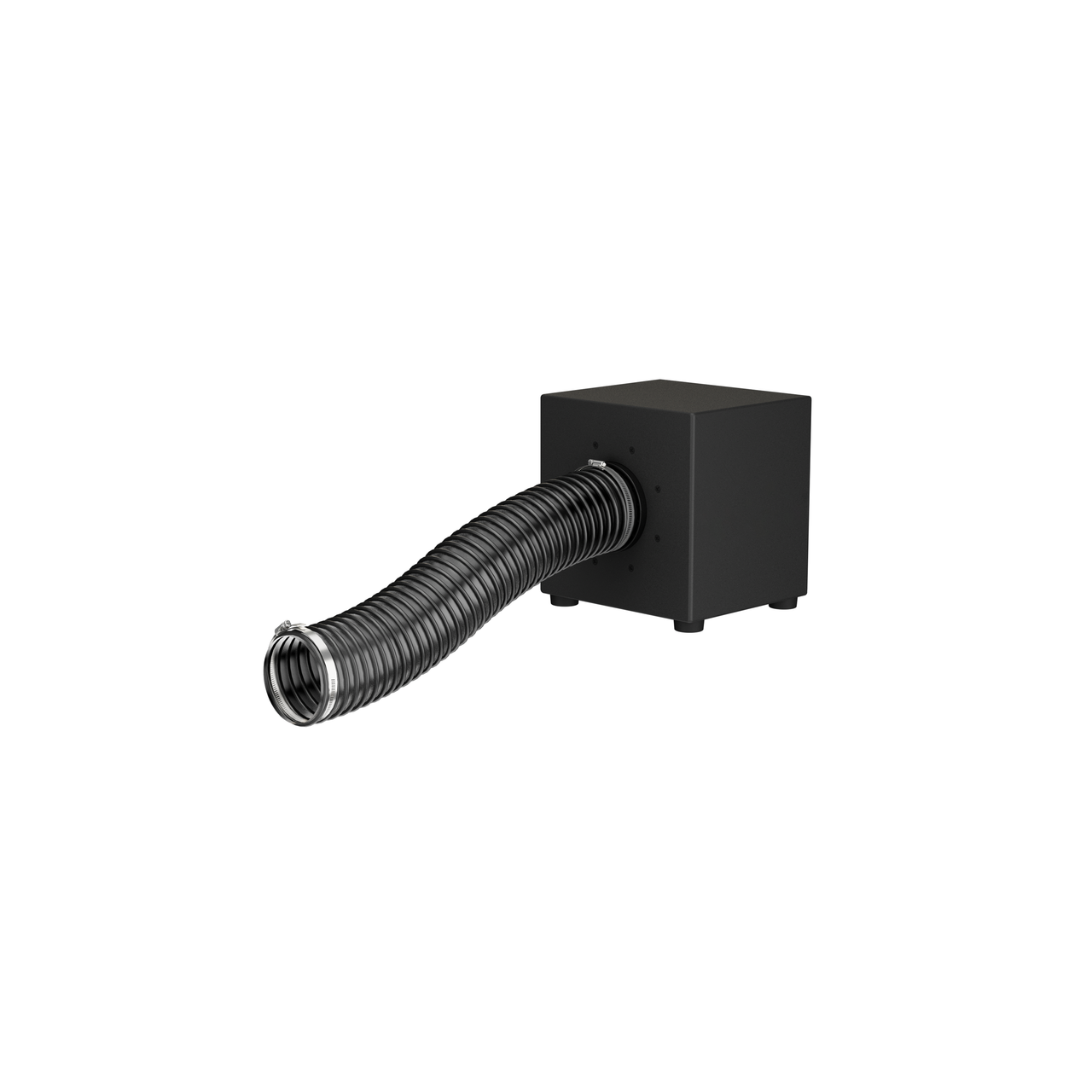

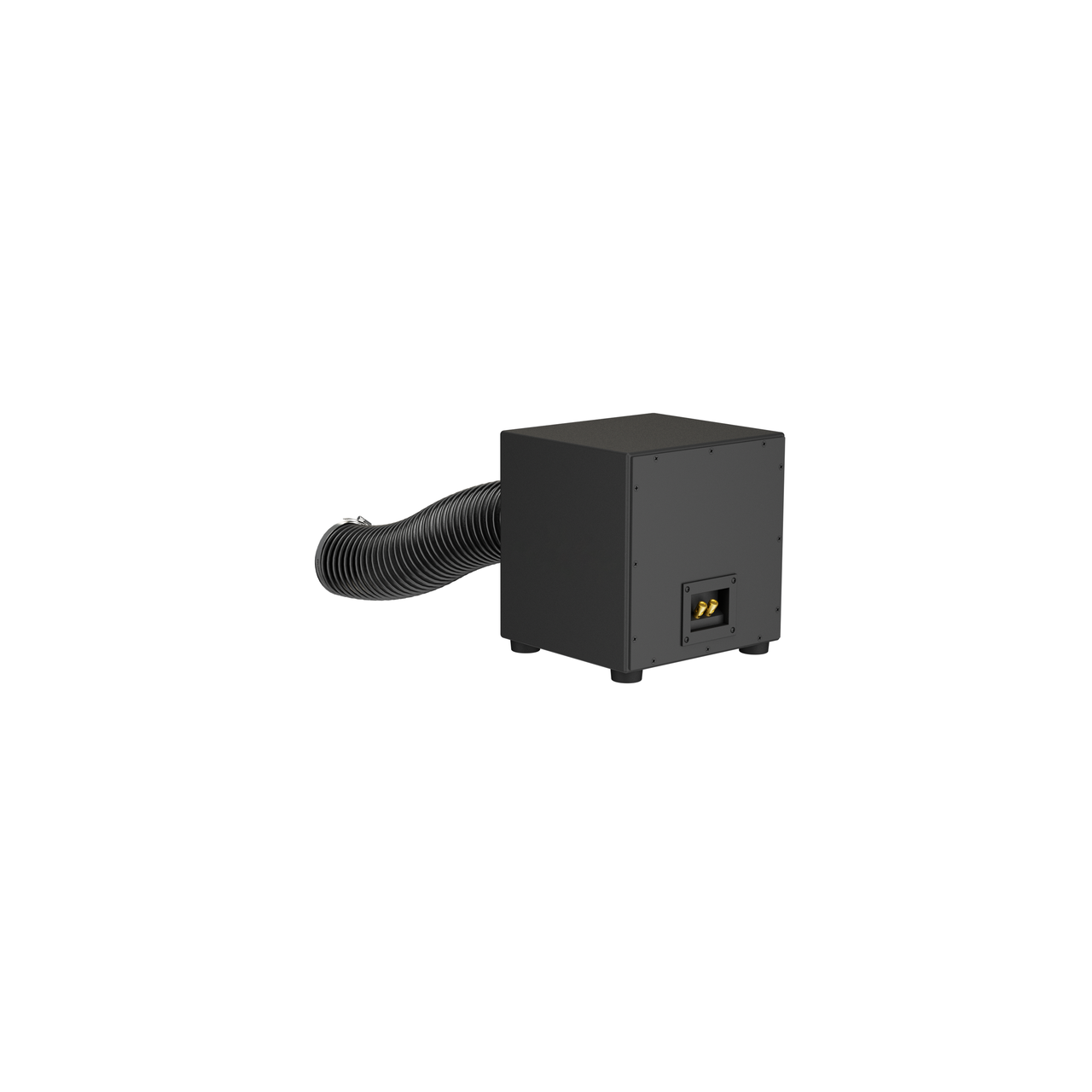

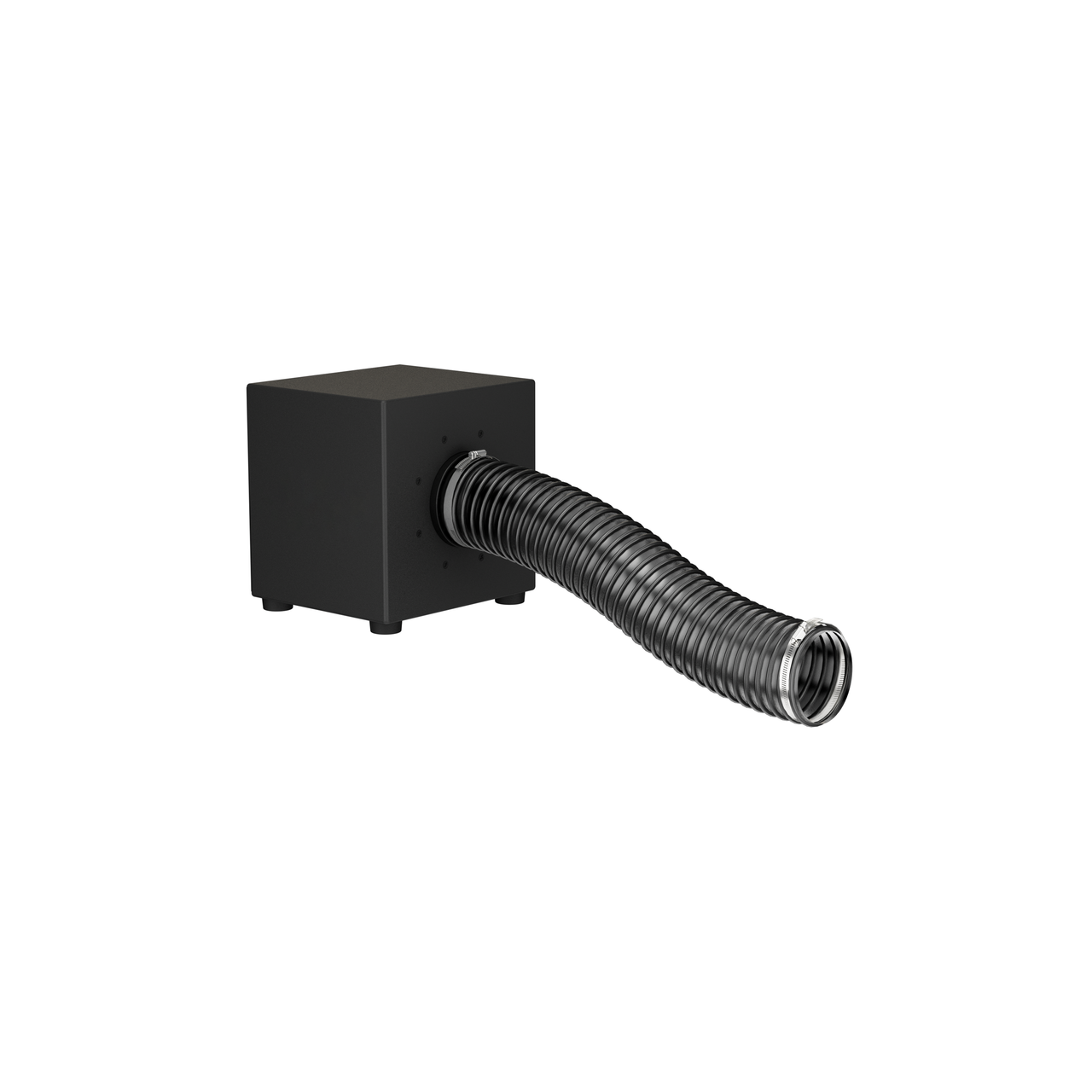

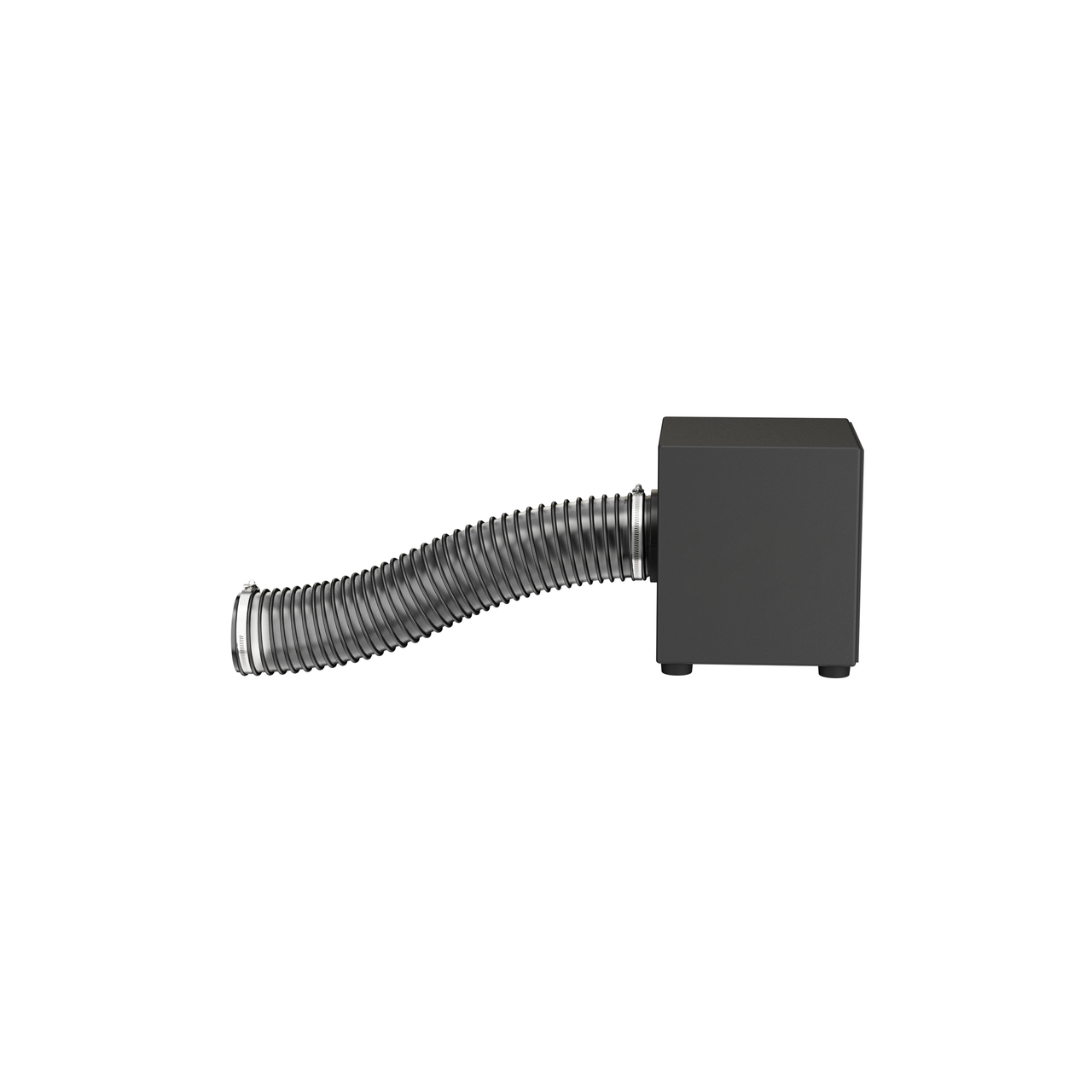

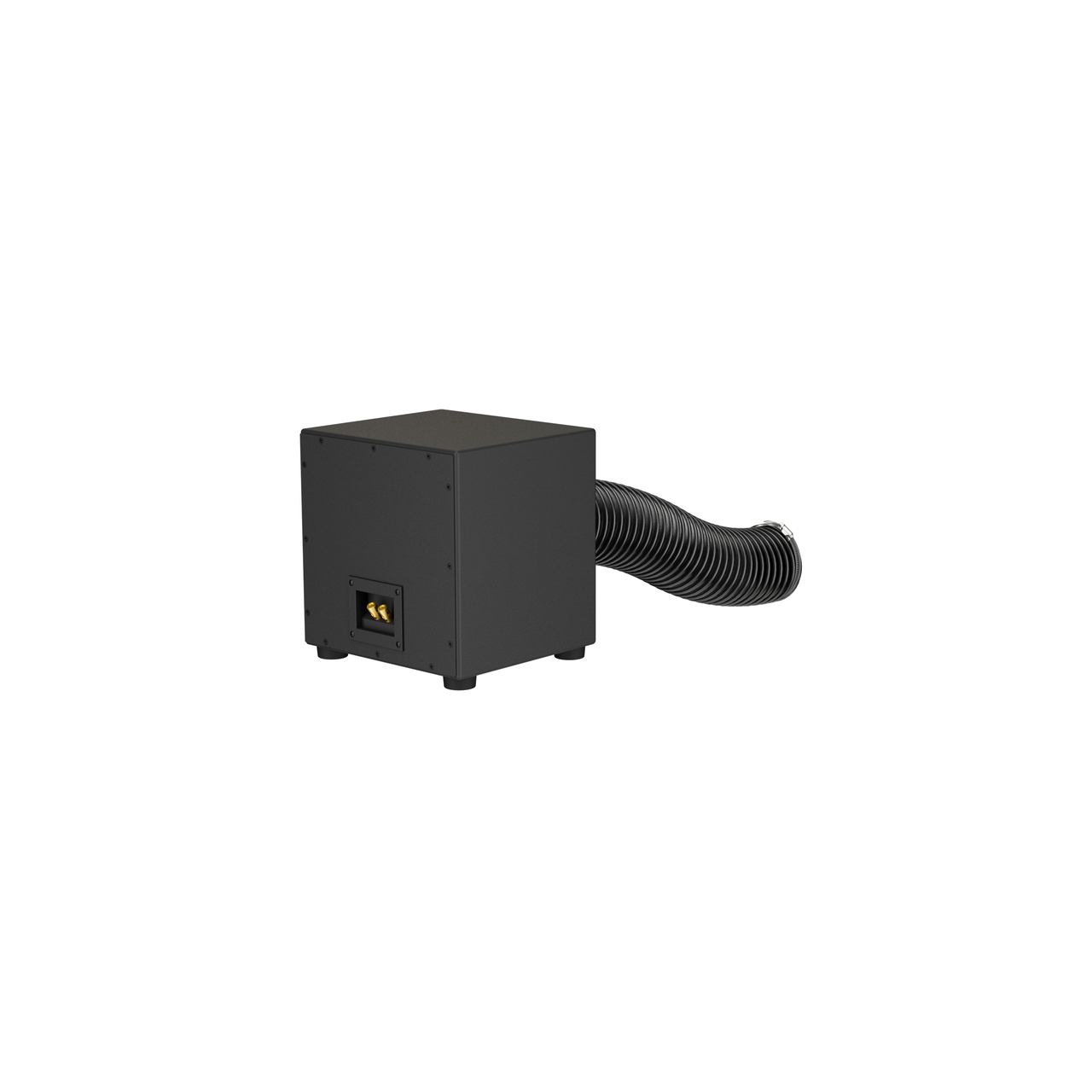

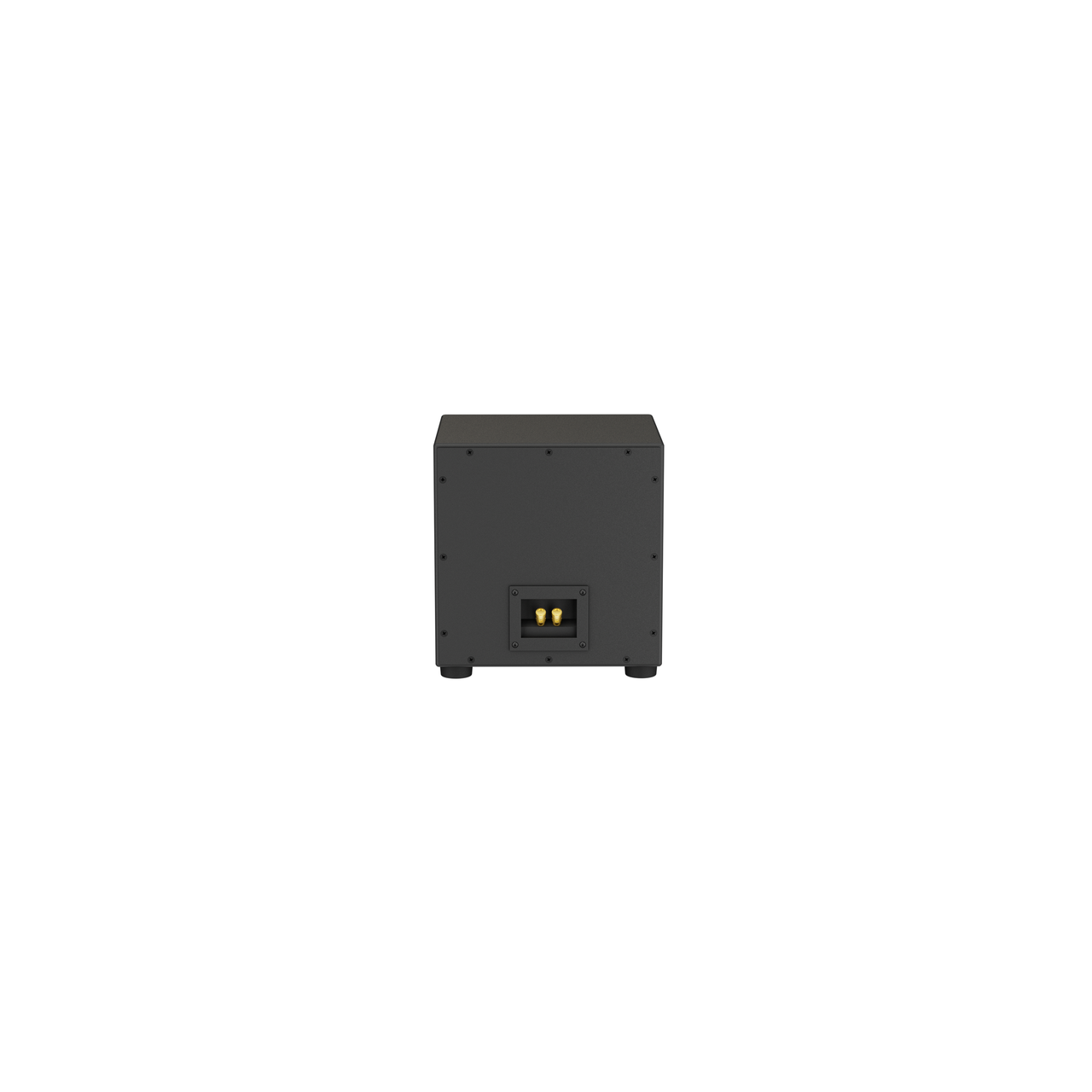

The PPX8-M delivers powerful hidden bass performance in a compact ported design, extedning to 44Hz. Built with a marine grade aluminum enclosure, it disappears into ceilings, deep wall cavities, or cabinetry indoors or at sea. Porting clean, musical low frequiencies into the listening area while preserving complete architectural integrity.

PPX8-M

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Marine Grade Aluminum Enclosure — Built for demanding indoor and outdoor marine environments.
8" High-Excursion Woofer — Precise, musical bass for smaller architectural and marine spaces.
Screw-less Magnetic Toekick Wall Installation — Low-profile finish ideal for tight, compact installations.

Specifications

SKU

PPX8-M (textured black)

Speaker Woofer

8" (205mm) anodized aluminum cone, rubber surround, high excursion

Frequency Response (+/- 3db)

44Hz - 130Hz

Sensitivity

91dB SPL

Recommended Power Range

300 watts

Enclosure

Marine-Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions No Feet (WxHxD)

11.81" x 11.81" x 11.5" (299.97mm x 299.97mm x 292.1mm)

Dimensions with Feet (WxHxD)

11.81" x 12.42" x 11.5" (299.97mm x 315.47mm x 292.1mm)

Tube Diameter

4.02" (102.11mm)

Tube Length

21.65" (549.91mm)

Weight

30.56 lbs. (13.86kg)

Copy All Specs
