R1CAB
R1CAB
Reference Series
The R1CAB Reference LCR Cabinet Speaker provides outstanding surround sound for media rooms and theaters. Engineered with high excursion woofers and 4th generation coaxial drivers, it delivers accurate imaging and clear dialogue. Its integrated enclosure reduces disturbance, allowing for versatile placement and seamless integration.
Key Features
- Designed to bring out the best in television, movies, gaming and concerts
- 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
- Individual crossover networks for accurate, detailed sound
- Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
- Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
- Any Reference model can be mixed and matched to achieve optimal sound in any room layout
- Matches grille aesthetic of Sonance Visual Performance Series
- Pair with Sonance DSP Amplifiers for custom-tuned performance
- Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93348 (Black)
Speaker Tweeter
1" (25mm) ceramic dome, Ferrofluid cooled, acoustic back chamber
Speaker Woofer
5.25" (133mm) Carbon fiber / Rohacell laminated cone, rubber surround
Speaker Mid Range
5.25" (133mm) Carbon fiber / Rohacell laminated cone, rubber surround
Frequency Response (+/- 3db)
70Hz - 30kHz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
90dB (2.83V/1m)
Dimensions (WxHxD)
7.5" x 22.0" x 9.24" (190.5mm x 558.8mm x 234.7mm)
Grille
Black Cloth

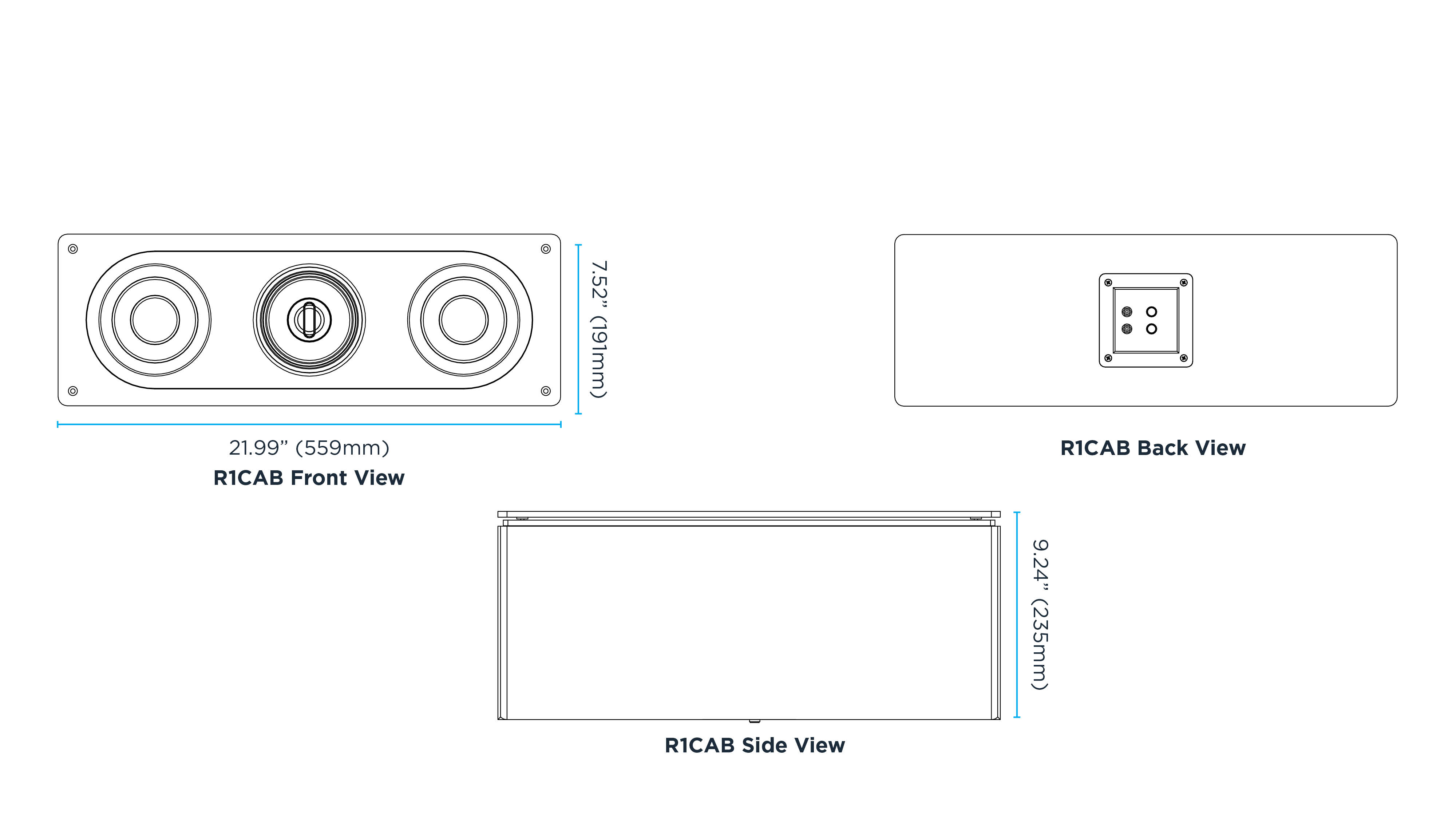

Dimensional Drawings
