Sonance Reference offers a comprehensive range of speakers and subwoofers engineered for exceptional surround sound in media rooms and theaters. Enhanced by Klippel II technology, they ensure precise performance with customizable design options.

key features:

Coaxial Driver Technology: 4th generation drivers provide accurate imaging and clear dialog.
Individual crossover networks for accurate, detailed sound
Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms.
Optimized for television, movies, gaming, and concerts.
Designed to fit standard wall or ceiling.
Mix and Match: Compatible models allow for optimal sound configurations.

VENUE CONTROL APP

Control your PowerZone Connect amplifier from a single iPad. Staff manage volume, sources, and presets. Installers configure zones, presets, and access levels once.

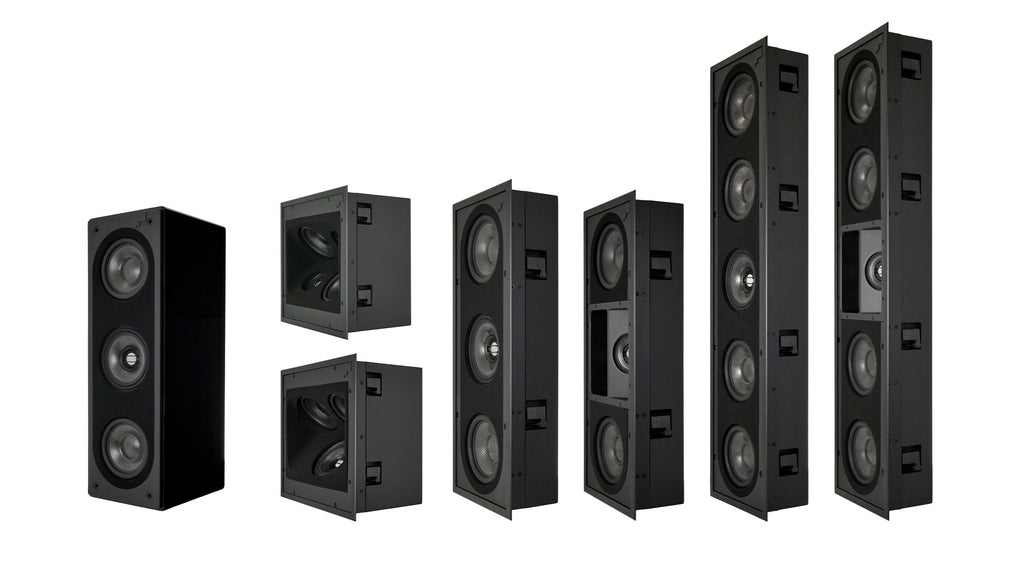

Reference Series

Models

Compare Models

SKU

Speaker Tweeter

Speaker Woofer

Frequency Response
(+/- 3db)

Sensitivity

Dimensions (WxHxD)

93348_product_Image_R1CAB_45_front_GrilleOn.tiff

93348_product_Image_R1CAB_45_front_GrilleOff.psd

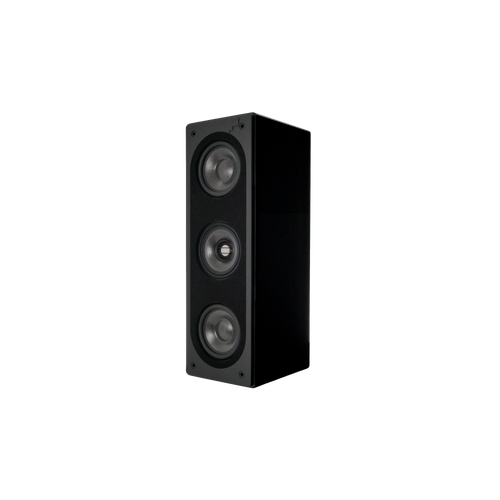

Reference Series LCR gloss black cabinet speaker

93348 (Black)

1" (25mm) ceramic dome, Ferrofluid cooled, acoustic back chamber

5.25" (133mm) Carbon fiber / Rohacell laminated cone, rubber surround

70Hz - 30kHz

90dB (2.83V/1m)

7.5" x 22.0" x 9.24" (190.5mm x 558.8mm x 234.7mm)

Compare

93351_product_Image_R1C_45_front_GrilleOn.tiff

93351_product_Image_R1C_front_GrilleOff.tiff

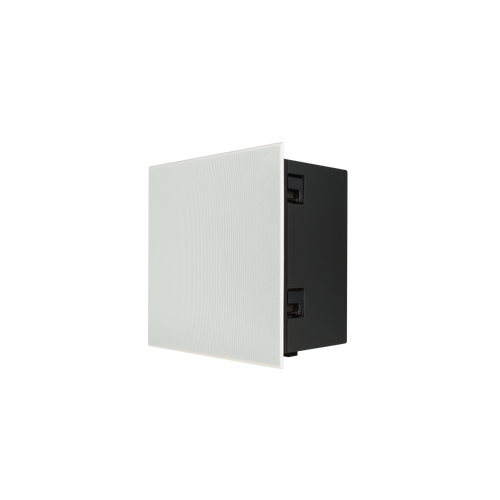

Reference Series small in-ceiling speaker

93351 (White)

1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones, rubber surrounds

70Hz - 30kHz

90dB (2.83V/1m)

13.78" x 13.78" x 7.56" (350.01mm x 350.01mm x 192.09mm)

Compare

93352_product_Image_R1CSUR_45_front_GrilleOn.tiff

93352_product_Image_R1CSUR_45_front_GrilleOff.tiff

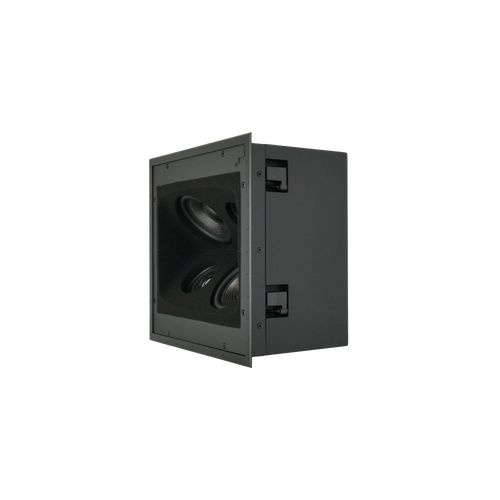

Reference Series small in-ceiling surround channel speaker

93352 (White)

Two 1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones with rubber surrounds

70Hz - 30kHz

90dB (2.83V/1m)

13.78" x 13.78" x 7.56" (350.01mm x 350.01mm x 192.09mm)

Compare

93344_product_Image_R1_45_front_GrilleOn.tiff

93344_product_Image_R1_45_front_GrilleOff.tiff

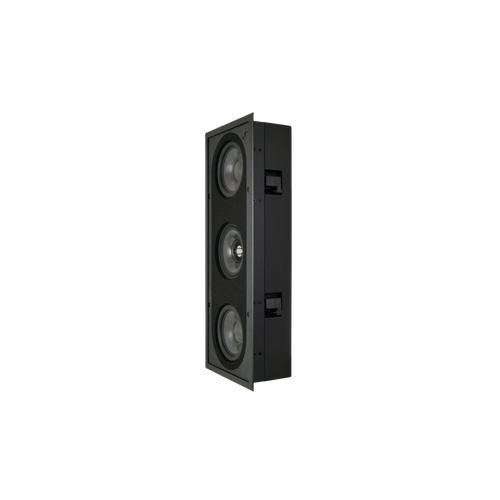

Reference Series small in-wall LCR speaker

93344 (White)

1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones, rubber surrounds

70Hz - 30kHz

90dB (2.83V/1m)

8.88" x 21.75" x 3.88" (225.43mm x 552.45mm x 98.43mm)

Compare

93345_product_Image_R1SUR_45_front_GrilleOn.tiff

93345_product_Image_R1SUR_45_front_GrilleOff.tiff

Reference Series small in-wall surround channel speaker

93345 (White)

Two 1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones, rubber surrounds

70Hz - 30kHz

90dB (2.83V/1m)

8.88" x 21.75" x 3.88" (225.43mm x 552.45mm x 98.43mm)

Compare

93346_product_Image_R2_45_front_GrilleOn.tiff

93346_product_Image_R2_45_front_GrilleOff.tiff

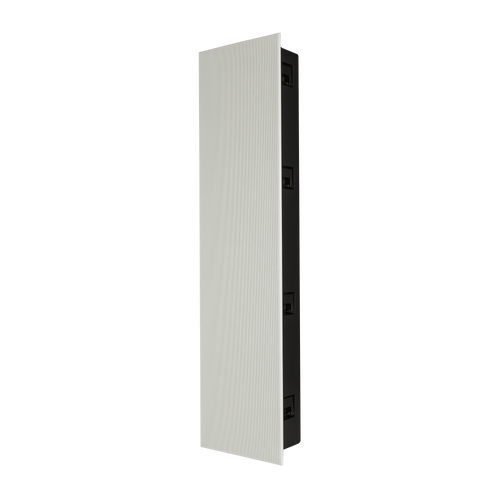

Reference Series large in-wall LCR speaker

93346 (White)

1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Four 5.25" (133mm) Carbon fiber / Rohacell laminated cones with rubber surrounds

70Hz - 30kHz

92dB (2.83V/1m)

8.88" x 34.88" x 3.88" (225.43mm x 885.83mm x 98.43mm)

Compare

93347_product_Image_R2SUR_45_front_GrilleOn.tiff

93347_product_Image_R2SUR_45_front_GrilleOff.tiff

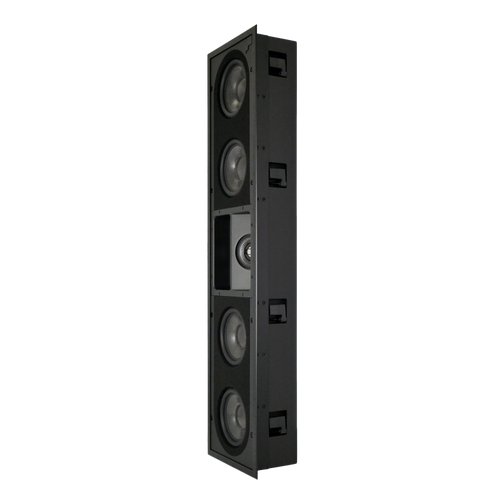

Reference Series large in-wall surround channel speaker

93347 (White)

Two 1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber

Four 5.25" (133mm) Carbon fiber / Rohacell laminated cones with rubber surrounds

70Hz - 30kHz

92dB (2.83V/1m)

8.88" x 34.88" x 3.88" (225.43mm x 885.83mm x 98.43mm)

Compare

93354_product_Image_R10SUB_45_front_GrilleOn.tiff

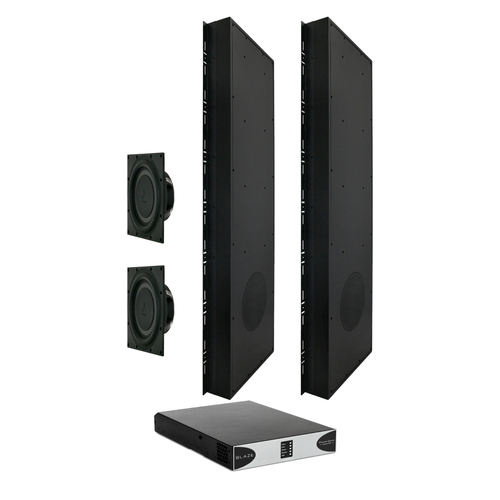

R10 SUB System w/ PZC

R10 10" Reference Series in-wall subwoofer system with PowerZone Connect 504

93376 (White)

10

30Hz - 250Hz

88dB (2.83V/1m)

Compare

93354_product_Image_R10SUB_45_front_GrilleOn.tiff

93354_product_Image_R10SUB_45_front_GrilleOff.tiff

Reference Series 10" in-wall subwoofer driver, requires R10SUB-ENC subwoofer enclosure

93354 (White)

10" (254mm) laminated carbon fiber cone with a rubber surround

30Hz - 250Hz

88dB (2.83V/1m)

10.44" x 10.44" x 3.16" (265.11mm x 265.11mm x 80.26mm)

Compare

92874_hero_product_image_R10SUB_ENCLOSURE.tiff

R10SUB Enclosure

Reference Series 10" in-wall subwoofer enclosure, requires R10SUB subwoofer driver

92874 (Black)

14.25" x 47.25" x 3.44" (361.95mm x 1200.15mm x 87.31mm)

Compare

93377_hero_product_image_SONANCE_Reference_R12SUB KIT_DSP 2-750 MKIII_PowerCord.tiff

93355_product_Image_R12SUB_45_front_GrilleOff.tiff

R12 SUB System w/ PZC

R12 12" Reference Series in-wall subwoofer system with PowerZone Connect amplification

93377 (White)

12

25Hz - 250Hz

90dB (2.83V/1m)

Compare

93355_product_Image_R12SUB_45_front_GrilleOn.tiff

93355_product_Image_R12SUB_45_front_GrilleOff.tiff

Reference Series 12" in-wall subwoofer driver, requires R12SUB-ENC subwoofer enclosure

93355 (White)

12" (305mm) laminated carbon fiber cone with a rubber surround

25Hz - 250Hz

90dB (2.83V/1m)

12.38" x 12.38" x 3.16" (314.33mm x 314.33mm x 80.26mm)

Compare

92875_hero_product_image_R12SUB_ENCLOSURE.tiff

R12SUB Enclosure

Reference Series 12" in-wall subwoofer enclosure, requires R12SUB subwoofer driver

92875 (Black)

14.25" x 70.88" x 3.44" (361.95mm x 1800.23mm x 87.31mm)

Compare

Gallery

More to Explore

Theater Solutions

Reference Series

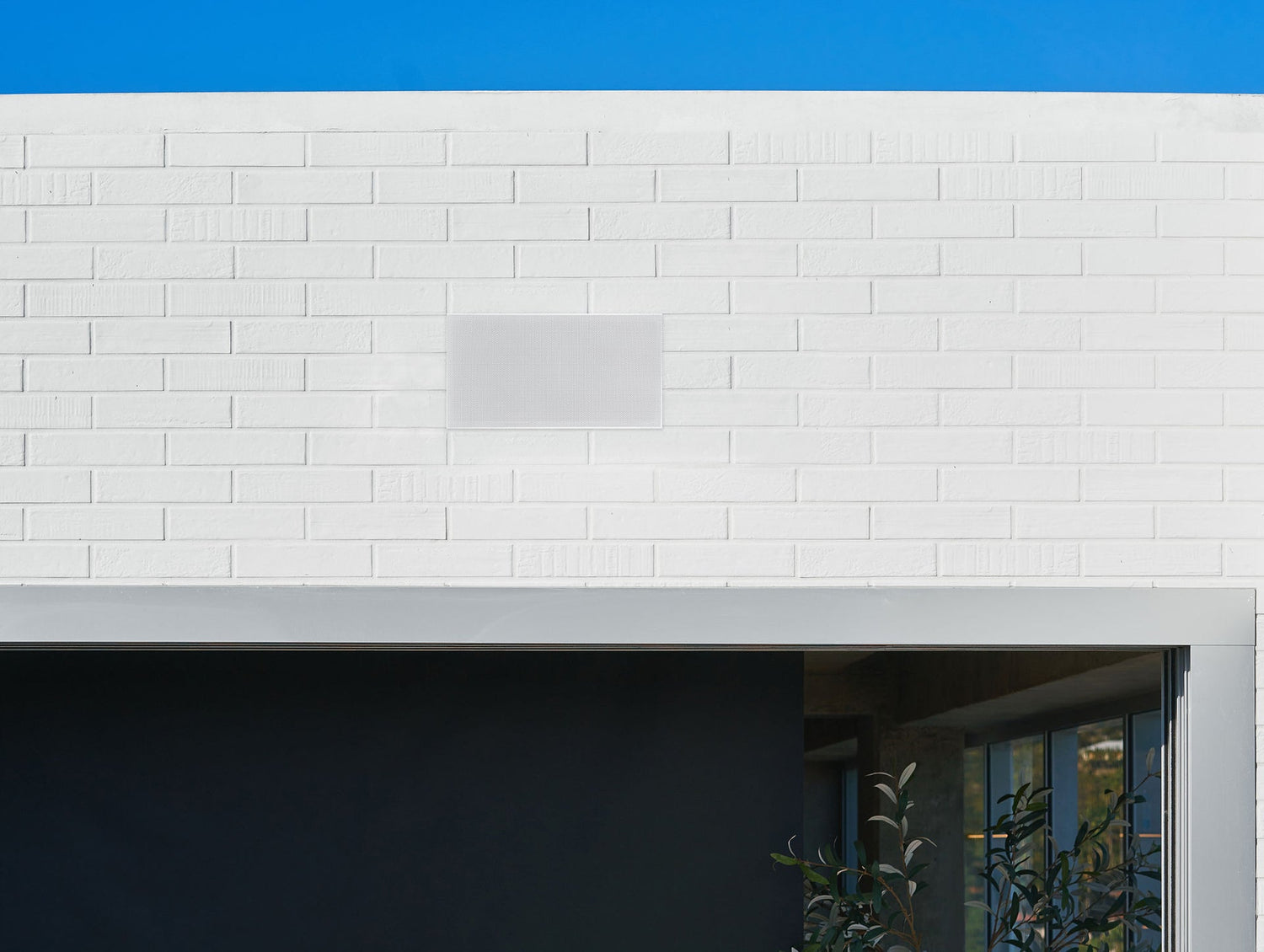

QX | QXC Series

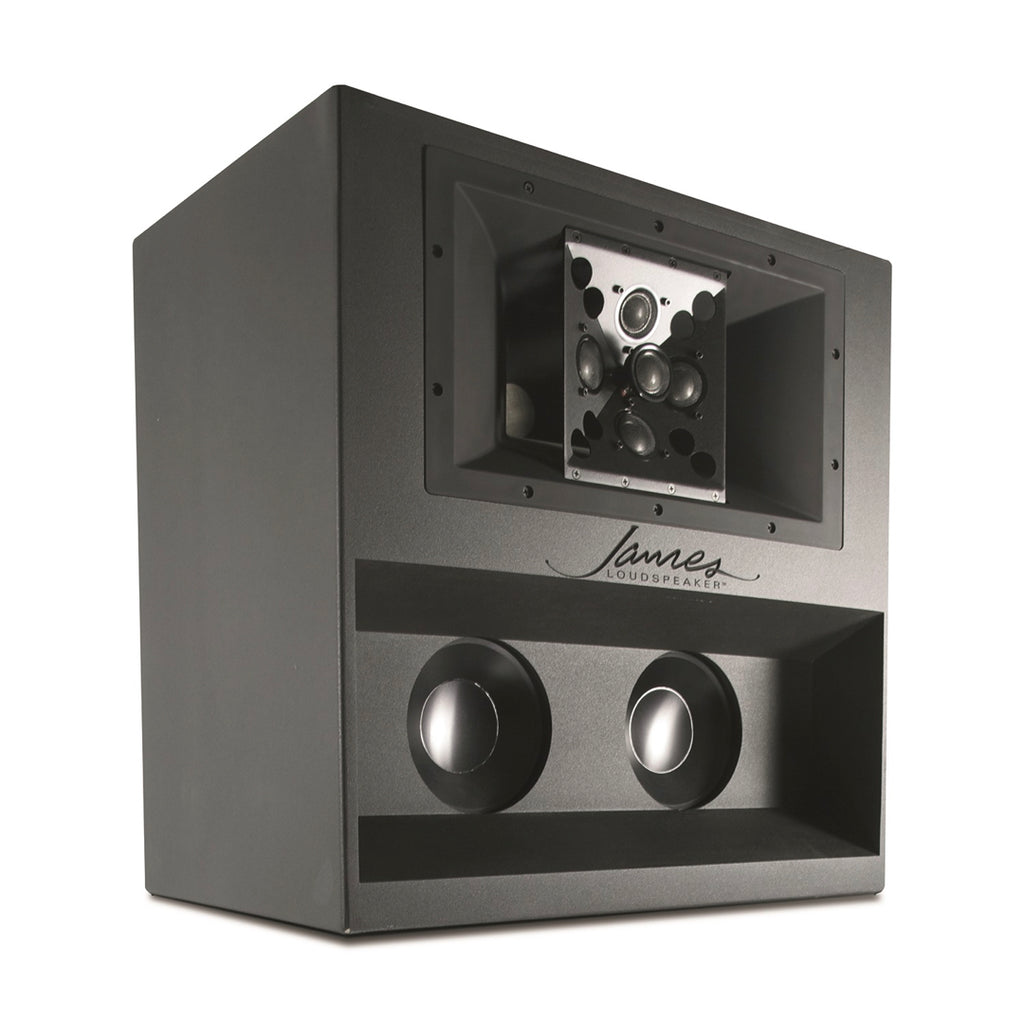

Mavericks Series
