R1
Reference Series

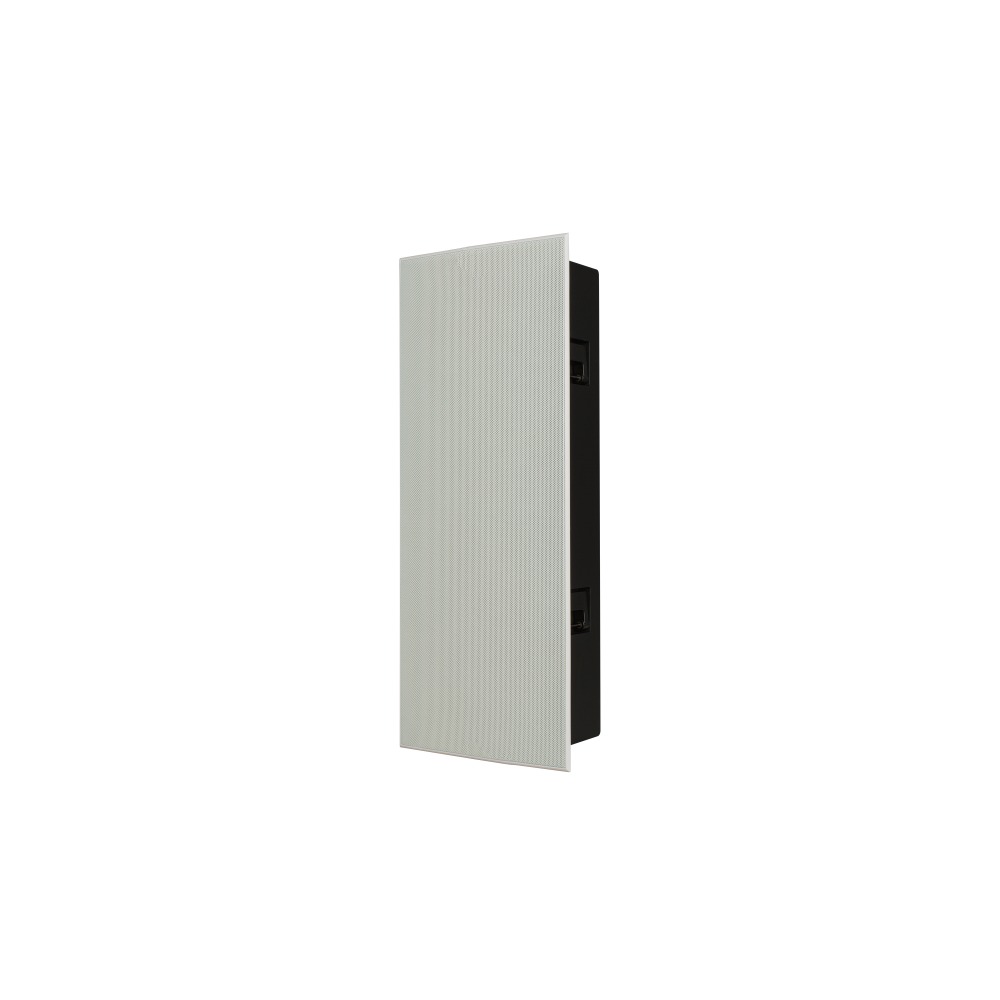

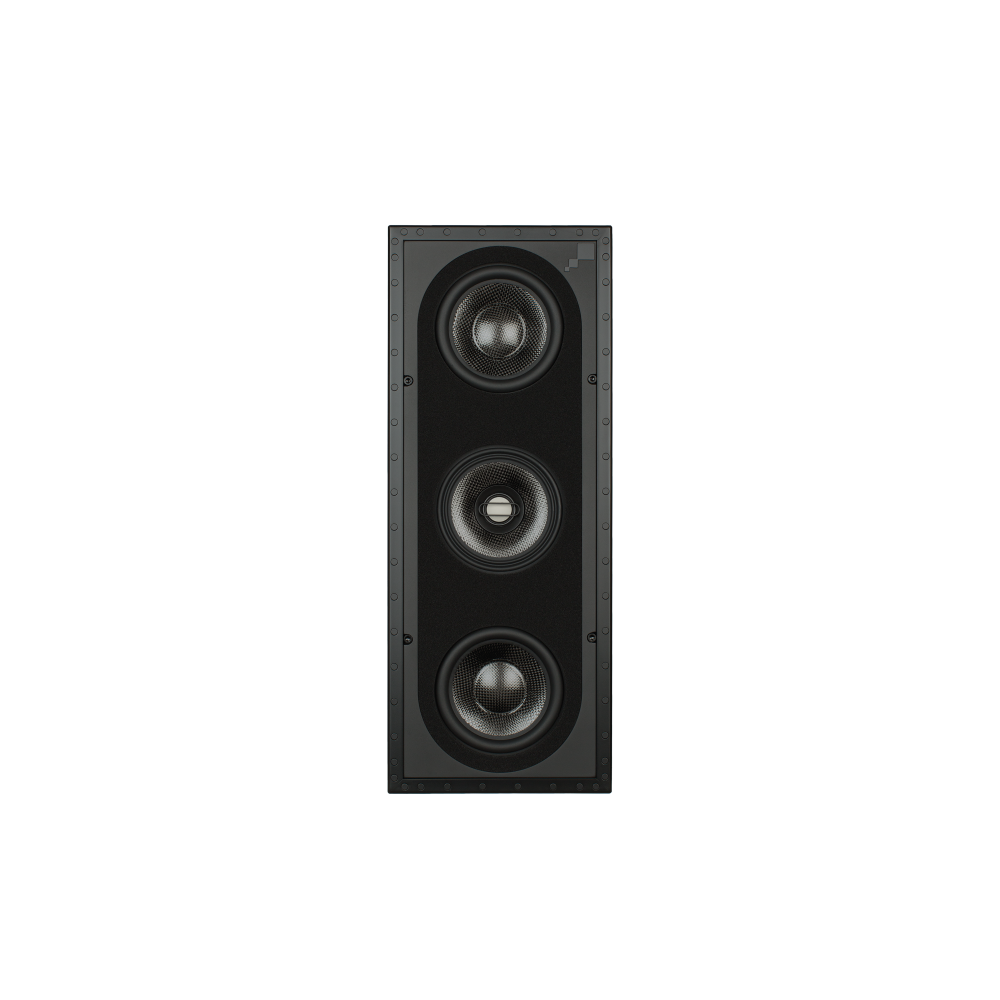

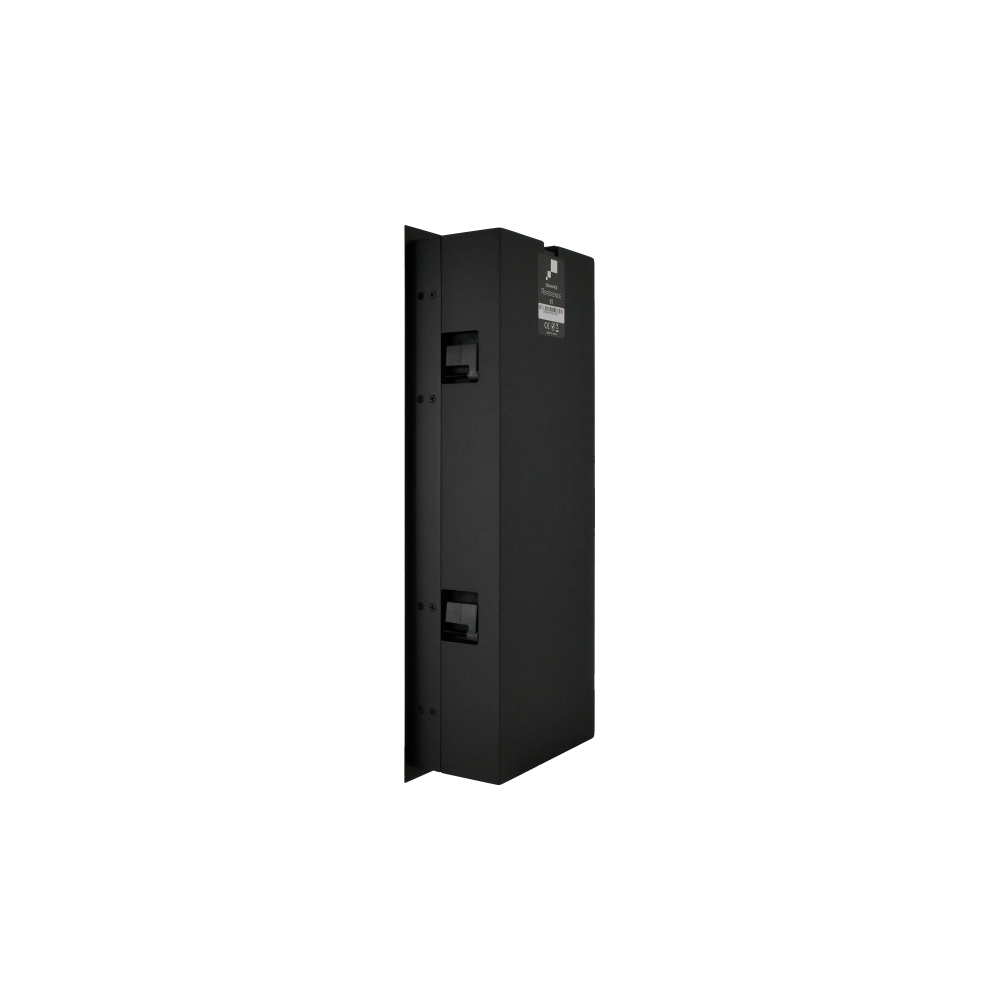

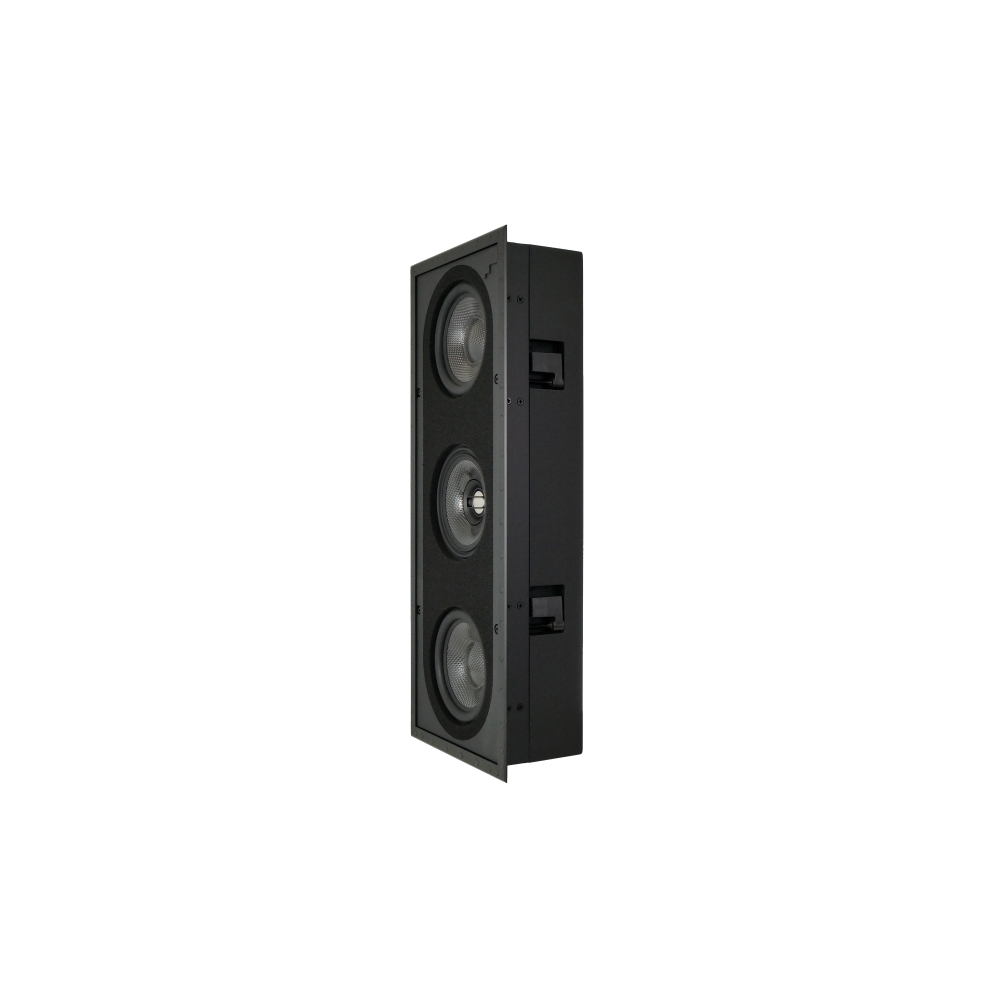

R1 Small Reference In-Wall LCR Speaker delivers exceptional surround sound for media rooms and theaters. Featuring a 4th generation coaxial driver and high excursion woofers, it ensures clear dialogue and detailed audio. Its low-profile grille provides a seamless aesthetic, perfect for any installation.
Key Features
- Designed to bring out the best in television, movies, gaming and concerts
- 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
- Individual crossover networks for accurate, detailed sound
- Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
- Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
- Any Reference model can be mixed and matched to achieve optimal sound in any room layout
- Matches grille aesthetic of Sonance Visual Performance Series
- Pair with Sonance DSP Amplifiers for custom-tuned performance
- Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU
93344 (White)
Speaker Tweeter
1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Speaker Woofer
Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones, rubber surrounds
Speaker Mid Range
5.25" (133mm) Carbon fiber / Rohacell laminated cone with a rubber surround
Frequency Response (+/- 3db)
70Hz - 30kHz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
90dB (2.83V/1m)
Dimensions (WxHxD)
8.88" x 21.75" x 3.88" (225.43mm x 552.45mm x 98.43mm)
Cut-Out Dimensions (WxH)
7.5" x 20.5" (190.5mm x 520.7mm)

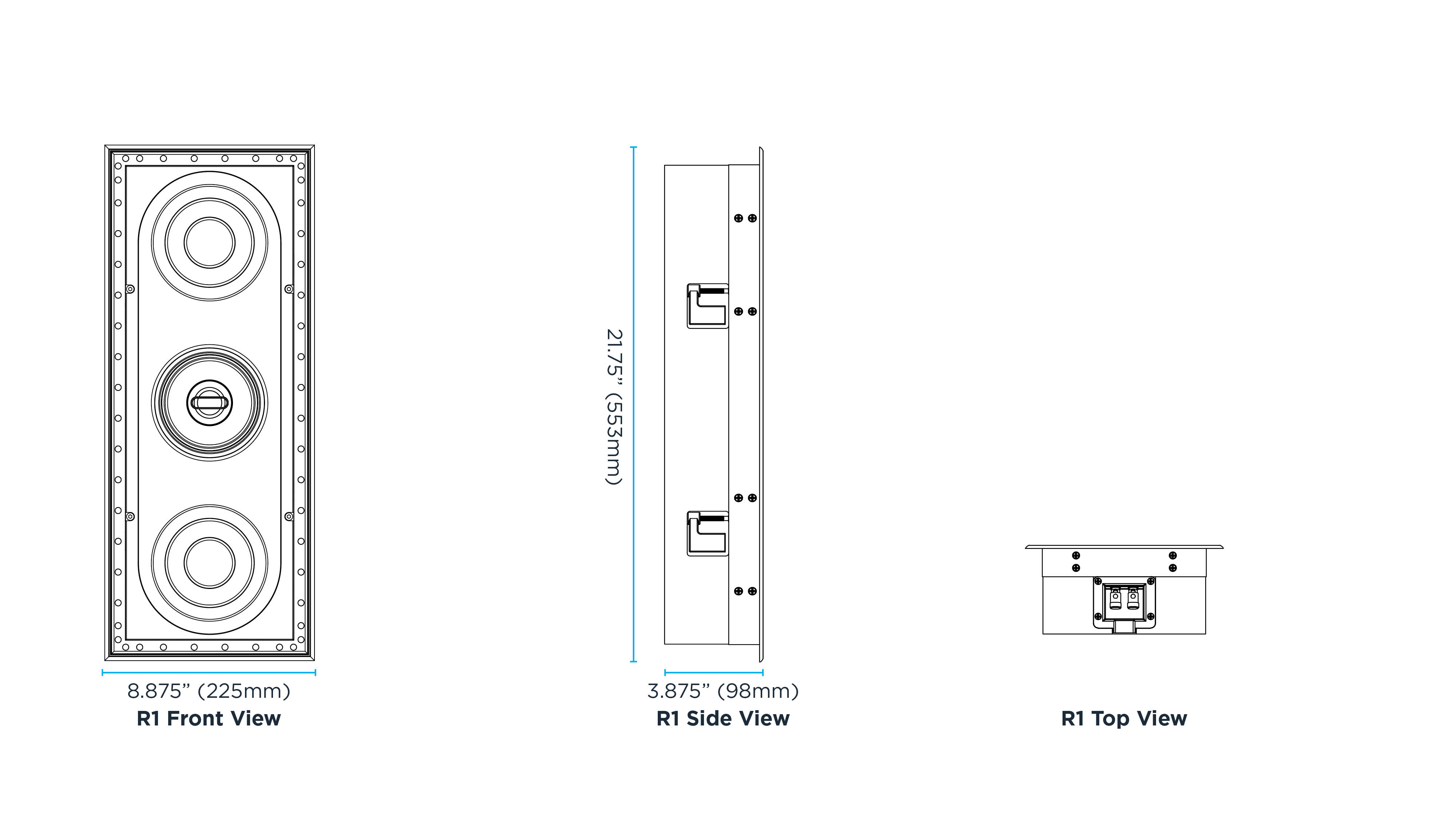

Dimensional Drawings
