R1CSUR
R1CSUR
Reference Series
Reference Series in-ceiling surround speaker.
Key Features
- Designed to bring out the best in television, movies, gaming and concerts
- 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
- Individual crossover networks for accurate, detailed sound
- Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
- Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
- Any Reference model can be mixed and matched to achieve optimal sound in any room layout
- Matches grille aesthetic of Sonance Visual Performance Series
- Pair with Sonance DSP Amplifiers for custom-tuned performance
- Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93352 (White)
Speaker Tweeter
Two 1" (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
Speaker Woofer
Two 5.25" (133mm) Carbon fiber / Rohacell laminated cones with rubber surrounds
Speaker Mid Range
Two 5.25" (133mm) Carbon fiber/ Rohacell laminated cone with a rubber surround
Frequency Response (+/- 3db)
70Hz - 30Hz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
90dB (2.83V/1m)
Dimensions (WxHxD)
13.78" x 13.78" x 7.56" (350.01mm x 350.01mm x 192.09mm)
Cut-Out Dimensions (WxH)
12.38" x 12.38" (314.33mm x 314.33mm)
Cut-Out Dimensions (Diameter)
12.375" (314.33mm)
Grille
Perforated Steel

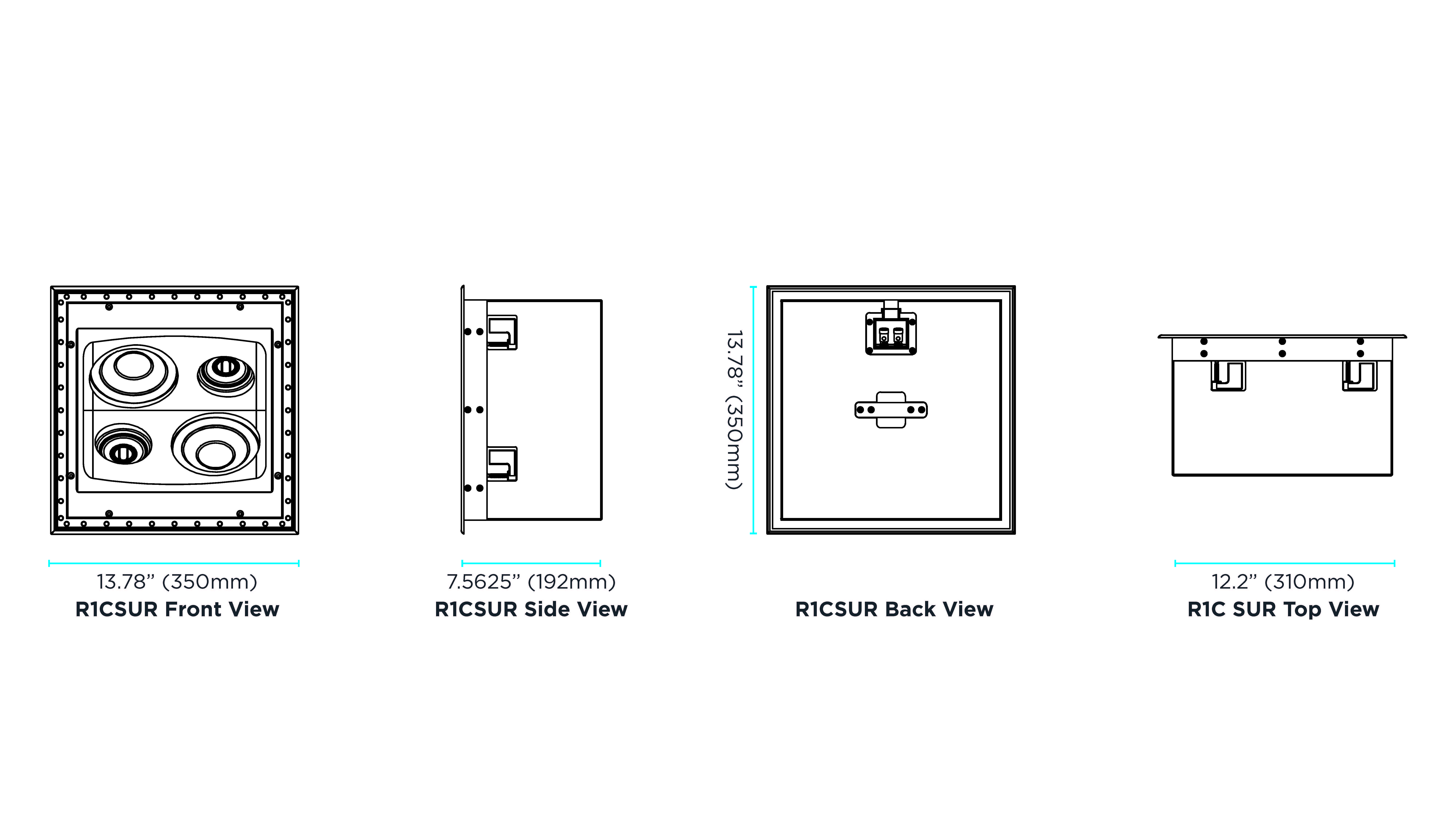

Dimensional Drawings
