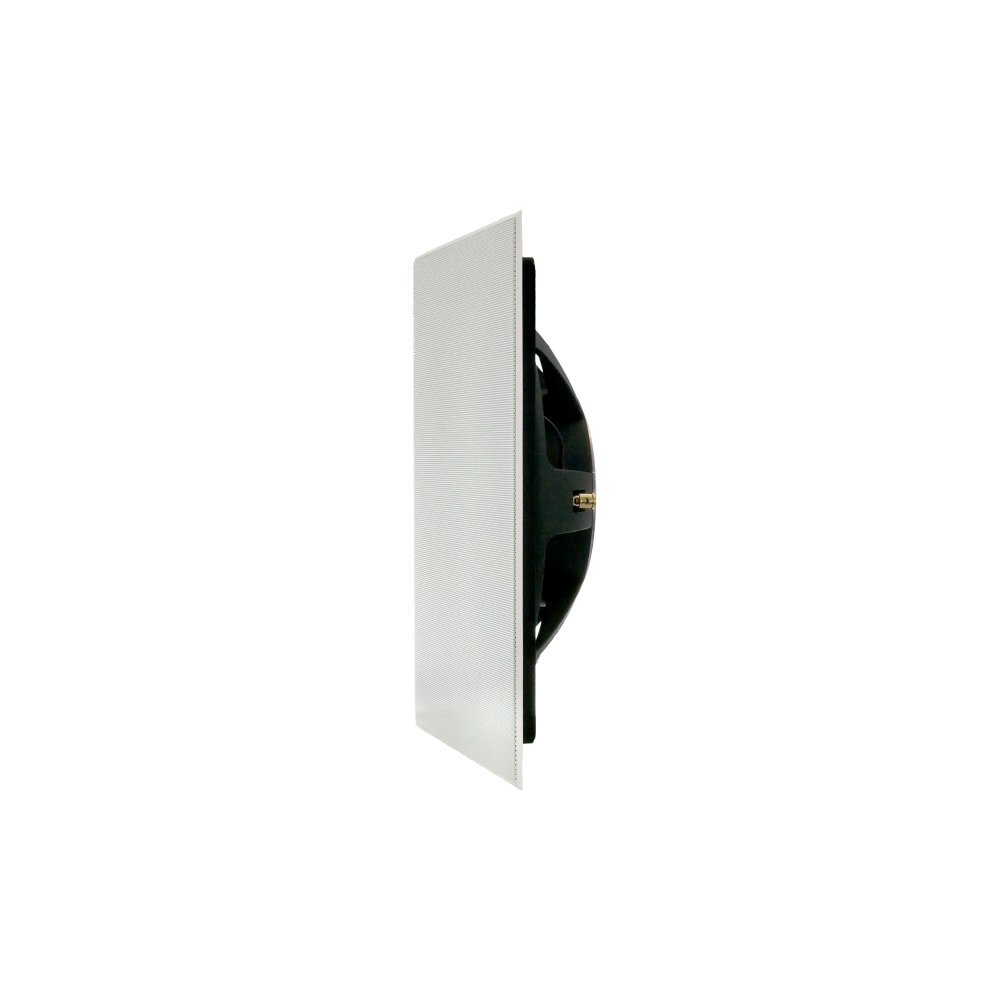

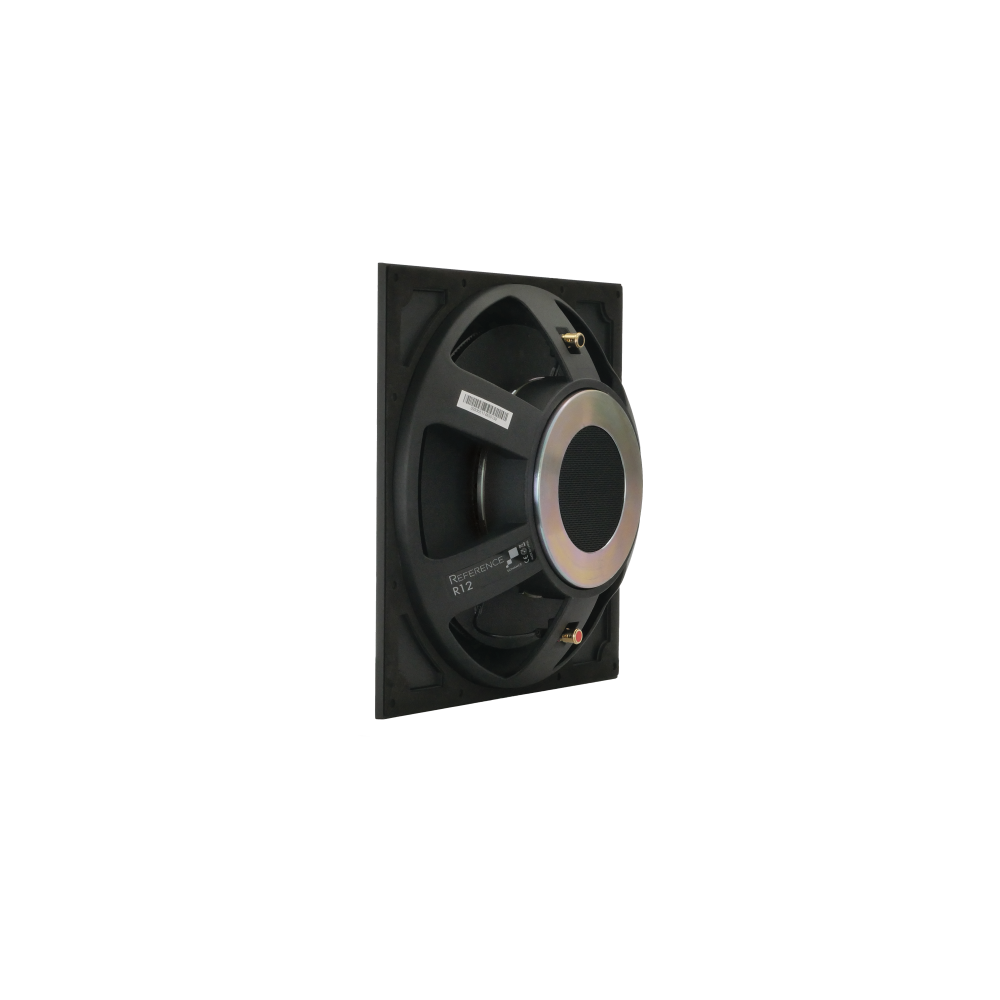

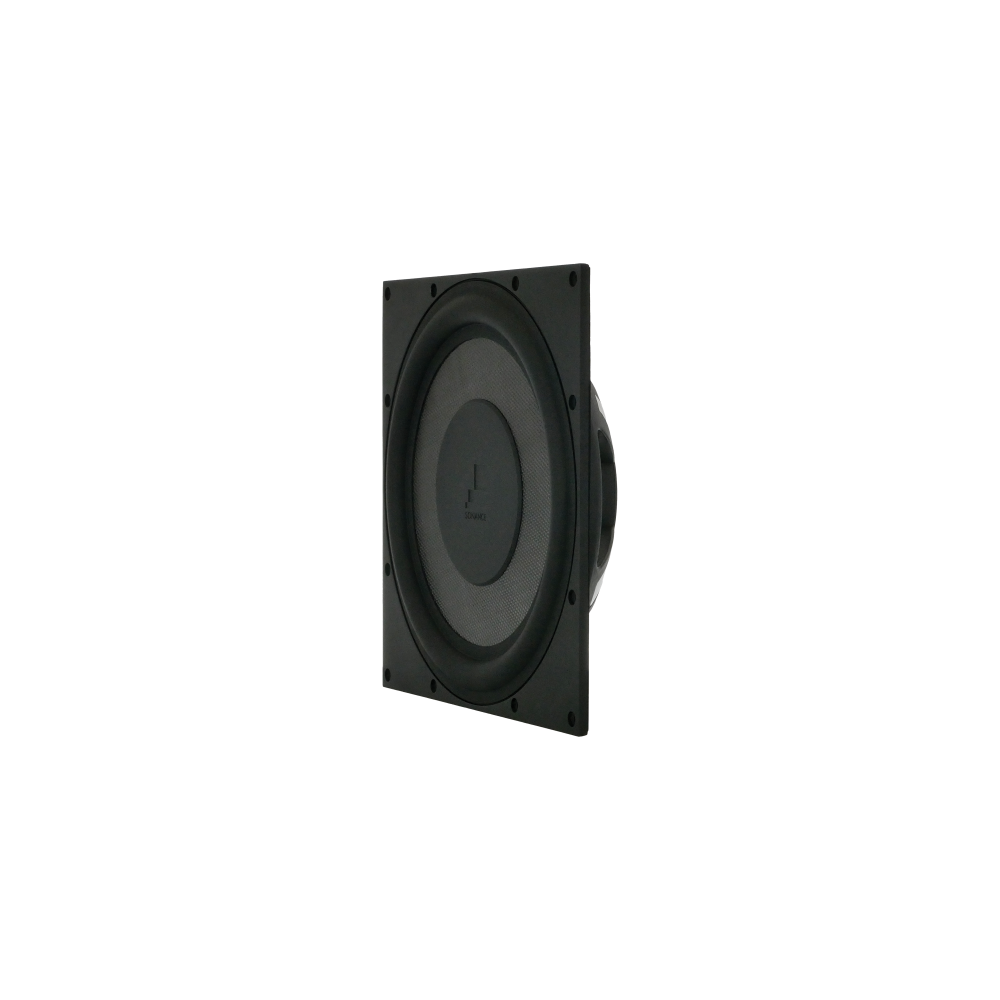

R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)
R12SUB 12" REFERENCE IN-WALL SUBWOOFER DRIVER (1 EACH)

R12SUB

Reference Series

Reference Series 12" in-wall subwoofer, requires R12SUB-ENC subwoofer enclosure.

R12SUB

Key Features

  • Designed to bring out the best in television, movies, gaming and concerts
  • 4th generation coaxial midrange and tweeter for accurate imaging and crystal-clear dialog
  • Individual crossover networks for accurate, detailed sound
  • Integrated enclosure for amazing performance and reduced disturbance into adjoining rooms
  • Designed to fit into a standard wall or ceiling cavity (R1 and R2 fit into standard stud bay when installed vertically)
  • Any Reference model can be mixed and matched to achieve optimal sound in any room layout
  • Matches grille aesthetic of Sonance Visual Performance Series
  • Pair with Sonance DSP Amplifiers for custom-tuned performance
  • Limited Lifetime Warranty (5 years on Reference grilles) valid on Reference Series products purchased from an authorized Sonance dealer or distributor

Specifications

SKU

93355 (White)

Speaker Woofer

12" (305mm) laminated carbon fiber cone with a rubber surround

Frequency Response (+/- 3db)

25Hz - 250Hz

Sensitivity

90dB (2.83V/1m)

Enclosure

R12SUB Enclosure

Dimensions (WxHxD)

12.38" x 12.38" x 3.16" (314.33mm x 314.33mm x 80.26mm)

Grille

Perforated Steel

Copy All Specs

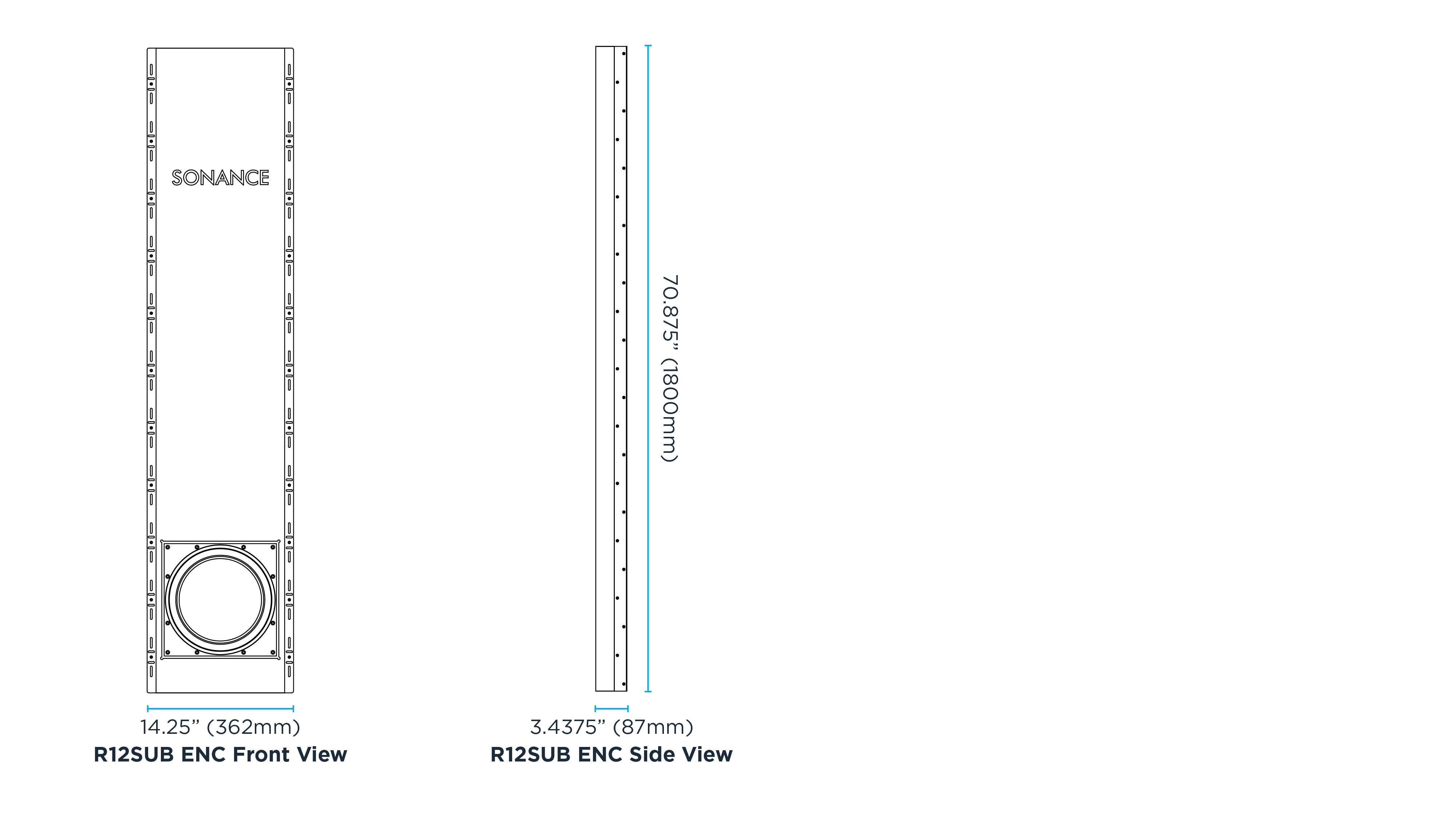

Dimensional Drawings

R12SUB Dimensional Drawings
