Mariner MX86
Mariner MX86
Mariner

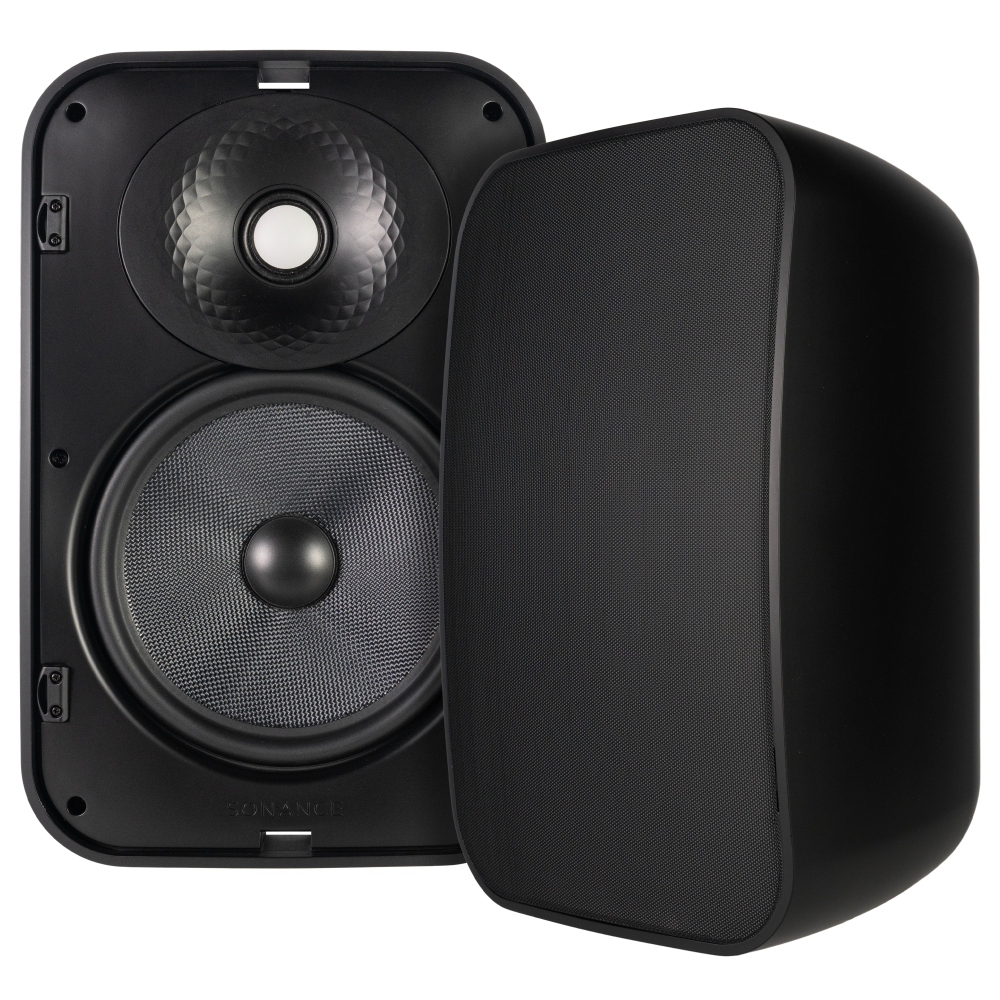

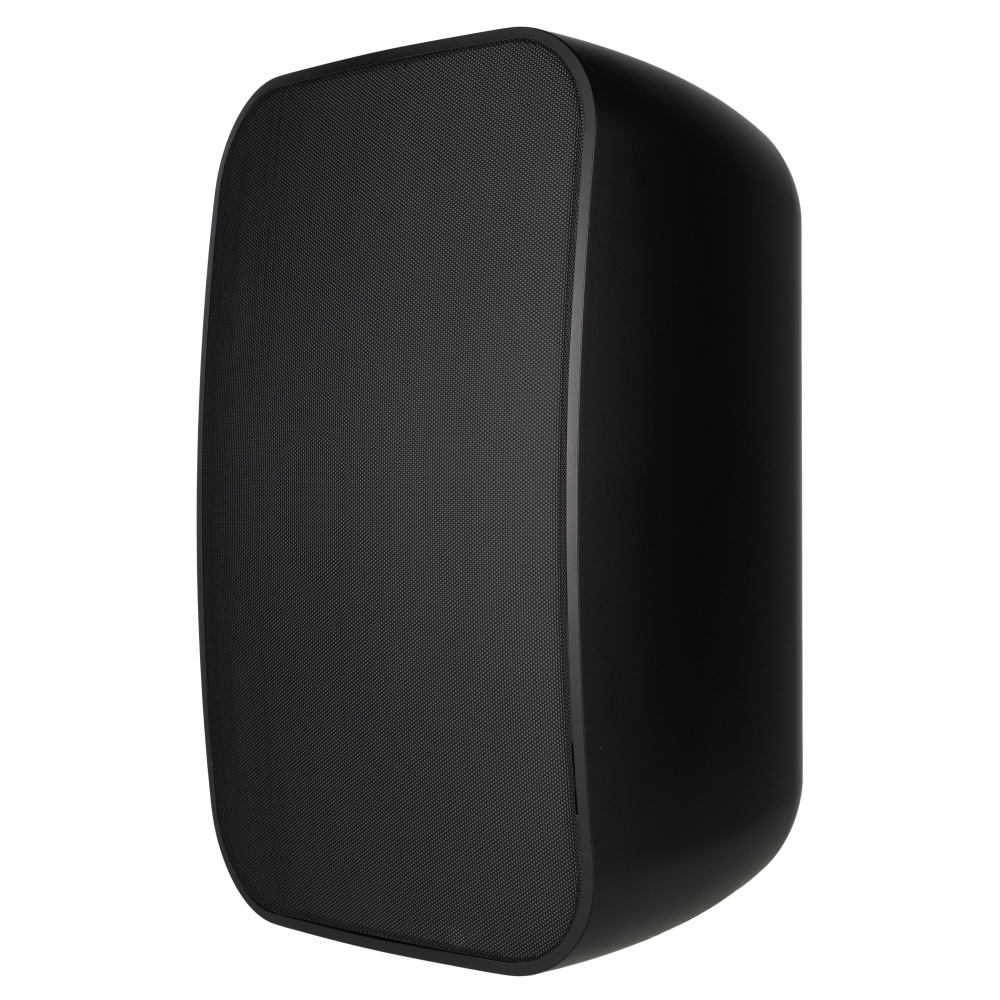

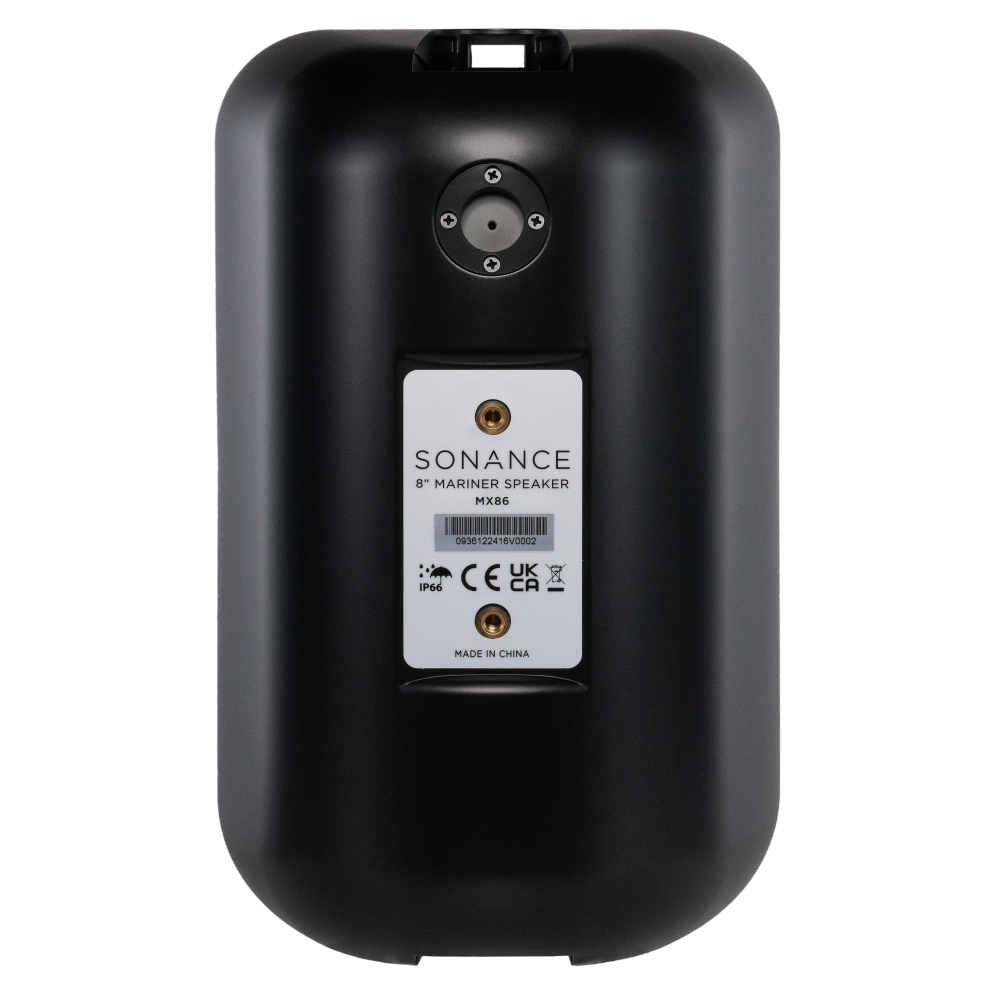

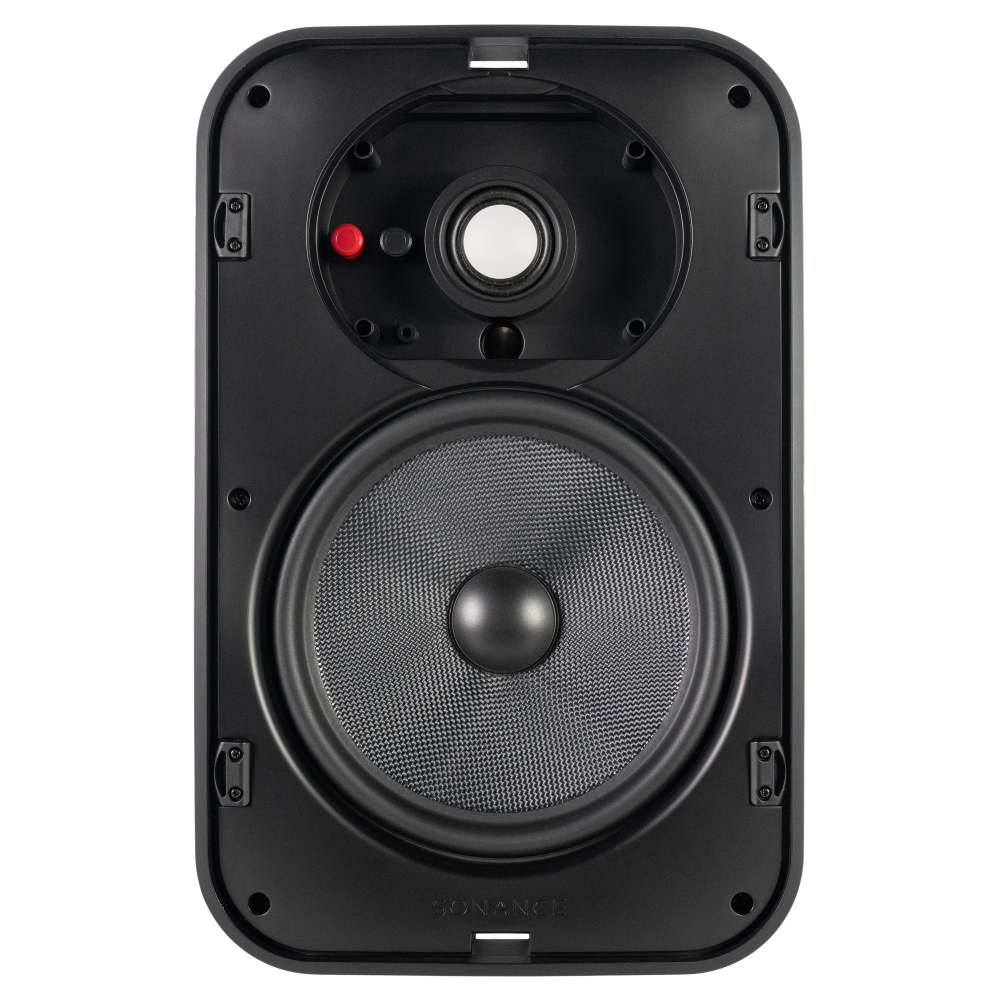

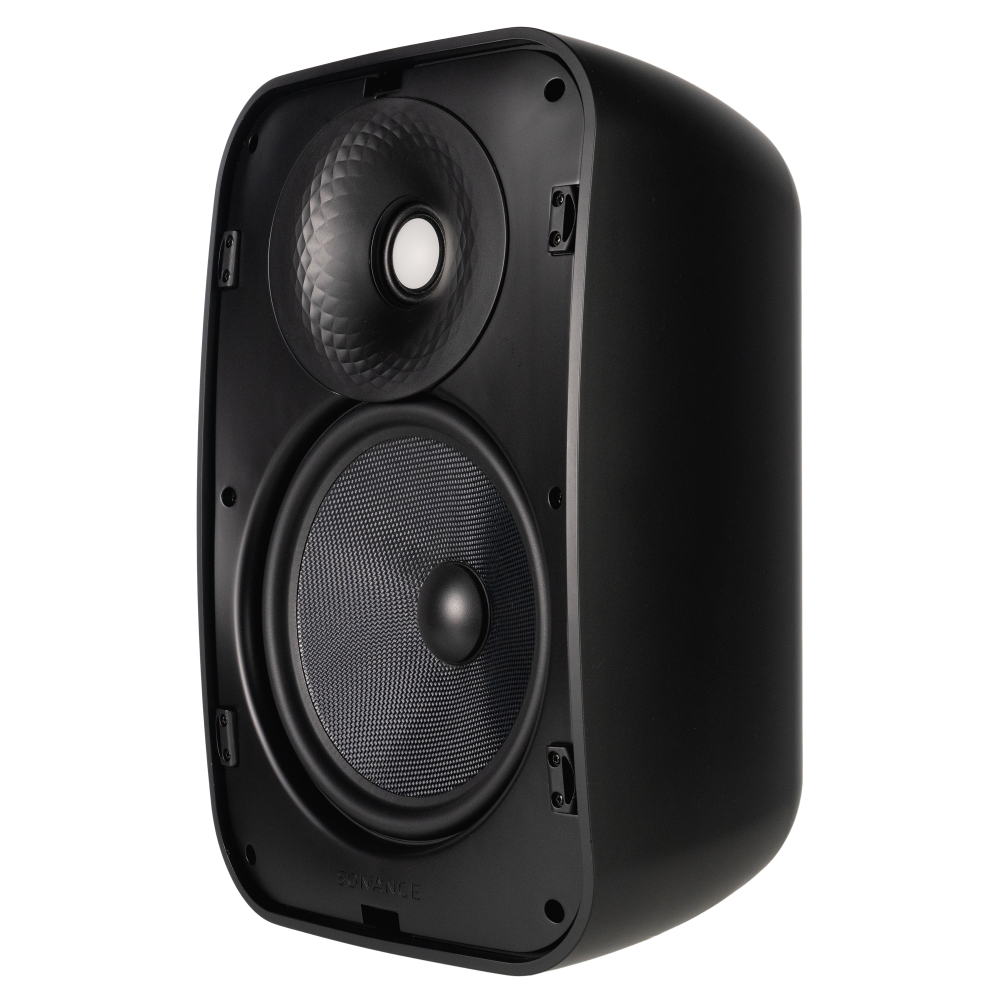

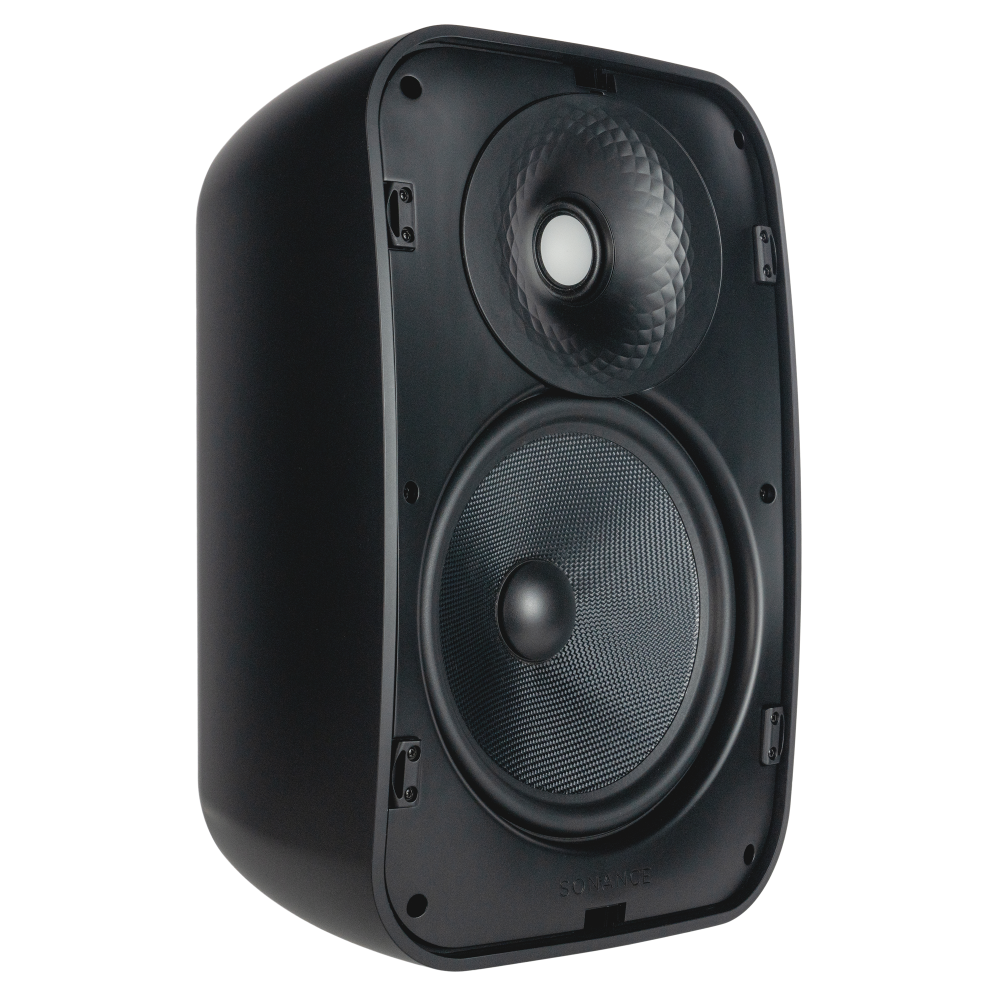

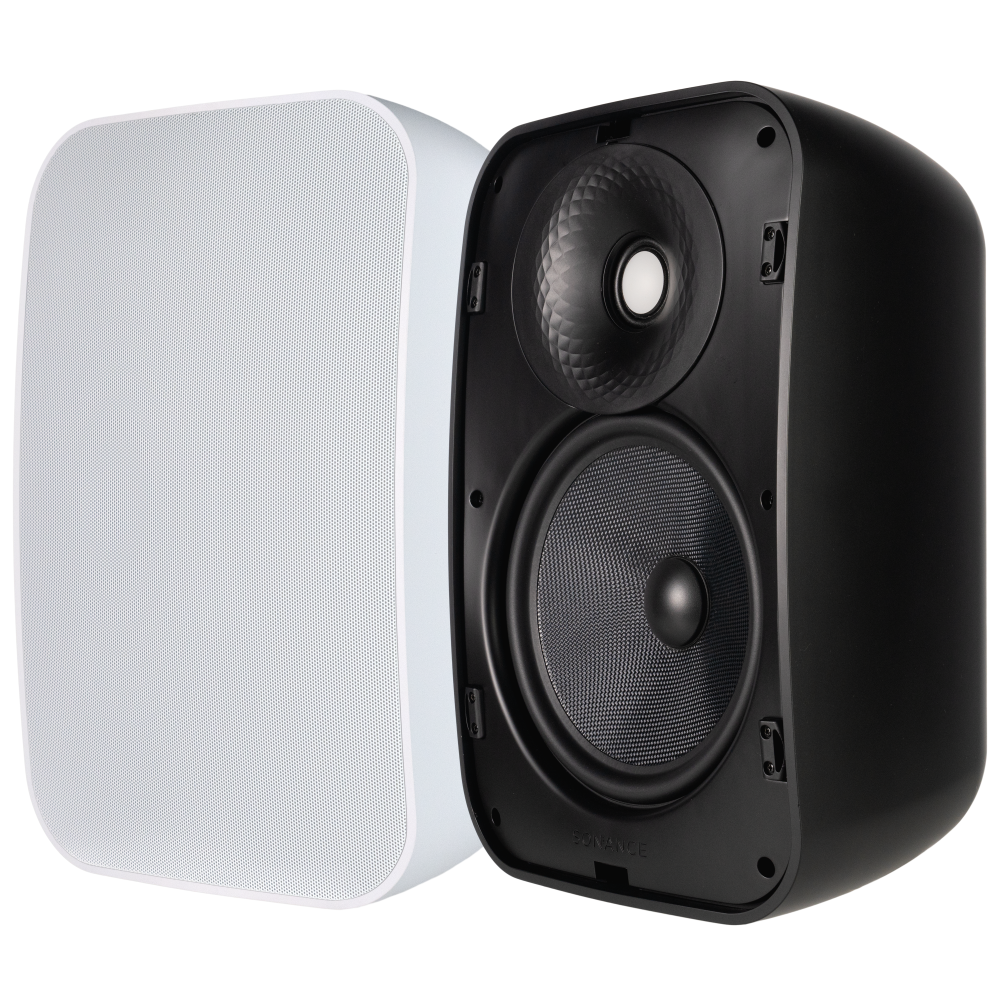

Mariner MX86 8" surface mounted outdoor speaker. Available in black or white.
Key Features

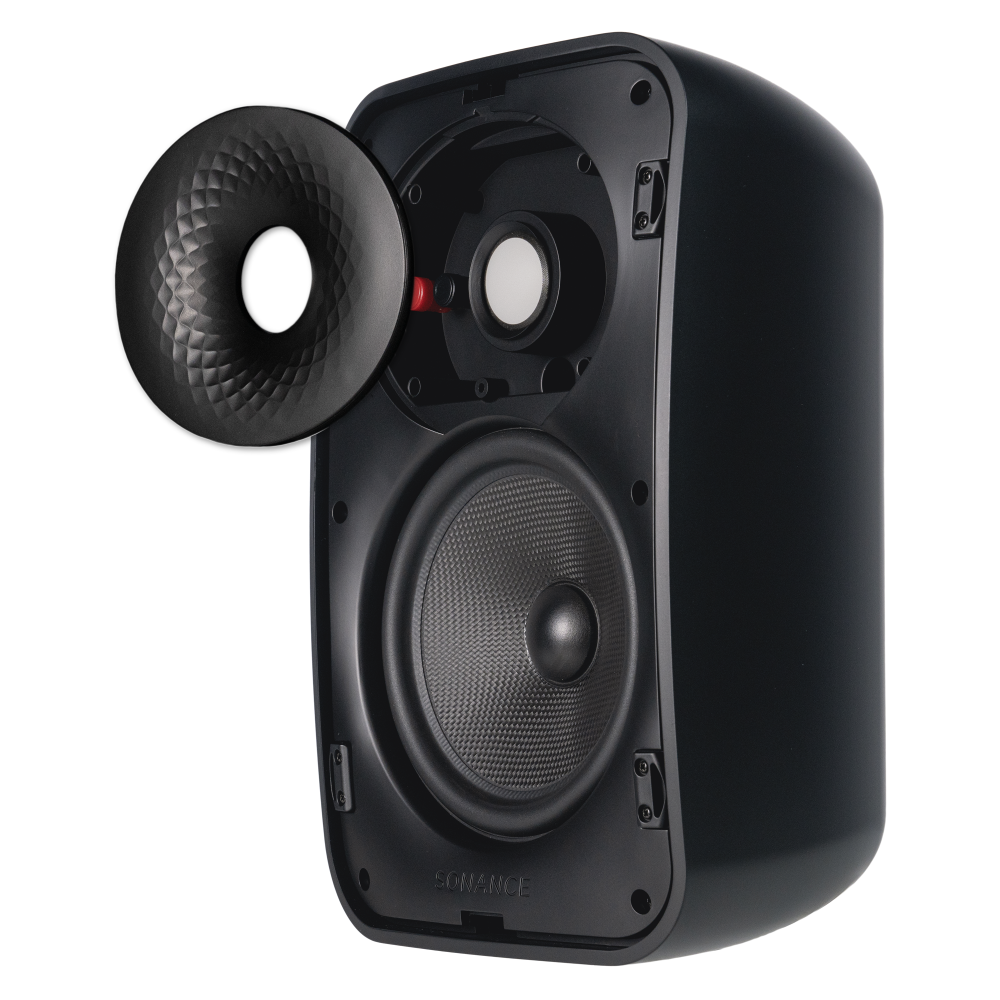

- Sinusoidal Textured Waveguide: Ensures consistent tonality and wide dispersion for even, balanced audio coverage
- VX Transducer Technology: VX Transducer Technology: Exceptional audio performance and playback with crisp fidelity
- Grille Clip System: Grille retention to securely hold grilles in place during exposure to extreme temperature fluctuations and outdoor elements
- FastMount Bracket System: Ability to simply snap speakers into the bracket for easy installation, then speaker angle can be locked into place for precision positioning that doesn’t sag over time
Specifications
SKU
93612 (Black), 93613 (White)

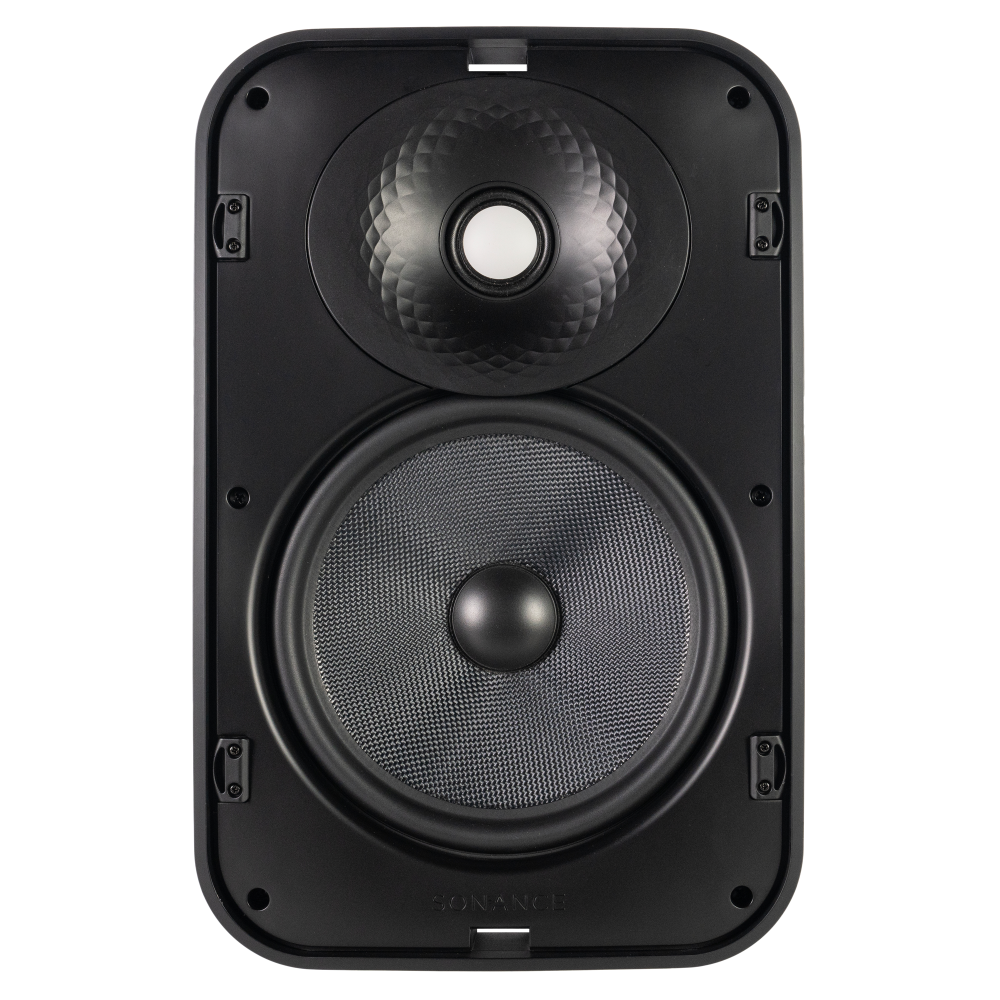

Speaker Tweeter
1.2" (30mm) ceramic dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
8" (203mm) Kevlar / Nomex cone, rubber surround
Frequency Response (+/- 3db)
45Hz - 20kHz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
91dB (2.83V/1m)
Nominal Impedance (Ohms)
8 ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
9.01" x 14.02" x 8.58" (228.85mm x 356.11mm x 217.93mm)

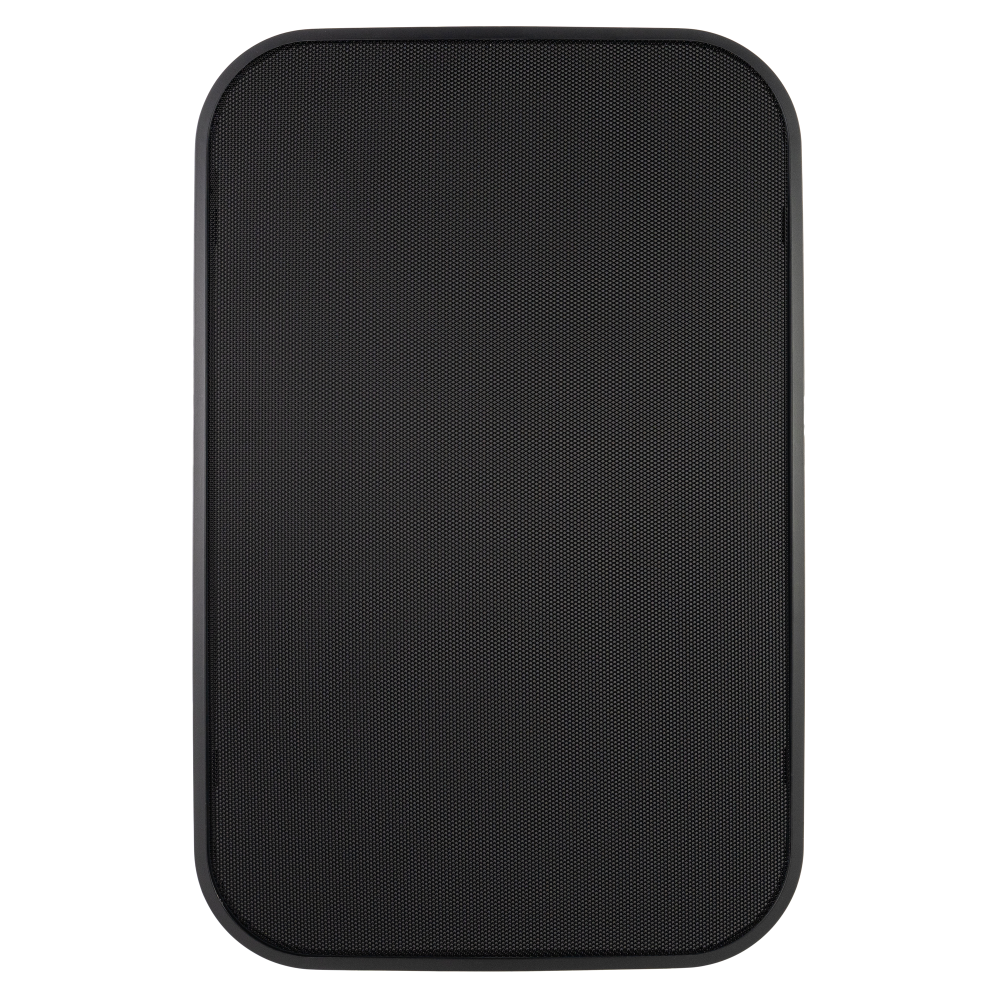

Grille
Perforated Aluminum
Environmental
Mill Spec 810 for humidity, salt spray, temperature, UV

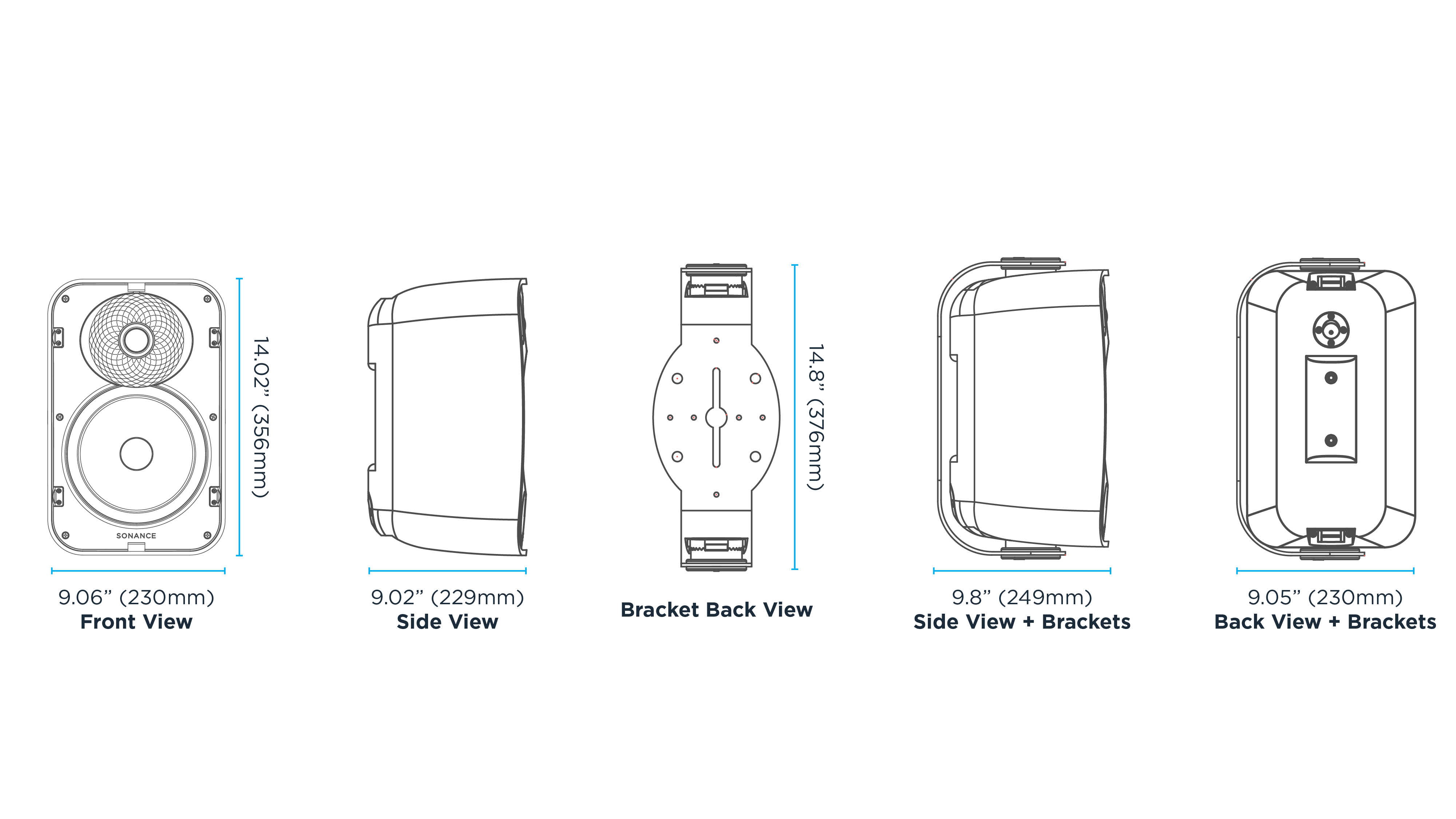

Dimensional Drawings
