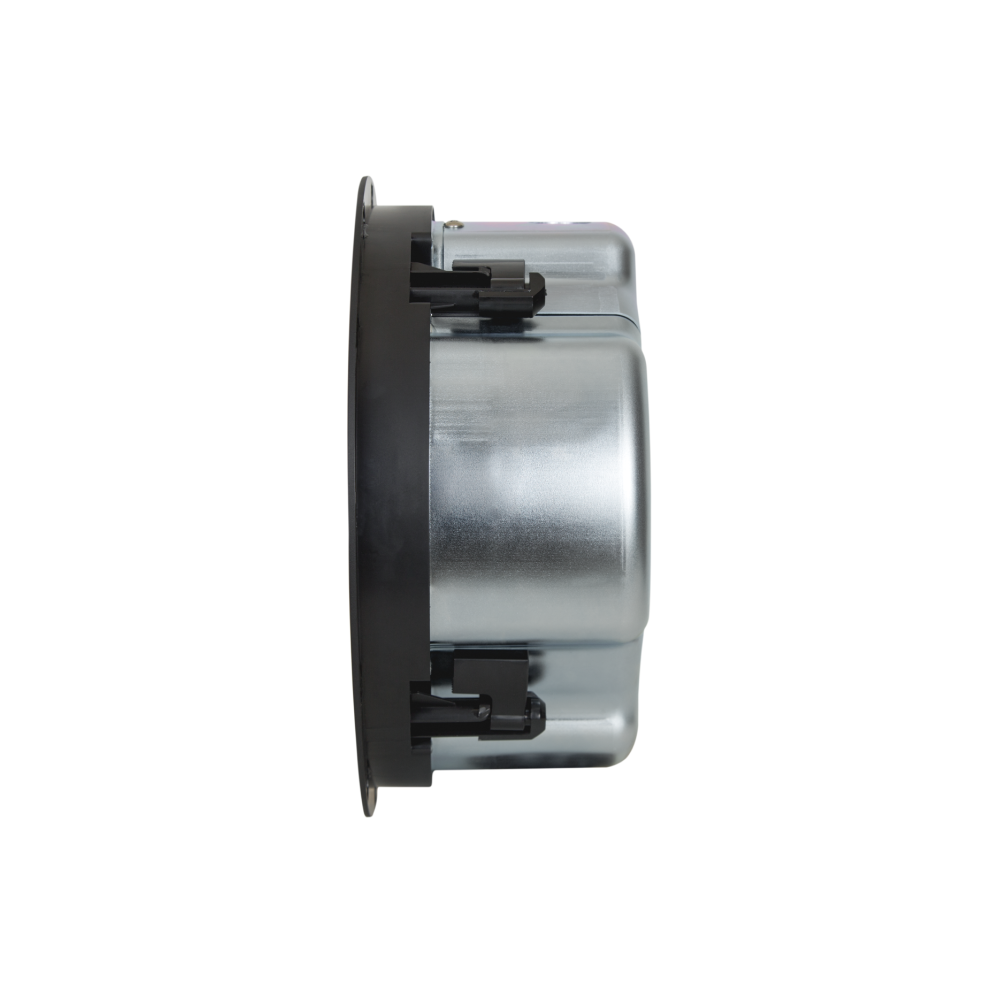

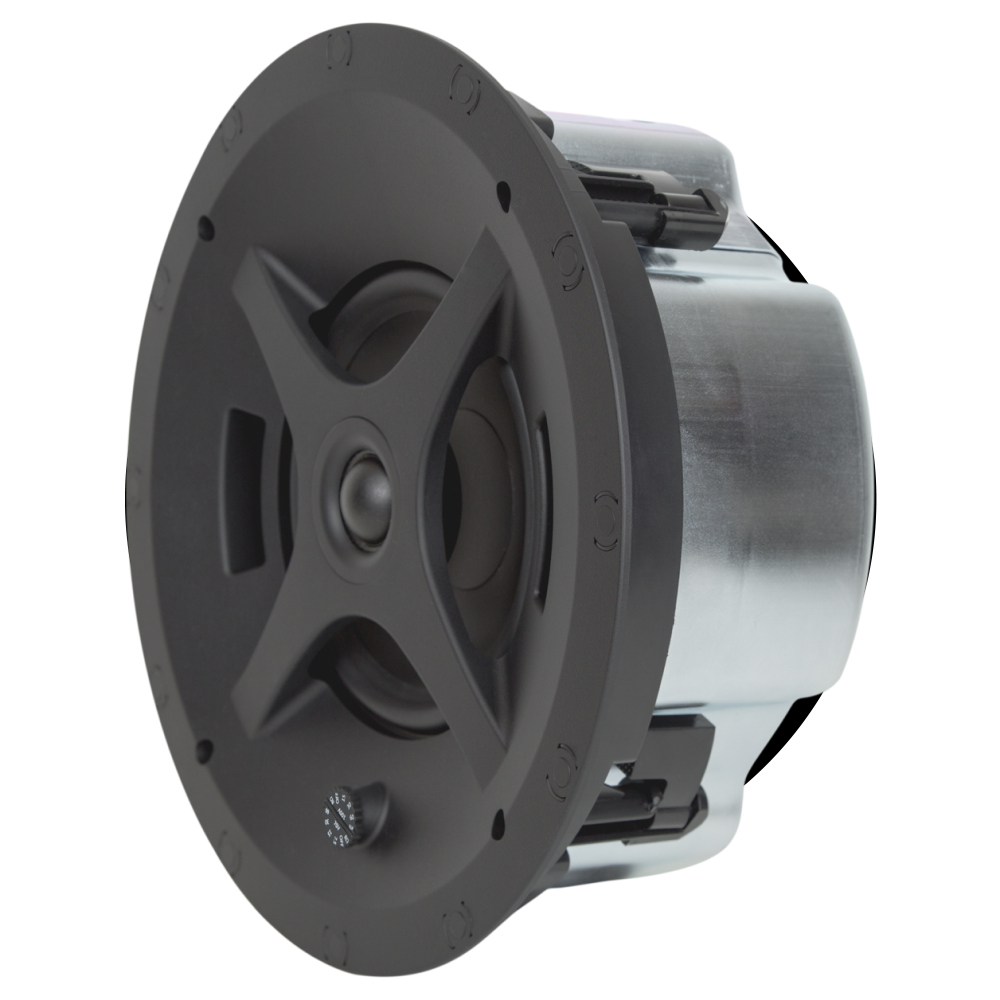

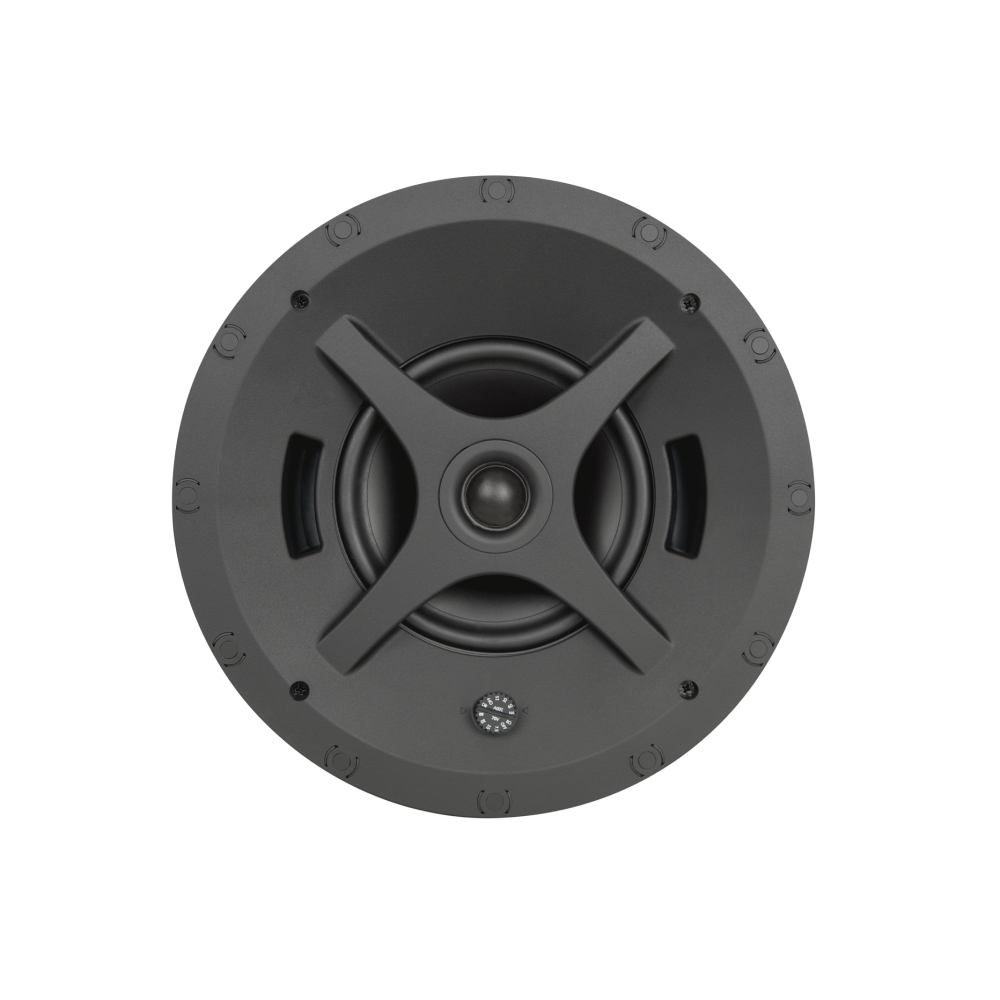

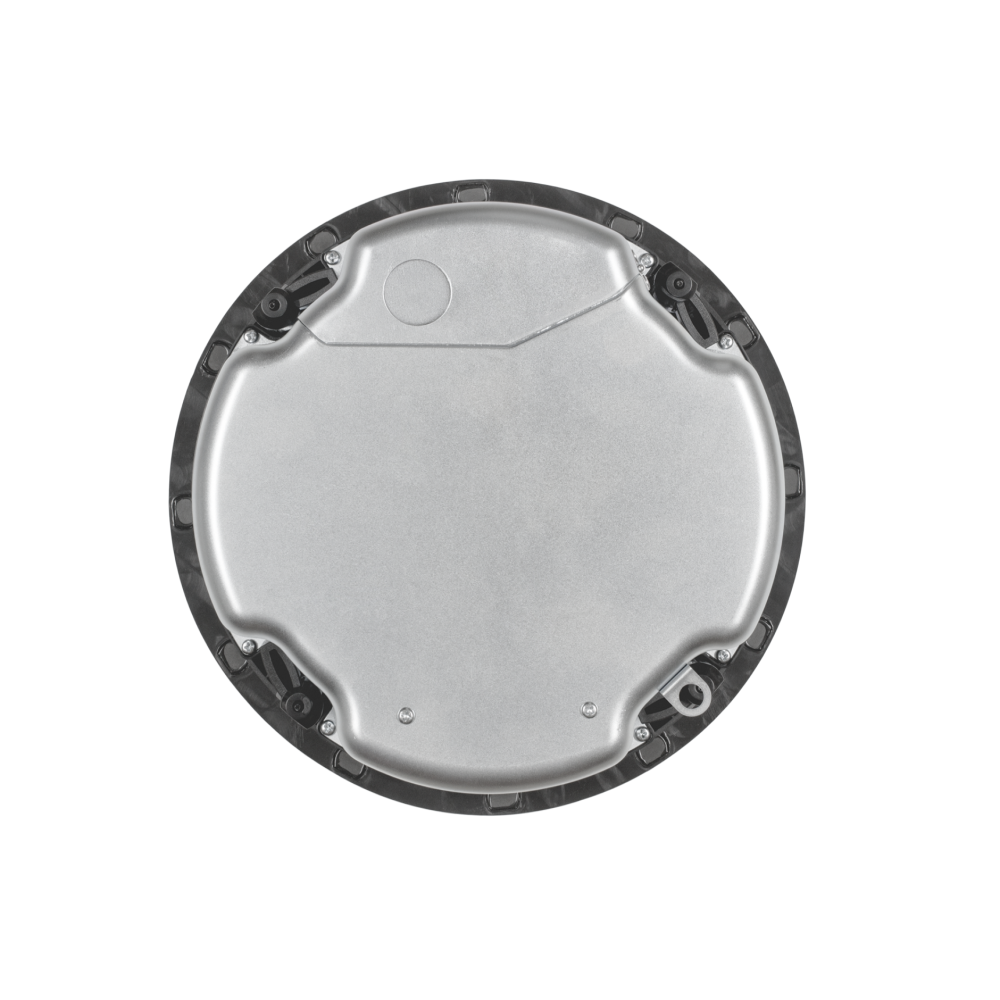

PS-C63RTLP
Professional Series

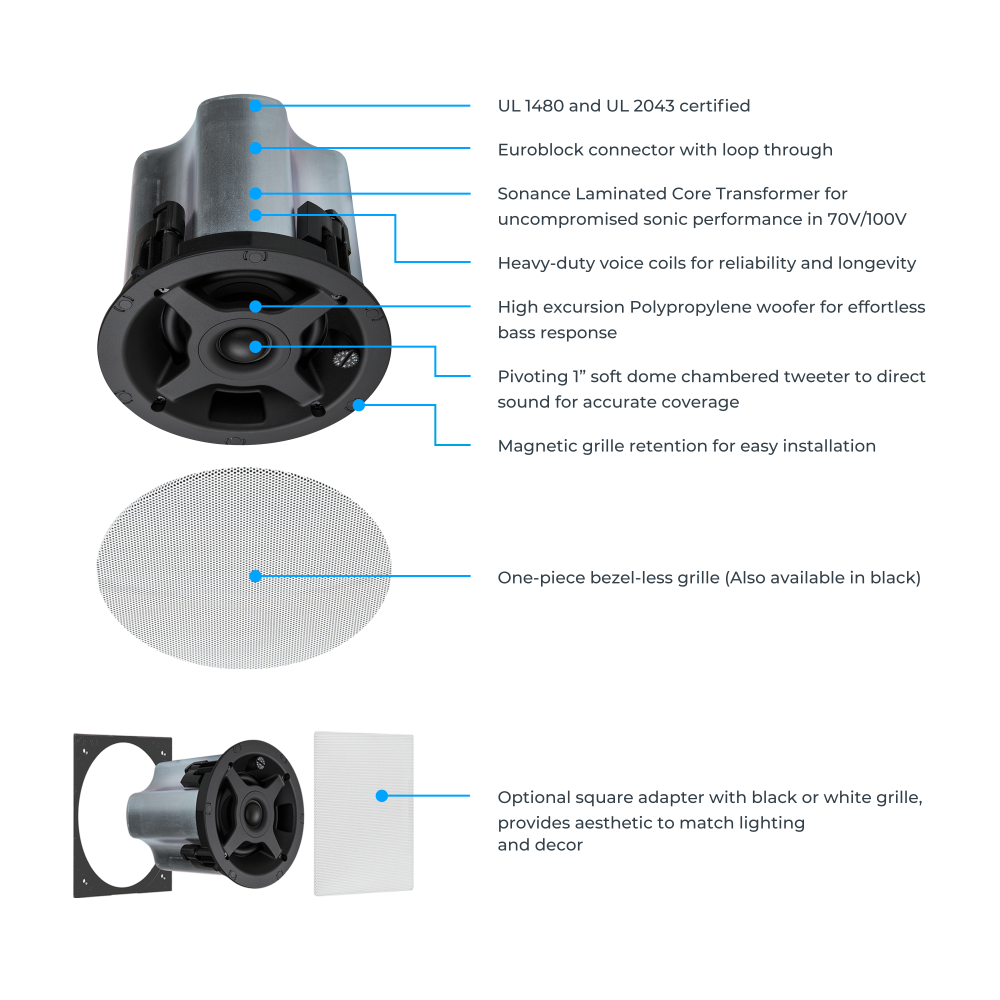

Key Features
- Class-leading sensitivity & sonic performance
- Exceptional off-axis response
- Heavy duty voice coil for longevity and reliability
- Full-fidelity transformer for uncompromised tonality
- Consistent voicing across product range
- Bezel-less design for clean and minimalistic aesthetic
- Optional black grilles in round or square
- Magnetic grille retention for fast installation and removal
- Finger-adjustable selector tap
- One-step simplified painting process
Specifications
SKU
45182 (White)
HF Driver
1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
LF Driver
6.5" (165mm) Polypropylene Cone, Butyl Rubber Surround
Frequency Response (+/- 10db)
49Hz-25kHz
Frequency Response (+/- 3db)
65Hz - 20kHz
Power Handling (RMS)
120W program, 60W pink noise
Sensitivity
91dB (2.83V/1m)
Rated Maximum SPL
108dB @ 1 meter (3.3 feet), 116dB peak
Nominal Impedance (Ohms)
8 ohms
Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W
Dimensions (Diameter x D)
11.06" x 4.37" (280.92mm x 111.0mm)
Cut-Out Dimensions (Diameter)
10.125" (257.18mm)
Knockout
One, Side mounted 0.75" (19mm)
Weight
10 lbs. (4.54kg)

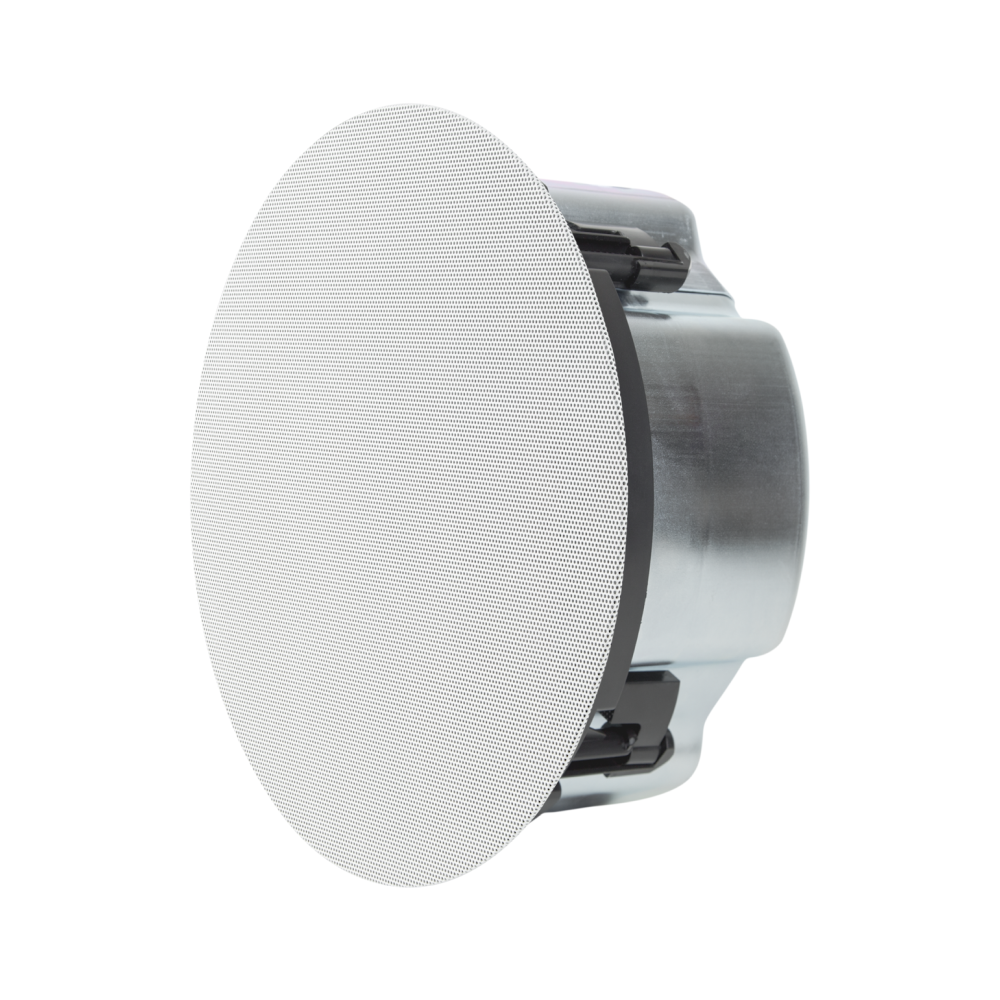

Grille
One Piece Paintable Grille with Magnetic Retention

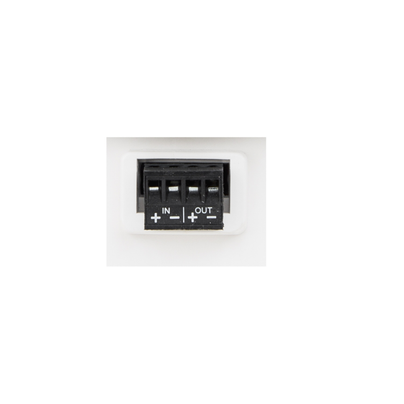

Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480; UL 2043; NFPA 90A; NFPA 70
Suspension Points
One, on top surface
Maximum SPL (Peak)
116dB peak
Architectural Specifications
The loudspeaker shall be of the two way type comprising a single flush mount enclosure containing...
