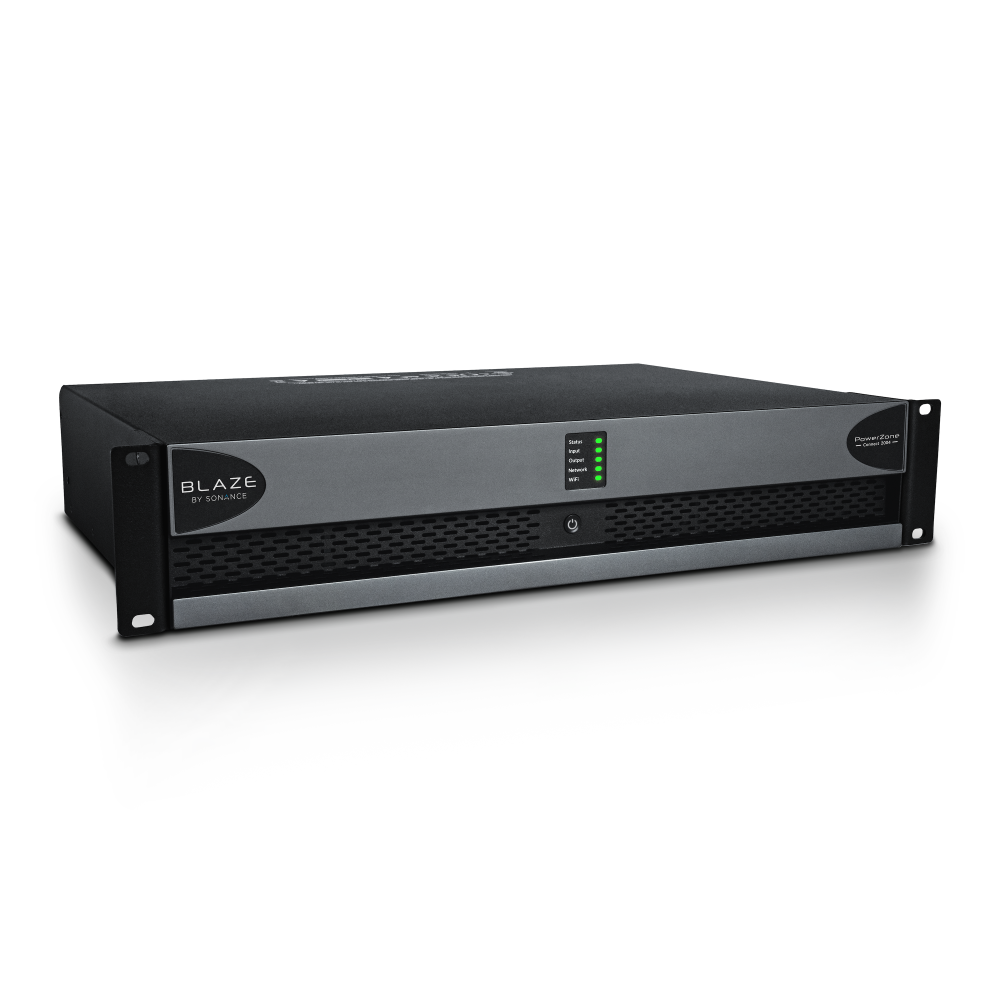

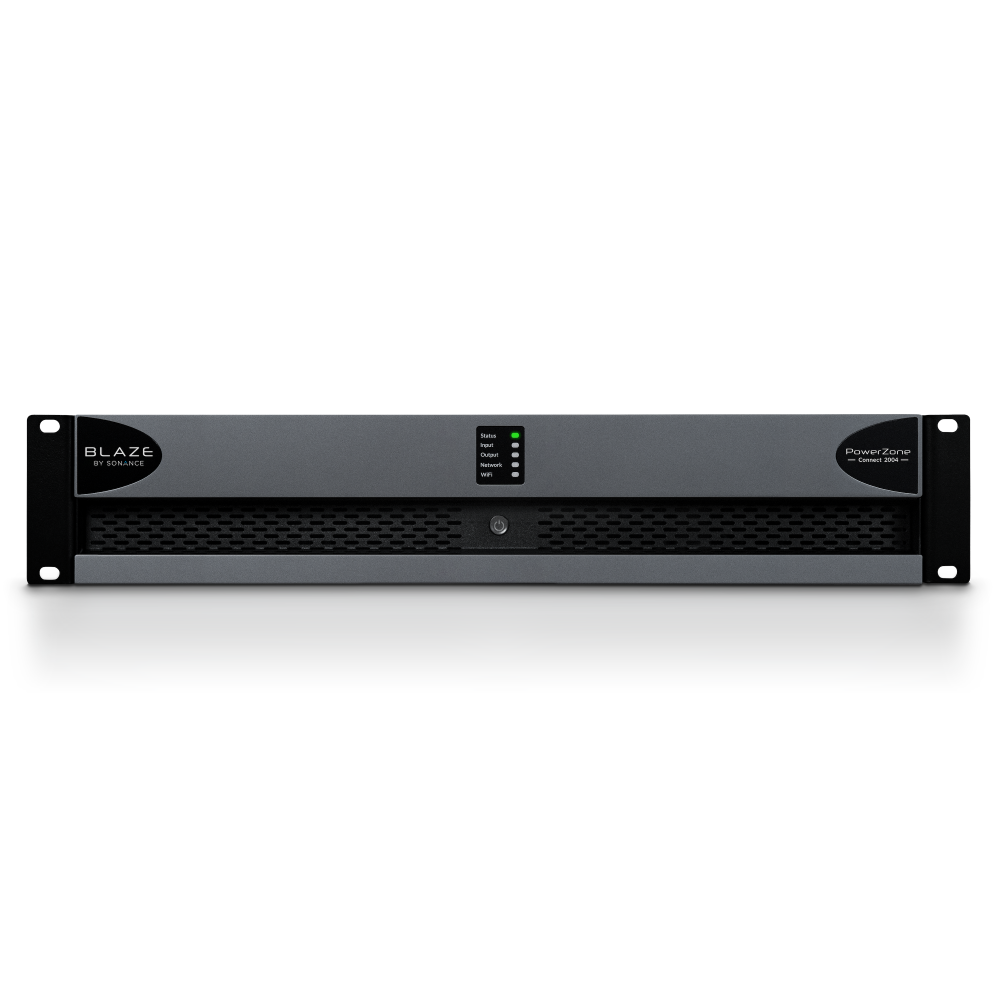

PowerZone Connect 2004



PowerZone Connect 2004
Blaze Amplifiers
2000 W DSP-enabled Class-D amplifier with 4 channels
Key Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color

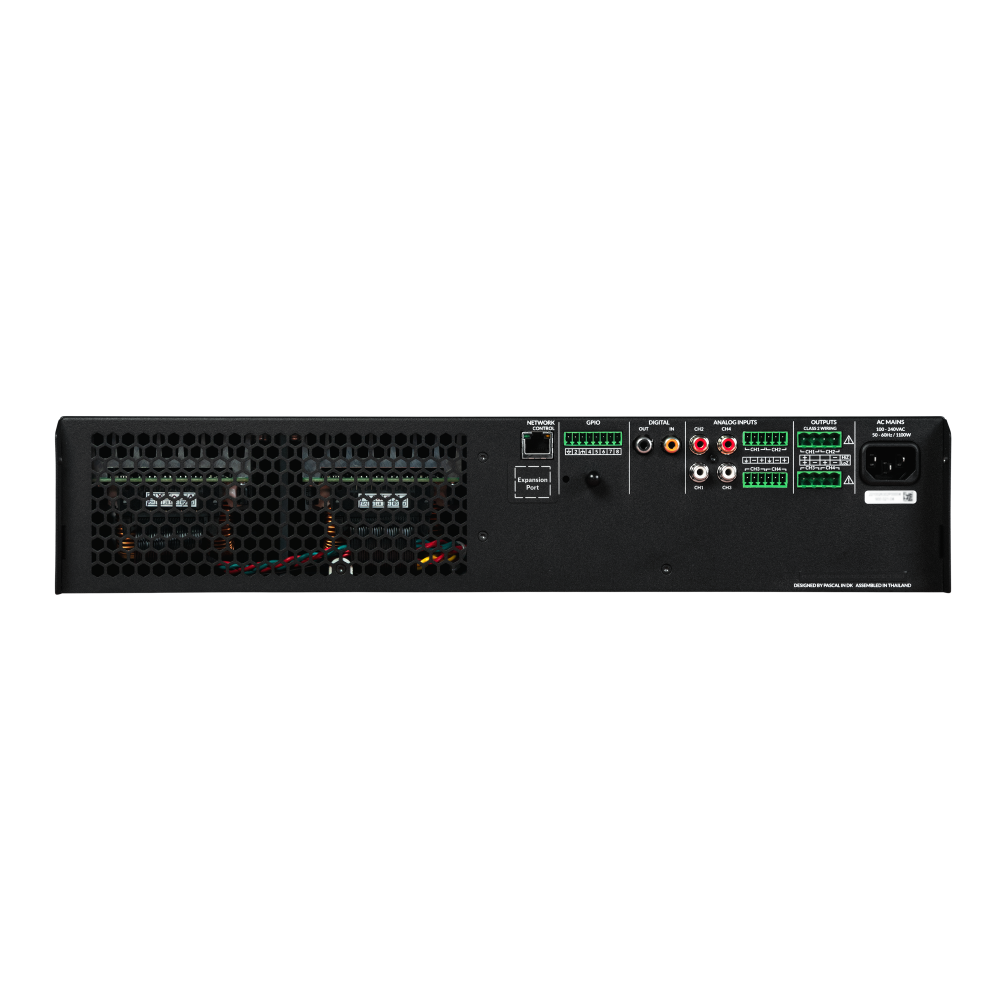

LBX-888-003 (PowerZone Connect 2004), LBX-888-015 (PowerZone Connect 2004 JPN)
Dimensions (WxHxD)
17.3" x 3.5" x 12.6" (439.42mm x 88.9mm x 320.04mm)
Weight
16.31 lbs. (7.4kg)
Channel Configuration
Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V
Total System Power
2000 W
Output Power @ 2 ohms
4 x 500 W (SE)
Output Power @ 4 ohms
4 x 500 W (SE) 2 x 1000 W (BTL)
Output Power @ 8 ohms
4 x 250 W (SE) 2 x 1000 W (BTL)
Output Power @ 70V
2 x 1000 W (BTL)
Output Power @ 100V
2 x 1000 W (BTL)
Powersharing
BTL
Power Consumption
700 W
Dante Compatibility
No
