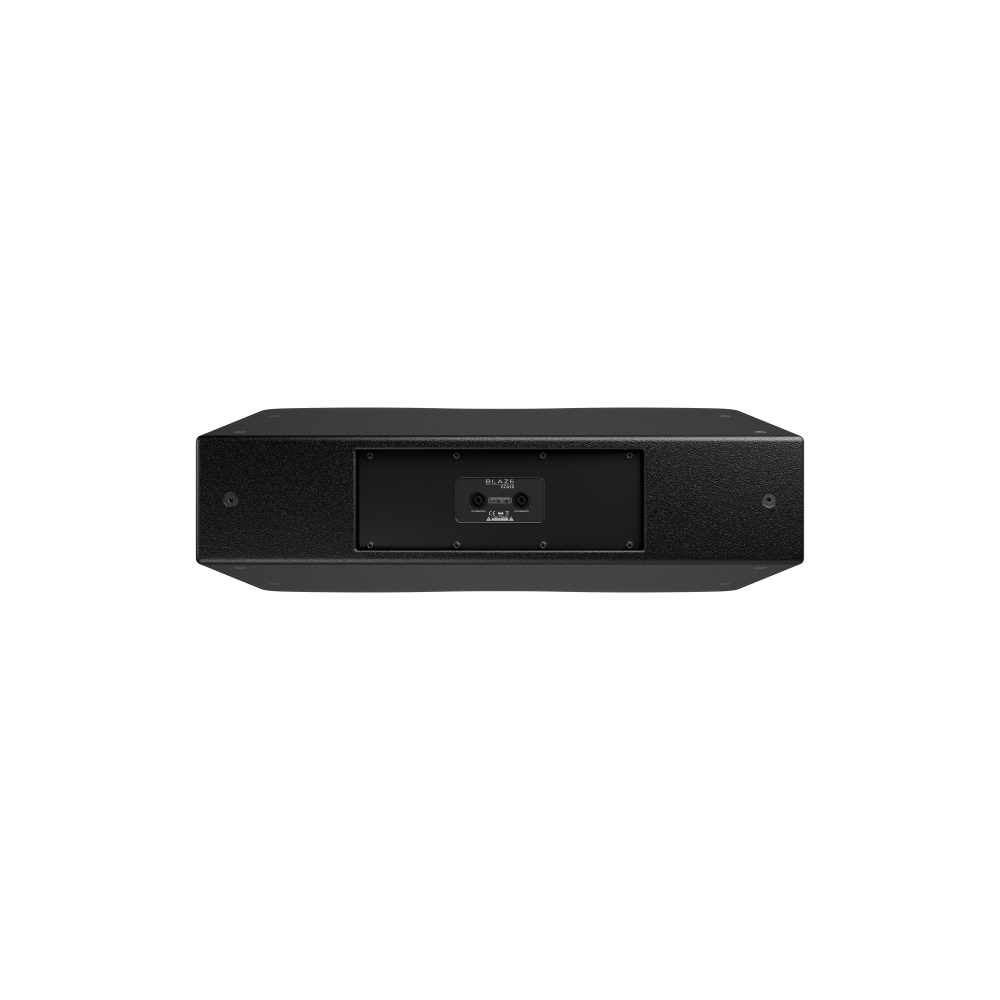

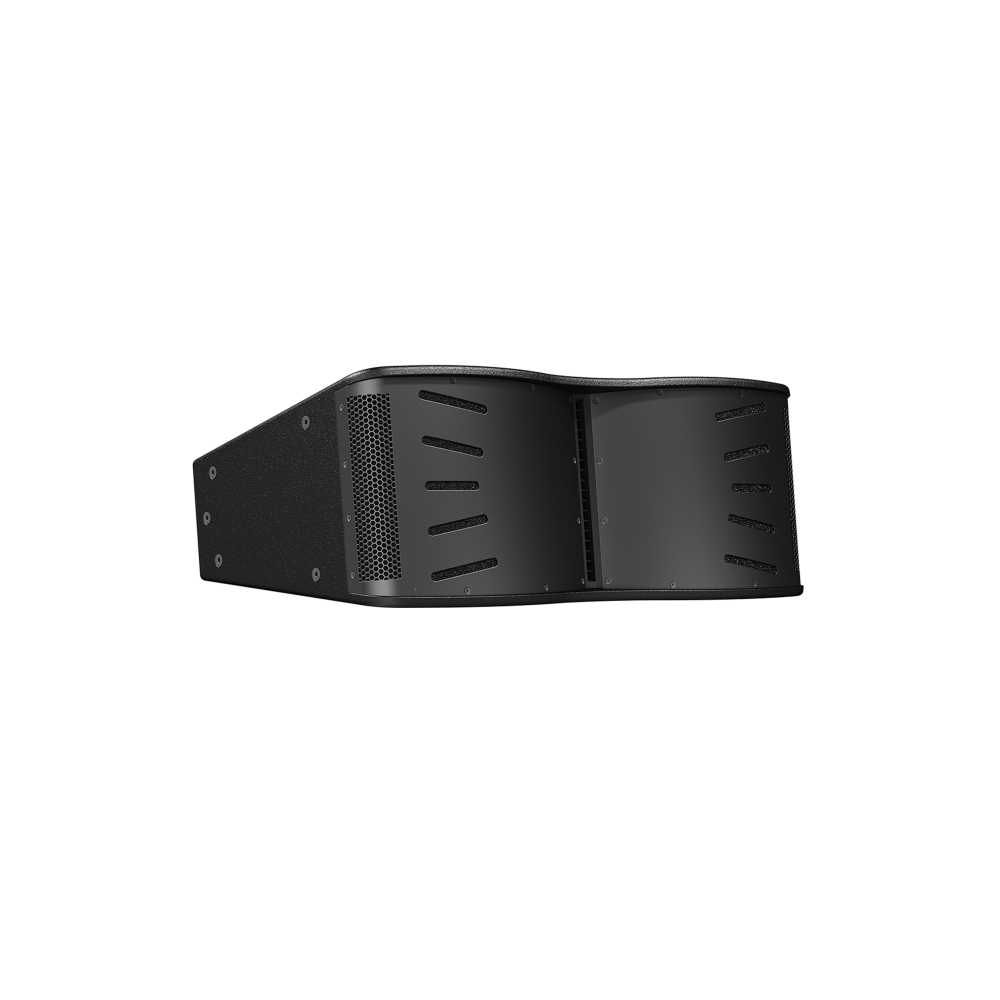

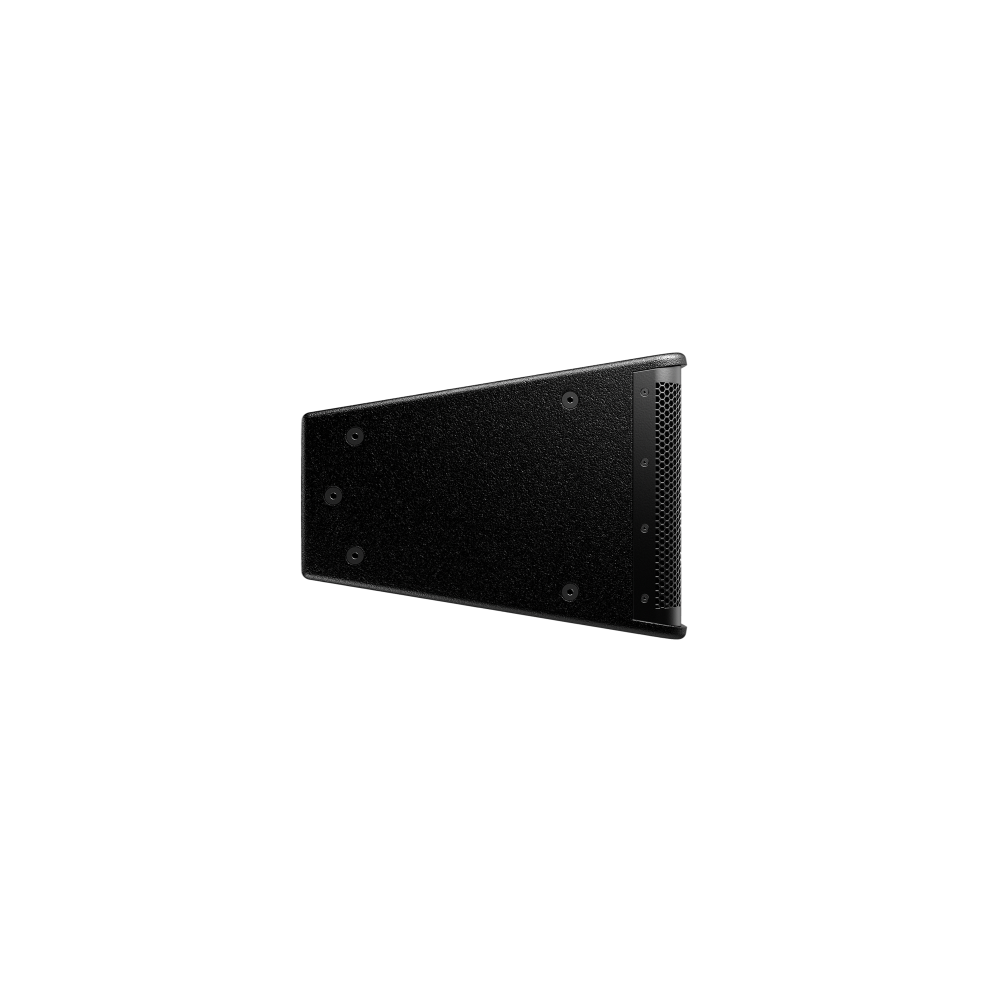

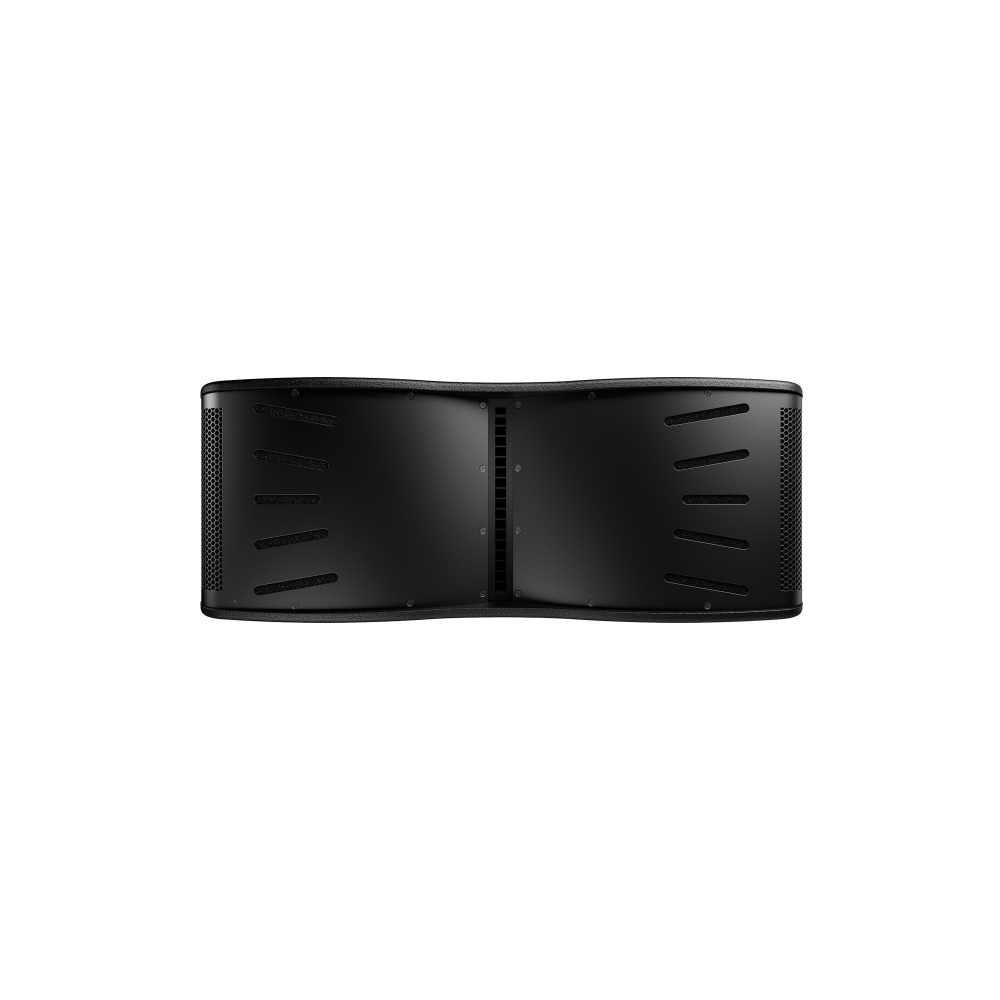

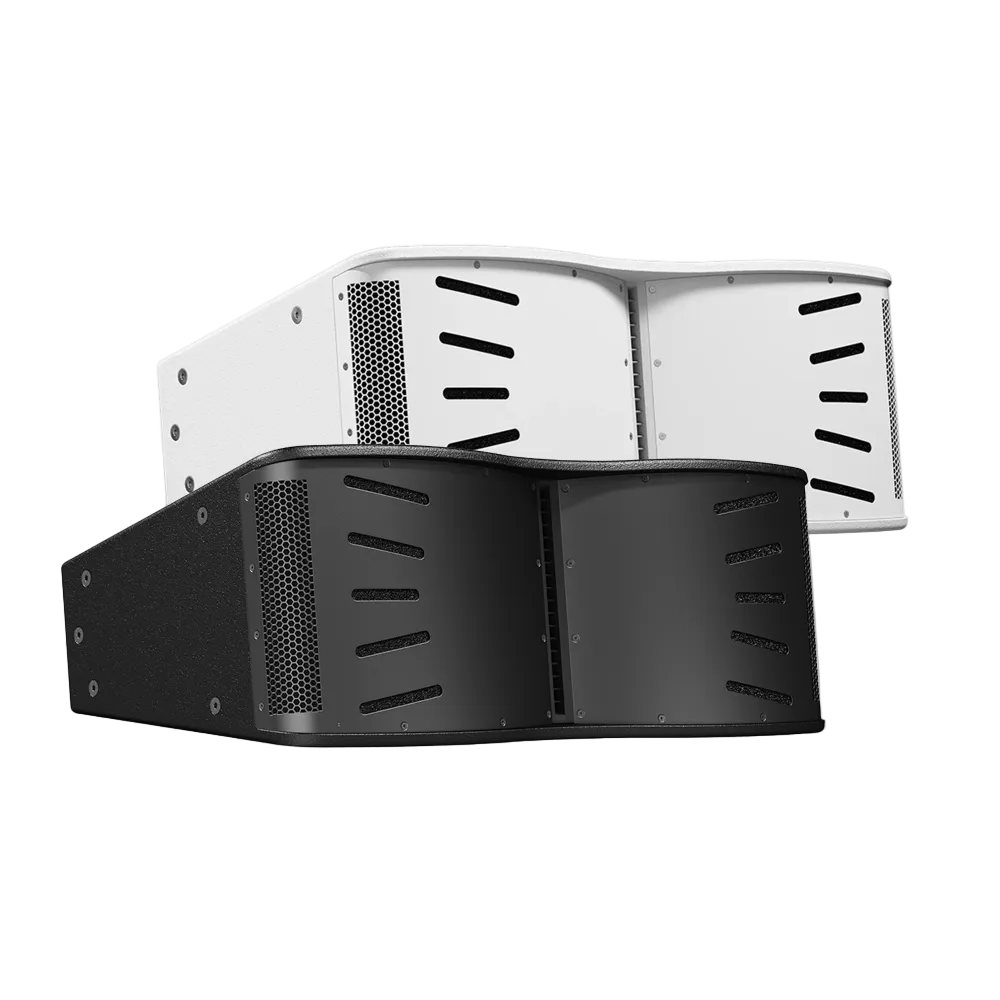

CCA10i
CCA10i
Blaze Speakers
Constant Curvature Array, Scalable 20° Vertical
Key Features
- 3-way Arrayable Point Source, designed for Bi-Amping
- Constant Curvature waveguide for unprecedented array coherence.
- Precision 160° symmetrical horizontal pattern control.

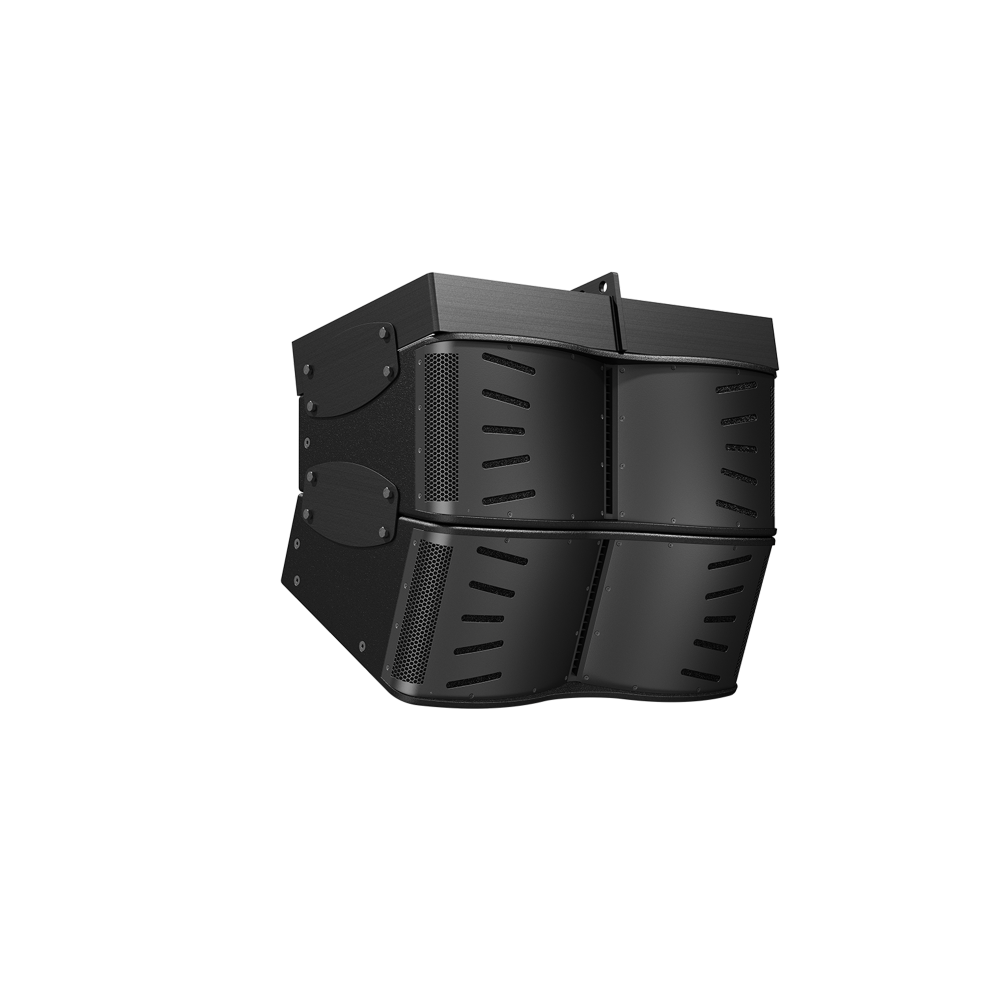

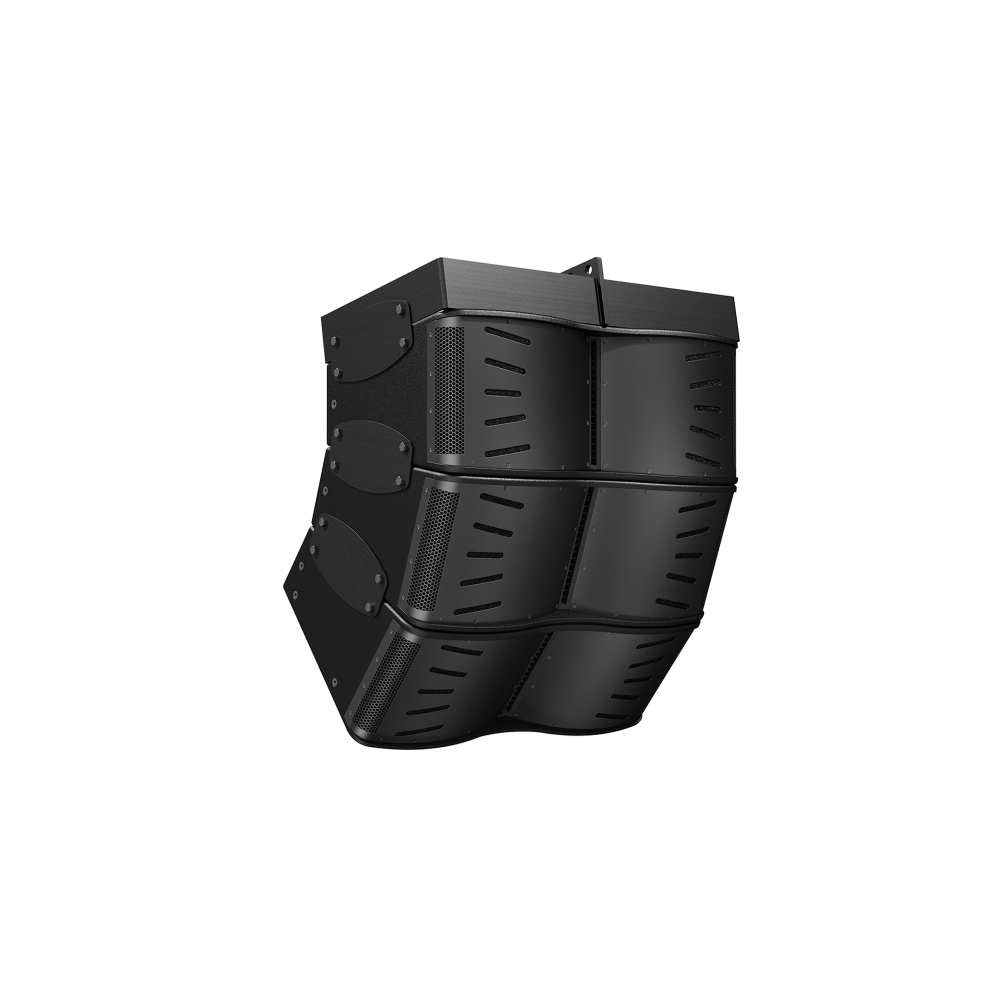

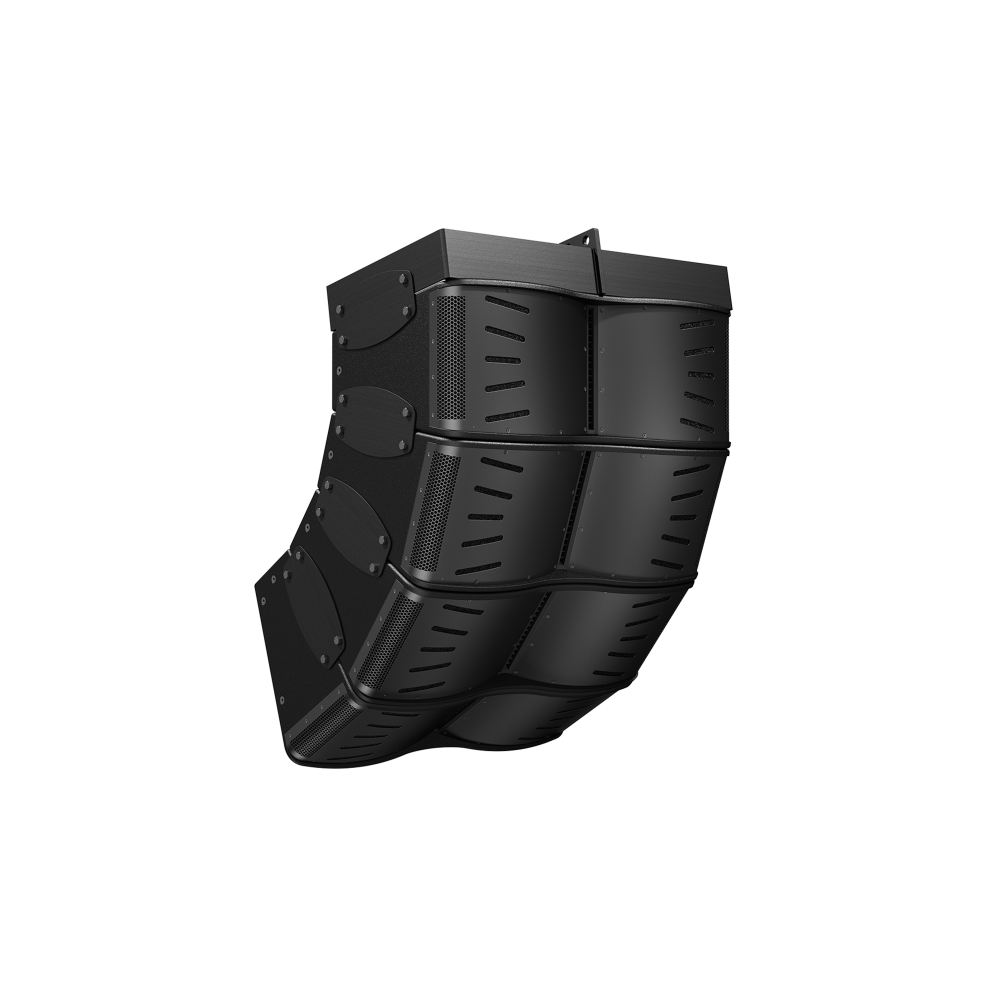

- Variable vertical coverage in 20° increments (one enclosure 20° and max 12 enclosures).
- Dual 10" ultra-low distortion, high excursion drivers.
- System range 52 Hz – 18 kHz.
- Exceptionally high SPL.
- Rugged Polyurea coating for extreme durability.
- System integration with Blaze Audio amplifiers.
Specifications
SKU | Color
FGM-888-001 (Black), FGM-888-002 (White)
HF Driver
Coaxial: 4" Voice Coil mid driver; 2.55" Voice Coil HF tweeter
LF Driver
Dual 10" with 2.5" Voice Coils
Frequency Response (+/- 10db)
45Hz - 18kHz
Frequency Response (+/- 3db)
52Hz - 18kHz
Power Handling (RMS)
LF: 500W AES (2000W peak) @4Ω HF: 110W AES (440W peak) @8Ω
Sensitivity
LF: 101dB HF: 111.4 dB
Enclosure
Baltic birch plywood, engineered plastics, and aluminum frame
Dimensions (WxHxD)
32.3" x 13.23" x 18.25" (820.42mm x 336.04mm x 463.55mm)
Weight
83 lbs. (37.65kg)
Grille
14-gauge (2mm) perforated steel, powder-coated finish, black
Suspension Points

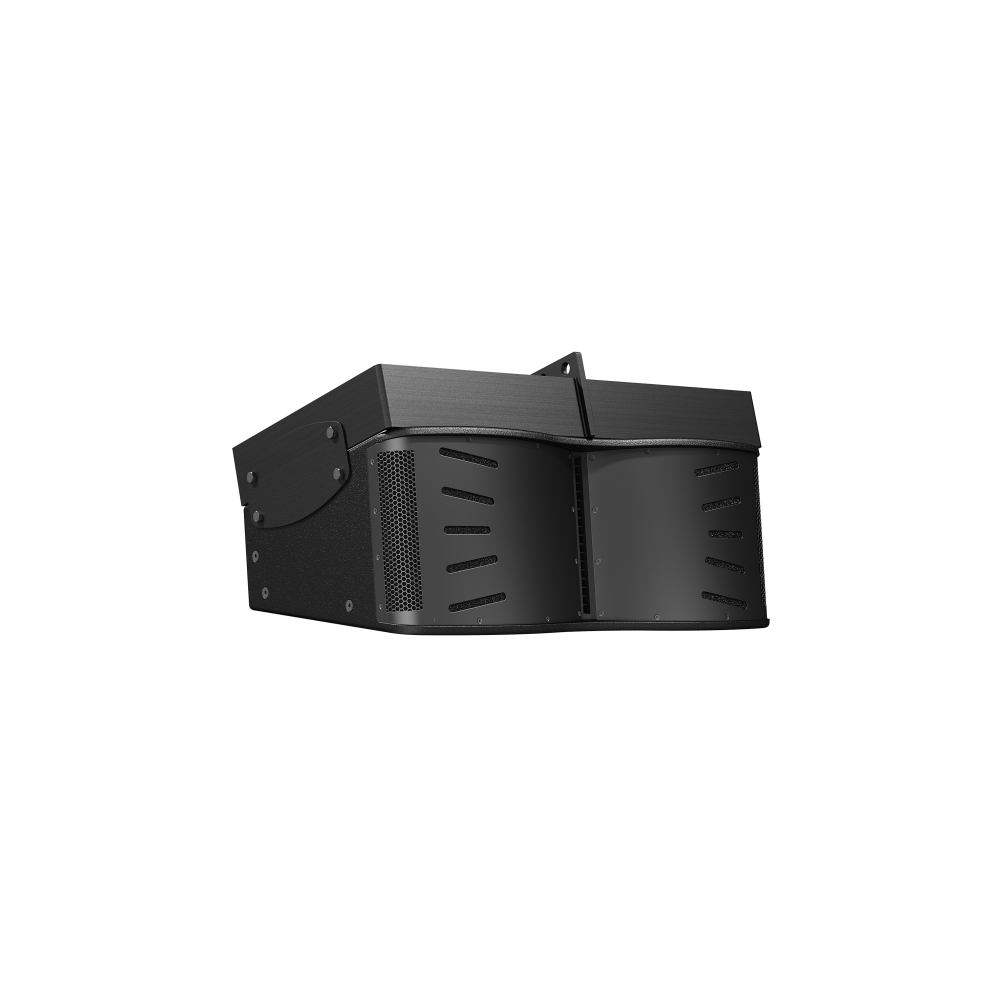

Install side rigging, optional array frame accessories
Coverage (-6dB)
Horizontal: 160 Degrees Vertical: 20 Degrees
Maximum SPL (Peak)
140 dB
Horizontal Nominal Dispersion (-6 dB)
160 Degrees
