The Wall-M and Wall-S1 are PoE-powered, wall-mounted controllers designed to provide intuitive, localized control of PowerZone Connect amplifiers. Ideal for commercial installations, these controllers allow end users to easily manage key audio functions such as zone selection, source selection, and volume control across single or multiple zones.

Key Features

  • Minimalist Danish design with concealed mounting screws
  • Integrated display with rotary encoder and center-click navigation
  • Controls zone, source, volume, and amplifier power on/off
  • Adjustable display themes, brightness, and button backlight
  • Exclusive pairing and configuration with PowerZone Connect amps
  • Optional PIN lock with multi-level access
  • Available in matte white and matte black

Wall Controller Series

Models

BGM-888-003_004_Hero_product_image_Blaze-Wall-S1-US-BLK-WHT.tiff Single Zone PoE-powered wall-controller
BGM-888-001_002_Hero_product_image_Blaze-Wall-S1-EU-BLK-WHT.tiff Single Zone PoE-powered wall-controller
BGM-888-037_038_Hero_product_image_Blaze-Wall-M_US-BLK-WHT.tiff Multi-Zone PoE-powered wall-controller
BGM-888-035_036_Hero_product_image_Blaze-Wall-M_EU-BLK-WHT.tiff Multi-Zone PoE-powered wall-controller

Compare Models

SKU
Dimensions (WxHxD)
BGM-888-003_004_Hero_product_image_Blaze-Wall-S1-US-BLK-WHT.tiff BGM-888-004_hero_product_image_BLAZE_Wall-S1-US-BLK.tiff
Wall-S1 US
Single Zone PoE-powered wall-controller
BGM-888-003 (White US), BGM-888-004 (Black US)
2.78" x 4.53" x 1.68" (70.61mm x 115.06mm x 42.67mm)
BGM-888-001_002_Hero_product_image_Blaze-Wall-S1-EU-BLK-WHT.tiff BGM-888-002_hero_product_image_BLAZE_Wall-S1-EU-BLK.tiff
Wall-S1 EU
Single Zone PoE-powered wall-controller
BGM-888-001 (White EU), BGM-888-002 (Black EU)
3.42" x 3.42" x 1.68" (86.87mm x 86.87mm x 42.67mm)
BGM-888-037_038_Hero_product_image_Blaze-Wall-M_US-BLK-WHT.tiff BGM-888-038_product_image__Blaze-Wall-M_US_black.tiff

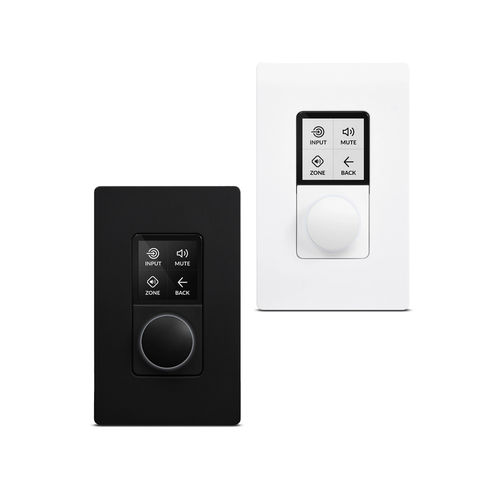

Wall-M US
Multi-Zone PoE-powered wall-controller
BGM-888-037 (White US), BGM-888-038 (Black US)
2.78" x 4.53" x 1.68" (70.61mm x 115.06mm x 42.67mm)
BGM-888-035_036_Hero_product_image_Blaze-Wall-M_EU-BLK-WHT.tiff BGM-888-036_product_image_Blaze-Wall-M_EU_black.tiff
Wall-M EU
Multi-Zone PoE-powered wall-controller
BGM-888-035 (White EU), BGM-888-036 (Black EU)
3.42" x 3.42" x 1.68" (86.87mm x 86.87mm x 42.67mm)
