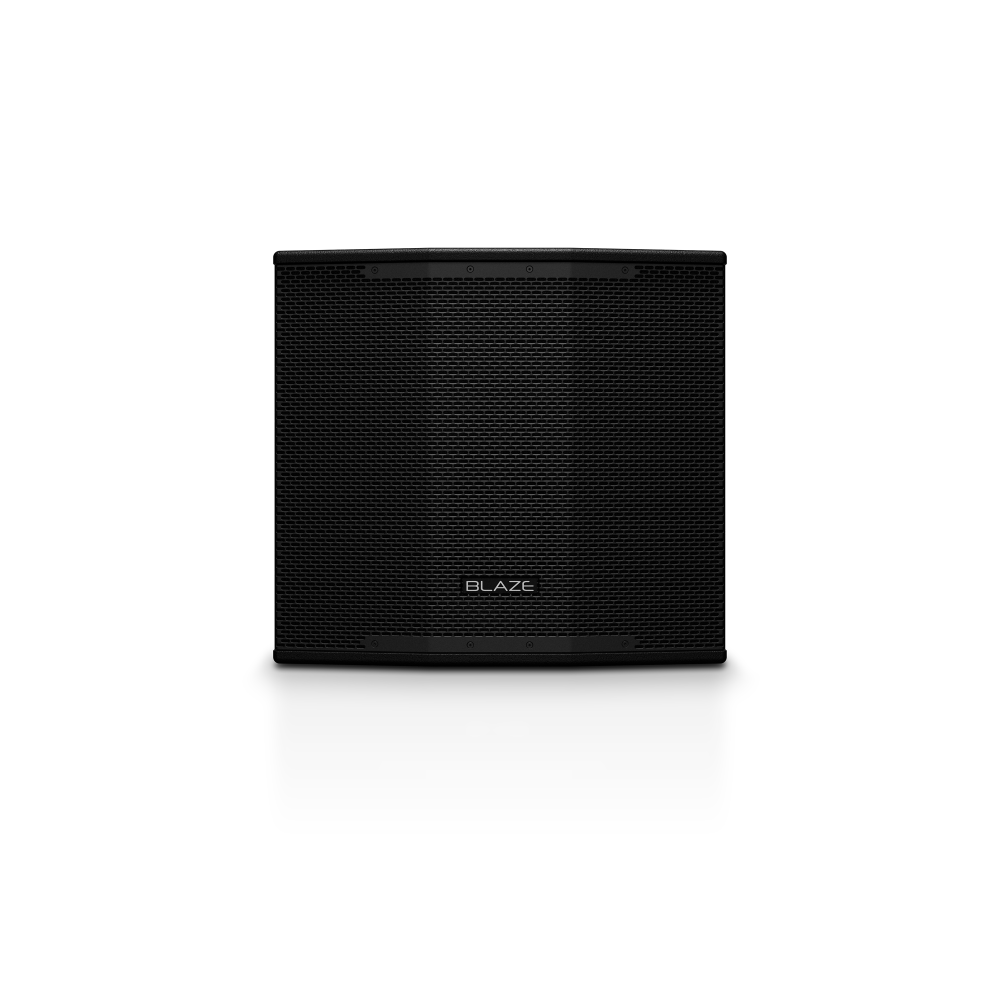

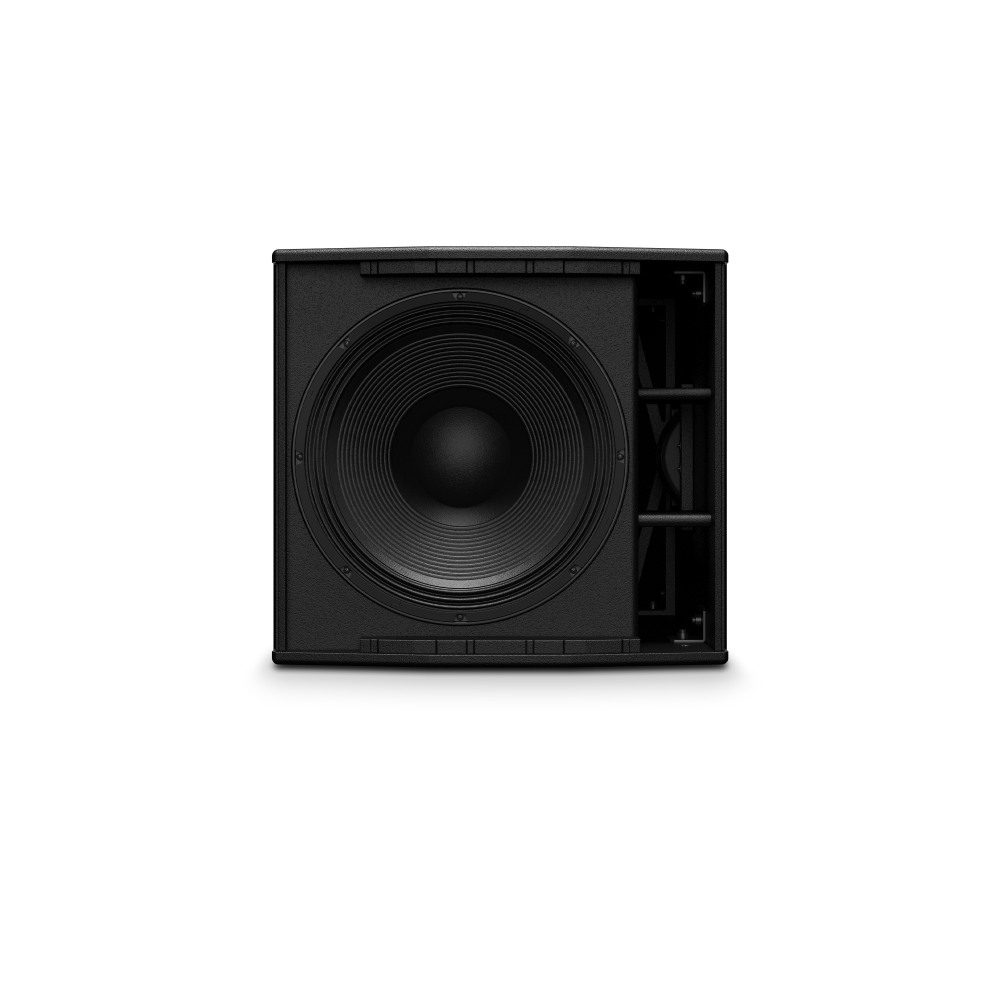

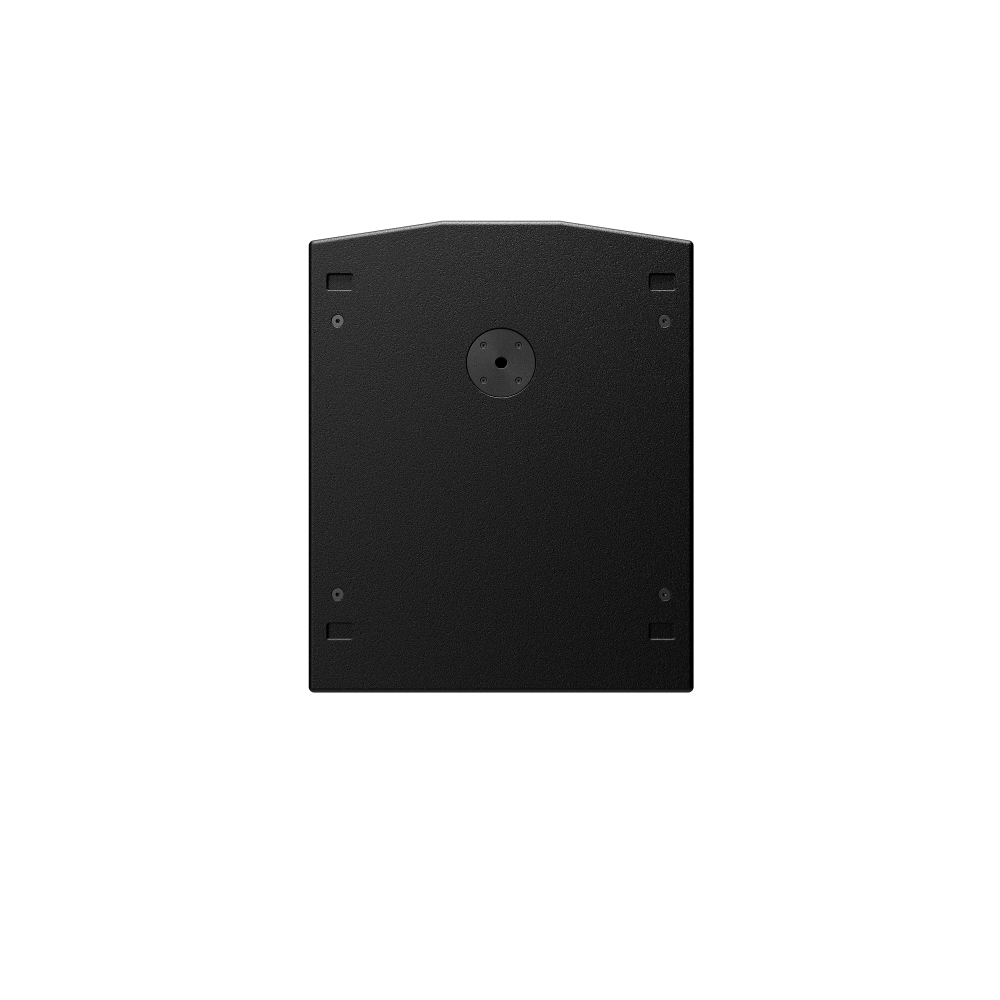

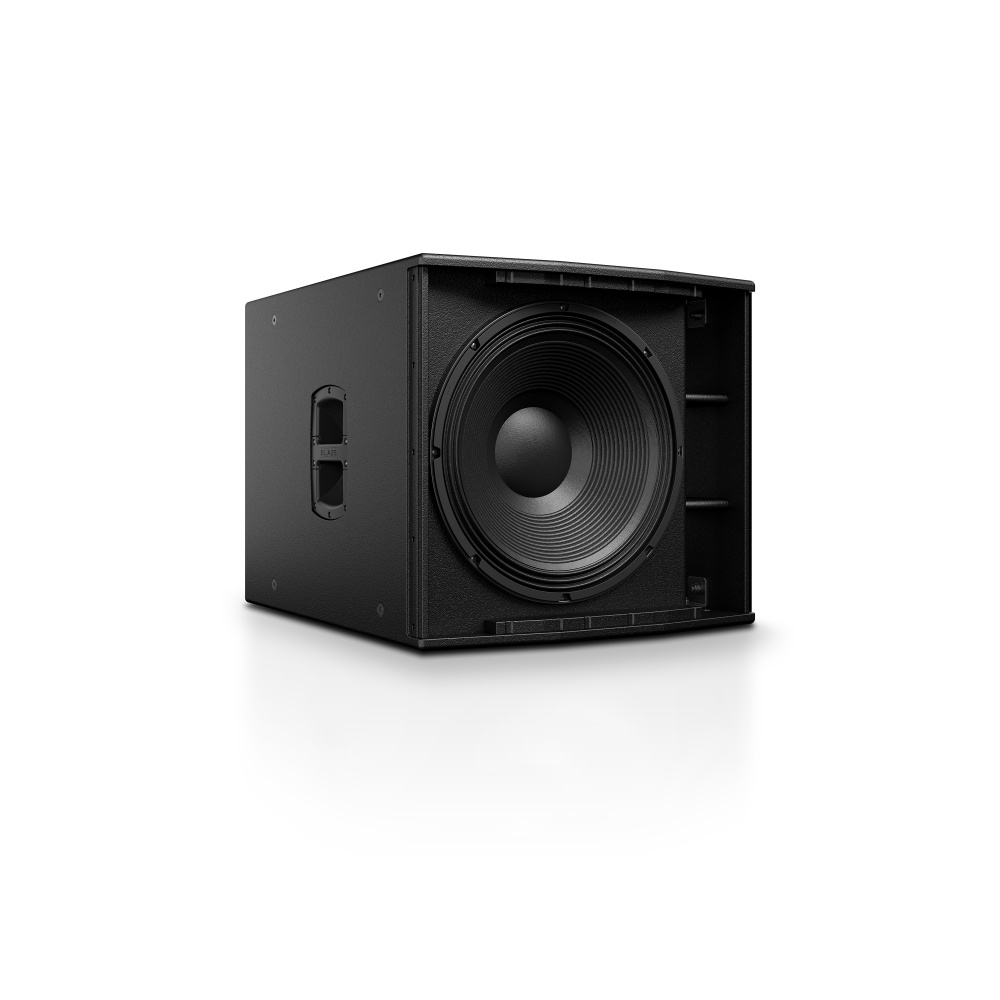

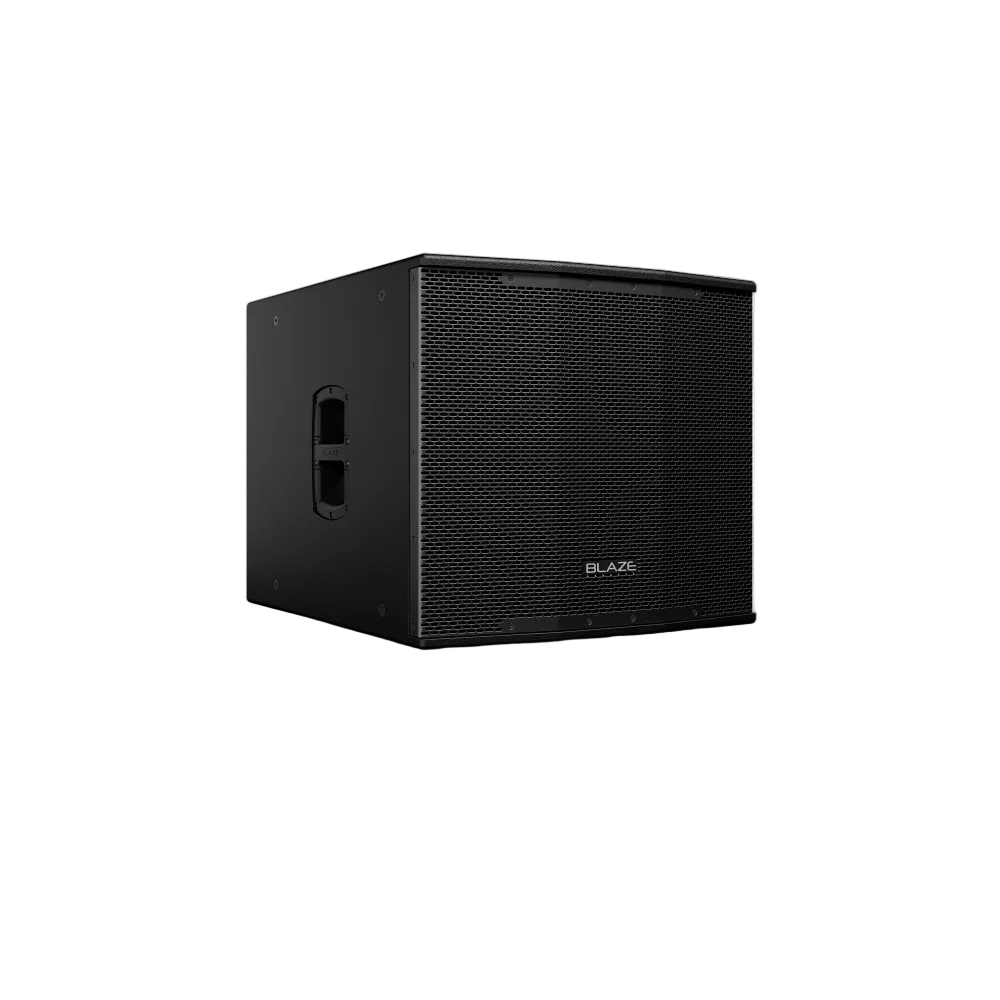

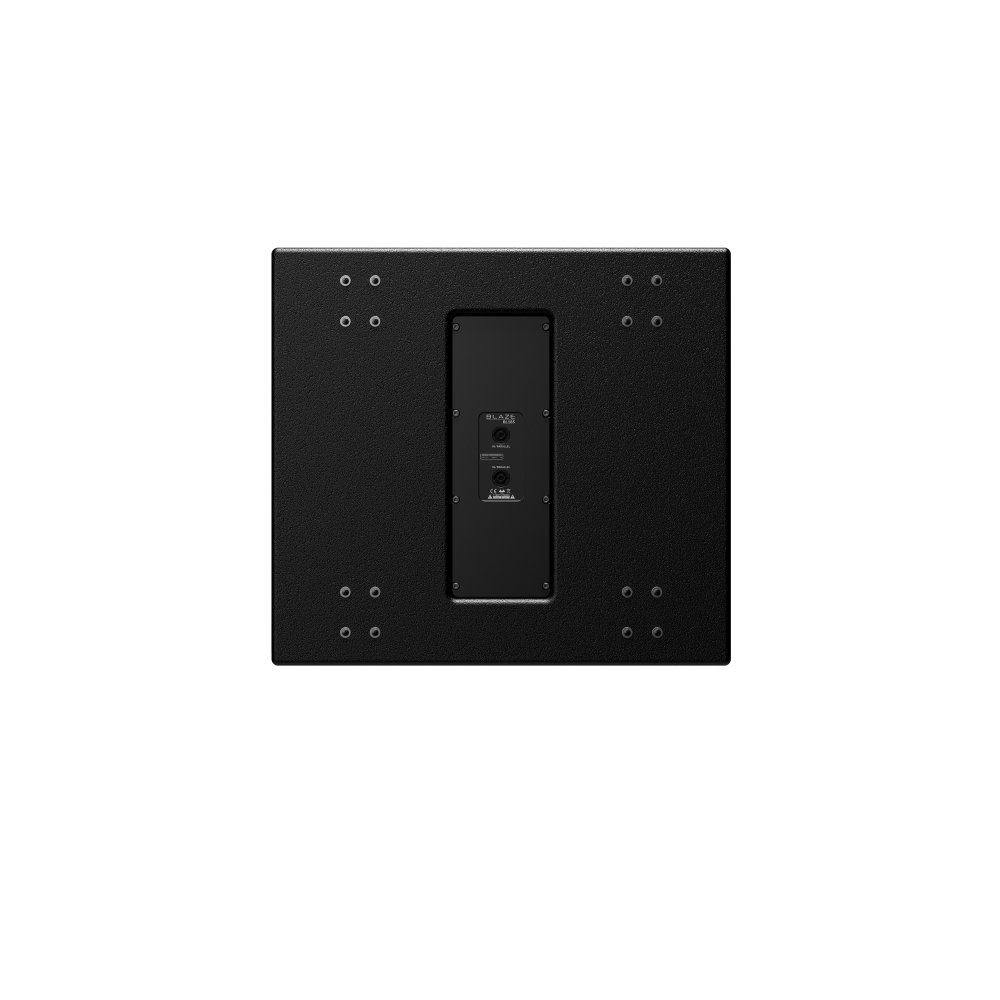

BL18S
BL18S
Blaze Speakers
18" high-power passive subwoofer
Key Features
- Dynamic and Versatile: Ideal for both background and foreground music applications.
- Perfect Integration: Complements the Constant Beamwidth Loudspeakers series, including the CBL523 and CBL528 loudspeakers, to create a complete full-range system.

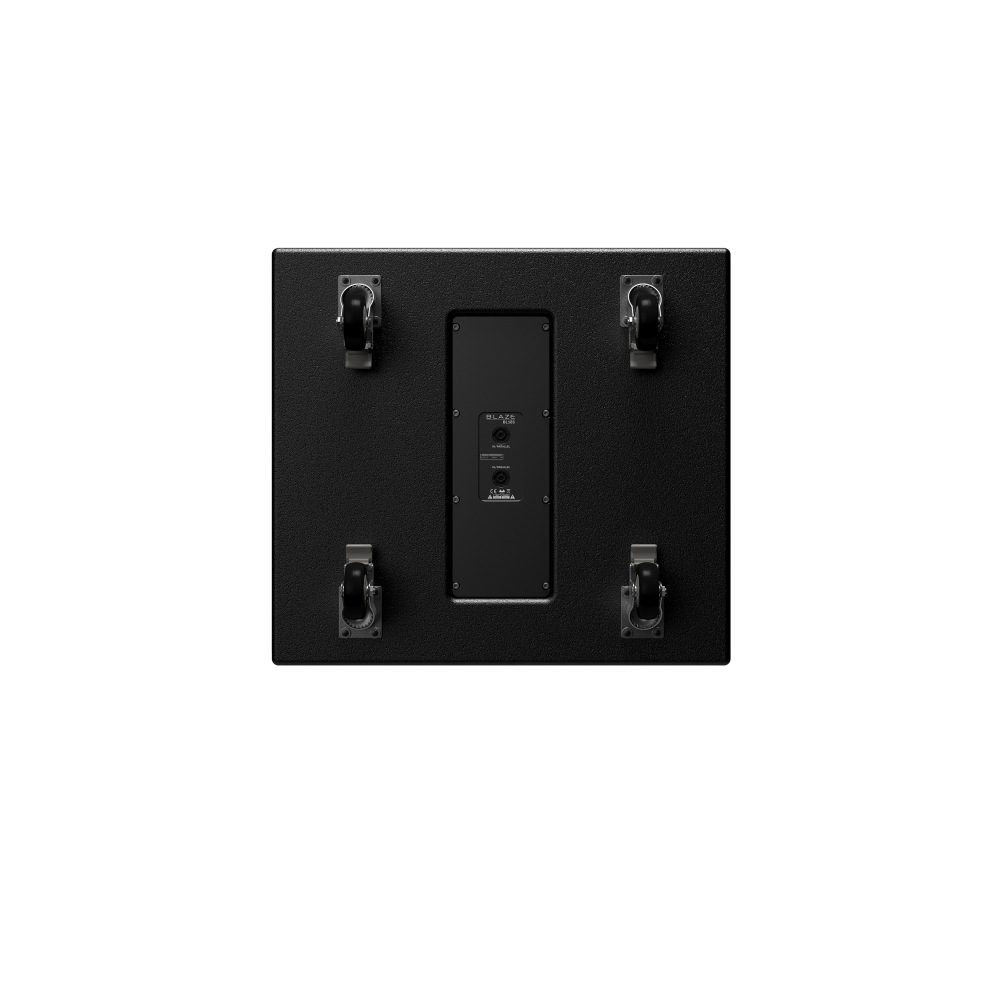

- Flexible Installation: Fixed installation with portable capabilities thanks to built-in casters and handles.
- Adaptable Design: Perfect for hybrid venues, providing a single sub solution for multiple applications.
- Value-Driven Solution: Offers professional performance at a competitive price point
- Fully integrates with Blaze Audio’s PowerZone™ Connect amplifiers (3004 or higher).
Specifications
SKU | Color
FGM-888-015 (Black)
Frequency Response (+/- 10db)
31 Hz - 150 Hz
Frequency Response (+/- 3db)
36 Hz - 150 Hz
Power Handling (RMS)
1200 W AES, 2400 W (4800 W peak) @ 8Ω
Enclosure
Baltic birch plywood, engineered plastics.
Dimensions (WxHxD)
24.5" x 22.5" x 30.0" (622.3mm x 571.5mm x 762.0mm)
Weight
131.5 lbs. (59.65kg)
Grille
14-gauge (2 mm) perforated steel, powder-coated finish, black.
Suspension Points
Freestanding, M20 threaded pole mount.
Maximum SPL (Peak)
136 dB
Horizontal Nominal Dispersion (-6 dB)
Omni or Cardioid
