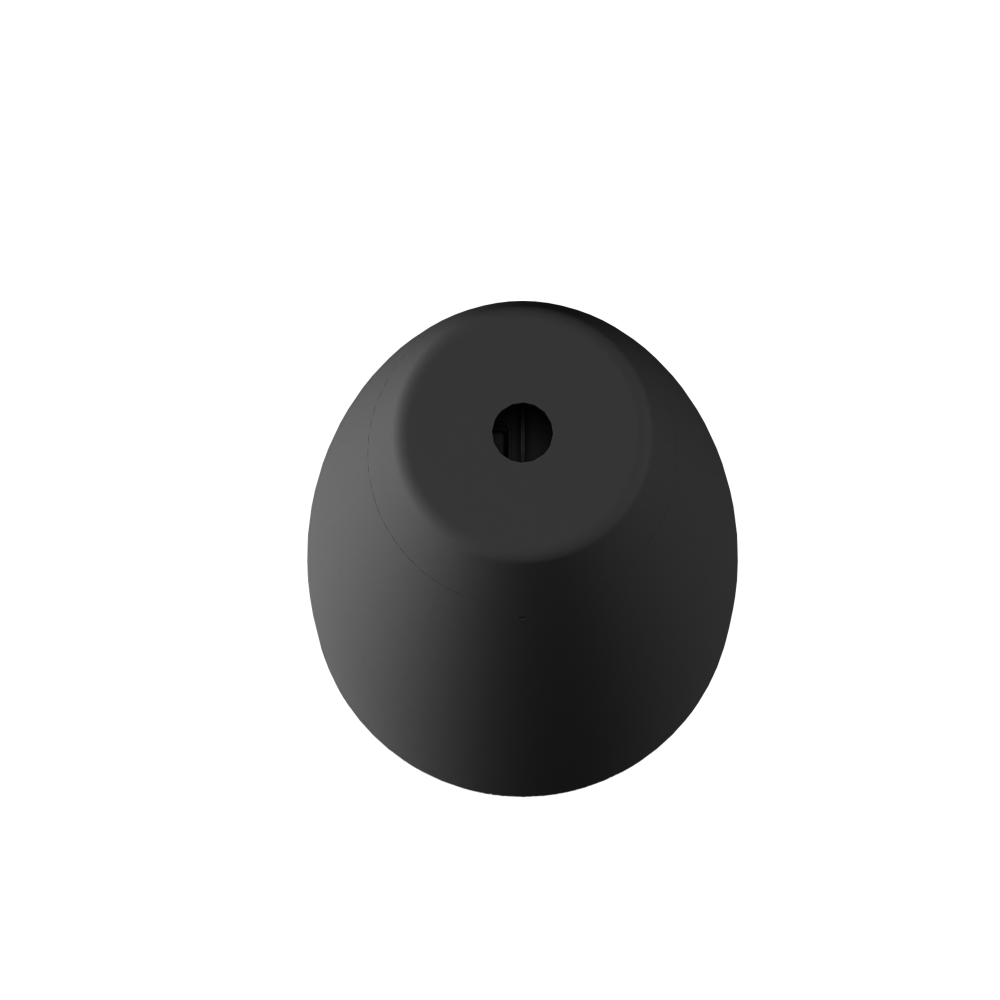

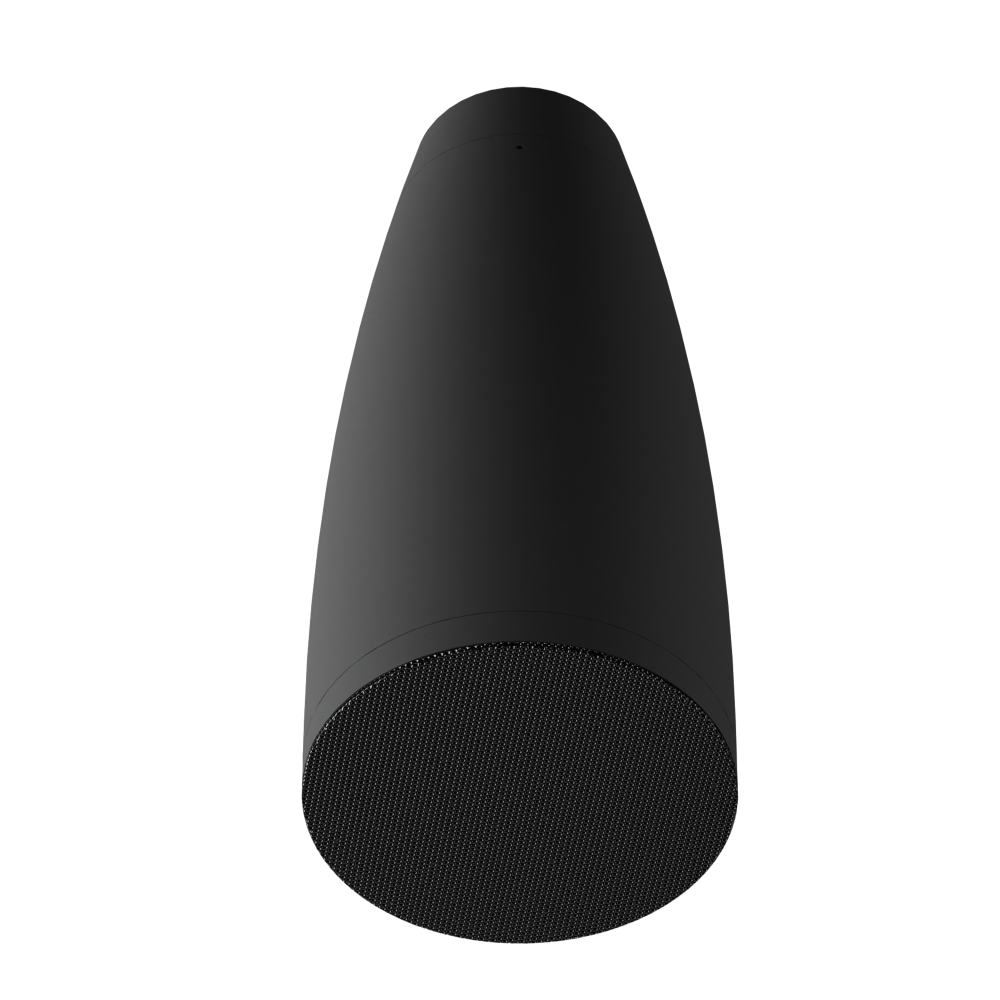

PS-P85T
Professional Series

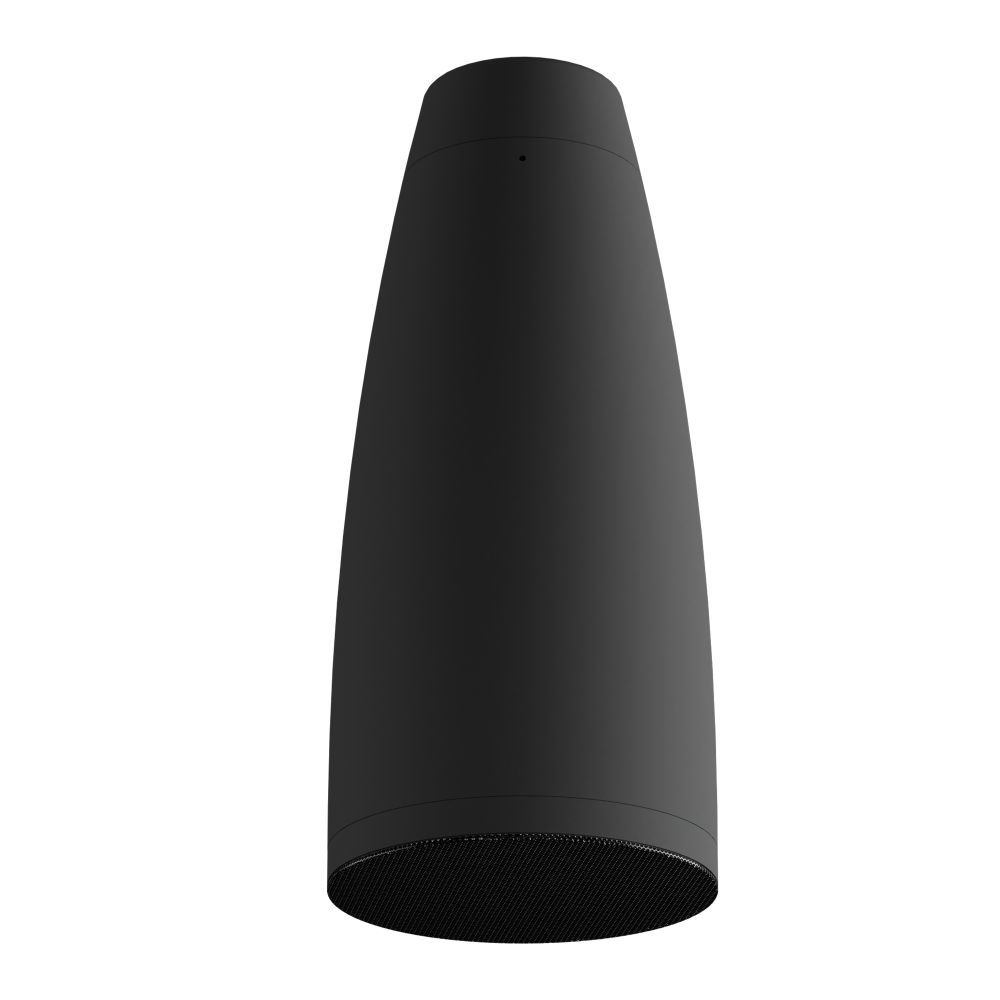

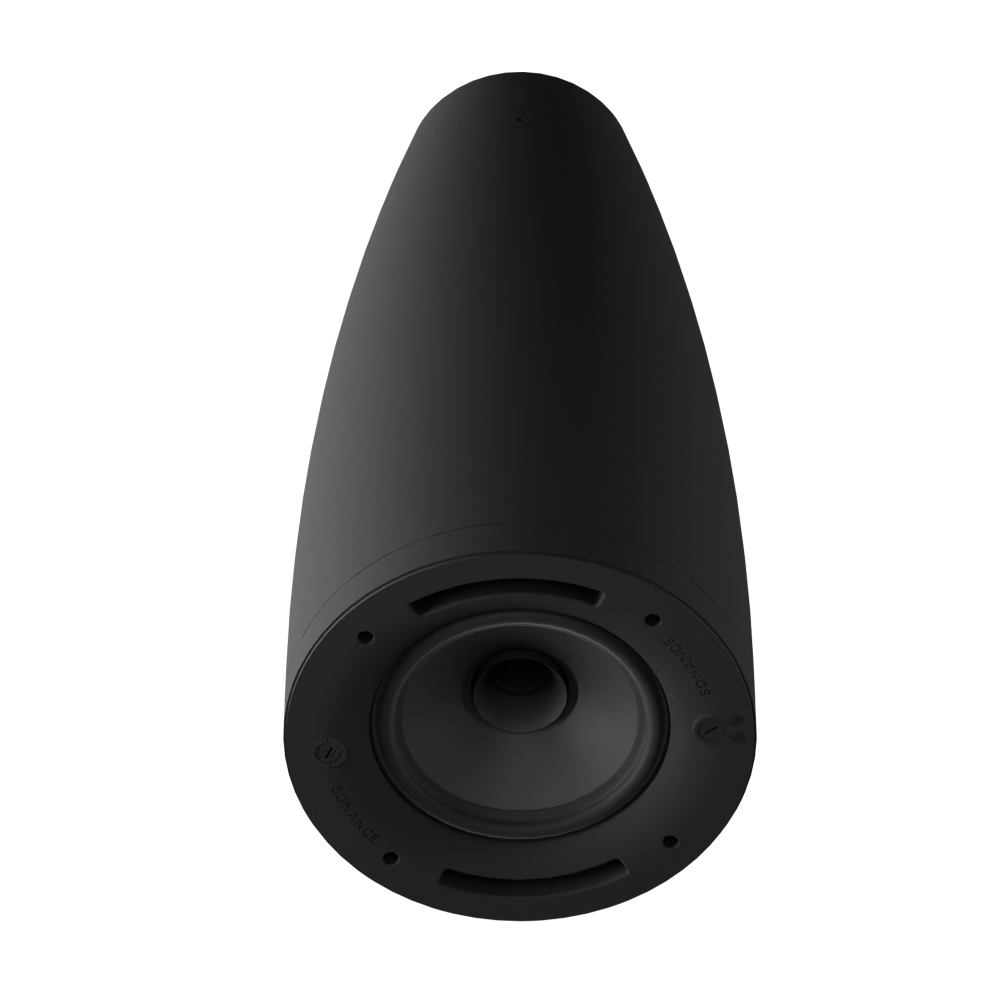

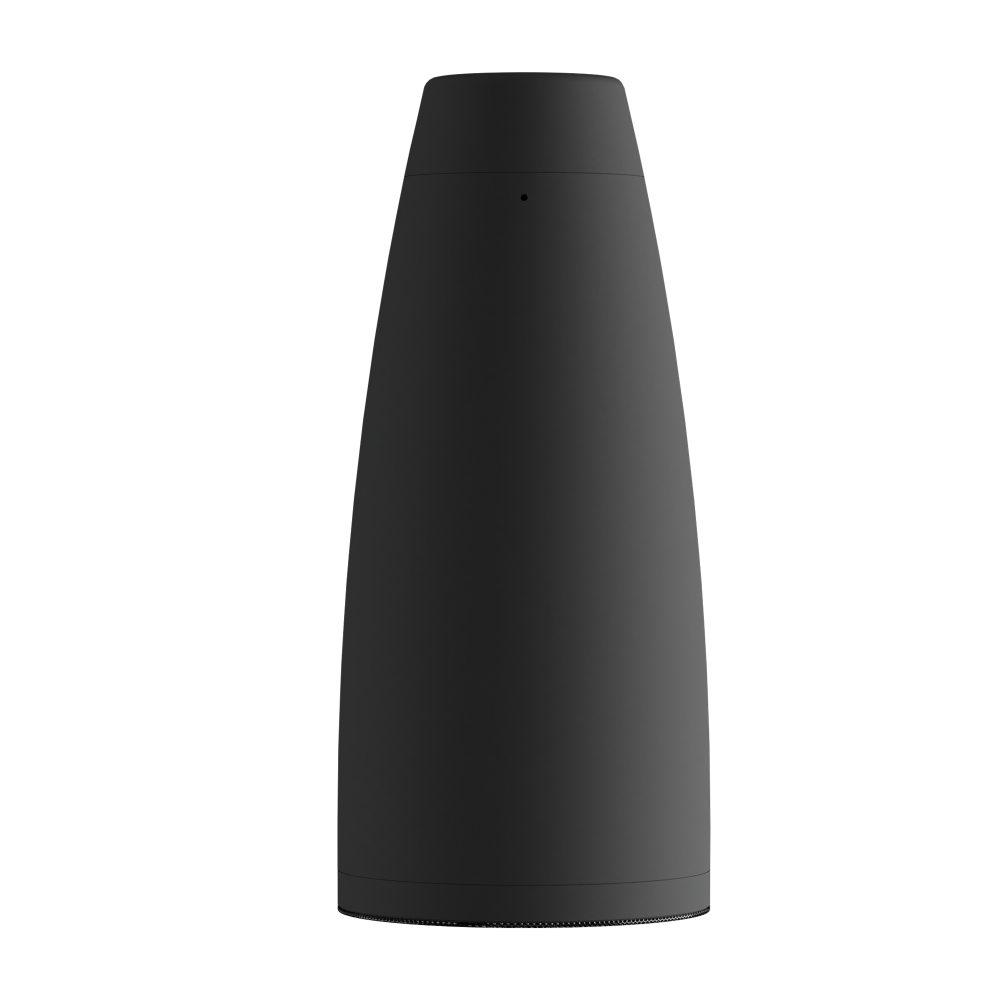

The PS-P85T is a high-output pendant loudspeaker for professional commercial installations. Sharing the same 8" aluminum cone driver and neodymium compression driver platform as the PS-C85RT, it delivers 88dB sensitivity and selectable 120°/80° dispersion with full 70V/100V transformer compatibility.
Explore the full high-output family here.
Explore the full high-output family here.
Key Features
- Field-selectable 120° or 80° dispersion coverage

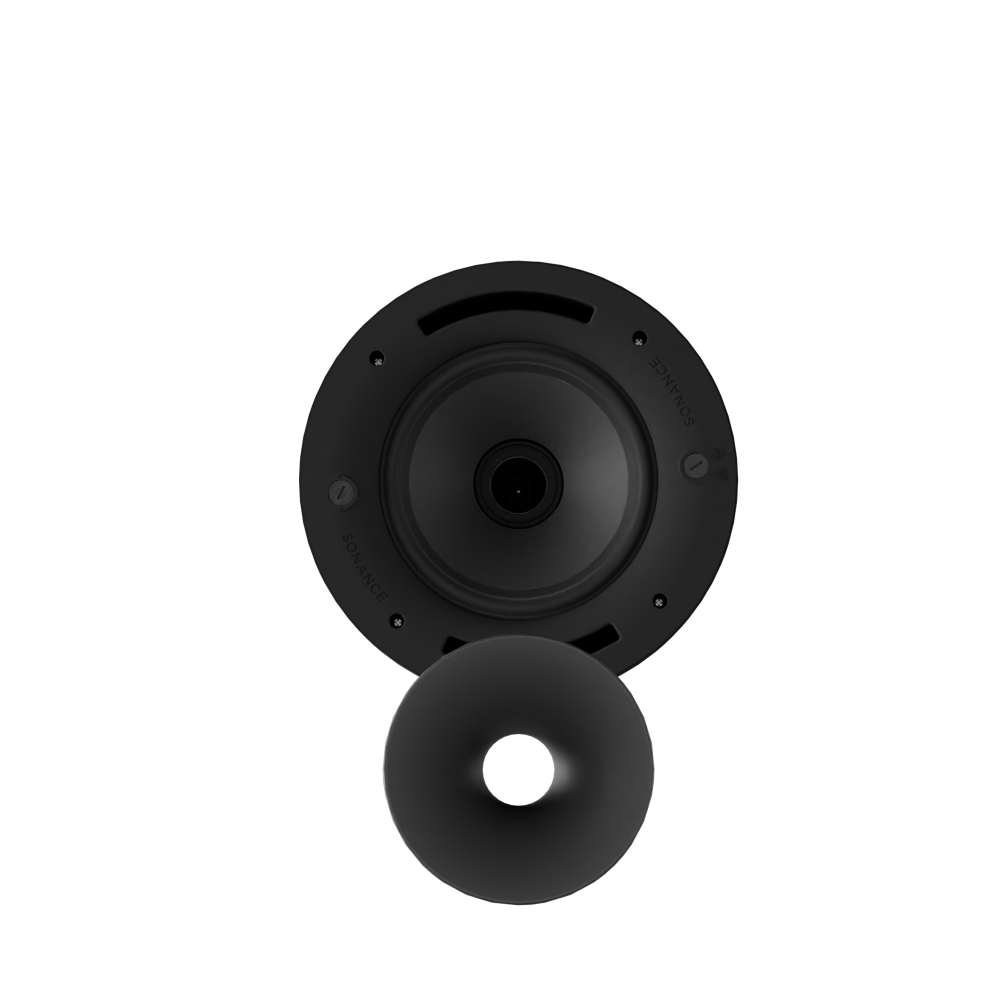

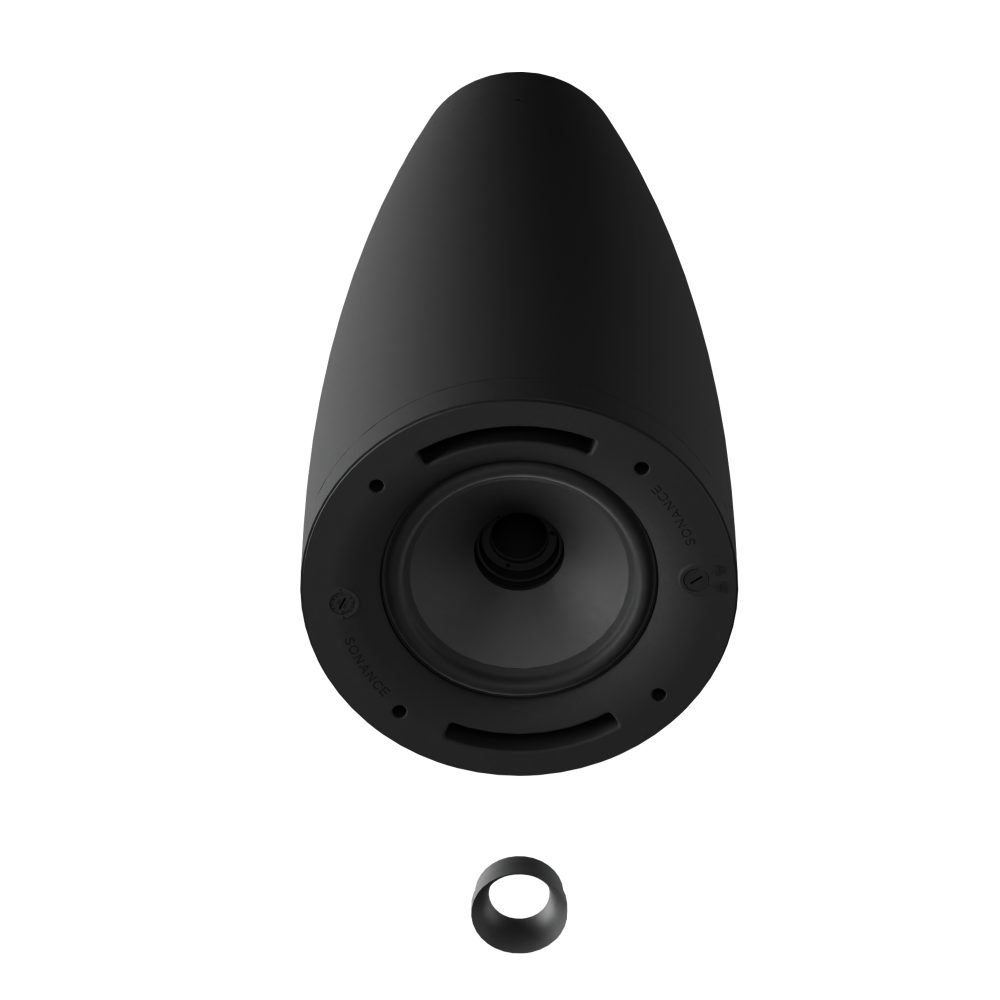

- Horn and collar assembly ships in-box; field-adjustable
- 1.4" compression driver engineered for high-SPL commercial environments
- Extended low-frequency response
- Integrated 70V/100V transformer, 120W max tap
- Part of a complete High Output form factor family
Specifications
SKU | Color

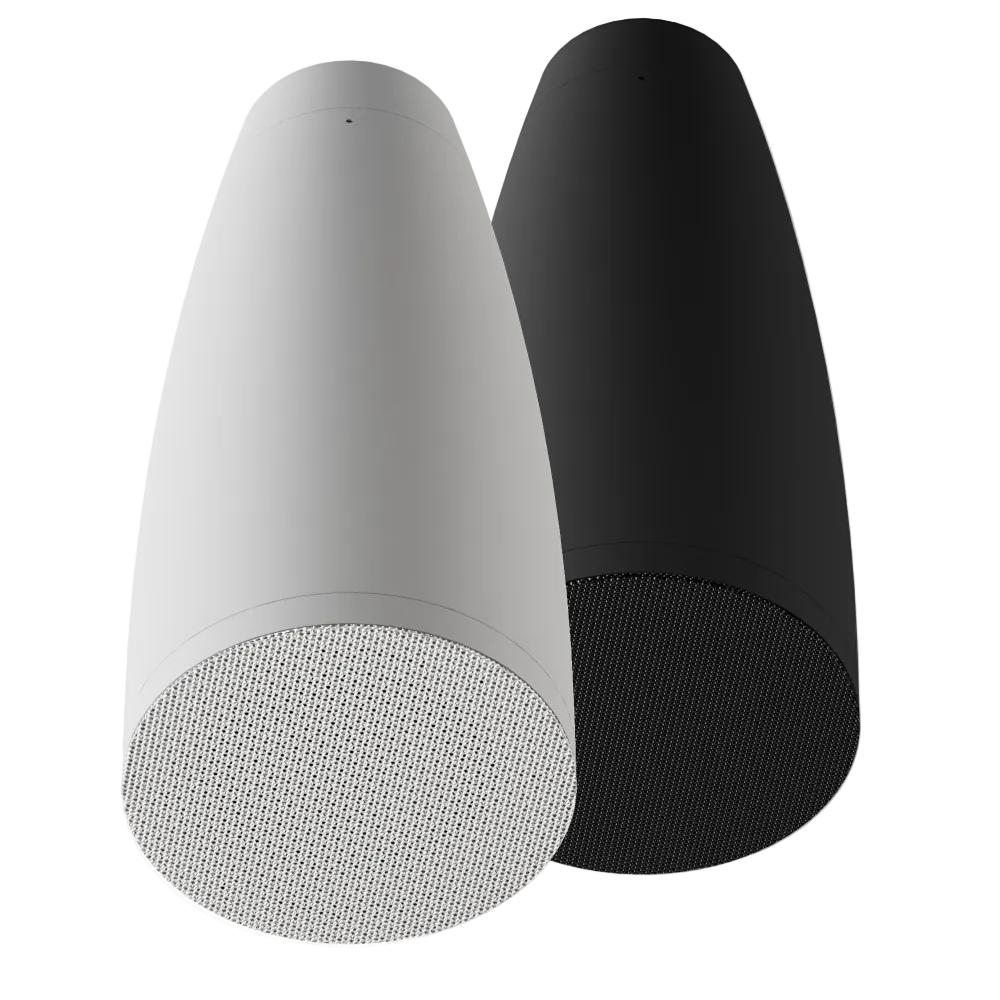

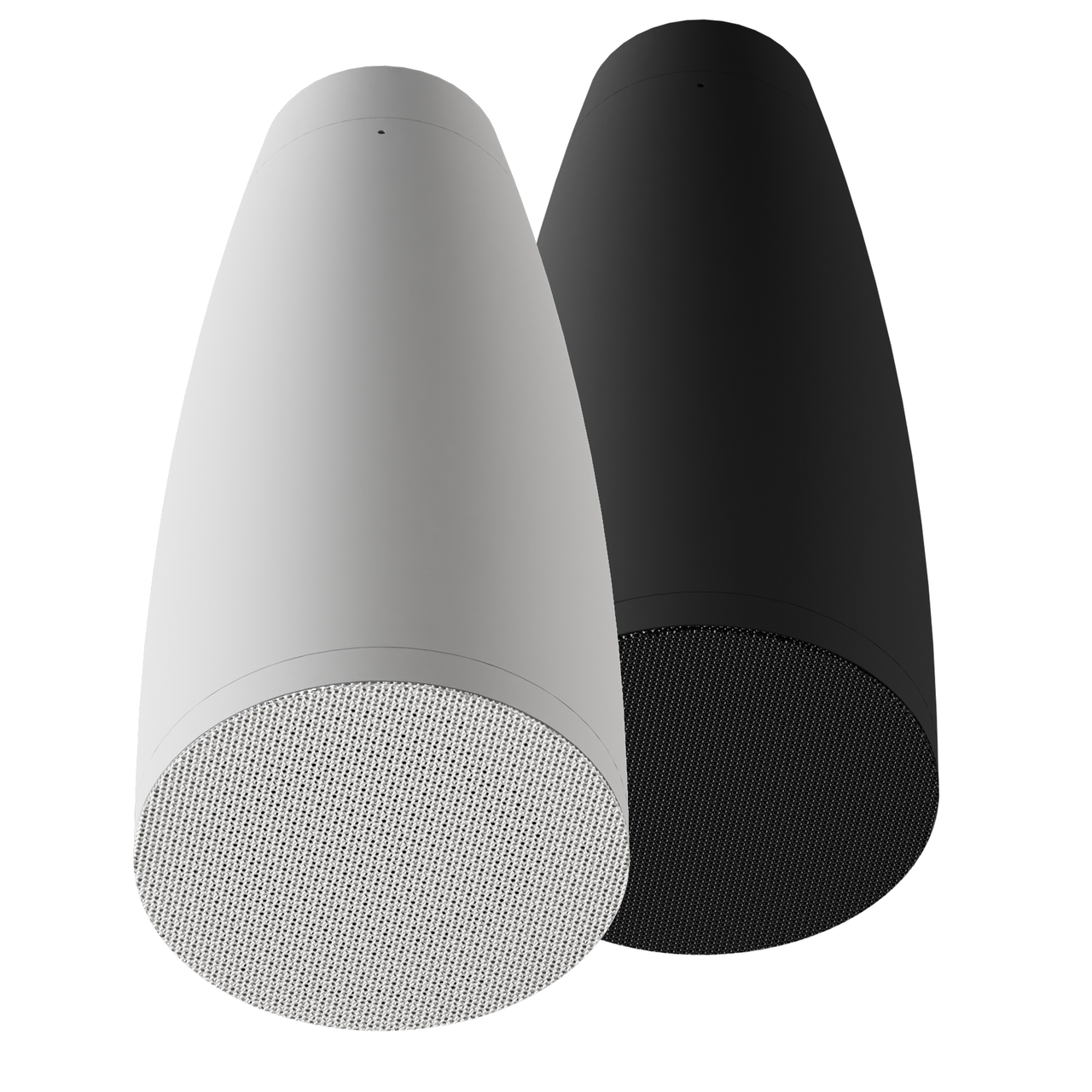

40234 (Black - RAL 7021), 40233 (White - RAL 9003)
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymiu...
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts (600 watts peak), 100 hours
Sensitivity
88dB SPL
Enclosure
Polypropylene plastic (UL94V-0)
Rated Maximum SPL
109dB, 115dB peak
Nominal Impedance (Ohms)
8 ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (Diameter x D)
11.17" x 24.69" (283.72mm x 627.13mm)
Weight
23.55 lbs. (10.68kg)

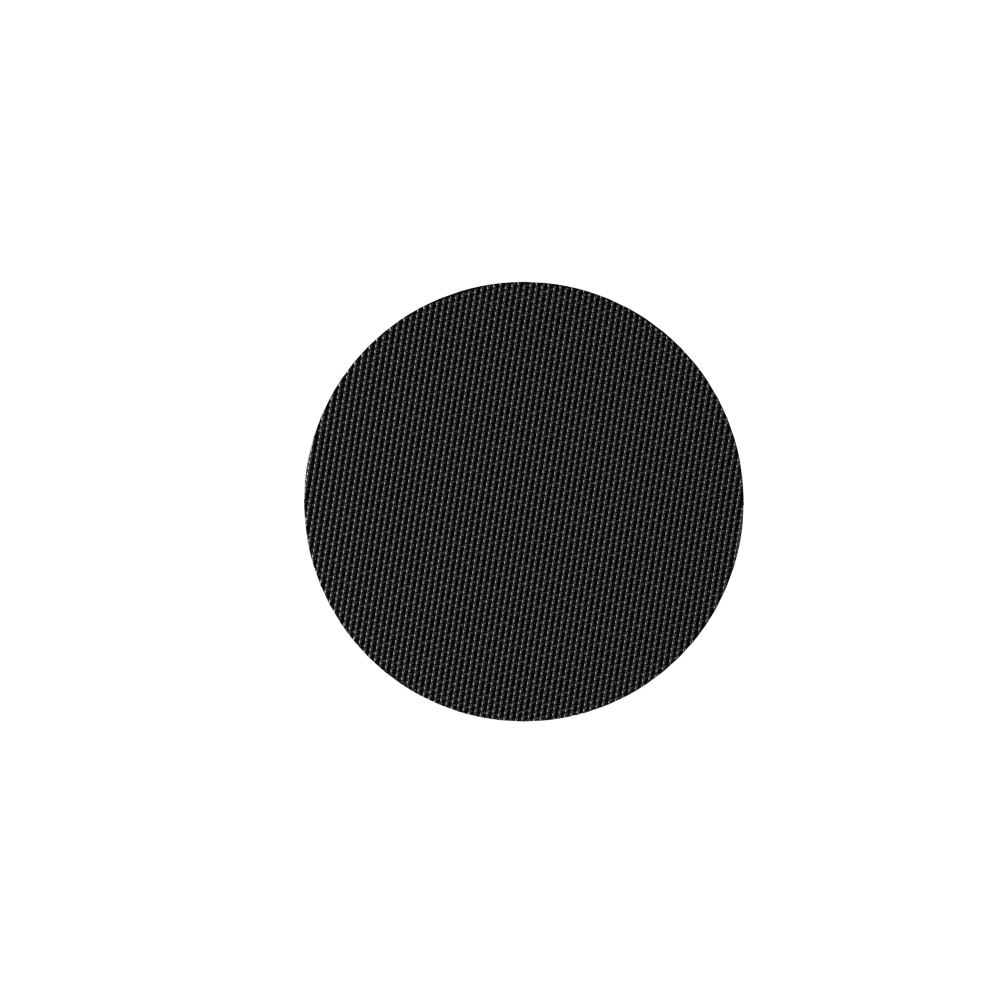

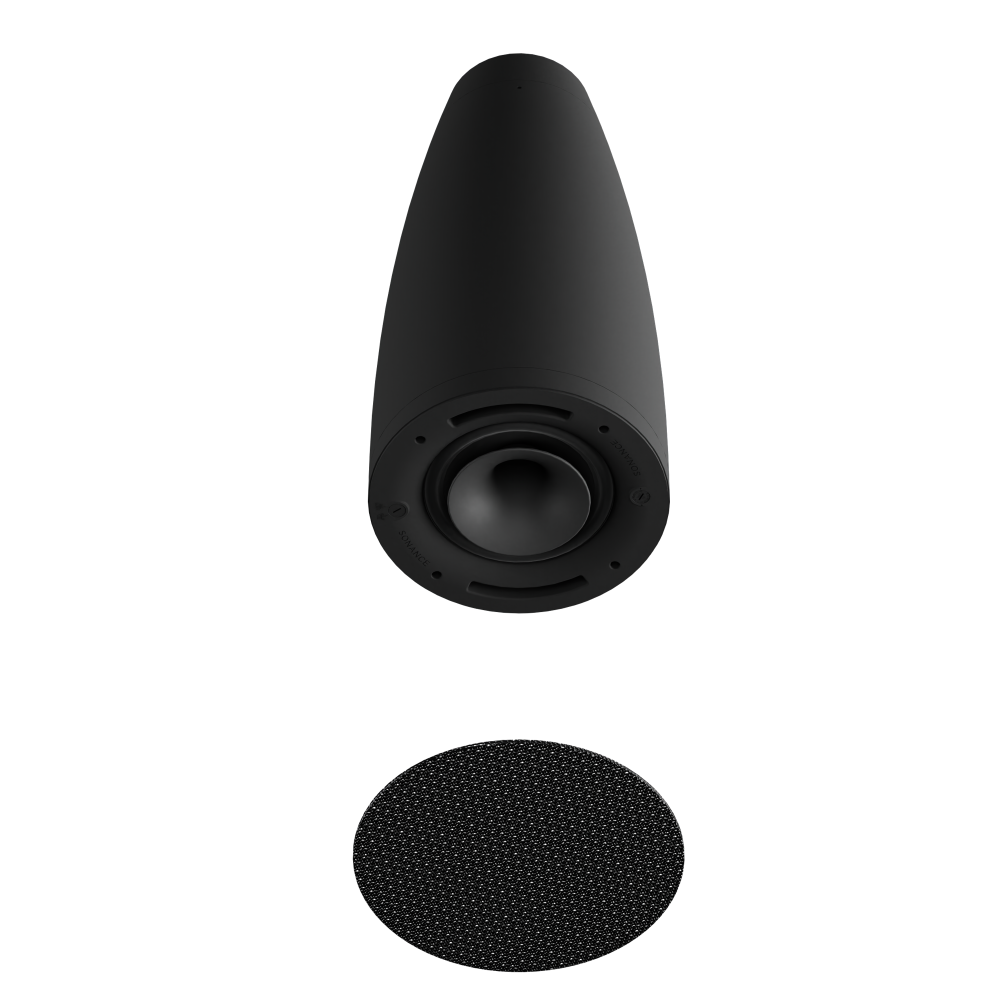

Grille
Steel
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480A;CSA-C22.2 No.205;NFPA70;NFPA 90A

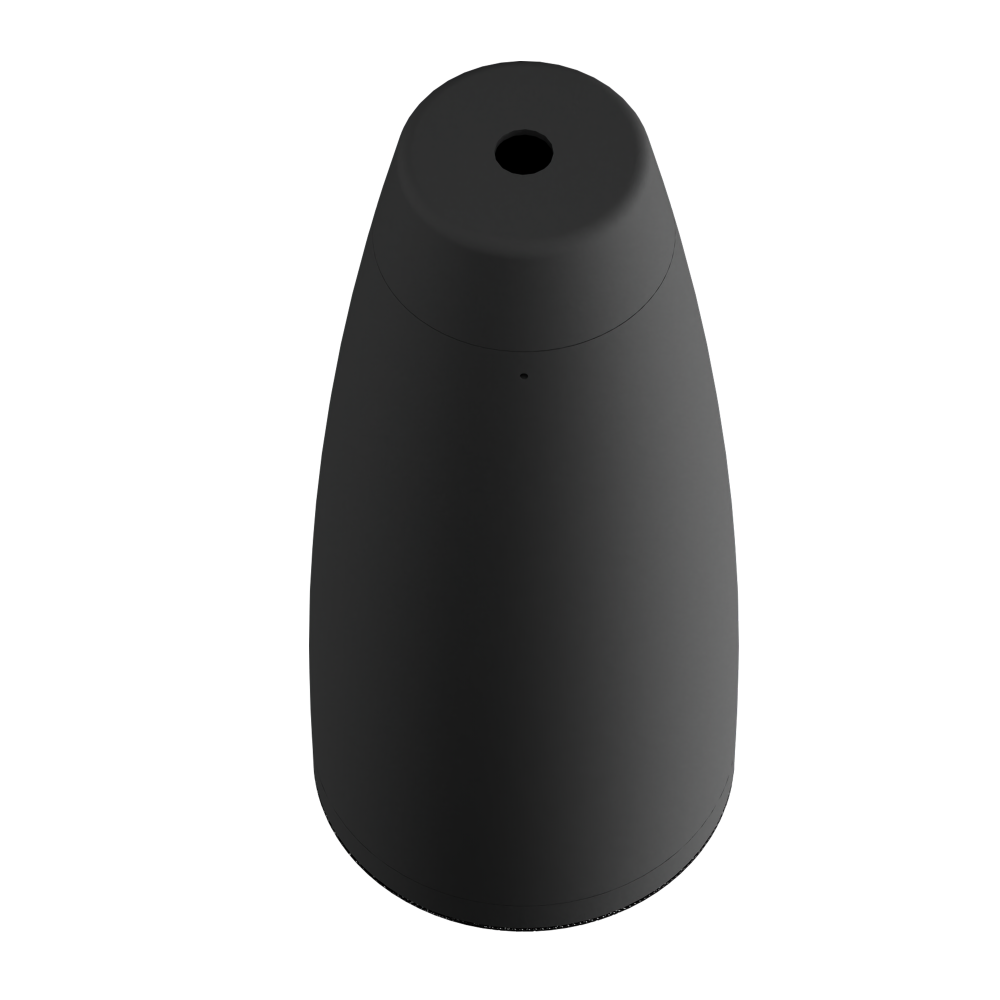

Suspension Points
Back
Maximum SPL (Peak)
115dB peak
Architectural Specifications
The loudspeaker shall be of the two-way type comprising a single pendant mount enclosure containi...
