Invisible Series
QX-SPL Soundbars

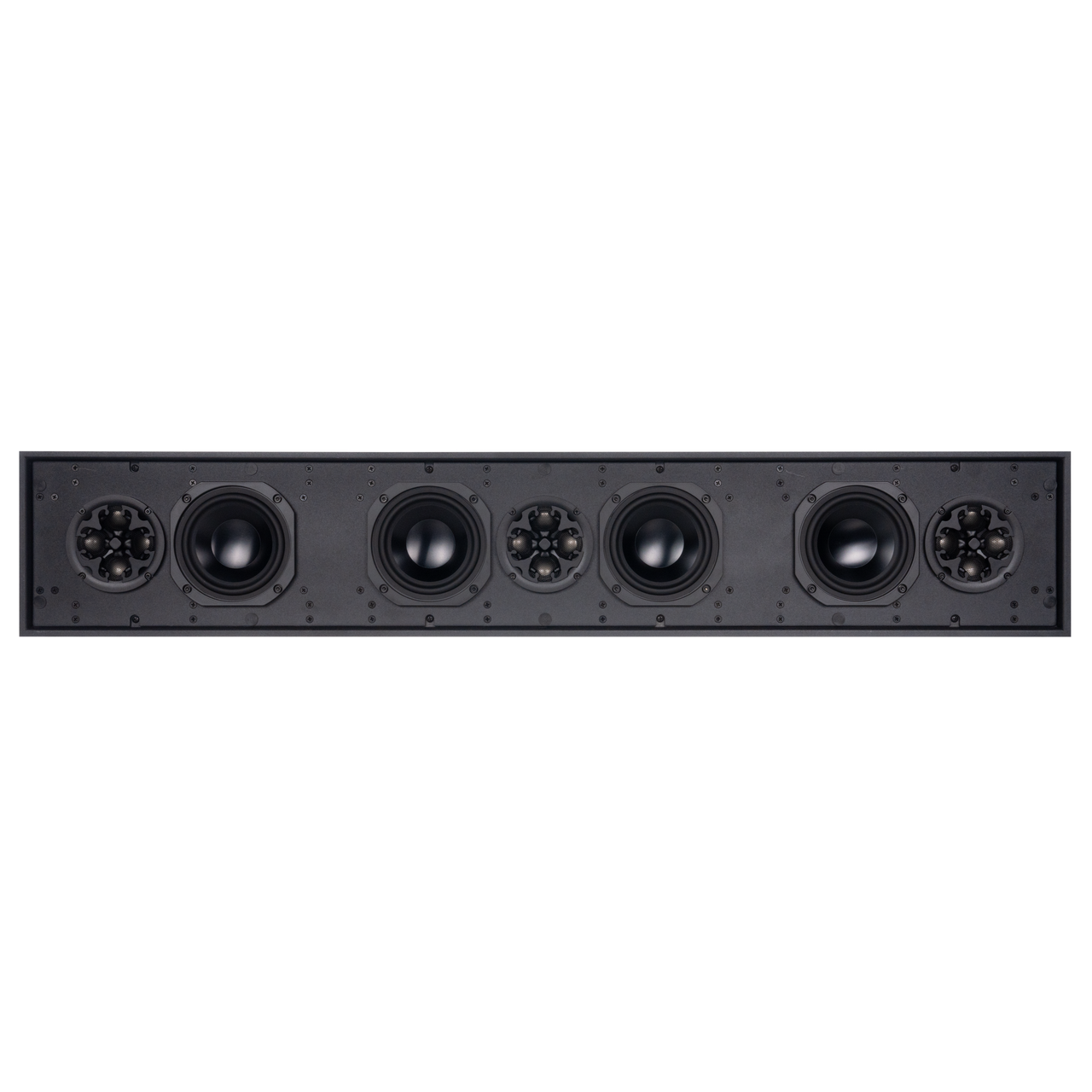

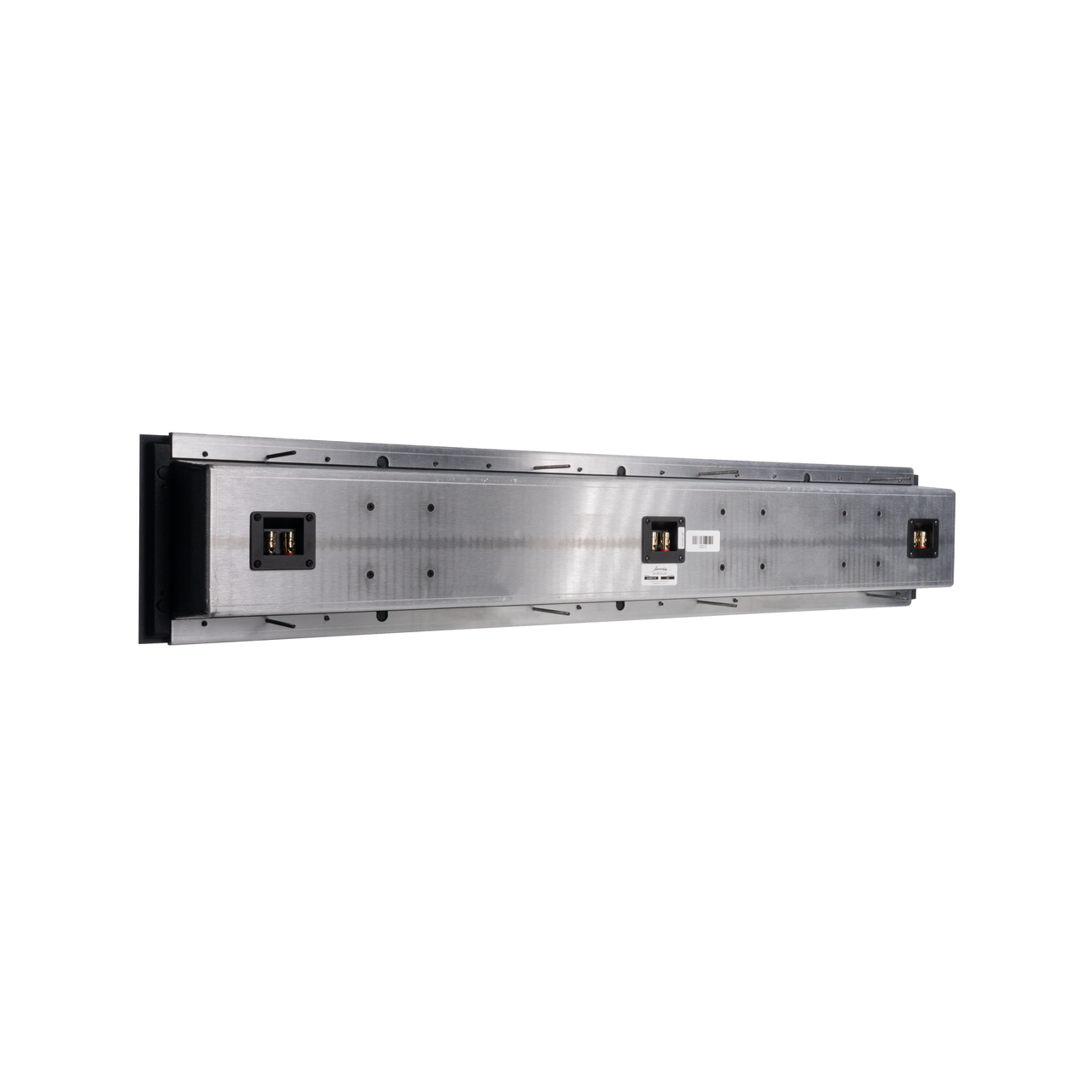

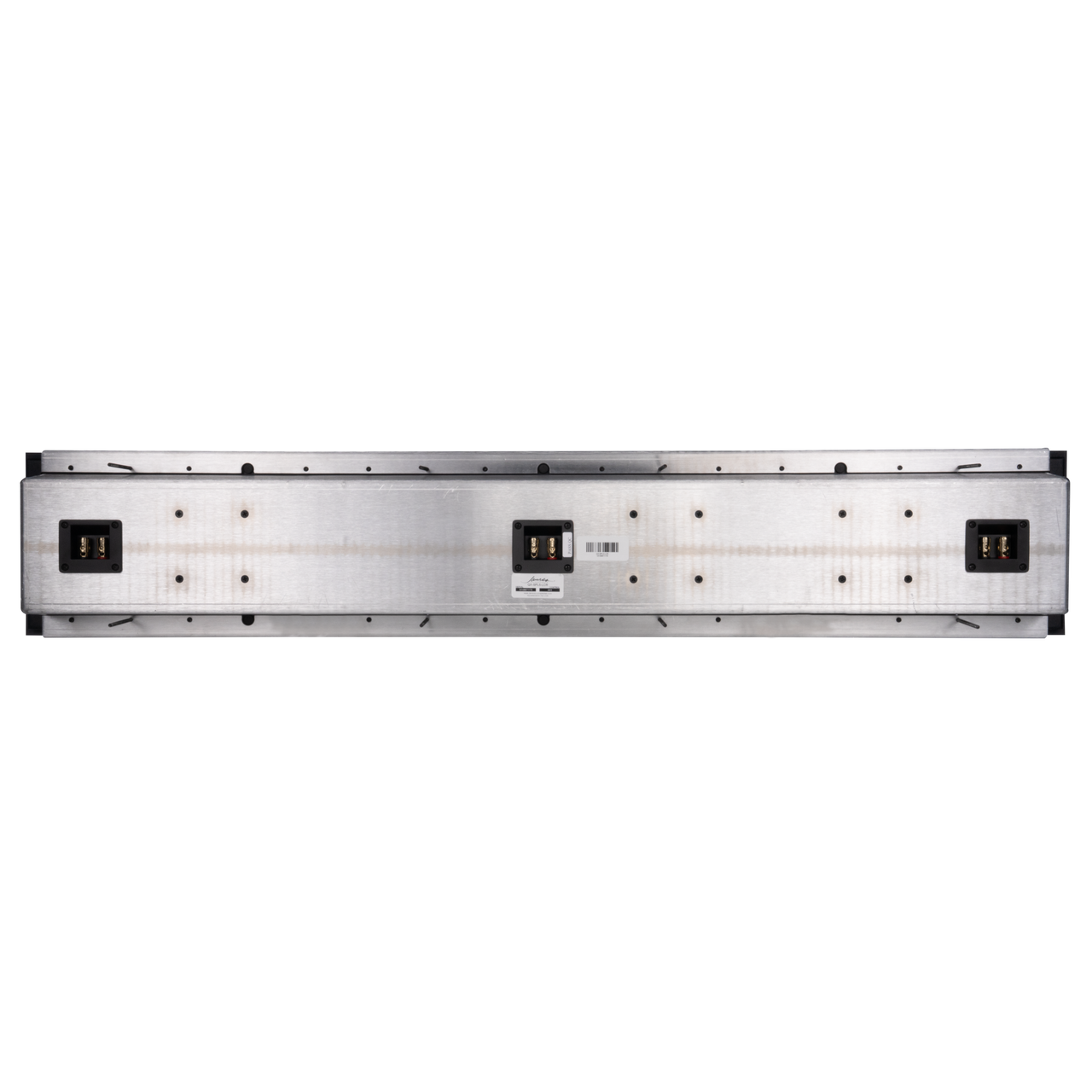

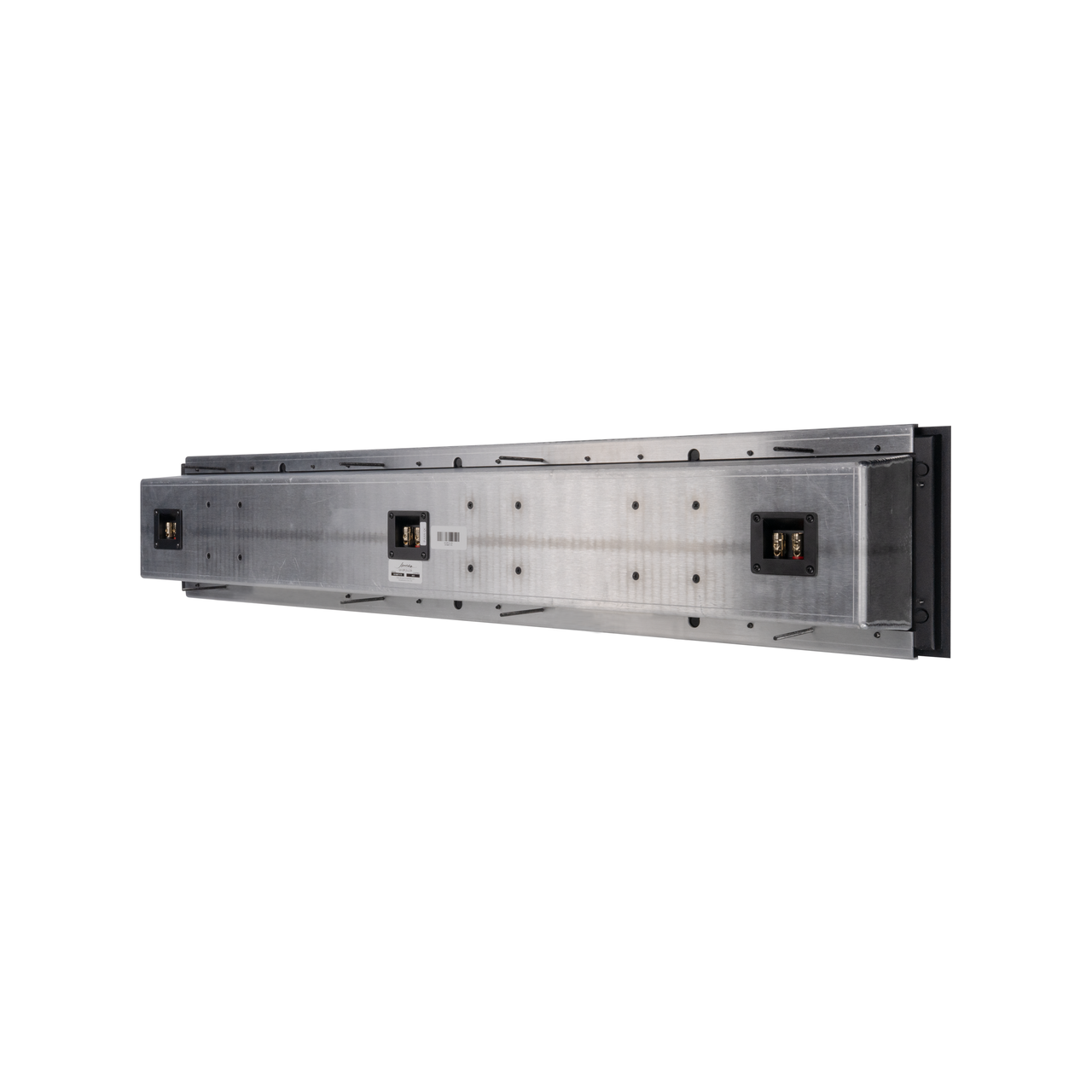

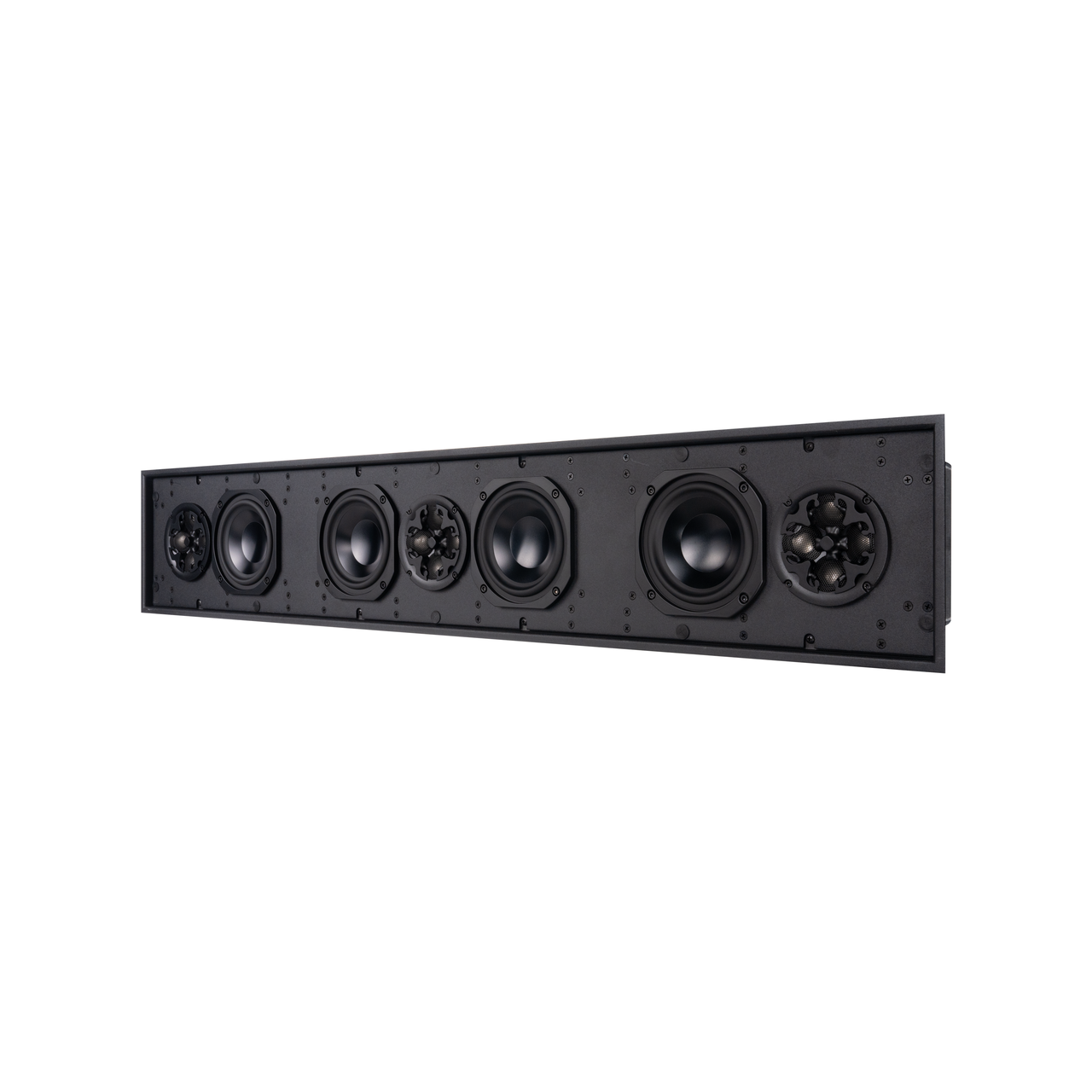

QX-SPL5QT
QX-SPL5QT
Soundbar

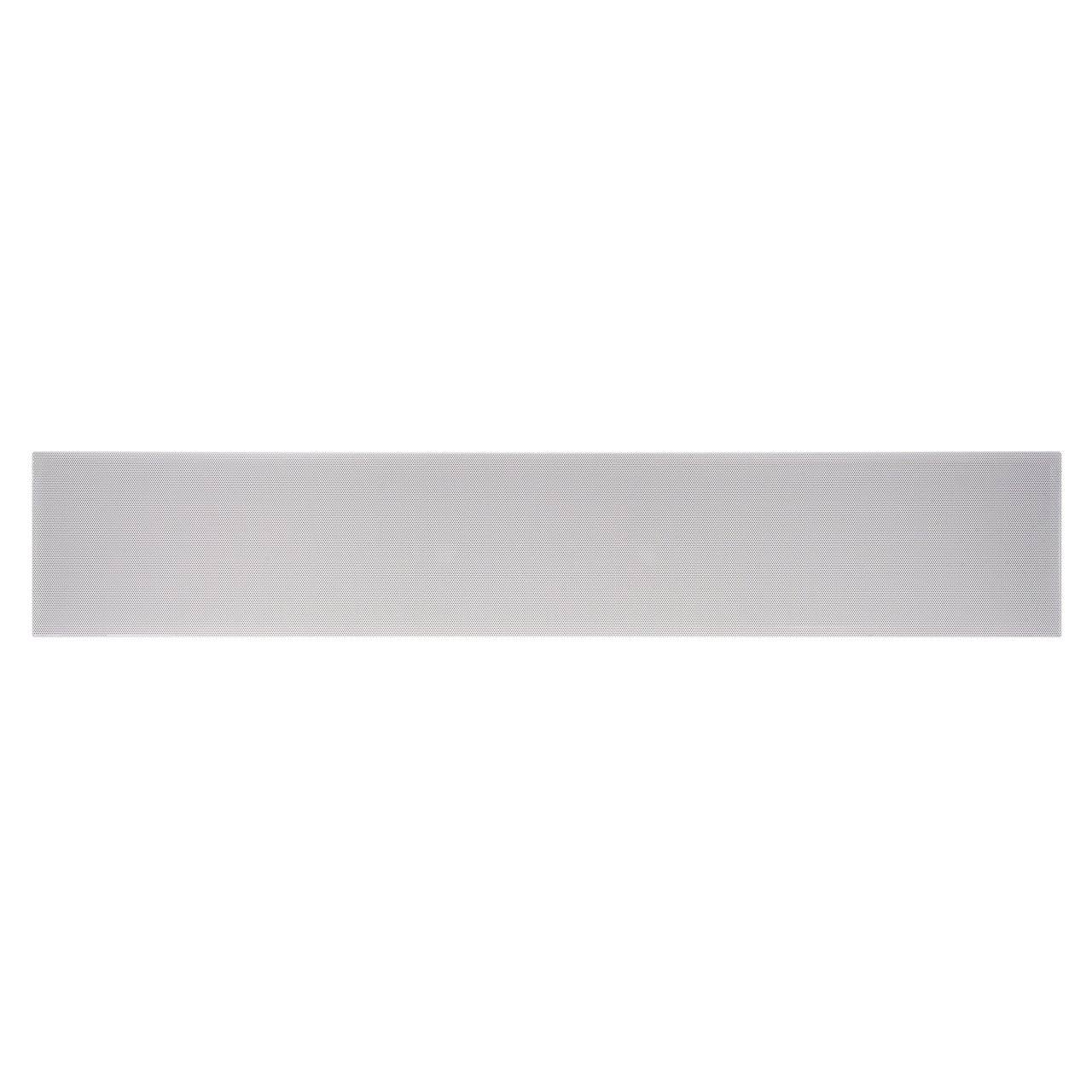

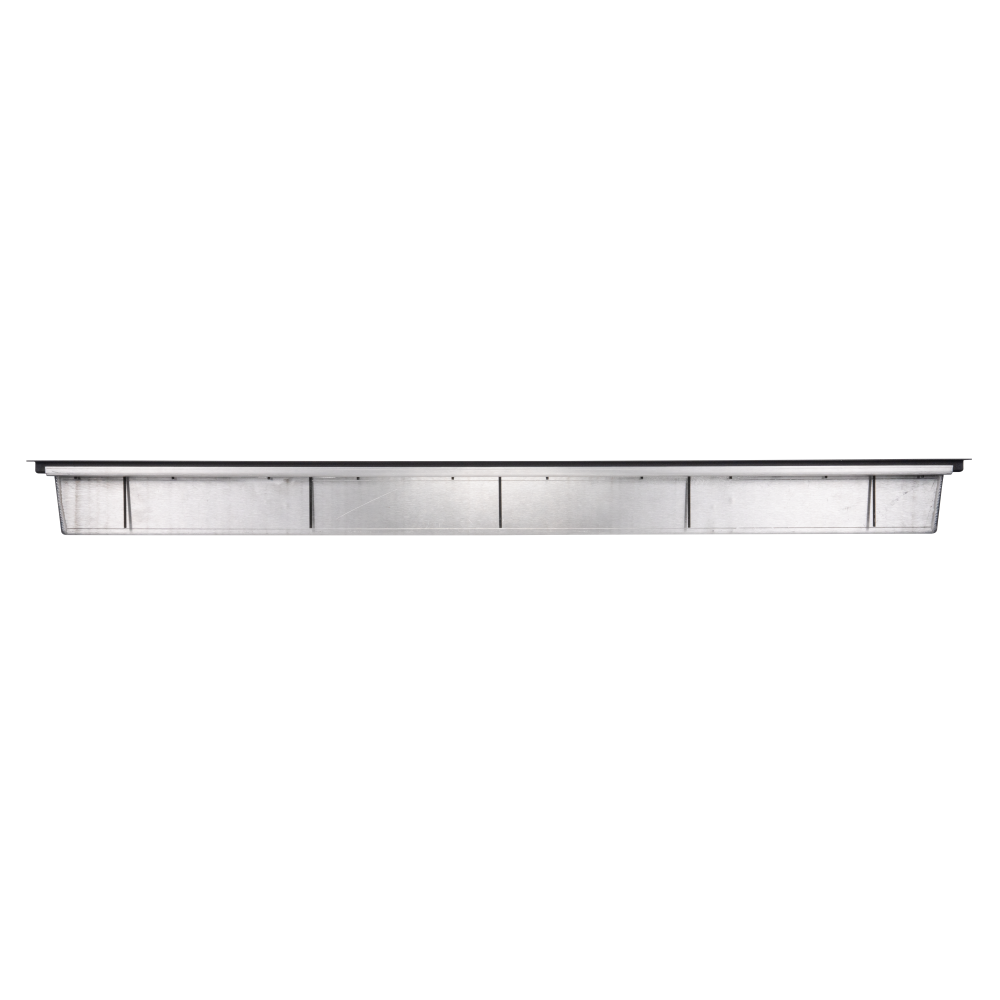

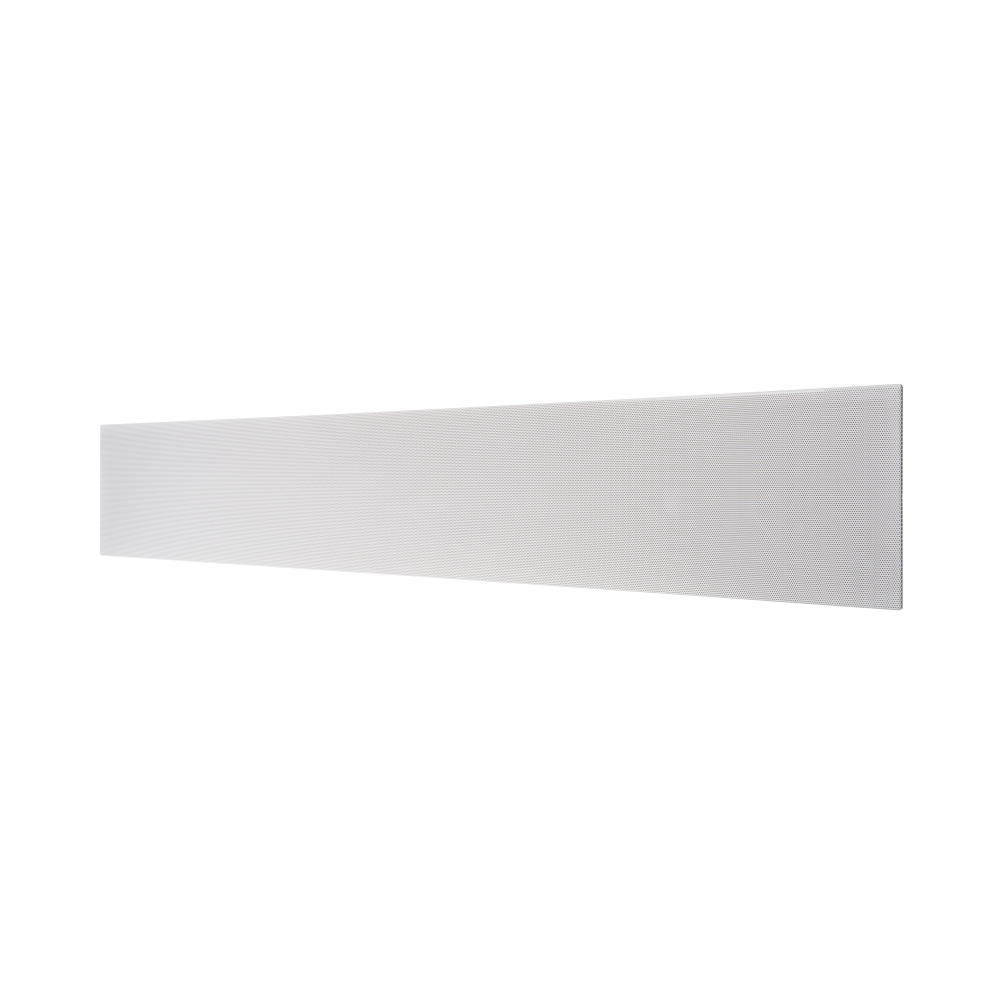

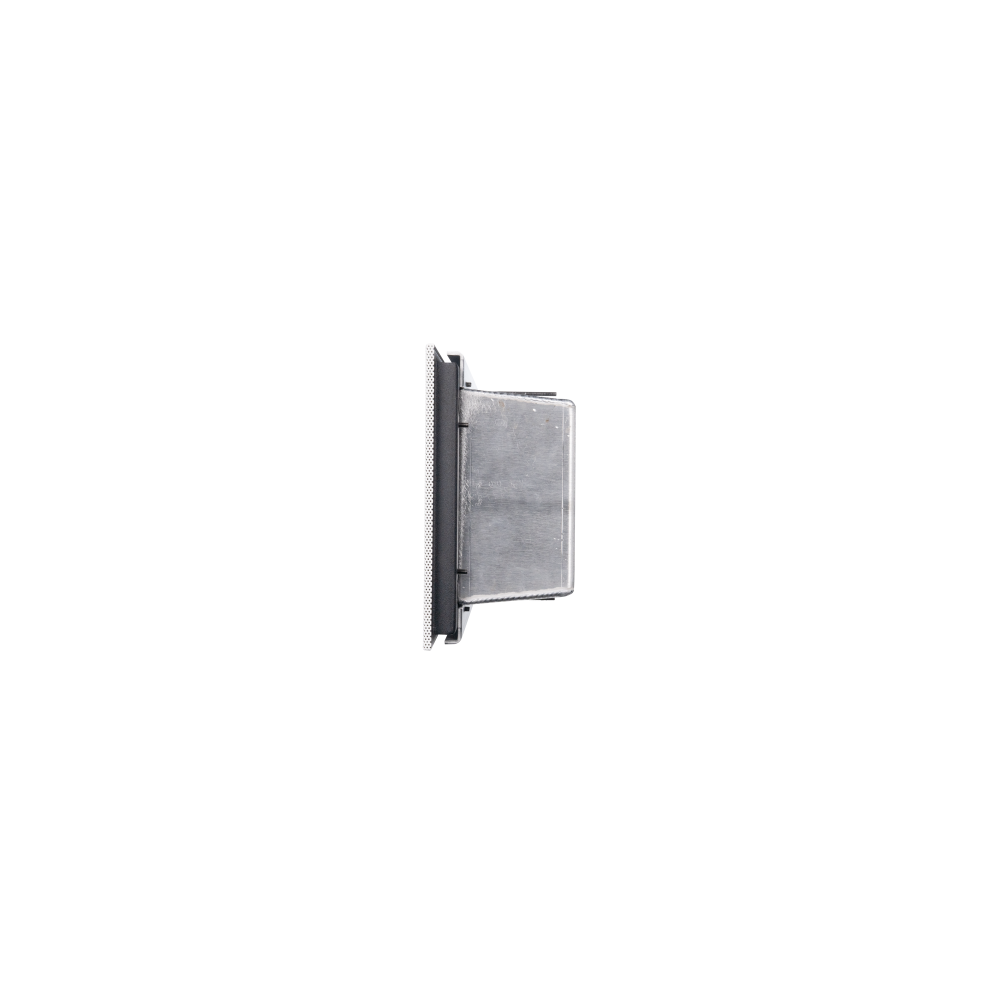

QX-SPL soundbars are designed to install into the wall surface. The SPL soundbar can be flush mounted with a trimless grille or installed with a traditional grille that sits proud of the surface. May require framing to fit across stud bays.
Key Features
- Available in Center Channel, LR, LR + Subwoofer, or LCR configurations.
- Built-to-order based on application and configuration to perfectly match TV size
- In-wall design with customizable grille
- Quadratech tweeter technolog
- Available in stereo, left-right-center, left-right-sub, center, or split into pairs with centergy technology
- Built and assembled in Minden, Nevada
- TAA Compliant
Specifications
SKU
QX-SPL
Speaker Tweeter
0.75" (19mm) Aluminum Quadratech
Speaker Woofer
5.25" (132mm) Aluminum
Frequency Response (+/- 3db)
65Hz - 24kHz
Power Handling (RMS)
25 watts minimum; 100 watts maximum
Sensitivity
89dB (2.83V/1m)
Enclosure
Aircraft Grade Aluminum
Nominal Impedance (Ohms)
8 ohms (Woofer Quantity Dependent)

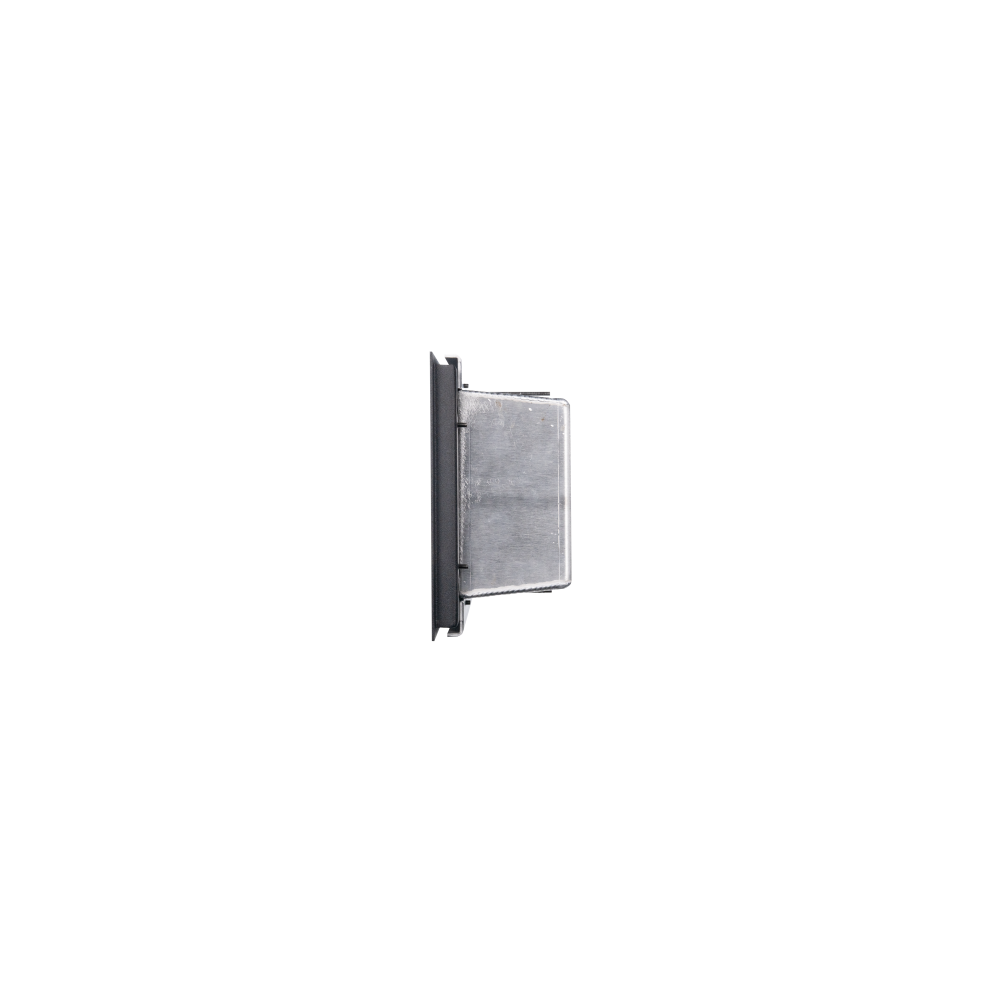

Mounting Depth
3.962" (100.63mm)
