PS-S210SUBT
PS-S210SUBT
Professional Series
The PS-S210SUBT is a dual 10" bandpass subwoofer with an ultra-shallow design, ideal for specialty commercial applications. It can be mounted under booths, banquettes, stages, rafters, walls, or ceilings, providing flexible installation options for high-quality bass performance in diverse environments.

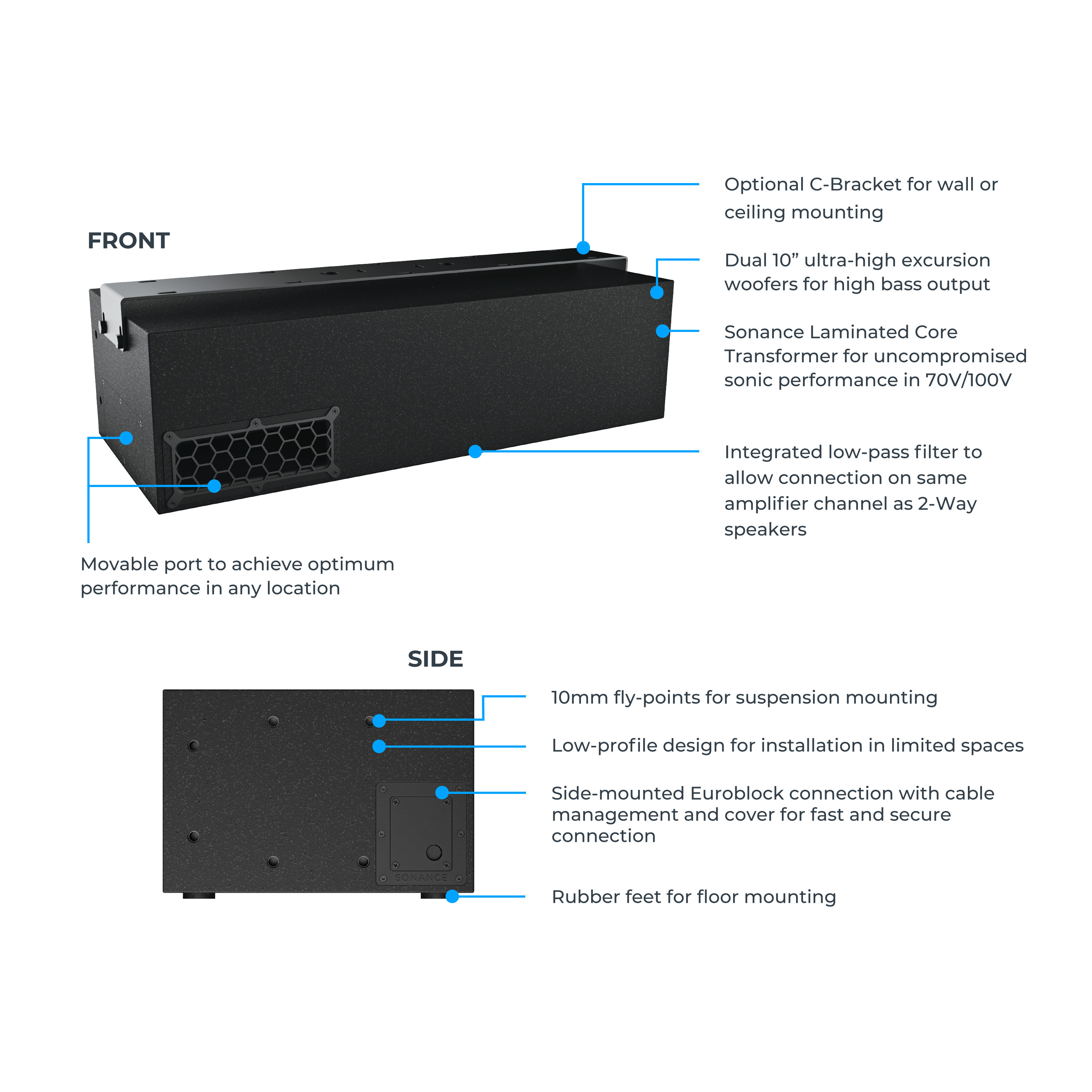

Key Features
- PS-S210SUBT features dual 10” drivers in a band pass design to deliver excellent bass augmentation at any volume
- Low profile dual 10" subwoofer form-factor to go under banquets, booths, furniture with supplied feet
- Optional C-Bracket for mounting on rafters, walls or ceilings for mounted subwoofer, or in-ceiling, pendant, or surface mounted for woofer options
- Port can be moved from front to side, ensuring optimum sonic performance in any location
- Sonance Laminated Core Transformer (SLCT) for full-fidelity performance in 70V/100V
- Built-in low pass filter allows the product to run on the same amplifier channel as other speakers
- Removable grille to keep enclosure free of foreign objects
- Side connector cover with cable management for enhanced reliability
Specifications
SKU | Color
40192 (Black)
LF Driver
Dual 10" woven glass fiber cones Butyl rubber surrounds
Frequency Response (+/- 10db)
34Hz - 155Hz
Frequency Response (+/- 3db)
44Hz - 132Hz
Power Handling (RMS)
500 watts program, 300 watts pink noise
Sensitivity
94dB (2.83V/1m)
Rated Maximum SPL
121dB @ 1 meter (3.3 feet), 127dB peak
Transformer Taps
70 V 100V: 300W, 150W 70 V: 75W
Dimensions (WxHxD)
33.0" x 8.98" x 13.78" (838.2mm x 228.09mm x 350.01mm)
Weight
61 lbs. (27.67kg)
Input Connector
Four pin, Euroblock with loop output connections
Suspension Points
4 x M10 on two sides
Maximum SPL (Peak)
127dB peak
