Invisible Series
Bandpass Subwoofers

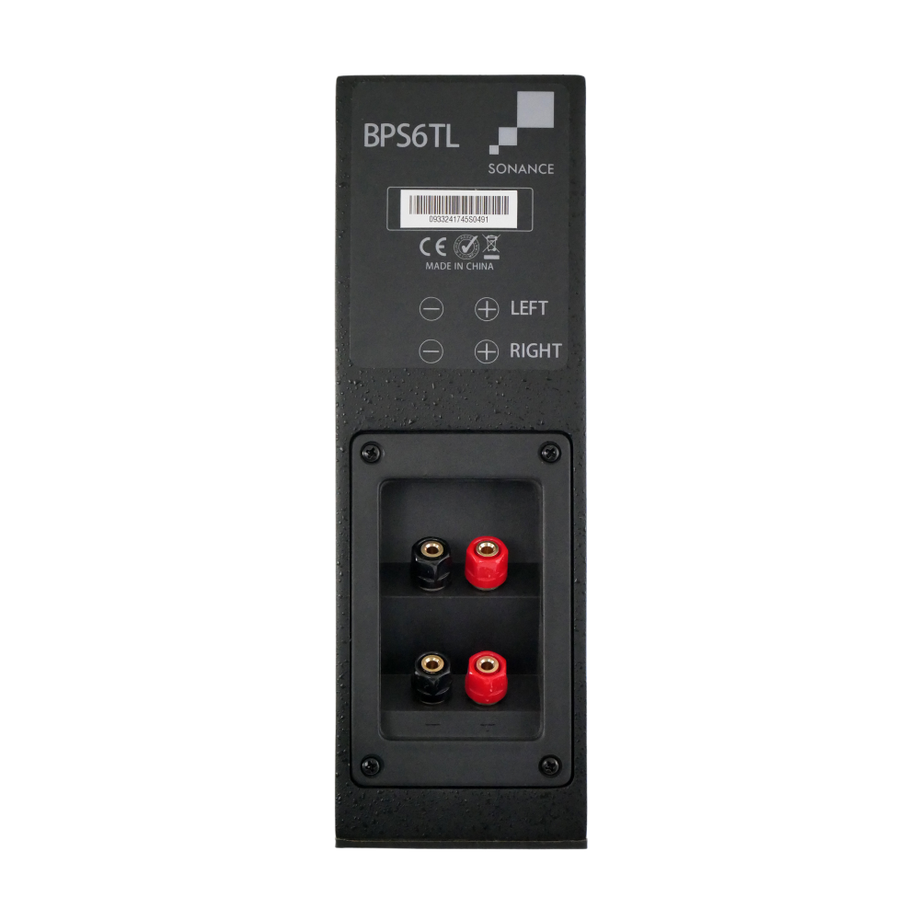

BPS6 TL
BPS6 TL
Architectural Series

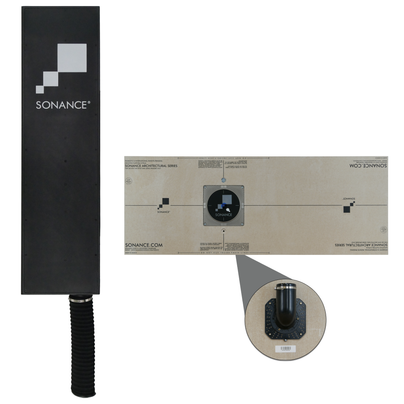

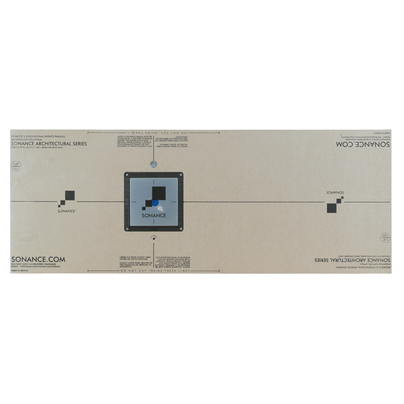

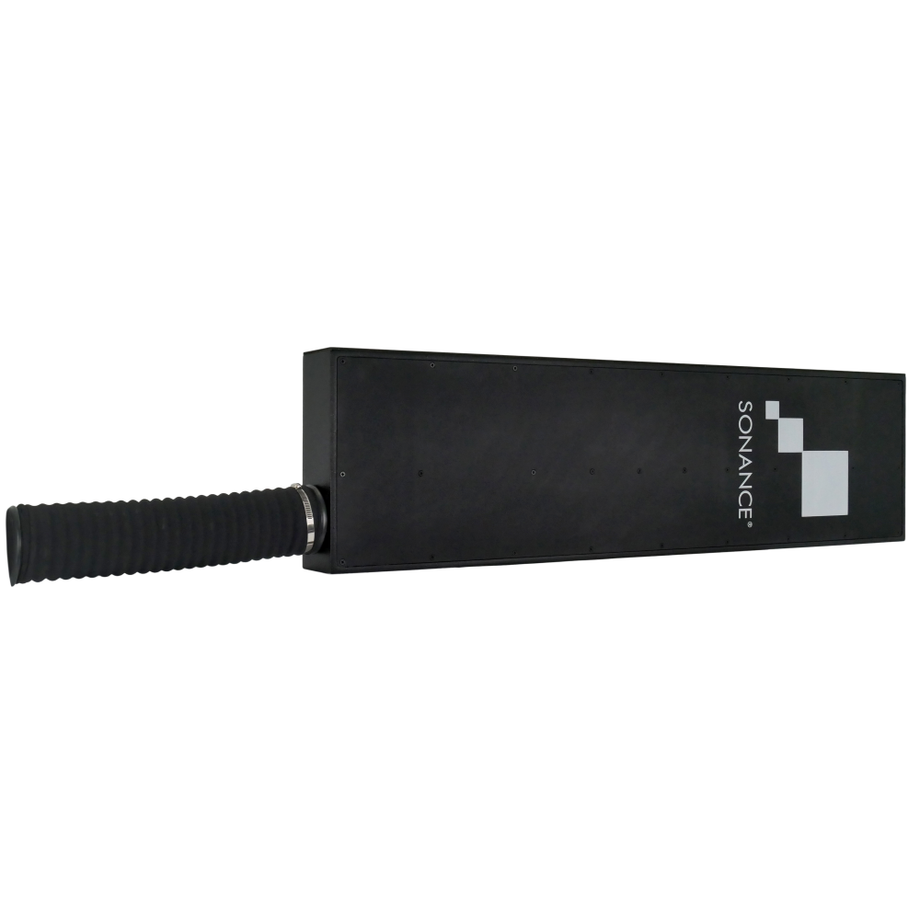

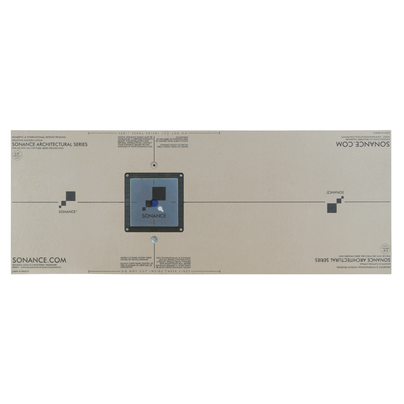

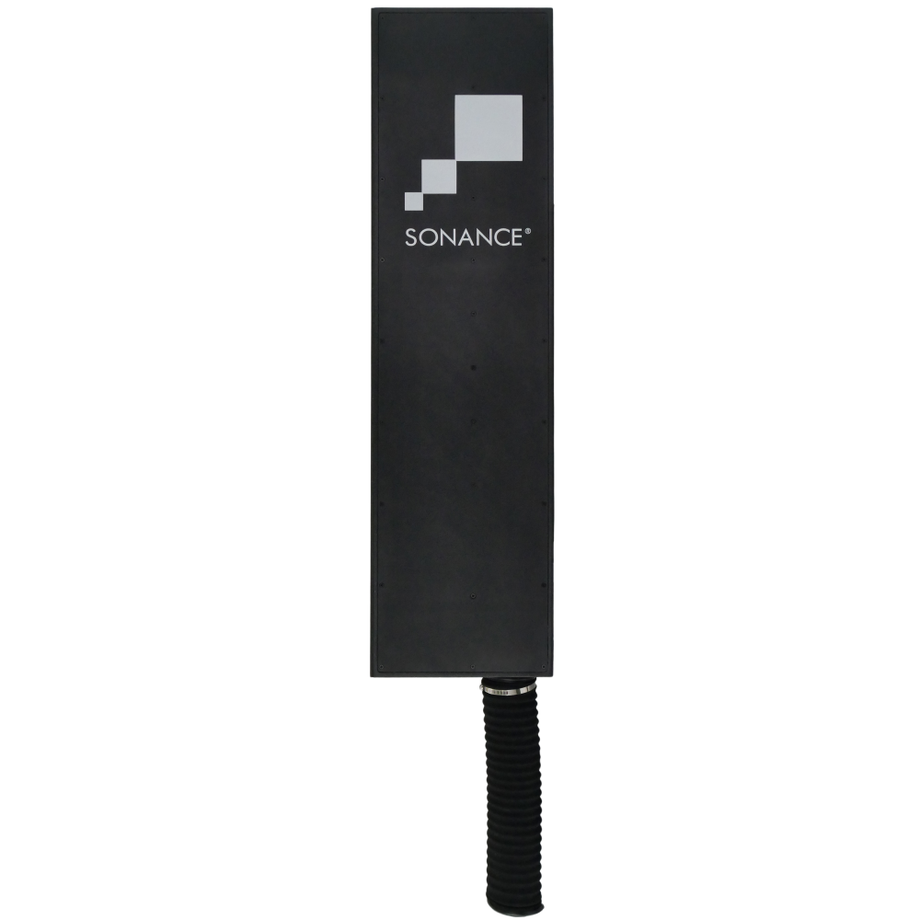

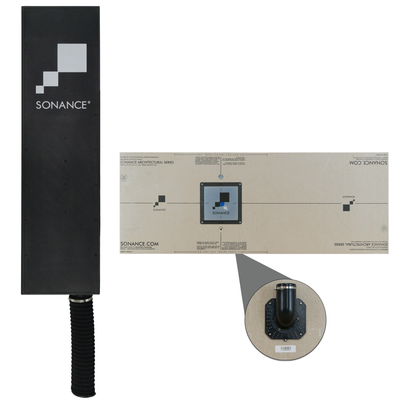

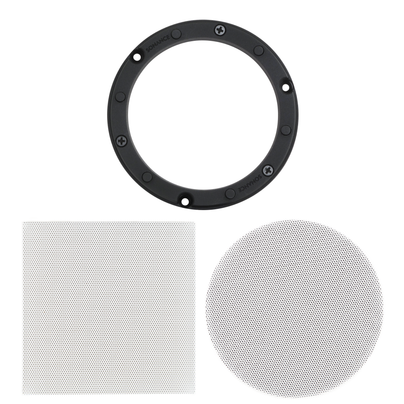

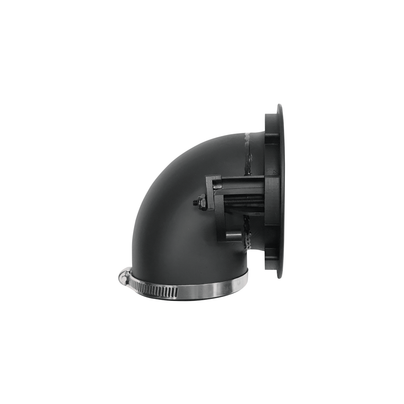

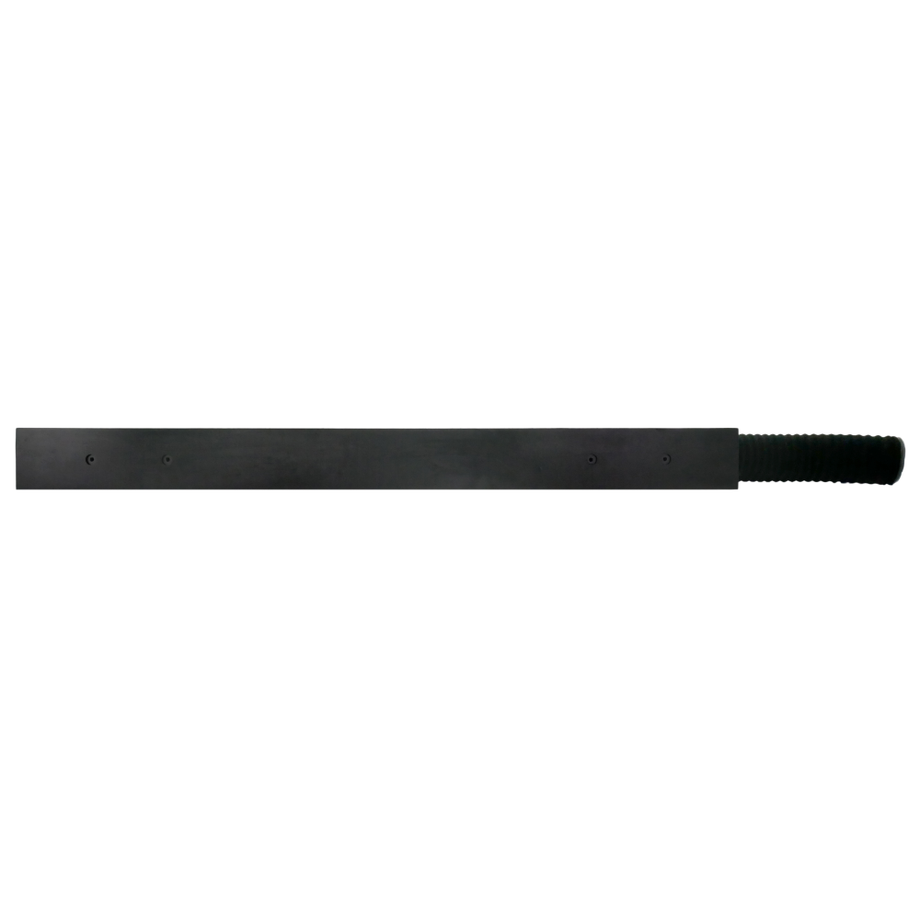

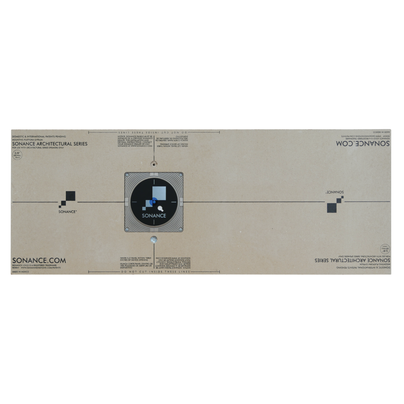

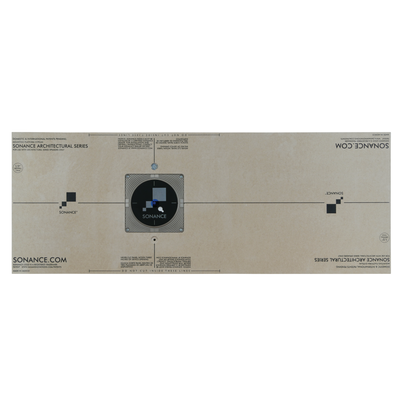

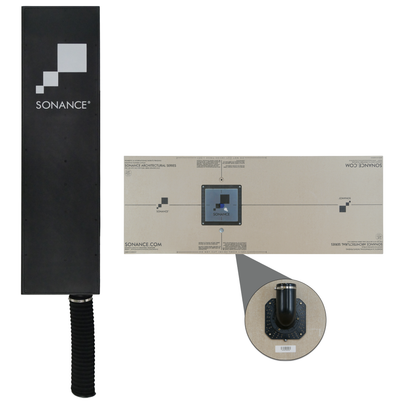

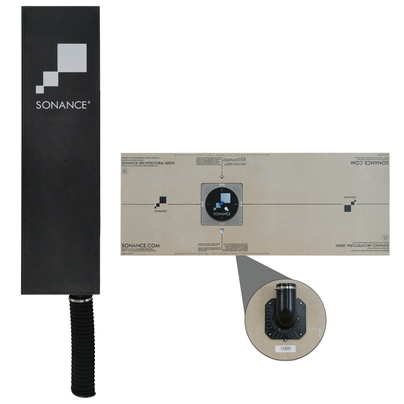

In-ceiling or in-wall thin-line 6.5" bandpass subwoofer. Ported with a bandpass hose to a bandpass connector and micro trim or trimless grille finish. Requires Sonance bandpass connector and grille. Requires Sonance gypsum or solid surface mounting platform for flush installations.
Key Features
- Totally-flush and trimless round or square aesthetic provides minimal visual distraction.
- Independently pivoting woofer and tweeter to direct sound where required.
- Patented mounting platforms deliver a high-quality installation with precision grille leveling.
- Optional bandpass subwoofer delivers large speaker performance and bass response.
- Limited Lifetime Warranty valid on Architectural Series speakers purchased from an authorized Sonance dealer or distributor (excludes grilles and mounting platforms which have a limited 5 Year Warranty and limited 15 year warranty, respectively)
Specifications
SKU
93324 (Black)
Speaker Woofer
13x3
Frequency Response (+/- 3db)
38Hz - 125Hz
Power Handling (RMS)
150 watts maximum
Sensitivity
87dB (2.83V/1m)
Dimensions (Diameter x D)
3.38" x 39.38" (85.73mm x 1000.13mm)
Tube Diameter
3" (76.2mm)
Tube Length
15" (381.0mm)
