James Powerpipe X Series

PPX10-M

Now Shipping

PPX10-M

PowerPipe

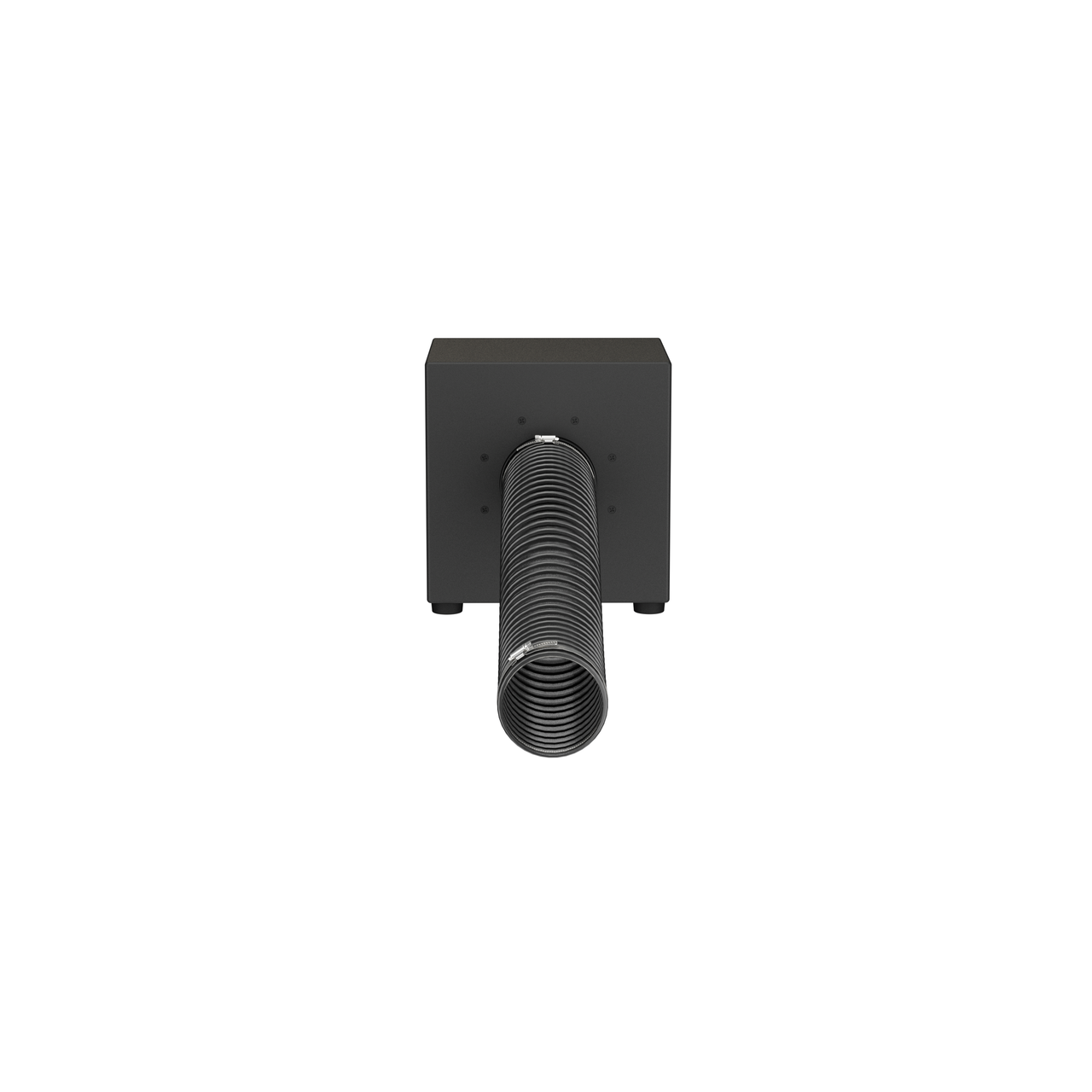

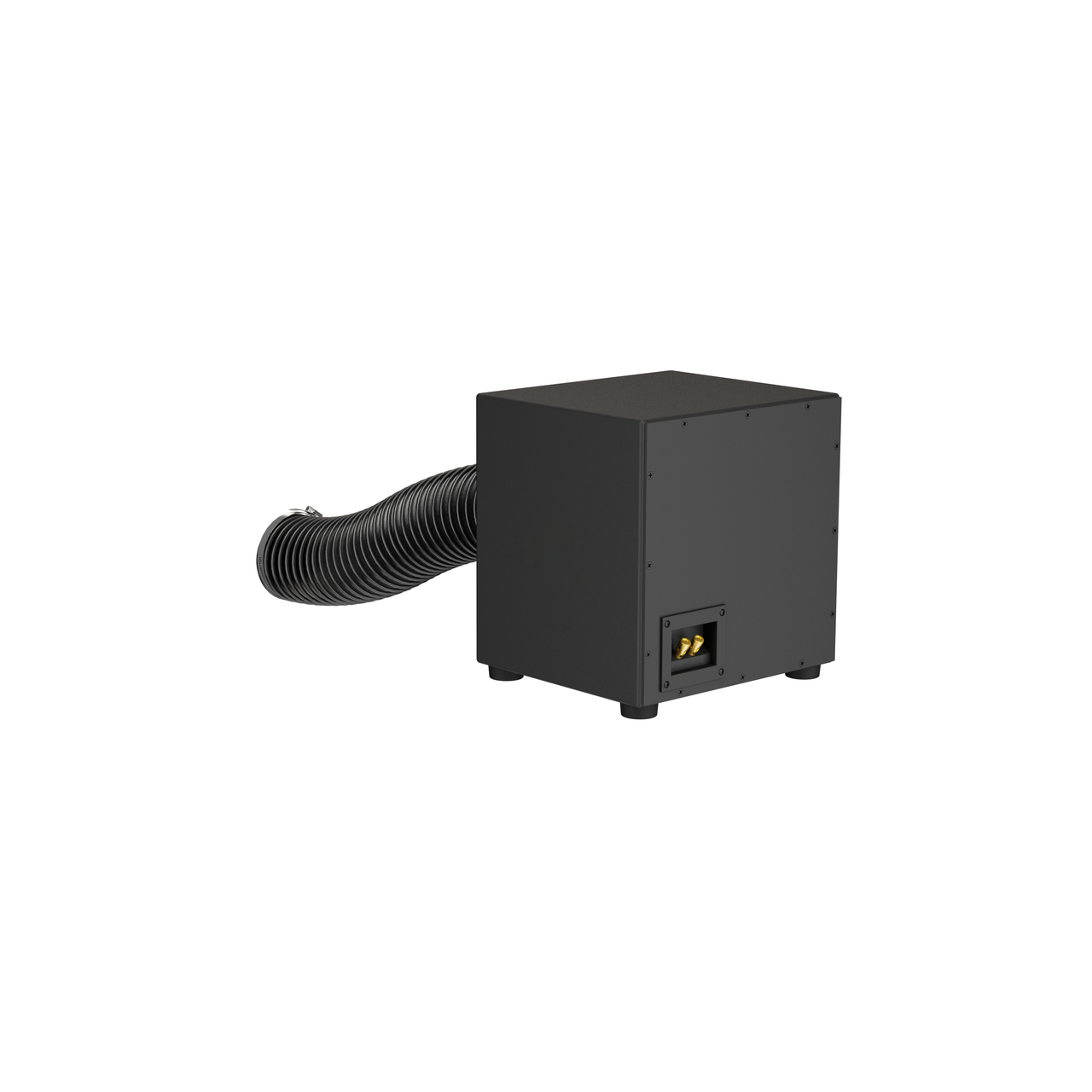

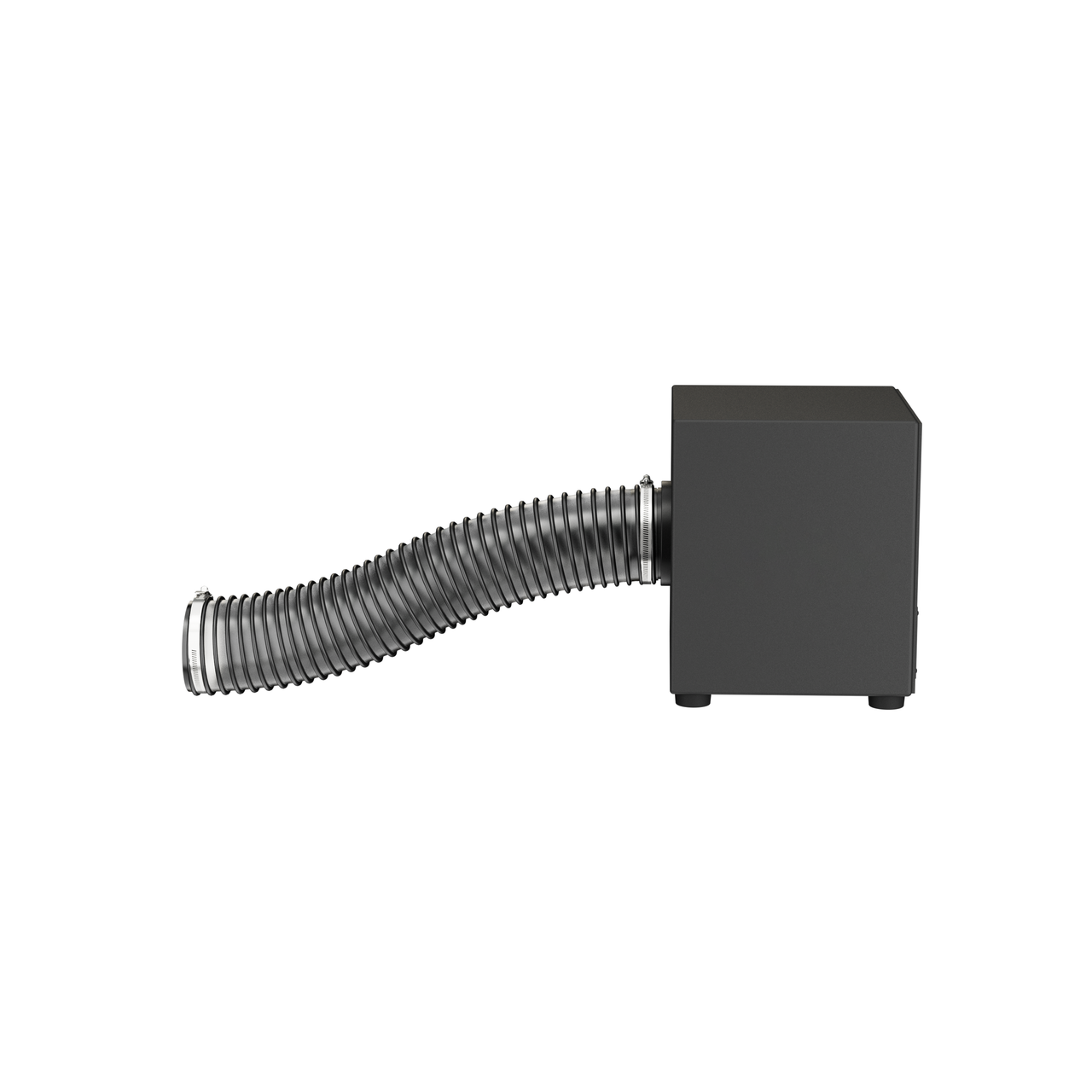

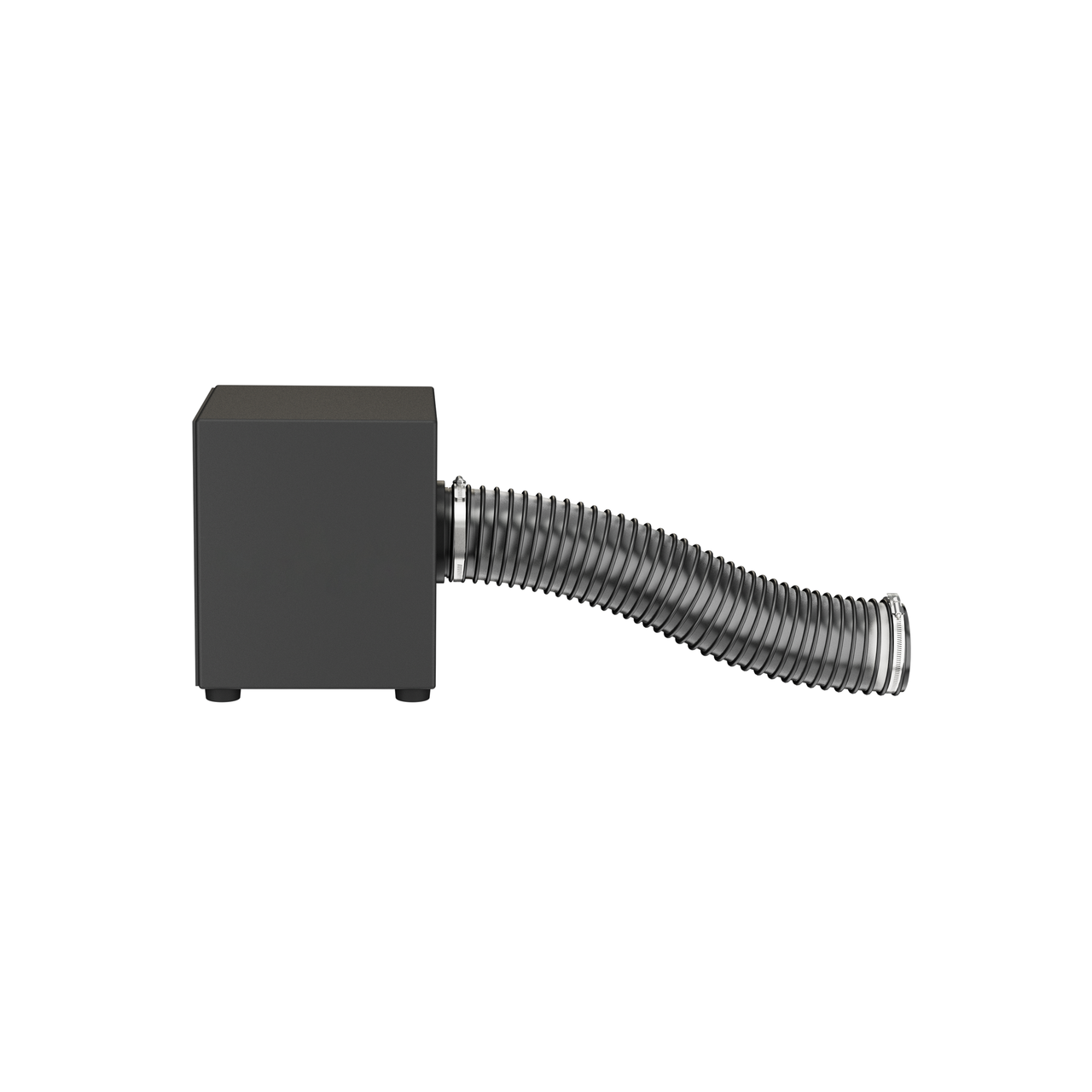

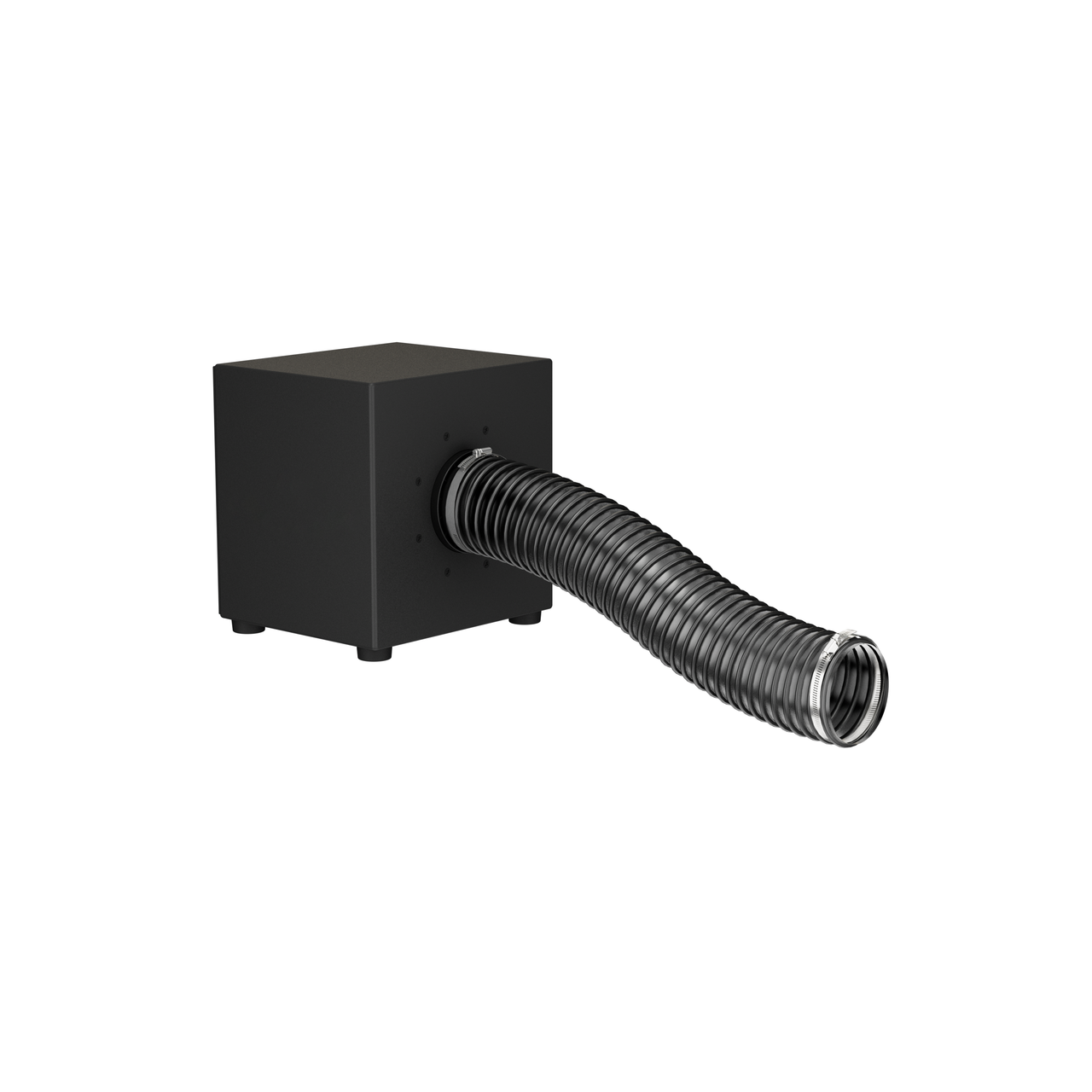

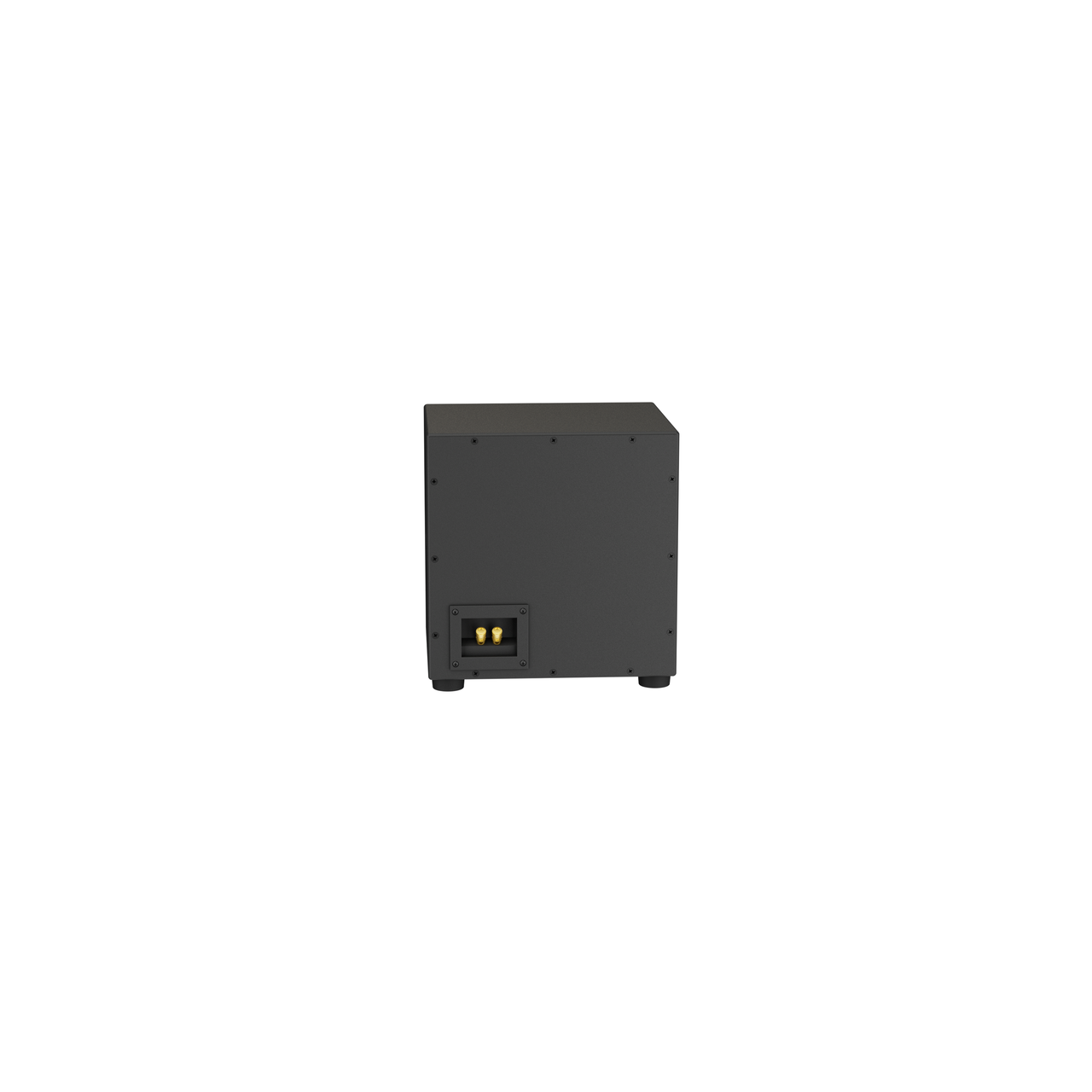

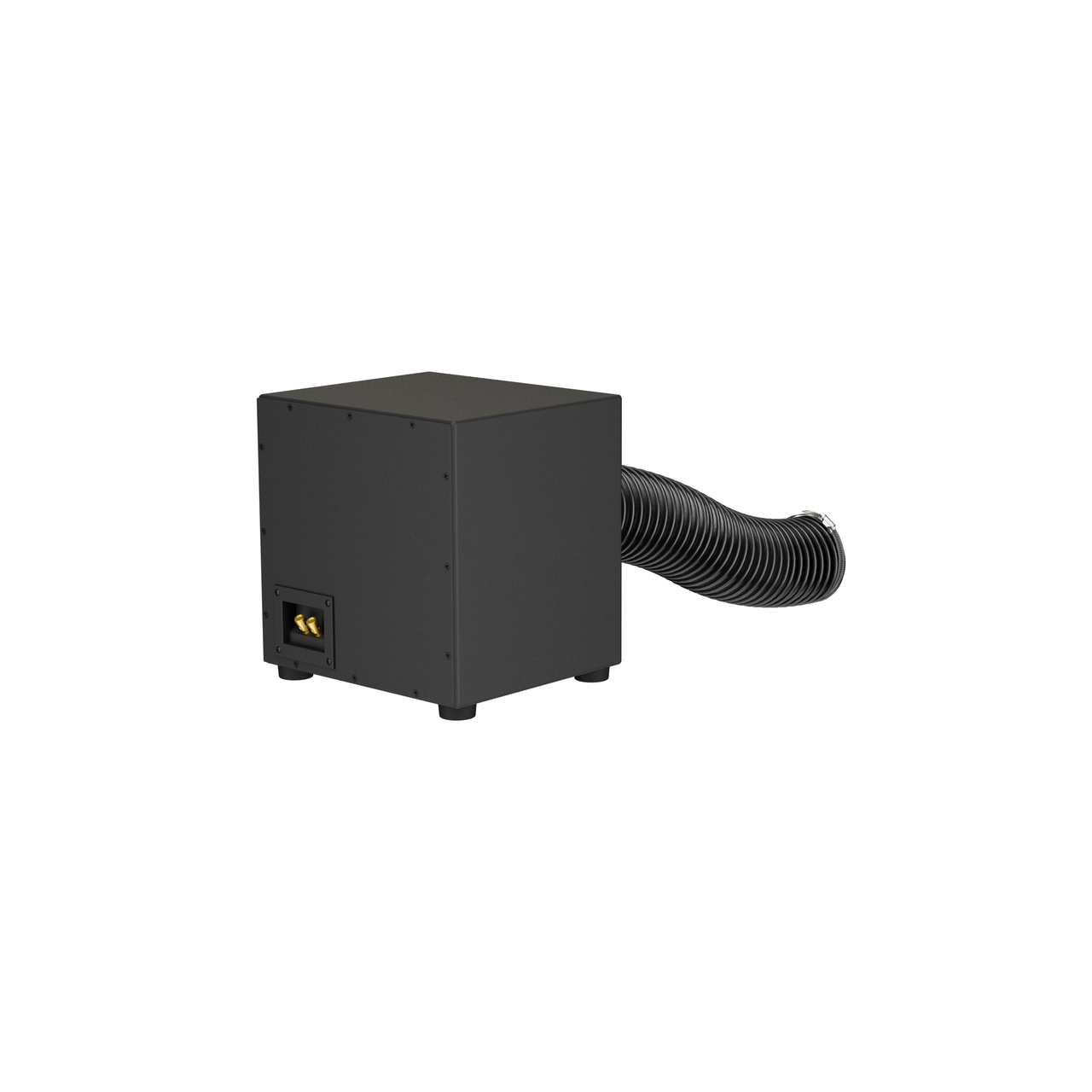

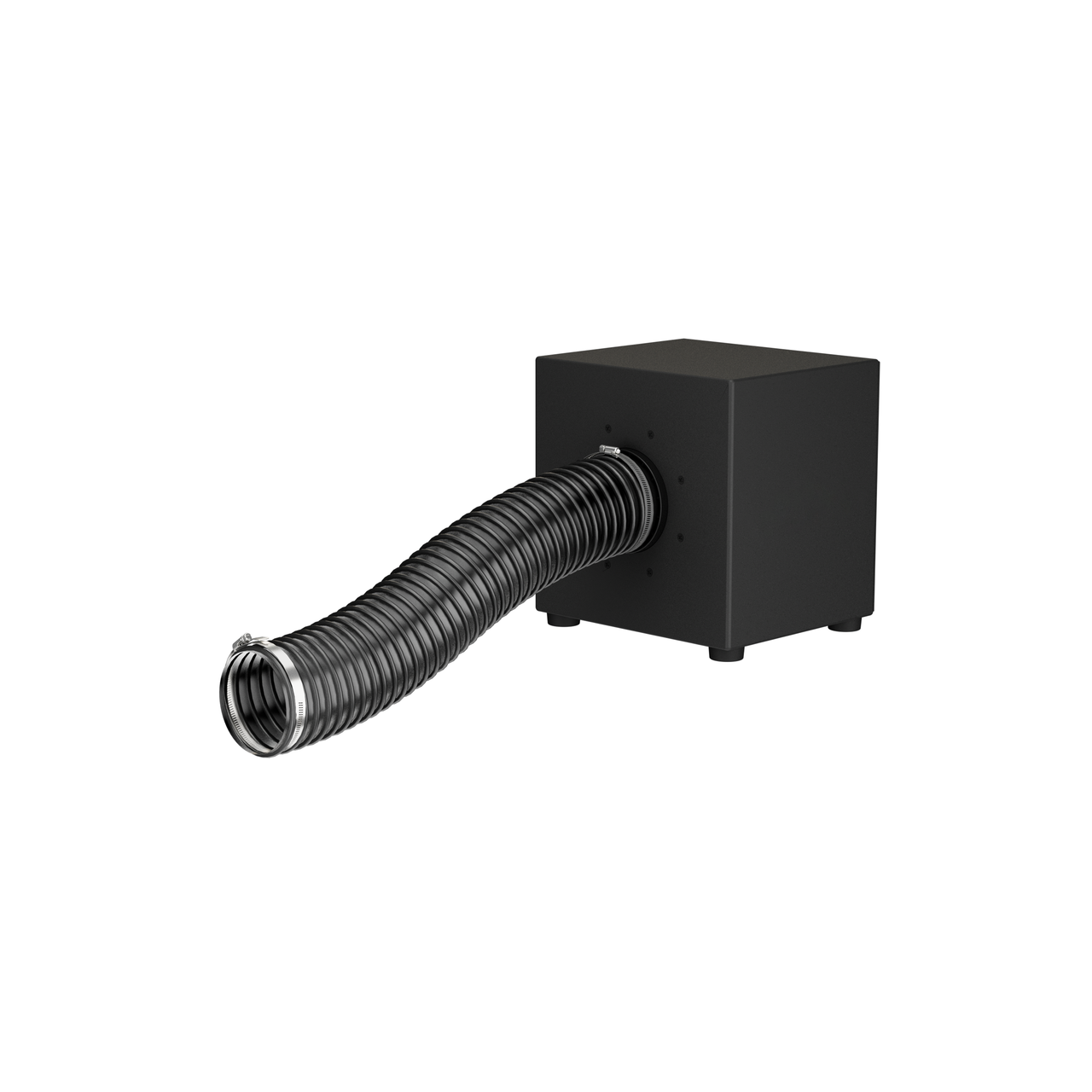

The PPX10-M raises the bar for architectural hidden bass with a 10" high-excursion woofer extending to 39Hz. Its marine grade aluminum enclosure installs invisibly within ceilings, deep wall cavities, or cabinetry at home or at sea. Porting deeper effortless low frequencies into the listening area without compromising the surrounding architecture.

PPX10-M

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Marine Grade Aluminum Enclosure — Corrosion-resistant build for indoor and outdoor marine spaces
10" High-Excursion Woofer — Deeper extension and higher output for mid-size spaces.
TRUFIG Flush Ceiling Installation — Completely flush finish for refined architectural interiors.

Specifications

SKU

PPX10-M (textured black)

Speaker Woofer

10" (254mm) anodized aluminum cone, rubber surround, high excursion

Frequency Response (+/- 3db)

39Hz - 115Hz

Sensitivity

92dB SPL

Recommended Power Range

400 watts

Enclosure

Marine-Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions No Feet (WxHxD)

11.7" x 11.7" x 12.18" (297.18mm x 297.18mm x 309.37mm)

Dimensions with Feet (WxHxD)

11.7" x 12.31" x 12.18" (297.18mm x 312.67mm x 309.37mm)

Tube Diameter

4.02" (102.11mm)

Tube Length

21.65" (549.91mm)

Weight

27.36 lbs. (12.41kg)

Copy All Specs

Related Products

60475_hero_product_image_XPC-4R-T-F.tiff

4" ROUND XPC MICRO TRIM GRILLE

SKU: 60475

60476_hero_product_image_XPC-4R-NT_F.tiff

4" ROUND XPC TRIMLESS GRILLE

SKU: 60476

93740_hero_image_XPC-6R-T_front.tiff

6" ROUND XPC MICRO TRIM GRILLE

SKU: 60477

93741_hero_image_XPC-6R-NT_Front.tiff

6" ROUND XPC TRIMLESS GRILLE

SKU: 60478

93744_hero_image_XPC-8R-T_front.tiff

8" ROUND XPC MICRO TRIM GRILLE

SKU: 60479

93745_hero_image_XPC-8R-NT_Front.tiff

8" ROUND XPC TRIMLESS GRILLE

SKU: 60480

60487_hero_product_image_VXQ4_Square_Microtrim_Front.tiff

4" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 60487

60488_hero_product_image_VXQ4_Square_Trimless_Grille_Front.tiff

4" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 60488

60489_hero_product_image_VXQ6_Square_Microtrim_Front.tiff

6" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 60489

60490_hero_product_image_VXQ6_Square_Trimless_Grille_Front.tiff

6" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 60490

60491_hero_product_image_VXQ8_VXQ_Square_Microtrim_Front.tiff

8" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 60491

60492_hero_product_image_VXQ8_Square_Trimless_Grille_Front.tiff

8" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 60492

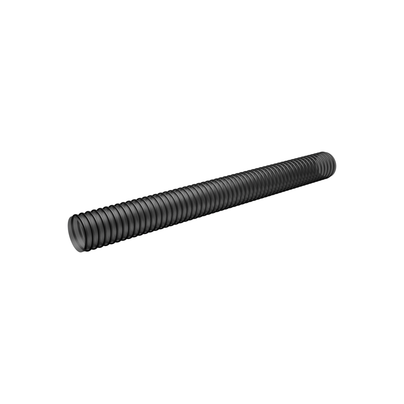

PPX 4In_hero_product_image_Extended Port Tube.png
