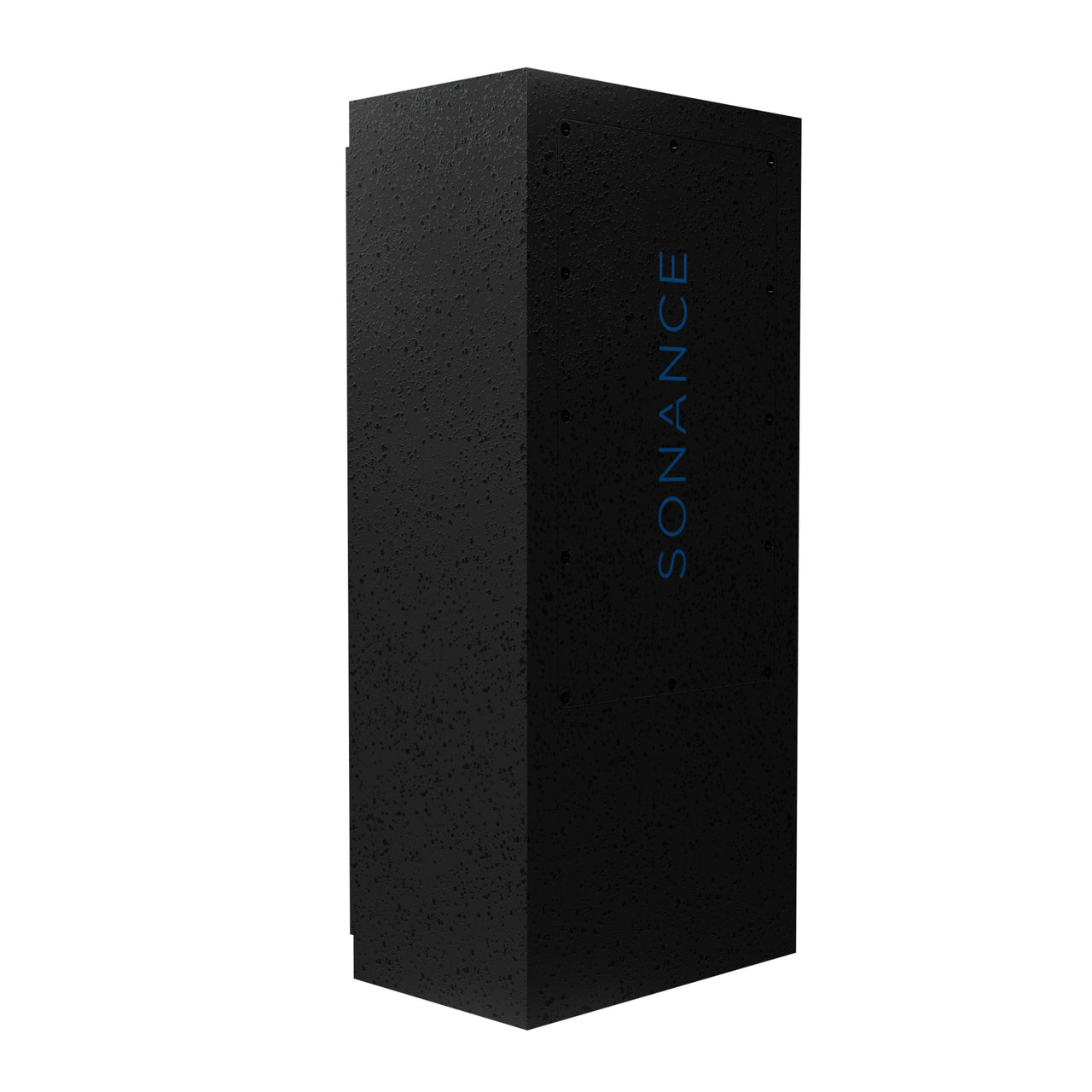

93729_product_image_SONANCE_SA4-66-COMPLETE-T_back_45_L.tiff

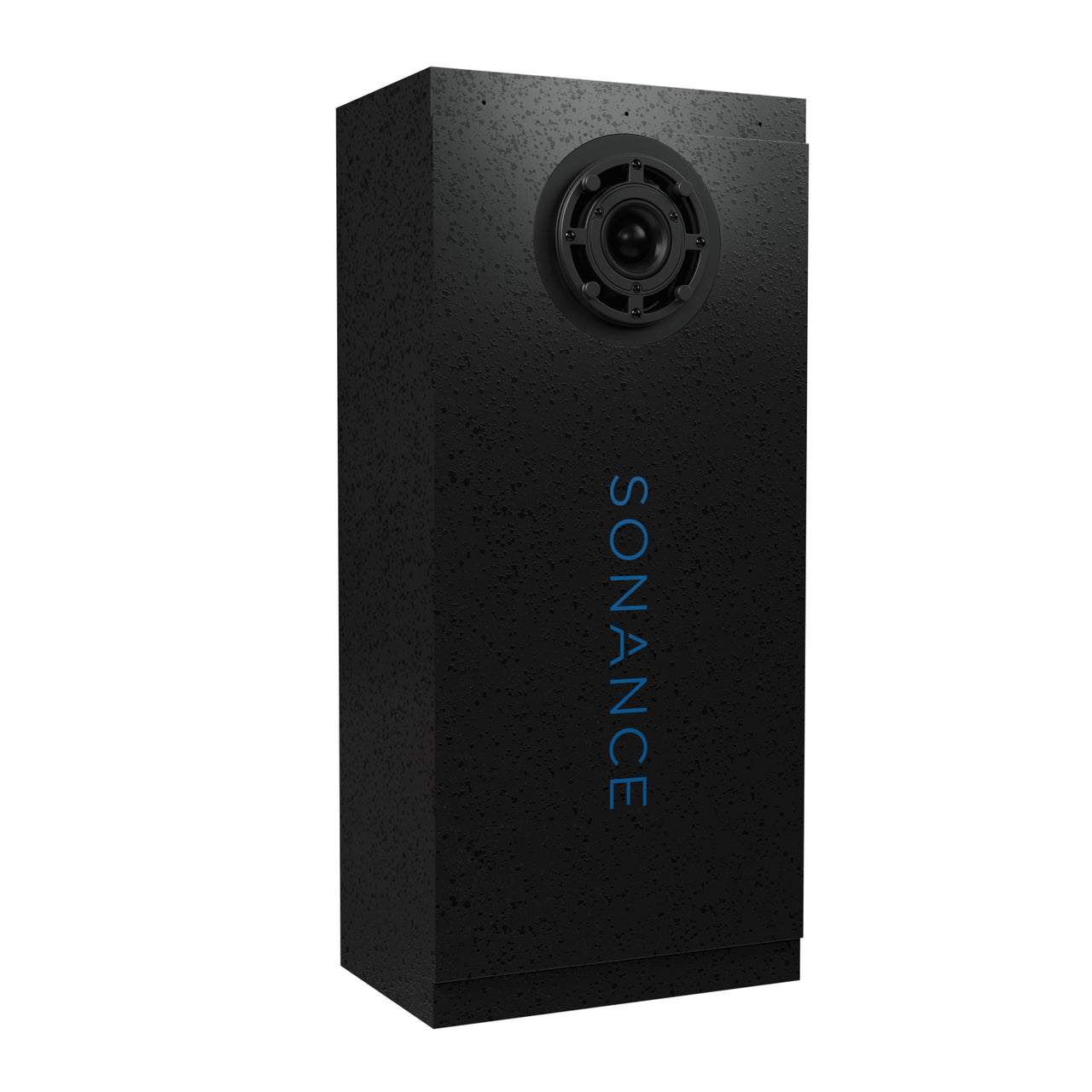

93729_product_image_SONANCE_SA4-66-COMPLETE-T_45.tiff

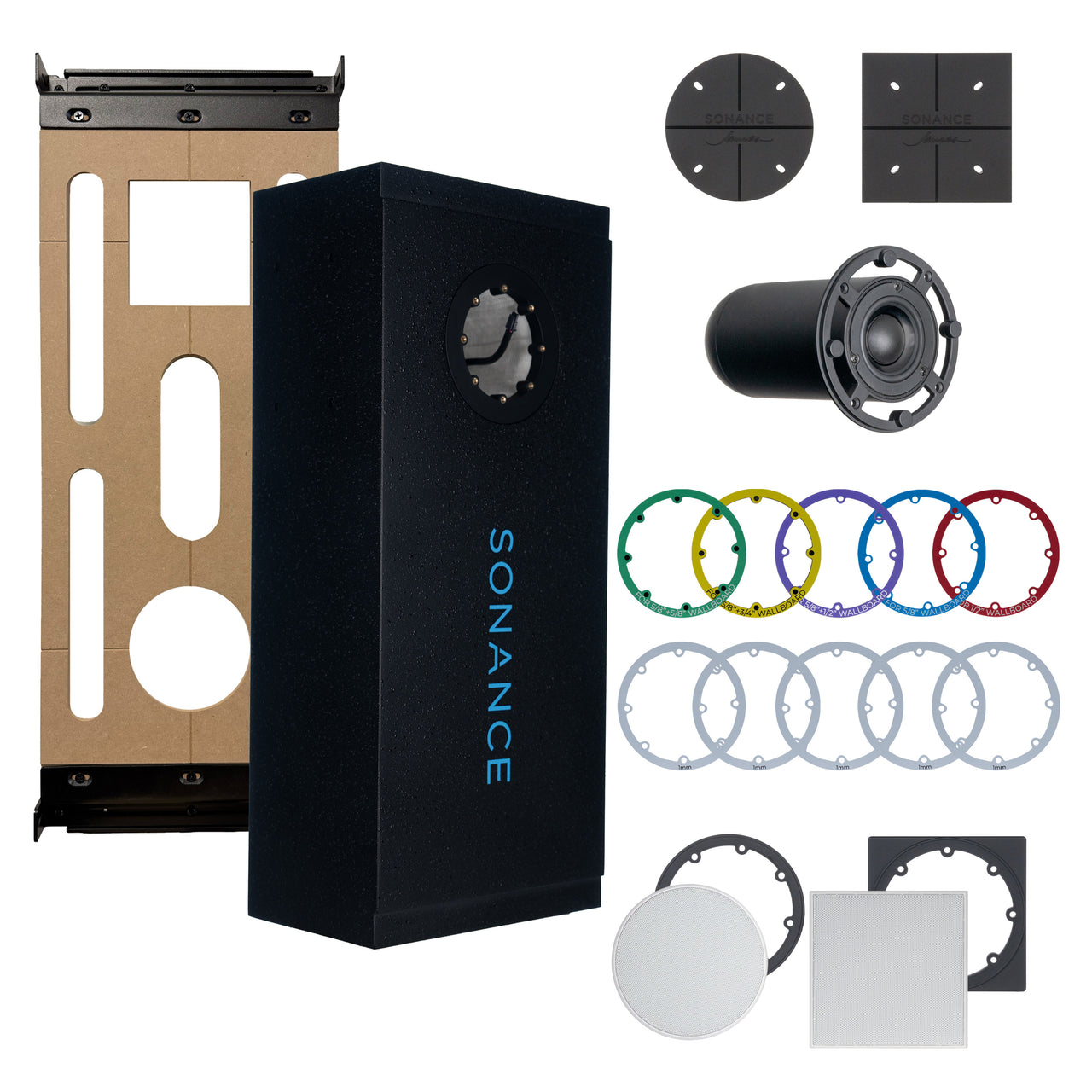

SA4-66 Complete Kit

Small Aperture

Sonance SA4-66 Complete Speaker Kit, featuring a micro trim grille, delivers impressive audio performance from a compact 4" opening. Equipped with a 6.5" woofer and a 2" aluminum wide-band module in a rigid wood enclosure, it offers remarkable range and depth.

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes

Specifications

SKU

93729 Brilliant White (Satin)

Speaker Tweeter

2.0" (50mm) Aluminum cone, rubber surround

Speaker Woofer

6.5" (165mm) Aluminum cone, rubber surround

Frequency Response (+/- 10db)

35Hz - 25kHz

Frequency Response (+/- 3db)

45Hz - 22kHz

Power Handling (RMS)

5 watts minimum; 125 watts maximum

Sensitivity

82dB (2.83V/1m)

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

22.95" x 10.2" x 6.38" (582.93mm x 259.08mm x 162.05mm)

Copy All Specs

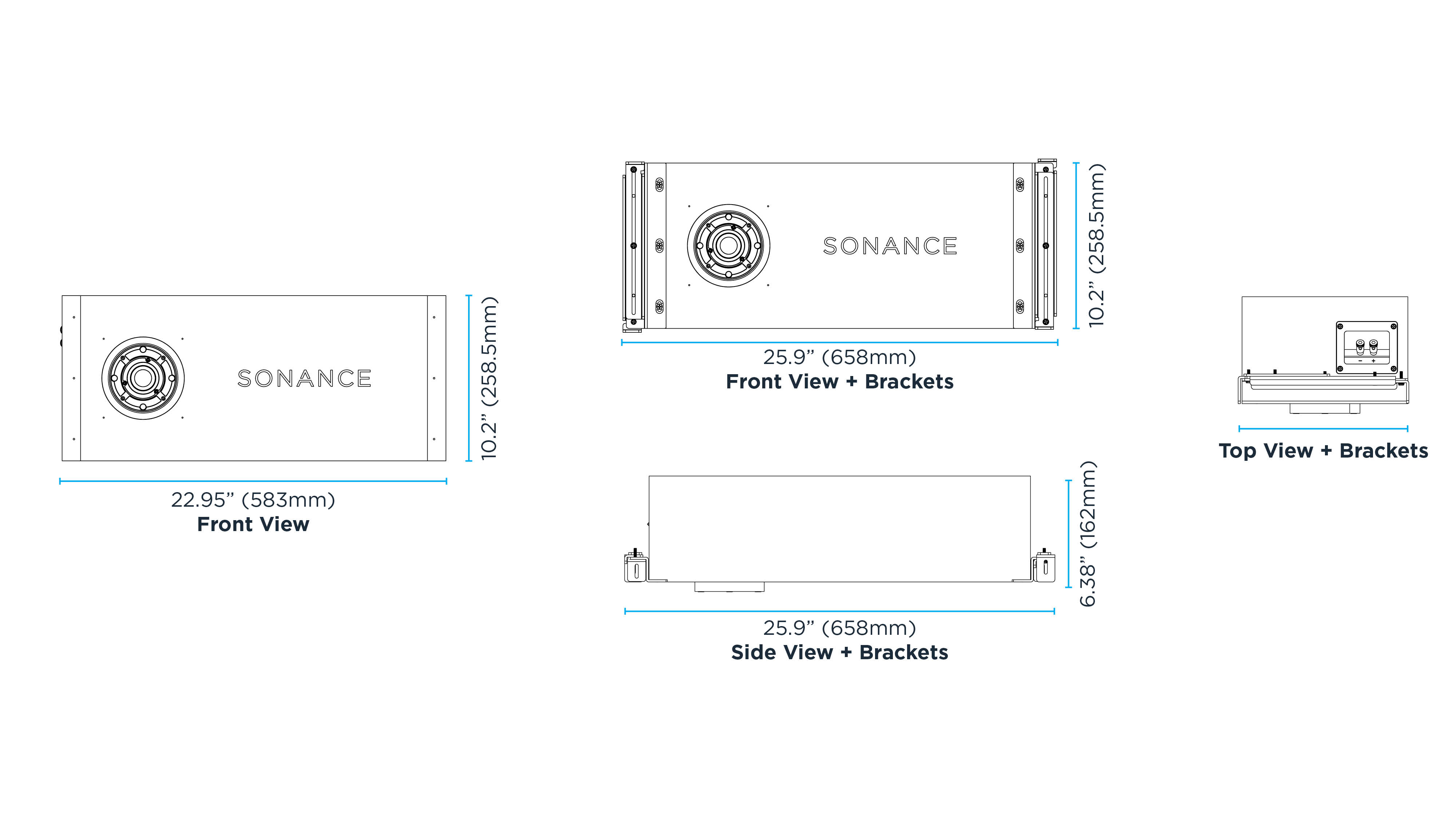

Dimensional Drawings

Related Products

SA4-66-MOD

SKU: 93710

More

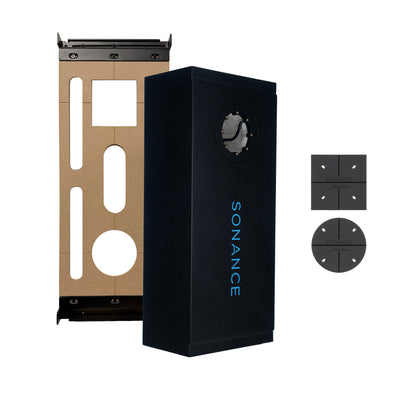

SA4-66-ENC

SKU: 93711

More

93718_hero_product_image_SONANCE_SA4-SP-SS-KIT_45.tiff

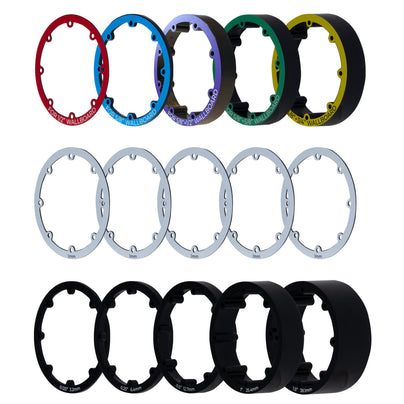

SA4-SP-T-SS-Kit

SKU: 93718

More

93720_hero_product_image_SONANCE_SA4-66-GRILLE-KIT-RND.tiff

SA4-Grille-RND-Kit-T

SKU: 93720

More

93721_hero_product_image_SONANCE_SA4-66-GRILLE-KIT-SQR_front.tiff

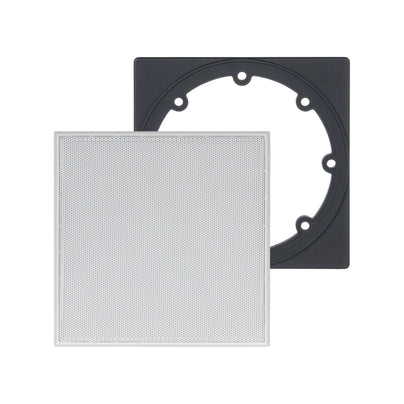

SA4-Grille-SQR-Kit-T
