PS-C85RTBF
Pre-Order
PS-C85RTBF
Professional Series

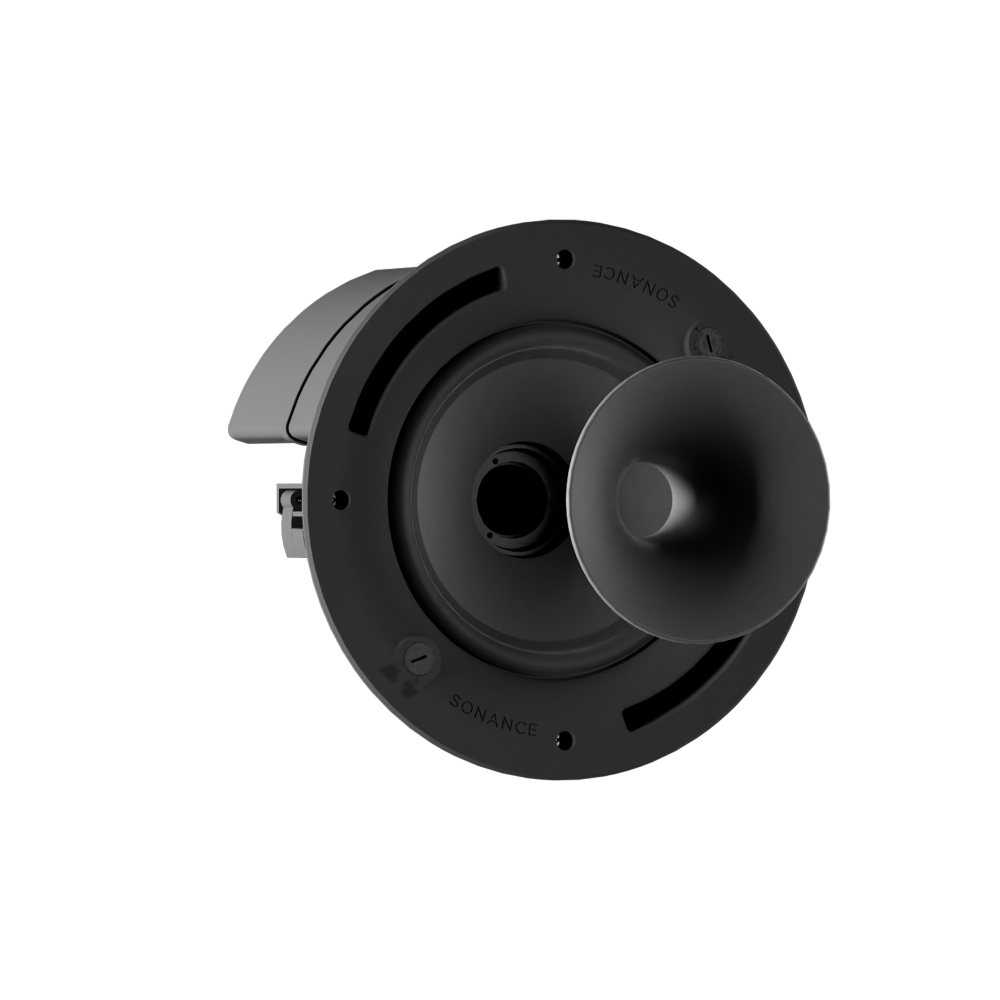

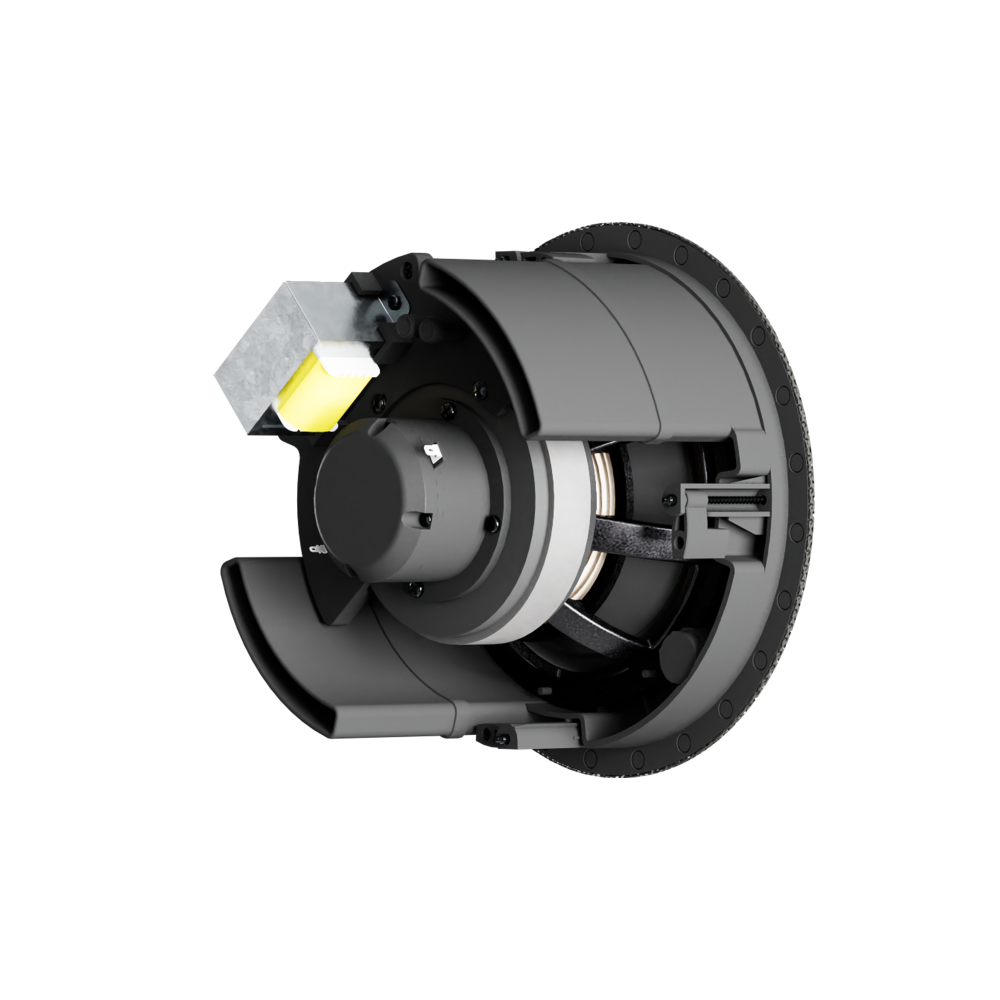

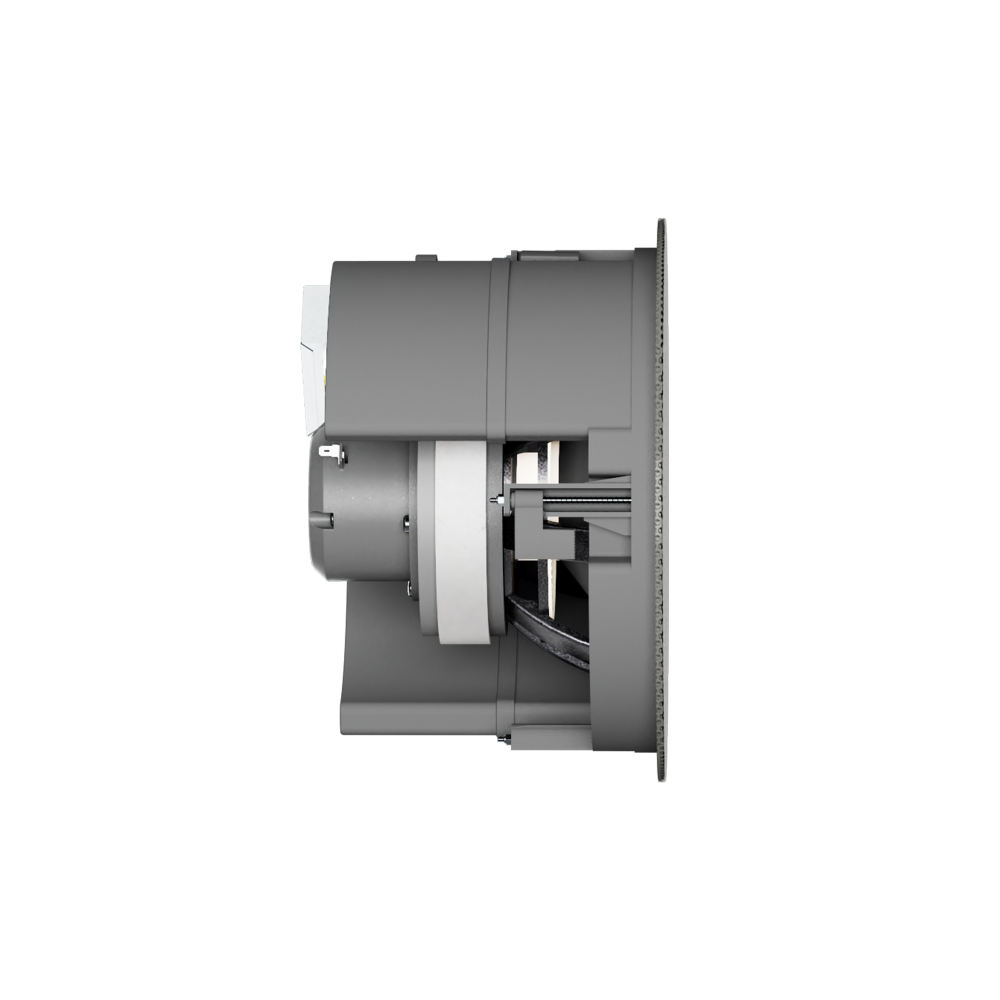

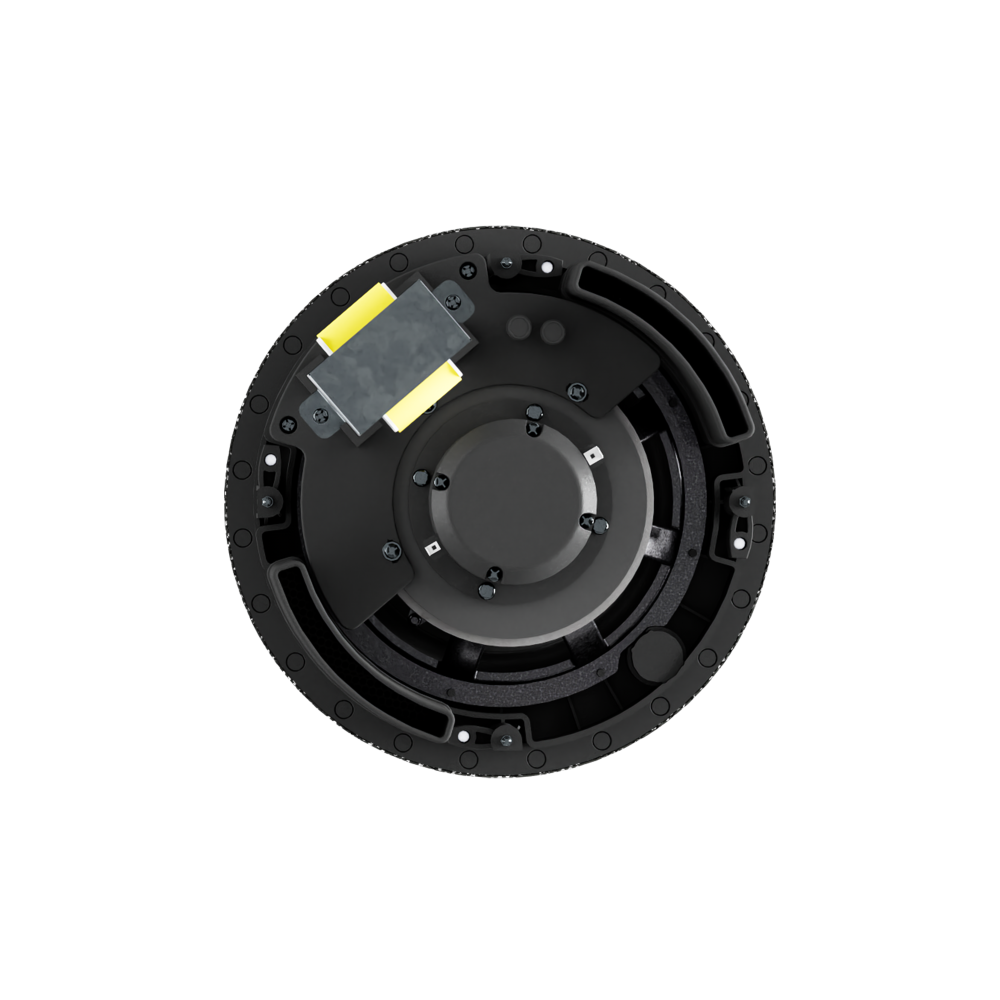

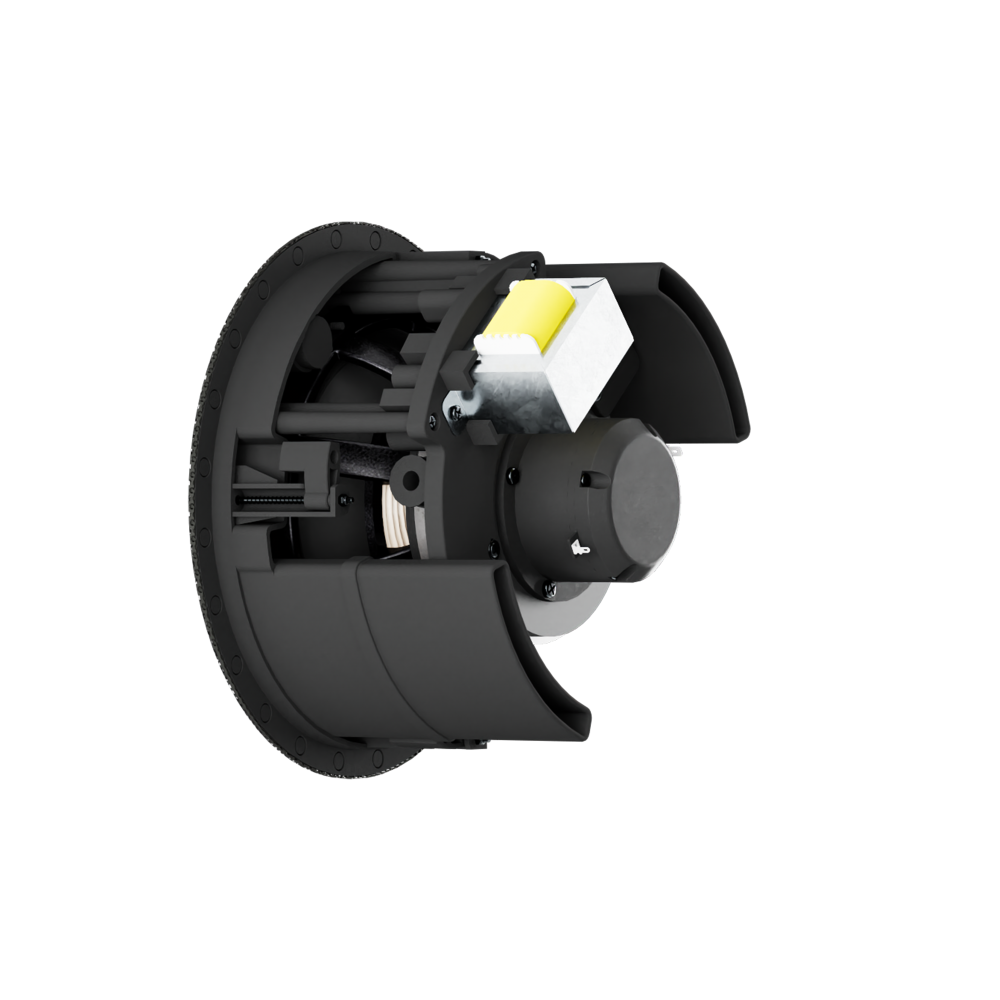

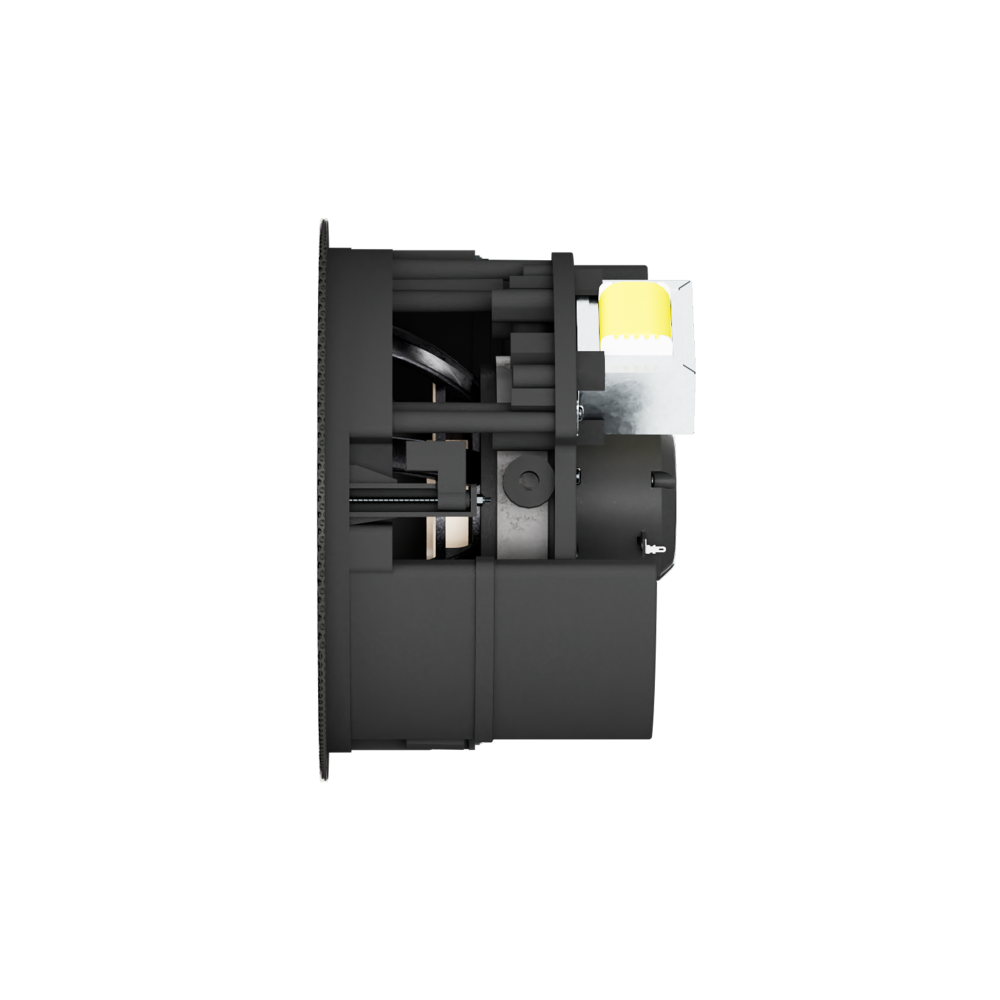

The PS-C85RTBF is the baffle-only configuration of the Professional Series high-output in-ceiling loudspeaker, designed for use with the PS-C85BB back box. Delivers 91dB sensitivity and extended low-frequency response, with selectable horn or collar dispersion and full 70V/100V distributed audio support.
Key Features
- Field-selectable 120° or 80° dispersion coverage

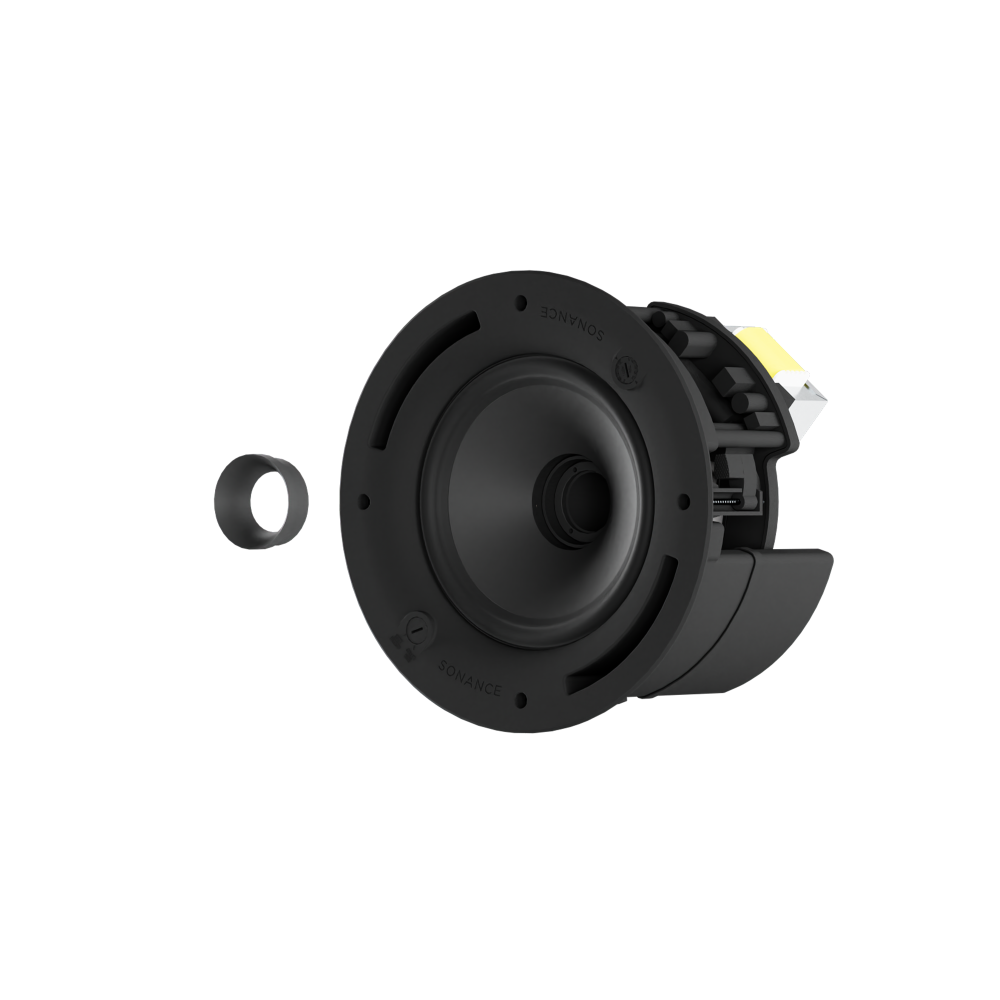

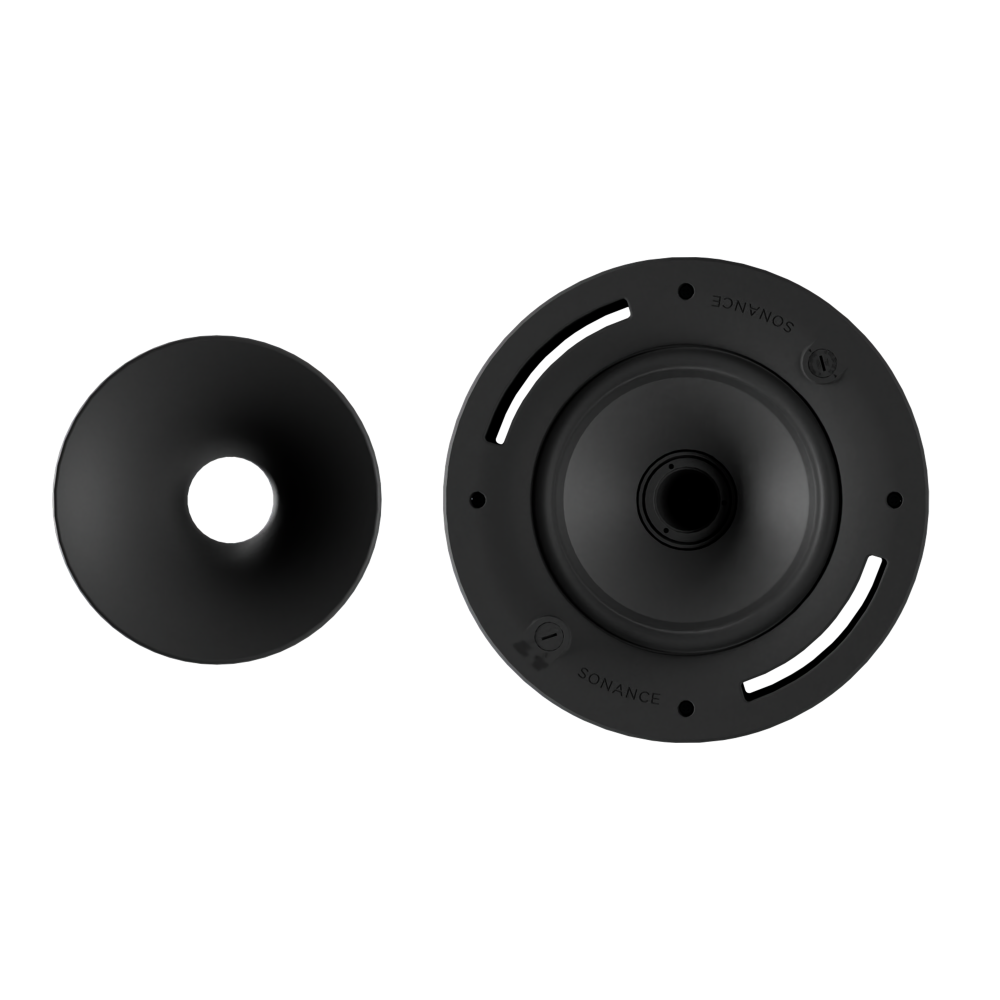

- Horn and collar assembly ships in-box; field-adjustable
- 1.4" compression driver engineered for high-SPL commercial environments
- Extended low-frequency response
- Integrated 70V/100V transformer, 120W max tap
- Part of a complete High Output form factor family

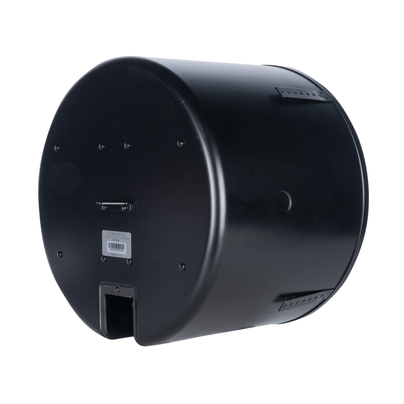

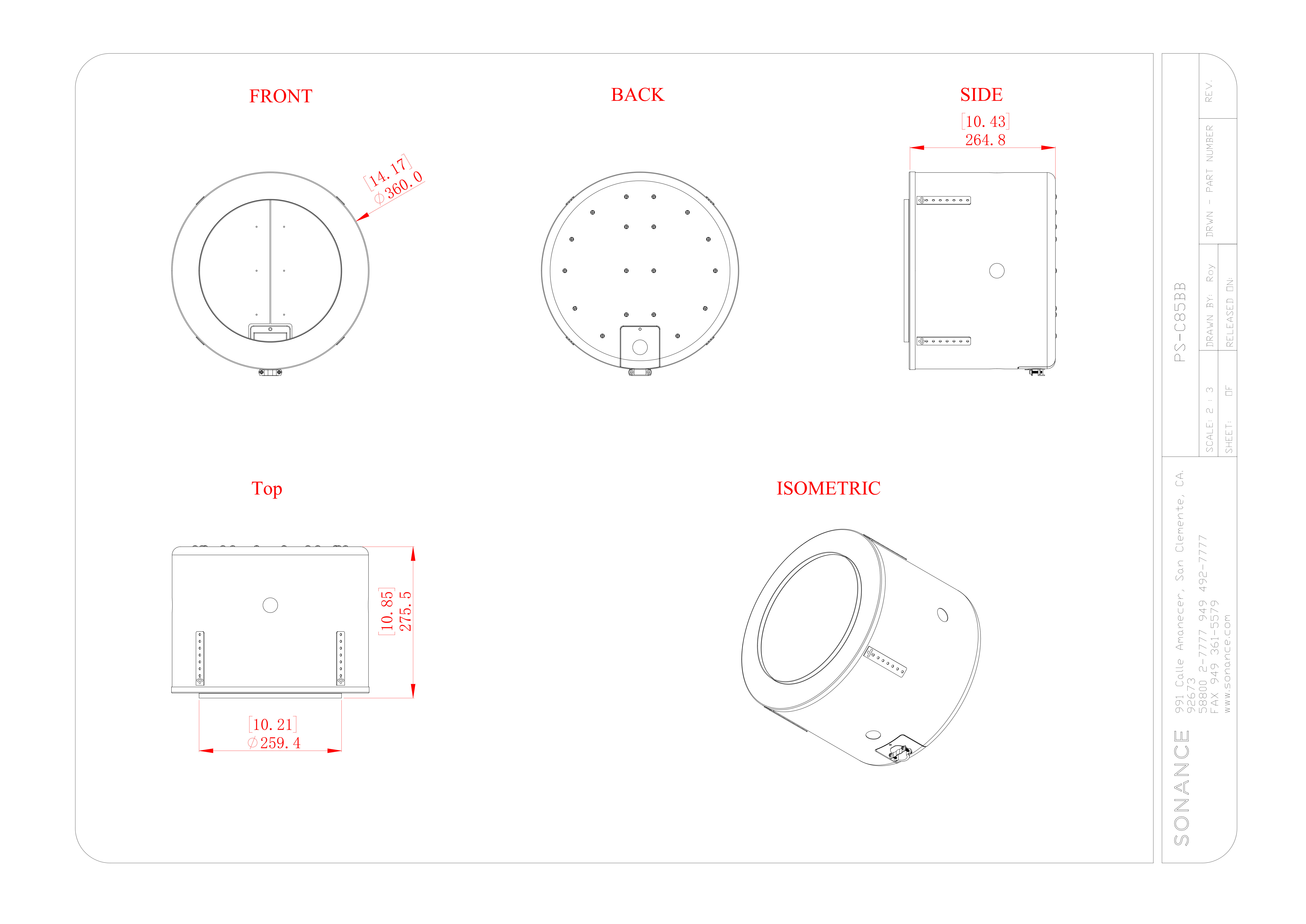

- Requires PS-C85BB back box (sold separately)
Specifications
SKU | Color
40231
HF Driver
1.4" (36mm) aluminum dome compression driver, 36mm Voice Coil Size, 1" (25mm) Exit Size, Neodymiu...
LF Driver
8" (203mm) aluminum cone, Santoprene surround, 60.55mm Voice Coil Size, Ferrite Magnet
Frequency Response (+/- 10db)
36.6Hz - 25kHz
Frequency Response (+/- 3db)
41.4Hz - 20kHz
Power Handling (RMS)
150 watts (600 watts peak), 100 hours
Sensitivity
91dB SPL
Enclosure
PC/ABS (UL94V-0), Steel, Powder coated (sold seperately)
Rated Maximum SPL
114dB, 120dB peak
Nominal Impedance (Ohms)
8 ohms
Transformer Taps
70 V / 100 V: 120W, 60W and 30W 70 V: 15W
Coverage Pattern 1kHz to 10kHz
120 or 80 Degree Axis Symmetric
Dimensions (Diameter x D)
11.07" x 7.22" (281.18mm x 183.39mm)
Cut-Out Dimensions (Diameter)
10.125" (257.18mm)
Weight
18.7 lbs. (8.48kg)

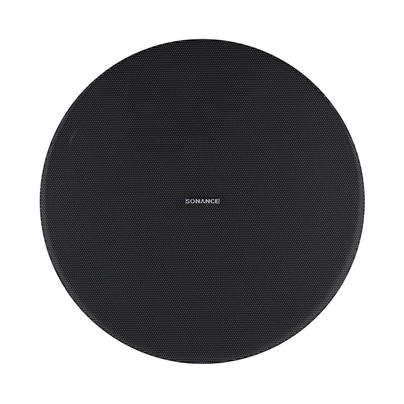

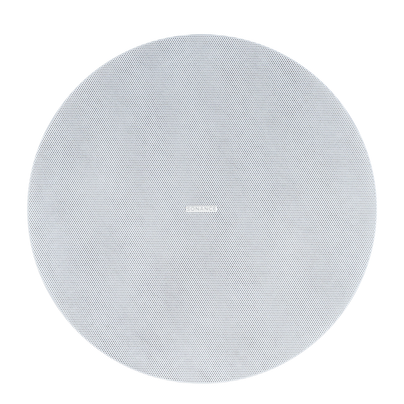

Grille
Steel
Input Connector
Four pin, Euroblock with loop output connections
Certifications
UL 1480A; UL 2043; NFPA 90A; NFPA 70
Suspension Points
Two, on top surface
Maximum SPL (Peak)
120dB peak
Architectural Specifications
The loudspeaker shall be of the two-way type comprising a baffle-only configuration for flush mou...
