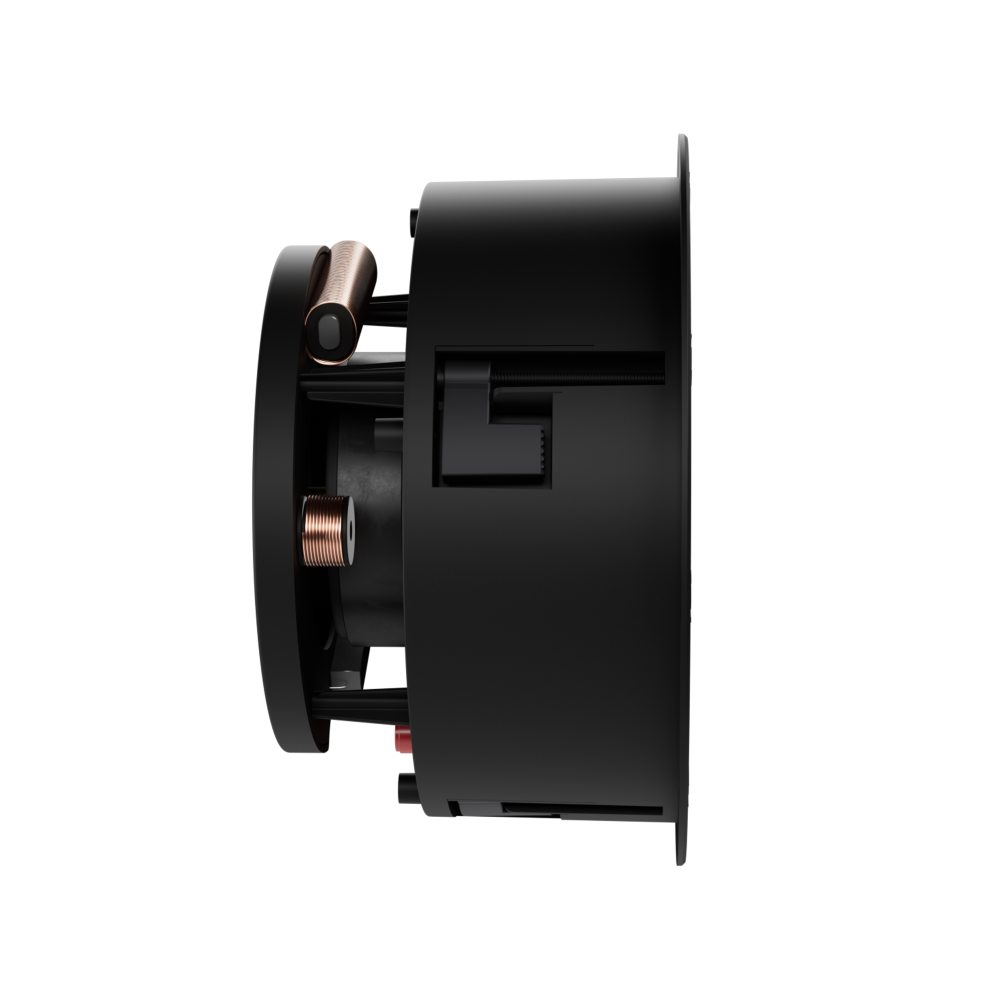

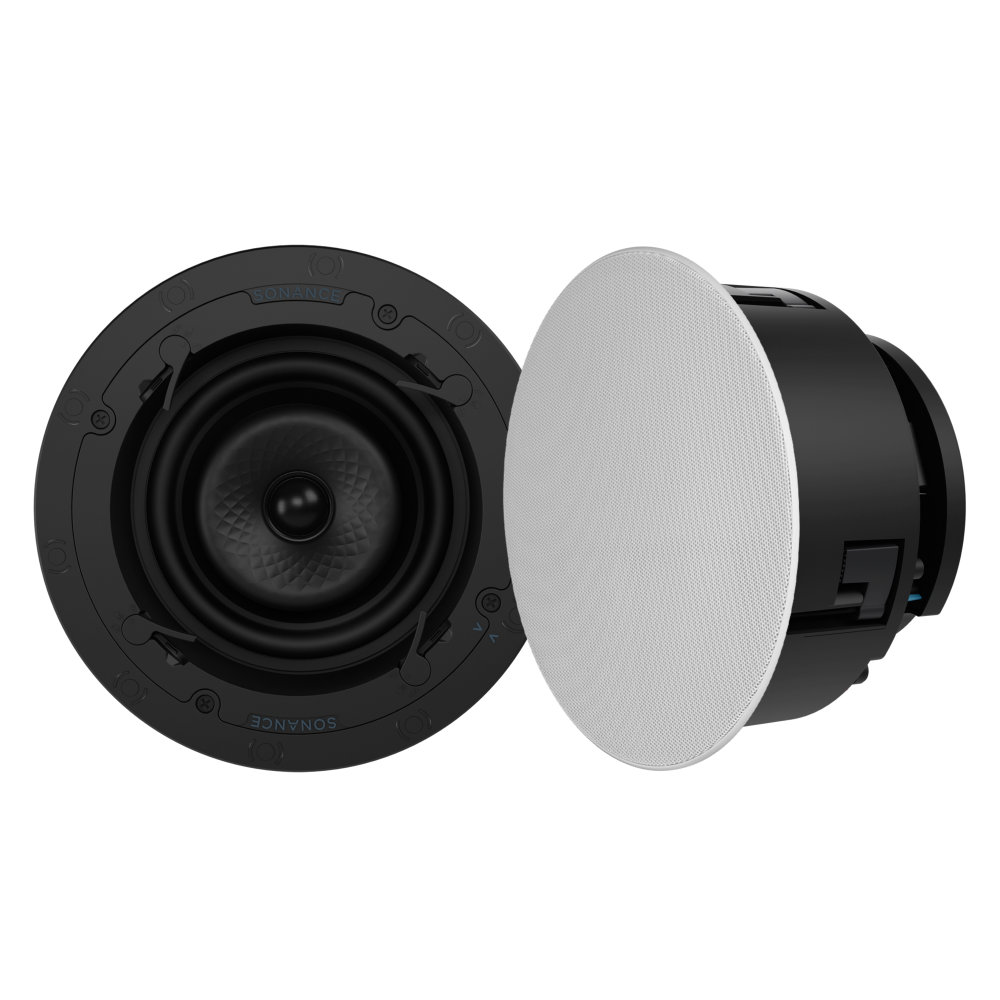

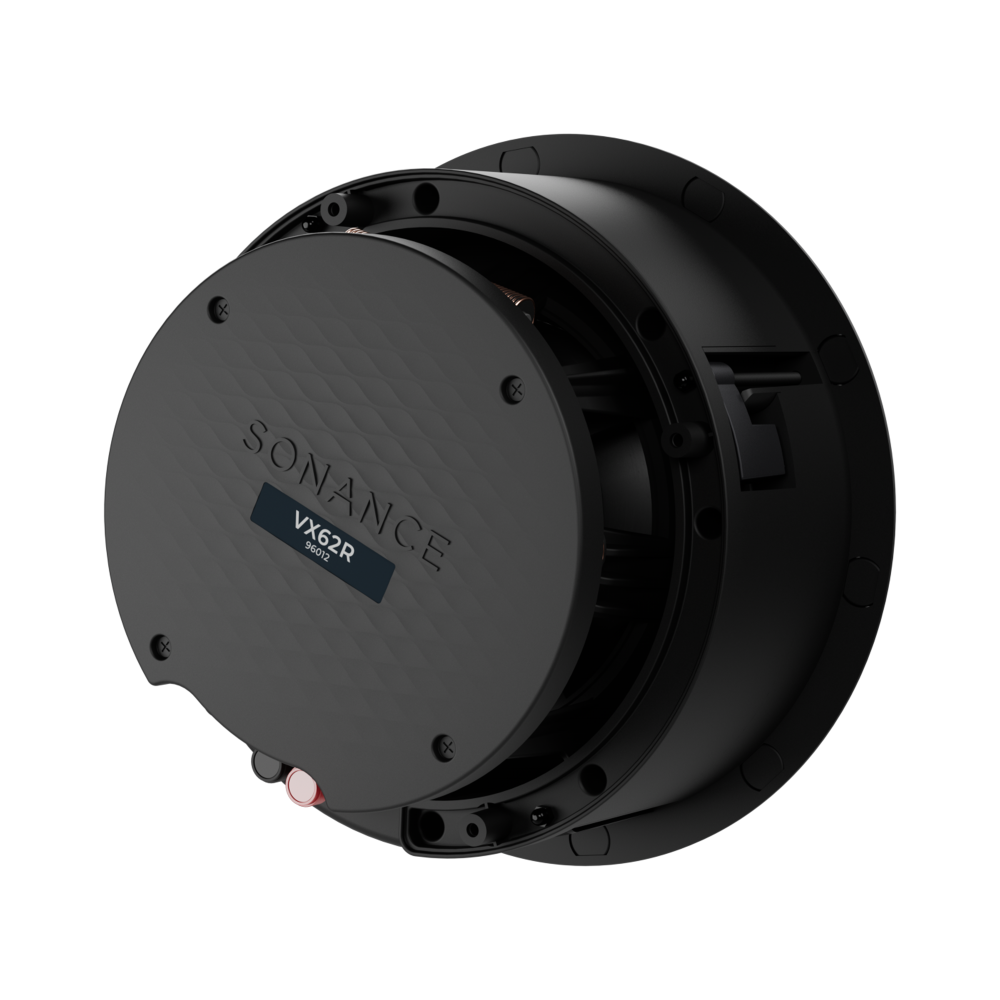

VX62R
Visual Experience
Key Features
- Available for In-Ceiling Round (with options for Round or Square trim) or In-Wall Rectangle
- Available in Small, Medium, or Large (4.5", 6.5", or 8" driver)
- Select from a range of performance options: Level 0, 2, 4, 6 or upgrade to our VXQ Level "8" Visual Experience with Quadratech (James VXQ)
- Sonance CDX Crossover Design - Warmth and detail at all volumes
- Waveguide Design - Engineered for maximum coverage and fidelity to create detailed, comfortable, consistent listening
- Standard One Stage or Optional Two Stage Installation Design - Two stage process allows preconstruction wiring and space reservation that completes with a simple snap-in of the speaker module
- Grille Options - Micro Trim, Trimless, or TRUFIG Mounted Trimless grille styles
- Flexible Finish - Grille painting or laser printing grille service available
- Optional TRUFIG Finish and Installation - Reliable, repeatable process for precision alignment and placement with smooth, level finish to blend into the surface
- Limited Lifetime Warranty valid on Visual Experience Series products purchased from an authorized Sonance dealer or distributor (excludes grille and Extreme models which have a limited 5 Year Warranty)
Specifications
SKU
96012 Brilliant White (Satin)
Speaker Tweeter
1.0" (25mm) cloth dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
6.5" (165mm) textured polypropylene cone, rubber surround, pivoting
Frequency Response (+/- 3db)
45Hz - 20kHz
Power Handling (RMS)
5 watts minimum; 125 watts maximum
Sensitivity
89dB (2.83V/1m)
Dispersion
Sinusoidal Textured Waveguide
Cut-Out Dimensions (Diameter)
8.25" (209.55mm)
Mounting Depth
4.92" (124.97mm)

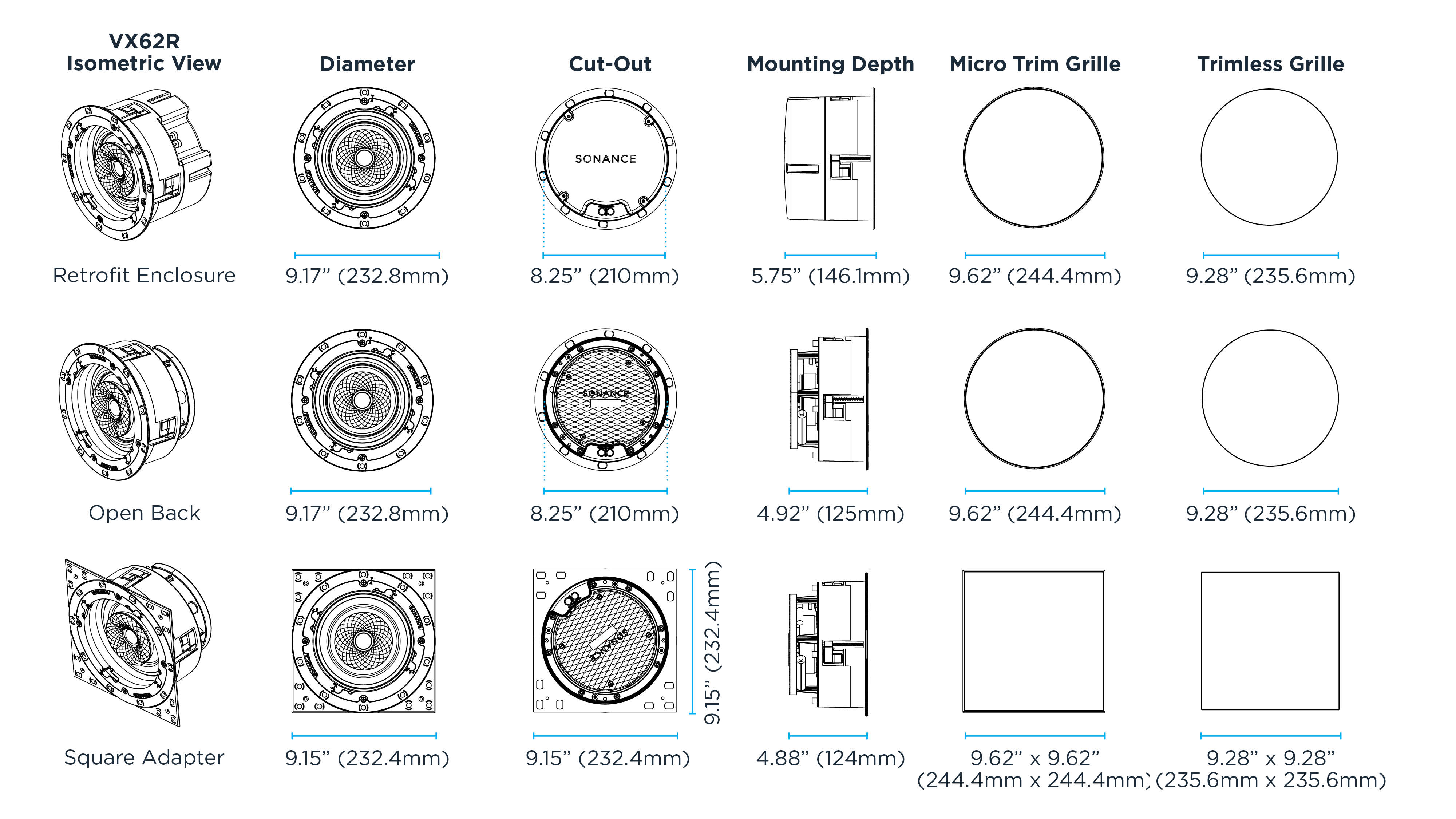

Dimensional Drawings
