Invisible Series
Visual Experience Extreme

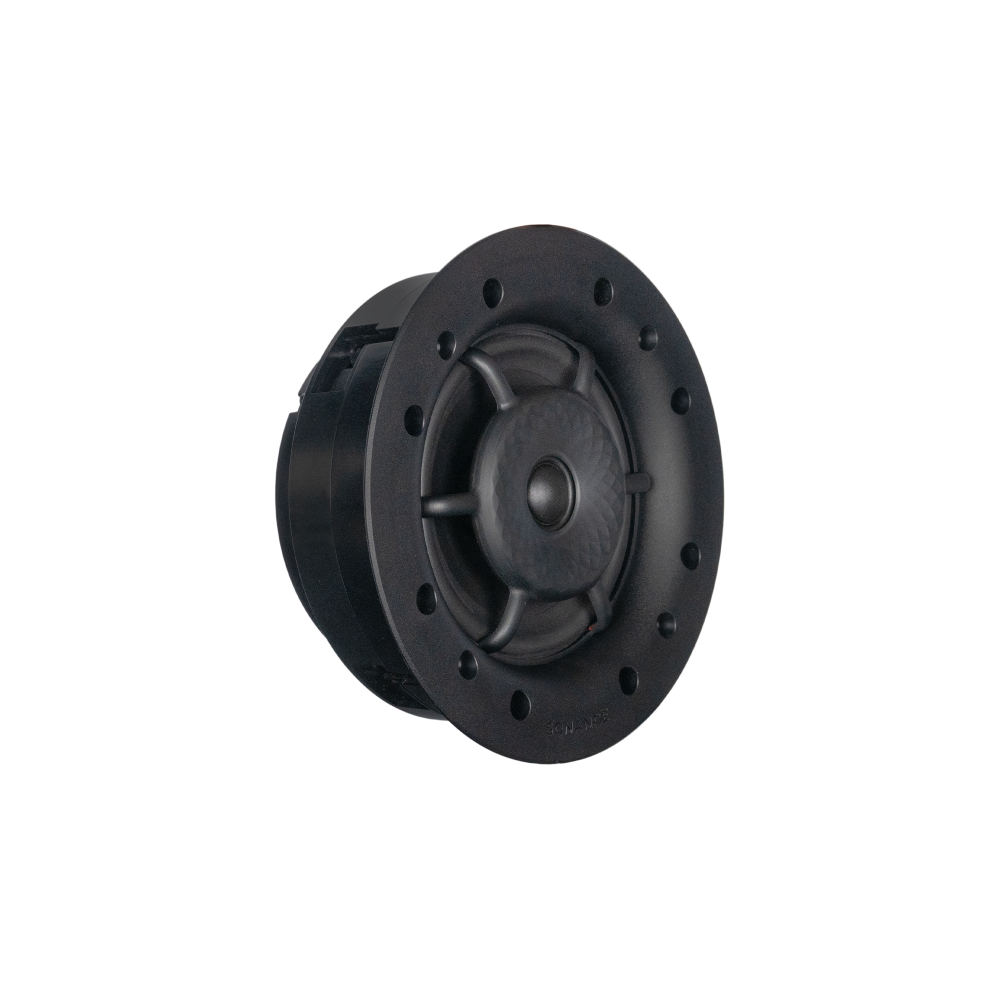

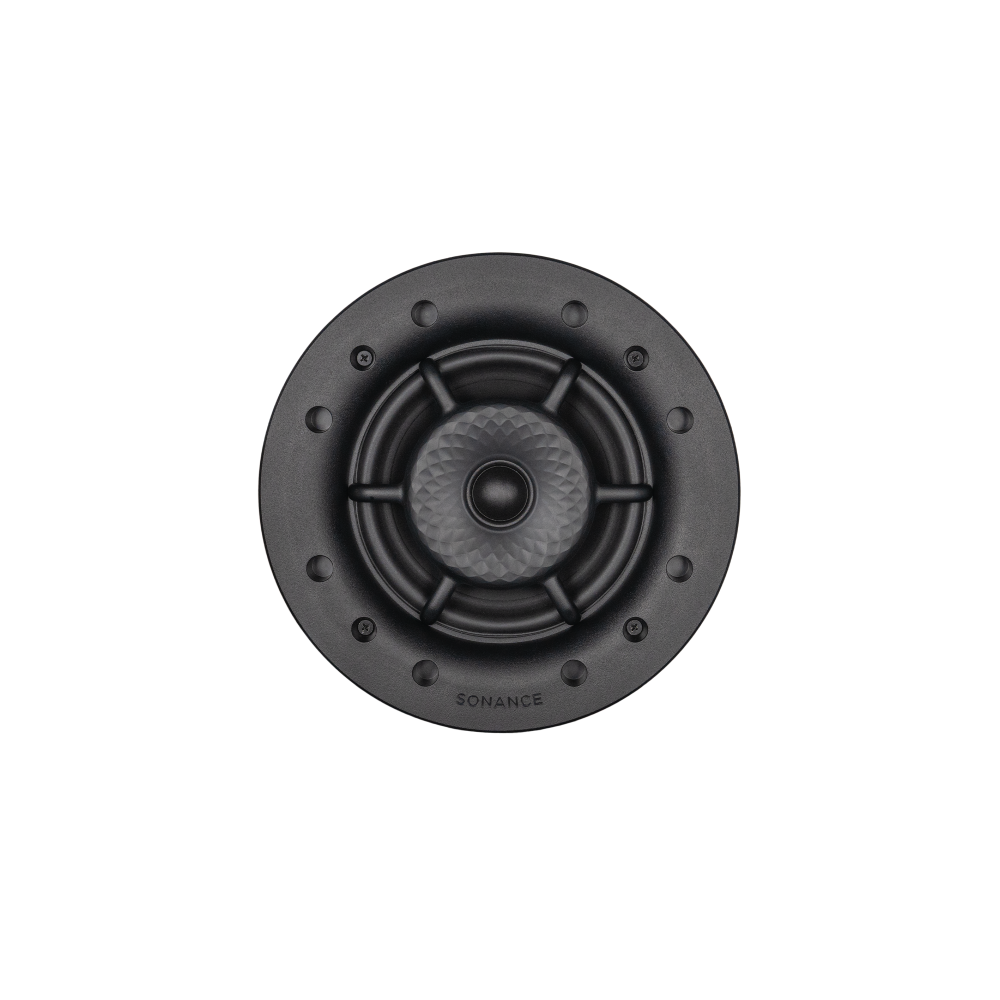

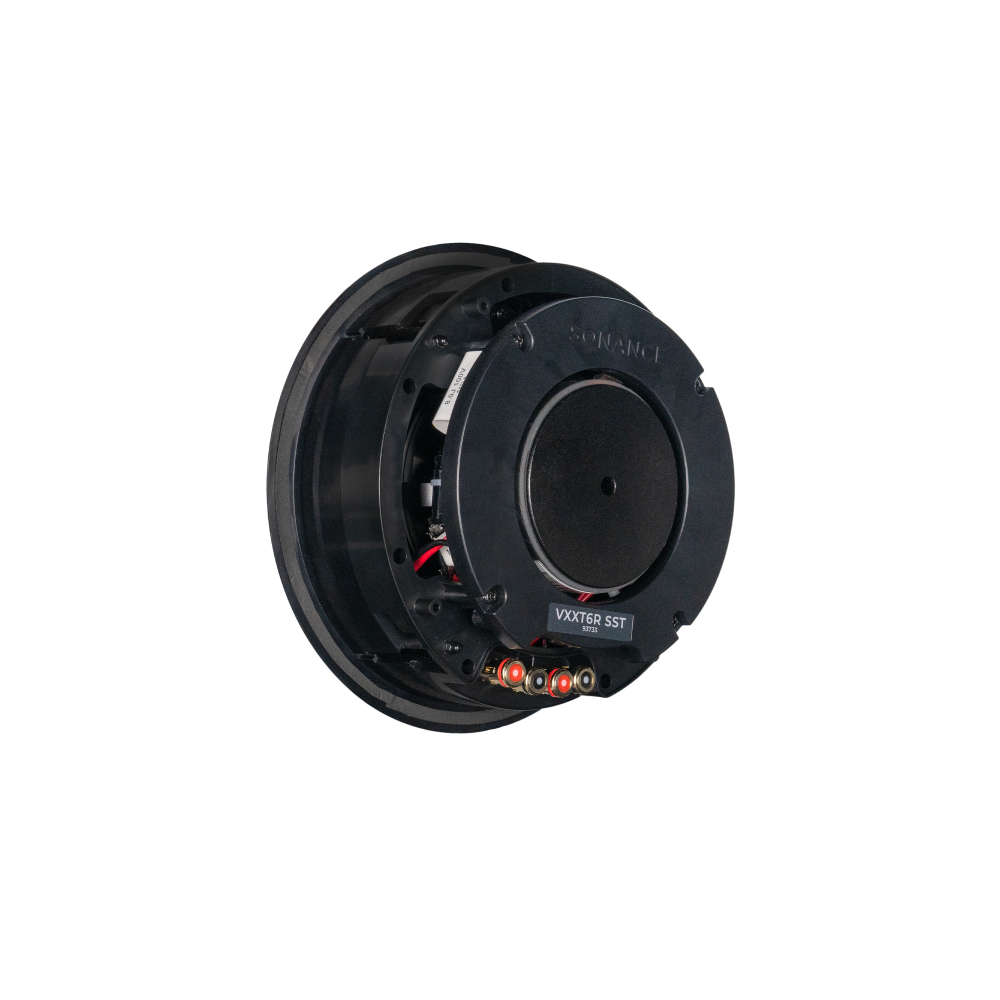

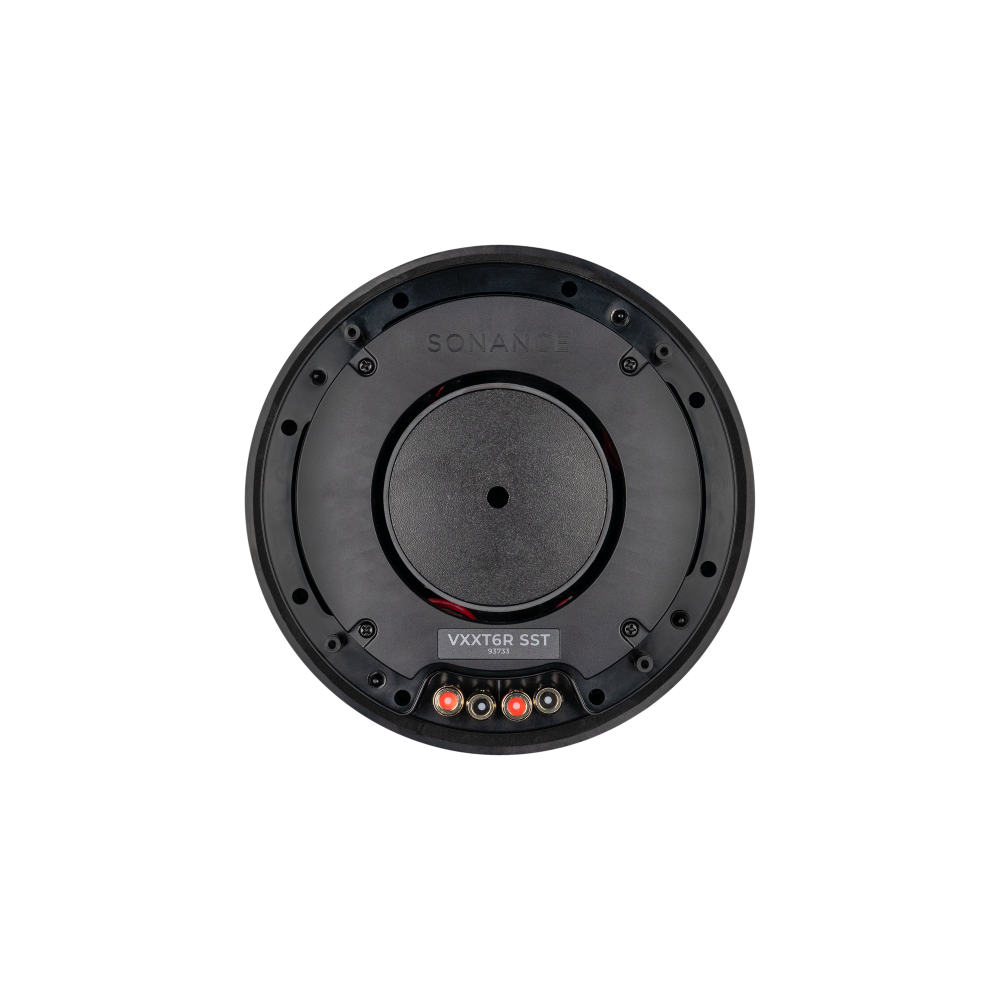

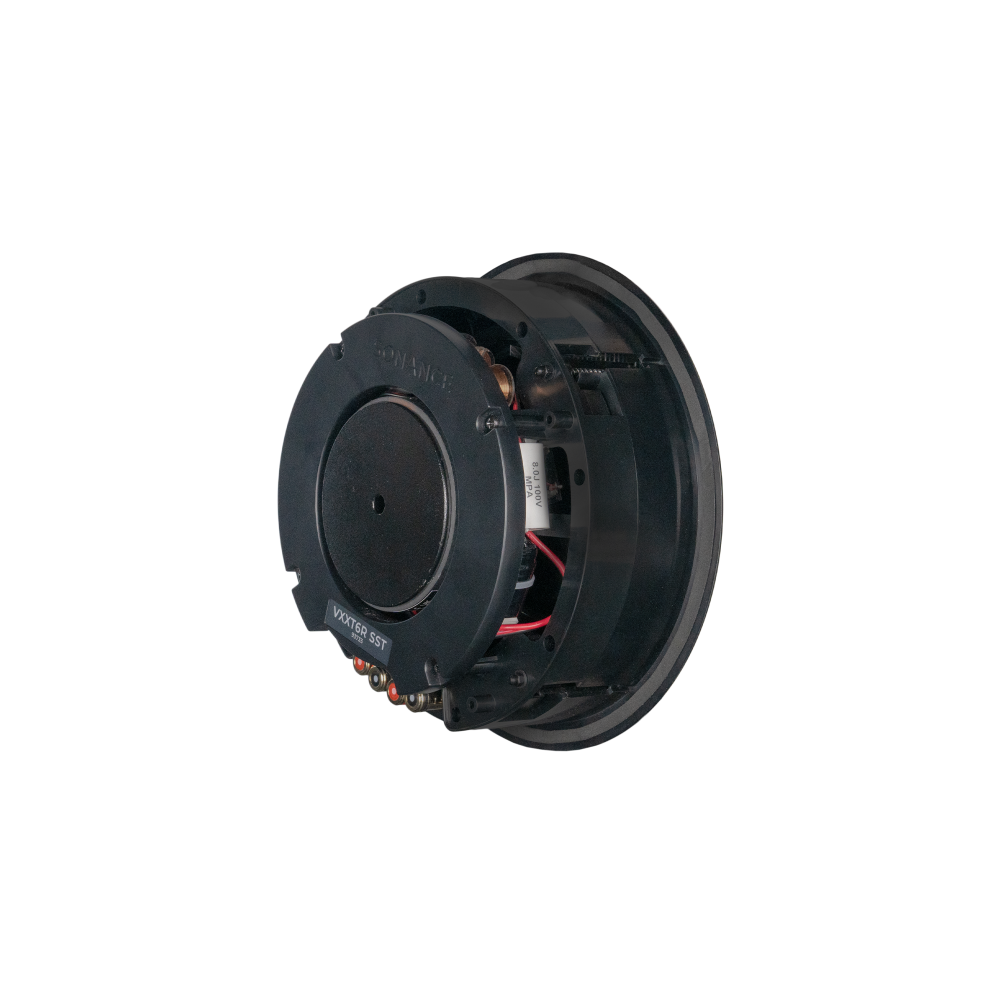

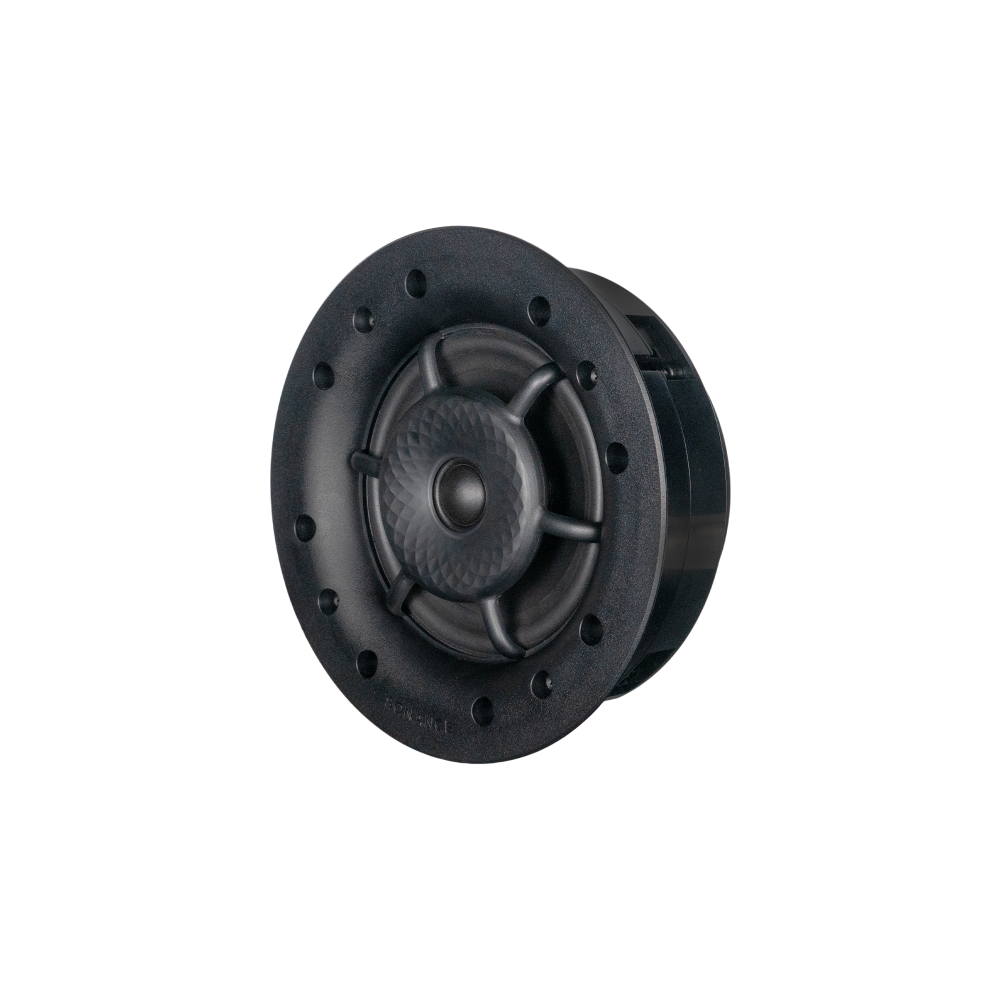

VXXT6R SST
VXXT6R SST
Visual Experience

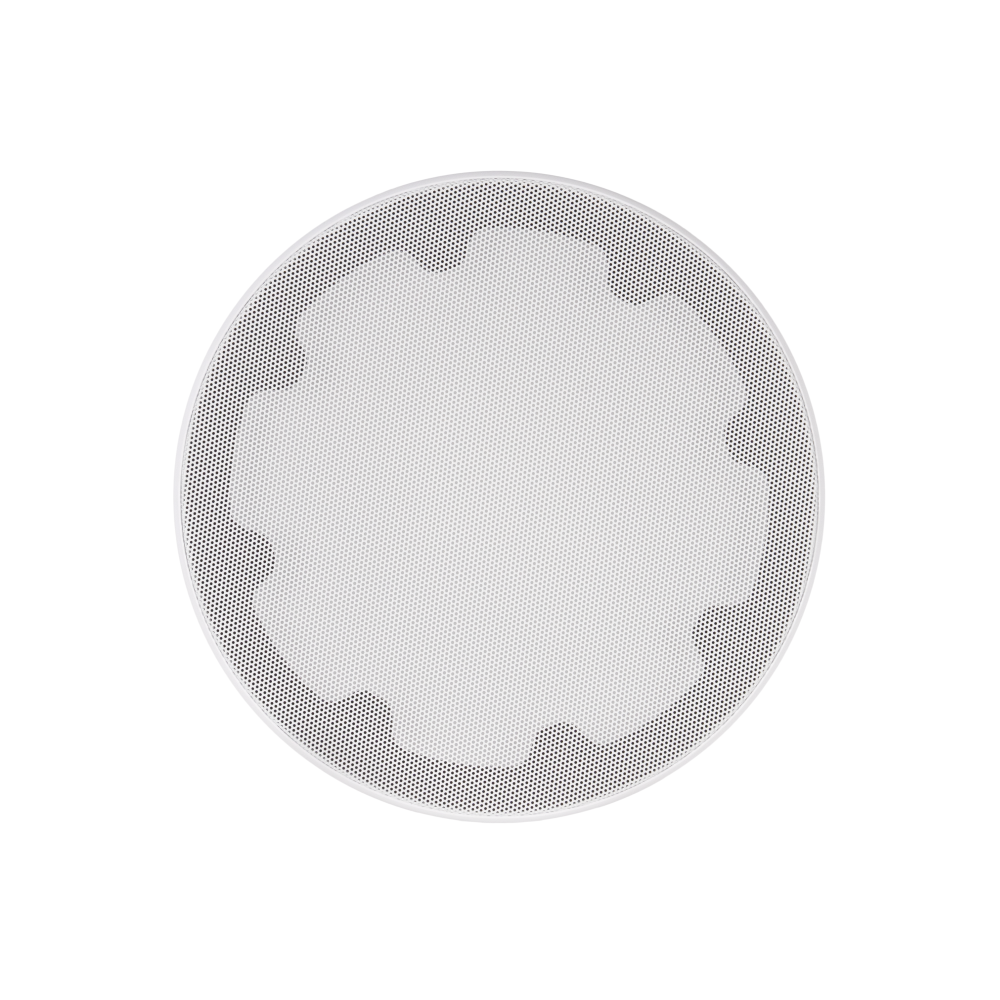

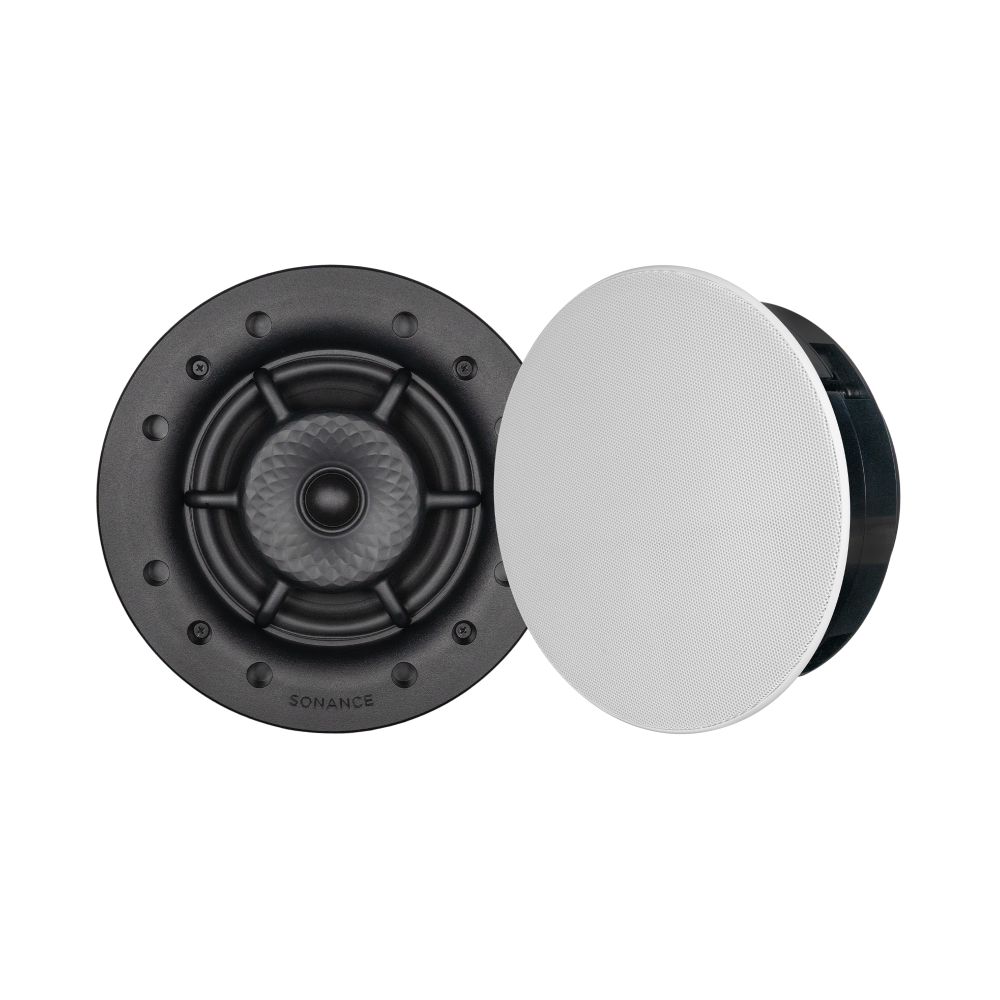

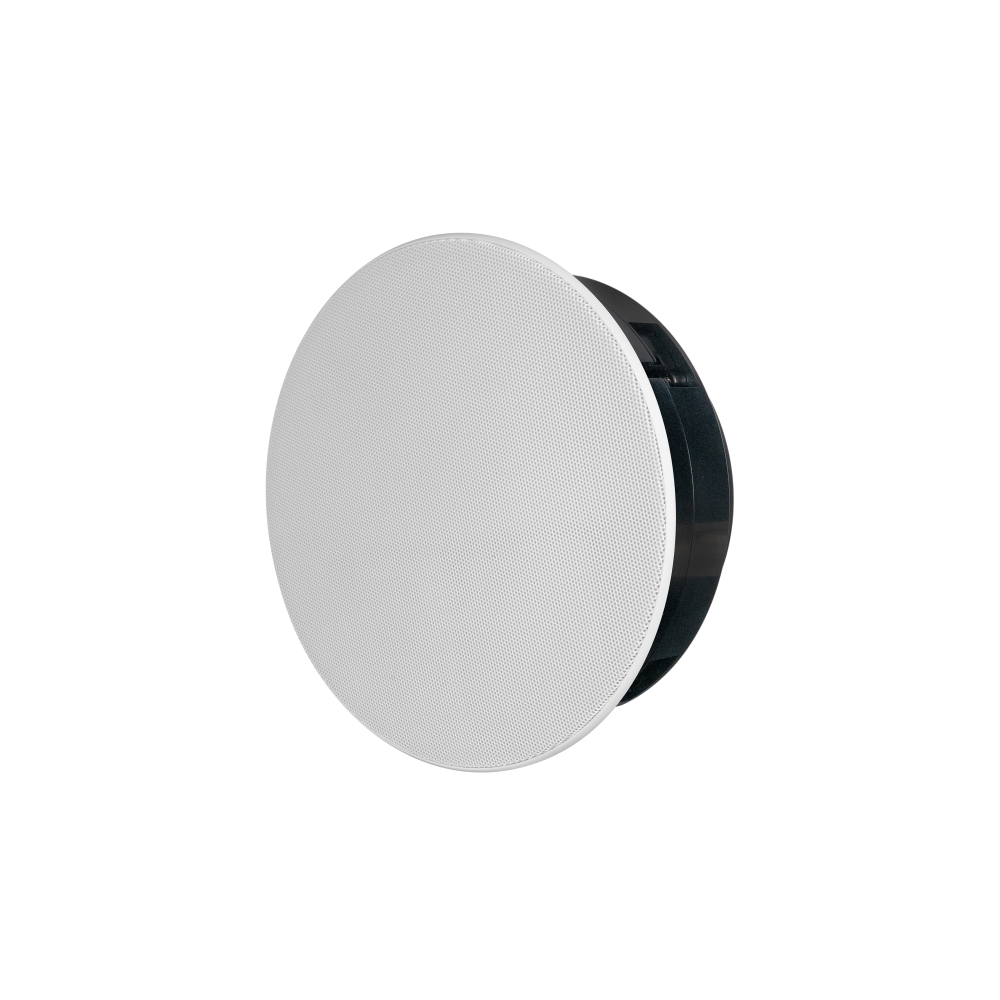

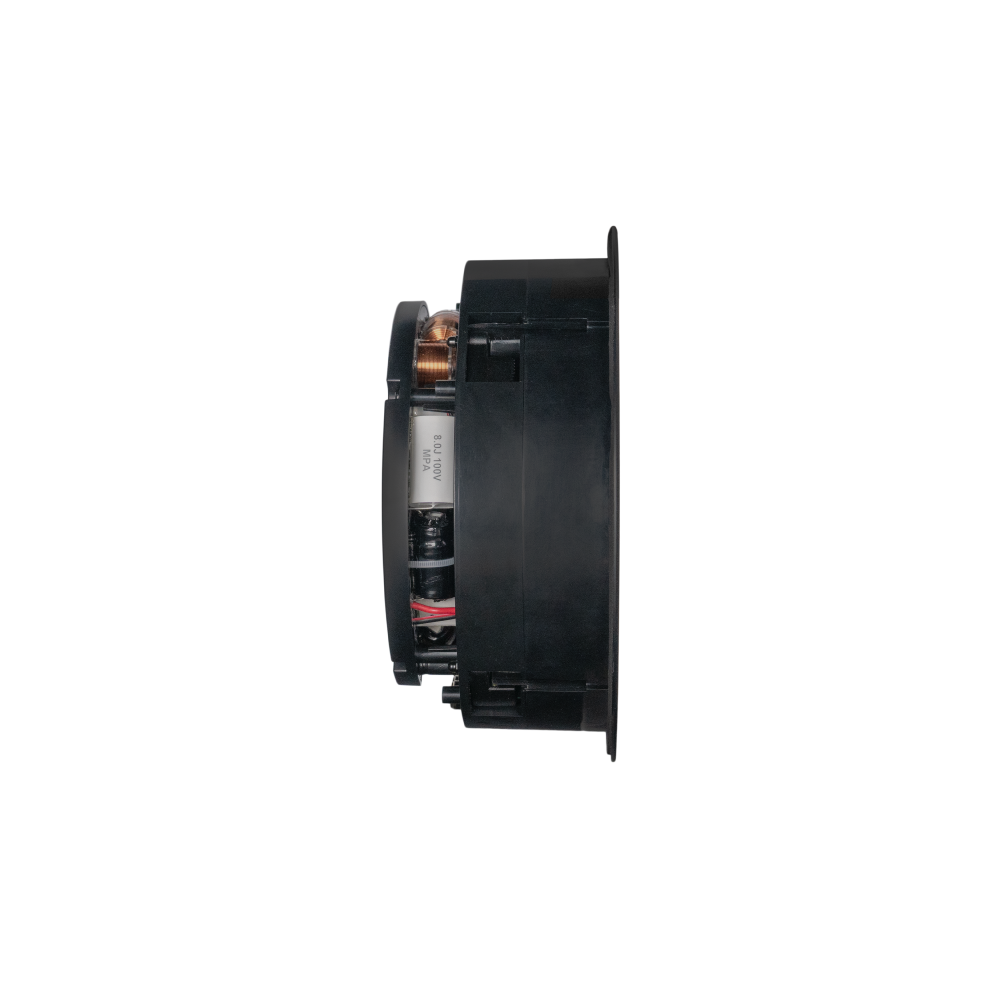

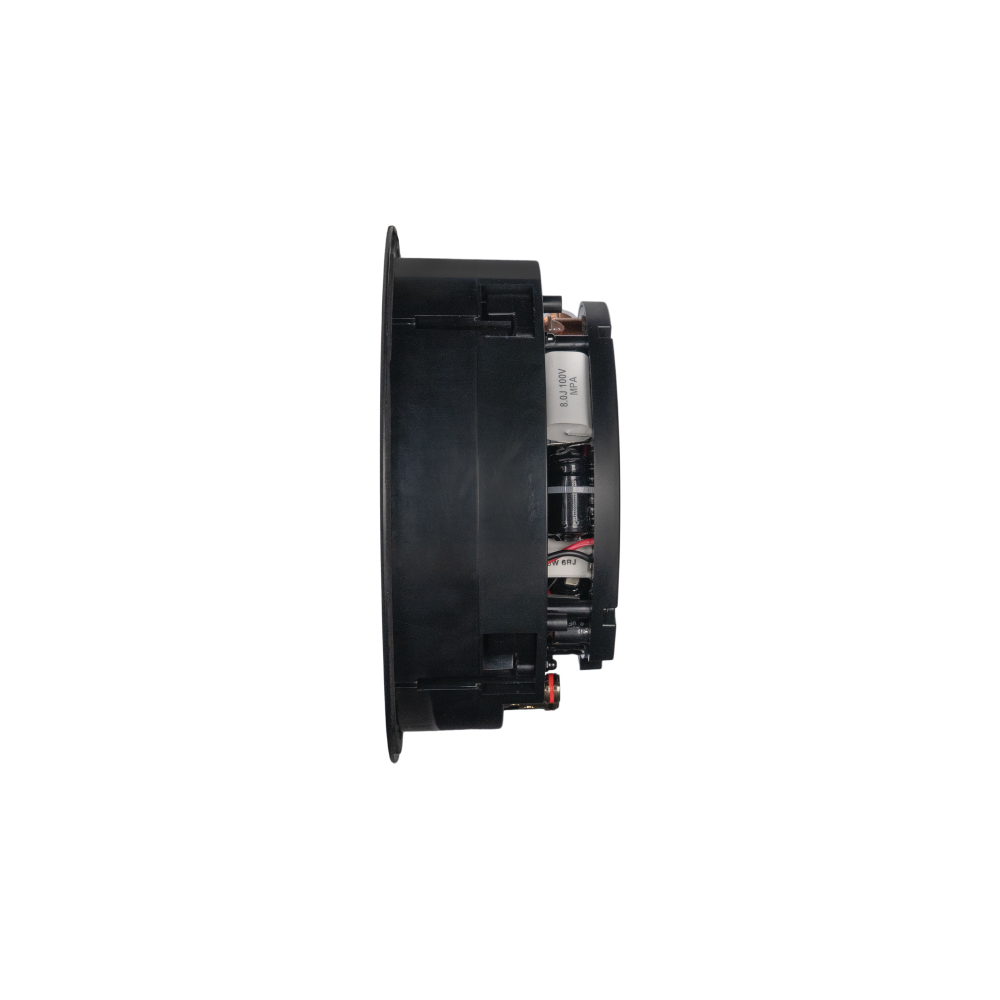

The VXXT6R SST offers rich stereo performance from a single, round in-ceiling speaker, perfect for extreme environments with limited speaker locations. Its IP66-rated, dual voice coil design includes the Sonance XPC (Extreme Post Capture) grille retention system, and comes in round or square, micro trim or trimless bezel options to disappear into the ceiling. Trimless grille and square grilles optional, sold separately.
Specifications
SKU | Color
93733 Brilliant White (Satin)
Speaker Tweeter
1.0" (25mm) Dual voice coil, waterproof cloth dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
6.5" (165mm) Dual voice coil, polypropylene cone, Santoprene surround
Frequency Response (+/- 3db)
45Hz - 20kHz +/-3dB
Power Handling (RMS)
5 watts minimum; 125 watts maximum
Sensitivity
89dB (2.83V/1m)
Nominal Impedance (Ohms)
8 ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (Diameter x D)
9.17" x 3.74" (232.92mm x 95.0mm)
Cut-Out Dimensions (Diameter)
8.25" (209.55mm)
Mounting Depth
3.62" (91.95mm)
Weight
5.4 lbs. (2.45kg)
