OW68QBE
OW68QBE
On Wall

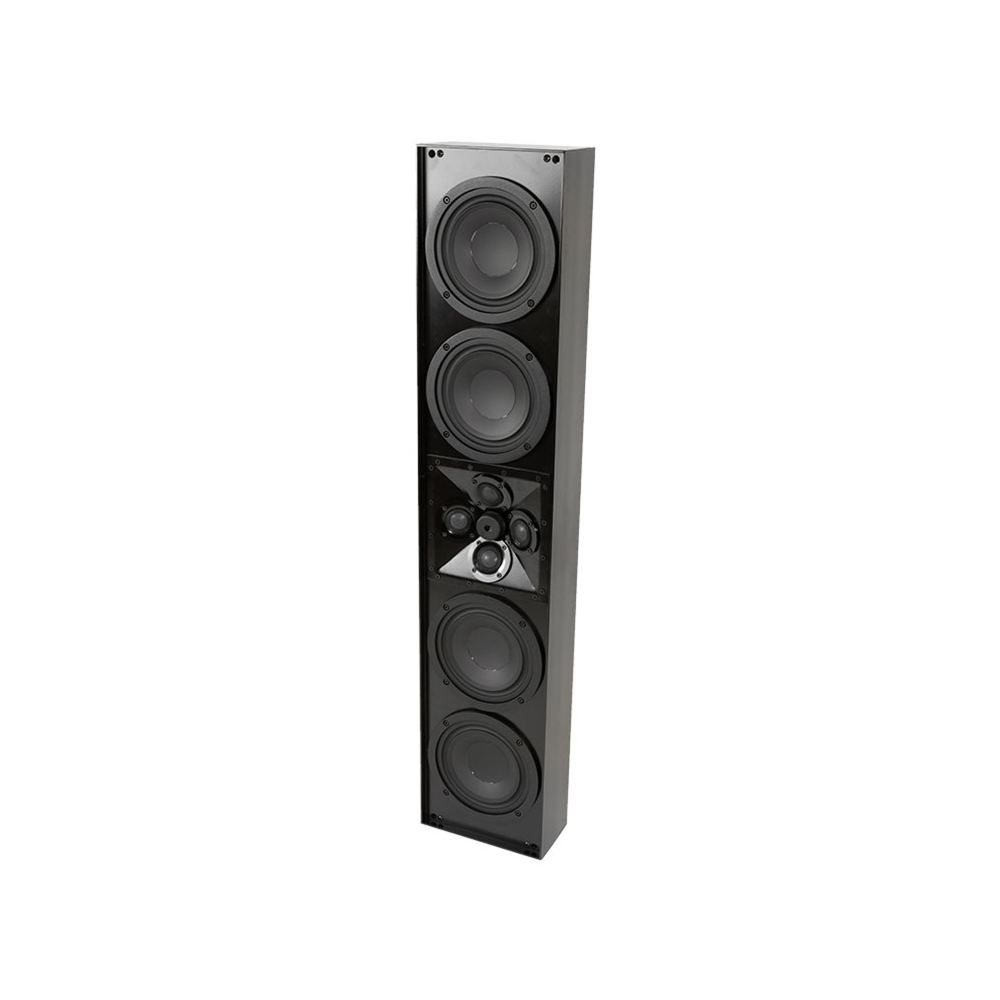

The OW68QBE On-Wall Loudspeaker features four proprietary 6.5" woofers delivering bass down to 70Hz and four 1" Beryllium dome tweeters for clarity up to 40kHz. Engineered with a James-designed network, it ensures seamless transitions between drivers, offering excellent performance both on and off-axis in any listening environment.
Key Features
- Quad Tweeter Array for wide dispersion and crisp fidelity (“Q” models only)
- Marine grade aluminum construction with fluoropolymer coating for solid, secure, and long-lasting performance indoors or outdoors (marine models only; must be specified when ordering)
- Available in low impedance or 70V configurations
- Simple through-hole installation
- Optional Mason Box installation accessories available
- TAA Compliant
Specifications
SKU | Color
OW68QBE
Speaker Tweeter
(4) 1" (25mm) Beryllium Dome (Quad-array)
Speaker Woofer
(4) 6.5" (165mm) Neodymium
Frequency Response (+/- 3db)
70Hz - 40kHz
Sensitivity
96dB (2.83V/1m)
Recommended Power Range
25 - 200W
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
8.13" x 40.0" x 4.0" (206.38mm x 1016.0mm x 101.6mm)
