Invisible Series
Powerpipe X Series
PPX12
Now Shipping

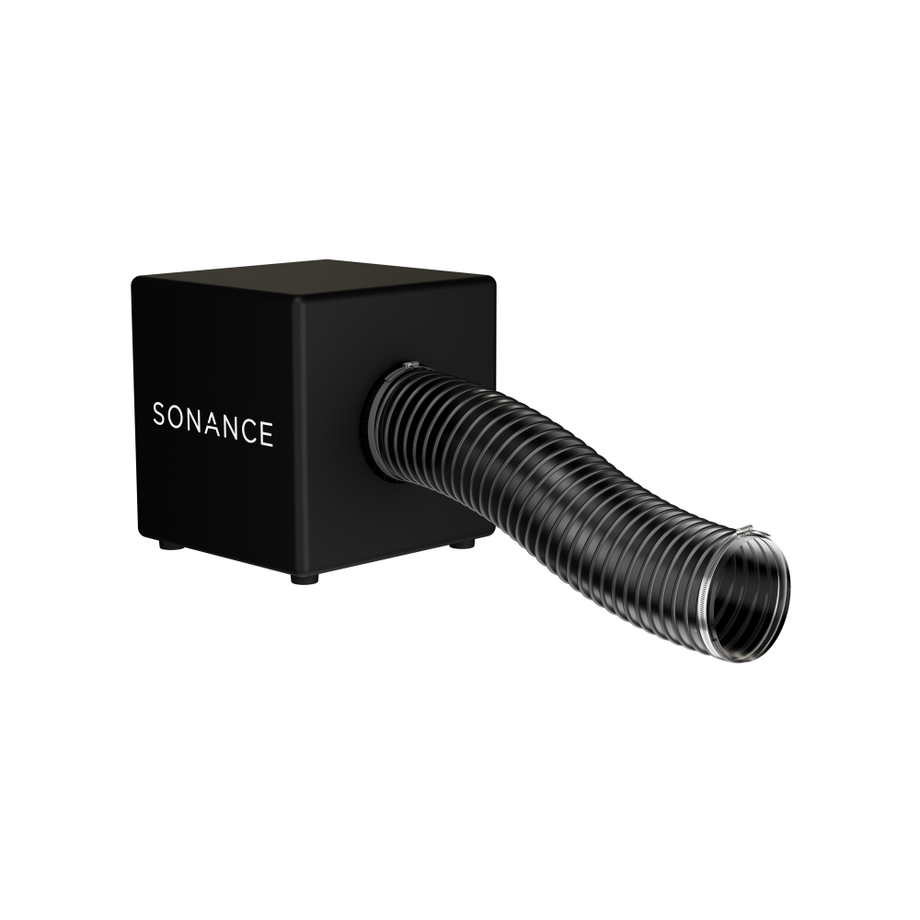

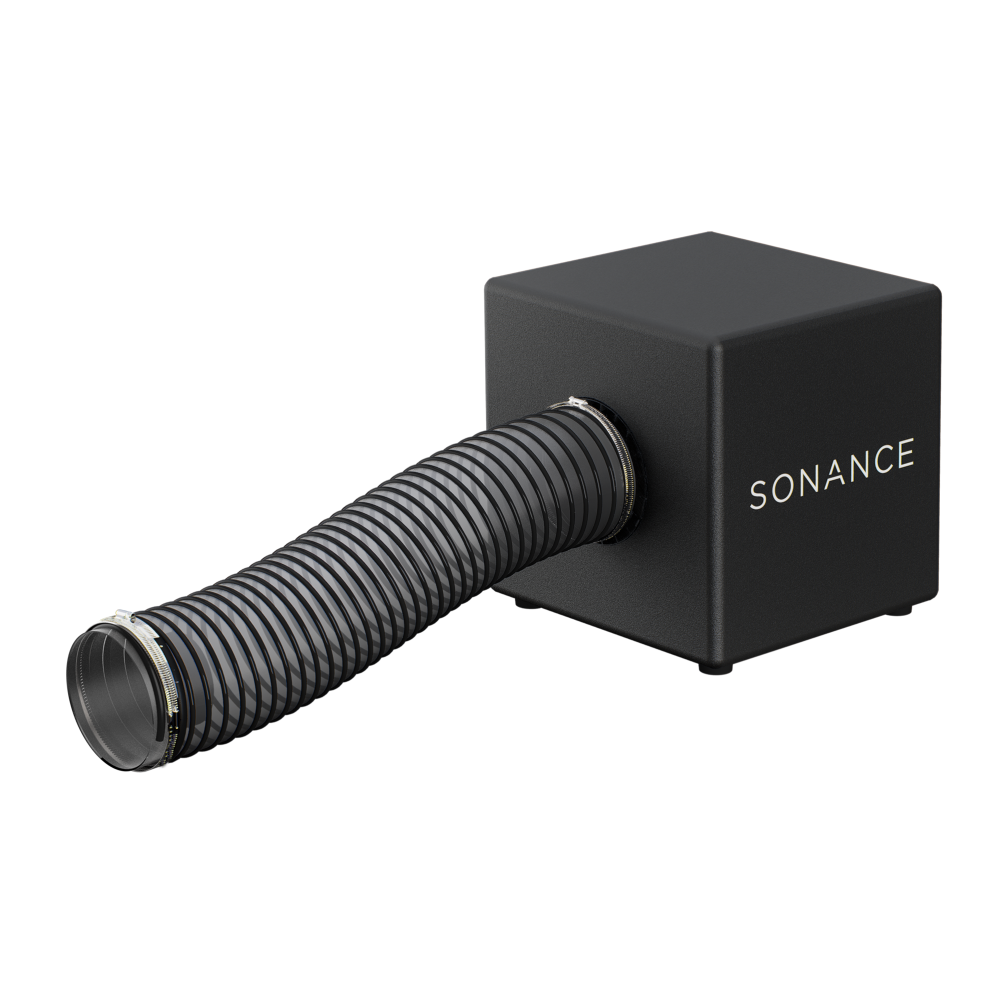

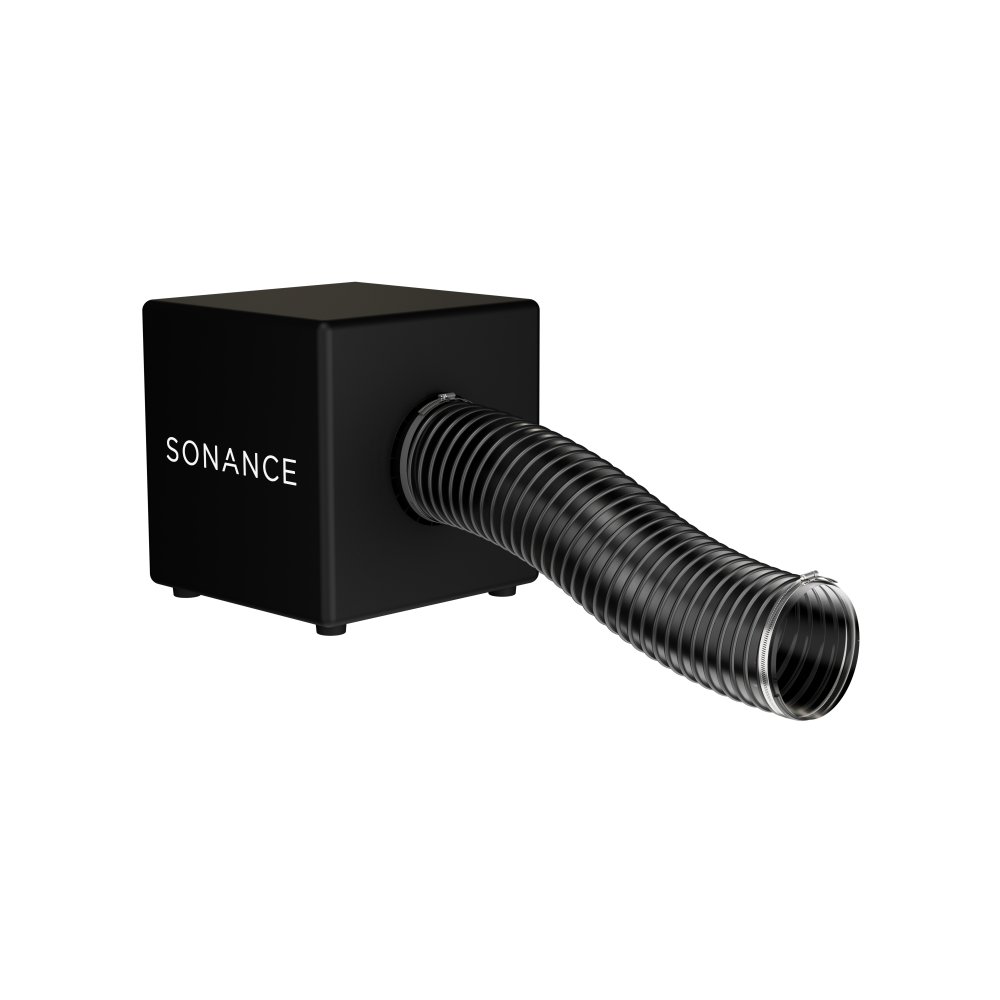

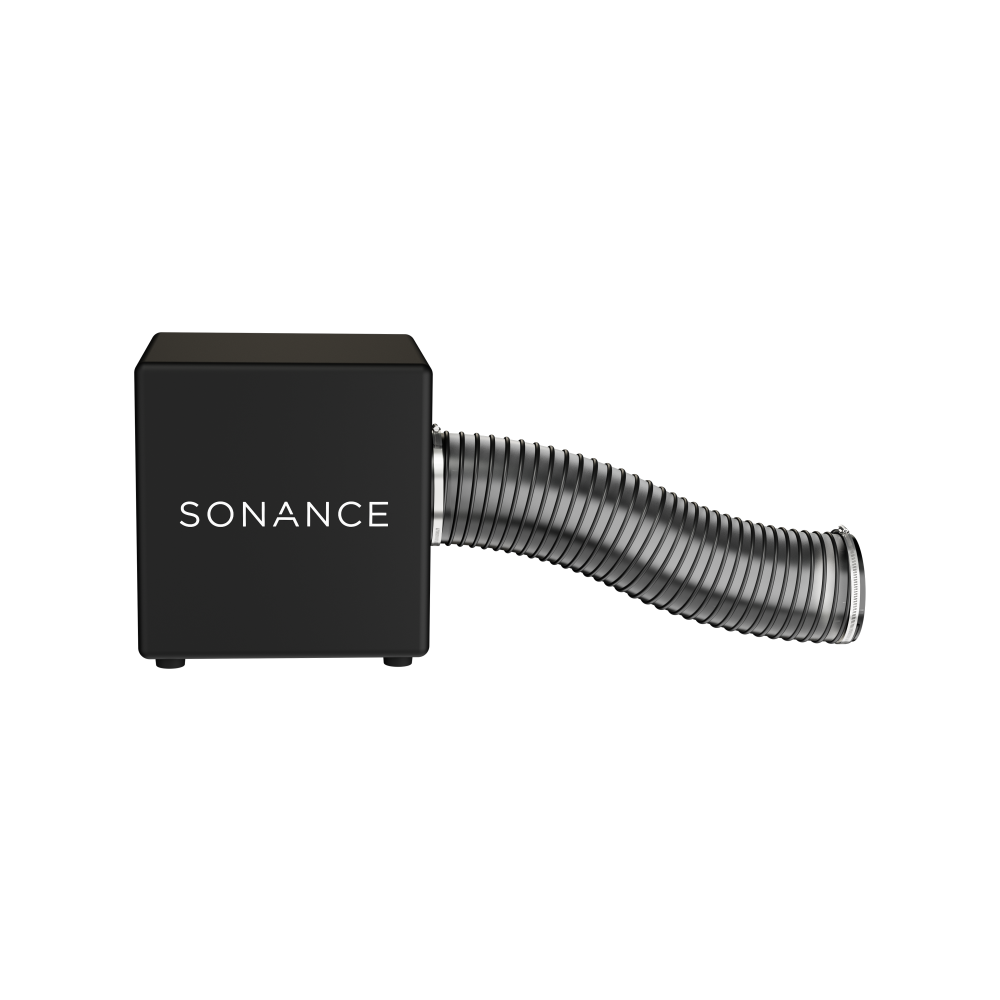

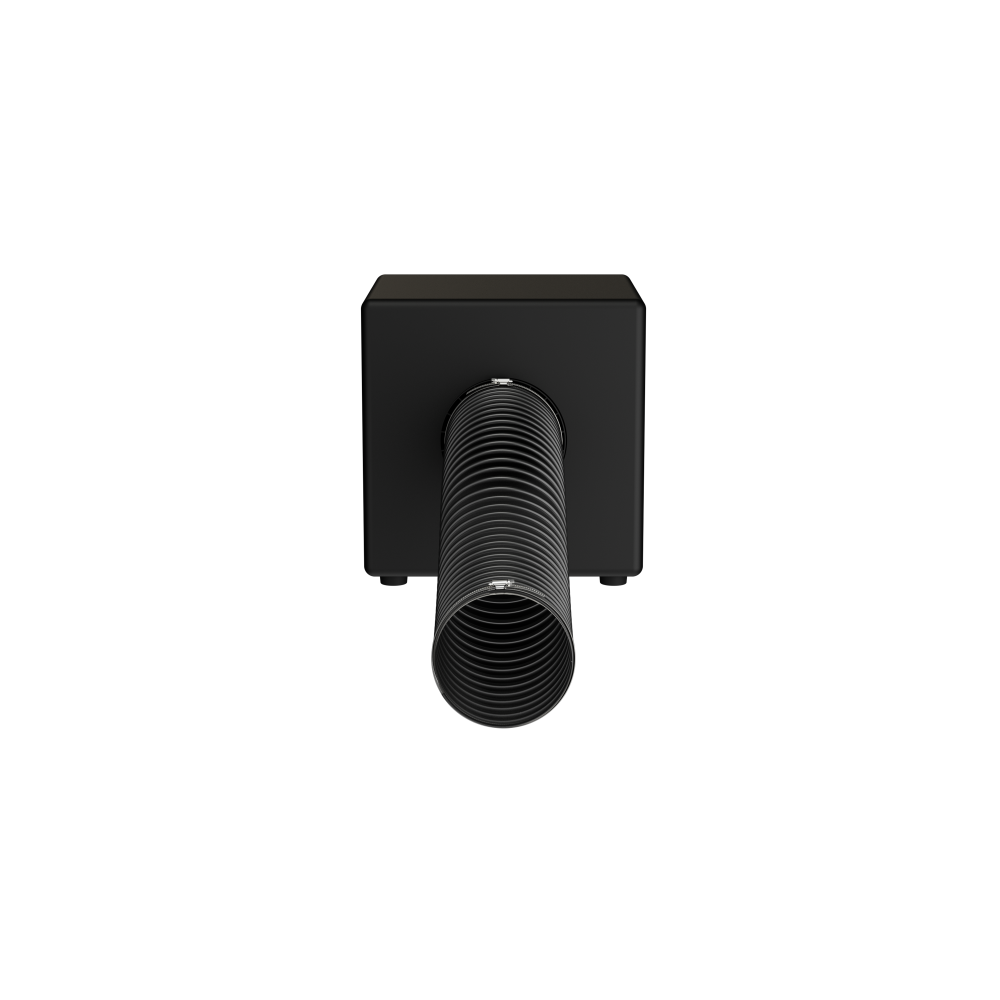

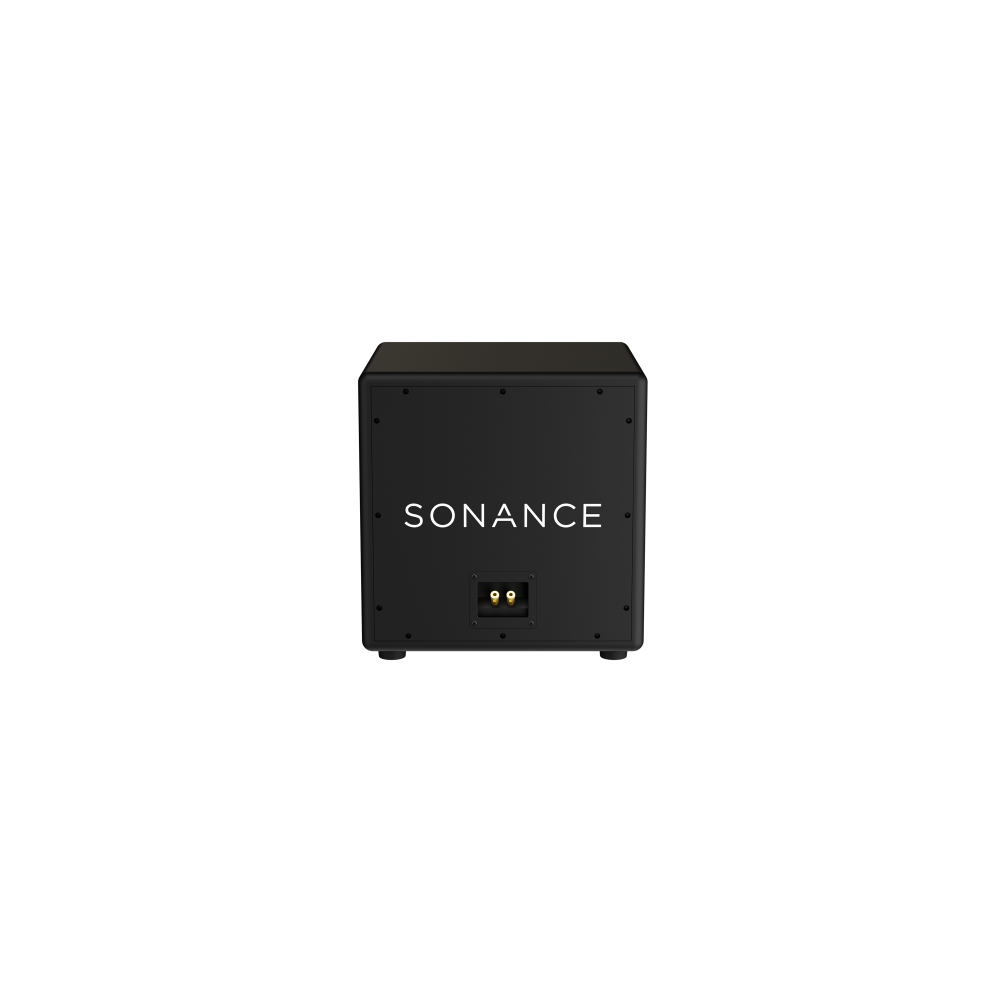

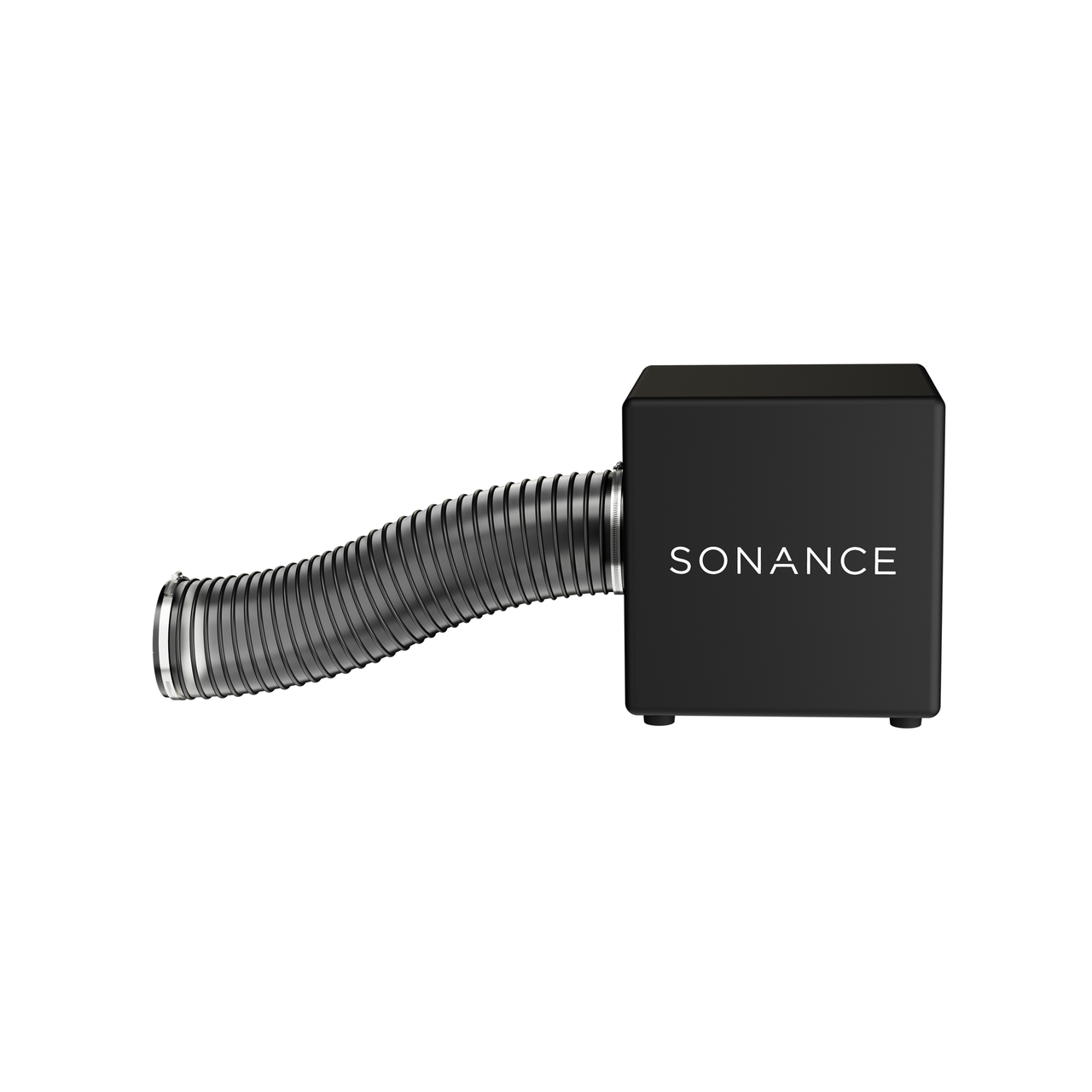

PPX12
PowerPipe
With extension to 34Hz, the PPX12 delivers enhanced depth and output for larger residential and professional environments. Its ported bandpass design ensures powerful, controlled Hidden Bass while integrating discreetly into architectural surfaces with minimal visual impact.
Key Features
- 12" High-Excursion Woofer (34Hz-100Hz) - Delivers deeper extension and increased output for larger residential or professional environments.
- Scalable Hidden Bass Performance - Designed for projects requiring greater low-frequency energy while maintaining architectural discretion.
- Expanded Aesthetic Integration Options - Supports a wide range of grille and mounting solutions to preserve design intent.
Specifications
SKU | Color
PPX12 (textured black)
Speaker Woofer
12" (305mm) anodized aluminum cone, rubber surround, high excursion
Frequency Response (+/- 3db)
34Hz - 100Hz
Sensitivity
93dB SPL
Recommended Power Range
500 watts
Enclosure
MDF (Medium Density Fiberboard)
Nominal Impedance (Ohms)
4 Ohms
Dimensions No Feet (WxHxD)
15.75" x 15.75" x 15.16" (400.05mm x 400.05mm x 385.06mm)
Dimensions with Feet (WxHxD)
15.75" x 16.36" x 15.16" (400.05mm x 415.54mm x 385.06mm)
Tube Diameter
5.98" (151.89mm)
Tube Length
25.59" (649.99mm)
Weight
55.87 lbs. (25.34kg)
