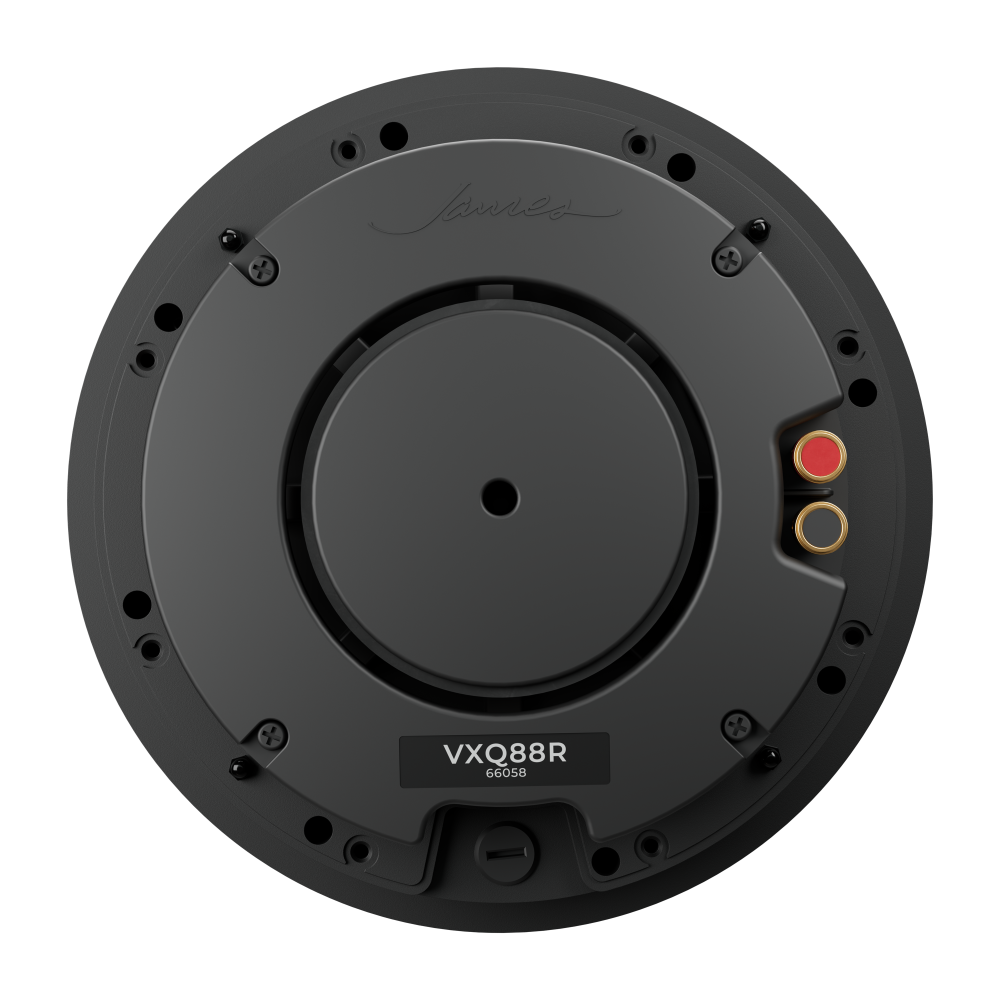

VXQ88R

Visual Experience

IP67 rated Visual Experience Series in-ceiling speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications. The VXQ88R can be ordered with a standard round Micro Trim grille, round Trimless grille, square Micro Trim grille, or square Trimless grille. These speakers can also be configured to include a shallow or deep enclosure to suit whatever the application demands.

VXQ88R

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Specifications

SKU

VXQ88R

Speaker Tweeter

1.0" (25mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer

8" (203mm) Aluminum cone, Santoprene surround

Frequency Response (+/- 3db)

30Hz - 20kHz

Power Handling (RMS)

5 watts minimum; 175 watts maximum

Sensitivity

91dB (2.83V/1m)

Dispersion

Quadratech Tweeter with Cymatic Diffuser

Cut-Out Dimensions (Diameter)

10.125" (257.18mm)

Mounting Depth

3.78" (96.01mm)

Copy All Specs

Related Products

40174_hero_product_image_PS-83_C-Bracket_Tile_Bridge_F-01.tiff

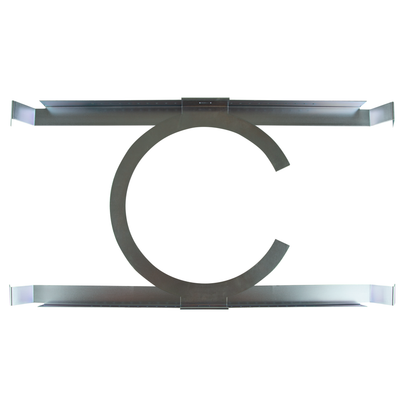

PS-C83/PS-C63RTLP C-Bracket & Tile Bridge

SKU: 45174

60470_hero_product_image_VX8_Round_Shallow_Enclosure_Back45_Right.tiff

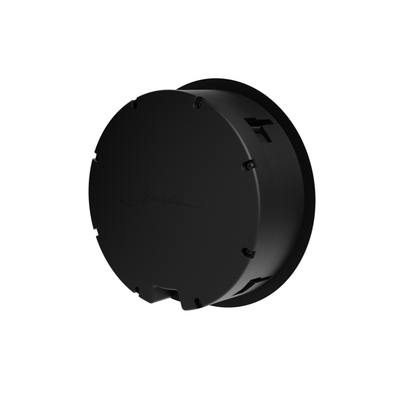

VXQ 8" ROUND SHALLOW ENCLOSURE

SKU: 60470

VXQ 8" ROUND DEEP ENCLOSURE

SKU: 60471

93744_hero_image_XPC-8R-T_front.tiff

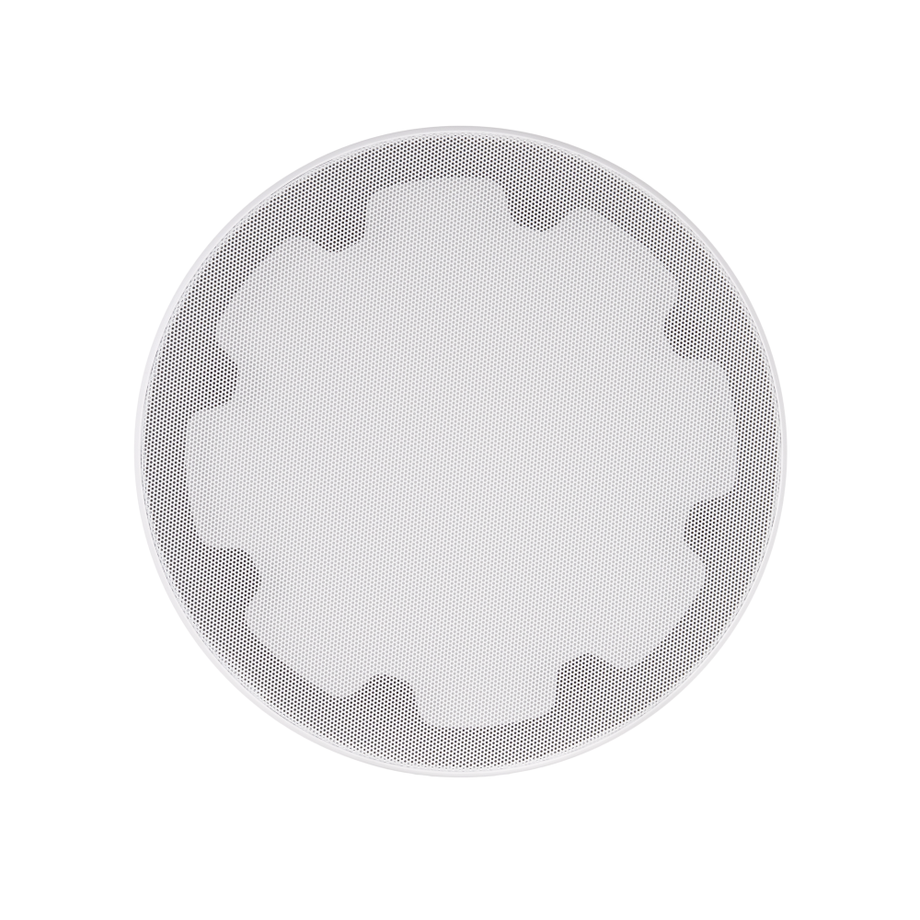

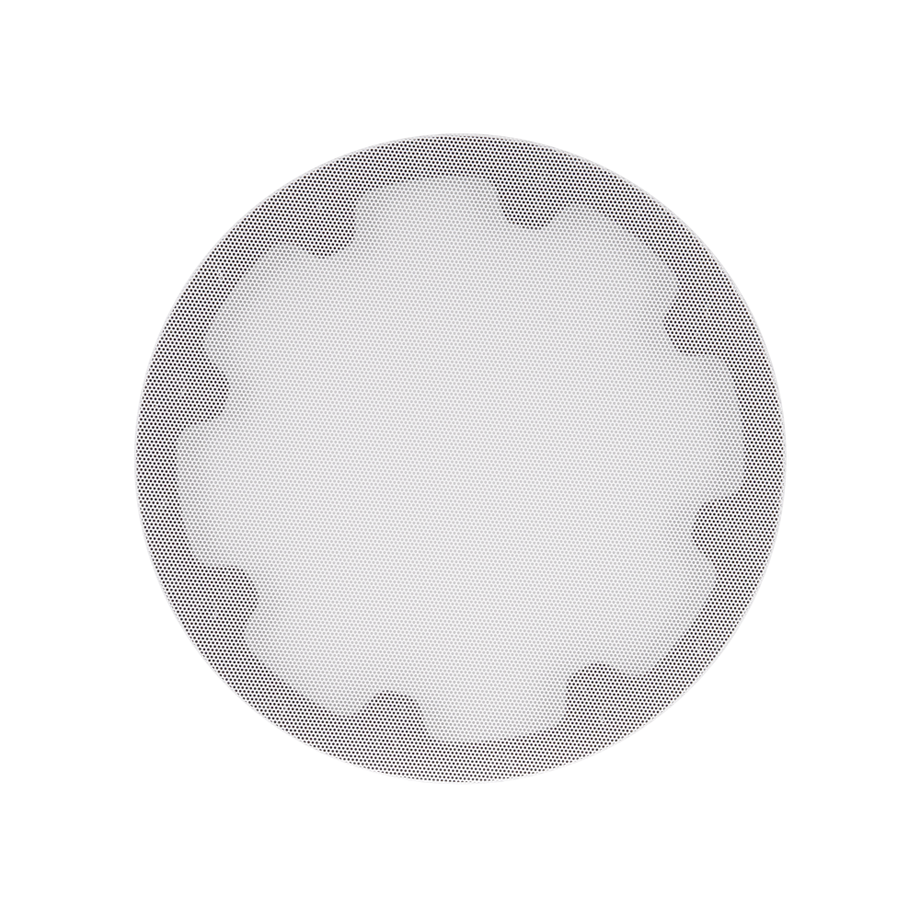

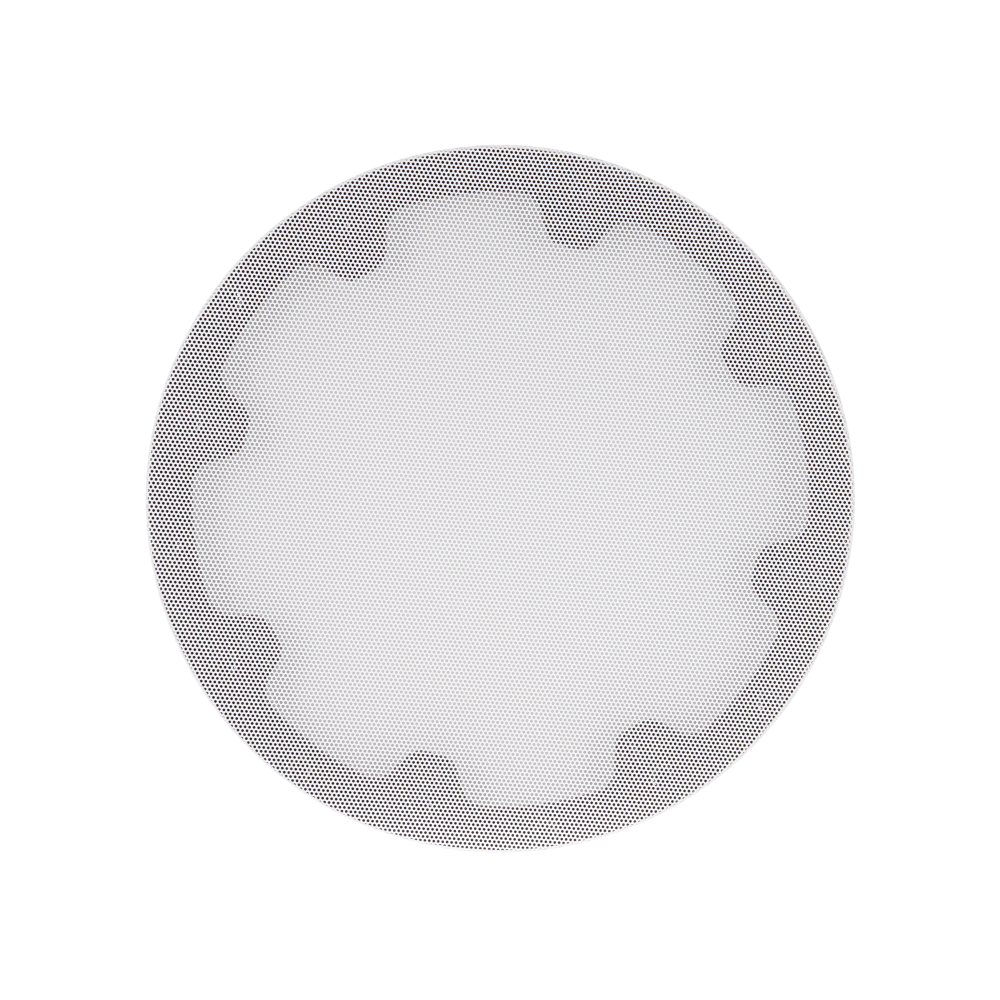

8" ROUND XPC MICRO TRIM GRILLE

SKU: 60479

93745_hero_image_XPC-8R-NT_Front.tiff

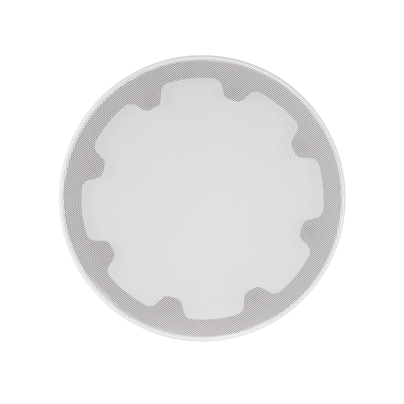

8" ROUND XPC TRIMLESS GRILLE

SKU: 60480

60491_hero_product_image_VXQ8_VXQ_Square_Microtrim_Front.tiff

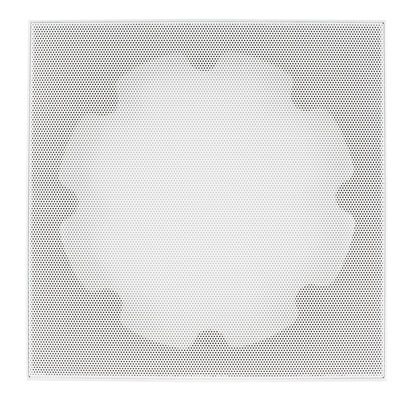

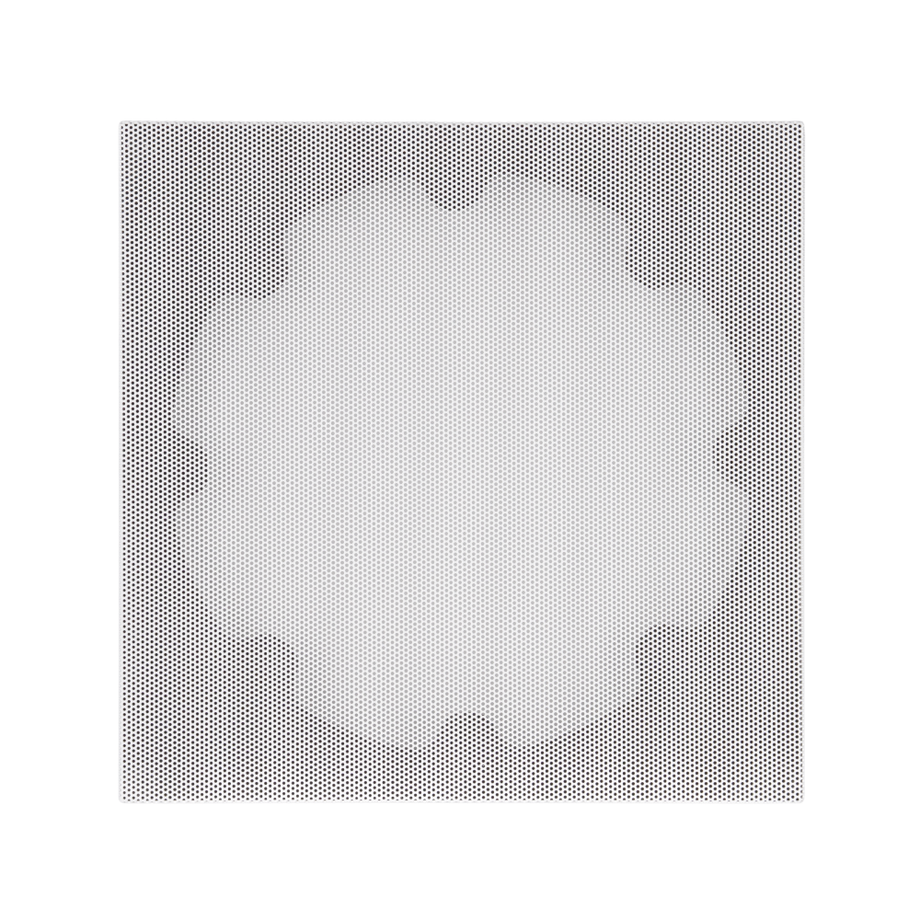

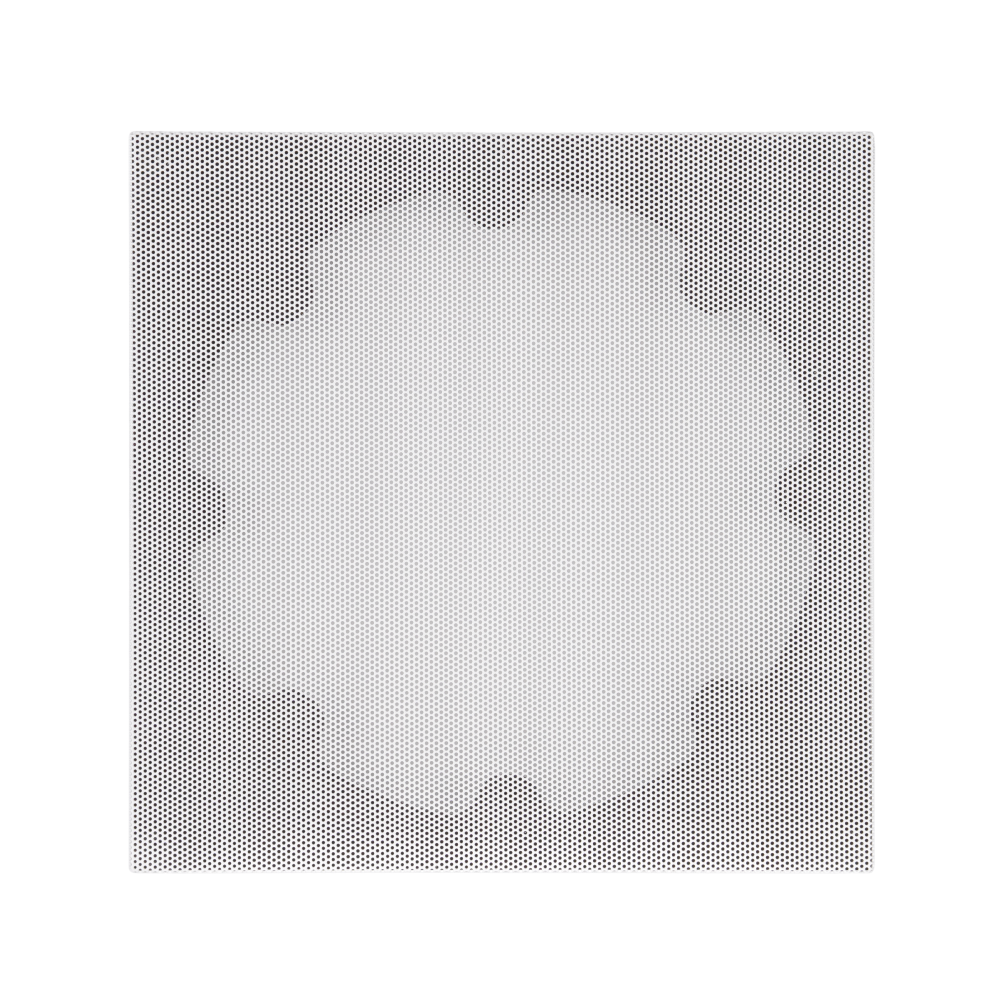

8" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 60491

60492_hero_product_image_VXQ8_Square_Trimless_Grille_Front.tiff

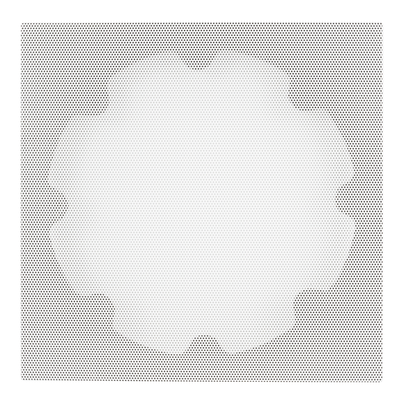

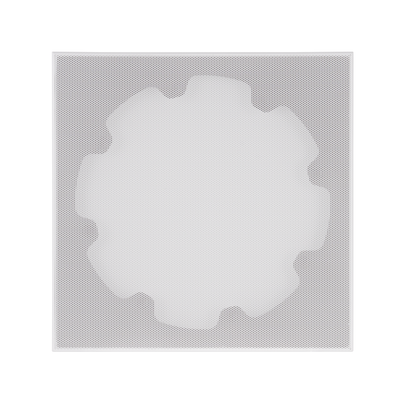

8" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 60492

91900_hero_product_image_Large_Round_Acoustic_Encl_F-01.tiff

Large Round Acoustic Enclosure

SKU: 91900

92247_hero_product_image_Large_Round_Flex_Bracket_F-01.tiff

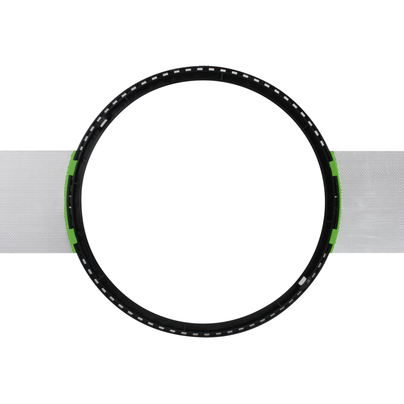

Large Round Flex Bracket

SKU: 92247

92808_hero_product_image_Fire-Rated_Deep_Backcan_F-01.tiff

Fire-Rated Listed Deep Backcan

SKU: 92808

93674_hero_product_image_TRUFIG_8in_round_Front_45L.tiff

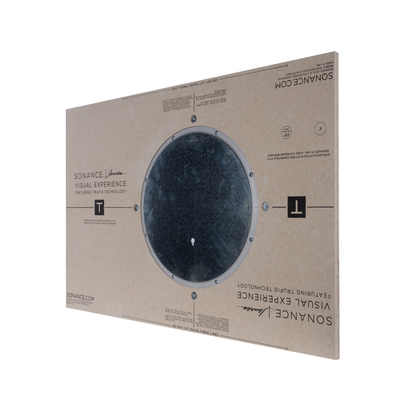

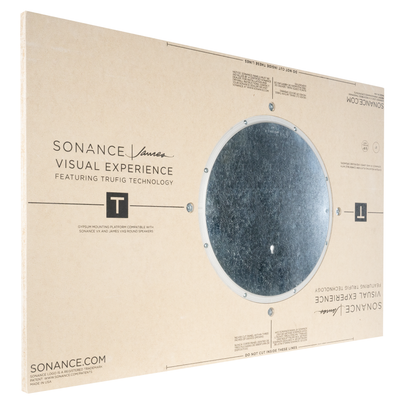

VX-VXQ-TRUFIG 8" RND 5/8" GYP

SKU: 93674

93675_hero_product_image_VX-VXQ_8Inch_1.5_Round_Gypsum_Mounting Platform_TRUFIG_Angle.tiff

VX-VXQ-TRUFIG 8" RND 1/2" GYP

SKU: 93675

93676_hero_product_image_VX-VXQ_8in_Square_Gypsum_Mounting Platform_TRUFIG_Front_Left_45.tiff

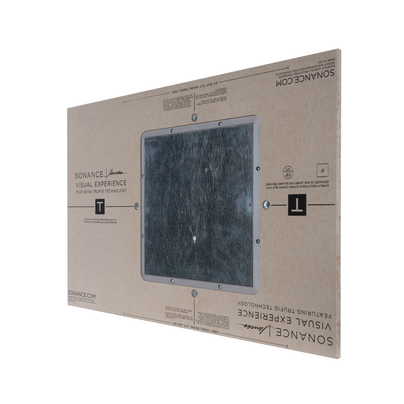

VX-VXQ-TRUFIG 8" SQR 5/8" GYP

SKU: 93676

93677_hero_product_image_VX-VXQ_8Inch_1.5_Square_Gypsum_Mounting Platform_TRUFIG_Angle.tiff

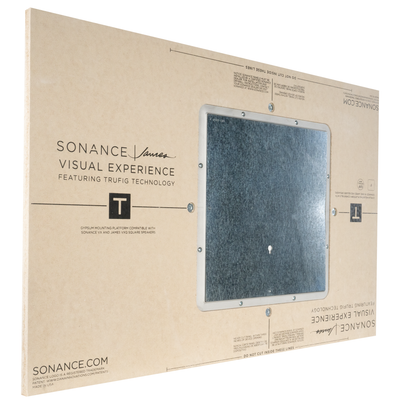

VX-VXQ-TRUFIG 8" SQR 1/2" GYP

SKU: 93677

93680_product_image_8IN_RND_RTR_TEMPLATE_F.tiff

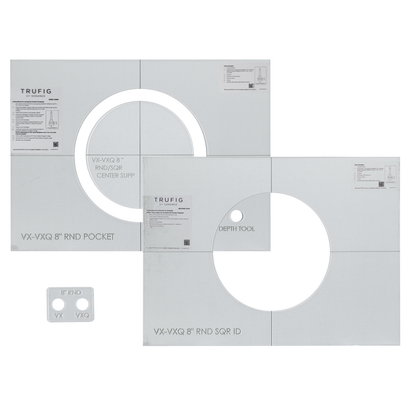

VX-VXQ-TRUFIG RTR TMP 8" RND

SKU: 93680

93715_product_image_8IN_SQR_RTR_TEMPLATE_F.tiff

VX-VXQ-TRUFIG RTR TMP 8" SQR

SKU: 93715

93744_hero_image_XPC-8R-T_front.tiff

8" ROUND XPC MICRO TRIM GRILLE

SKU: 93744

93745_hero_image_XPC-8R-NT_Front.tiff

8" ROUND XPC TRIMLESS GRILLE

SKU: 93745
