Invisible Series
PowerZone™ Connect 1U Amplifiers

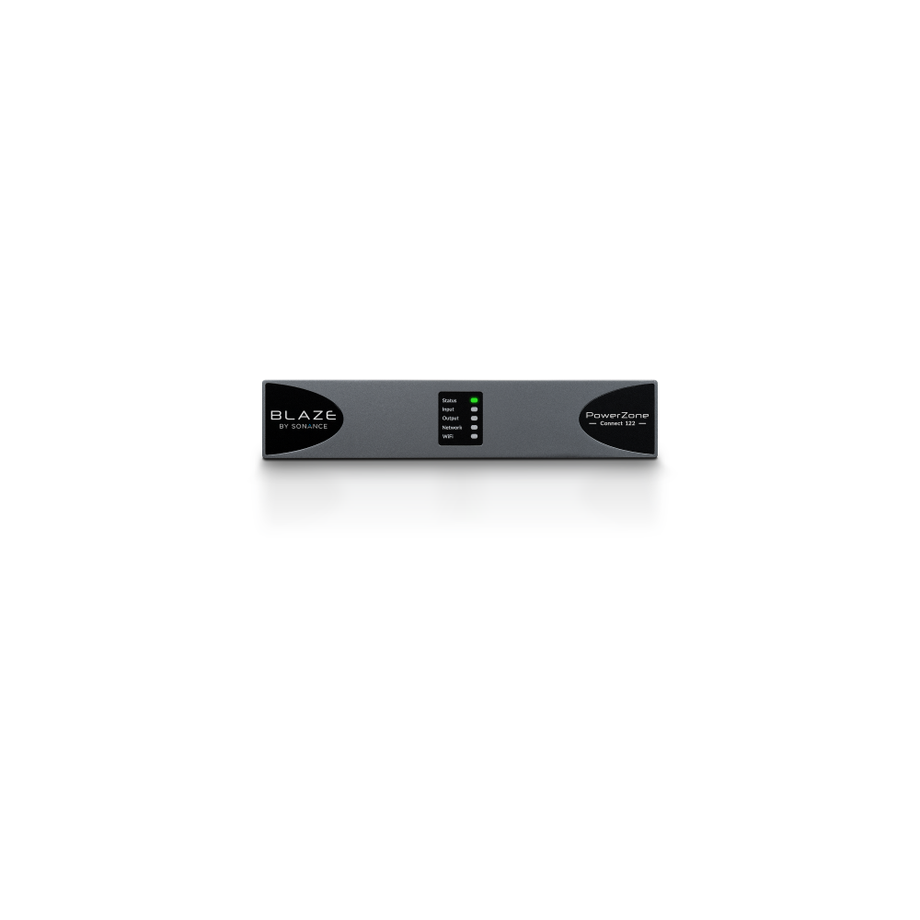

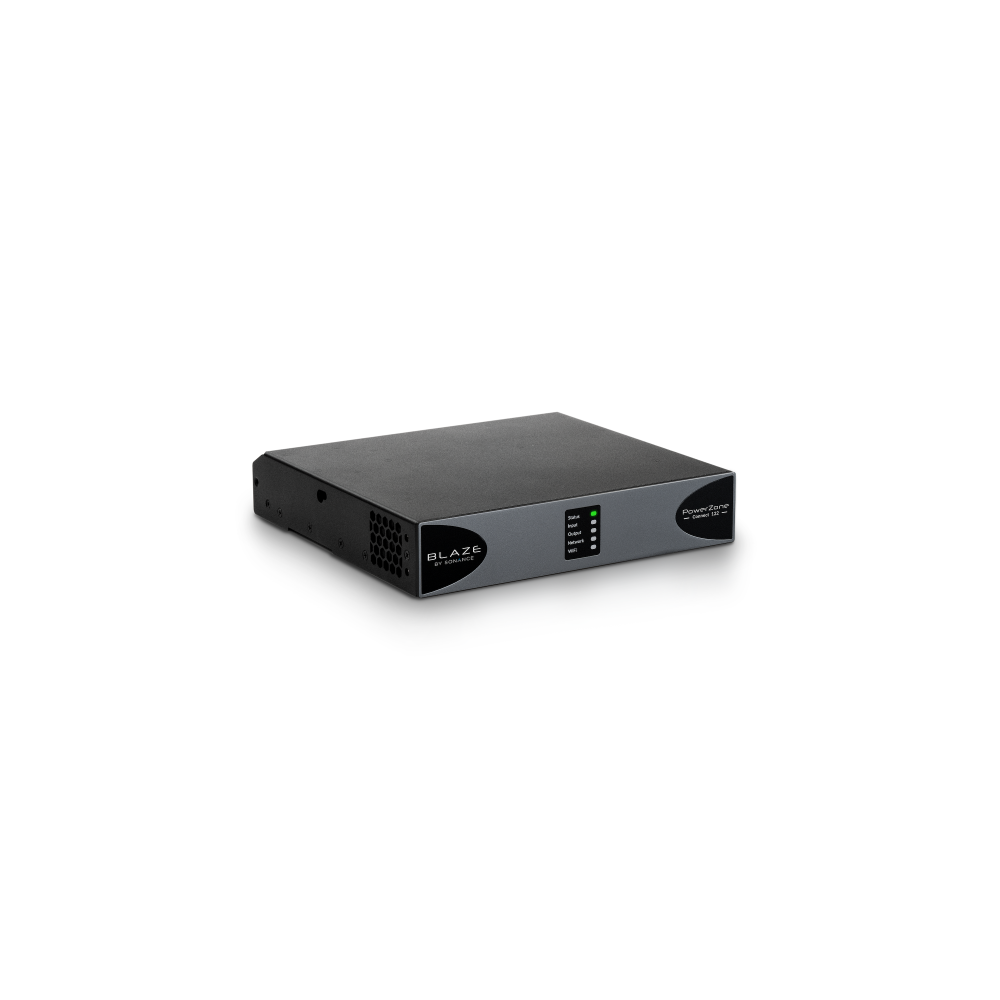

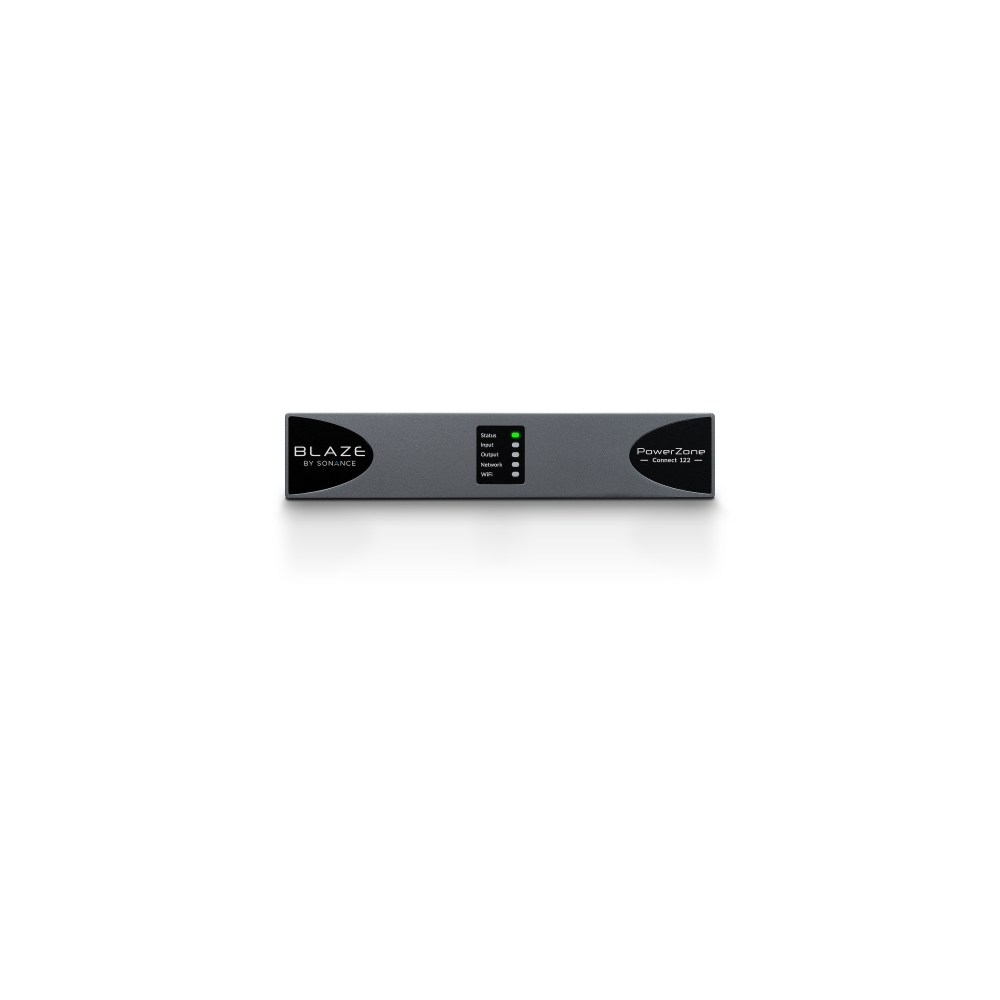

PowerZone Connect 122
PowerZone Connect 122
Blaze Amplifiers
125 W DSP-enabled Class-D amplifier with 2 channels
Key Features
- Ultra-compact half rack form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color

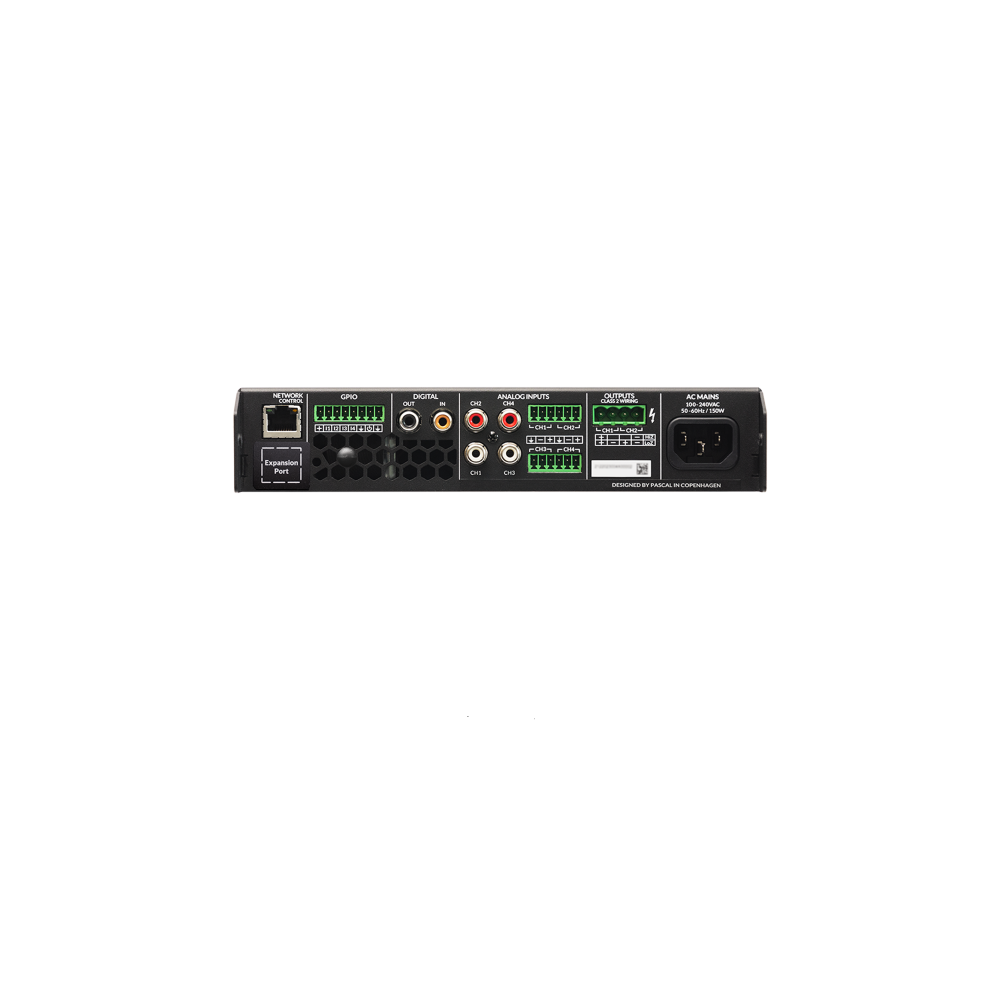

UBX-888-008 (PowerZone Connect 122), UBX-888-004 (PowerZone Connect 122 (UNI)), UBX-888-034 (PowerZone Connect 122 JPN)
Dimensions (WxHxD)
8.7" x 1.7" x 8.4" (220.98mm x 43.18mm x 213.36mm)
Weight
4.41 lbs. (2.0kg)
Channel Configuration
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
Total System Power
125 W
Output Power @ 4 ohms
2 x 60 W
Output Power @ 8 ohms
2 x 60 W
Output Power @ 70V
1 x 125 W
Output Power @ 100V
1 x 125 W
Powersharing
<= 1 X 125 W
Power Consumption
75 W
Dante Compatibility
No
