Invisible Series
Ci Series Loudspeakers

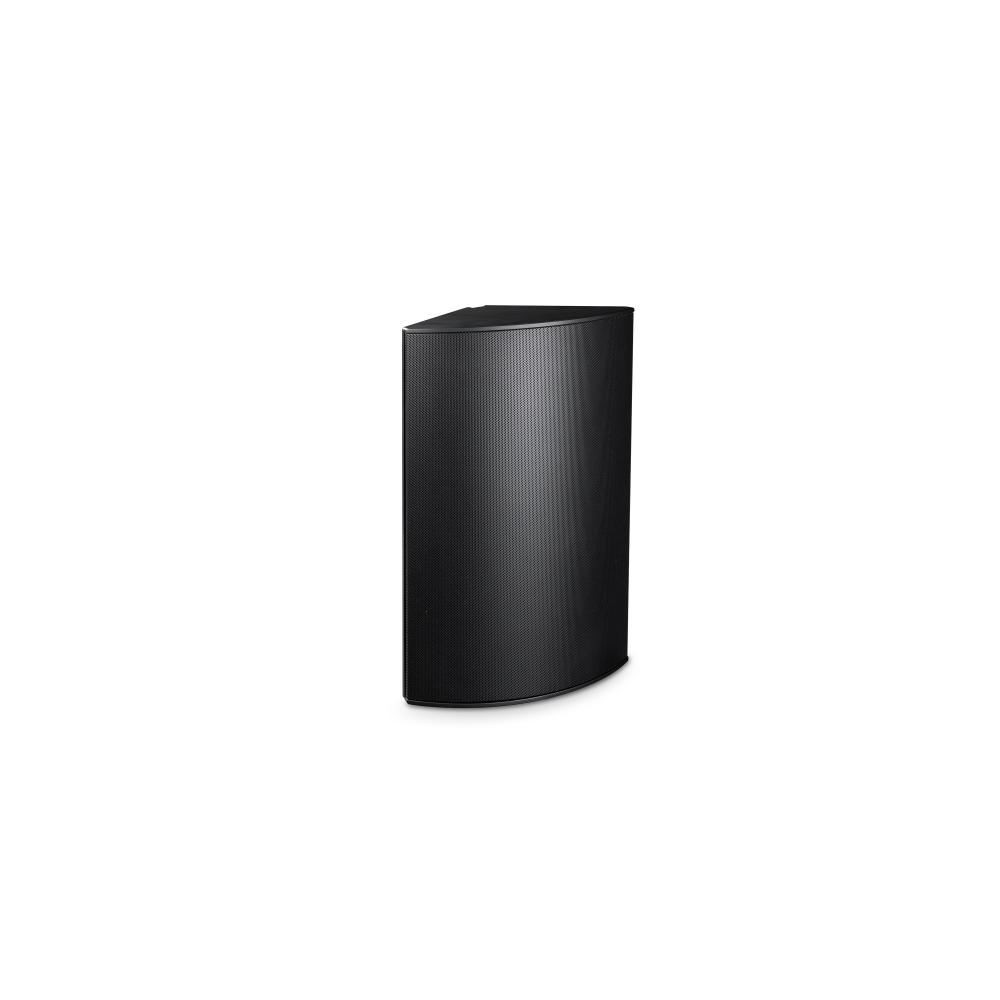

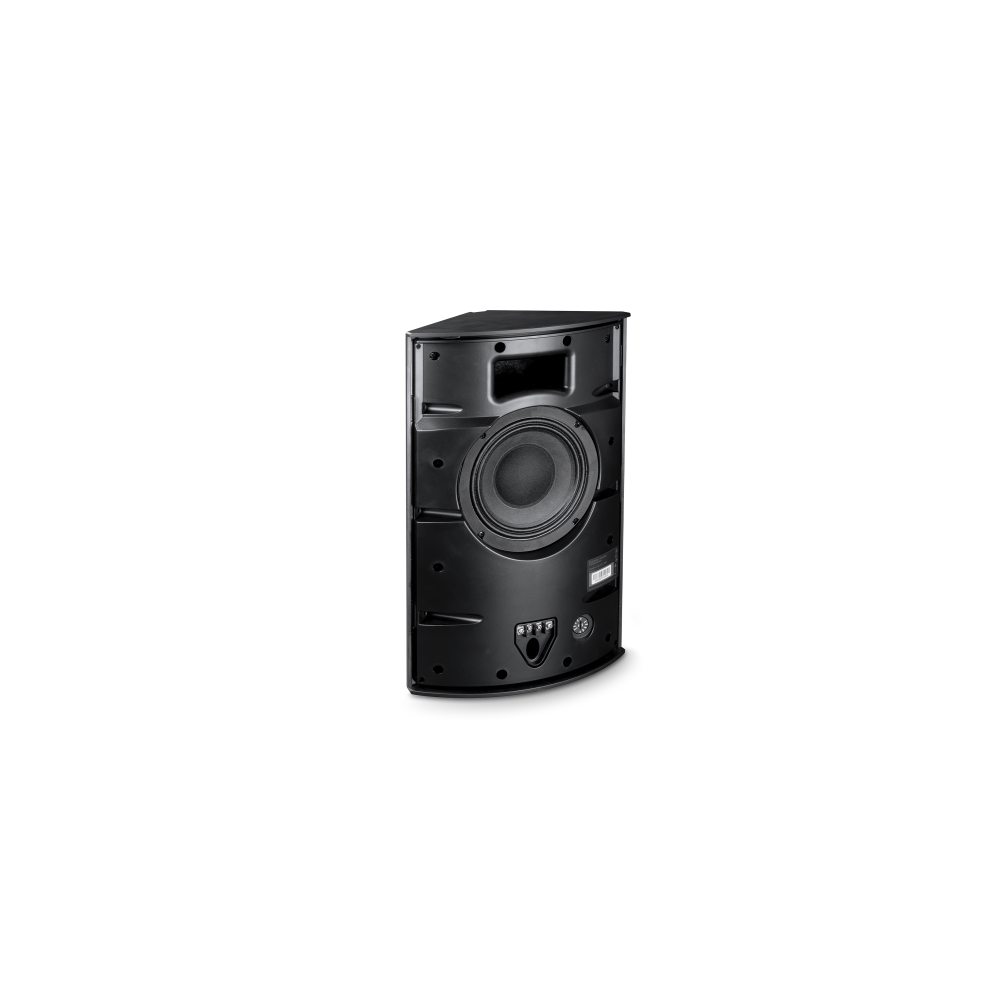

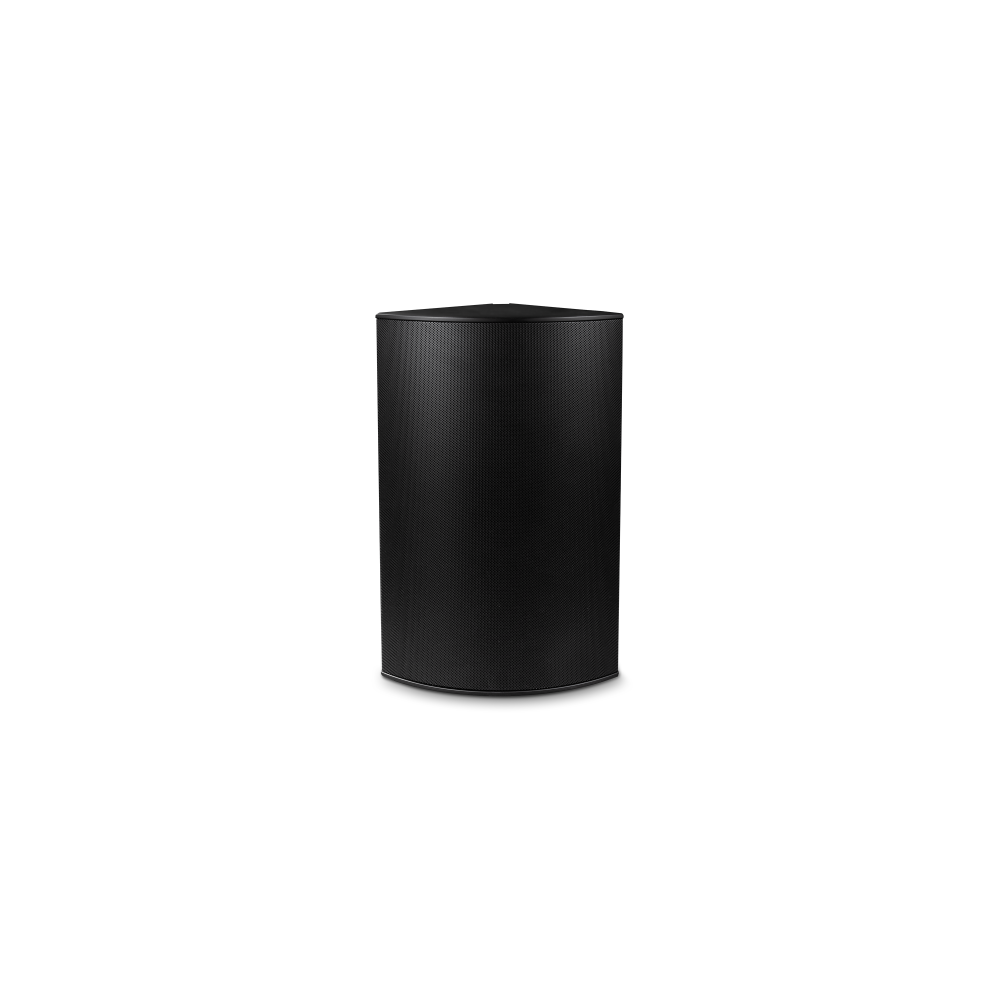

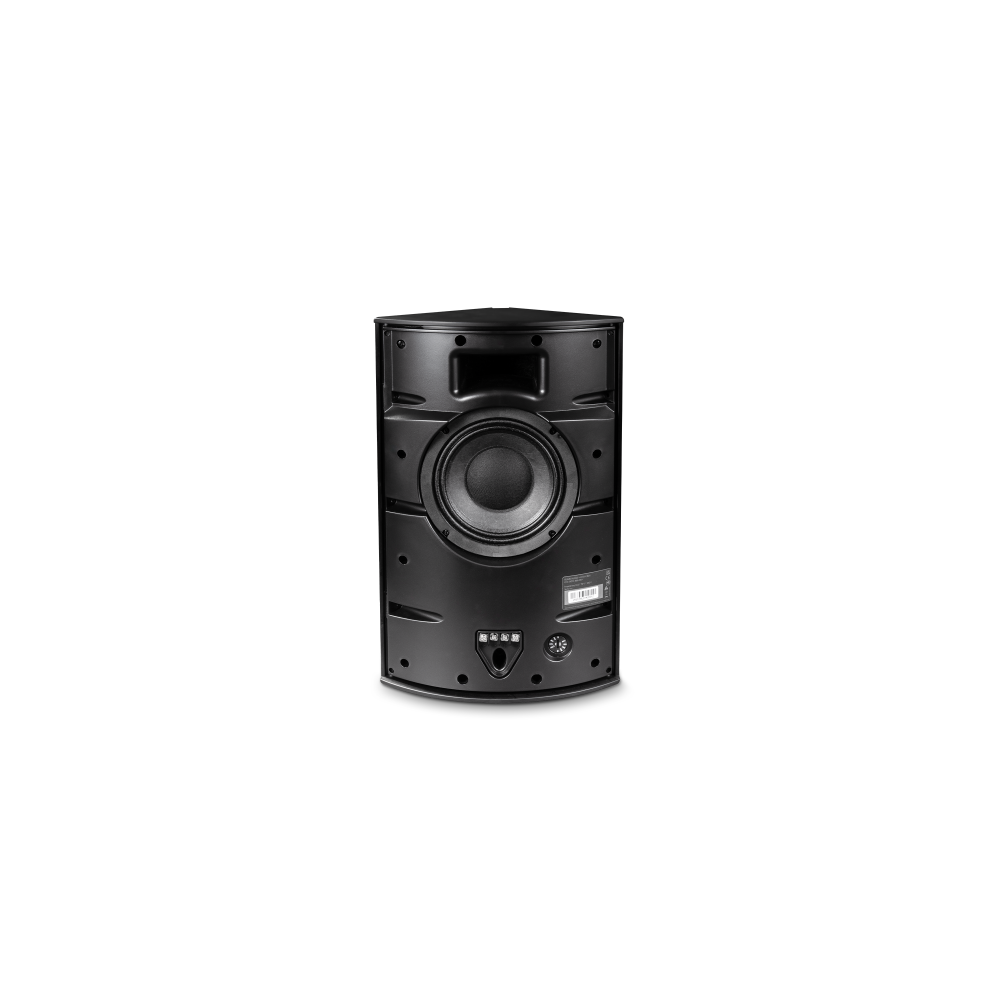

CiX6-V
CiX6-V
Blaze Speakers
6.5" passive, coaxial, full-range loudspeaker w/ switchable high-impedance mode
Key Features
- Coaxial design. 6 1/2" woofer. 1" compression driver. Tuned bass port. Switchable 70/100 V / 8 Ω mode.
- IP55 rated. Triangular ABS cabinet. Metal grille. Mounts with included slider brackets or direct to wall. Hidden cable connection
- Screw terminals.
- Placement: Indoors or outdoors, walls/ceilings.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Available in black or white.
Specifications
SKU | Color
BGM-888-019 (Black), BGM-888-020 (White)
HF Driver
1" compression driver
LF Driver
Coaxial design 6.5" woofer
Frequency Response (+/- 10db)
65 - 20 Hz
Sensitivity
92dB
Recommended Power Range
100 - 200 W / 8ohms x 70v x 100v
Enclosure
ABS
Dimensions (WxHxD)
10.51" x 16.54" x 7.48" (266.95mm x 420.12mm x 189.99mm)
Weight
11.7 lbs. (5.31kg)
Grille
Perforated Steel
Suspension Points
Indoors or outdoors, walls/ceilings incl. corners.
Coverage (-6dB)
100° vertical / 100° horizontal
Maximum SPL (Peak)
120 dB
Horizontal Nominal Dispersion (-6 dB)
100 Degrees
