Invisible Series

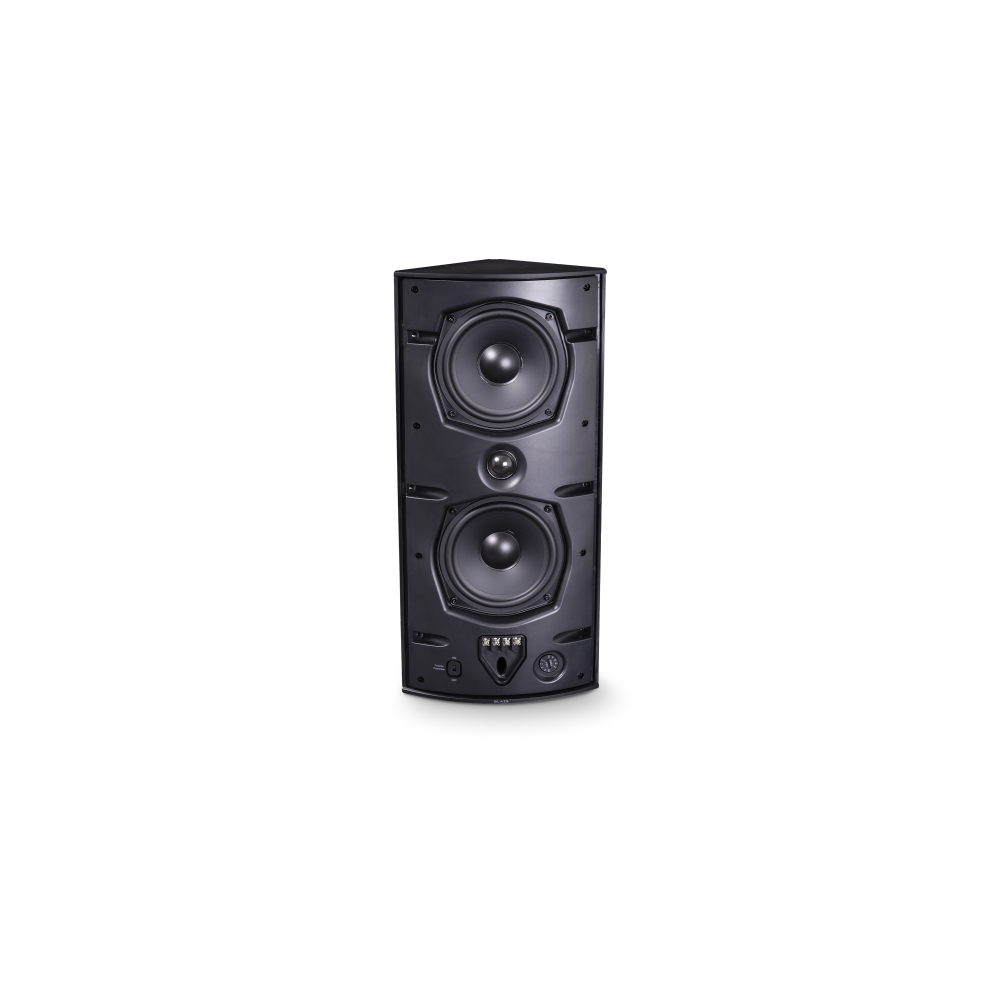

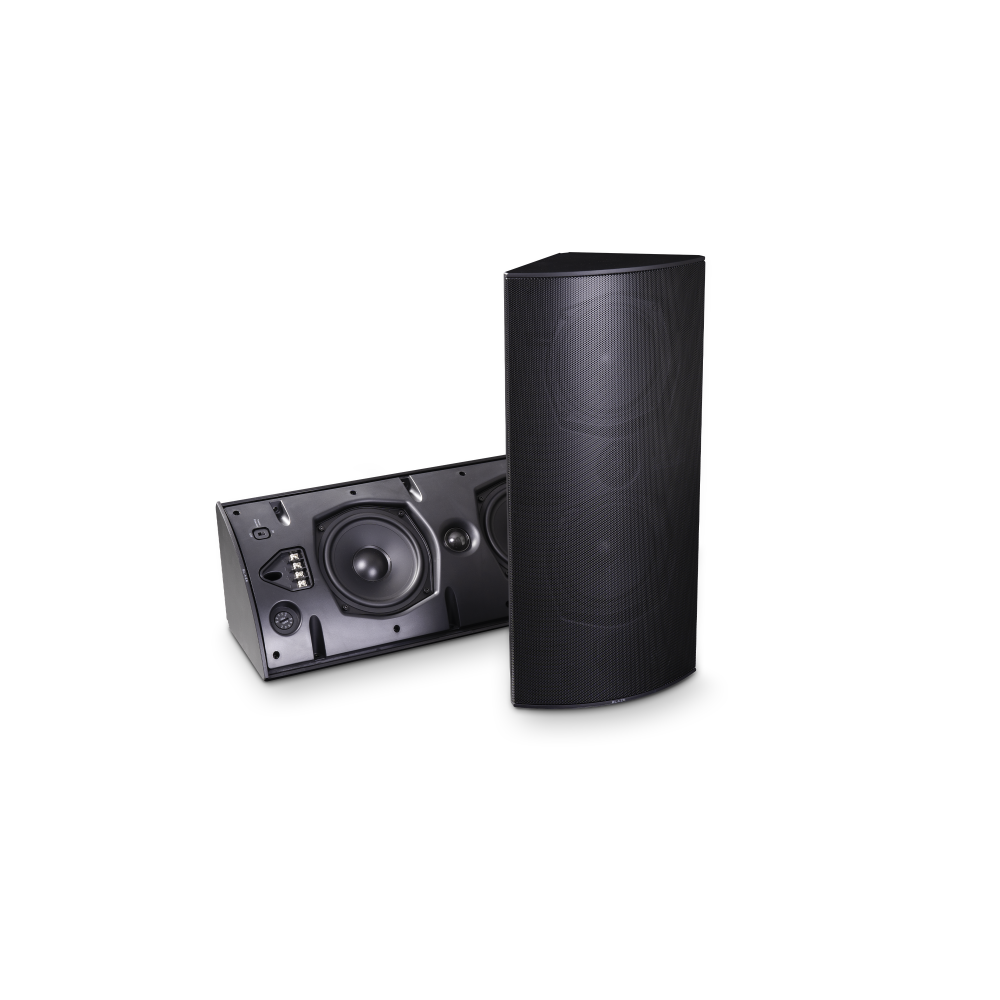

Ci5V
Blaze Speakers
5.25" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode
Key Features
- 5 1/4" woofer + 5 1/4" passive radiator. 1" silk dome tweeter. Switchable 100/70V mode/8 Ω mode. IP65 rated. Switchable limiting circuit for tweeter.
- Triangular ABS cabinet. Metal grille. Mounts without brackets or with hidden sliders. Hidden cable connection. Screw terminals.
- Couples together for 180°, 270° or 360° coverage.
- Placement: Indoors or outdoors, walls/ceilings including corners or hanging from the ceiling.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Available in black or white.
Specifications
SKU | Color
BGM-888-013 (Black), BGM-888-014 (White)
HF Driver
1" silk dome tweeter
LF Driver
5 1/4" woofer + 5 1/4" passive radiator
Frequency Response (+/- 10db)
55 - 20 Hz
Sensitivity
88dB
Recommended Power Range
45 - 90 W / 8ohms x 70v x 100v
Enclosure
ABS
Dimensions (WxHxD)
8.23" x 17.72" x 5.91" (209.04mm x 450.09mm x 150.11mm)
Weight
6.28 lbs. (2.85kg)
Grille
Perforated Steel
Suspension Points
Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling, coupled.
Coverage (-6dB)
100 Degrees vertical / 100 Degrees horizontal
Maximum SPL (Peak)
113 dB
Horizontal Nominal Dispersion (-6 dB)
100 Degrees
