QX Series In-Wall Subwoofers

In-Wall Models

QX Subwoofers
QX Subwoofers

QX In-Wall subwoofers provide powerful bass in a compact, in-wall form. Available in single or dual 10" models while blending seamlessly behind displays or into walls with minimal visual impact ideal for space-conscious installs without compromising performance. Flush-mount and marine-ready options available.

Key Features

  • Border-less aluminum grilles with less than 3/16” (5mm) micro trim
  • Grilles attach via grille cups for simple, quick installation
  • Shallow Depth Construction
  • Aircraft Grade Aluminum
  • Marine Outdoor Configurable; Must Specify When Ordering
  • TAA Compliant

QX Series

In-Wall Models

Compare Models

SKU | Color
Frequency Response
(+/- 3db)
Sensitivity
Speaker Woofer
Speaker Subwoofer
Dimensions (WxHxD)
QX1020 KIT | QX STYLE DUAL 10" FORWARD FIRING IN-WALL SPEAKER (2X4 CONSTRUCTION) QX830 KIT | 3-WAY DUAL 8", QUAD TWEETER ARRAY, LCR IN-WALL SPEAKER

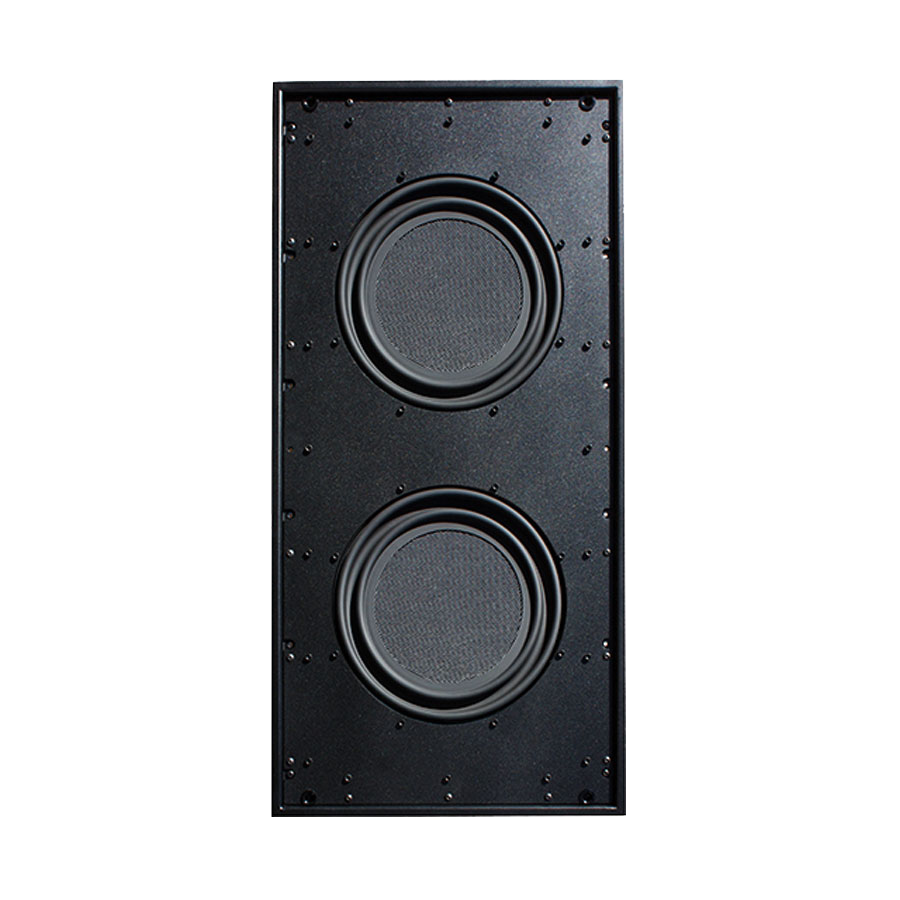

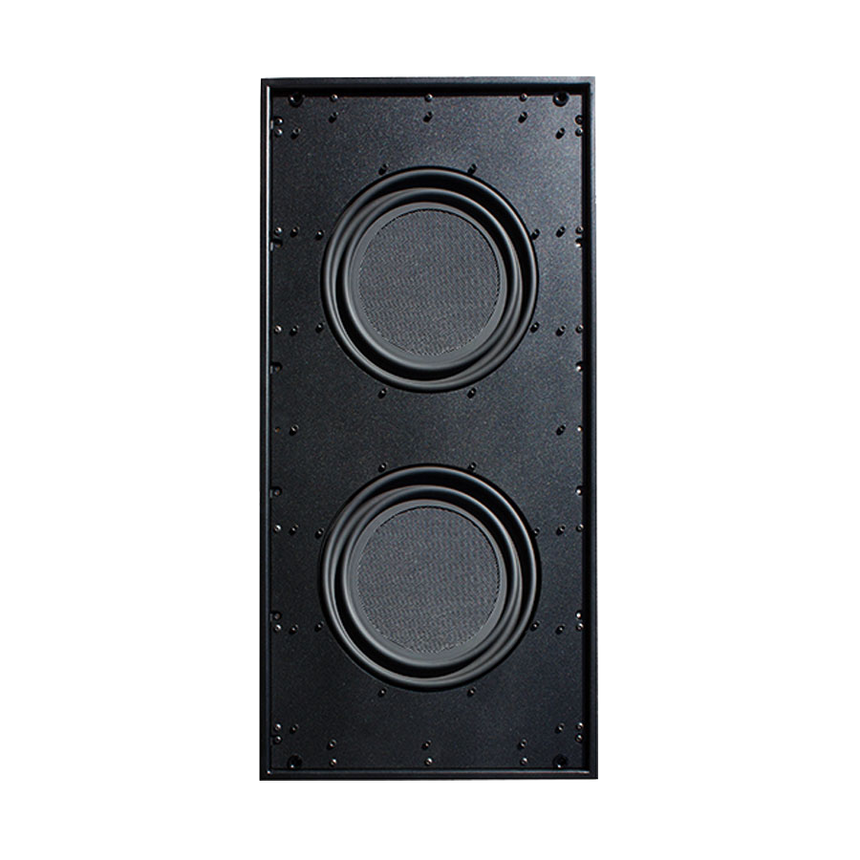

QX1020
10" Dual Shallow Depth James In-Wall Loudspeaker
QX1020
22Hz - 140Hz
90dB (2.83V/1m)
(2) 10" (254mm) Active/Passive Laminated Aluminum Honeycomb
14.32" x 28.46" x 4.13" (363.73mm x 722.88mm x 104.78mm)
QX1010 KIT | QX STYLE 10" FORWARD FIRING IN-WALL SPEAKER (2 X 4 CONSTRUCTION) QX830 KIT | 3-WAY DUAL 8", QUAD TWEETER ARRAY, LCR IN-WALL SPEAKER
QX1010
10" Shallow Depth James In-Wall Loudspeaker
QX1010
27Hz - 140Hz
88dB (2.83V/1m)
(1) 10" (254mm) Laminated Aluminum Honeycomb
14.32" x 20.32" x 4.13" (363.73mm x 516.13mm x 104.78mm)
